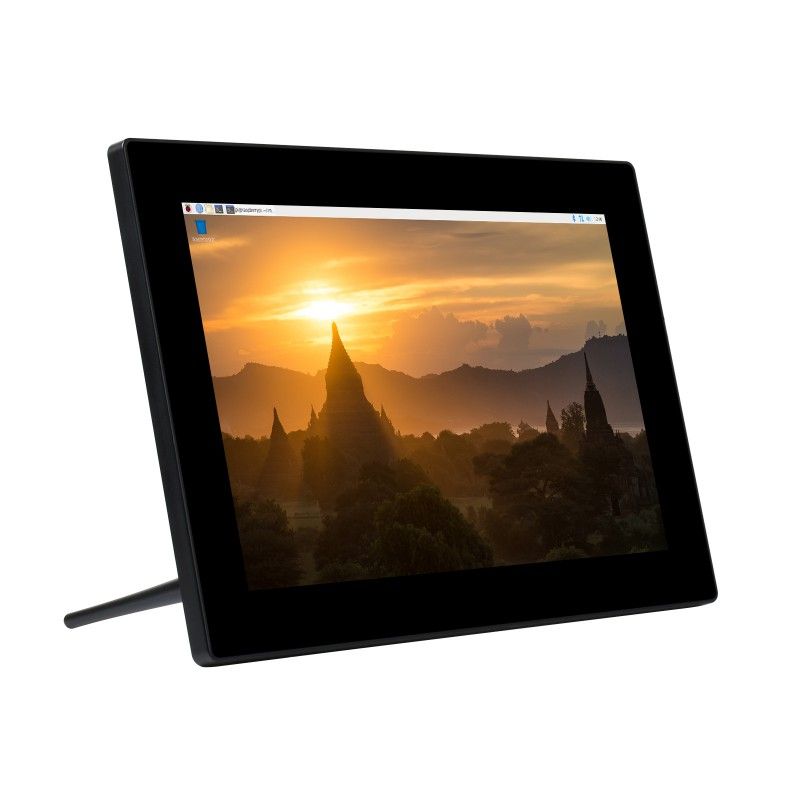

10.1inch LCD 1920x1200 HDMI Capacitive Touch Screen Monitor (21021)

The 10.1inch LCD 1920x1200 HDMI Capacitive Touch Screen Monitor (21021 ) is a complete output device for various microcomputers (Raspberry Pi/Jetson Nano/PC) and game consoles. The display is equipped with a plastic protective case, built-in brightness and contrast control, and sound. The case has a stand bracket for mounting on horizontal surfaces and mounting holes on the back for mounting on walls and vertical surfaces.

Key Specifications:

• Screen diagonal: 10.1"
• Resolution: 1920x1200 pixels
• Display port: HDMI
• Matrix type: IPS
• Viewing angle: 160 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Number of control points: up to 10 points
• Sensor port: USB
• Body: ABS plastic
• Audio output: 3.5mm jack
• Built-in speakers: HiFi
• Built-in controls: brightness, contrast

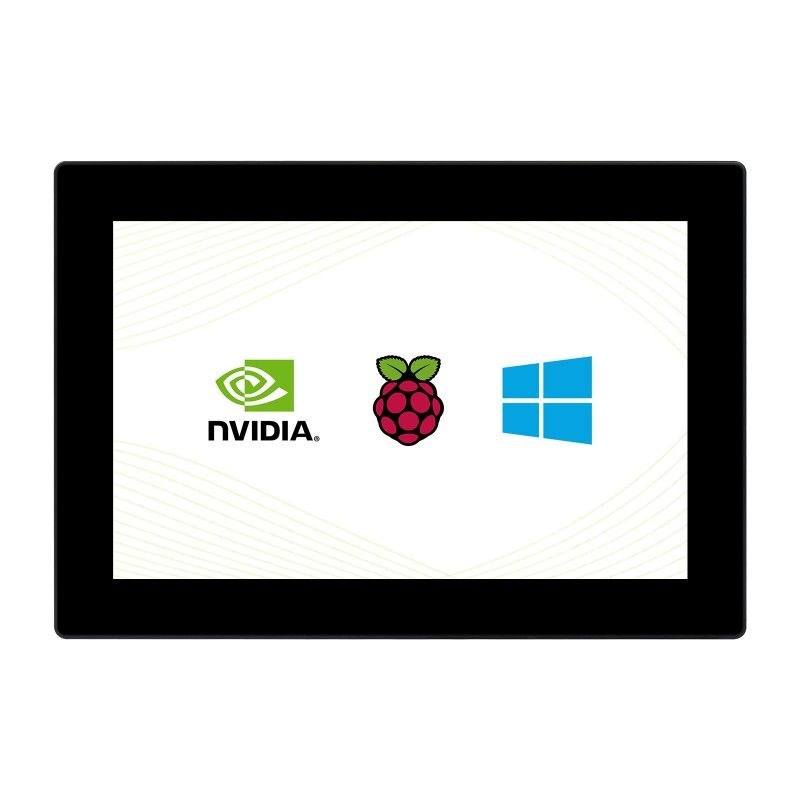

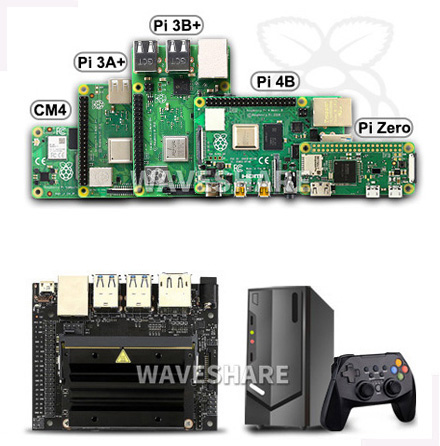

Supported devices and systems

Raspberry Pi
Supports Raspbian, 10 touch points, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver
Supports Retropie without drivers

Supports ALL versions of Raspberry Pi.

Jetson Nano

Supports Ubuntu, 1-touch, no driver required

PC
Supports Windows 11/10/8.1/8/7, 10 touch points, no drivers required

Game consoles (display and sound only)

Xbox360, PS4, Switch...

Connection example:

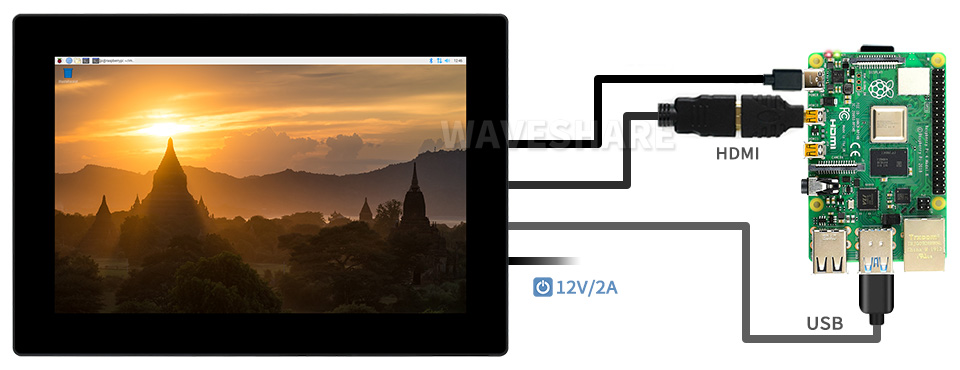

Working with Raspberry Pi 4 (allows you to power the Pi via the USB output on the LCD)

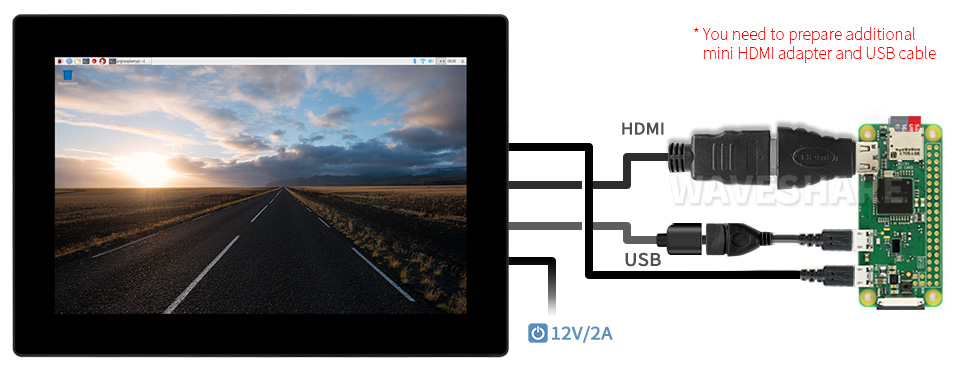

Working with Raspberry Pi Zero W (allows you to power the Pi via the USB output on the LCD display)

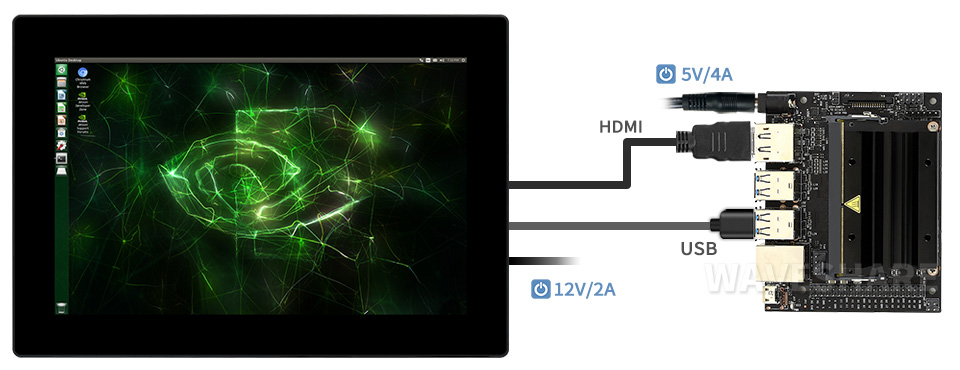

Working with Jetson Nano

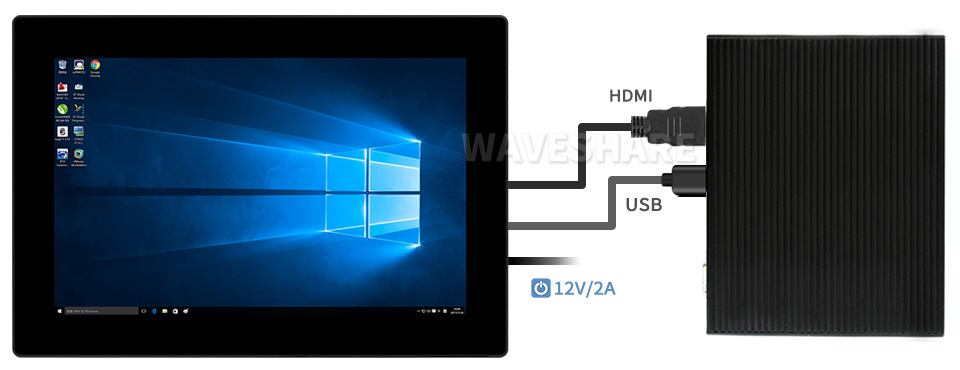

Work with Mini PC

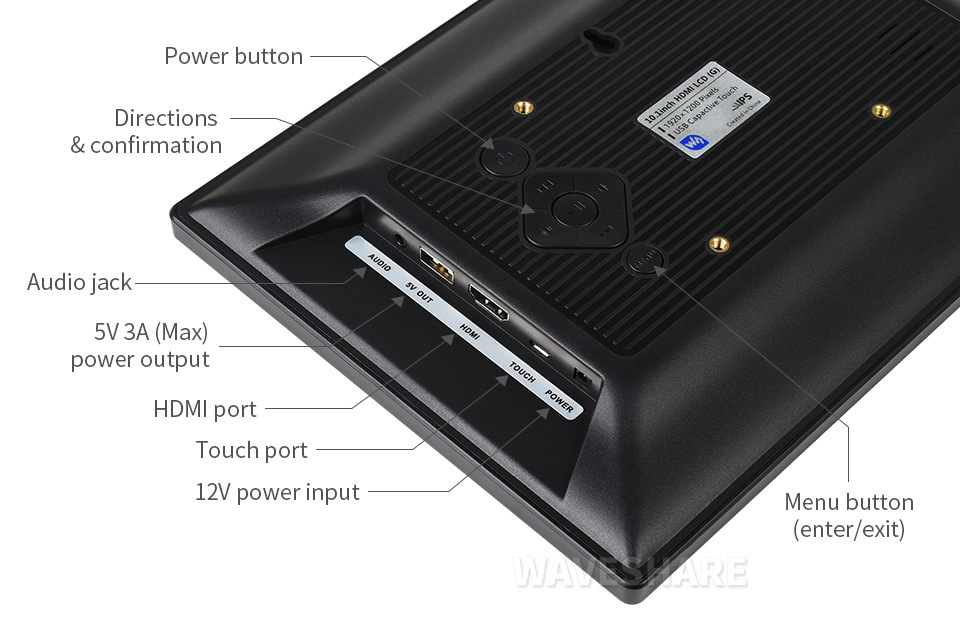

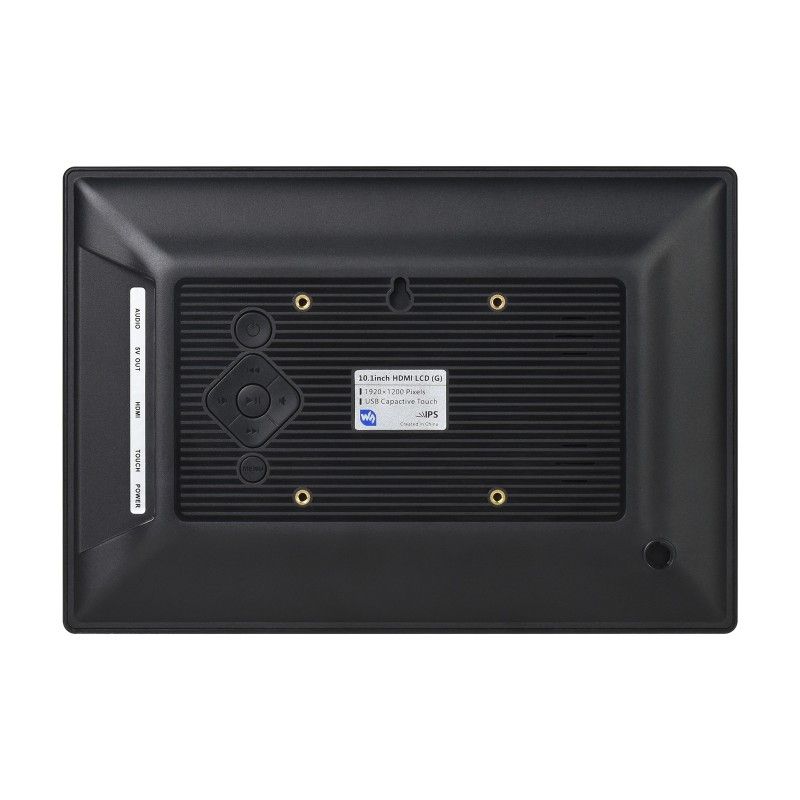

Device interfaces:

Power button - power switch

Directions & confirmation - Setting the screen orientation

Menu button (enter/exit ) - menu button

Audio jack - audio output

Touch Port - sensor port

5V 3A (Max) Power Input - 5V power input

12V Power Input - 12V power input

HDMI Port - HDMI port

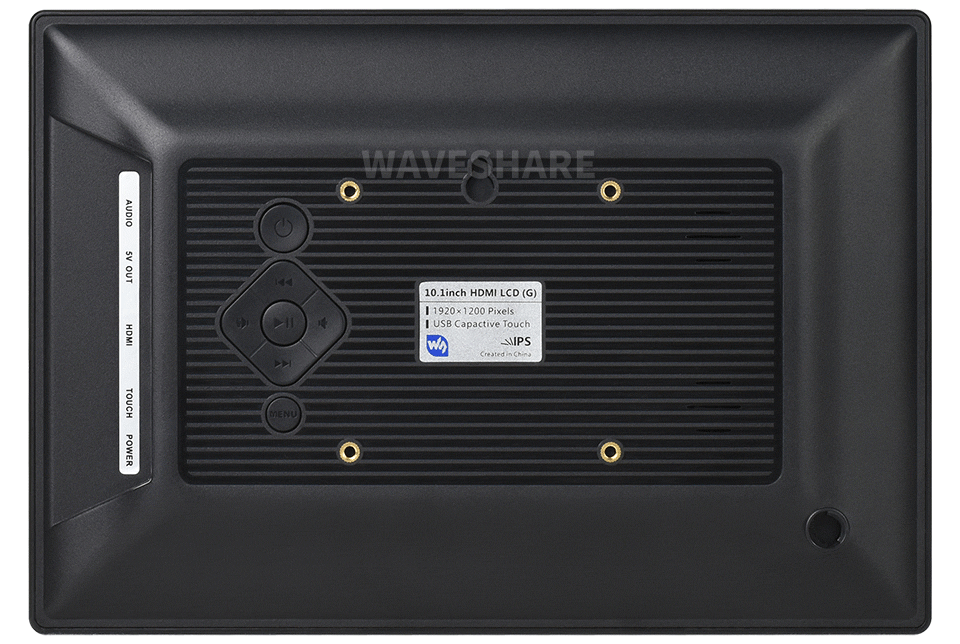

Built-in two-channel ferrite Hi-Fi speaker

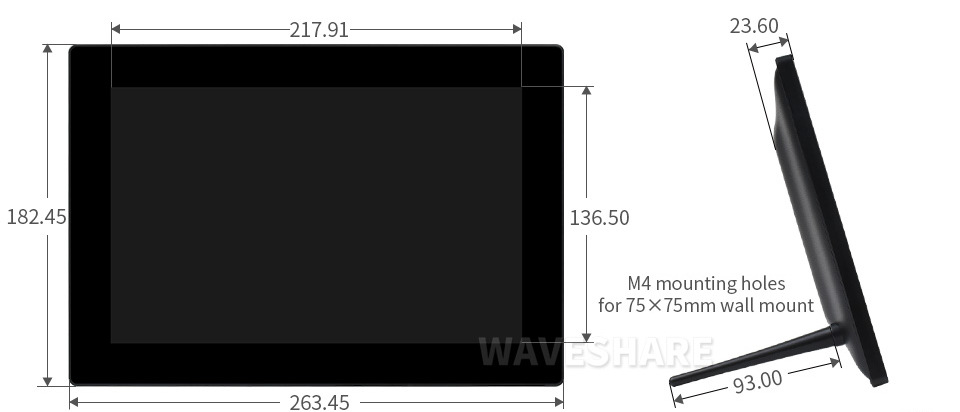

Overall dimensions: 182.45mm x 263.45mm x 23.6mm

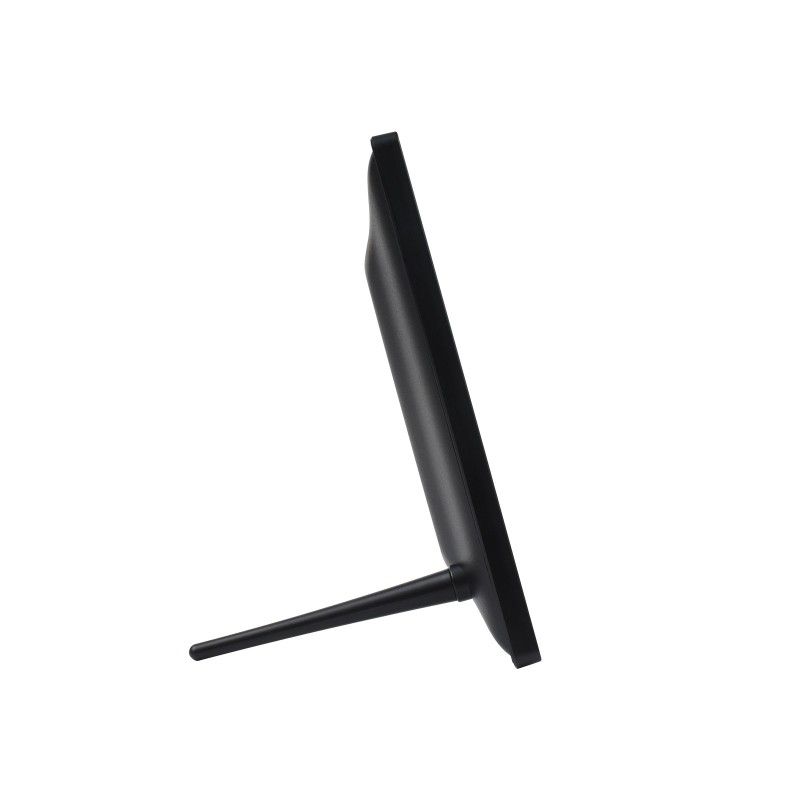

The display is equipped with 1 stand bracket that holds the screen.

On the back there are mounting holes for Raspberry Pi A+/B+/2B/3B/3a+/3B+/4B boards

Information for developers (Wiki): www.waveshare.com/wiki/10.1inch_HDMI_LCD_(G)_(with_case)

Package contents:

1. 10.1inch HDMI LCD (G) display in a frame x1
2. 12V power supply x1
3. HDMI cable x1
4. HDMI to Micro HDMI adapter x1
5. USB-A to Micro-B cable x1
6. Stand x1
7. Quick start guide x1

1. 2. 3. 4. 5. 6. 7.

Weight: 0.824 kg
