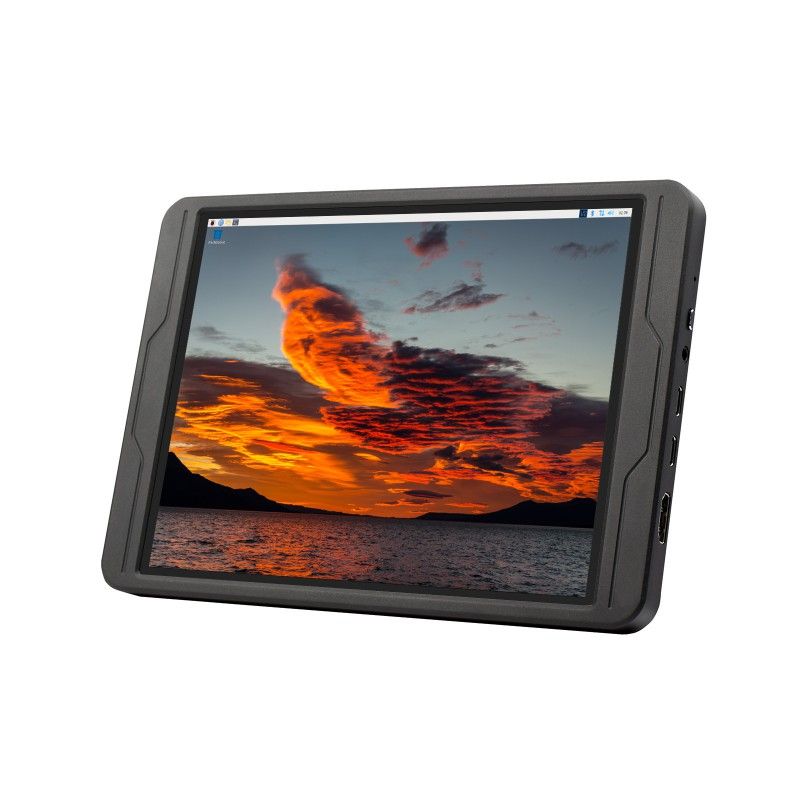

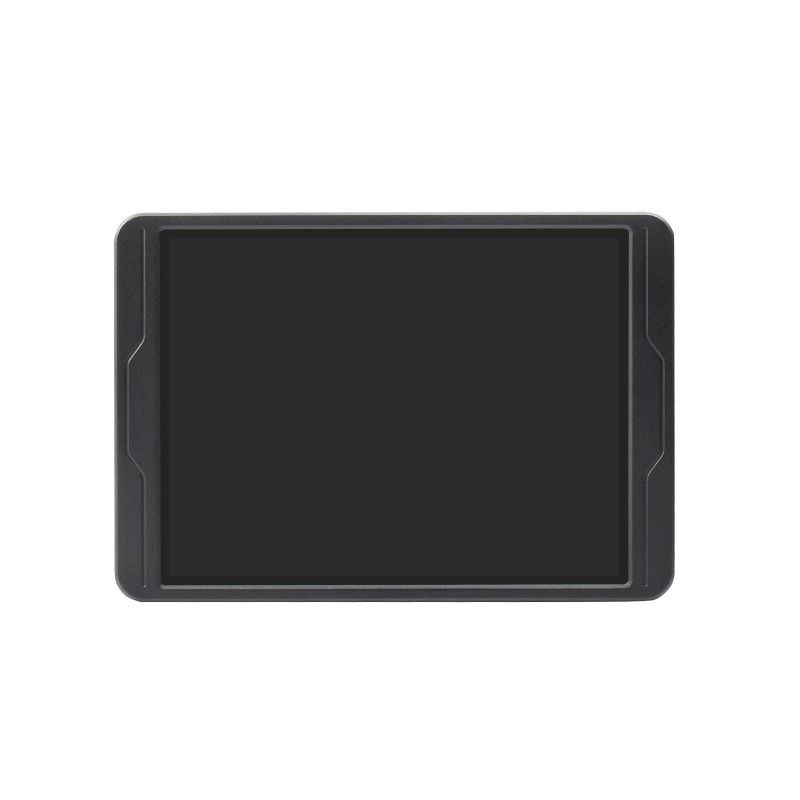

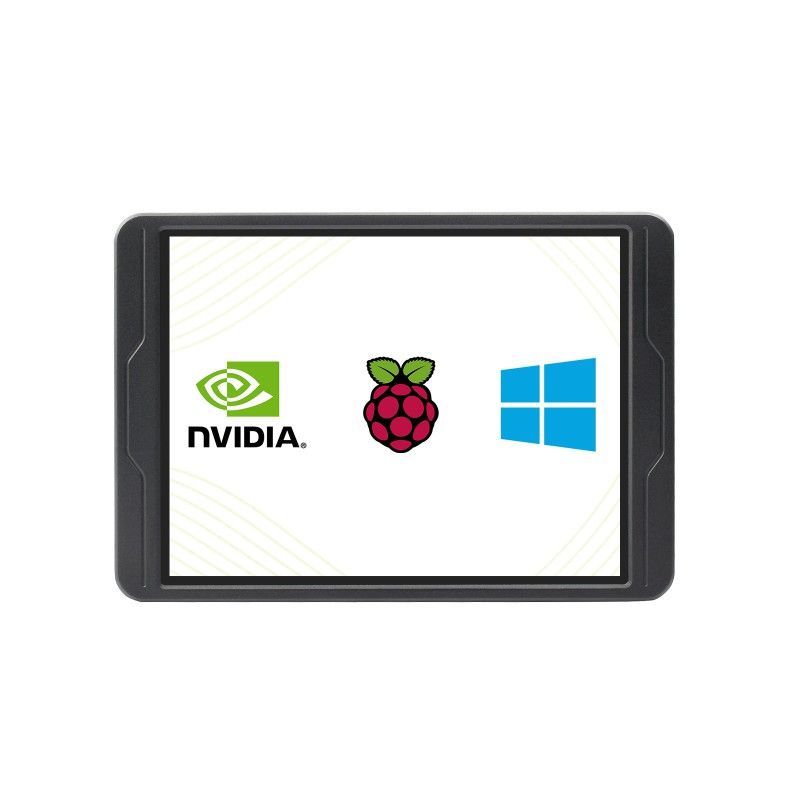

8inch LCD 1536x2048 HDMI Capacitive Touch Screen Monitor (23939)

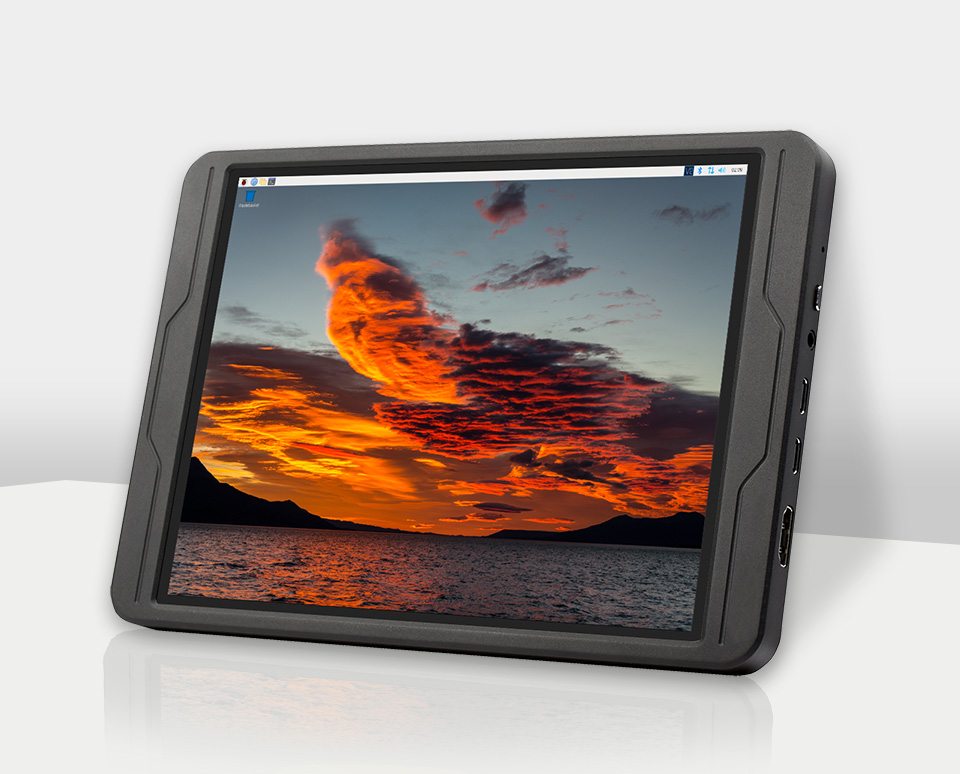

The 8inch LCD 1536x2048 HDMI Capacitive Touch Screen Monitor (23939 ) is an 8-inch 2K capacitivetouchscreen display that features a tempered glass optical panel, 1536×2048 pixel resolution, IPS matrix, and is equipped with multiple interfaces for high compatibility.

Main features:

• Screen diagonal: 8"
• Resolution: 1536×2048 pixels
• Port: HDMI
• Display: IPS
• Viewing angle: 178 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Number of control points: up to 10 points
• Sensor port: USB-C
• Audio output: 3.5mm Jack
• Built-in Hi-Fi sound speakers
• Protective insert made of polycarbonate

Attention: the default display orientation is portrait, resolution is 1536×2048. Change the software configuration for horizontal display.

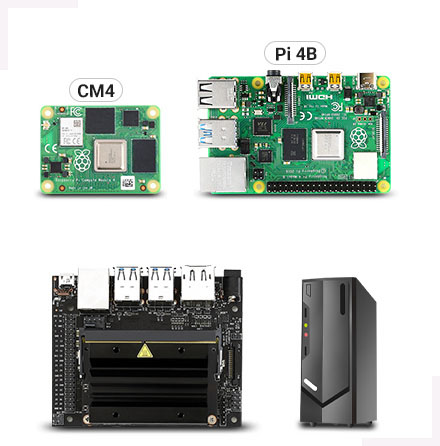

Supported devices and systems

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch screen, no drivers
Supports Ubuntu/Kali, single point touch, no drivers
Note: Currently, only the Raspberry Pi 4B and CM4 have sufficient CPU performance to fully drive this 2K display. Support more powerful future versions if the GPU performance is equivalent or better than the Pi 4B.

Jetson NANO.
One-touch Ubuntu support, no drivers required

PC.
Support Windows 11 / 10 / 8.1 / 8 / 7. 10 touch points, no drivers

An example of connection:

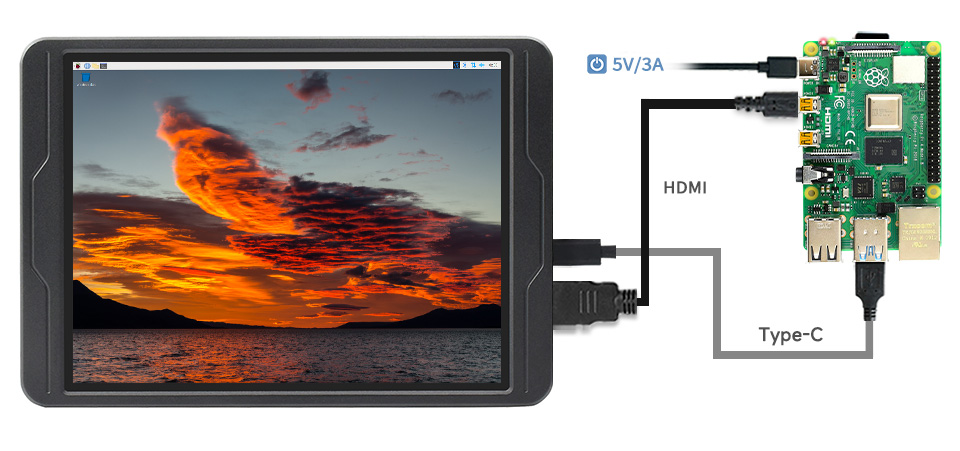

Working with Raspberry Pi 4

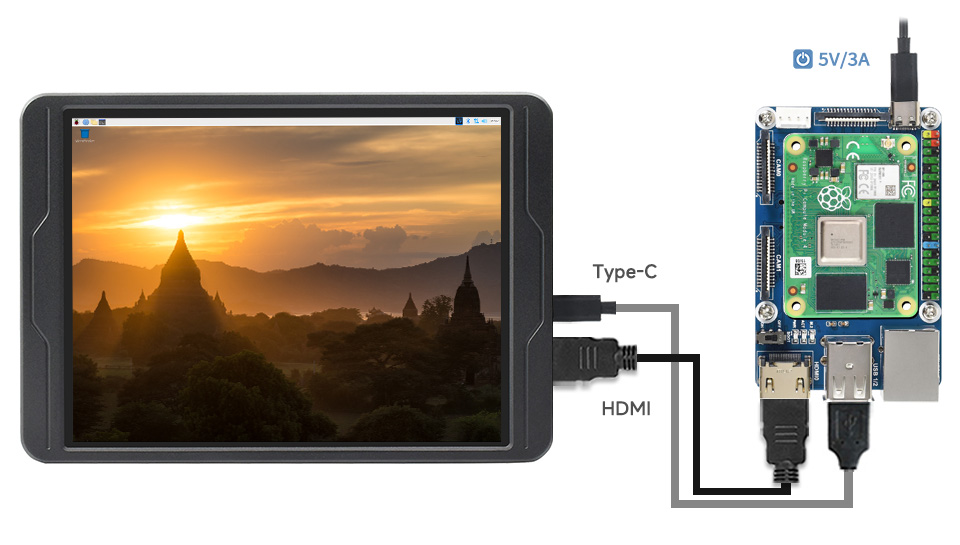

Working with Compute Module 4

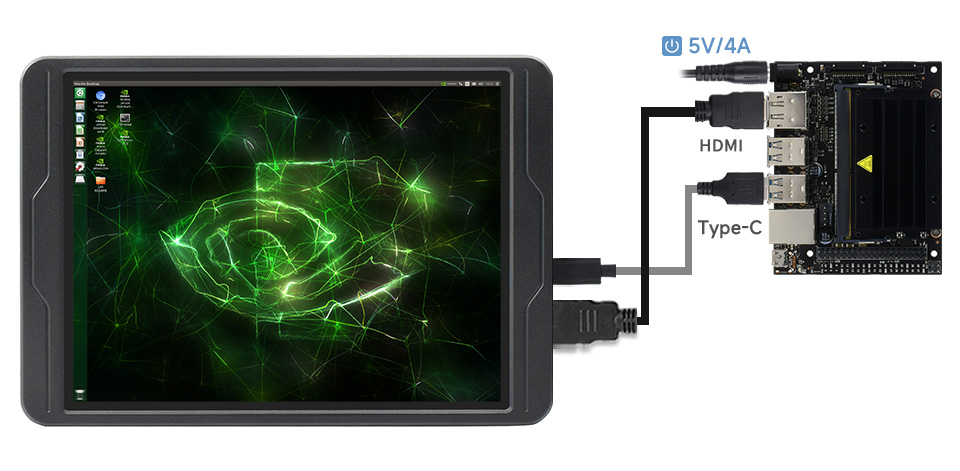

Working with Jetson Nano

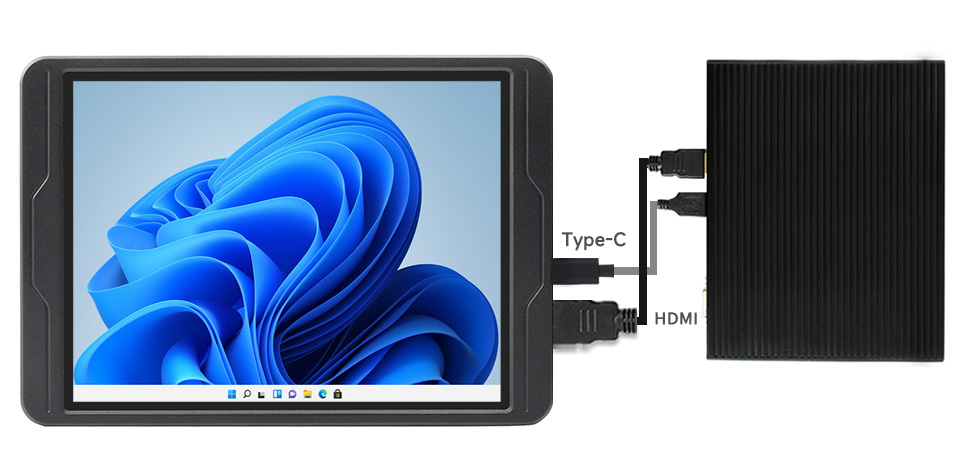

Operation with Mini PC

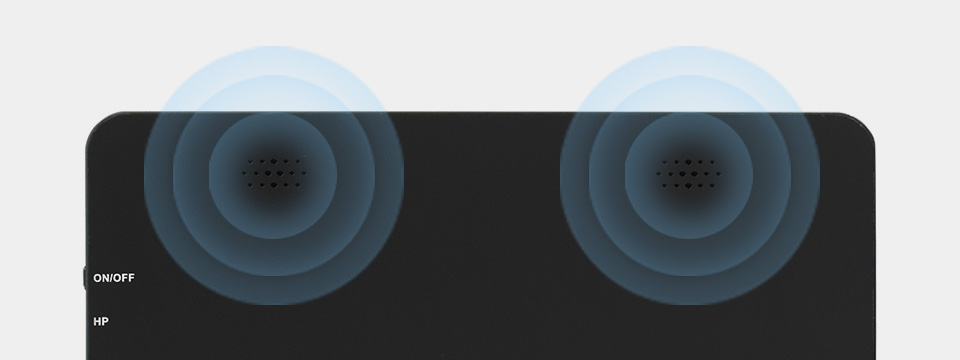

The display has built-in Hi-Fi speakers and supports Dual Track

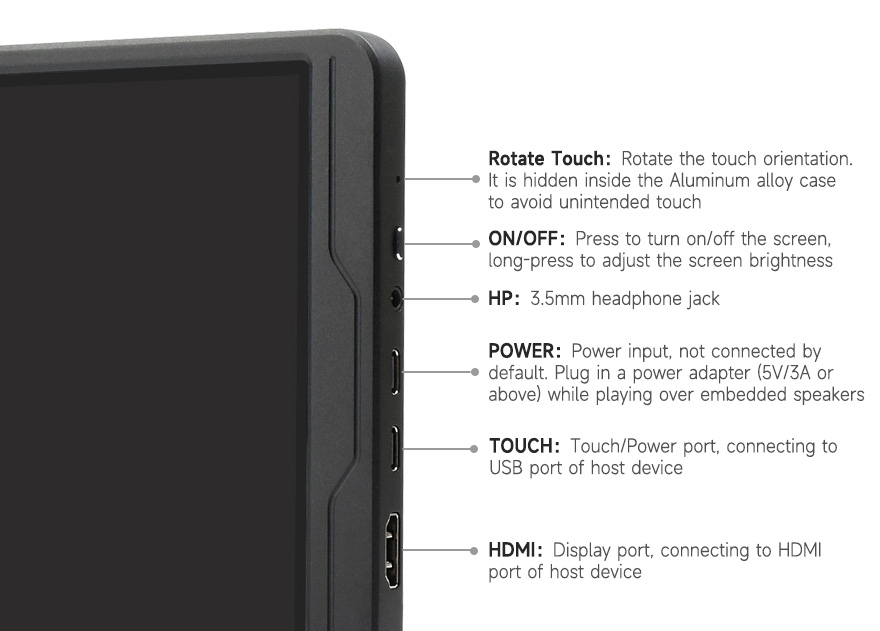

Device interfaces:

Rotate Touch button - to switch the display orientation

ON/OFF button - turns the display on/off

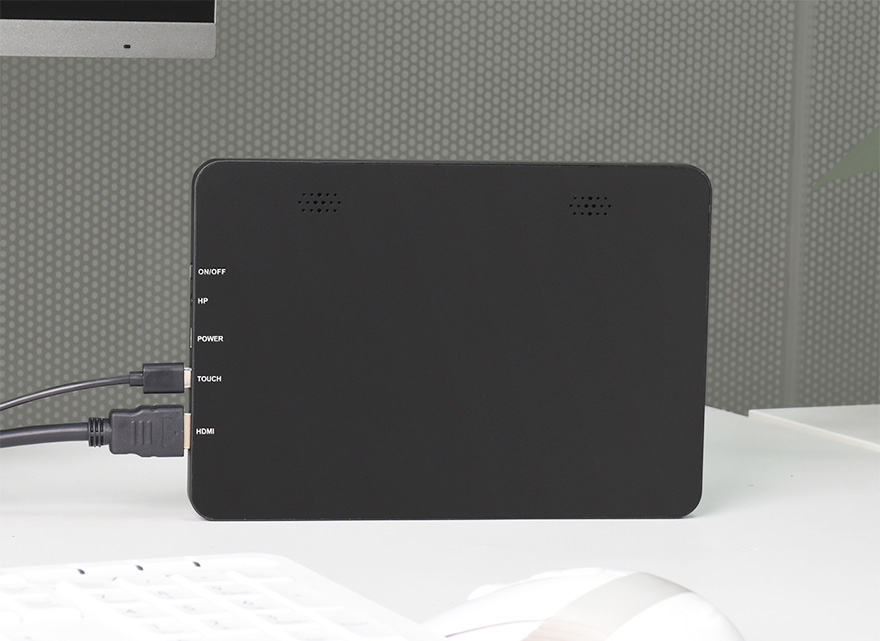

Connectors:

HP - 3.5mm Audio Jack - audio jack

HDMI - HDMI port

Touch - sensor port

Power - power port

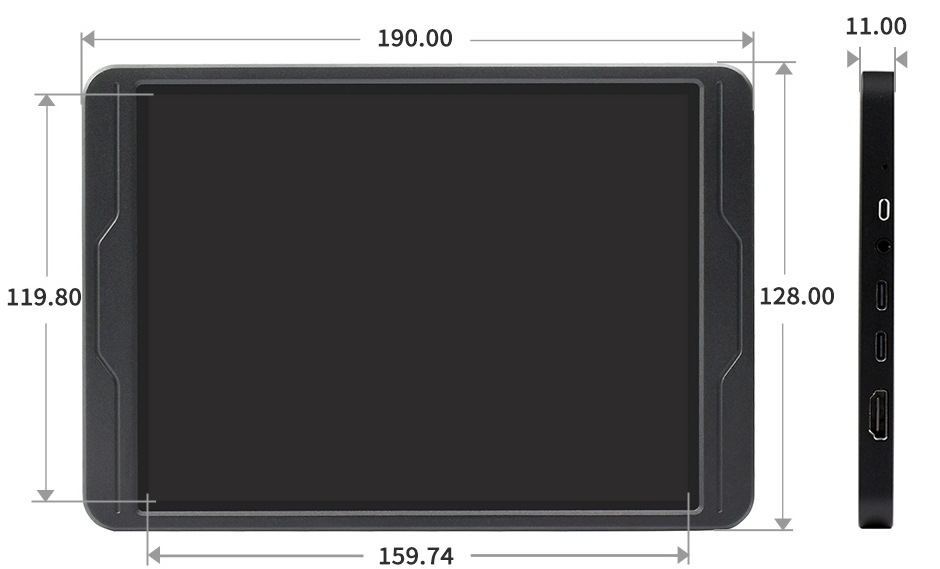

Overall dimensions: 190 x 128 x 11 mm

Information for developers (Wiki): www.waveshare.com/wiki/8inch-1536x2048-LCD

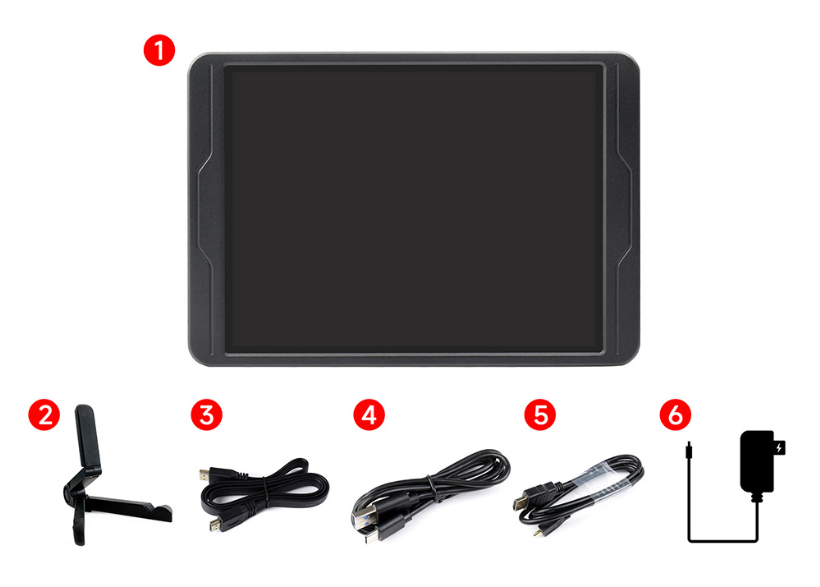

The package includes:

1. 8-inch 1536x2048 LCD ×1
2. Triangular stand ×1
3. Flat HDMI cable 1 m × 1
4. USB-A to USB-C cable 1 m × 1
5. HDMI - Micro HDMI cable 1 m × 1
6. 5V 3A Type-C power supply ×1

Weight: 0.632 kg
