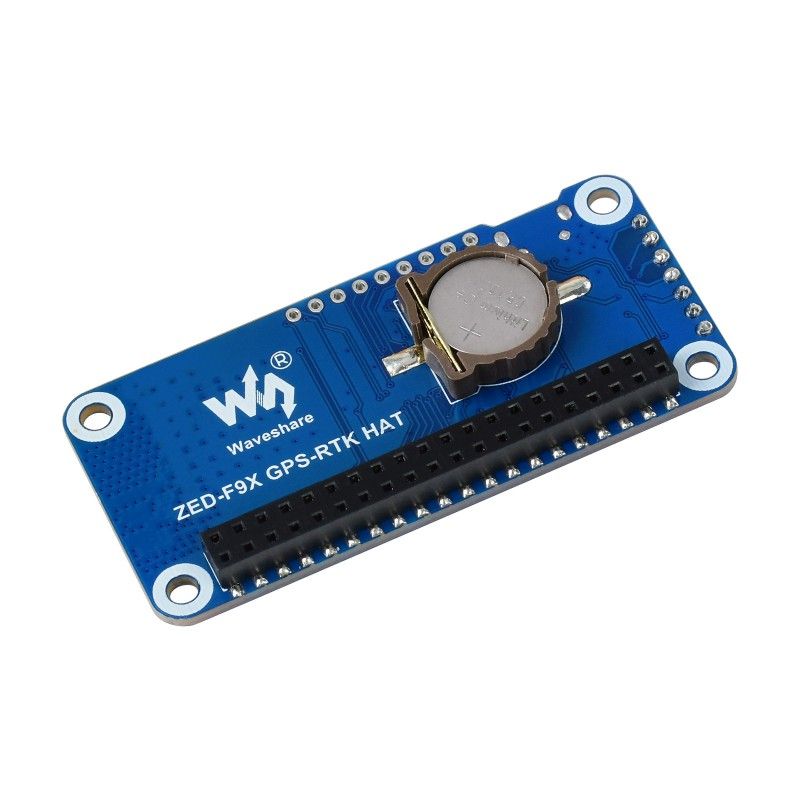

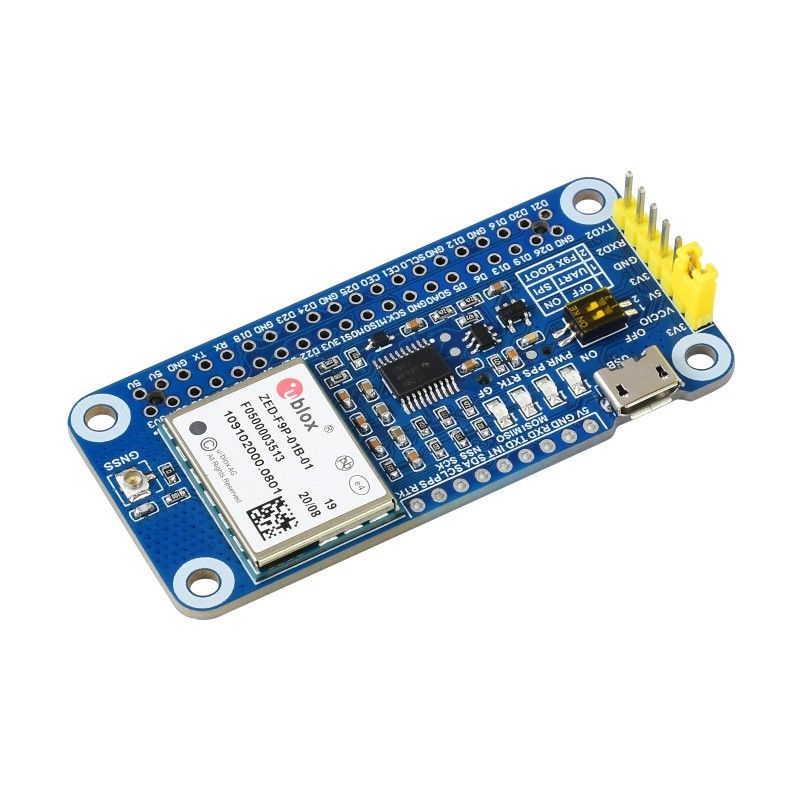

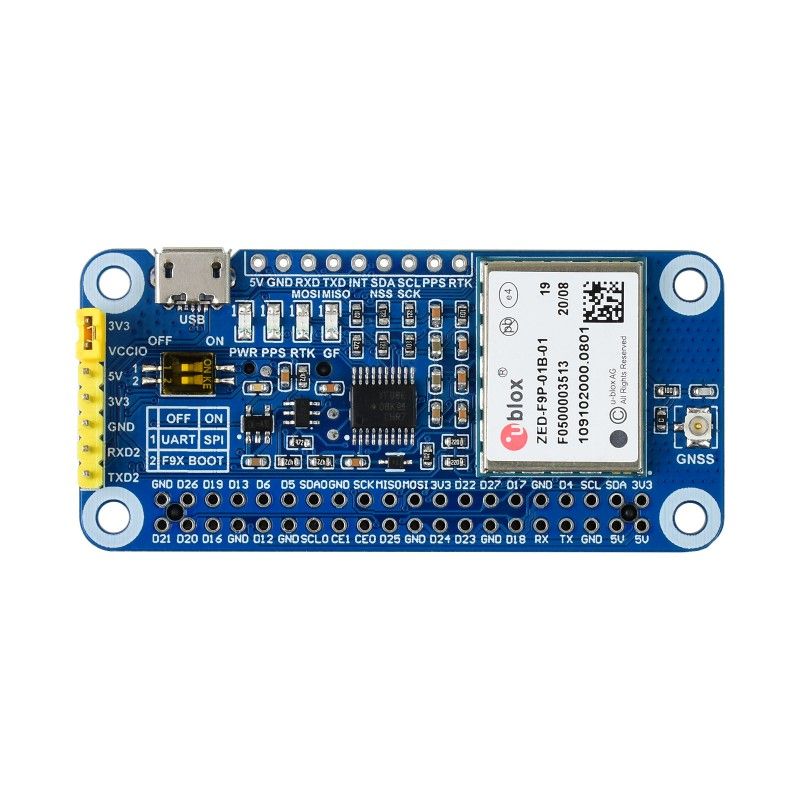

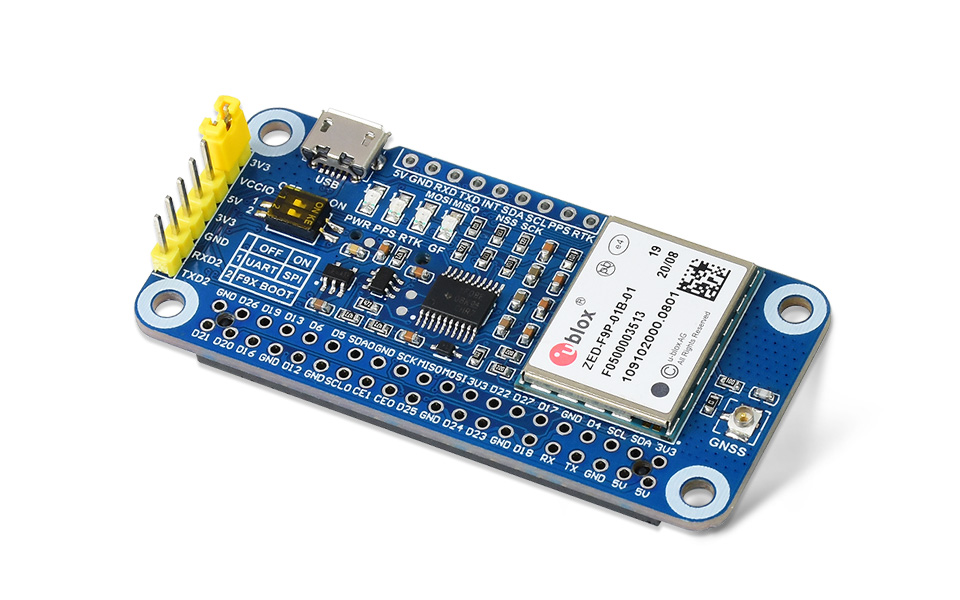

ZED-F9P GPS-RTK HAT expansion board (19884)

TheZED-F9P GPS-RTK HAT (19884 ) is a GPS module with RTK (Real-Time Kinematic) capability for high-precision positioning. This module can achieve centimeter-level measurement accuracy, making it suitable for a variety of applications that require high-precision positioning. It works with different ranges of RTK signals, which ensures reliable and stable operation in different conditions. Multiband RTK is characterized by fast convergence time, high update speed, and support for RTK with a moving base,

This module allows you to receive data from multiple satellite signals simultaneously to achieve the highest measurement accuracy (simultaneous reception of 4 GNSS systems, support for augmented positioning systems, accurate and fast positioning with low drift and outstanding anti-spoofing ability, as well as anti-interference protection).

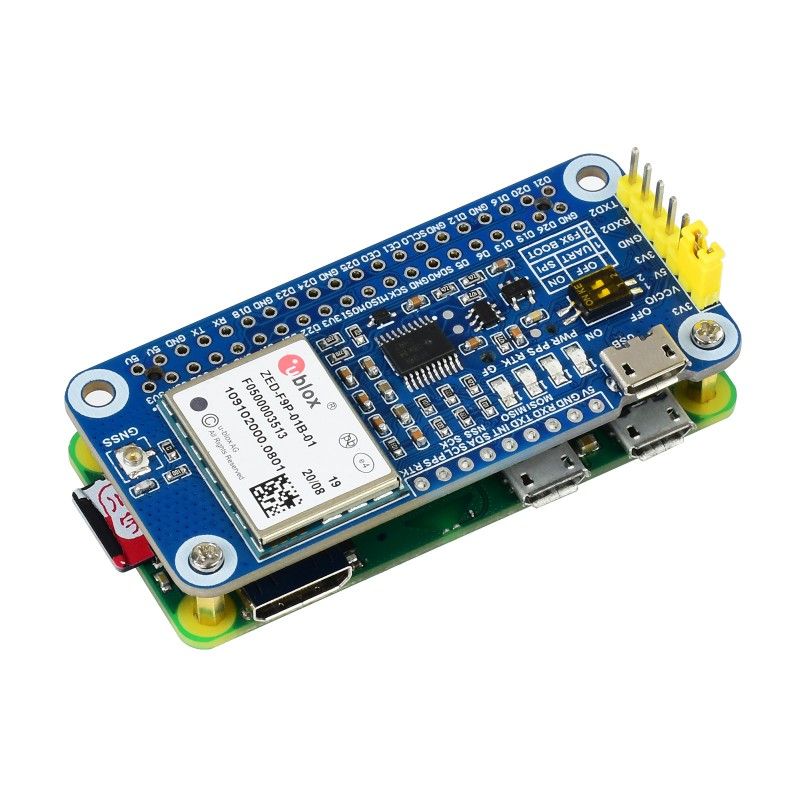

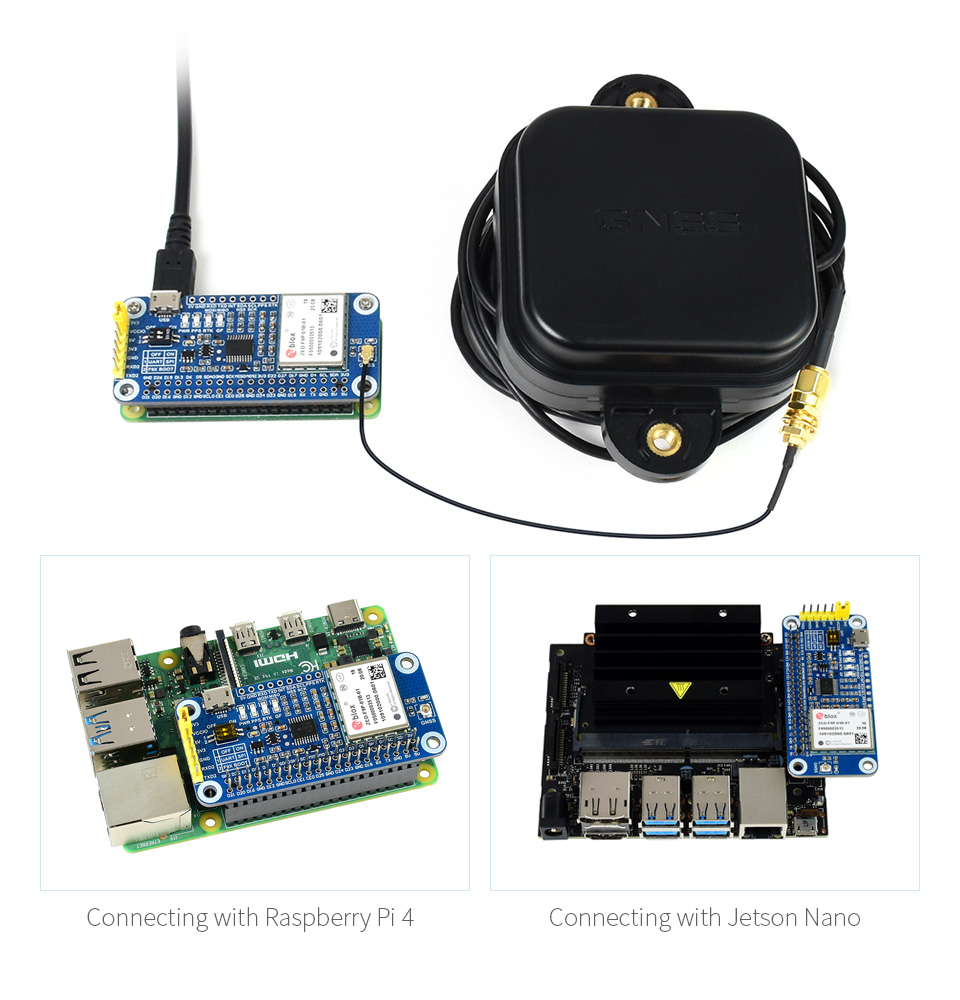

The ZED-F9P GPS-RTK HAT module is Raspberry Pi compatible, making it easy to integrate with existing Raspberry Pi projects. It is compact in size and easy to install, making it an ideal choice for a variety of applications including navigation, mapping, agricultural engineering, and more.

It is ideal for intelligent driving, precision farming, UAV applications, fleet management, asset tracking, GIS applications.

Key features:

• Utilizes multi-band RTK with fast convergence time, centimeter accuracy, and high update rate
• Supports RTK mode with a moving base, which ensures precise terminal navigation and centimeter accuracy
• Supports simultaneous reception of 4 GNSS systems (GPS, BeiDou, Galileo and GLONASS) and maintains low power consumption
• Supports augmentation systems, including SBAS, QZSS, IMES, D-GPS, resulting in improved service location performance
• Supports A-GNSS (auxiliary GNSS), which reduces the first positioning time after power-on and improves data collection sensitivity
• Has a navigation sensitivity of -167 dBm and outstanding anti-spoofing and anti-interference capability, supports geofencing
• Supports U-Center, an easy way to configure the module
• Has a built-in battery holder, supports ML1220 rechargeable battery, for ephemeral data storage and hot start
• Has 4 LEDs to indicate the operating status of the module
• Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

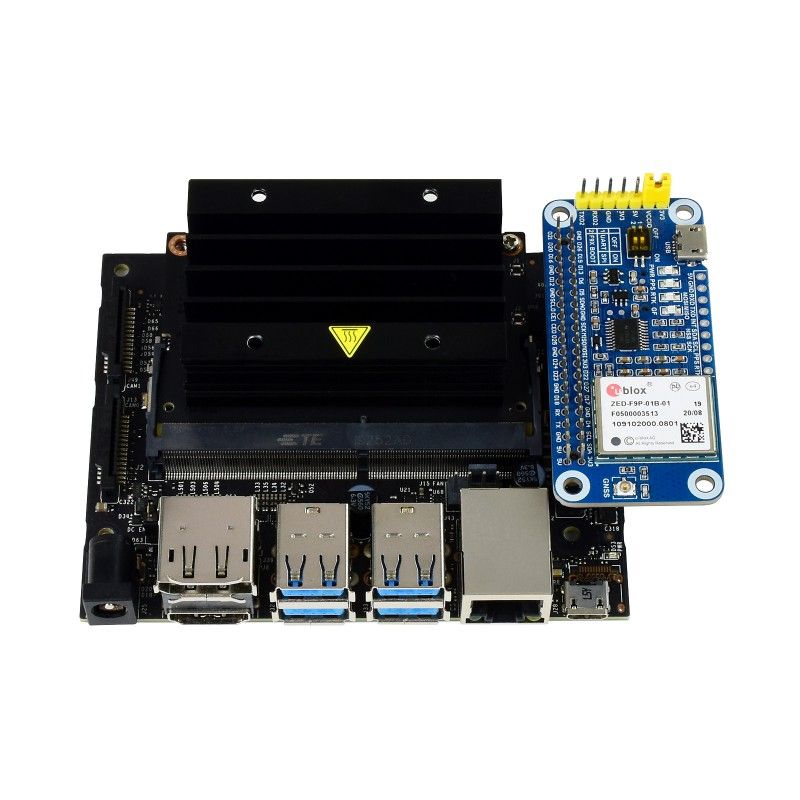

• Has a standard Raspberry Pi 40PIN GPIO expansion connector and supports Raspberry Pi, Jetson Nano series boards

Specifications:

Positioning accuracy.

• PVT: 1.5 m CEP
• RTK (horizontal and vertical): 0.01m+1 ppm CEP

Sensitivity.

• Tracking and navigation -167 dBm
• Re-acquisition -160 dBm
• Cold start -148 dBm
• Hot starts -157 dBm

Speed accuracy: 0.05 m/s
Heading accuracy: 0.3 degrees

PPS accuracy:

• RMS: 30ns
• 99%: 60ns
• Jamming: ±11ns

PPS frequency: 0.25Hz 10MHz (configurable)

Operational limits:

• Acceleration (max): 4g
• Altitude (max): 50000м
• Speed (max.): 500m/s

Communication Interface: USB, UART (4800921600 bps, 9600 bps by default), I2C (max. 400 kHz), SPI (5 MHz)
Protocol: NMEA 0183 version 4.10, UBX, RTCM 3.3
Power supply: 5В
Total current: < 120 mA at 5 V (continuation mode)
Module current: 130mA@3V max (tracking status)
Operating temperature: -40 ℃ 85 ℃

GNSS characteristics
ZED-F9P		concurrent receiving
		GPS GLONASS Galileo BeiDou	GPS GLONASS Galileo	GPS Galileo	GPS GLONASS	GPS BeiDou	GPS
Range		u-blox F9 platform GPS L1C/A L2C, SBAS, QZSS, GLONASS L1OF L2OF, BeiDou B1I B2I, Galileo E1B/C E5b
Max navigation update rate	RTK	8Hz	10Hz	15Hz	15Hz	15Hz	20Hz
	PVT	10Hz	12Hz	20Hz	25Hz	25Hz	25Hz
	RAW	20Hz	20Hz	25Hz	25Hz	25Hz	25Hz
RTK convergence time		Specifications Main characteristics Country of origin Made in China Form factor Expansion board Reviews There are no reviews for this product. + Add review Write a review ZED-F9P GPS-RTK HAT expansion board (19884) My mark: Continue There are no reviews for this product, be the first to leave your review. Answers & questions Add your question and we will answer as soon as possible. + Ask a question Ask a question Add your question and we will answer as soon as possible. * Your question Continue No questions about this product, be the first and ask your question. you watched new Popular Sold Out 8inch LCD 1536x2048 HDMI Capacitive Touch Screen Monitor (23939) Model: 23939 Out Of Stock 0 £84.00
