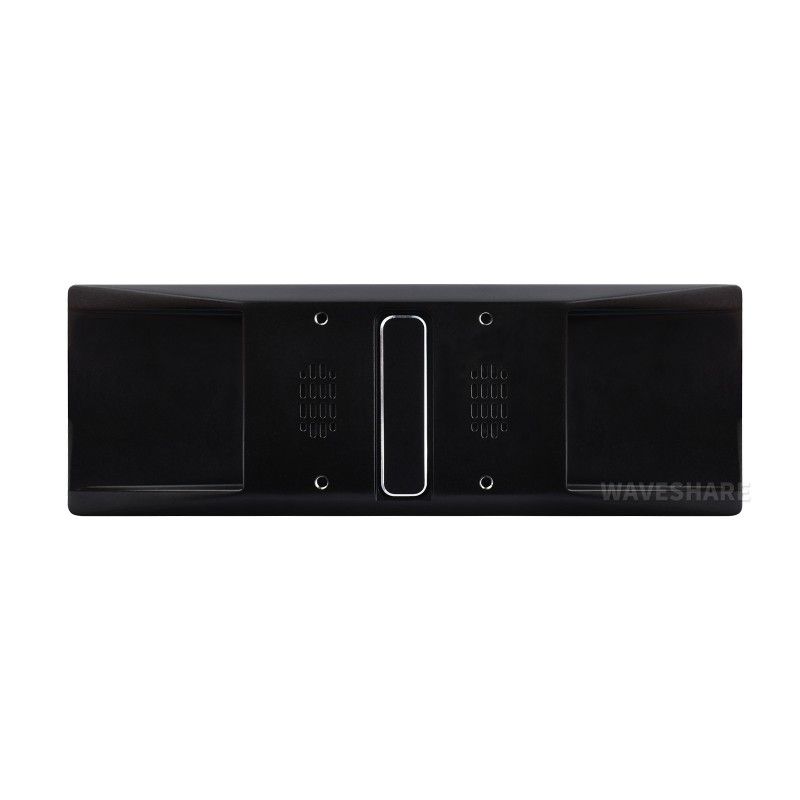

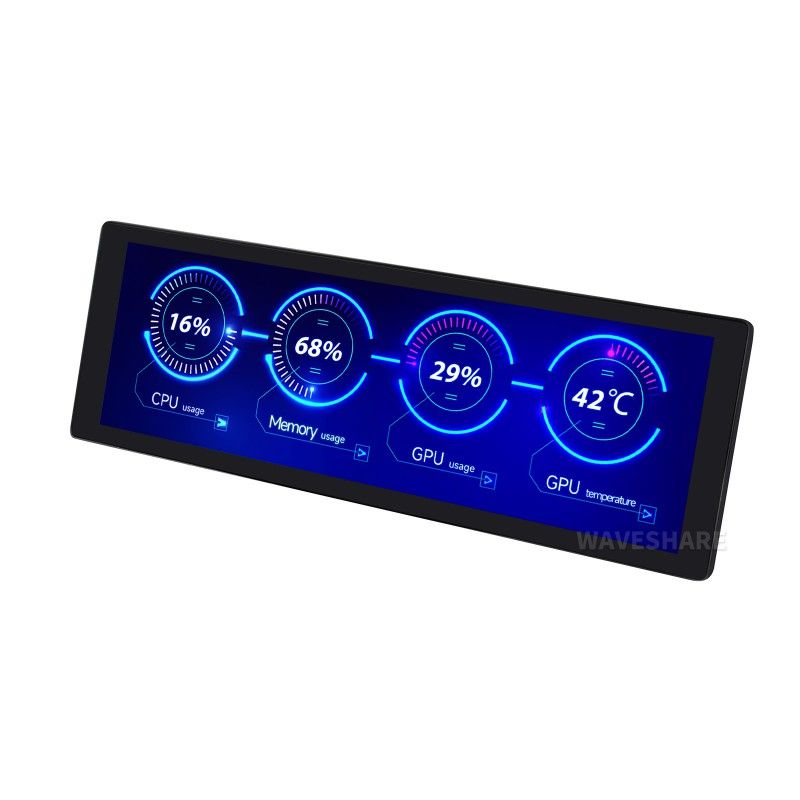

Monitor 7.9inch 400x1280 HDMI Capacitive Touch Screen (25487)

The 7.9inch 400x1280 HDMI Capacitive Touch Screen Monitor (25487 ) is a high-quality display with a resolution of 400×1280 pixels. This display has a hard glass panel that makes it scratch and damage resistant. It is equipped with an HDMI interface, which makes it easy to connect to various devices such as computers, microcontrollers, media players, and more.

In addition, this display supports a touch screen function that allows the user to interact with the content on the screen through touch and gestures. This feature makes it ideal for a variety of applications, including control panels, touchscreen media players, gaming devices, and many other projects that require a large, high-quality display with user interaction capabilities.

Specifications:

• Diagonal: 7,9"
• Resolution: 400x1280 pixels
• Interface: HDMI
• Panel: IPS
• Viewing angle: 170 degrees
• Built-in ferrite Hi-Fi speakers
• Protective case made of aluminum alloy
• Panel made of curved glass
• Brightness adjustment with built-in software
• Capacitive touch screen

Application options:

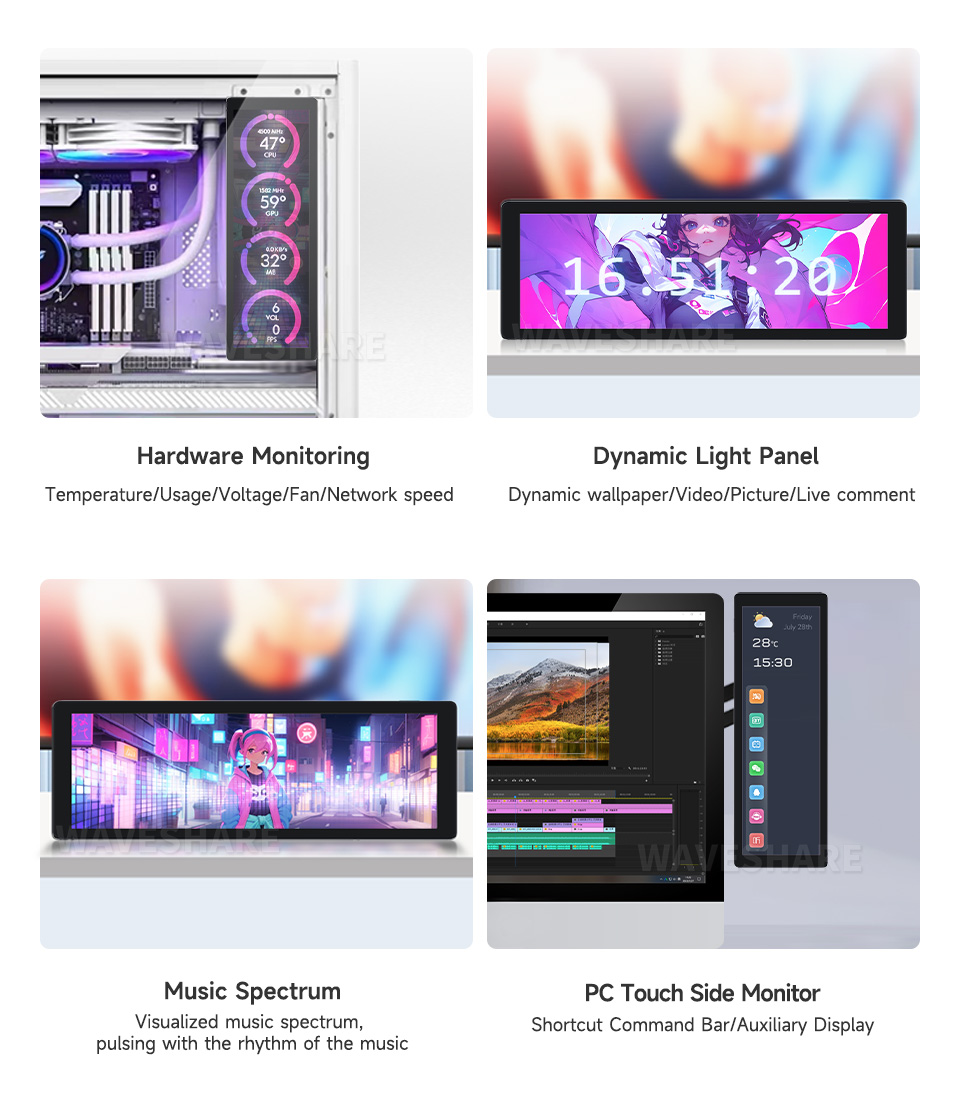

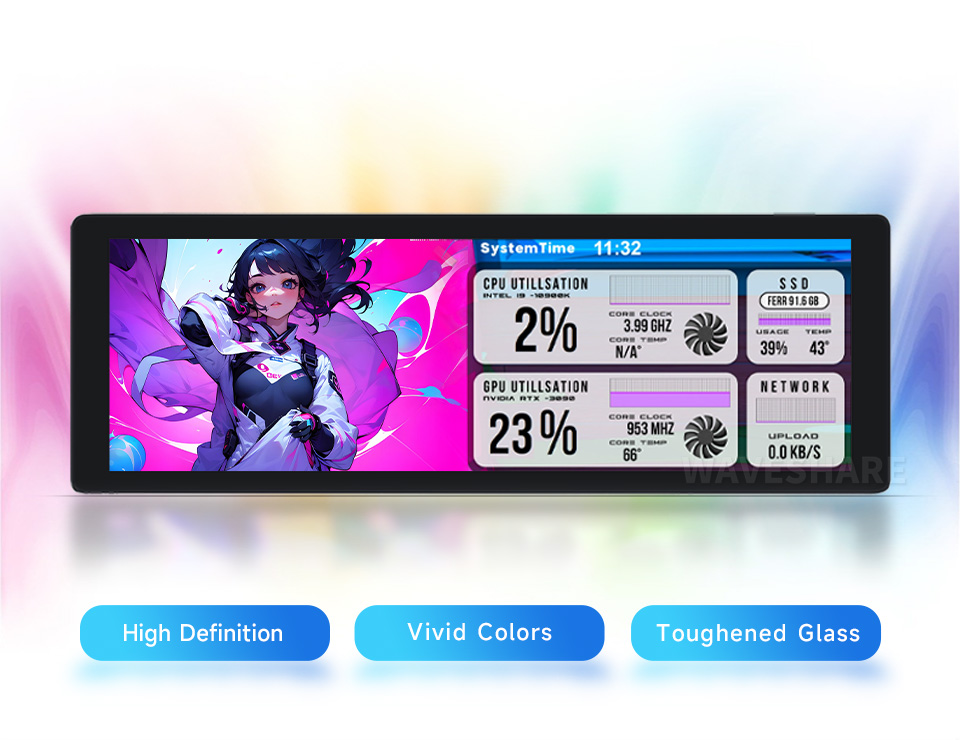

IPS screen with superior display performance delivers a stunning visual experience

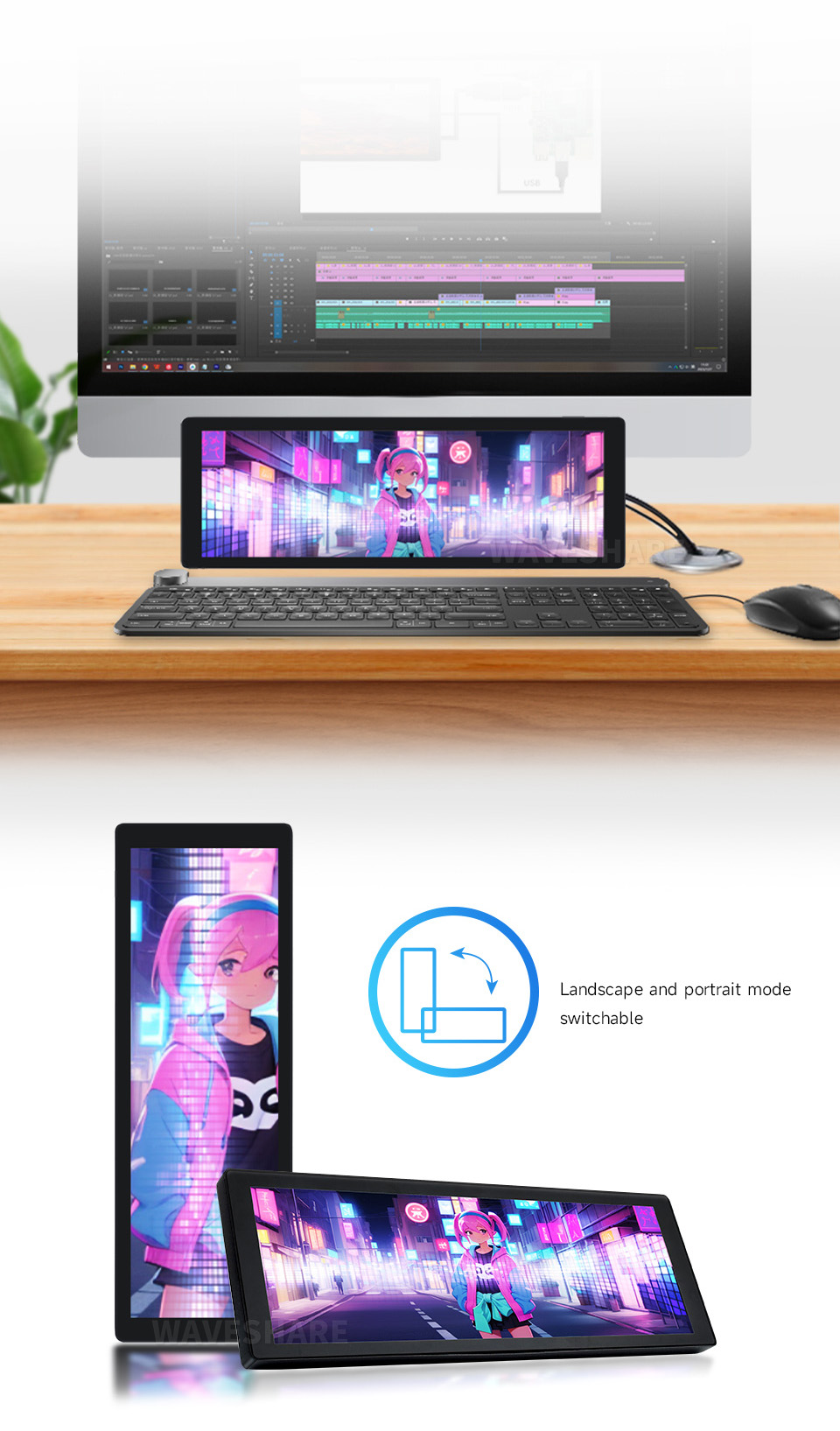

Supports HDMI input, landscape and portrait modes that can be switched in the system* for different usage scenarios

*The default display orientation is vertical with a resolution of 400×1280 (H×W). Change the software configuration for horizontal display.

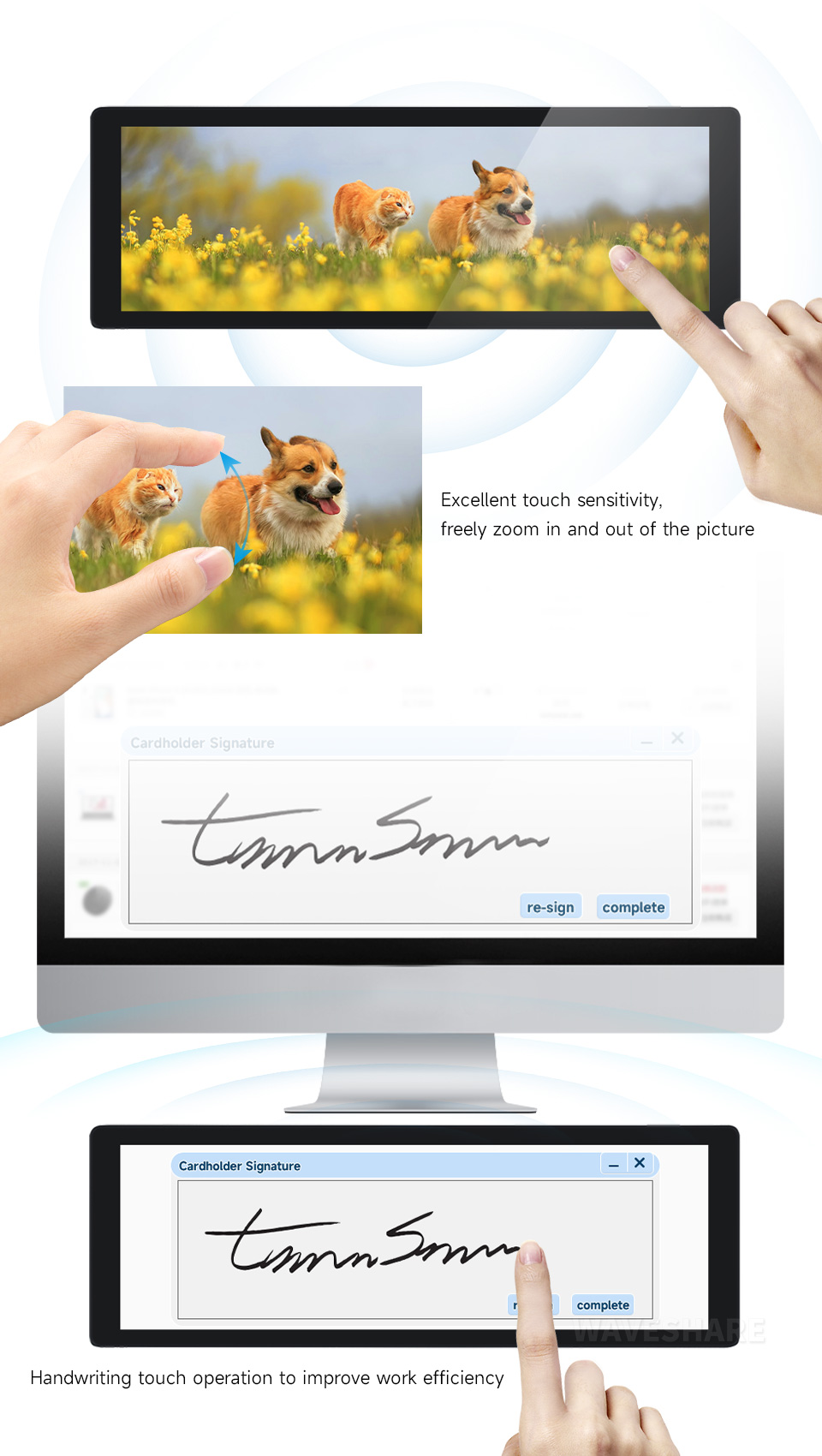

The touchscreen display is equipped with a tempered glass panel and a capacitive screen of the same type as a mobile phone, which is sensitive and smooth. 5-point touch control.

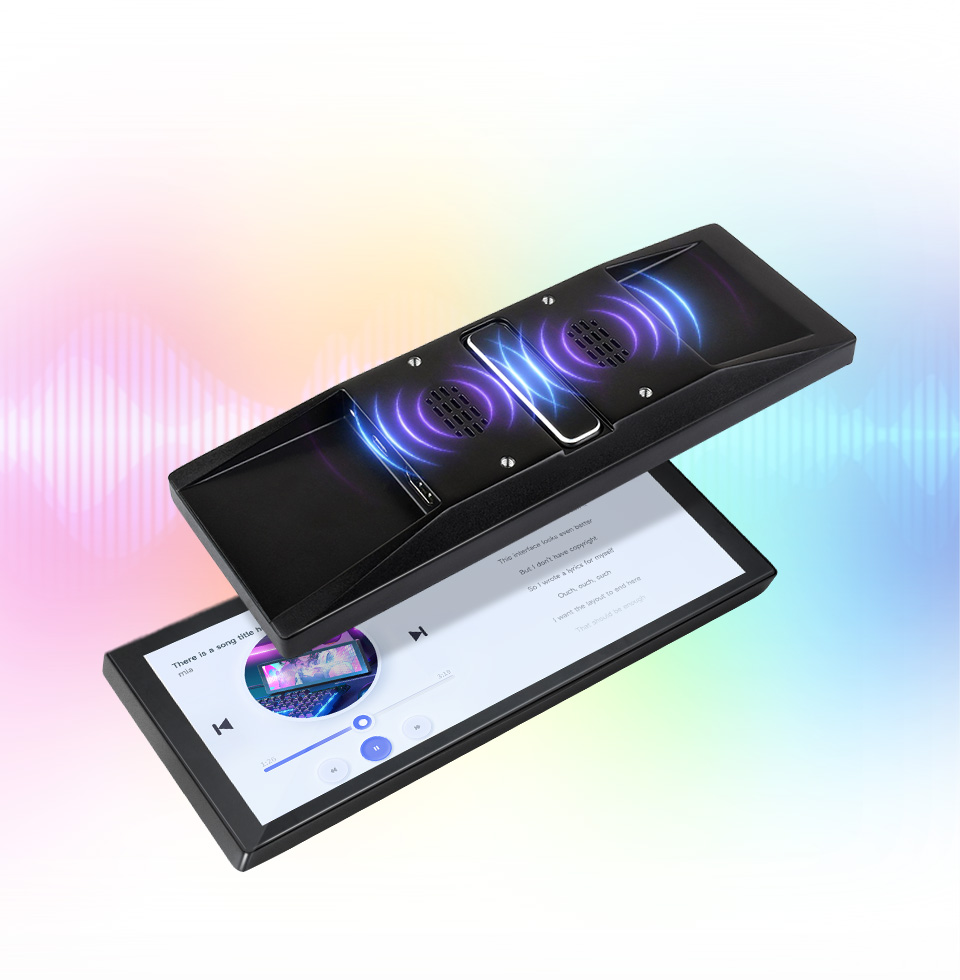

Two-channel stereo speaker delivers high quality sound, greatly enhancing your listening experience

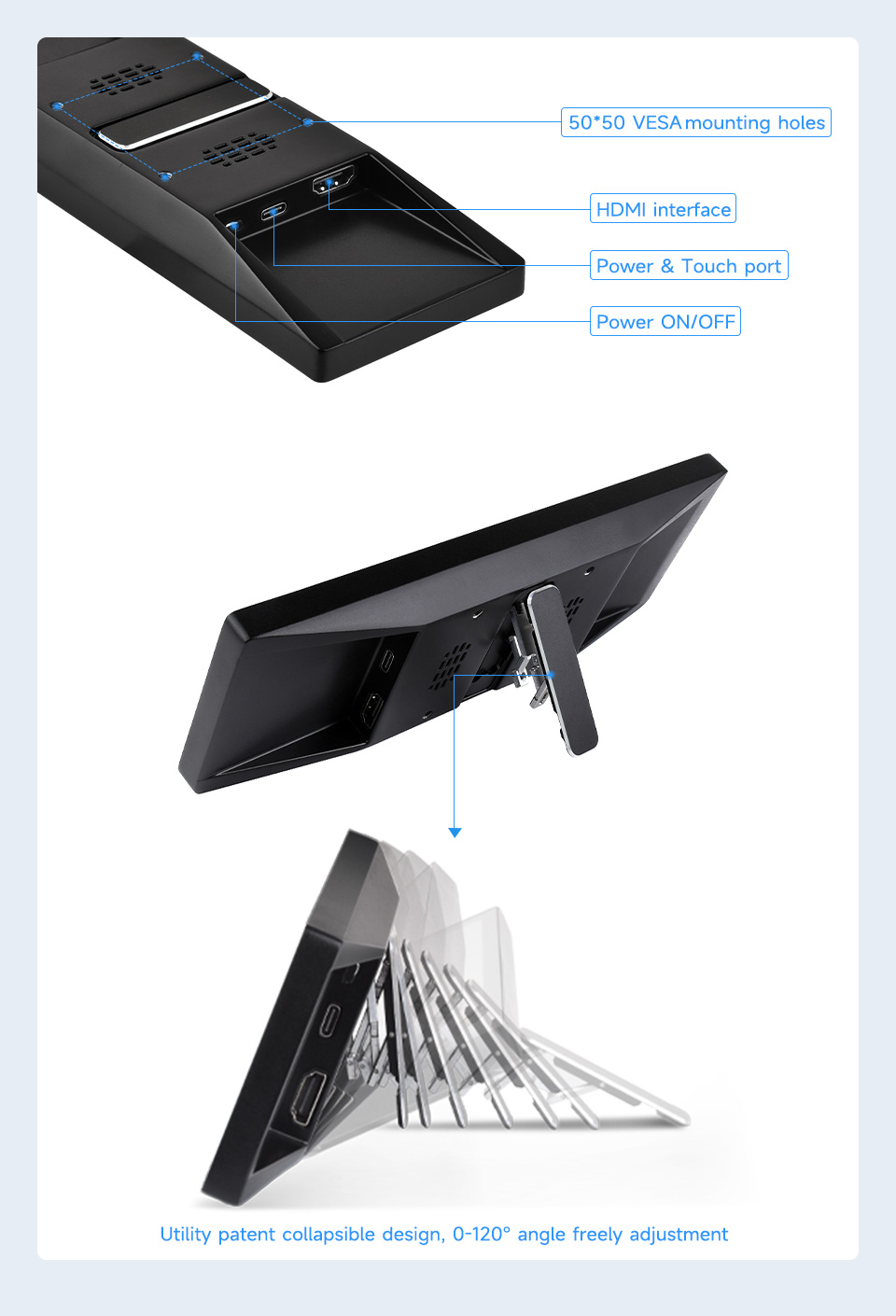

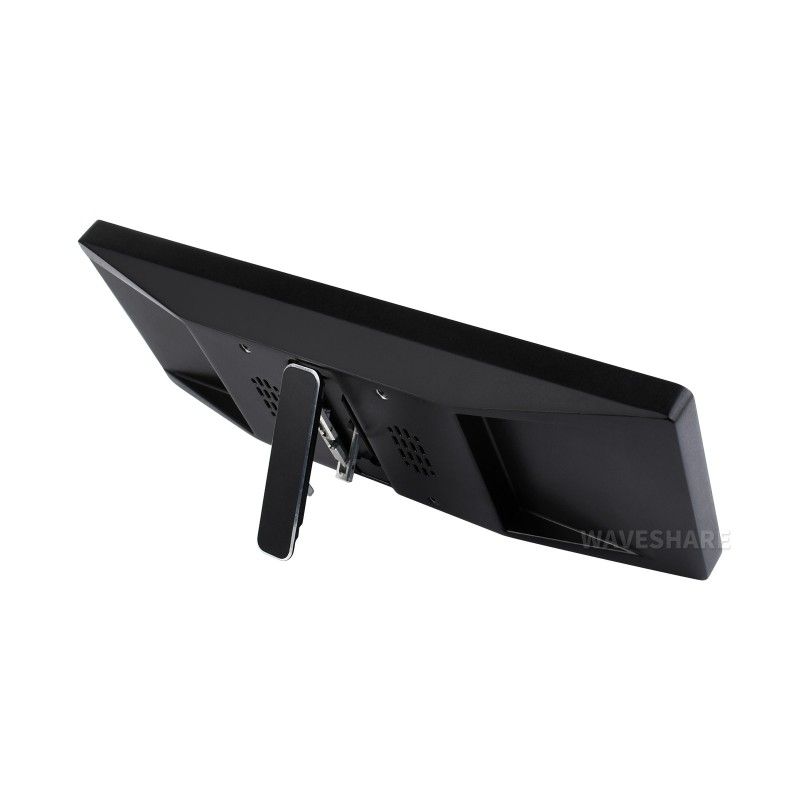

Interfaces and foldable stand

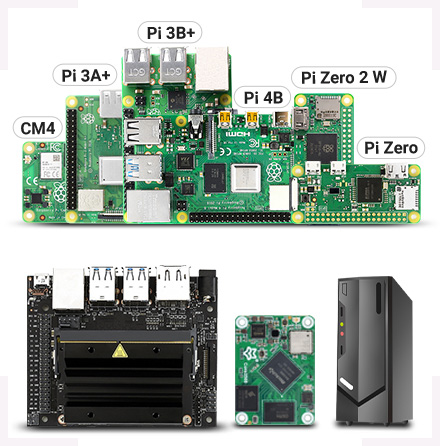

Supports devices and systems

Raspberry Pi
Supports Raspberry Pi OS, 5-point touchscreen, no drivers required
Supports Ubuntu / Kali / WIN10 IoT, single touch, no drivers
Supports Retropie, no drivers required
Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, no drivers required
Core3566
Supports Debian / Linux, 5-point touch screen, no drivers
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch screen, no drivers

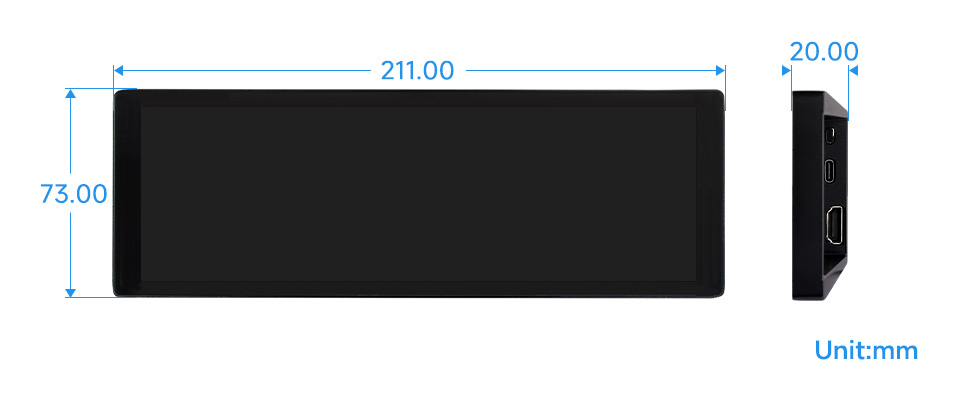

Overall dimensions: 211mm x 73mm x 20mm

Wiki: www.waveshare.com/wiki/7.9inch_Touch_Monitor

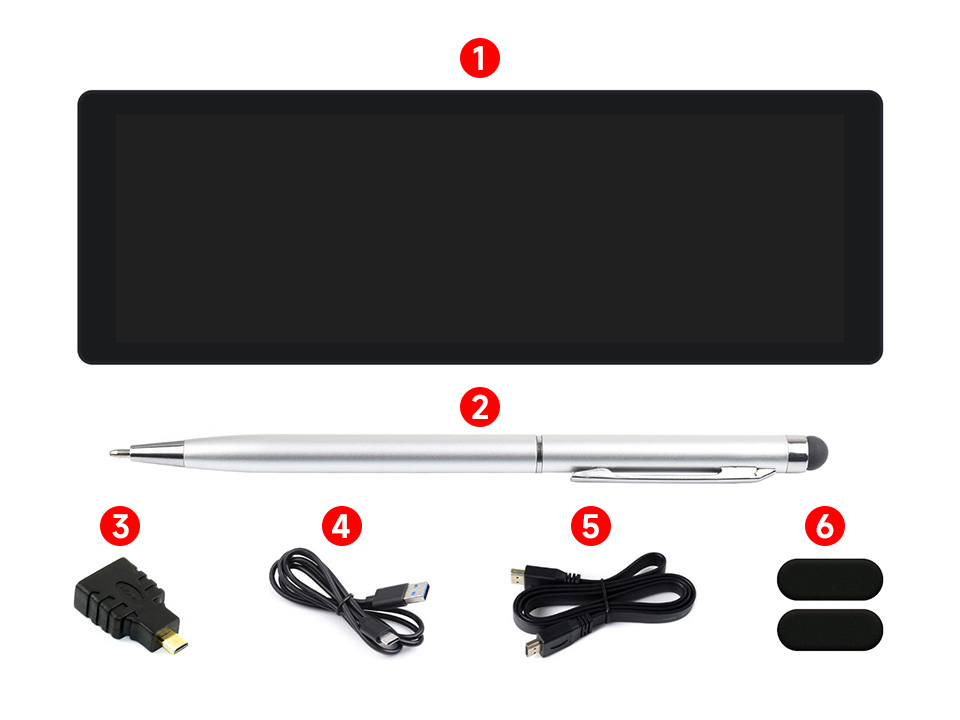

Scope of delivery:

1. 7.9-inch touchscreen monitor ×1
2. Capacitive touch pen ×1
3. HDMI to Micro HDMI adapter × 1
4. USB Type-A to Type-C cable 1 m × 1
5. Flat HDMI cable 1 m × 1
6. Non-slip rubber feet (2 pcs.) ×1

Weight: 0.543 kg
