Raspberry Pi Power over Ethernet (PoE) HAT (B) expansion card (18014)

Brand: Waveshare Product Code: 18014
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out
Raspberry Pi Power over Ethernet (PoE) HAT (B) expansion card (18014)
Out Of Stock
£14.10
Compatibility:Raspberry Pi 4, Raspberry Pi 3
Country of origin:Made in China
Form factor:Expansion board
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.

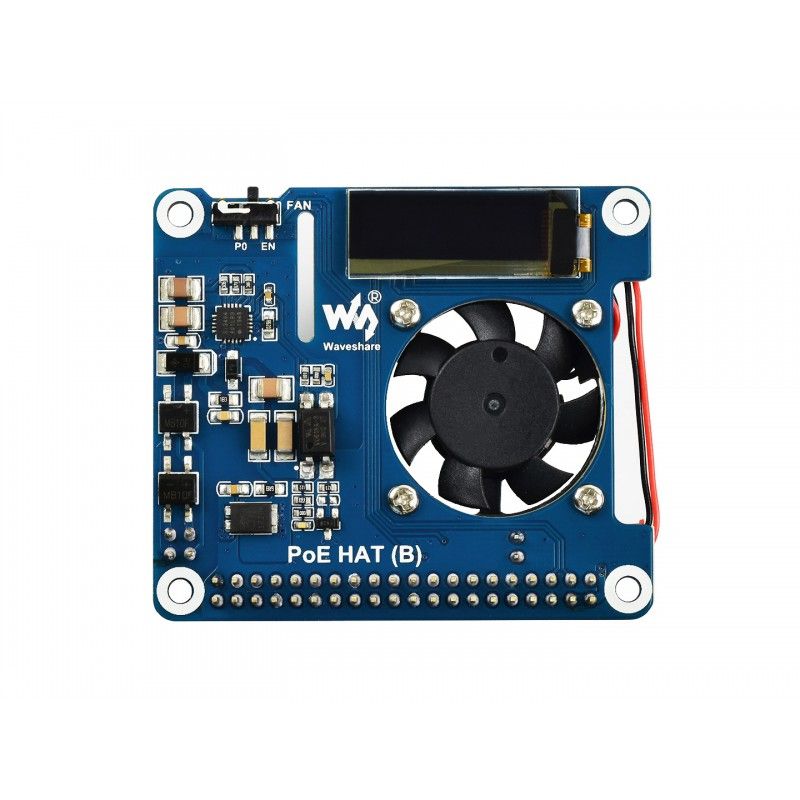

Raspberry Pi Power over Ethernet (PoE) HAT (B) expansion card (18014)
£14.10
Description

POE HAT for RASPBERRY PI

Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af

OLED display for real-time monitoring of temperature, IP and cooler status

The PoE HAT(B) is an 802.3af compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B.
Using this small HAT and some proper power supply hardware,

compliant 802.3af power supply hardware, you can provide both network connectivity and a source of

power for your Raspberry Pi with just one Ethernet cable.

Features:

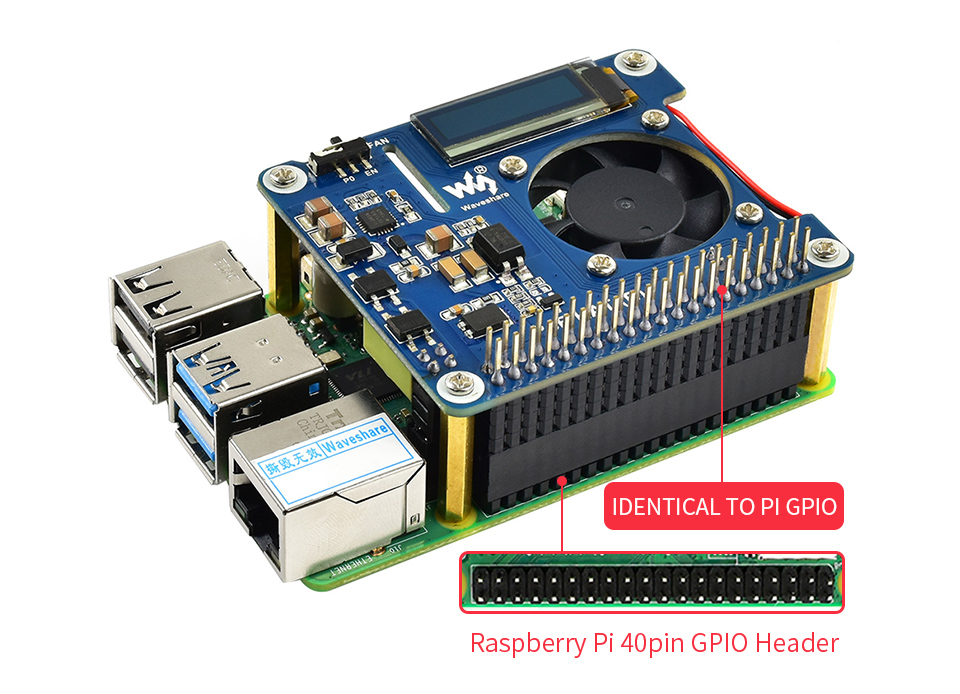

  • Standard connectors for Raspberry Pi 40PIN GPIO, also supports Raspberry Pi 3B+/4B.
  • Compatible with PoE (Power Over Ethernet) as well as 802.3af.
  • Fully isolated power supply with switching mode power supply (SMPS) function.
  • 0.91" OLED display for real-time monitoring of CPU temperature, IP address and cooler status.

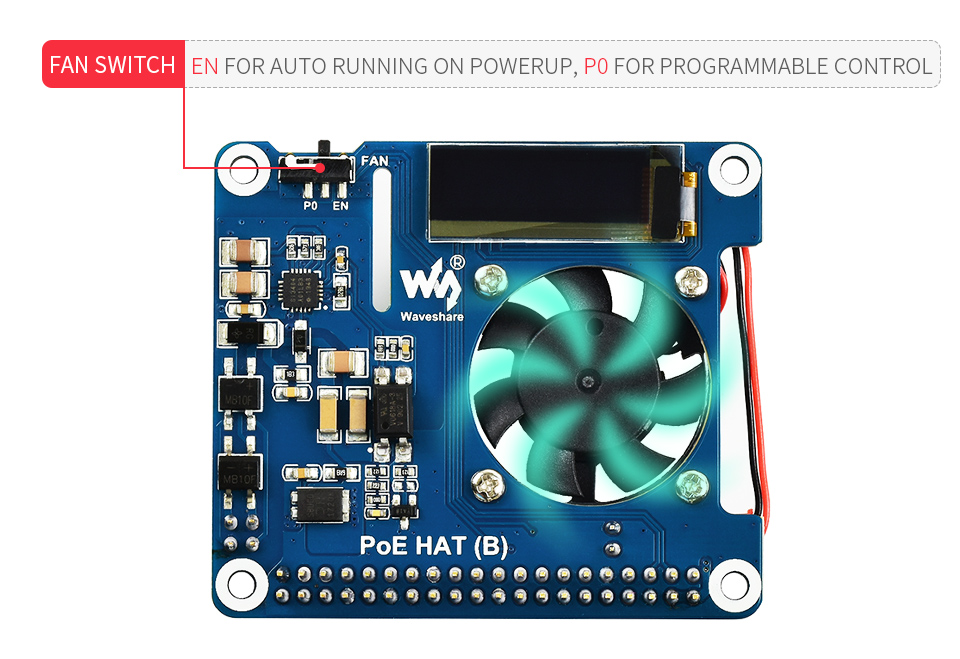

  • Built-in cooling fan that allows automatic operation at power on OR software controlled, configurable switch.
  • Integrated PCF8574 IO expansion for I2C bus, allows direct control of the cooler via P0 pin, also has more spare IO pins.

Features:

POE input power supply. 37V 57V DC per input OLED size 0.91"
POE output power supply 5V 2.5A DC output Number of OLED pixels 128×32
Network standard 802.3af PoE OLED driver SSD1306
Dimensions 56.5 × 65mm OLED display color white

Use with Raspberry Pi 3B+/4B

The standard Raspberry Pi 40PIN GPIO Stackable Header connector allows you to connect other modules.

Power Over Ethernet

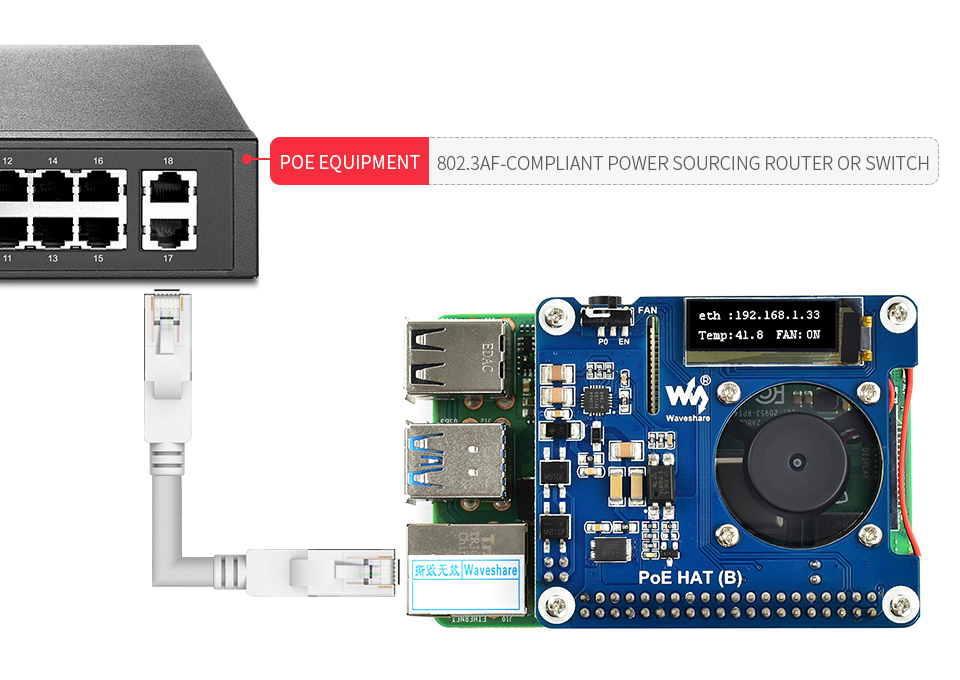

Simultaneously provides power and network connectivity for your Raspberry Pi in a single cable.

* Requires proper 802.3af-compliant hardware.

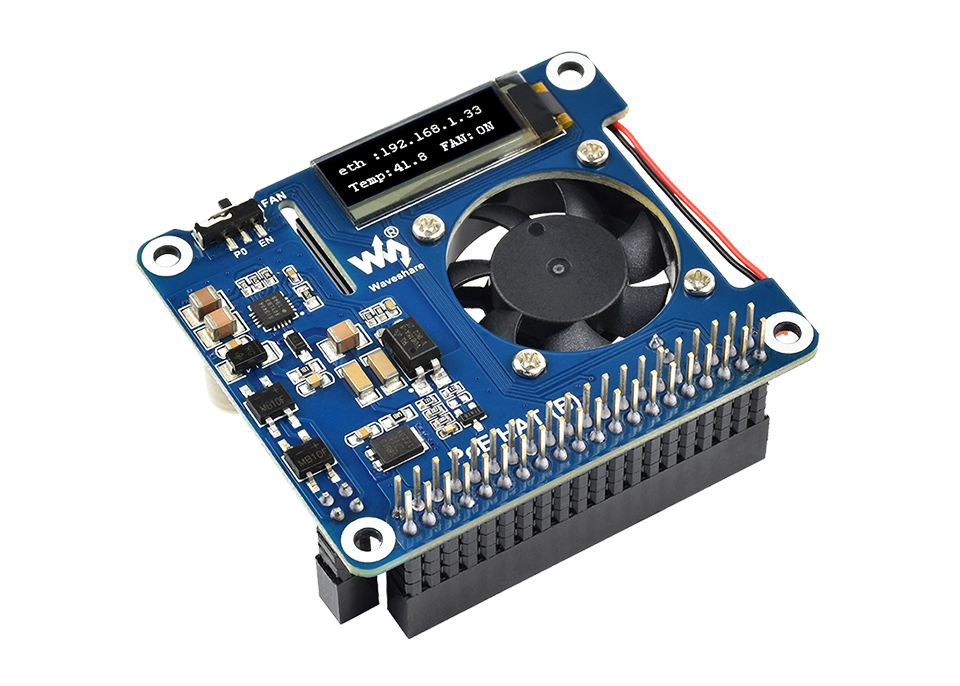

0.91-inch OLED display

128 × 32 pixels, control via I2C bus.

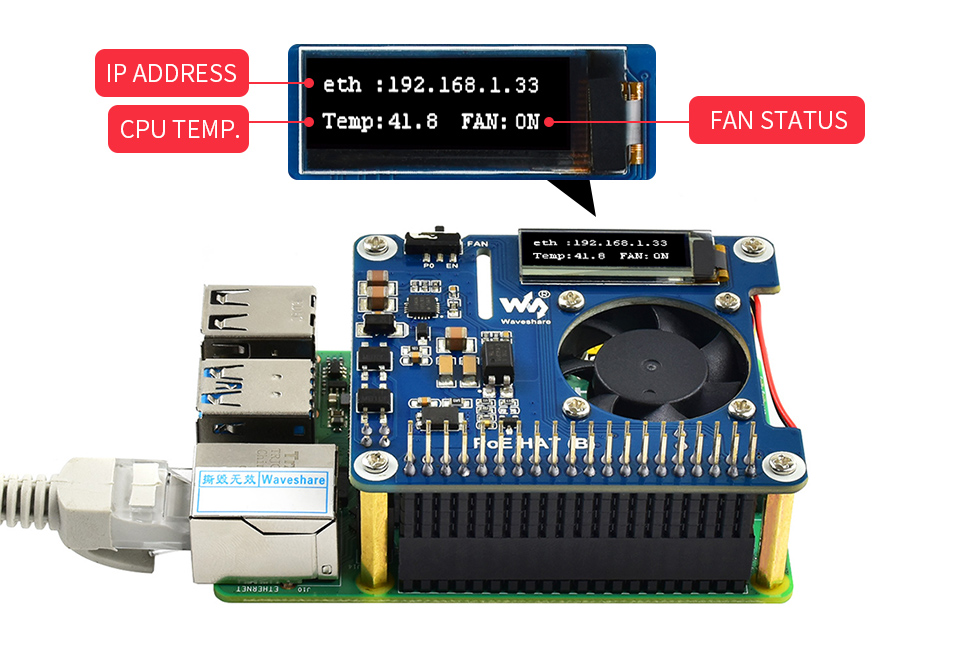

Real-time monitoring of CPU temperature, IP address, and cooler status.

Cooler for cooling

Built-in cooling fan that allows you to automatically run when you turn on the power OR software-controlled, configurable switch.
Automatically turns on/off depending on the temperature of your Raspberry.

Built-in PCF8574 chip

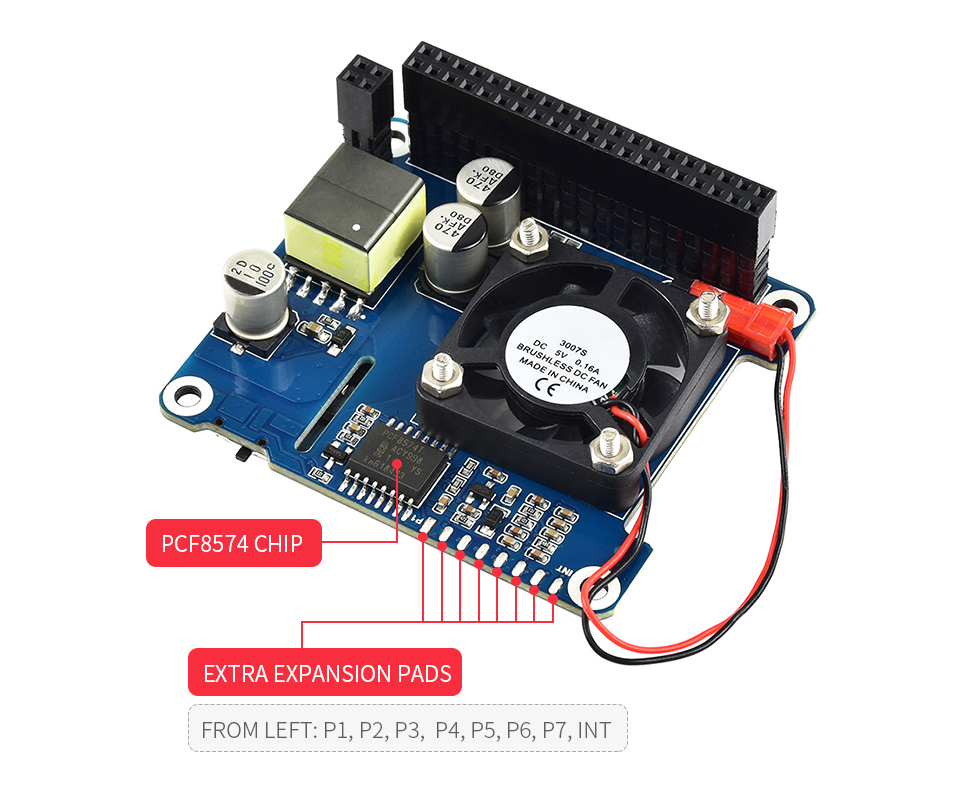

Integrated PCF8574 IO expansion for the I2C bus, which has 8 IO pins, including P0 for controlling the cooler.
It also has more spare soldered IO pins (P1-P7, INT).

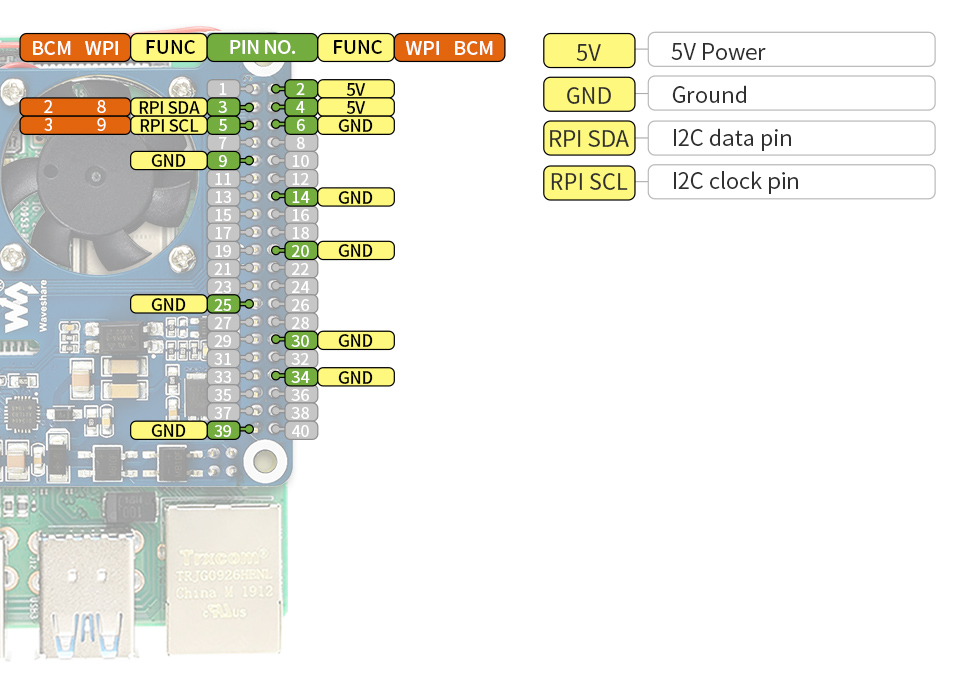

Pin assignment

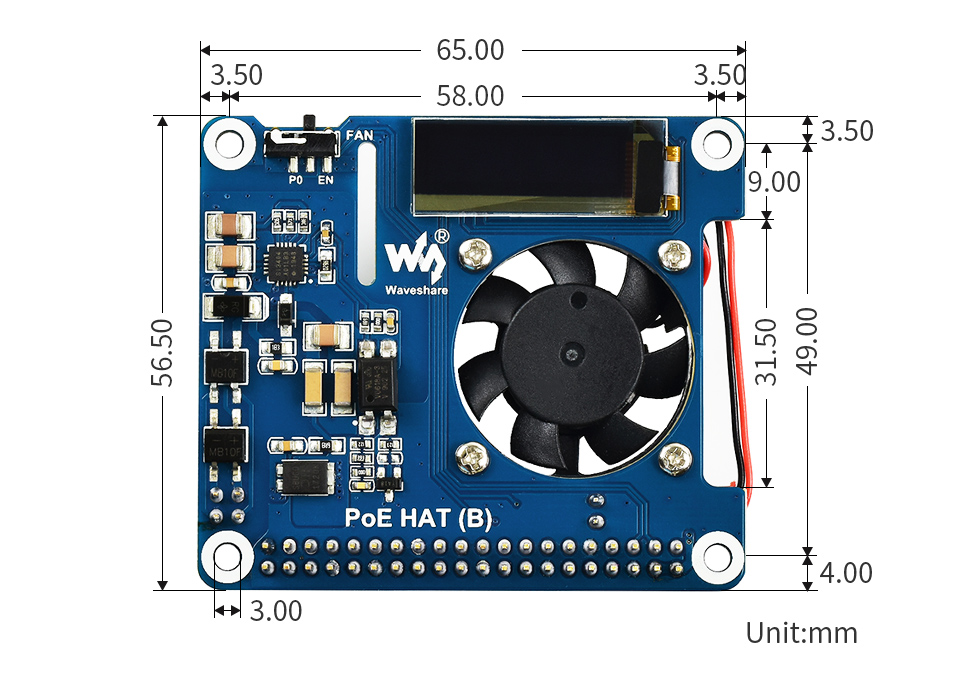

Overall dimensions

Resources for WIKI developers : www.waveshare.com/wiki/PoE_HAT_(B)

Guidelines for selecting modules

Module name Supported Raspberries POE standard POE output power Features
Raspberry Pi PoE HAT 3B+/4B 802.3af 5V 2.5A Raspberry Pi official
Raspberry Pi PoE+ HAT 802.3af/at 5V 4A Raspberry Pi official (second generation)
PoE HAT (B) 802.3af 5V 2.5A with OLED display, cost-effective
PoE HAT (C) 802.3af/at 5V 4A/12V 2A high power, cost effective
PoE HAT (D) 802.3af 5V 2.5A specially for official Raspberry Pi chassis, cost effective

The package includes:

  1. Raspberry Pi Power over Ethernet (PoE) HAT (B) expansion board (18014).

Specifications
Main characteristics
Compatibility
Raspberry Pi 4, Raspberry Pi 3
Country of origin
Made in China
Form factor
Expansion board
