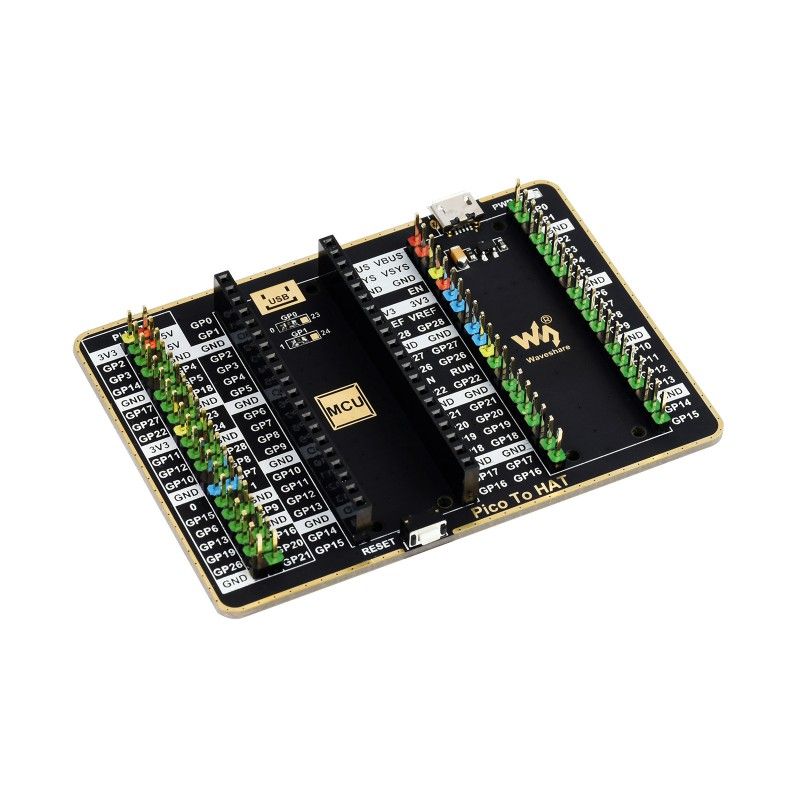

Raspberry Pi Pico GPIO Expander HAT expansion board (20477)

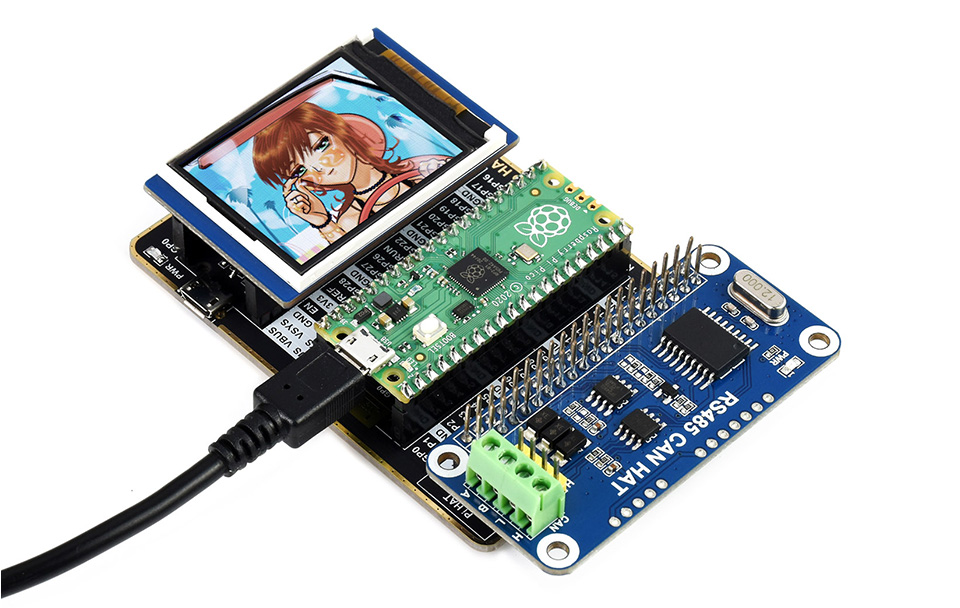

The Raspberry Pi Pico GPIO Expander HAT (20477 ) is equipped with a standard 40PIN GPIO connector, which allows you to conveniently connect appropriate expansion cards to your Raspberry Pi Pico microcontroller, as well as a separate 2 × 20PIN Pico connector. However, before connecting, make sure that there are no pin conflicts between the modules you want to use together.

* Raspberry Pi Pico and expansion modules are NOT included in the package.

Main features:

• Standard Raspberry Pi Pico female connector for direct connection of Raspberry Pi Pico (if the pin connector is soldered) or simply via jumpers
• 1x standard 40PIN Raspberry Pi connector and 1x 2×20PIN Pico connector, allowing you to connect both Raspberry Pi expansion cards and Pico expansion cards
• USB power input connector, provides sufficient power for multiple expansion modules
• Reset button, convenient for the debugging process

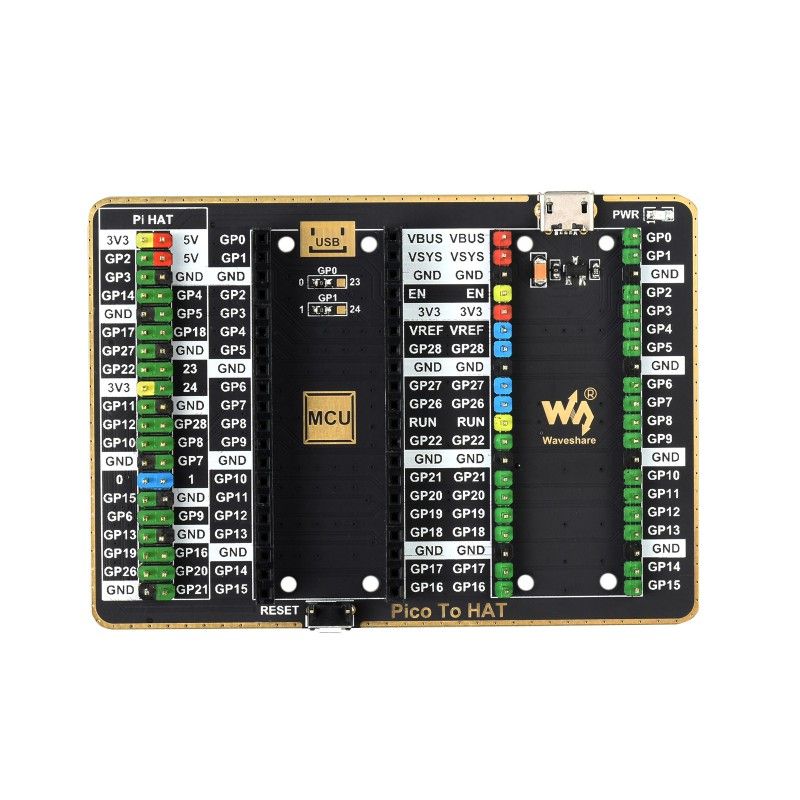

• Color and symbolic marking of connectors on the front side
• Gold plated contacts for a beautiful and practical aesthetic appearance

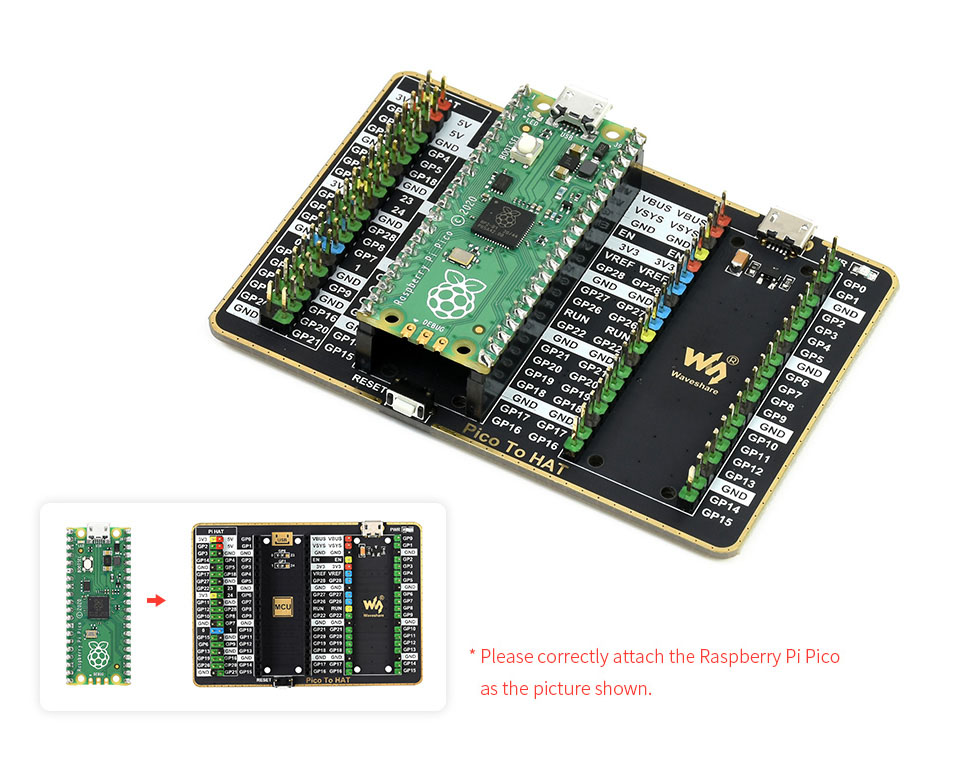

Installation of the Raspberry Pi Pico on the board:

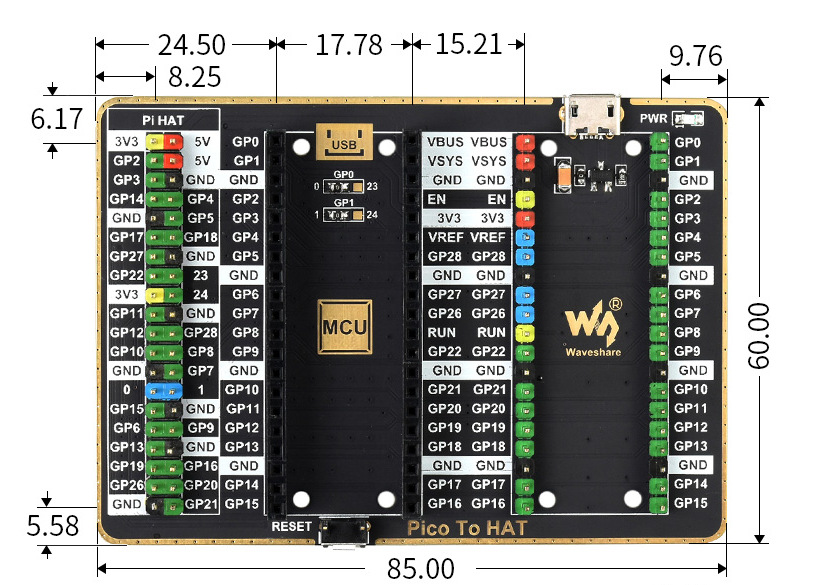

Overall dimensions: 85mm x 60mm

Scope of delivery:

1. Pico-To-HAT x1 board

Weight: 0.029 kg
