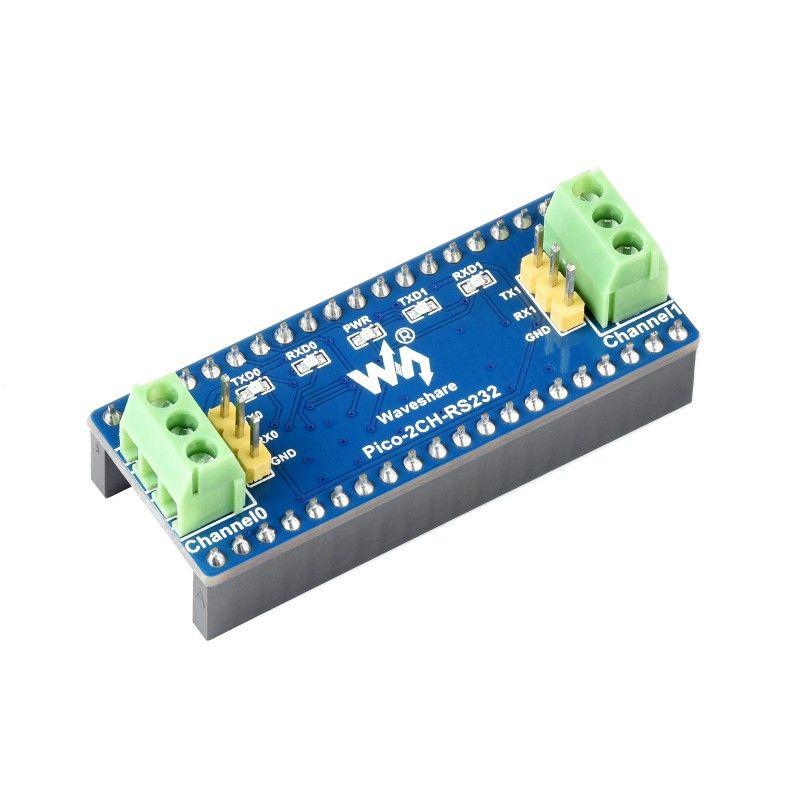

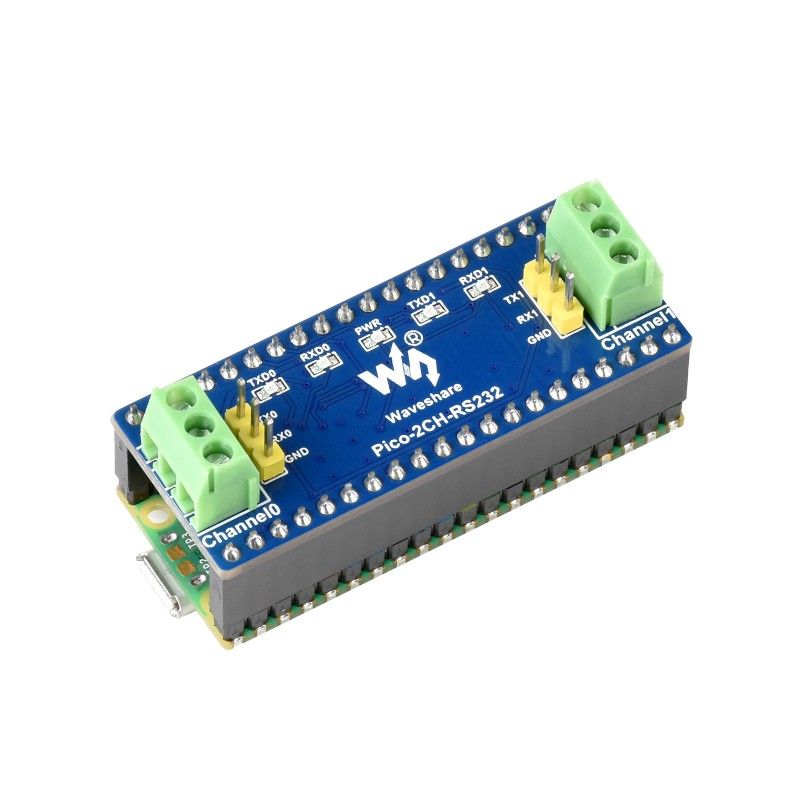

The Raspberry Pi Pico 2-Channel RS232 HAT (19979 ) is a 2-channel RS232 module for the Raspberry Pi Pico, which includes an RS232 receiver SP3232EEN using the UART bus. It is equipped with a standard female pin header for connecting the Raspberry Pi Pico.

Note: The Raspberry Pi Pico is for demonstration purposes only and is not included in the package.

Main features:

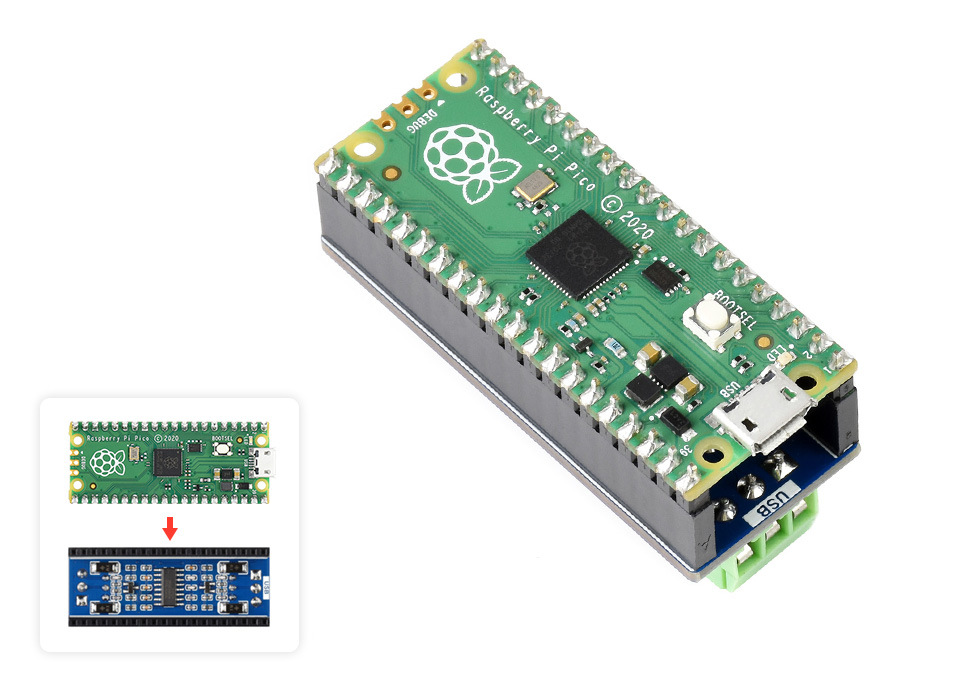

A standard Raspberry Pi Pico connector that supports the Raspberry Pi Pico series
Using the UART bus, it is easy to convert UART to RS232 and vice versa
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

OPERATING VOLTAGE.	3.3V-5V	RS232 TRANSCEIVER	SP3232EEN
COMMUNICATION BUS	UART	TRANSMISSION SPEED	300912600bps

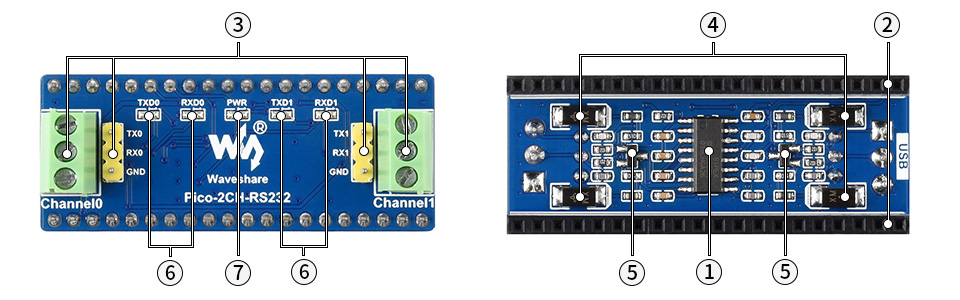

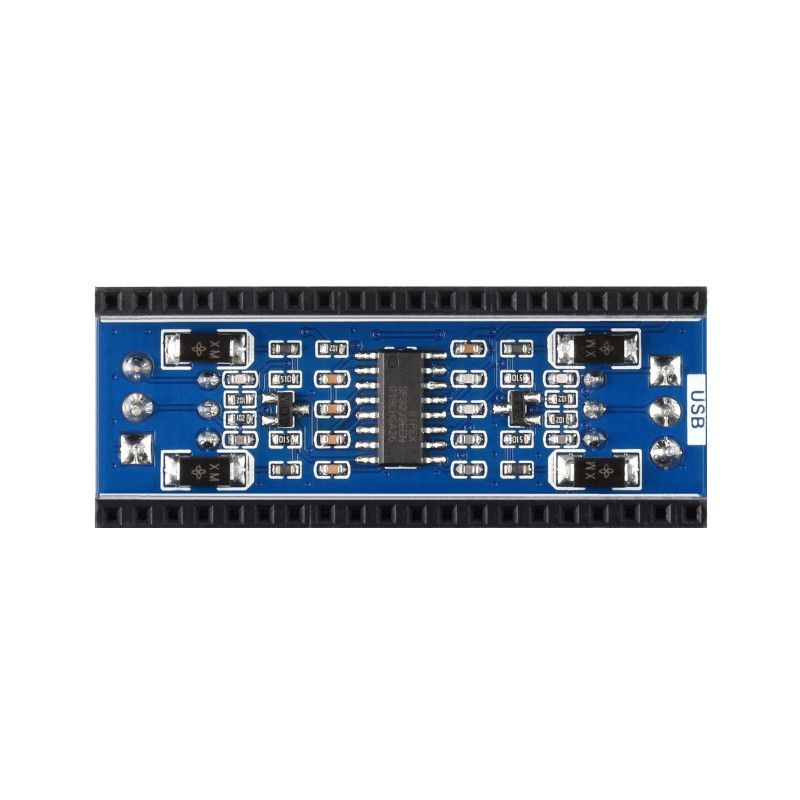

Elements of the board:

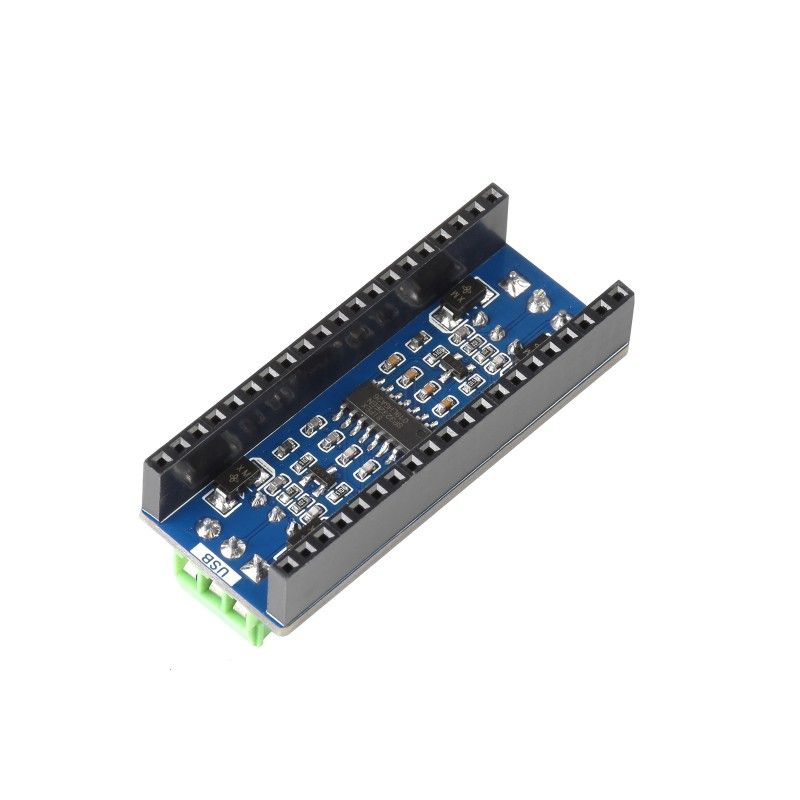

SP3232 RS232 receiver
Raspberry Pi Pico connector

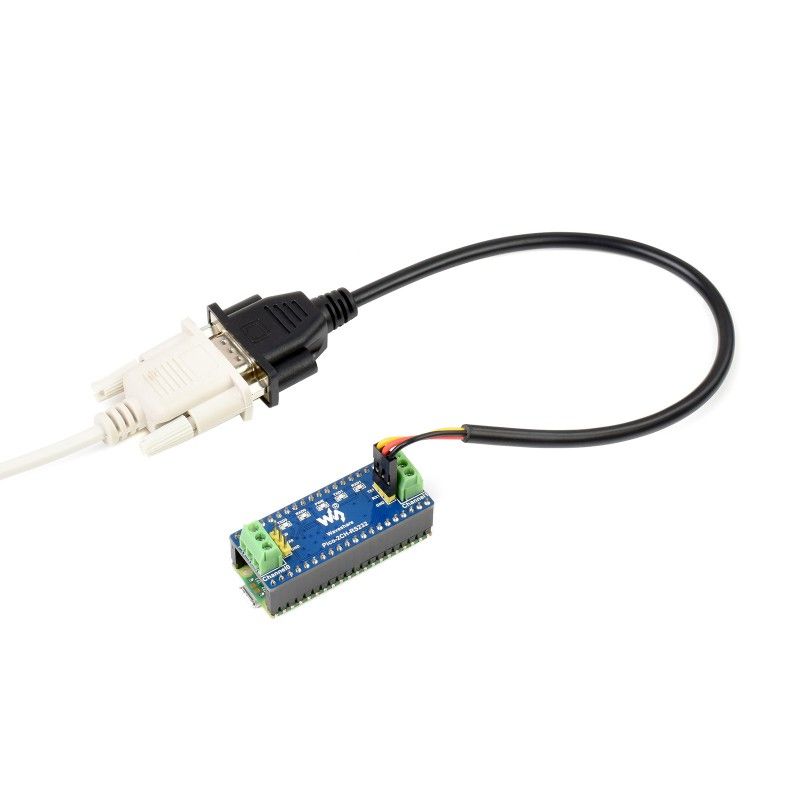

RS232 bus interface. 2-channel RS232 (DB9 male connector is also available via an adapter cable)
TVS diode
ESD diode

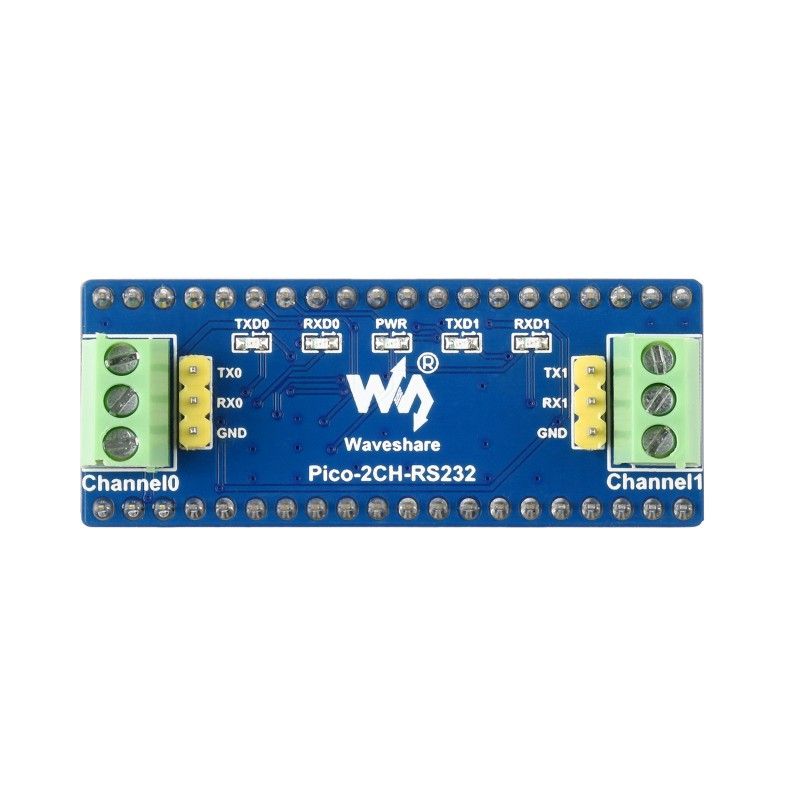

UART status indicators
RXD0/TXD0: indicators of RX/TX channel 0
RXD1/TXD1: RX/TX channel 1 indicators
Power supply indicator

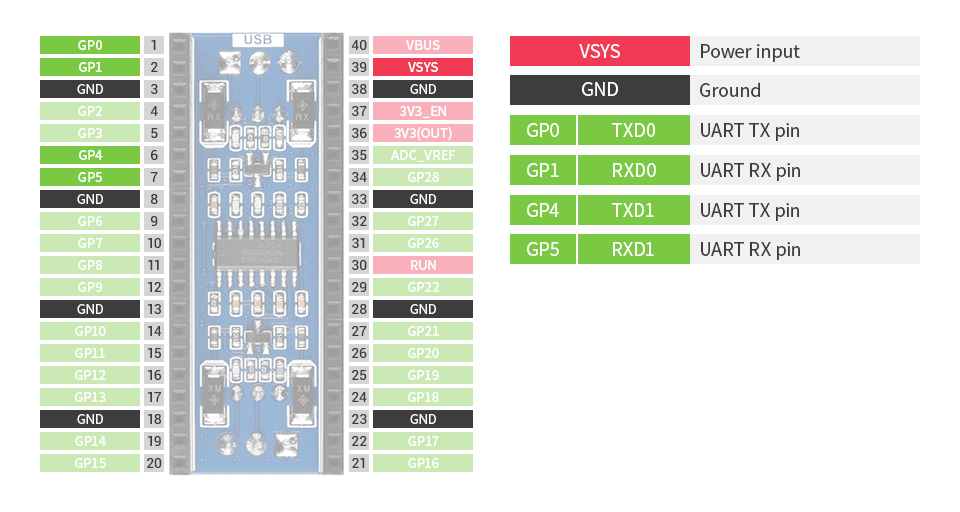

Purpose of the connectors:
