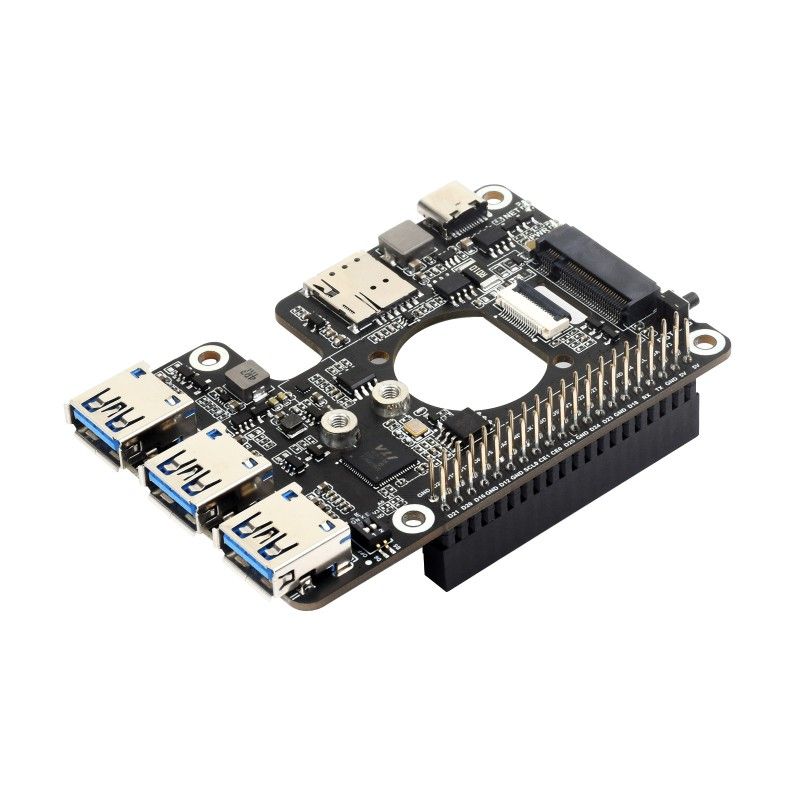

PCIe to M.2 4G/5G And USB 3.2 HAT expansion card

The PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 is a specialized adapter designed to extend the capabilities of the Raspberry Pi 5 by allowing you to connect 4G/5G communication modules via the PCIe interface to the M.2 connector. This HAT also features USB 3.2 ports for connecting additional devices and provides high-speed networking capabilities.

Key Features:

• Designed for the Raspberry Pi 5, standard HAT+ design with built-in I2C EEPROM and supports Raspberry Pi 40PIN GPIO stackable expansion
• Expands with 3 high-speed USB 3.2 Gen1 ports to connect more peripherals
• Has a built-in M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages

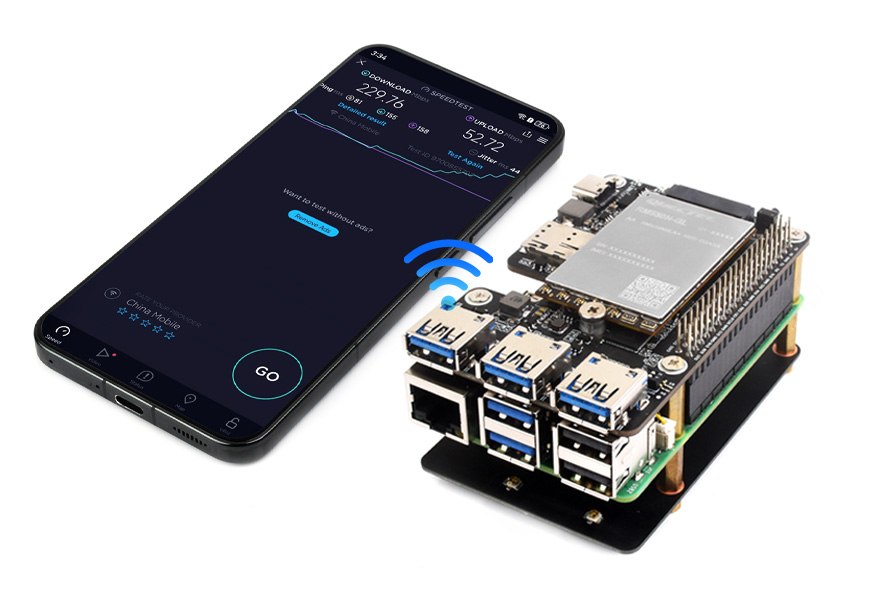

• Has a built-in Type-C port for connecting to a PC for 4G/5G network operation, debugging and firmware updates, or external power supply input
• Has a built-in power monitoring chip for real-time measurement of voltage, current, and power
• Has a built-in SIM card slot for NANO-SIM card
• Has a built-in reset button, power and network indicators for easy debugging and monitoring of operating status

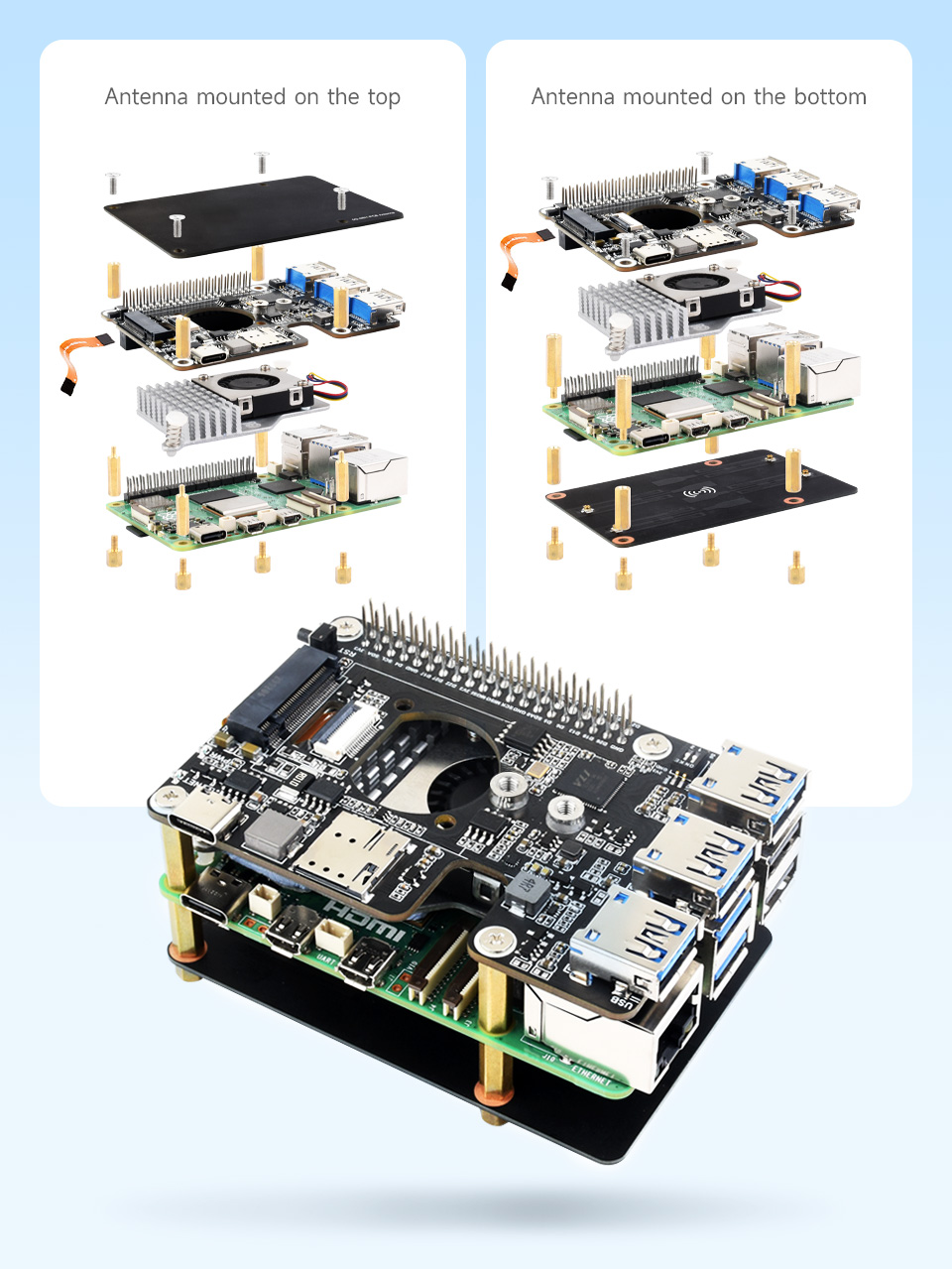

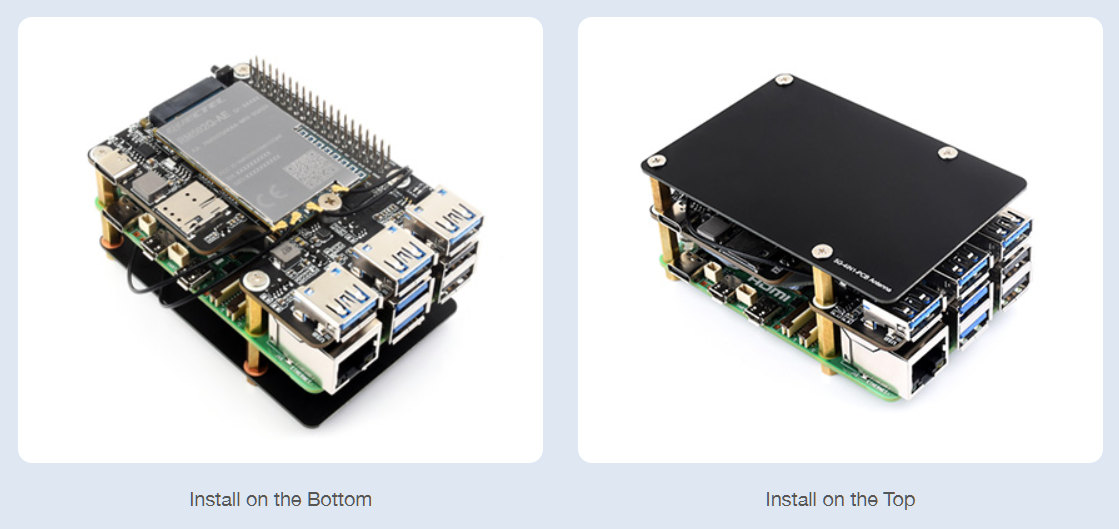

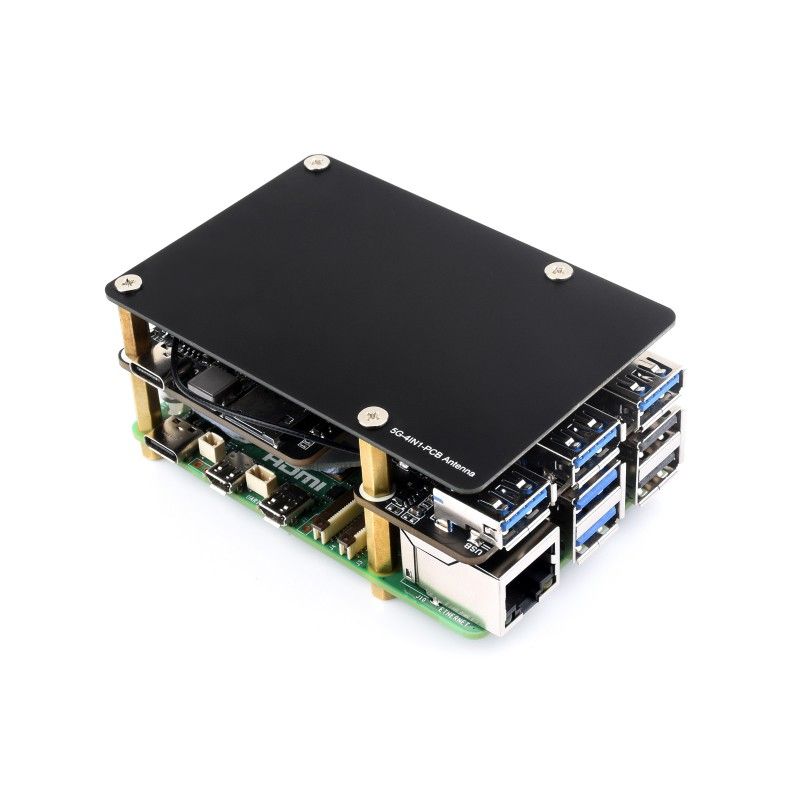

• Comes with a 5G-4IN1-PCB customized antenna for neat wiring management, supports top or bottom mounting
• Features a reserved vent and mounting holes for a cooling fan to increase airflow and better heat dissipation

Designed for Raspberry Pi 5, HAT+ standard

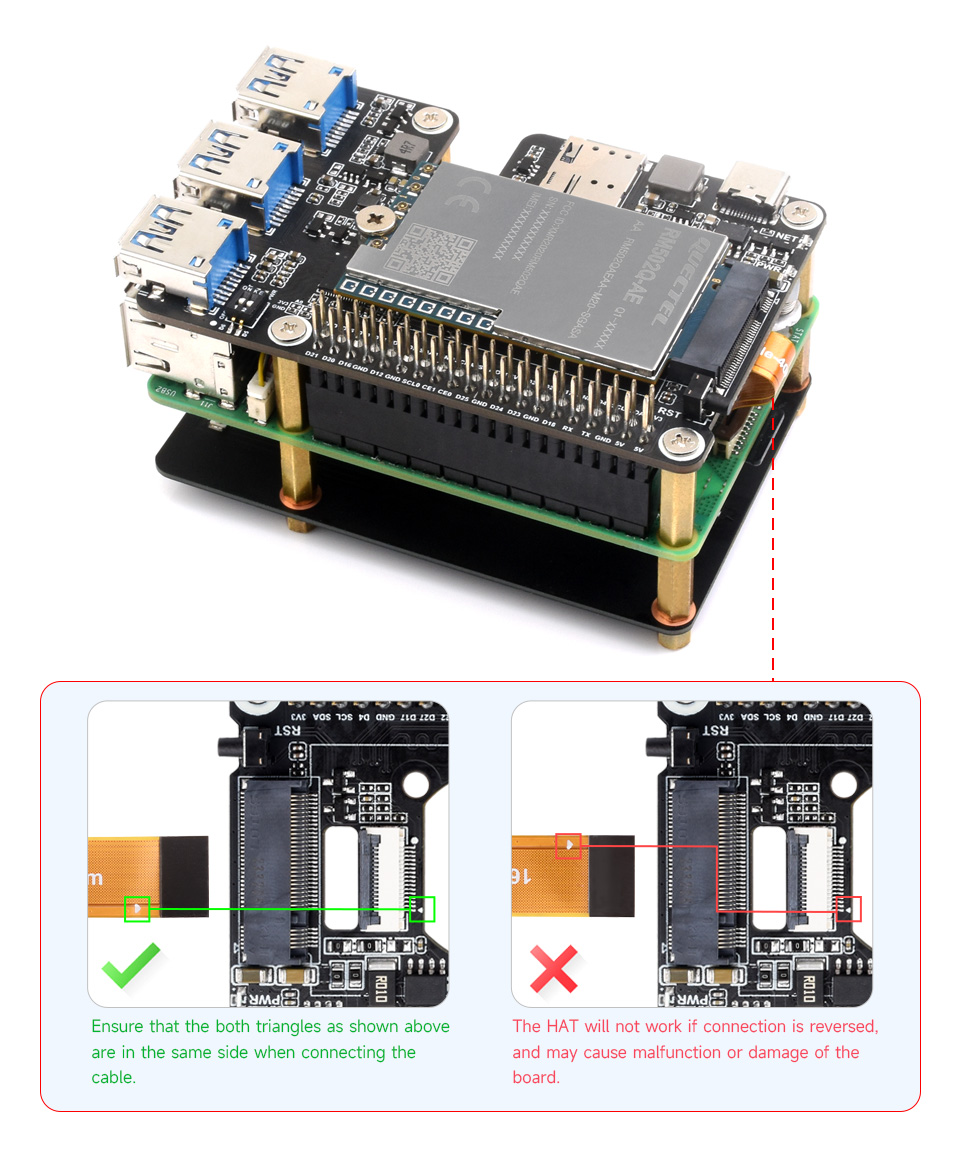

Has a built-in PCIe interface for direct connection to the Raspberry Pi 5 via a 16-pin cable

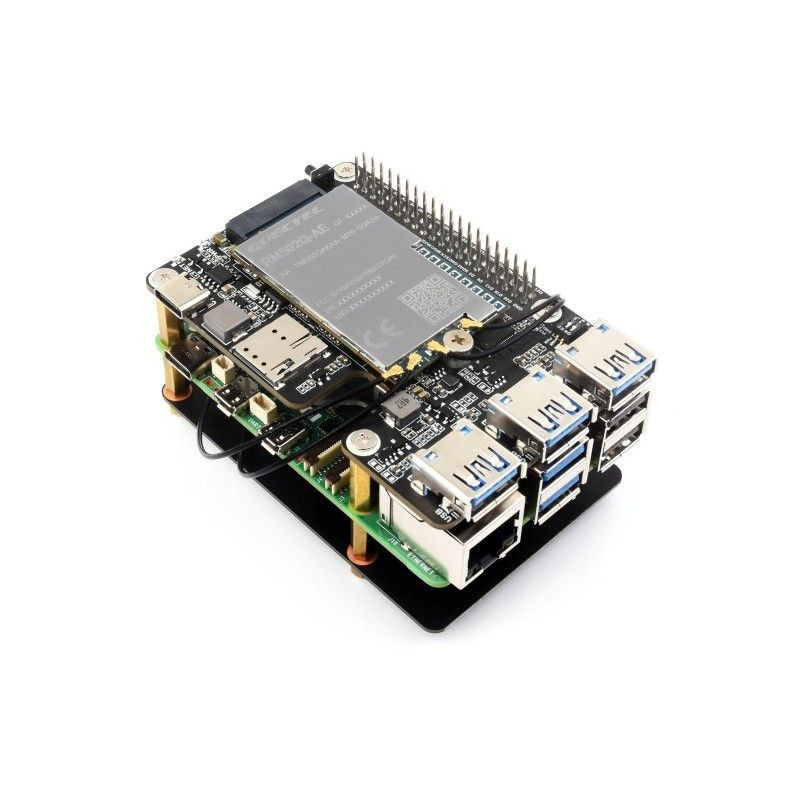

Compatible with several SIMCom/Quectel 4G/5G modules with M.2 Key B interface

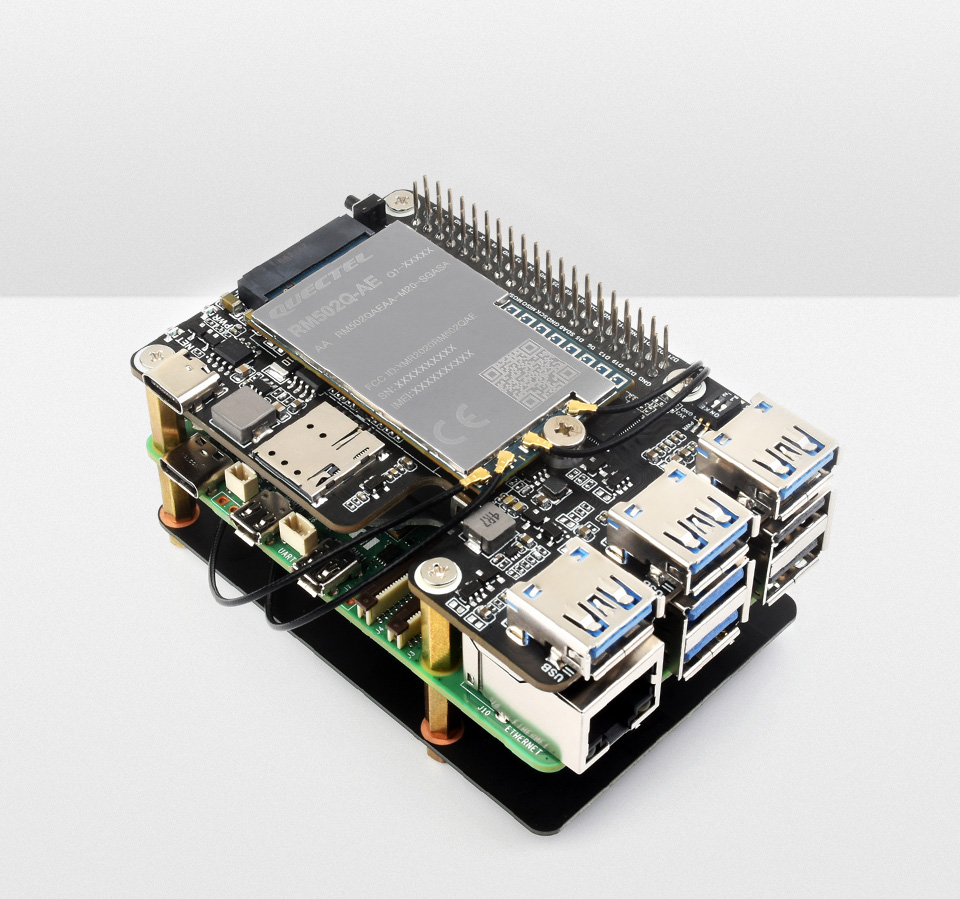

Built-in M.2(NGFF) Key B slot, tested to support SIM7600XX-M.2, SIM82XX and RM5XX series modules, compatible with 3042/3052 packages

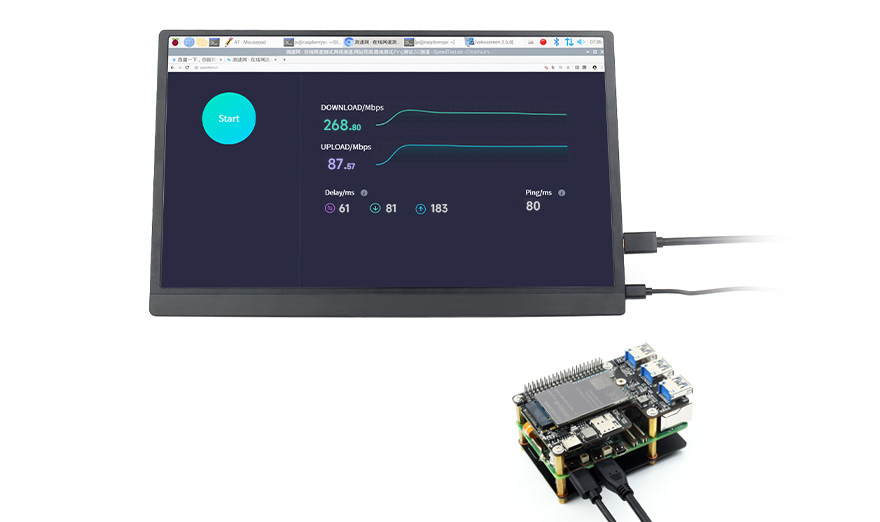

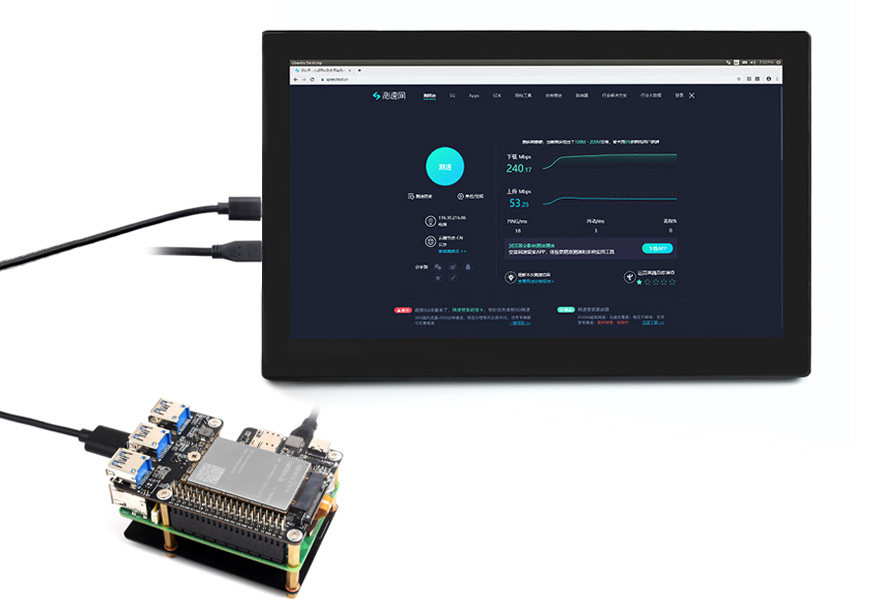

Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

Raspberry Pi OS

OpenWRT

Ubuntu

Comes with 5G-4IN1-PCB antenna (supports top and bottom mounting)

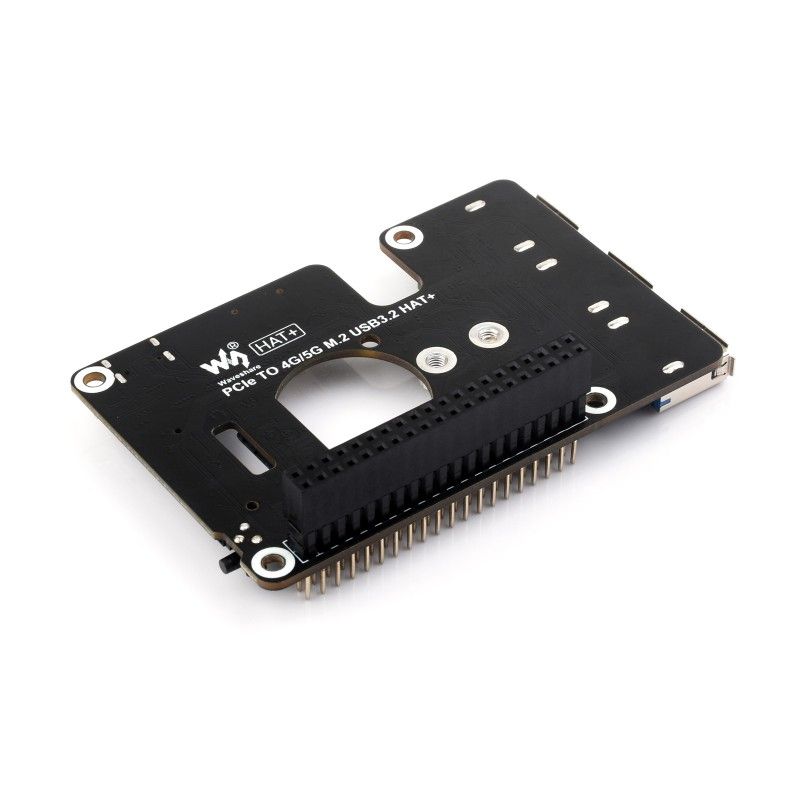

Built-in power monitoring chip and EEPROM is used to monitor the module voltage, current and power in real time via I2C
Supports saving HAT+ ID and product information, compatible with HAT+ standard

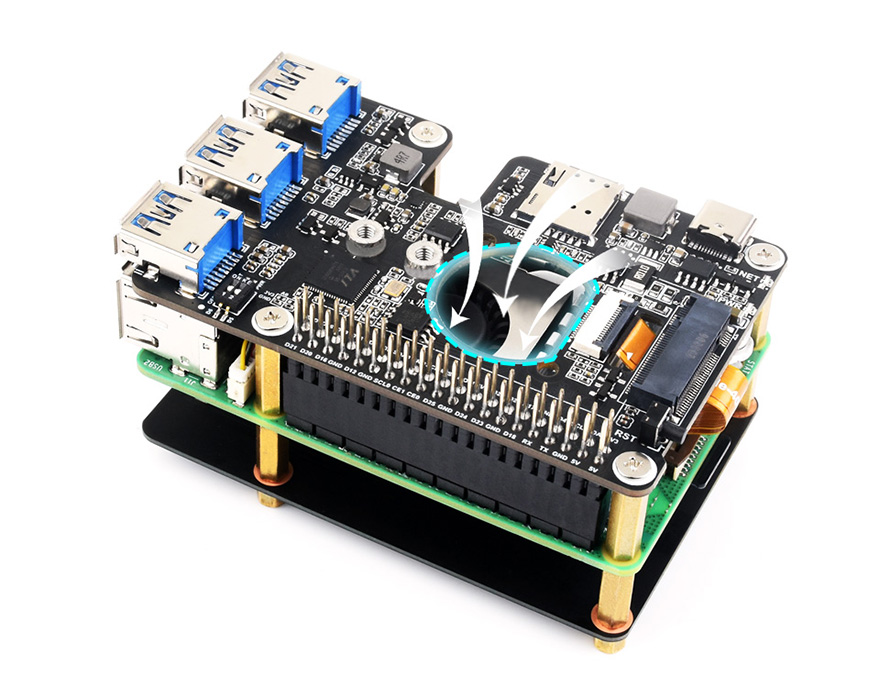

Has a reserved ventilation hole for cooling fan: provides more airflow for Pi5, faster cooling effect, more stable operation

Installation procedure:

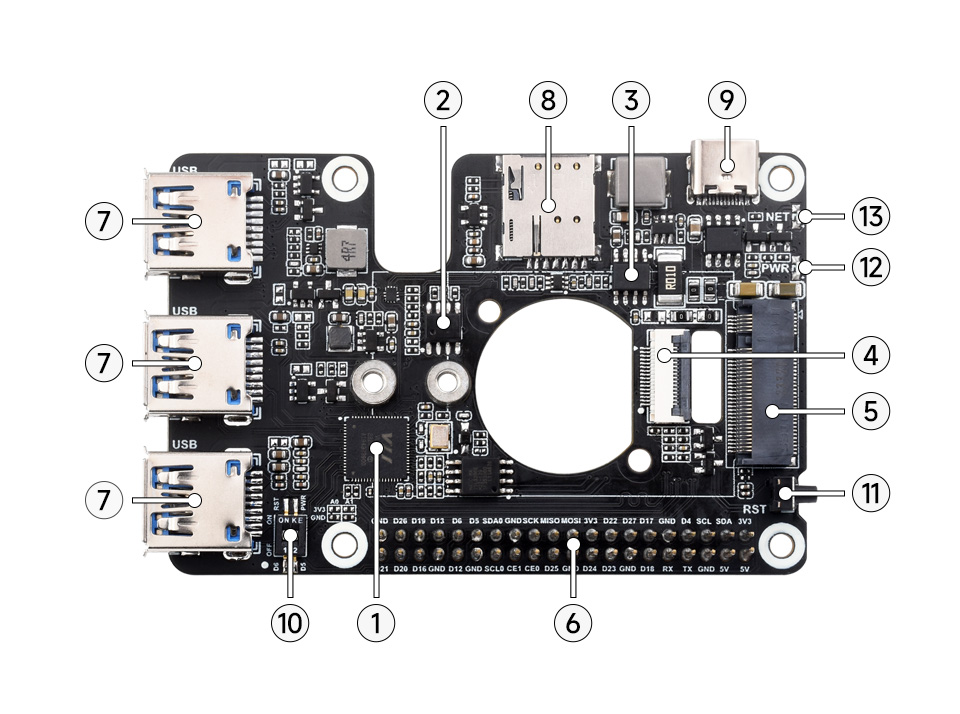

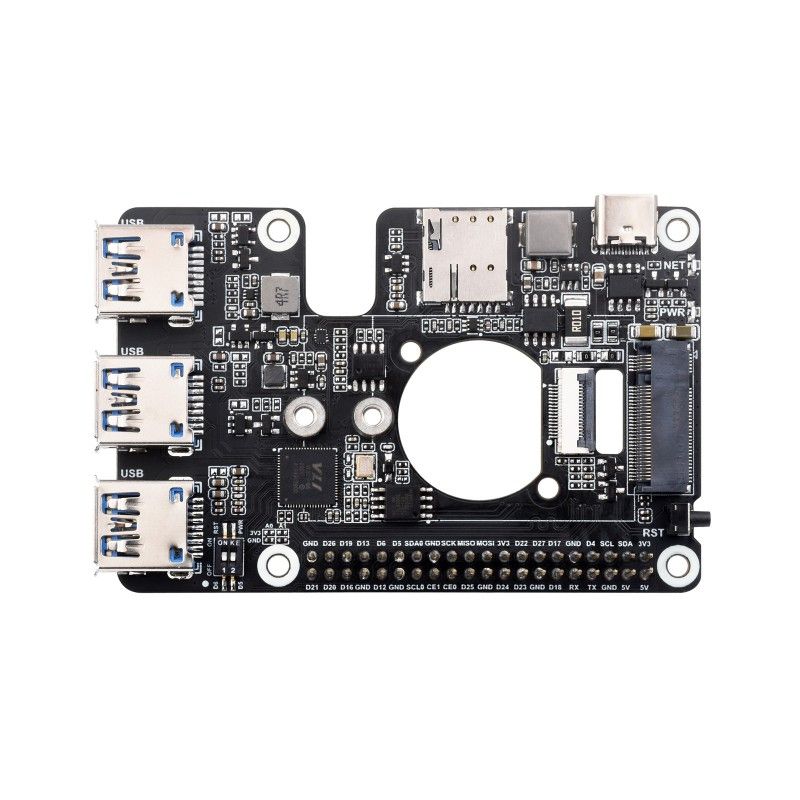

Board components:

1. VL805 - PCIe to USB 3.2 Gen1 hub chip

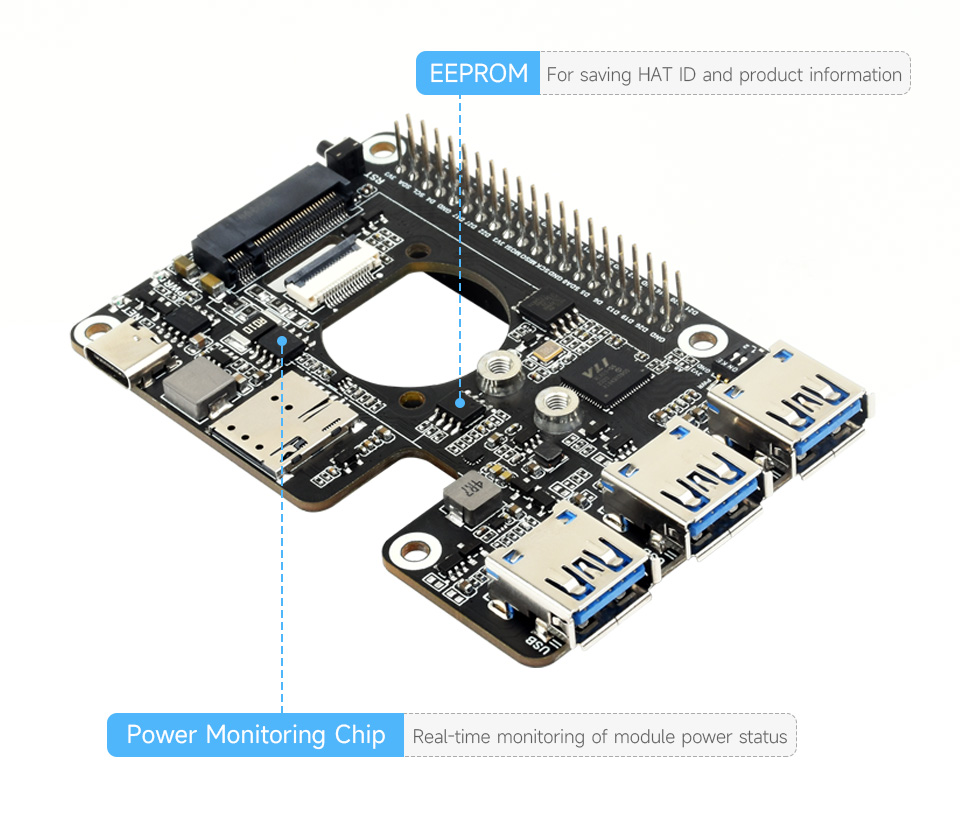

2. EEPROM to store HAT ID and product information
3. INA219 - power monitoring chip
4. 16PIN PCIe interface for connection to the PCIe interface of Raspberry Pi 5
5. M.2 (NGFF) Key B slot - compatible with 3042/3052 packages, M.2 4G/5G modules
6. Raspberry Pi GPIO connector for connecting Raspberry Pi 5
7. Extended USB 3.2 Gen1 ports - USB1USB3
8. Nano SIM card slot for installing a Nano SIM card
9. Type-C interface for 4G/5G Raspberry Pi network or PC via USB cable, firmware update, or external power supply input
10. DIP switch for switching to using GPIO pins to control power on/off and reset of the module
11. Reset button - Press it to reset the module
12. PWR indicator - Power supply indicator
13. NET indicator - Module network status indicator

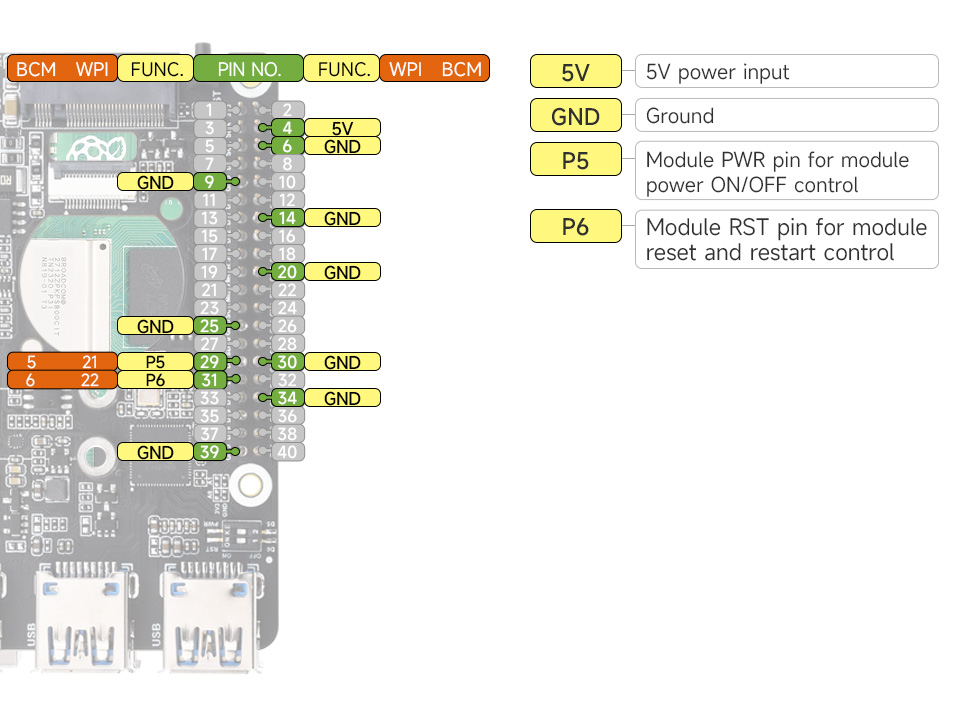

Pinout:

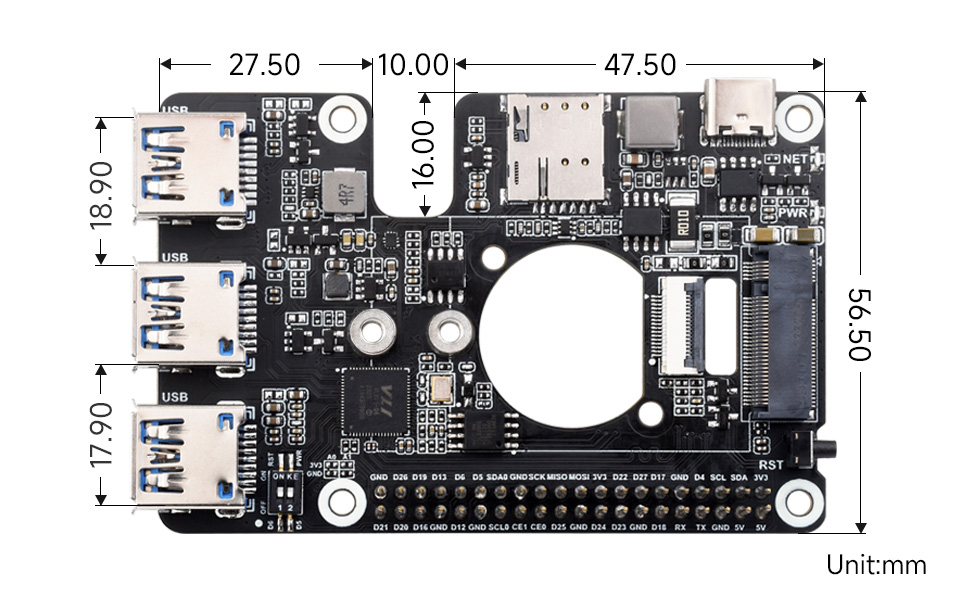

Overall dimensions: 56.5 mm x 85 mm

Wiki: www.waveshare.com/wiki/PCIe_TO_4G/5G_M.2_USB3.2_HAT+

Weight: 0.073 kg

4G/5G module is NOT included, please purchase separately according to your needs.
By default, it comes with a 5G-4IN1-PCB antenna. If you need an external 5G antenna for outdoor testing, you can choose 5G/4G/3G/2G external antenna or 5G/4G/3G/GNSS external antenna.

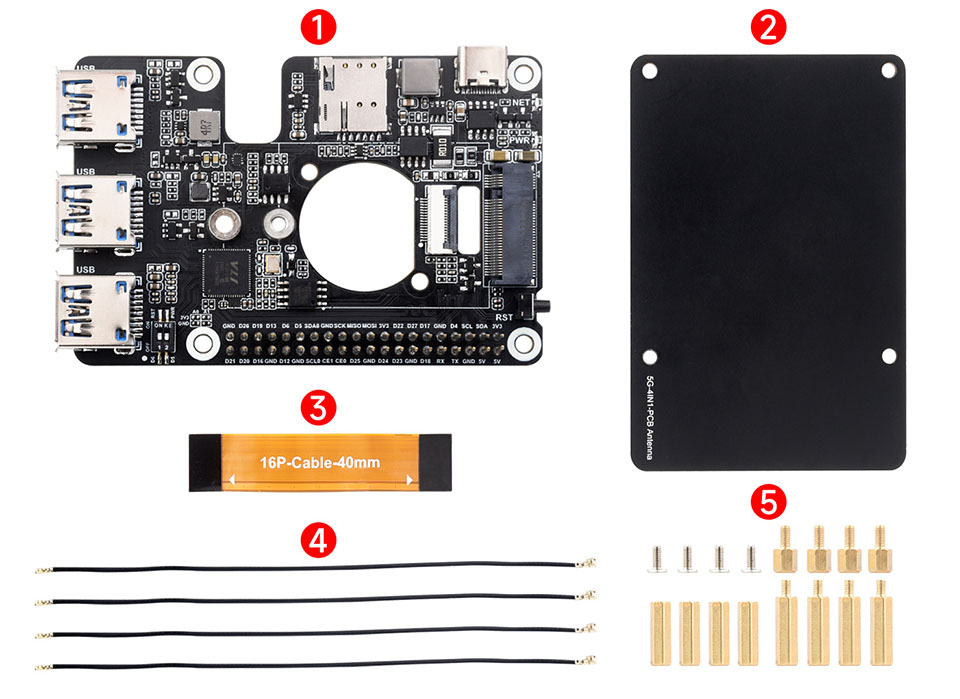

Package contents:

1. PCIe TO 4G/5G M.2 USB3.2 HAT+ x1
2. 5G-4IN1-PCB Antenna x1
3. 16P-Cable-40mm cable x1
4. IPEX1 - IPEX4 cable 13 cm 4 pcs. x 1 pc.
5. Package of screws x1 pc
