ESP32-C3 Mini Development Board (25452)

TheESP32-C3 Mini Development Board (25452 ) is a versatile developer platform based on the ESP32-C3FN4 single-core 160 MHz processor. This compact board supports both 2.4 GHz Wi-Fi and Bluetooth 5, making it an ideal choice for a wide range of wireless applications and IoT projects.

Key features:

• Features a low-power SoC with a 32-bit single-core RISC-V processor, with a core frequency of up to 160 MHz
• Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• Has 400 KB of SRAM and 384 KB of ROM and 4 MB of built-in flash memory
• The toothed module and built-in ceramic antenna allow soldering directly to the carrier boards
• Supports flexible clock, independent configuration of the module power supply and other controls to realize low power consumption in various scenarios
• Integrated full-speed USB serial port controller, 15× GPIO pins allow flexible customization of pin functions
• Interfaces: 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.
• Supports C/C++, MicroPython, has a comprehensive SDK, developer resources, tutorials to help you get started easily

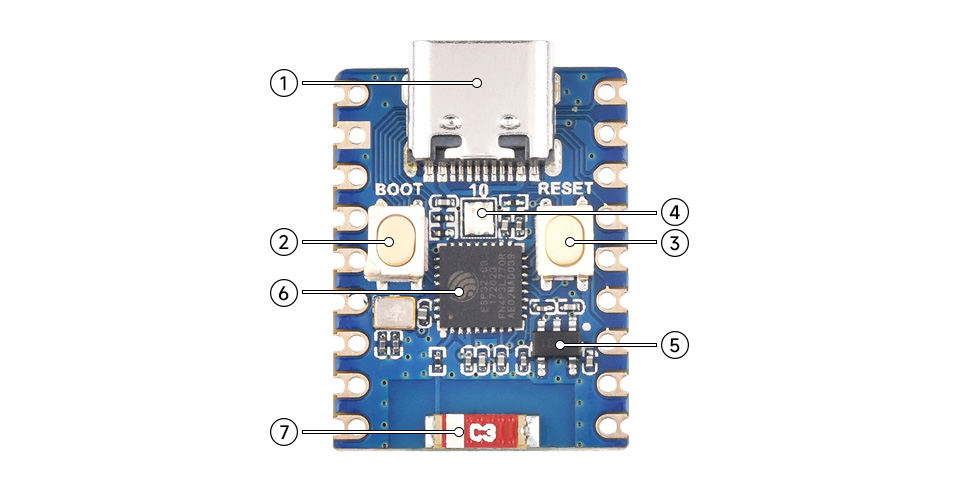

Board elements:

1. USB Type-C port
2. BOOT® button Press it, and then press the RESET button to enter the boot mode
3. RESET button
4. WS2812 RGB LED
5. CAT6219-330TD-GT3. CMOS LDO, 500 mA (max.)
6. Single-core processor ESP32-C3FN4 with operating frequency up to 160 MHz
7. 2.4G ceramic antenna

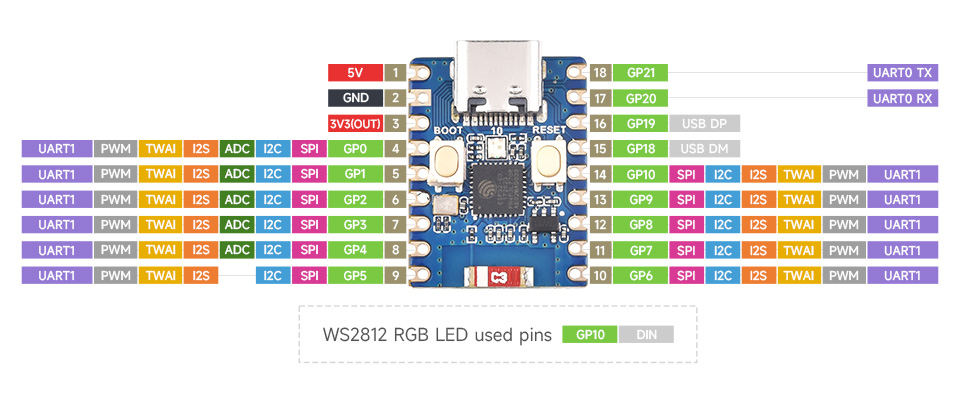

Pinout:

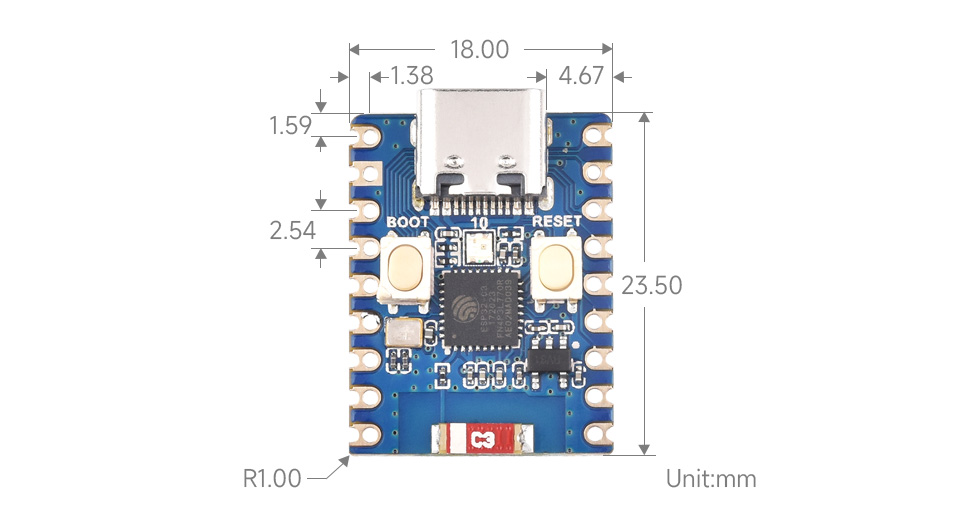

Overall dimensions: 23.5mm x 18mm

Wiki: www.waveshare.com/wiki/ESP32-C3-Zero

Scope of delivery:

1. ESP32-C3-Zero x1

Weight: 0.002 kg
