Waveshare RP2040 Tiny Development Board (24665)

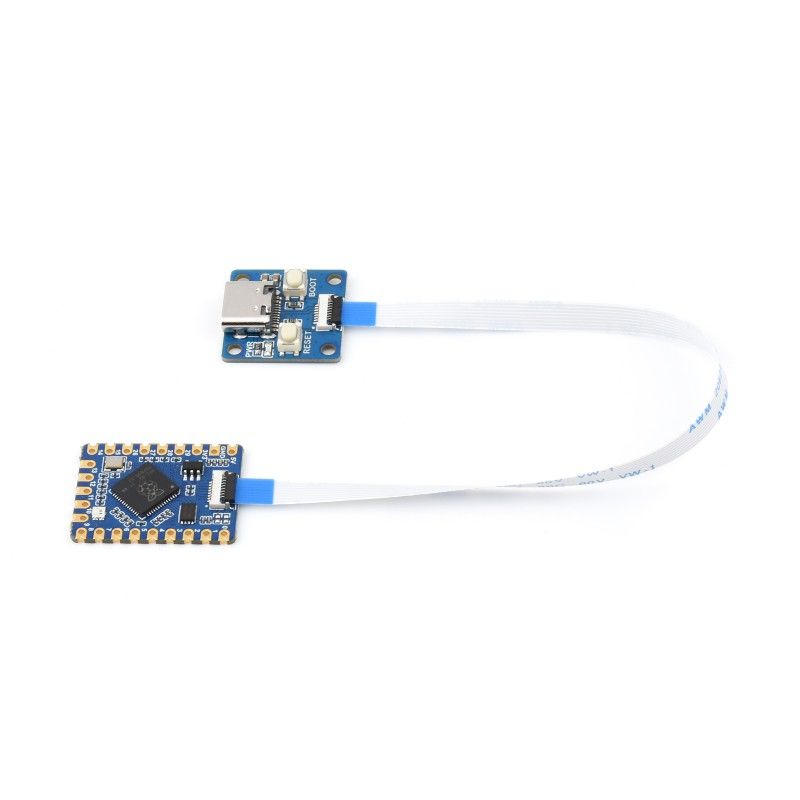

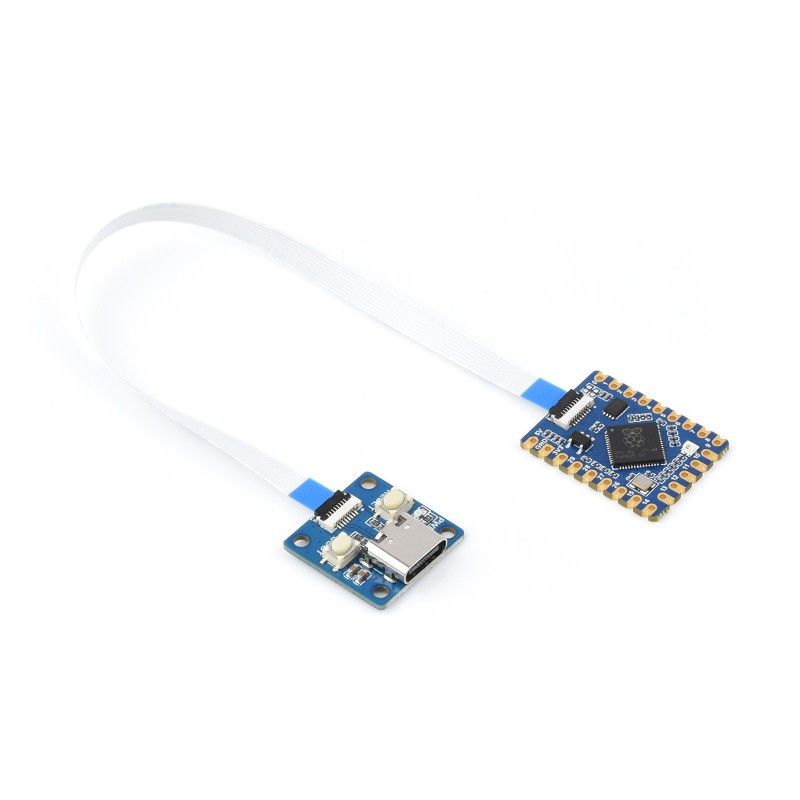

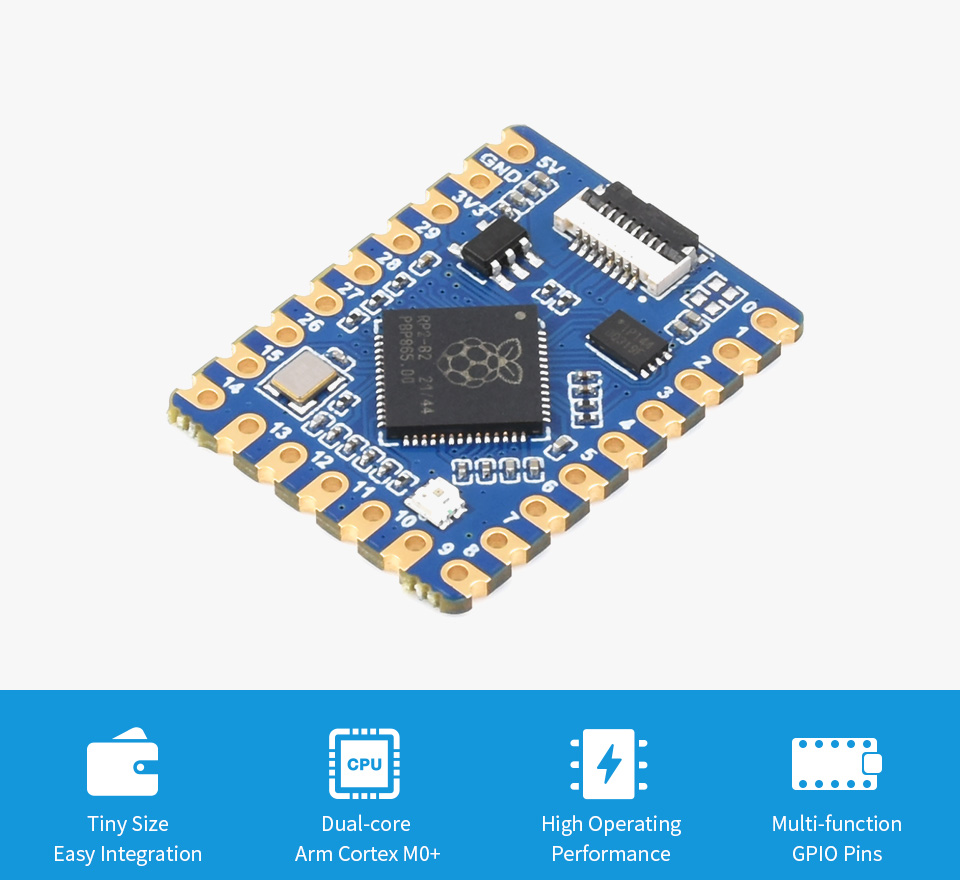

The Waveshare RP2040 Tiny Development Board (24665 ) consists of a development board, RP2040-Tiny-Adapter, and FPC cable. The RP2040 Tiny Development Board (24665) is a small developer kit based on the official RP2040 Dual Core processor. It has a small size and an open design that makes it easy to embed in projects to explore different processes.

This kit contains the RP2040 dual-core processor with the following parameters:

• Two Cortex-M0+ cores
• Operating frequency up to 133 MHz
• 264 KB of program memory (Flash)
• 30 KB of system memory (SRAM)

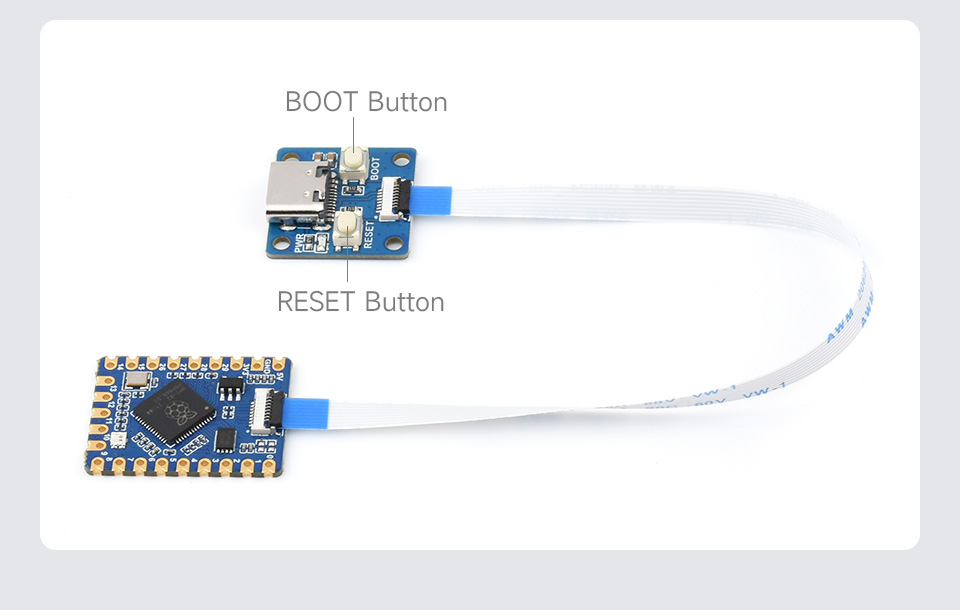

The Waveshare RP2040-Tiny Development Board also contains a number of other features and components, including: USB port for communication with PCs or other devices, 20-pin GPIO connector for communication with various external devices, RGB LED and RESET/BOOT buttons for debugging, etc.

The Waveshare RP2040-Tiny Development Board is an open development kit with an affordable design, allowing developers to easily use it to develop various projects. In addition, it has an optional USB port adapter option to enable communication with PC or other devices for convenient project development and debugging.

Main features:

• Features the RP2040 microcontroller chip developed by Raspberry Pi in the UK
• Equipped with a dual-core Arm Cortex M0+ processor with a clock speed of up to 133 MHz
• Has 264 KB of SRAM and 2 MB of built-in flash memory

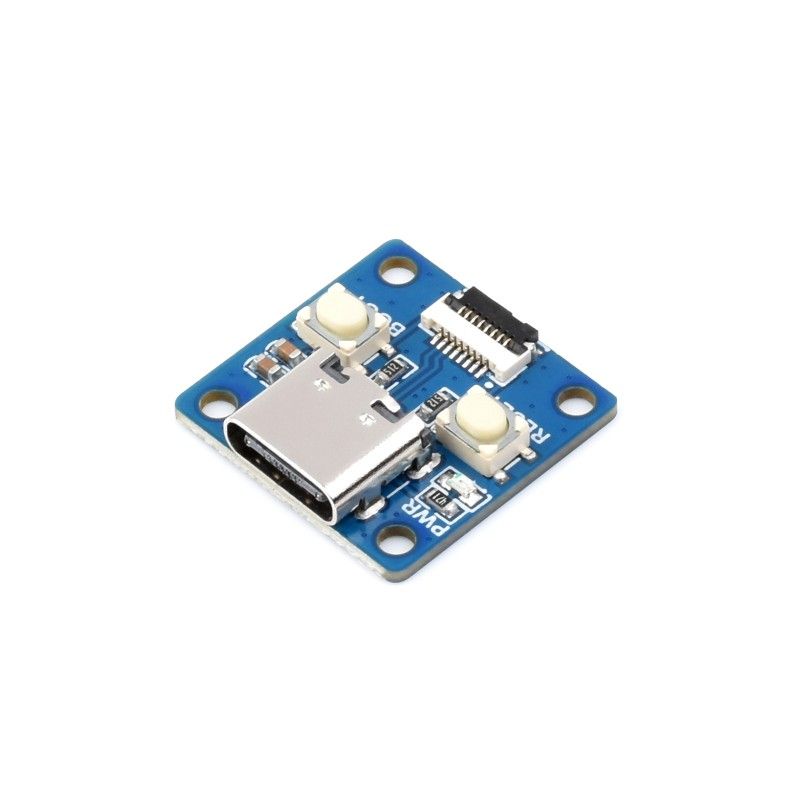

• Built-in FPC 8PIN connector provides a USB Type-C port via an adapter board
• Serrated module allows soldering directly to backplanes
• USB 1.1 with device and host support
• Energy-efficient operating modes
• Drag-and-drop programming using a USB drive
• Features 20 × multifunction GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × PWM controllable channels
• Precise clock and timer on the chip
• built-in temperature sensor
• Accelerated floating point libraries on chip
• 8 × programmable input/output (PIO) gates to support peripherals

Supports C/C++, MicroPython, Arduino: comprehensive SDK, has developer resources, tutorials to help you get started easily

Serrated holes and compact design make it easy to integrate this device into a variety of applications

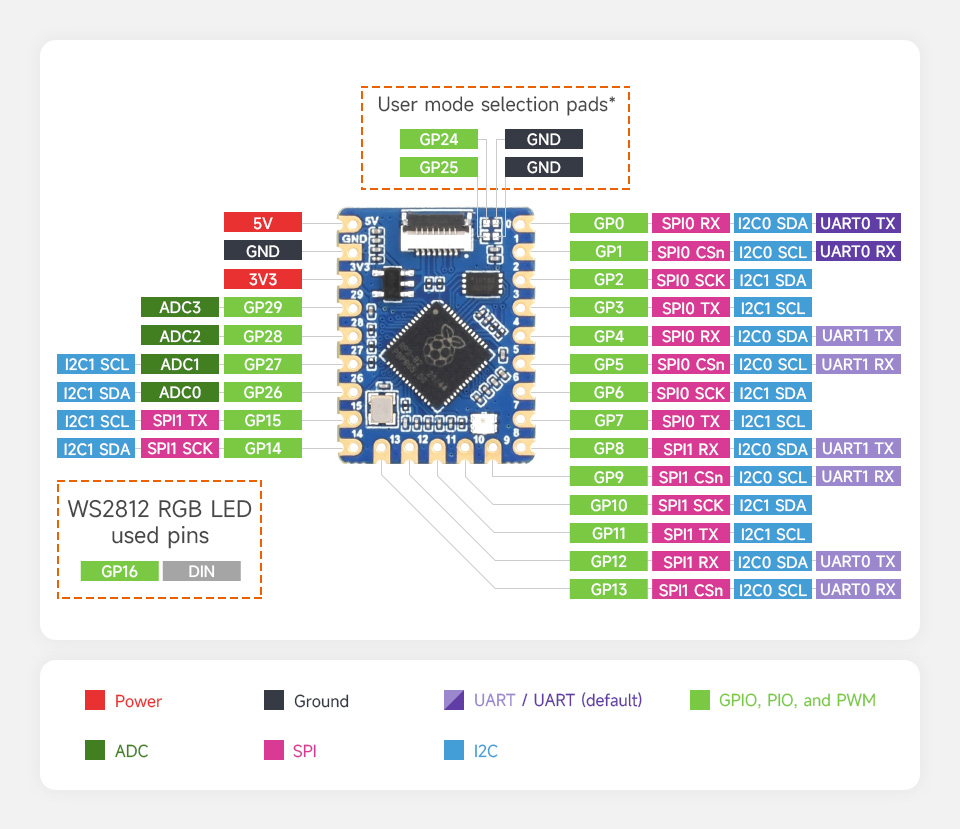

Pinout:

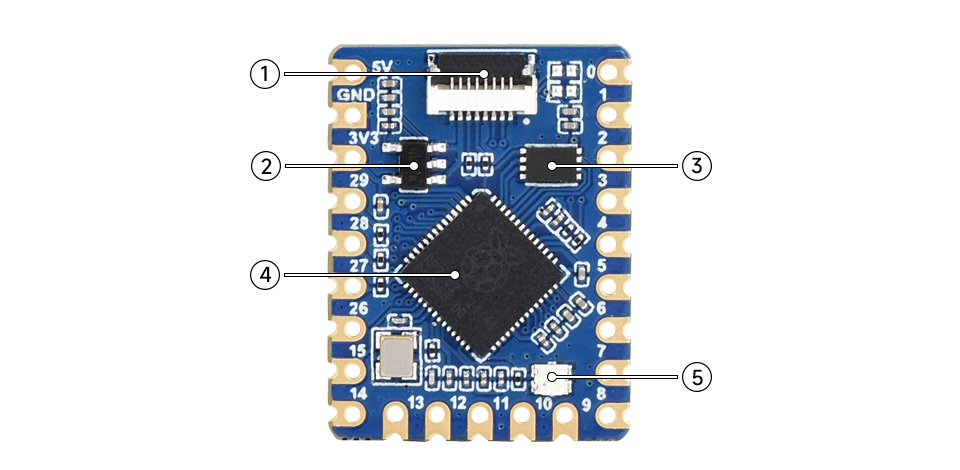

Board Elements:

1. FPC connector: 0.5 mm pitch 8 PIN
2. RT9193-33: 500mA low drop, low noise, ultra-fast LDO
3. W25Q16JVUXIQ: 2 MB NOR-Flash
4. RP2040: dual-core processor, operating frequency up to 133 MHz
5. WS2812: RGB LED indicator

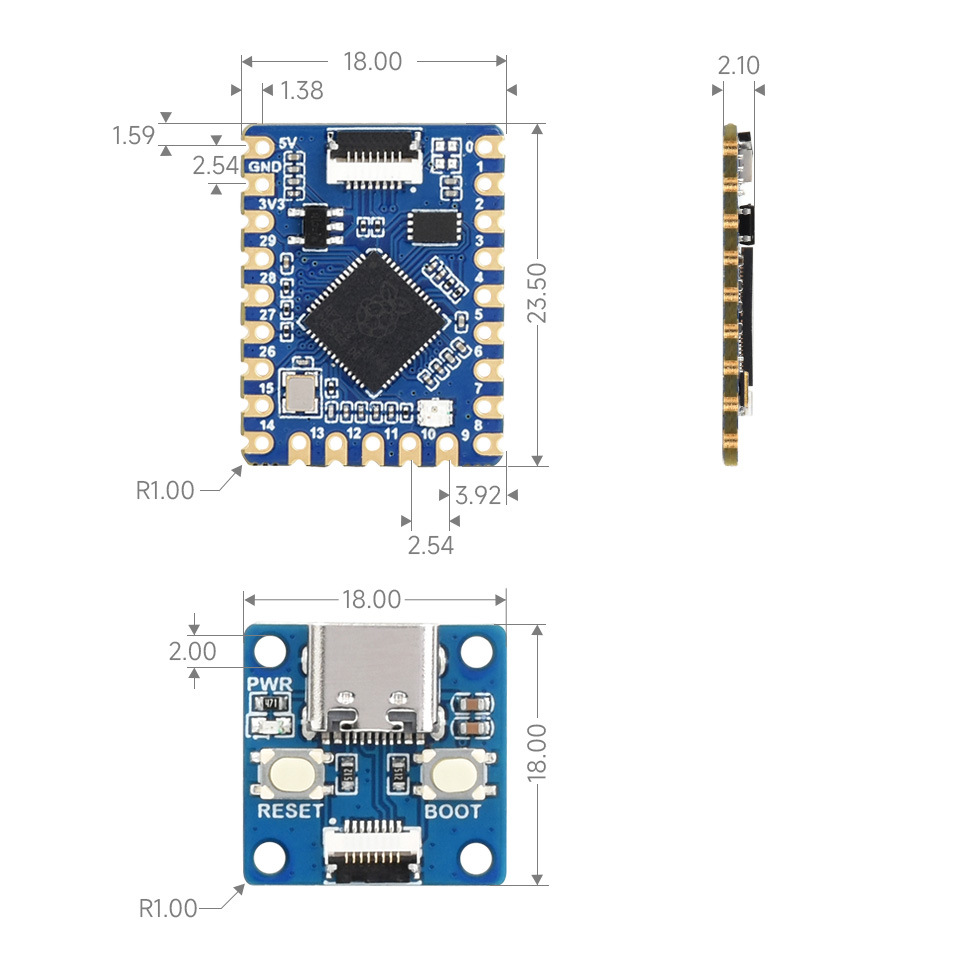

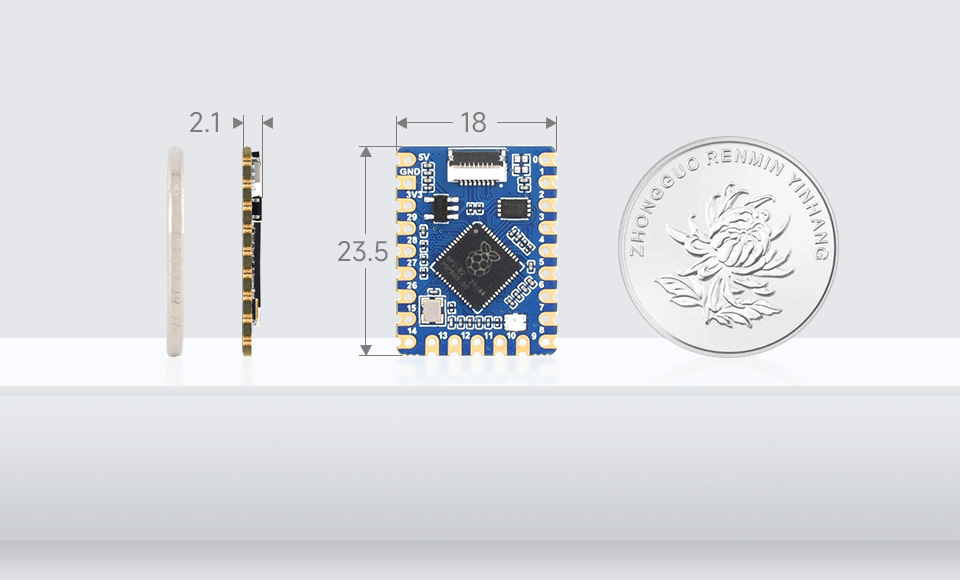

Overall dimensions: 23.5mm x 18mm x 2.1mm (18mm x 18mm - adapter board)

Wiki: www.waveshare.com/wiki/RP2040-Tiny

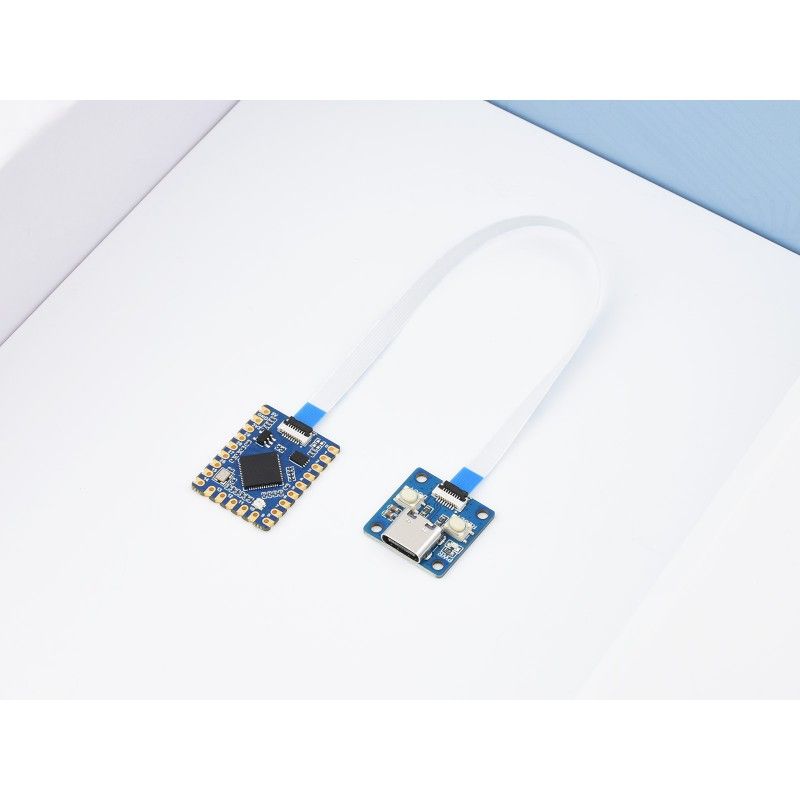

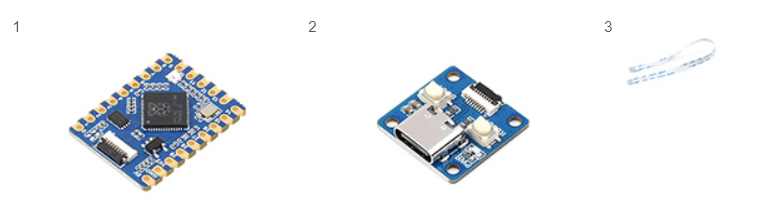

Scope of delivery:

1. RP2040-Tiny x1

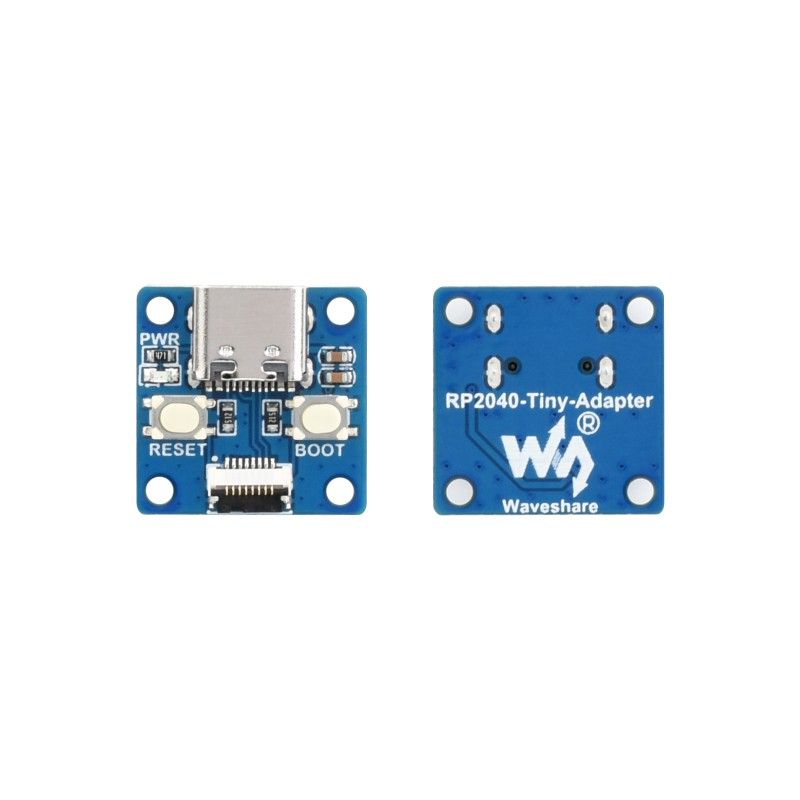

2. RP2040-Tiny-Adapter x1
3. 8-pin FPC cable 15 cm x 1

Weight: 0.008 kg
