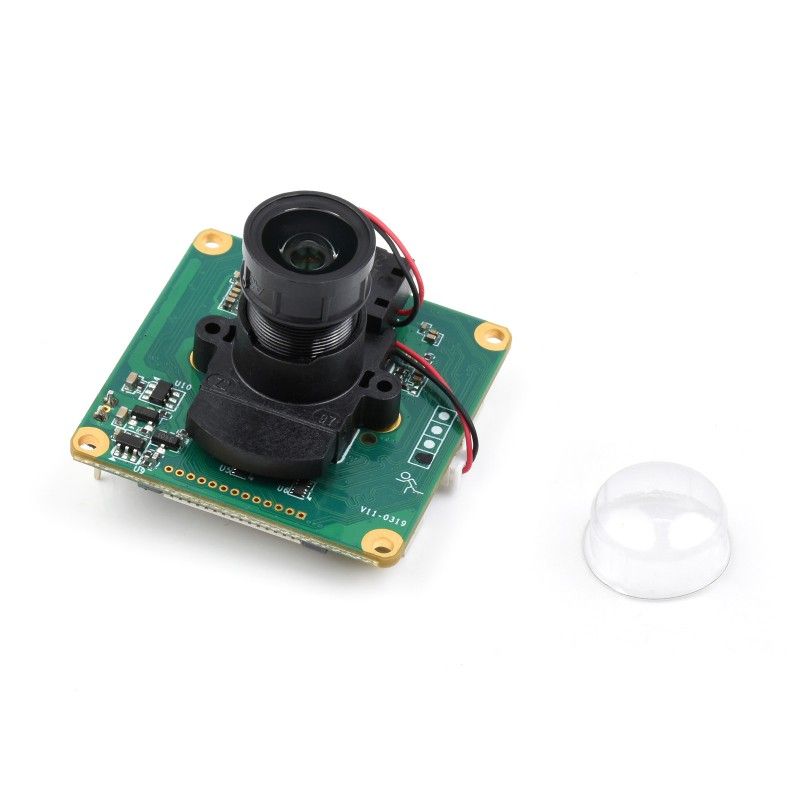

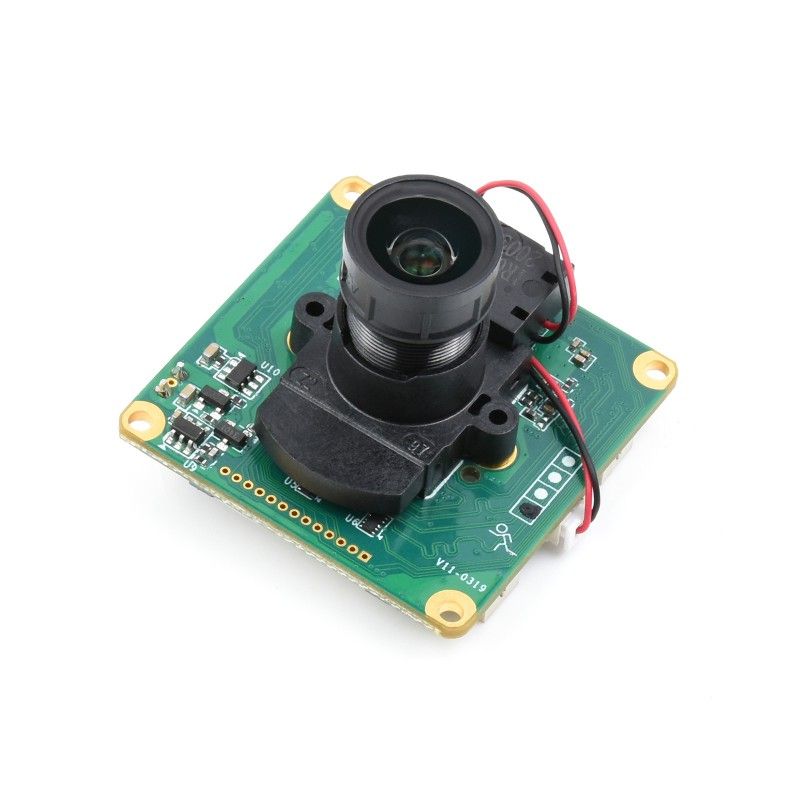

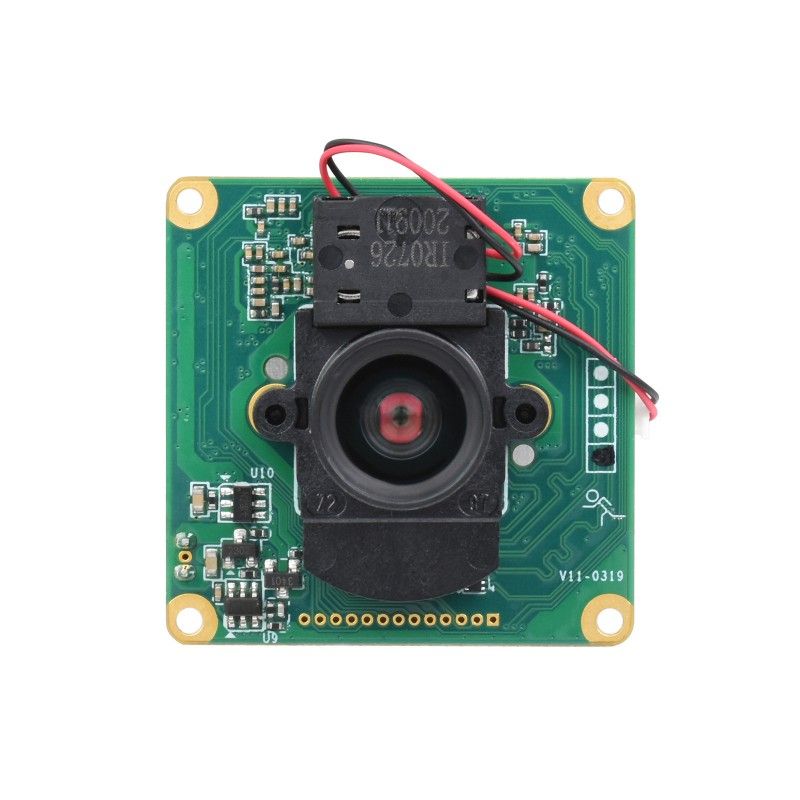

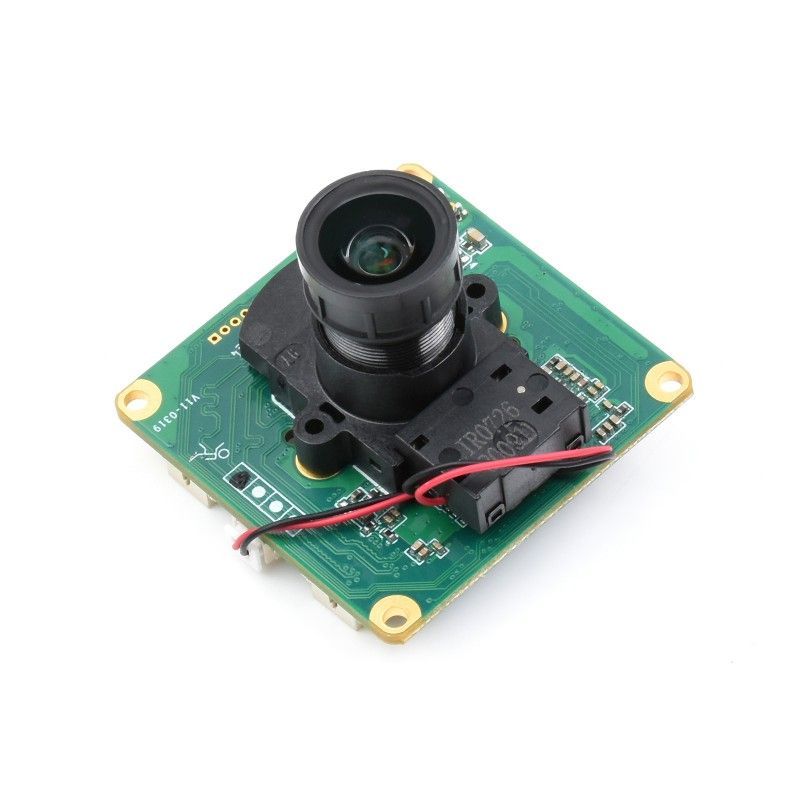

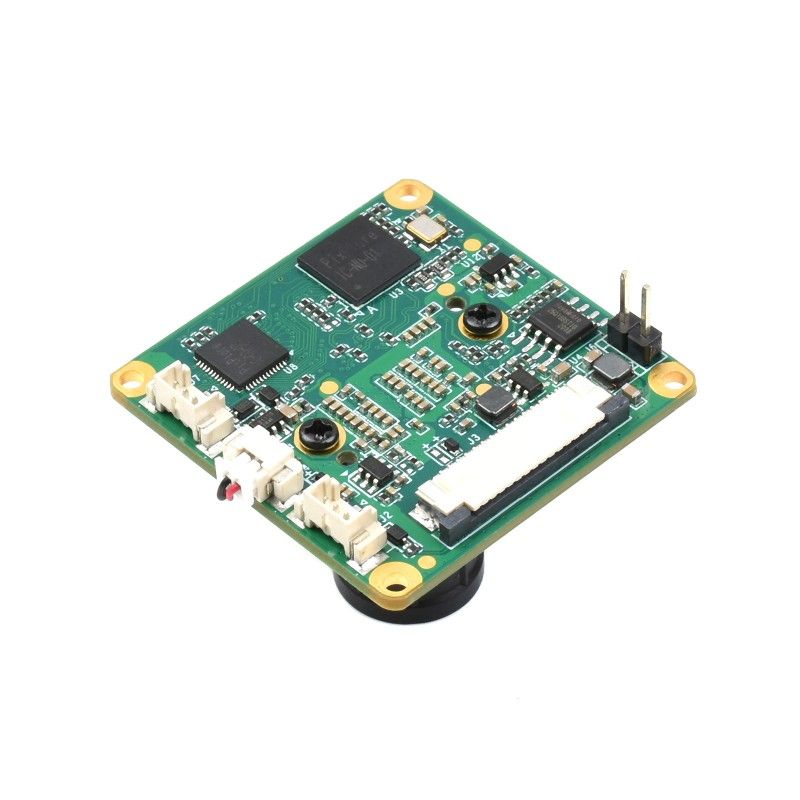

IMX462-99 2MP Starlight Camera

TheIMX462-99 2MP Starlight Camera is a high-performance camera with IR-CUT (IR-CUT, which ensures that the IR camera's colors are adjusted correctly during the day for better picture display), equipped with a Starlight sensor, built-in image processor (ISP), fixed focus, and 2 megapixel resolution.

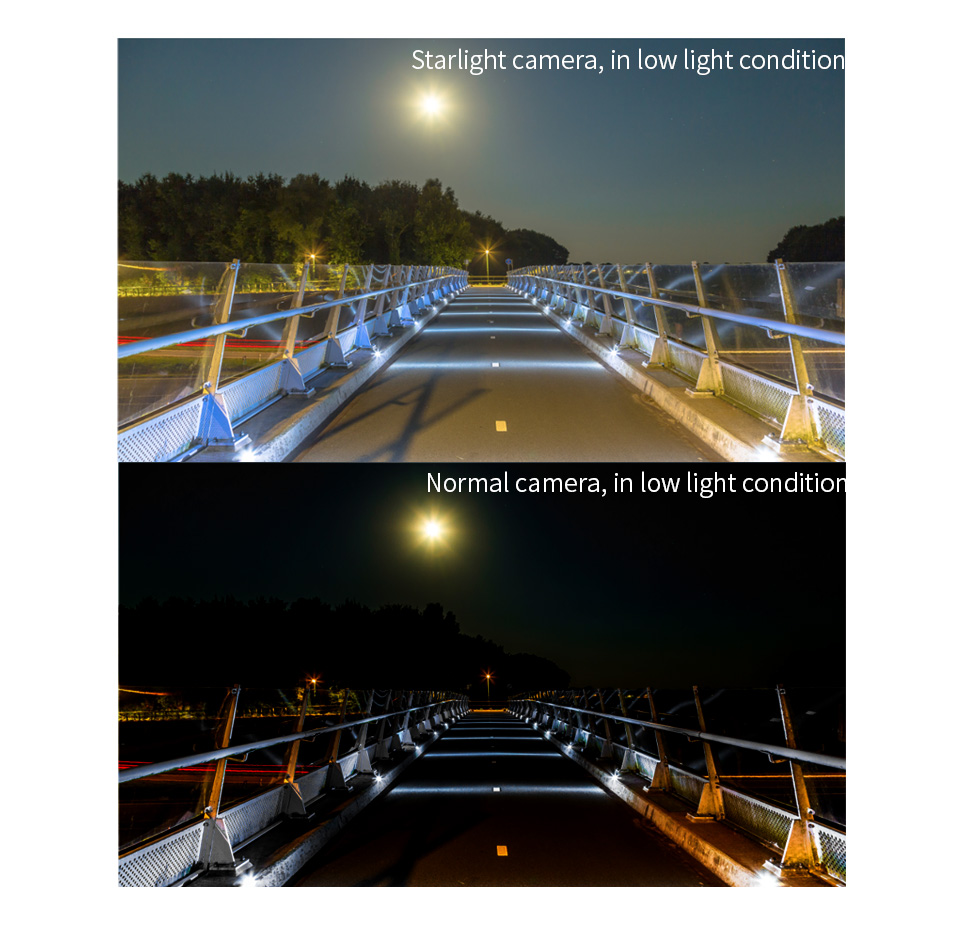

The camera has a special IR filter that automatically adjusts the transmission of infrared light, making it ideal for use in both day and night environments. The Starlight sensor guarantees high sensitivity in low light conditions, which allows for clear and detailed images even in the dark.

Thanks to the built-in image processor (ISP), the IMX462-99 provides high-quality image processing and optimization without additional hardware. The camera also features fixed focus, making it easy to use and suitable for a variety of applications.

The overall resolution of 2 megapixels allows the camera to capture high-quality images and be used in a variety of scenarios, such as video surveillance, unmanned aerial vehicles and other projects where high-quality images are important.

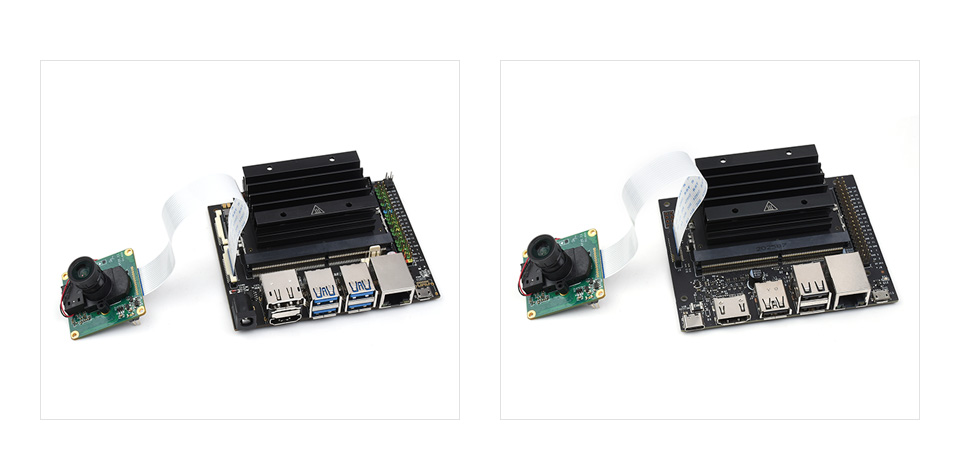

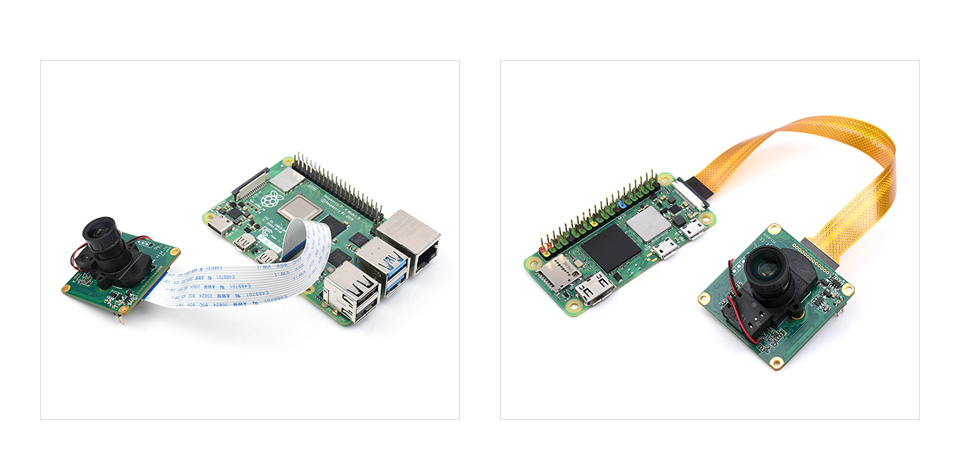

Direct connection to a variety of Raspberry Pi variants including 4B/3B+/3A+/3B/2B/B+/A+, optional FPC cable required for Zero/Zero 2 W series. Connectivity to Jetson Nano.

Specifications:

• CMOS SIZE: 1/2.8 in.
• RESOLUTION: 2 MEGAPIXELS (1920 × 1080)
• CAMERA TYPE: Color
• FOCUSING: Fixed focus
• SETTING: Rolling Shutter
• APERTURE: F1.0
• FOCAL LENGTH: 4.0 mm
• ANGLE OF VIEW: 99,1°
• DISTORTION: < -33,8%

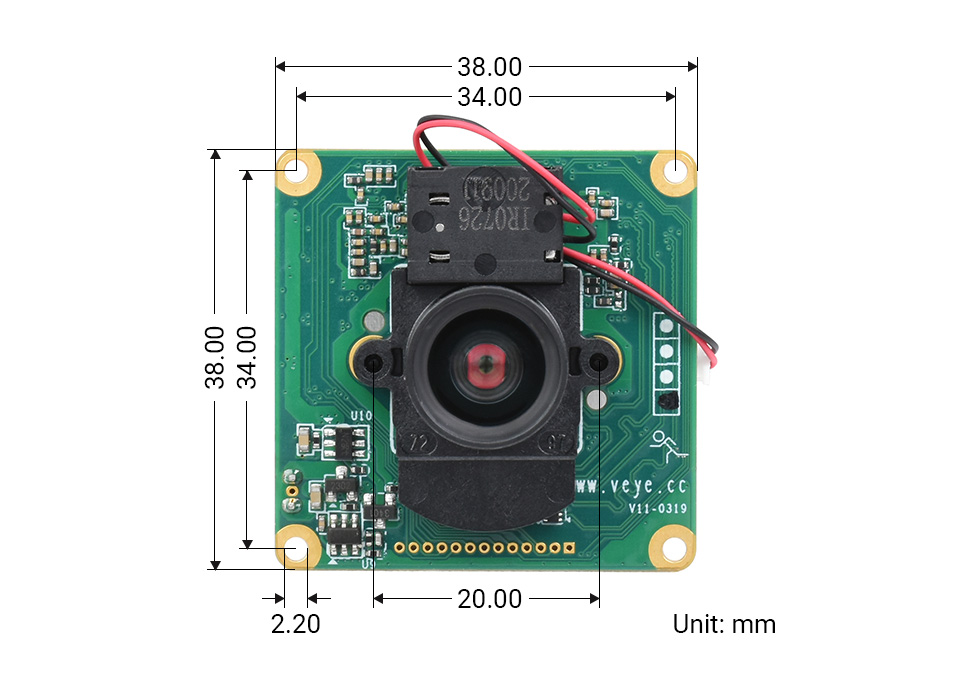

Overall dimensions: 38 mm x 38 mm

Wiki: www.waveshare.com/wiki/IMX462_2MP_Starlight_Camera

Weight: 36 g (without cable)

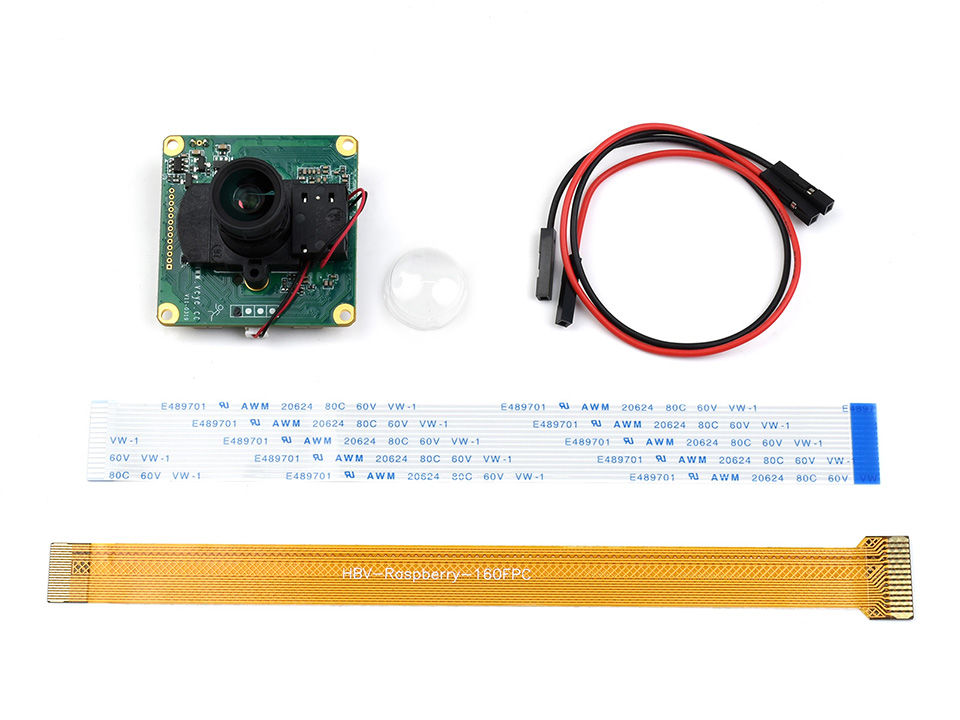

Scope of delivery:

1. IMX462-99 2MP Starlight Camera x1
2. 15-pin FFC (2 types) x2
3. Connecting wires x1
