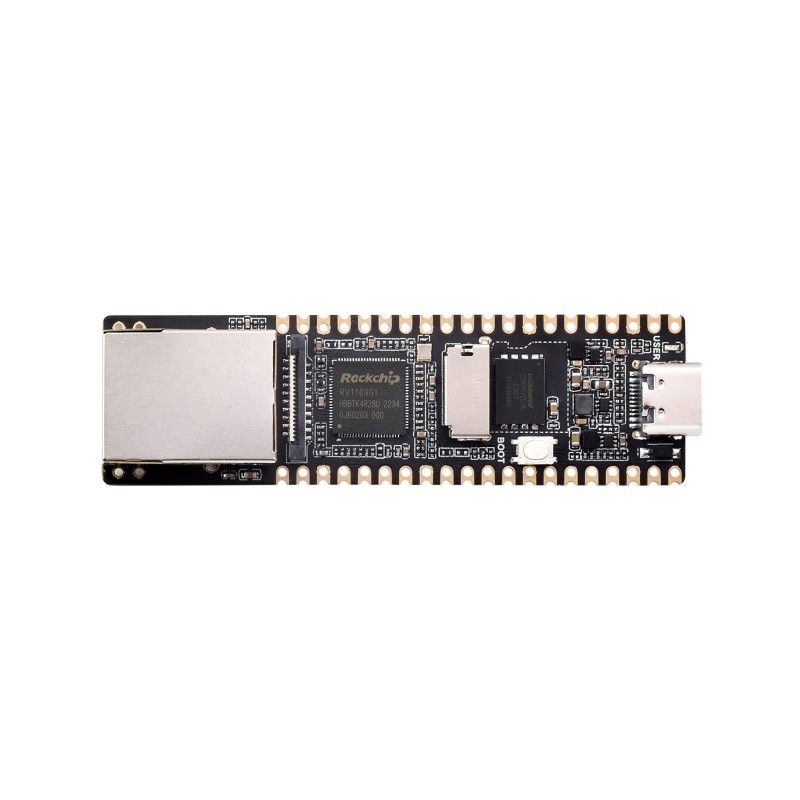

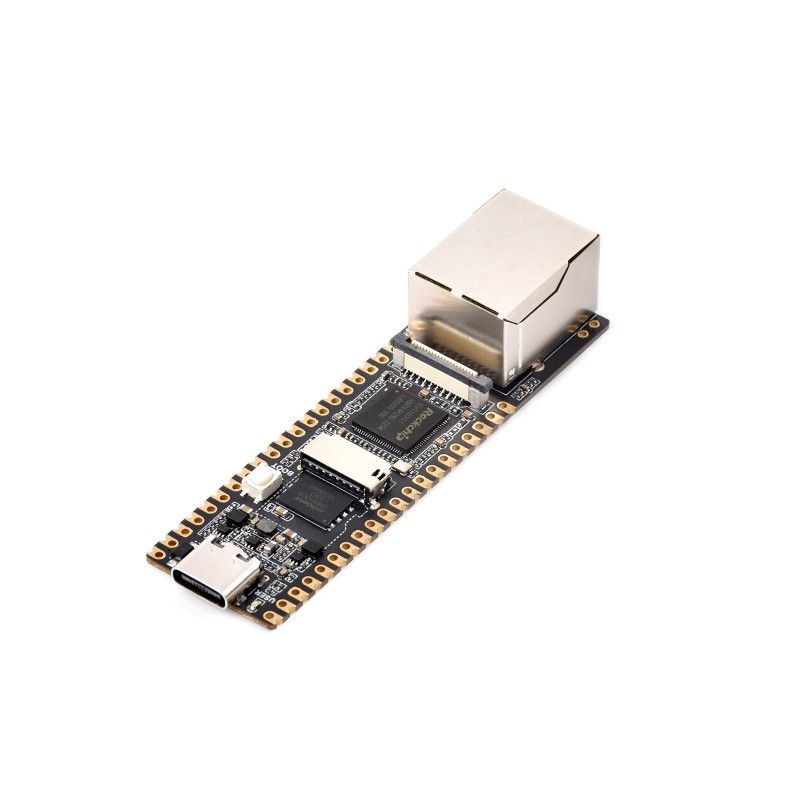

Luckfox Pico Plus

TheLuckfox Pico Plus is an innovative and powerful development board with Ethernet port and 128MB SPI NAND FLASH for projects that require high performance and versatility. This board is ideal for enthusiasts, developers, and engineers looking for a compact and powerful solution to their creative challenges. The LuckFox Pico Plus RV1103 Linux Micro Development Board is great for a variety of applications, including:

• Developing IoT devices with network connectivity.
• Creating media centers and multimedia devices.
• Research and development in artificial intelligence and image processing.
• Development of embedded systems and robotics.

Main features:

• Integration of ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors: This board features a number of powerful processors, including ARM Cortex-A7 and RISC-V, to provide high computing power and the ability to develop a variety of applications.

• The board supports the Linux operating system, which allows developers to use a wide range of software resources and libraries to create a variety of applications.

• An Ethernet port makes this board ideal for projects that require network connectivity, such as IoT (Internet of Things) devices, servers, and routers.

• The integrated NPU (neural network accelerator) and ISP (image processing unit) microcontrollers enhance the development capabilities of applications related to artificial intelligence and computer vision.

Specifications:

• Processor: Cortex [email protected] + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: 4M input @ 30fps (max)
• Memory: 64Mb DDR2
• USB: USB 2.0 host/device
• Camera: MIPI CSI 2-way
• GPIO: 25 × GPIO pins
• Ethernet port: 10/100M Ethernet controller and built-in PHY
• Memory by default: SPI NAND FLASH (128 MB)

Highly integrated and powerful performance (integrates CPU, NPU, ISP and other processors)

• Single-core 32-bit ARM Cortex-A7 core with integrated NEON and FPU.
• The built-in 4th generation NPU of Rockchip's own design provides high computing accuracy and supports hybrid quantization of int4, int8 and int16. The computing power of int8 is 0.5 TOPS, and with int4 - up to 1.0 TOPS.
• Built-in third-generation ISP3.2 of its own design, supports 4 megapixels, with several image enhancement and correction algorithms, such as HDR, WDR, multi-level noise reduction, etc.
• It has powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% of the bitrate of the normal CBR mode, so that the camera images are high-definition with a smaller size, twice the storage space.
• The built-in RISC-V microcontroller supports low power consumption and fast startup, supports fast image capture in 250ms and loading the AI model library at the same time to realize "one second" face recognition
• Built-in 16-bit DDR2 DRAM, which is capable of supporting demanding memory bandwidth.
• Integrated with built-in POR, audio codec and MAC PHY.

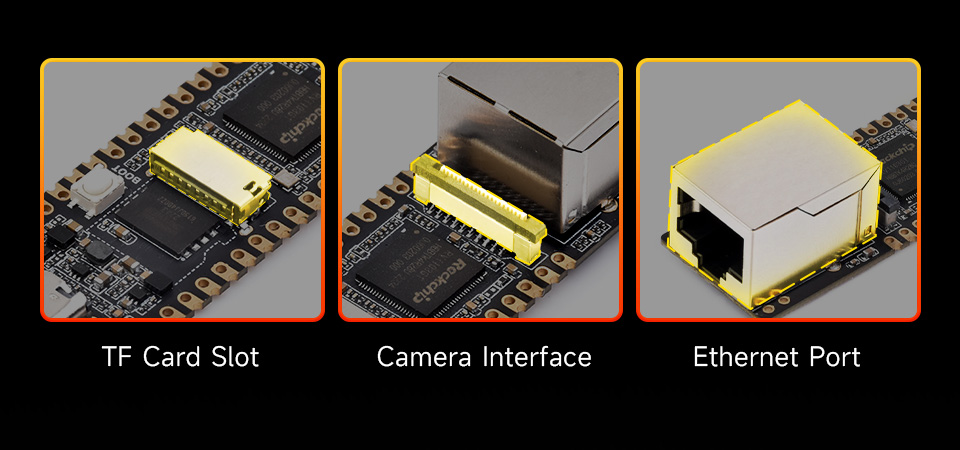

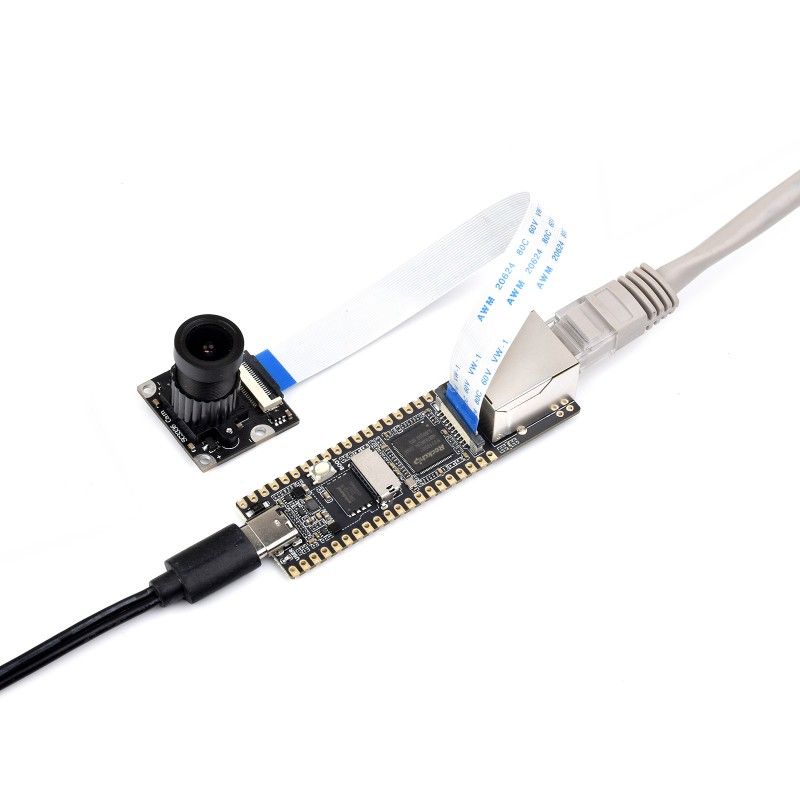

Integrates TF card slot, camera interface and Ethernet port

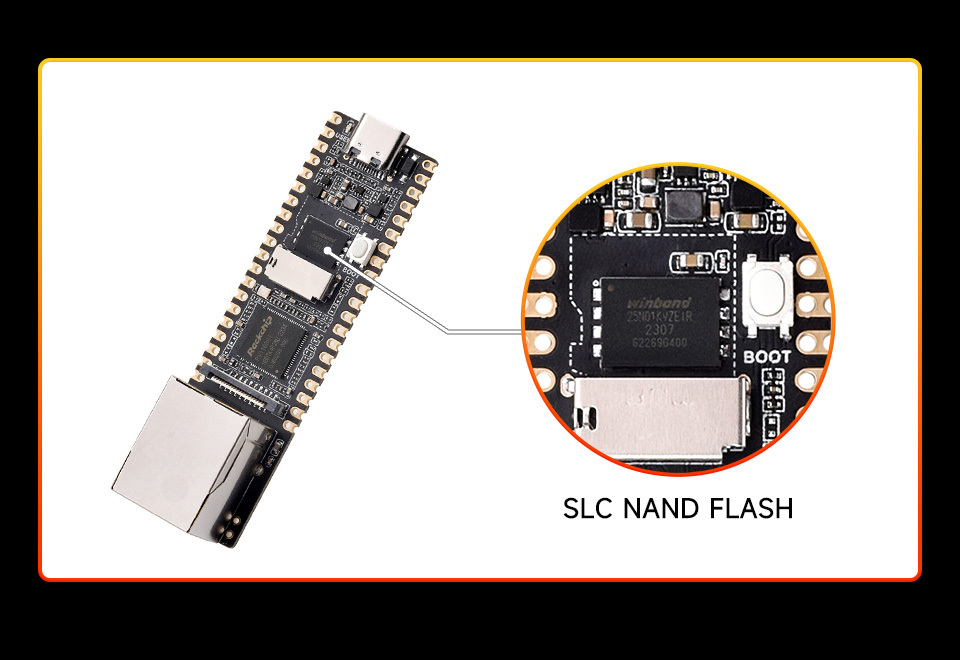

Has built-in SLC NAND FLASH

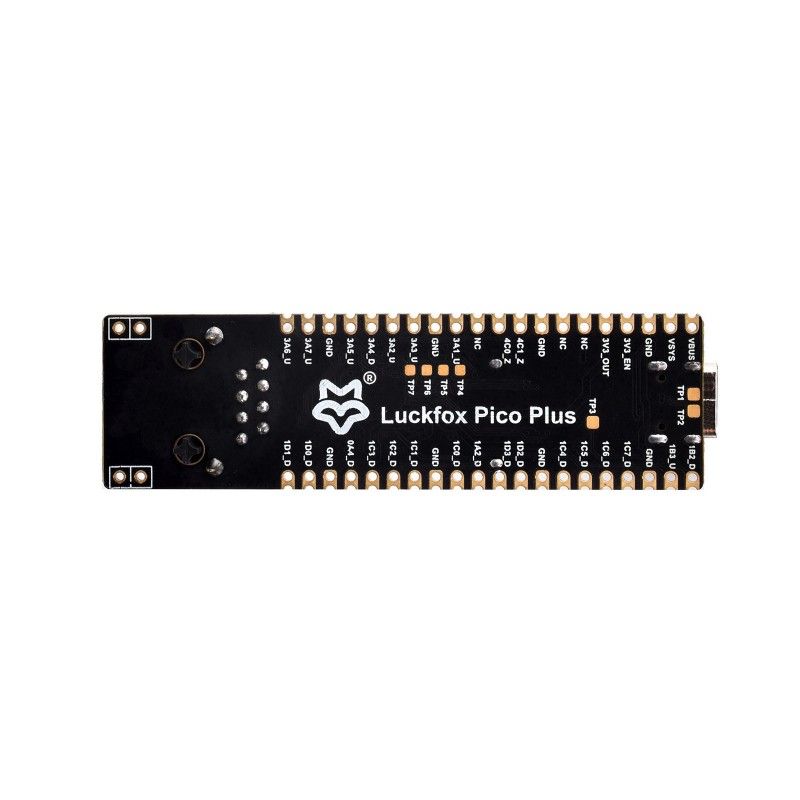

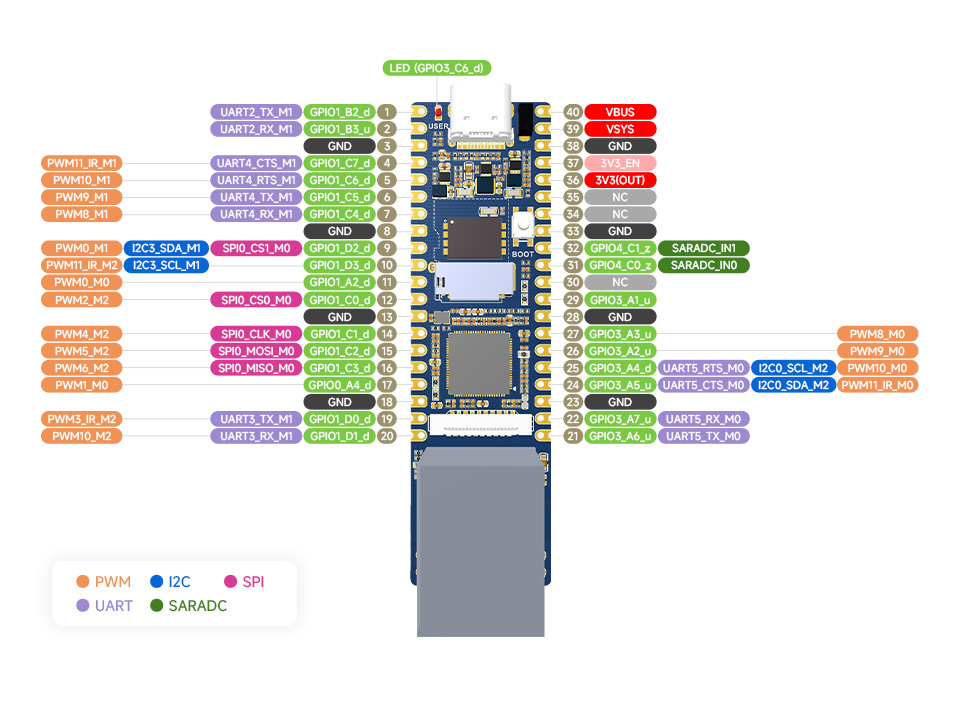

Pinout:

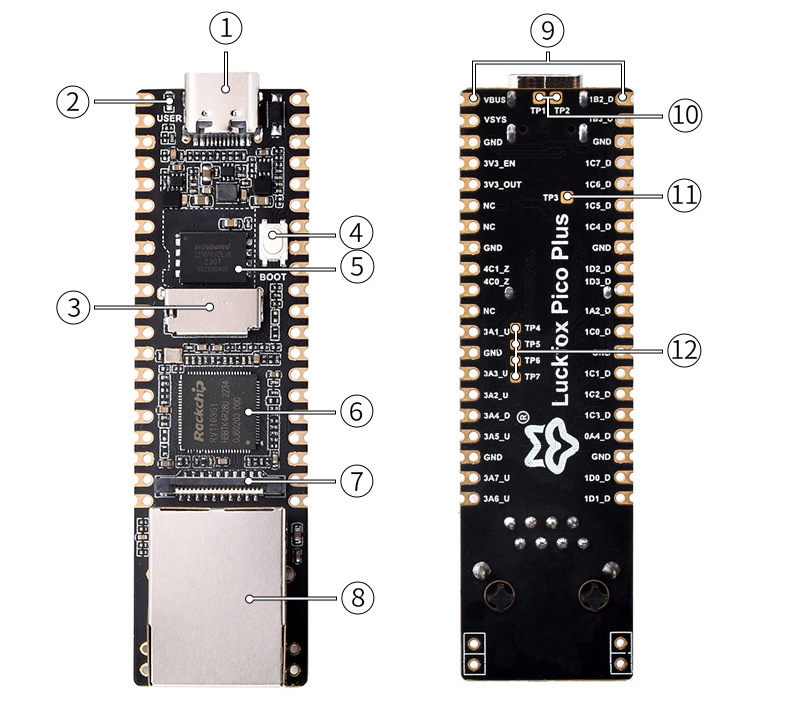

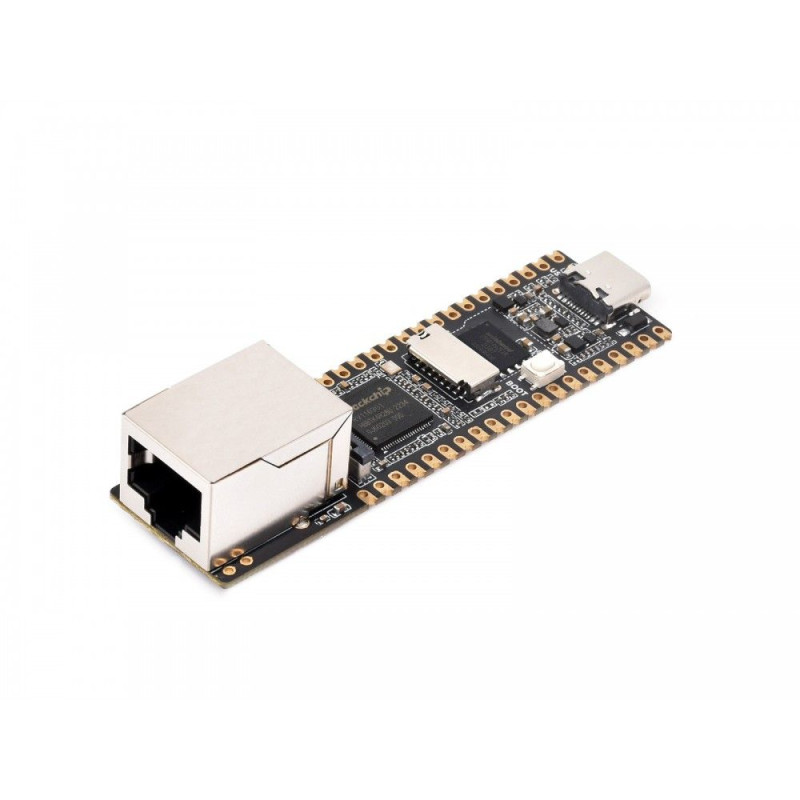

Board elements:

1. USB Type-C connector
2. ACT-LED
3. Slot for TF card
4. BOOT button. Press it during power on to enter the boot mode
5. W25N01KV 128 MB SLC NAND FLASH
6. RV1103 Vision SoC processor with integrated ARM Cortex-A7 core
7. CSI MIPI CSI 2-way camera interface
8. RJ45 Ethernet port
9. GPIO connector
10. USB test panels
11. BOOT test panel
12. Microphone test panels

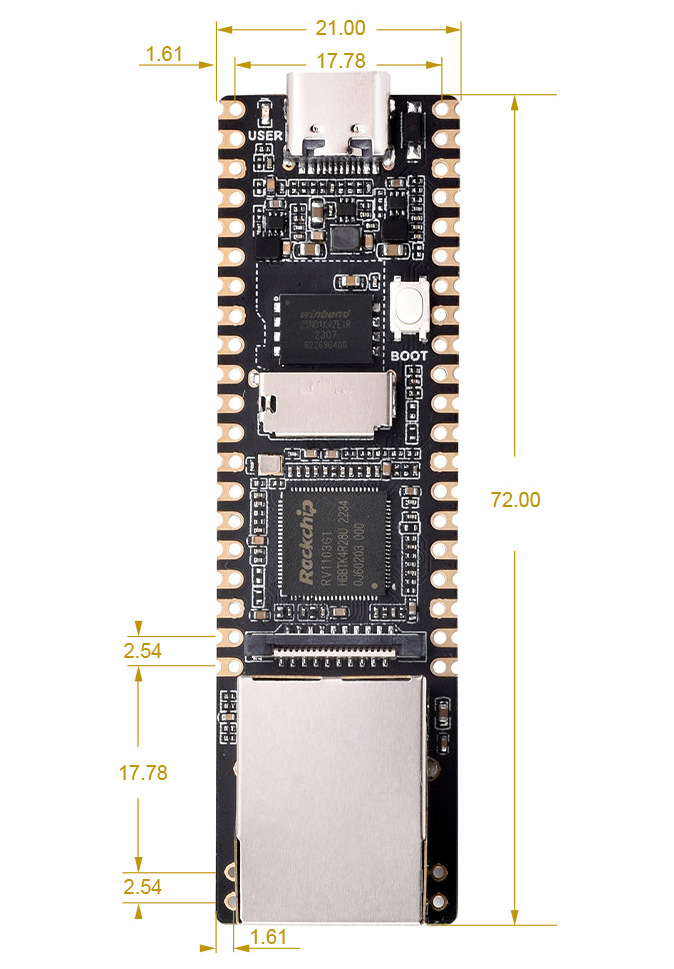

Overall dimensions: 72mm x 21mm

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start

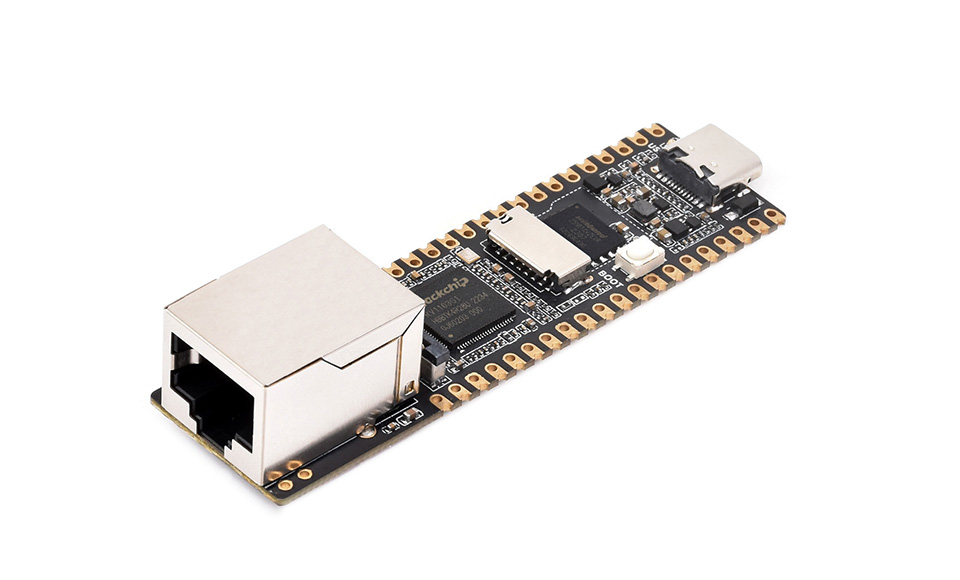

Package contents:

1. Luckfox Pico Plus x1

Weight: 0.011 kg
