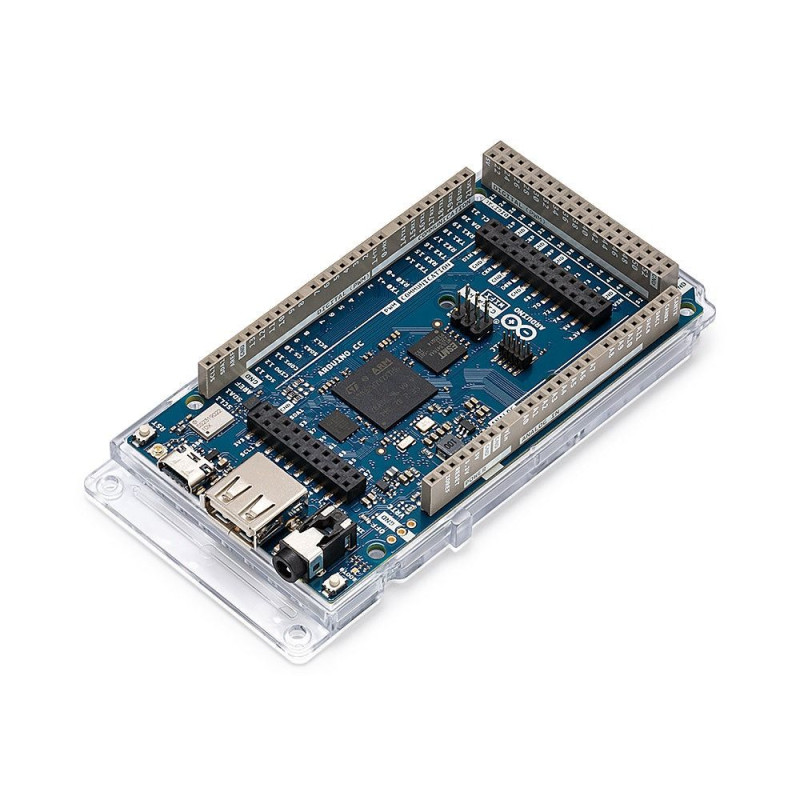

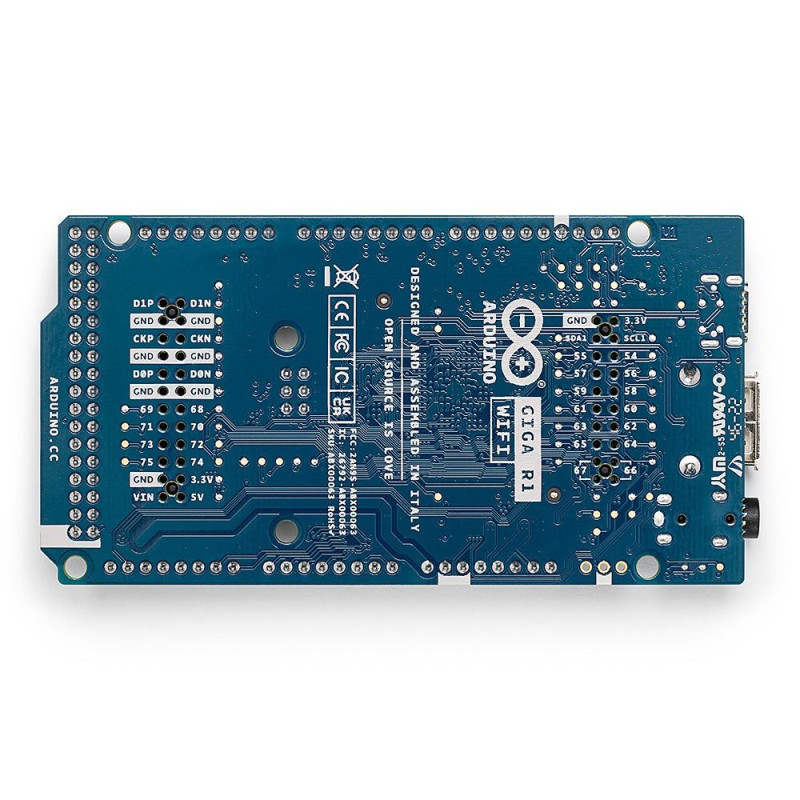

Arduino GIGA R1 WiFi / ABX00063

TheArduino GIGA R1 WiFi / ABX00063 is an innovative platform that combines the capabilities of the productive STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU in the Mega form factor with wireless connectivity via Wi-Fi. This device allows you to create various electronic projects and programs with the ability to remotely control and monitor via Wi-Fi.

The Arduino GIGA R1 WiFi is equipped with a powerful microcontroller that can interact with various sensors, actuators, and other electronic components to create a variety of applications, including IoT projects, smart home systems, robotics, automated systems, and many others. Thanks to its Wi-Fi connectivity, you can access your device from anywhere via the web interface or a dedicated app.

Main features

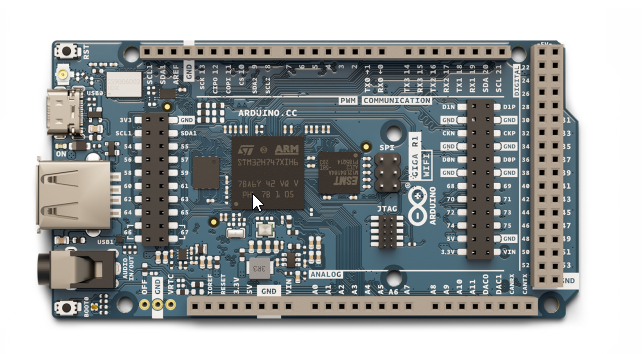

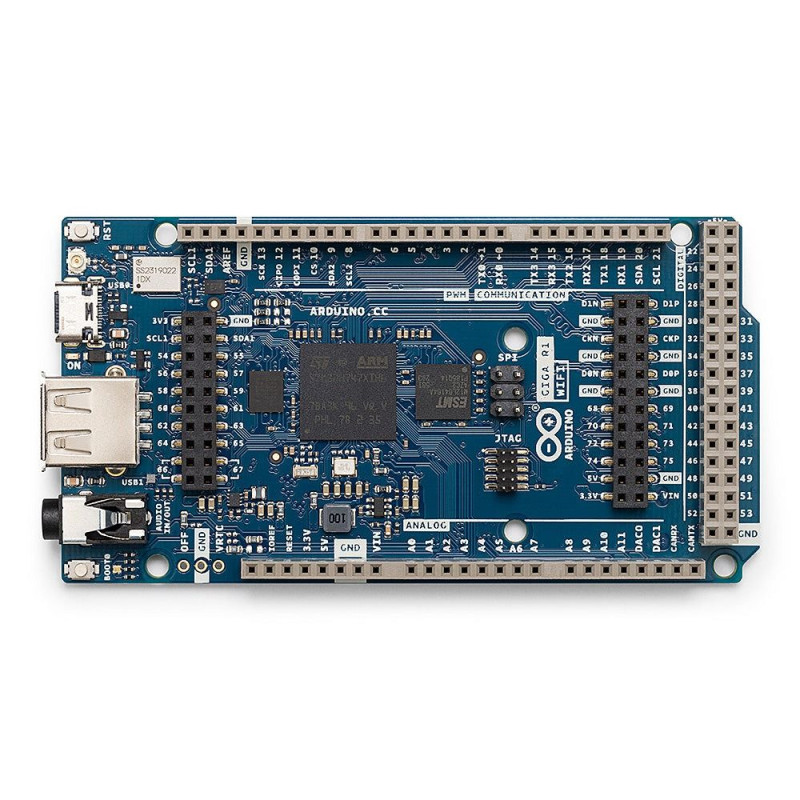

The board has 76 digital I/Os (13 with PWM support), 14 analog inputs and 2 analog outputs (DAC), which are easily accessible via pin connectors. The STM32 microprocessor with dual-core Cortex® M7 and Cortex® M4 processors, along with on-board memory and an audio jack, enables machine learning and edge computing.

Specifications

• Radio module: Murata 1DX dual 802.11b/g/n 65 Mbps WiFi and Bluetooth®.
• Security element: ATECC608A-MAHDA-T
• USB:
  • USB-C® / HID programming port
  • USB-A host (enable with PA_15)
• Pins:
  • Digital I/O pins 76
  • Analog inputs 12
  • DACS: 2 (DAC0/DAC1)
  • PWM outputs: 12
  • Other: VRT & OFF contact
• Communication:
  • UART Yes, 4x
  • I2C Yes, 3x
  • SPI Yes, 2x
  • CAN: Yes (requires an external transceiver)
• Connectors:
  • Camera I2C + D54-D67
  • Display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
  • Audio connectors: DAC0, DAC1, A7
• Power supply:
  • Operating voltage of the circuit 3.3V
  • Input voltage (VIN) 6-24V
  • Direct current to the I/O pin 8 mA
• Clock frequency:
  • Cortex® M7 480 MHz
  • Cortex® M4 240 MHz
• Memory: STM32H747XI 2 MB Flash, 1 MB RAM

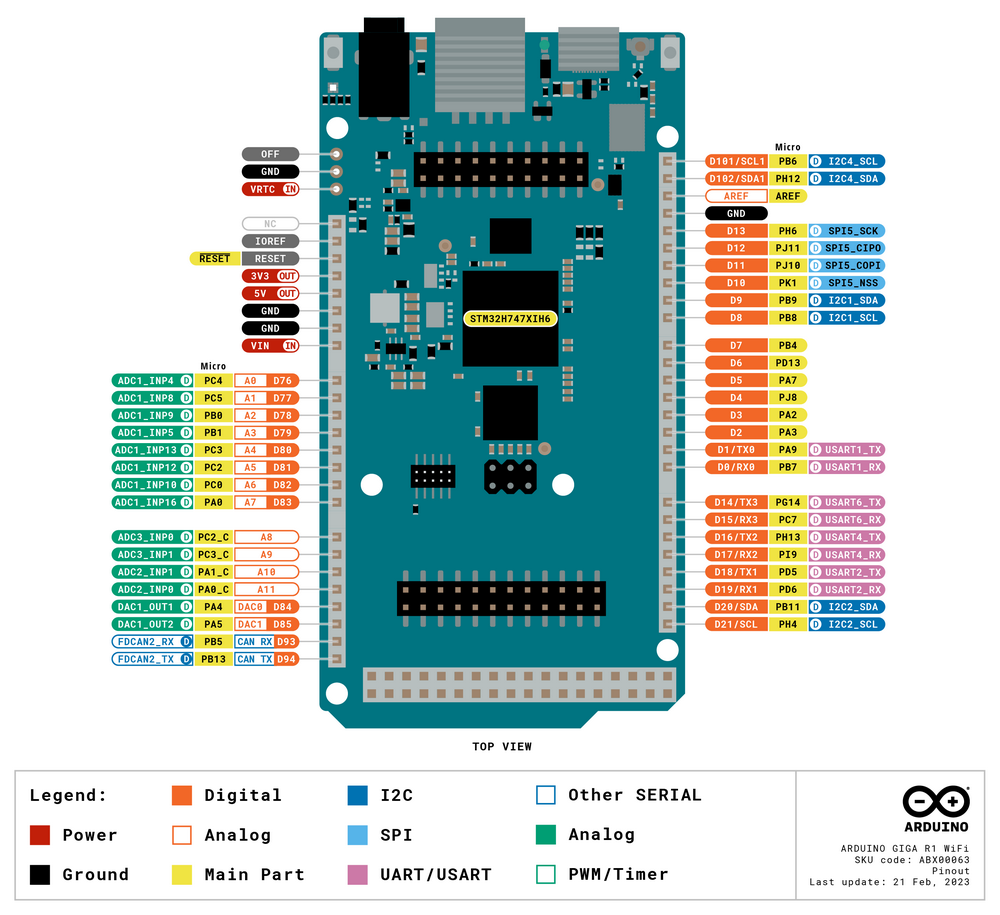

Pinout:

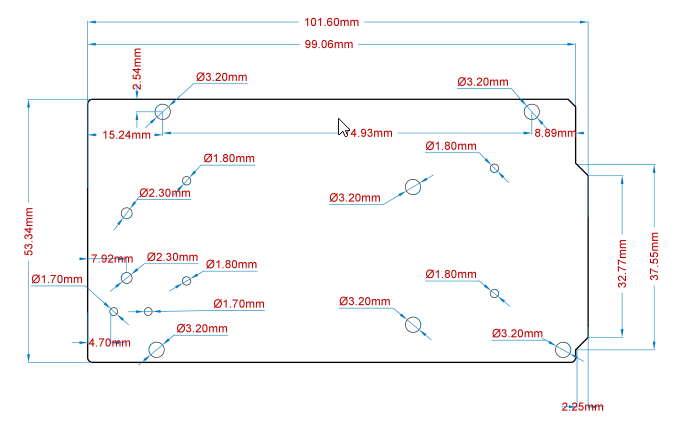

Overall dimensions: 53mm x 101mm

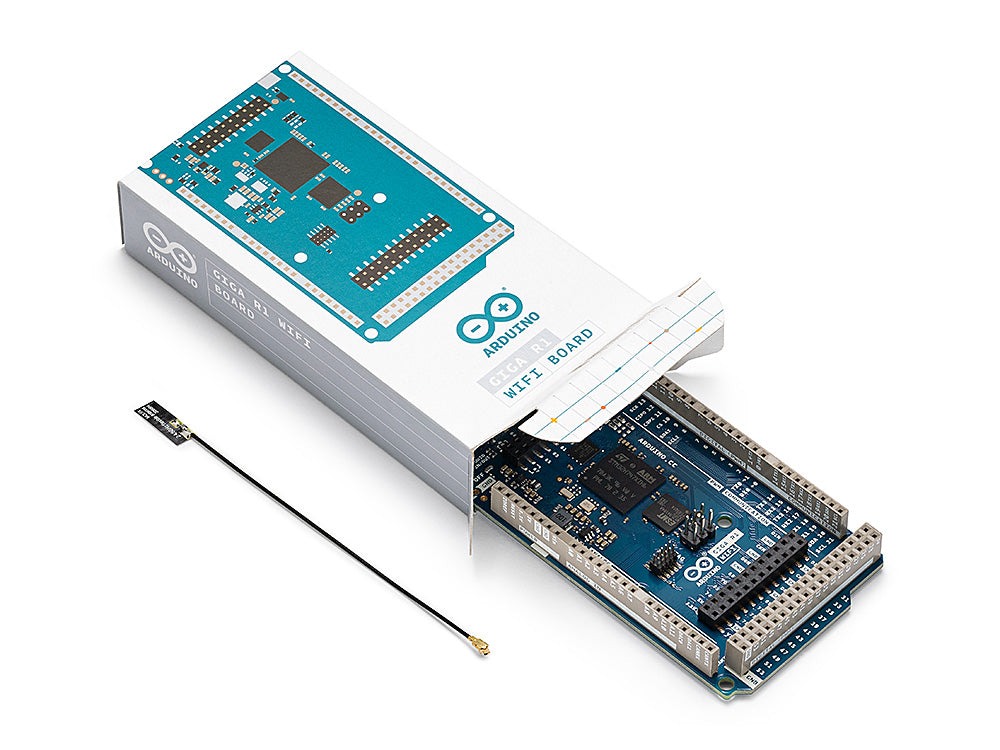

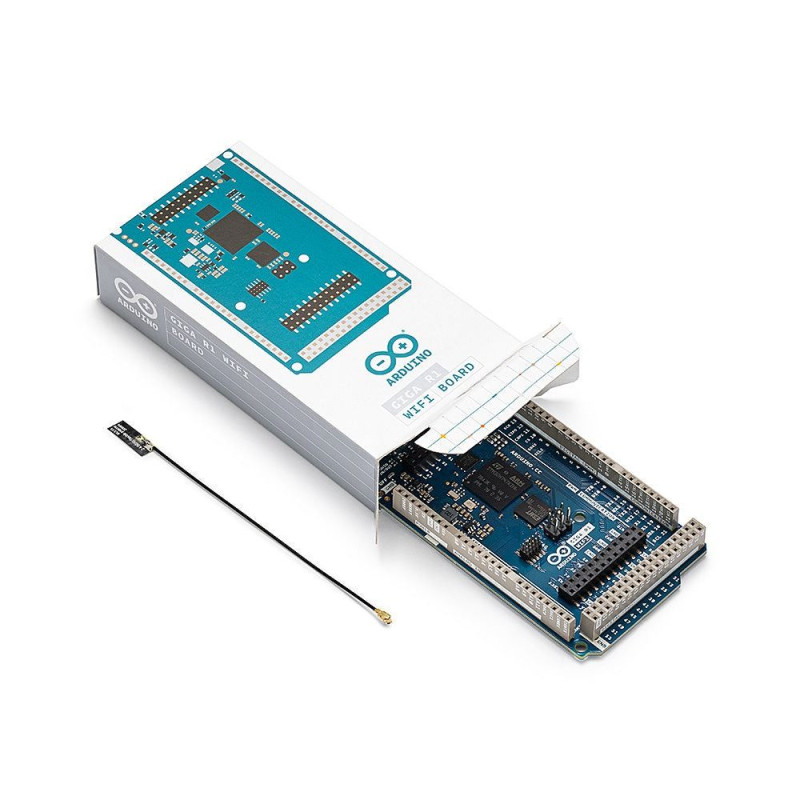

Scope of delivery:

1. Arduino GIGA R1 WiFi board x1

2. Antenna with cable x1
