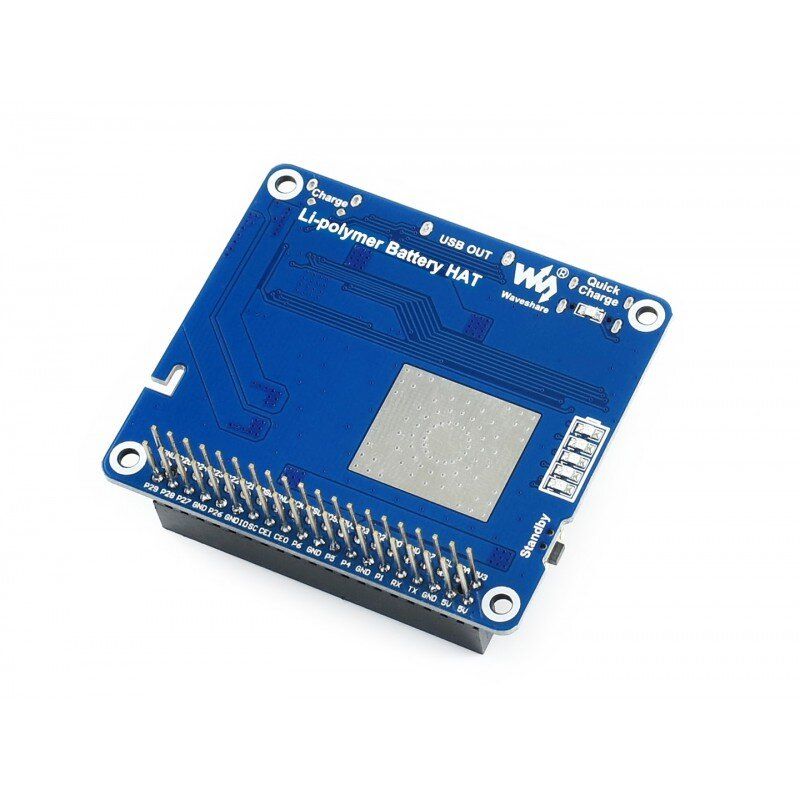

Raspberry Pi Li-polymer Battery HAT expansion board (17076)

Attention: This board is not an uninterruptible power supply!!!

Expansion boards with UPS (Uninterruptible Power Supply) function:

Raspberry Pi UPS HAT Pogo Pins Connector (20568)

Raspberry Pi UPS HAT expansion board (18306)

Raspberry Pi Zero UPS HAT expansion board (19739)

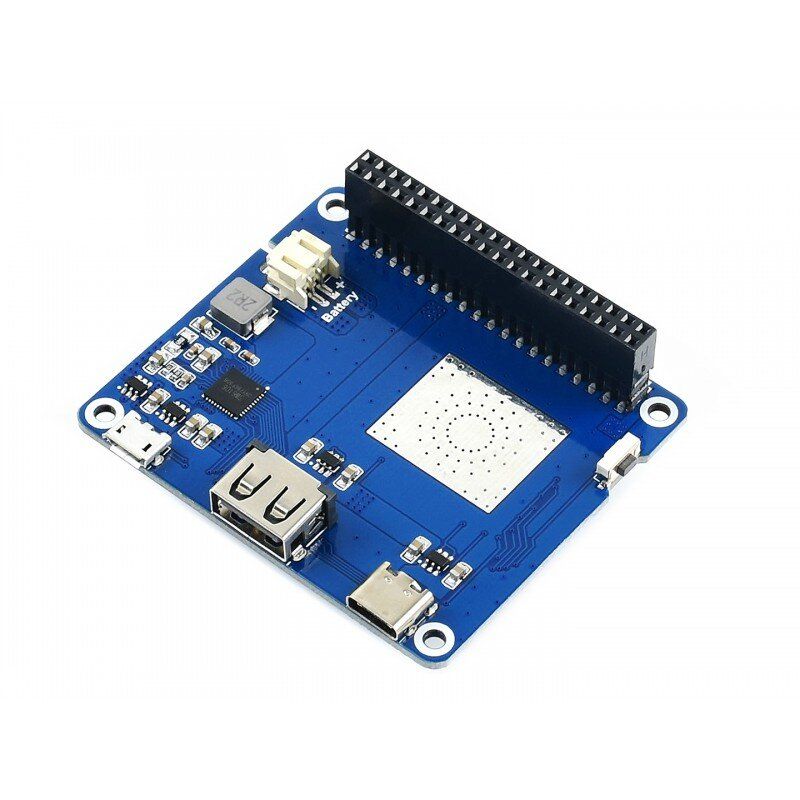

The Raspberry Pi Li-polymer Battery HAT (17076 ) is a Waveshare Raspberry Pi expansion board that is based on the SW6106 power management chip. It supports two-way fast charging. This expansion card uses a high-capacity lithium-polymer battery, which, compared to a lithium-ion battery, means a longer battery life and allows for higher loads.

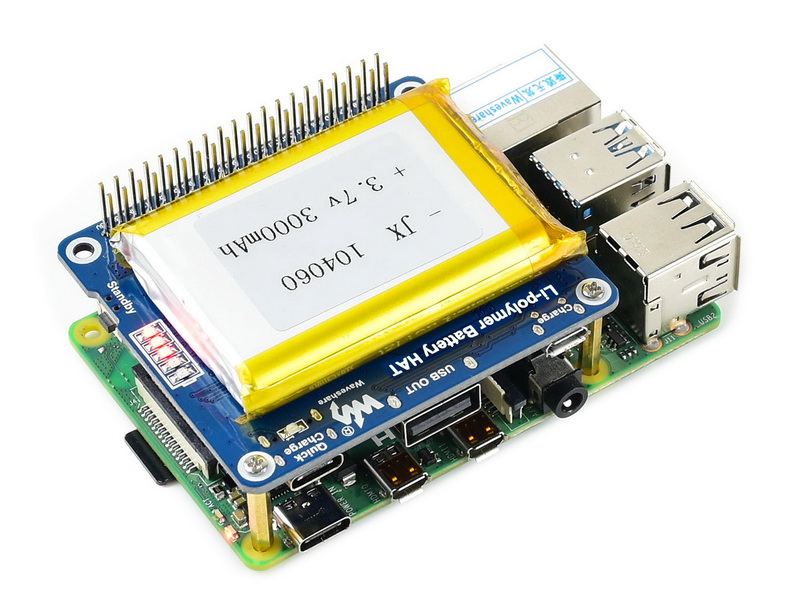

The expansion board is compatible with Raspberry Pi B / A + / B + / 2B / 3B / 3B + / 4B in terms of dimensions and mounting holes.

Features of the expansion board

• Built-in SW6106 power management chip supports bidirectional fast charging, as well as PD / QC / FCP / PE / SFCP fast charging protocols
• Lithium battery protection circuit, provides reverse protection, overcharge protection and short circuit protection
• Built-in indicators: fast charging, charge level indicator

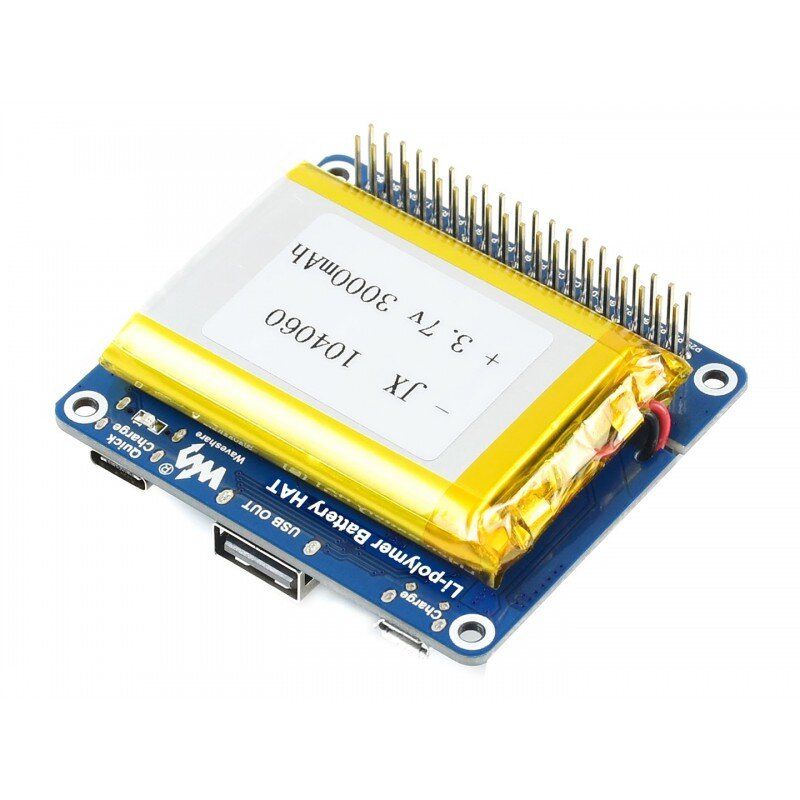

• PH 2.0 battery connector for connecting a high-capacity 3.7 3000 mAh lithium-polymer battery (MSDS-certified)

Specifications

Output voltage: 5 V
Charge voltage: 5 В
Applicable battery: 3.7 V lithium polymer battery (4.2 V when fully charged)
Dimensions: 65.0 mm × 56.5 mm
Diameter of the mounting hole: 3.0 mm

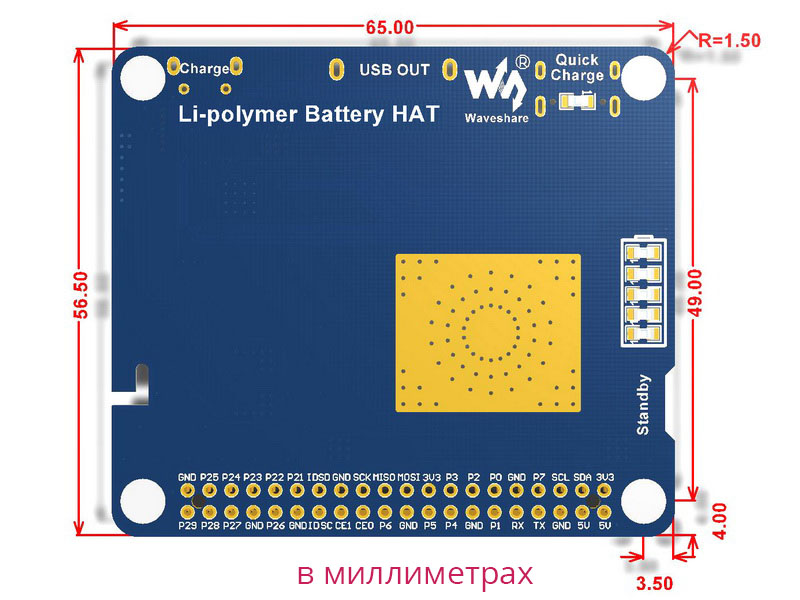

Overall dimensions:

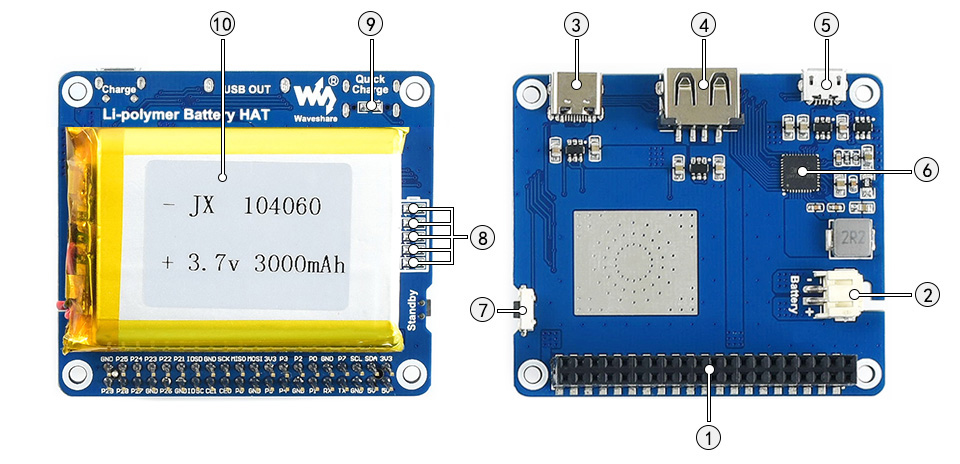

Composition of the expansion board:

1. GPIO connector for connection to Raspberry Pi
2. PH 2.0 battery connector for connecting a 3.7V lithium-polymer battery
3. USB Type-C connector: 5V charging / 5V power supply, support fast charge
4. USB Type-A connector: 5V power supply
5. Micro USB connector: 5V charging
6. SW6106 chip power management
7. Power mode switch
   One click: working mode with 5V power supply function
   Double click: Standby mode, 5V power supply is disabled
8. Battery level indicator: 5 light-emitting diodes (LEDs) display the battery level and charge status
9. Fast charge indicator lights up when fast charge mode is in operation
10. Li-polymer battery 3.7V 3000mA, MSDS certified

The package includes:

1. Li-polymer Battery HAT expansion board (17076 ) - 1 pc.
2. Rechargeable battery 3.7V 3000mAh Li-polymer - 1 pc
3. Raspberry Pi set of mounting screws (2 pcs.) - 1 set

ATTENTION!!! Raspberry Pi is not included in the package.

weight: 0.076 kg
