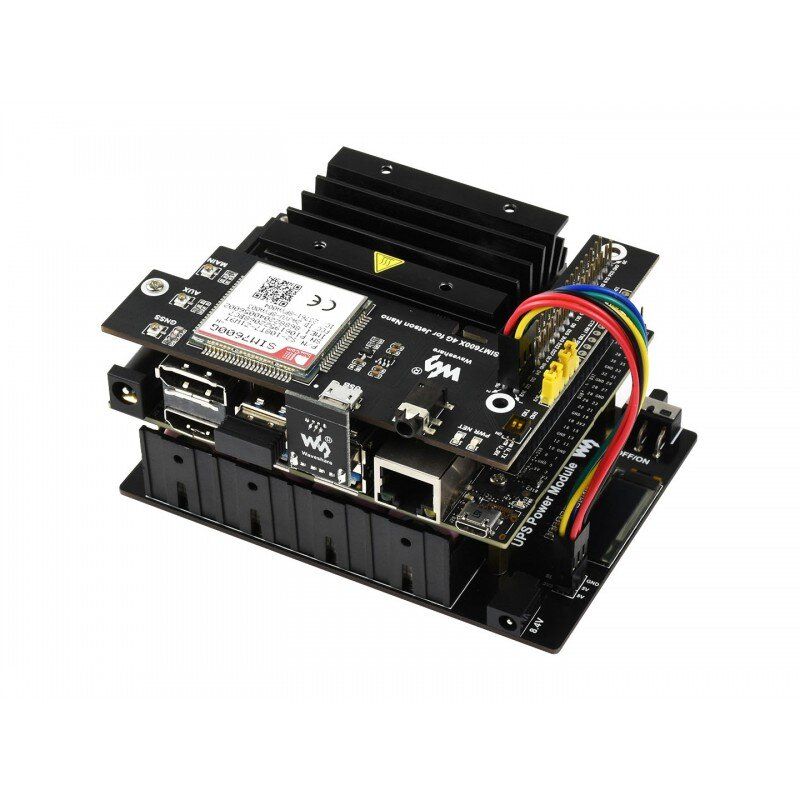

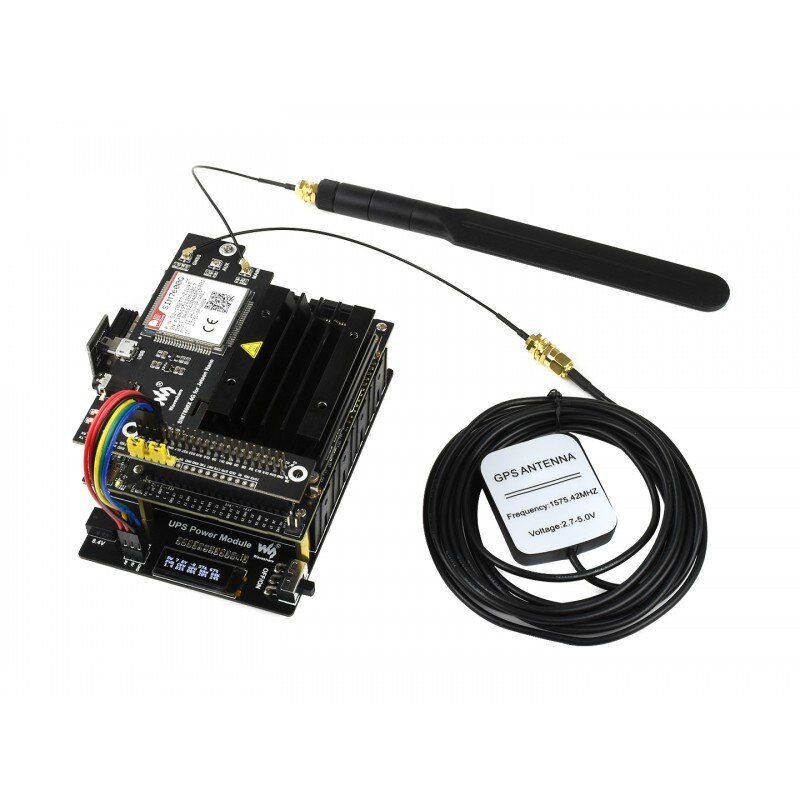

NVIDIA Jetson Nano UPS expansion card (18307)

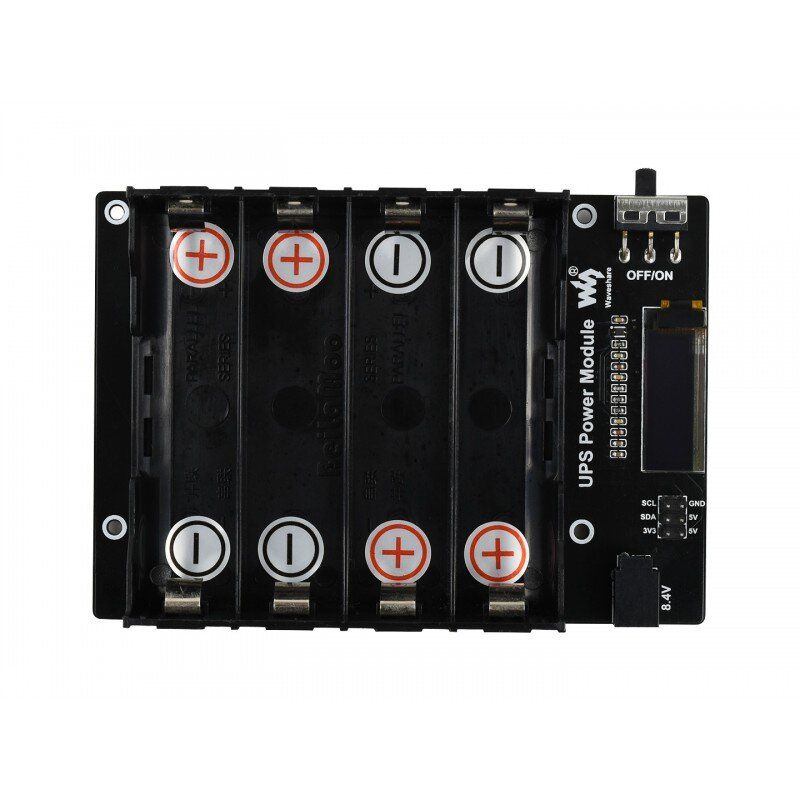

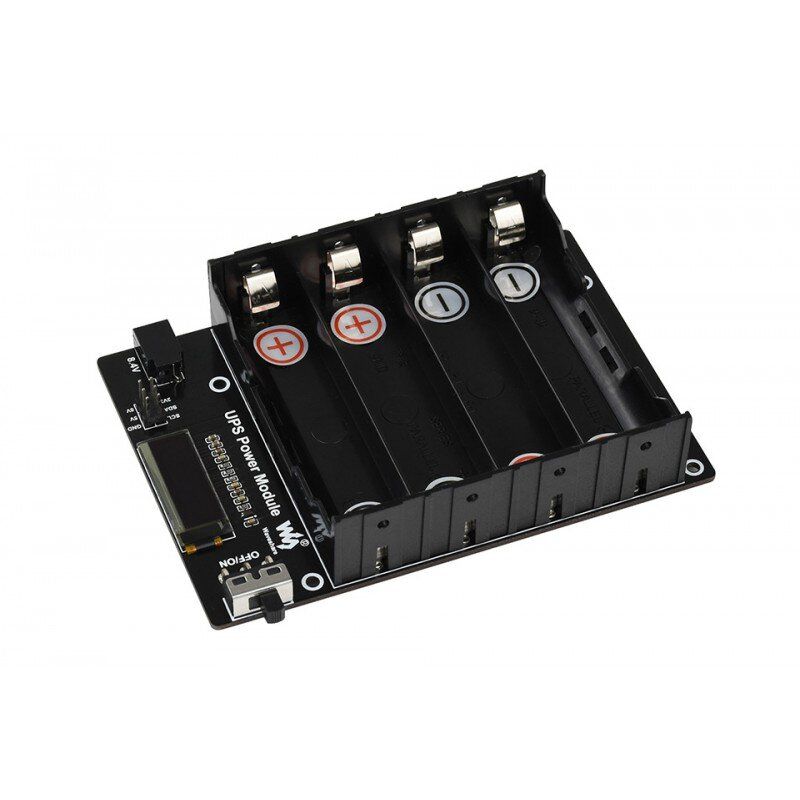

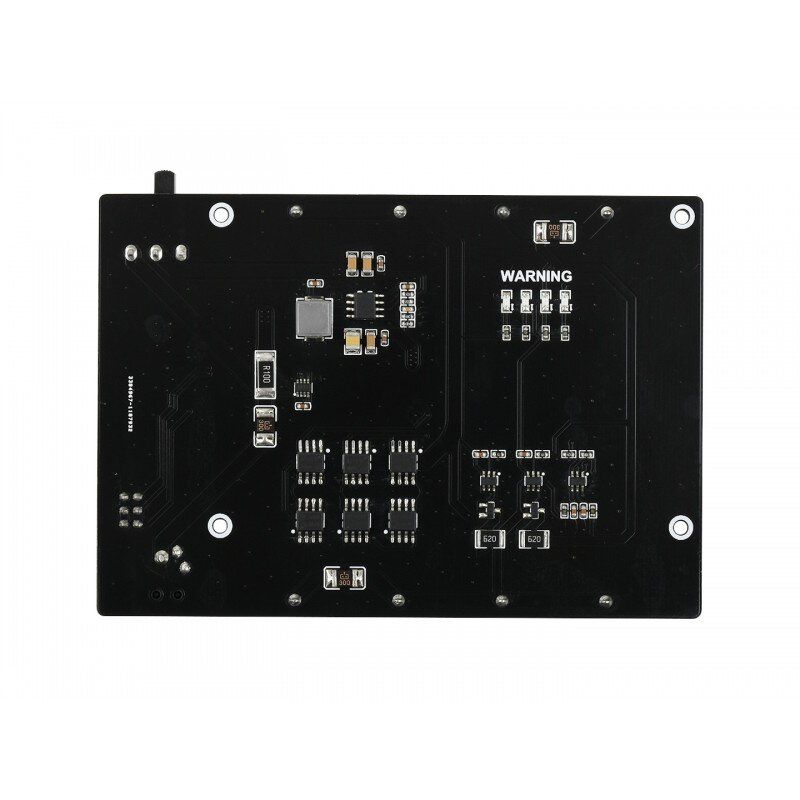

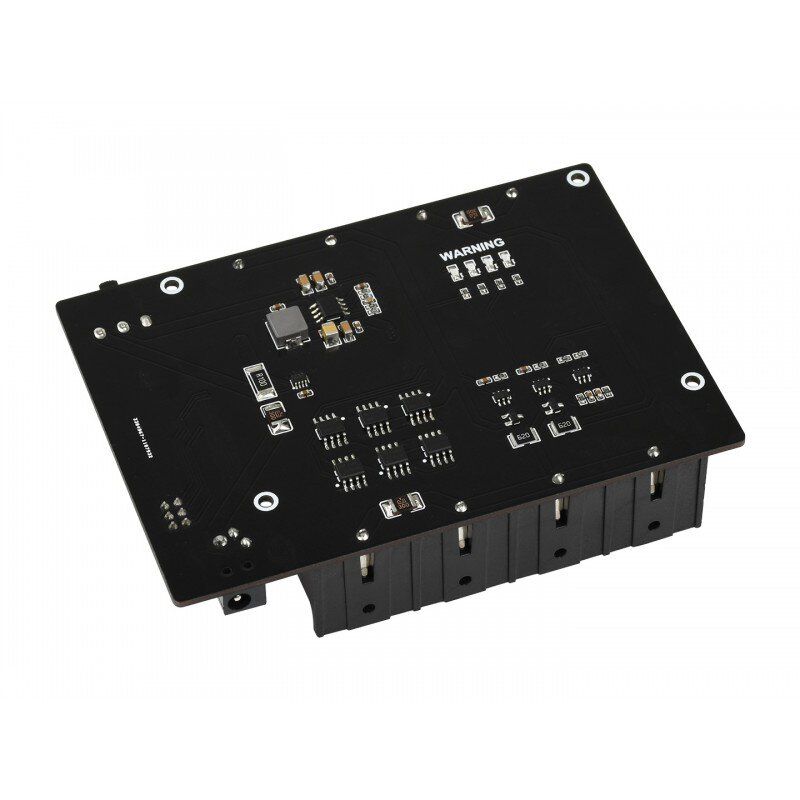

TheNVIDIA Jetson Nano UPS Expansion Card (18307 ) is designed to provide uninterrupted power to the NVIDIA Jetson Nano microcomputer. It provides a stable 5V power supply to the device and displays battery status information on the board's built-in OLED display. When the microcomputer is powered from an external source, the batteries are automatically recharged. If the external power supply is lost, an automatic switch to the built-in power supply occurs, ensuring uninterrupted system operation.

Main functions:

• real-time monitoring of voltage, current, power and remaining battery capacity;
• 0.91" OLED display for displaying information about battery voltage, IP address, RAM usage, etc;
• communication via I2C bus;
• overcharge / discharge protection;
• overcurrent protection;
• short circuit protection and reverse protection;
• charge equalization;
• output current up to 2.5 A;
• battery polarity indicator - signals when batteries are installed in the wrong polarity.

Specifications:

Output voltage: 5V

Control bus: I2C

Supported battery type: 18650 lithium batteries (NOT INCLUDED IN THE SUPPLY)

Charging: 8.4V, 2A

Overall dimensions: 113x79mm

Diameter of mounting holes: 2.5mm

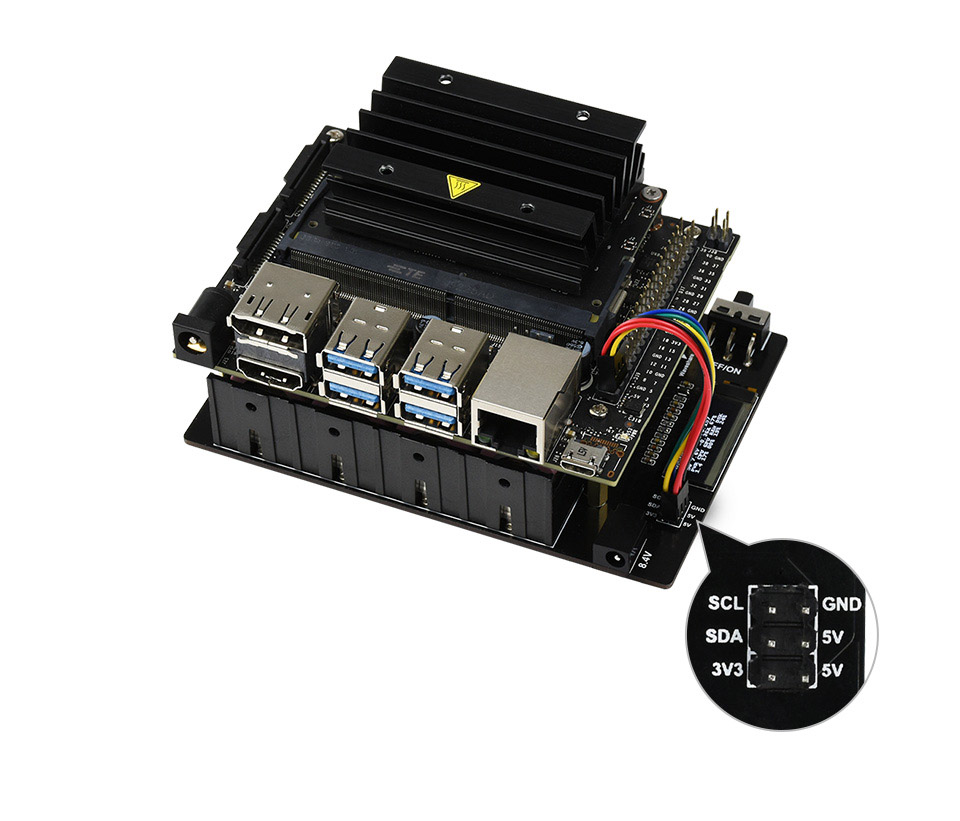

The design of this expansion board is fully compatible with the mounting holes of the Jetson Nano Developer Kit, and communication is carried out via a single 6-pin I2C connector.

Decoding of the connector pins:

3V3 - 3.3V input

5V - 5V output

GND - Ground

SDA - I2C data pin

SCL - I2C clock pin

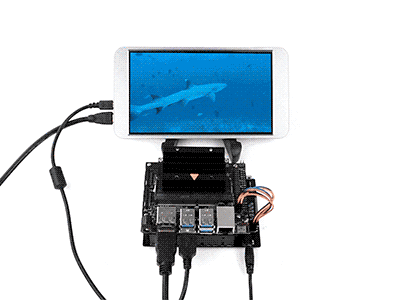

Real-time monitoring of the battery status with data output to the built-in display allows the system to operate autonomously, and when the minimum battery charge level is reached, a soft programmable shutdown of the system without data loss can be performed.

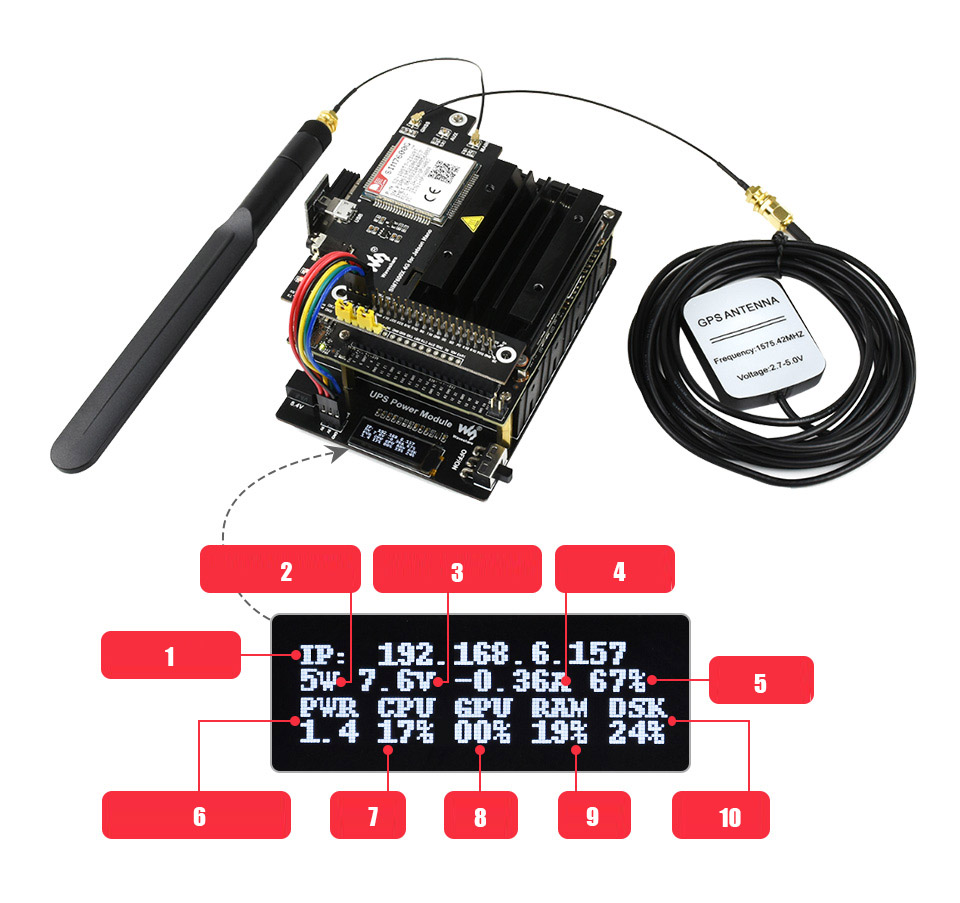

The display shows the following data:

1. IP address

2. Power mode

3. Voltage on the batteries

4. Current current value (negative value when discharging and positive when charging)

5. Remaining charge of the batteries

6. Current value of energy consumption

7. CPU usage

8. GPU usage

9. RAM memory usage

10. Use of storage (disk)

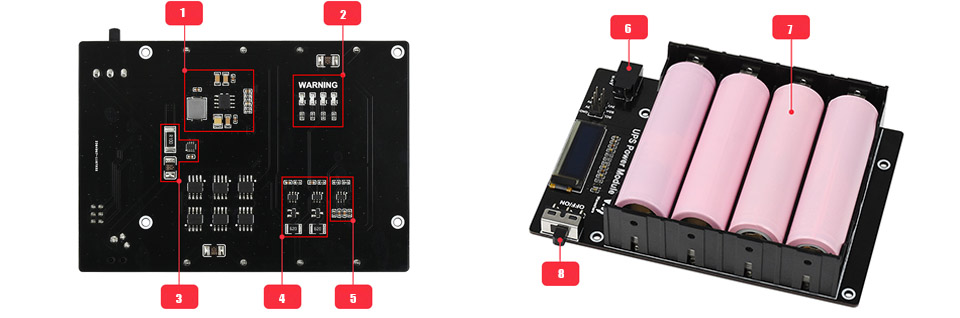

Purpose of the main elements and blocks of the board circuits:

1. 5V regulator, providing an output current of up to 2.5 A in continuous mode

2. Battery polarity indicator. The red LED lights up if the polarity is reversed during installation

3. Monitoring of voltage and current

4. Equalizing the battery charge

5. Battery protection circuit

6. External power supply connector 8.4V

7. Rechargeable batteries type18650 (not included in the package)

8. Power switch

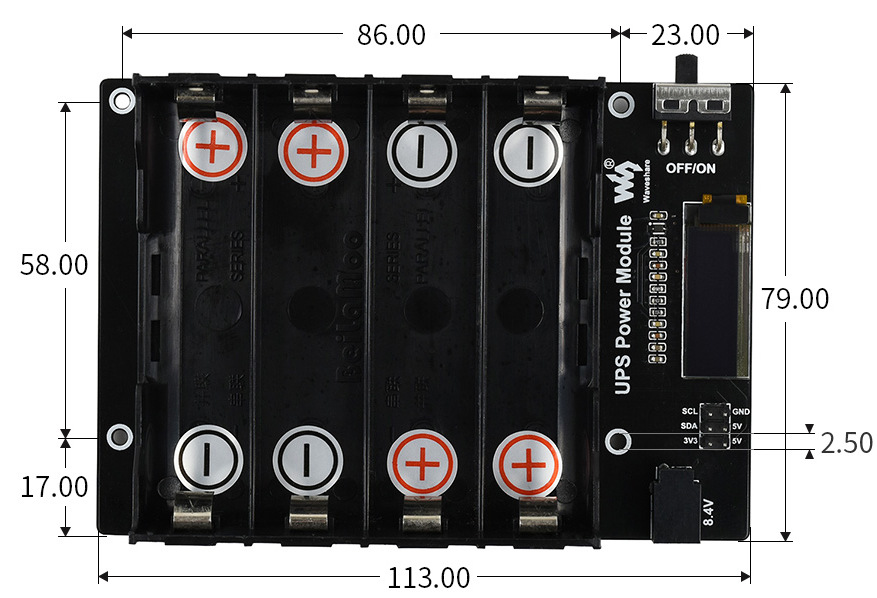

Overall dimensions (in mm): 113х79

Sources for developers
Wiki : www.waveshare.com/wiki/UPS_Power_Module

The package includes:

1. UPS Power Module x1
2. 8.4V charger (optional) x1
3. 6PIN 9cm cable x1
4. Mounting kit x1

1. 2. 3. 4.

ATTENTION! Rechargeable batteries are not included in the package. The length of the installed batteries should not exceed 67 mm. Some battery models with a built-in protection board exceed this limit and are not supported by the board.

weight: 0.191kg
