DEBIX Model A LoRa Board

£37.00

Description

TheDEBIX Model A LoRa Board is an optional board for the DEBIX Model A that provides a Mini PCIe interface for the LoRa module. This gives the DEBIX board additional wireless networking capabilities to cover a greater range with less power consumption. In addition to the LoRa antenna, the DEBIX Model A LoRa board is equipped with a Wi-Fi and Bluetooth pairing button.

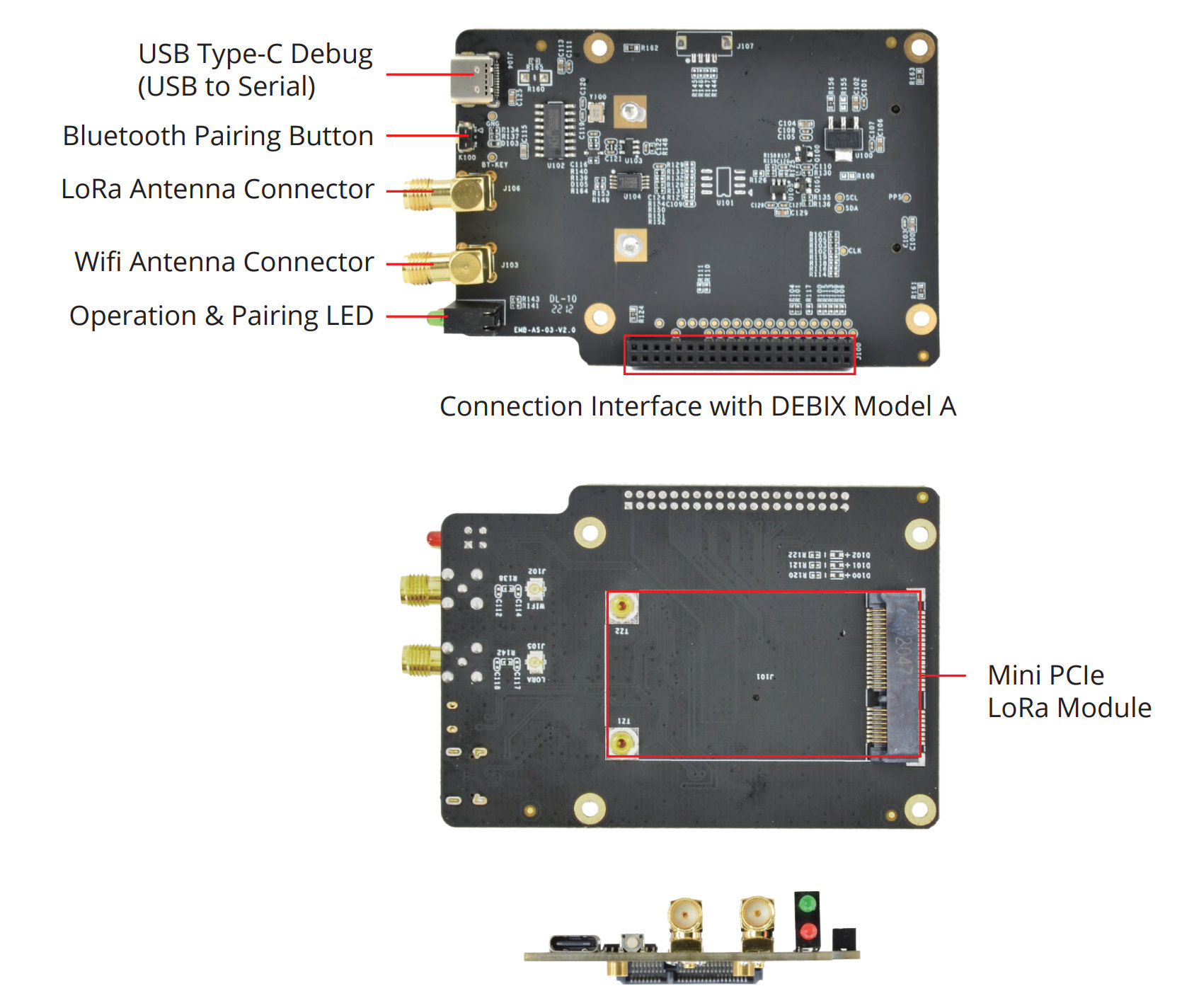

Interface of the DEBIX Model A LoRa board

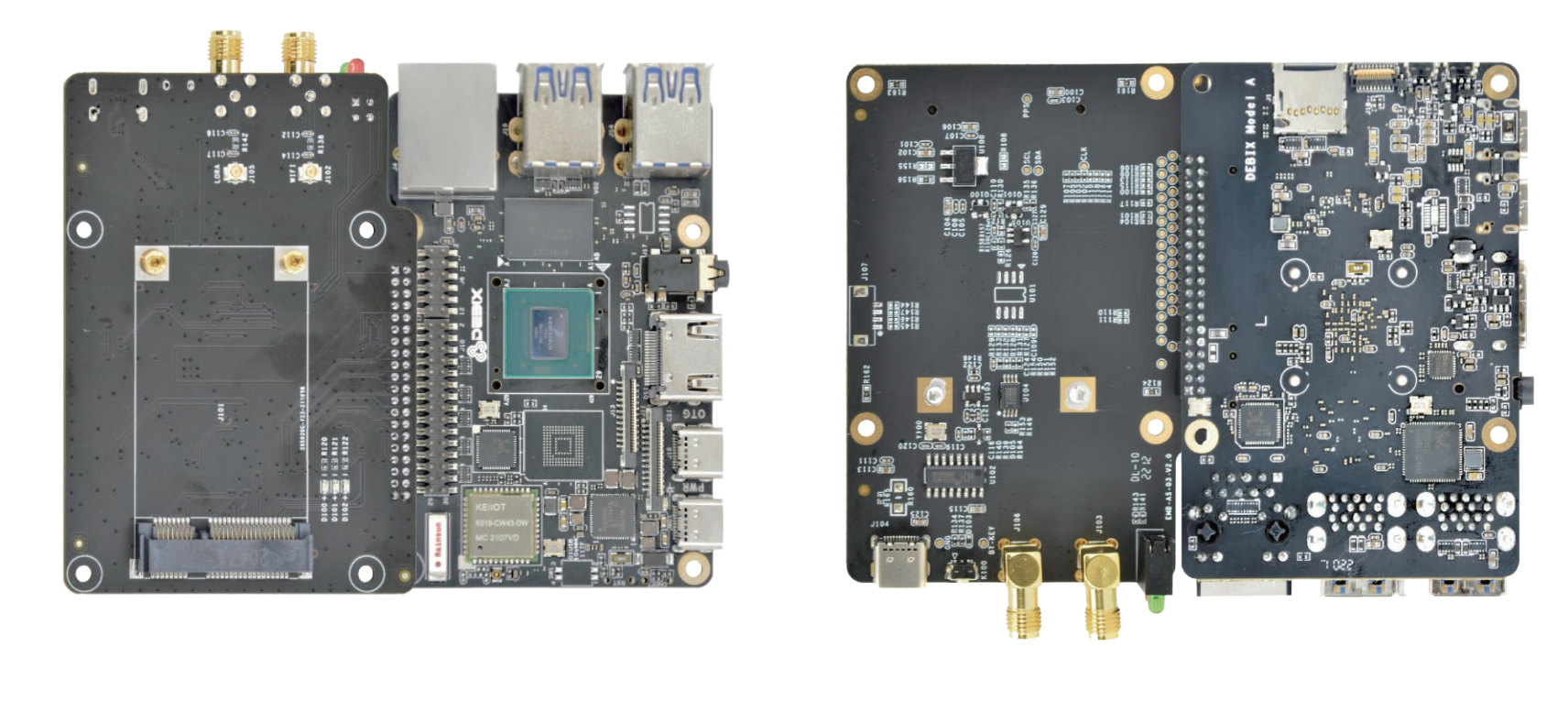

Connection to the DEBIX Model A

Technical specifications:

I/O Interfaces
USB	1 x USB Type-C Debug (USB to serial)
Mini PCIe	1 x Mini PCIe (LoRa module)
Buttons	1 x Bluetooth pairing button
LEDS	1 x operation indicator, 1 x pairing indicator
External antenna	1 x LoRa Antenna connector, 1 x Wifi Antenna connector
EEPROM	1 x 2-Kbit EEPROM
Clipper Chip	1 x Secure Element, eg.ATECC608
