Raspberry Pi TV DVB-T2 Digital TV uHAT

£20.70

Description

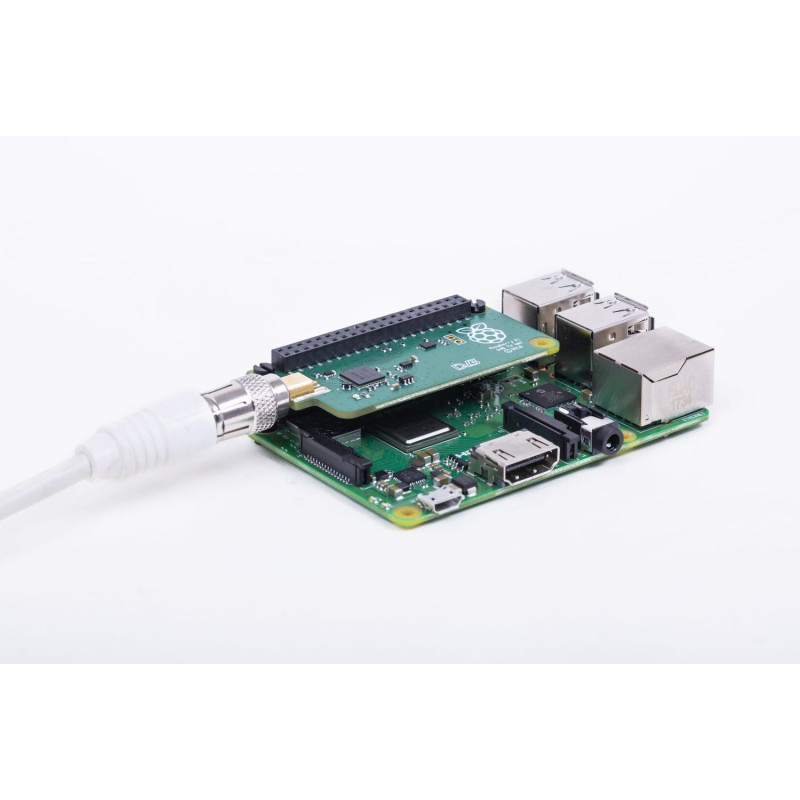

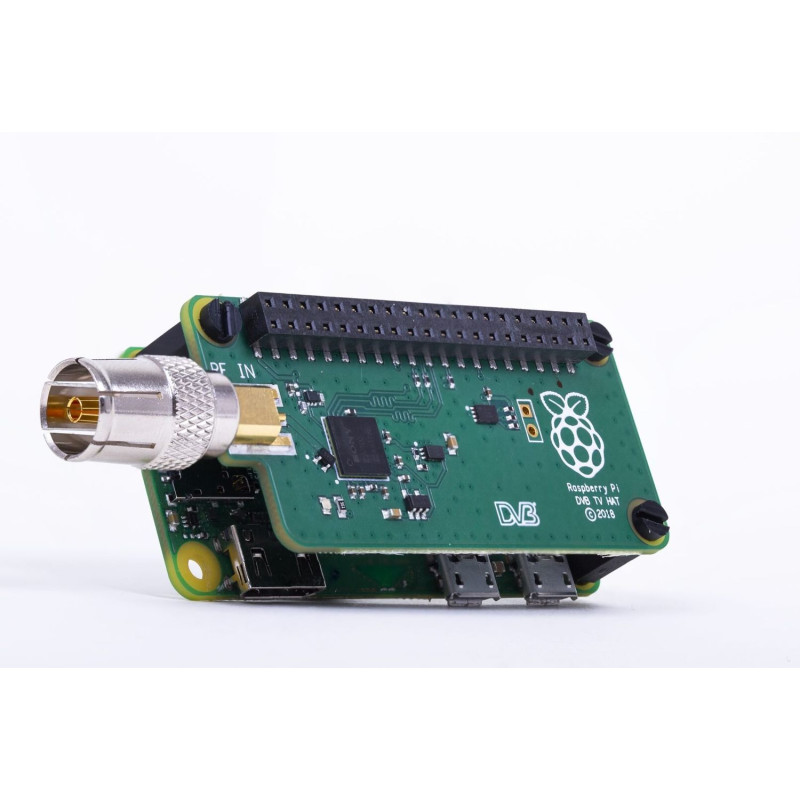

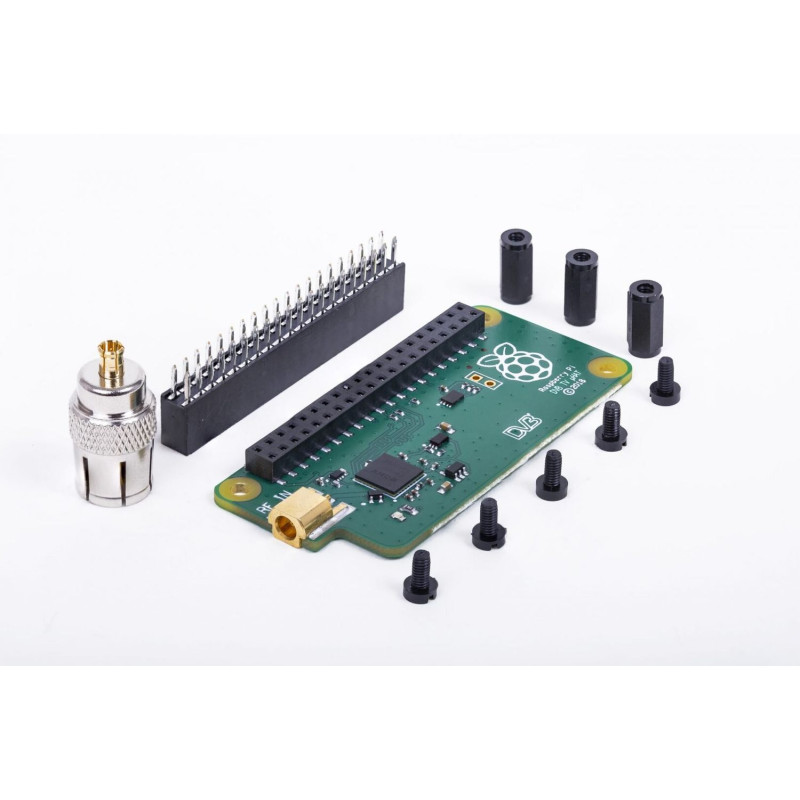

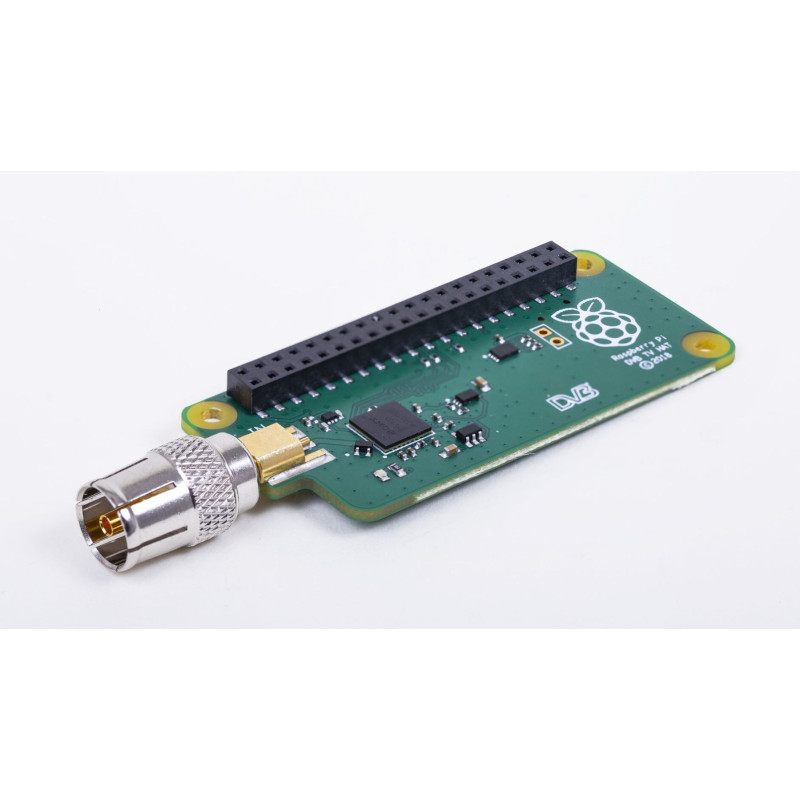

The Raspberry Pi TV HAT expansion board is implemented on the Raspberry Pi Zero form factor and is equipped with a DVB-T2/T tuner, which will allow you to turn your own board into a digital TV receiver and recorder based on Linux.

The Raspberry Pi TV HAT is compatible with all versions of the Raspberry Pi single-board minicomputers.

Technical specifications of Raspberry Pi TV HAT:

Sony CXD2880 TV tuner
Supported TV standards
- DVB-T2 (bandwidth 1.7 MHz, 5 MHz, 6 MHz, 7 MHz, 8 MHz)
- DVB-T (bandwidth 5 MHz, 6 MHz, 7 MHz, 8 MHz)
Reception frequency: UHF III, UHF IV, UHF V
RF coaxial input for antenna connection
RPi interface - 40-pin RPi connector
Size - 65 x 30 mm (size of half of HAT)
Operating temperature - from 0 to 50 ° C
