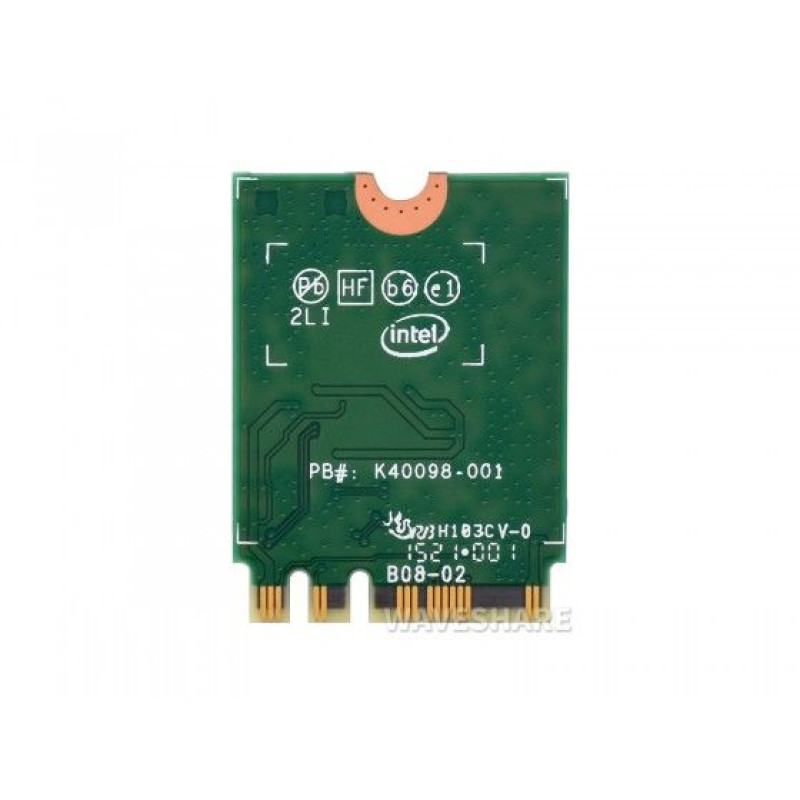

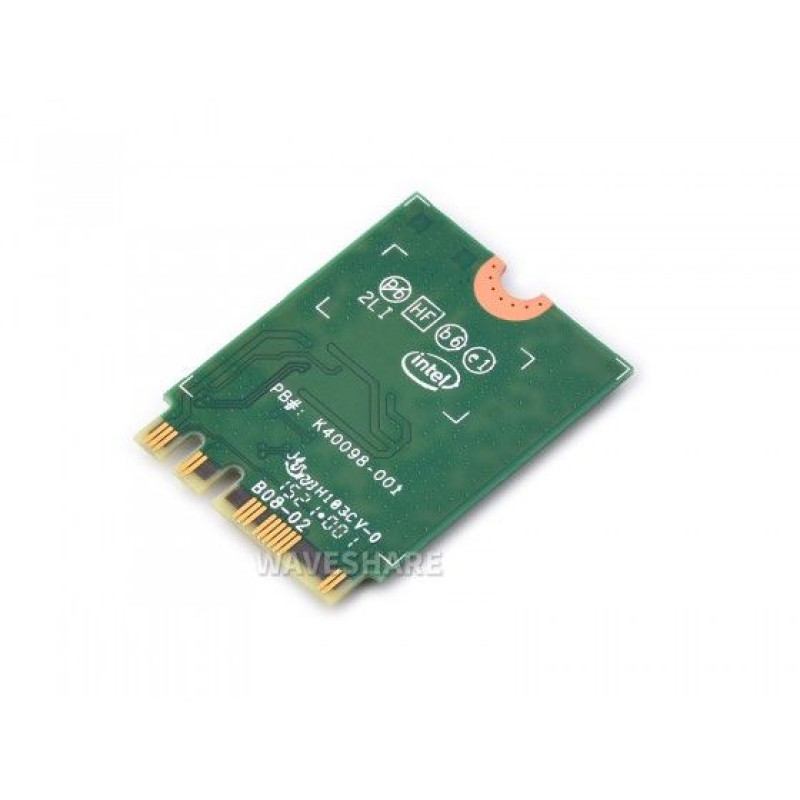

Wireless-AX200 expansion card

The Wireless-AX200 expansion card is a wireless network card that supports Intel's sixth-generation AX wireless protocol standard and provides high-speed, reliable Internet connectivity. Supporting Intel Wi-Fi 6 (802.11AX), it offers improved performance and compatibility over previous generation 802.11AC protocol, while reducing power consumption and extending the life of the card. This adapter is ideal for desktops and laptops, enabling you to take advantage of the latest wireless technology.

Main features of the module:

• Supports Intel's sixth-generation 802.11AX wireless Wi-Fi protocol standard, which provides better performance and compatibility than previous-generation 802.11AC protocol,
• Supports dual-band 2.4 GHz/5 GHz with speeds up to 574 Mbps in the 2.4 GHz band and 2400 Mbps in the 5 GHz/6 GHz band;
• Supports Bluetooth 5.2 standard, longer transmission distance and better transmission stability;
• Supports NGFF (M.2 A/E Key) interface;
• Adopts a new generation of MU-MIMO wireless technology, which significantly improves network quality, increases Internet speed (more than three times), and improves transmission and download efficiency;
• Supports Linux, Windows 11/10/8.1/8/7 and other operating systems.

Specifications:

• Wi-Fi band: 2.4GHz, 5GHz;
• Wi-Fi speed: 574Mbps, 2400Mbps;

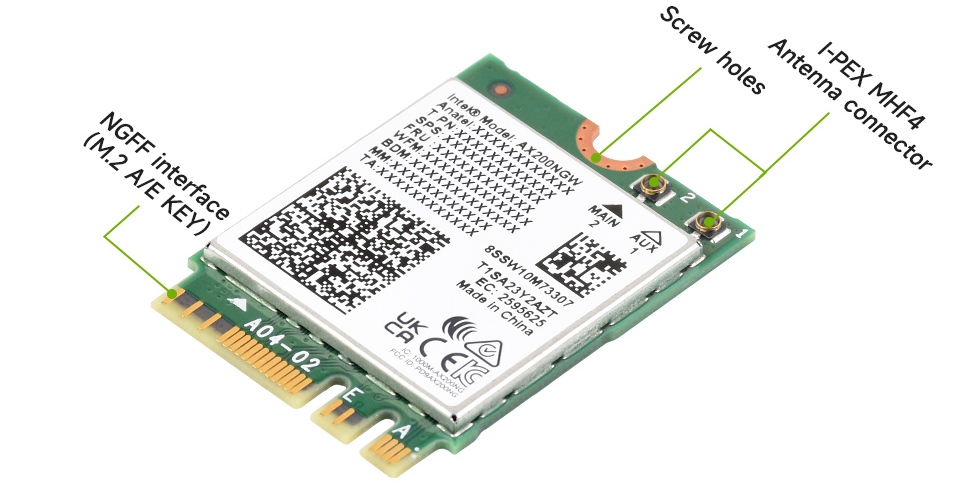

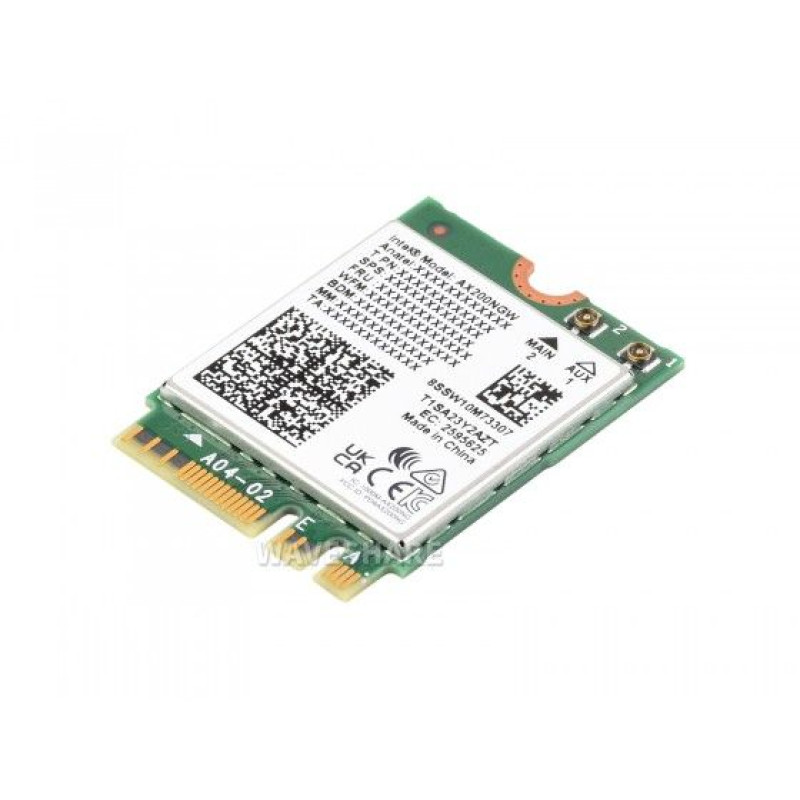

• Interface: NGFF (M.2 A/E Key);
• Operating system: Linux, Windows;
• Antenna connector: IPEX-4;
• Size: 22.0 × 33.0 × 2.4mm.

Note:

• For normal operation in a Linux environment, a kernel of at least 5.11 is required. If only WIFI is required (no Bluetooth), then a 5.10 kernel can also work.
• The native Raspberry Pi CM4 system does not work and the kernel needs to be recompiled.
• The AX210 hardware version is 006 by default. 20230926 to version 005
• WIFI connection method is PCIe, Bluetooth connection method is USB.

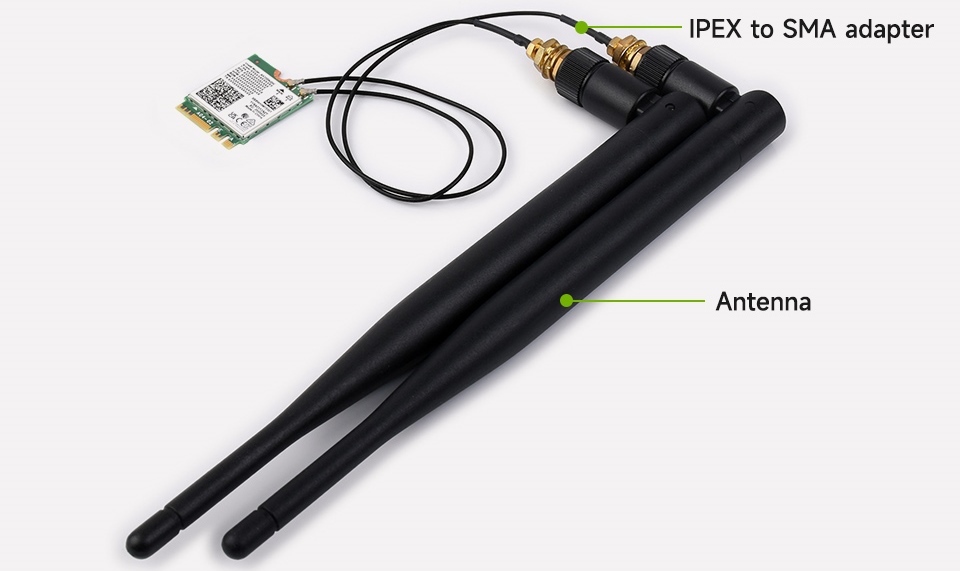

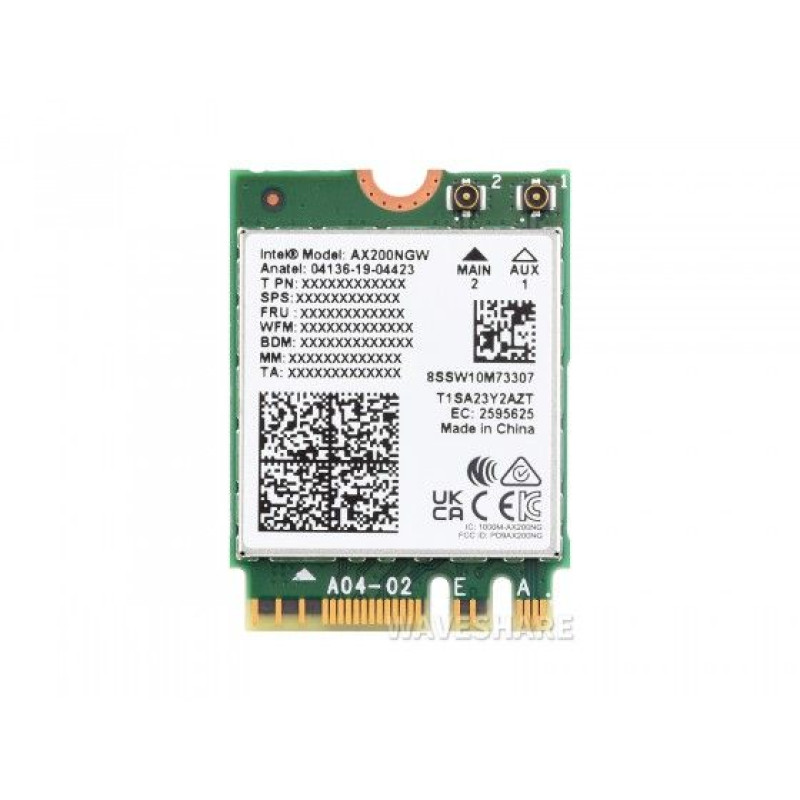

Connection interfaces: NGFF (M.2 A/E Key) and IPEX to SMA;

Compatible with the following boards:

• DUAL ETH WIFI6: https://www.waveshare.com/CM4-DUAL-ETH-WIFI6-BASE.htm
• JETSON-IO-BASE-B: https://www.waveshare.com/jetson-xavier-nx-dev-kit.htm?sku=22452
• MINI BASE A*: https://www.waveshare.com/CM4-IO-BASE-A.htm
• MINI BASE B*: https://www.waveshare.com/CM4-IO-BASE-B.htm
• MINI BASE C*: https://www.waveshare.com/CM4-IO-BASE-C.htm
• TOUCH SCREEN *: https://www.waveshare.com/cm4-disp-base-2.8a.htm
• BINOCULAR CAMERA *: https://www.waveshare.com/cm4-dual-camera-base.htm
• 5″ ALL-IN-ONE *: https://www.waveshare.com/cm4-disp-base-5a.htm
• 7″ ALL-IN-ONE *: https://www.waveshare.com/cm4-disp-base-7a-box.htm

Note:
* An adapter is required to work with this series of network cards, such as: https://www.waveshare.com/m.2-m-key-to-m.2-a-key.htm

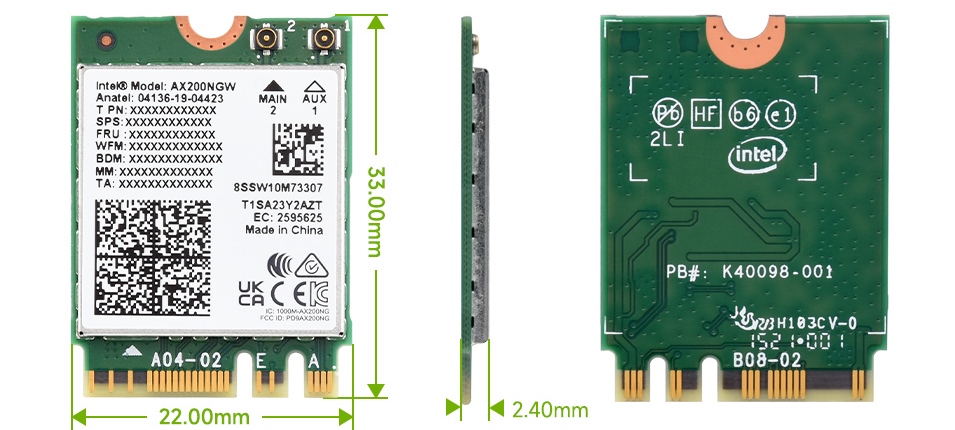

Module dimensions: 22.0 × 33.0 × 2.4mm

Information for developers (Wiki):http://www.waveshare.com/wiki/Wireless-AX200

Scope of delivery:

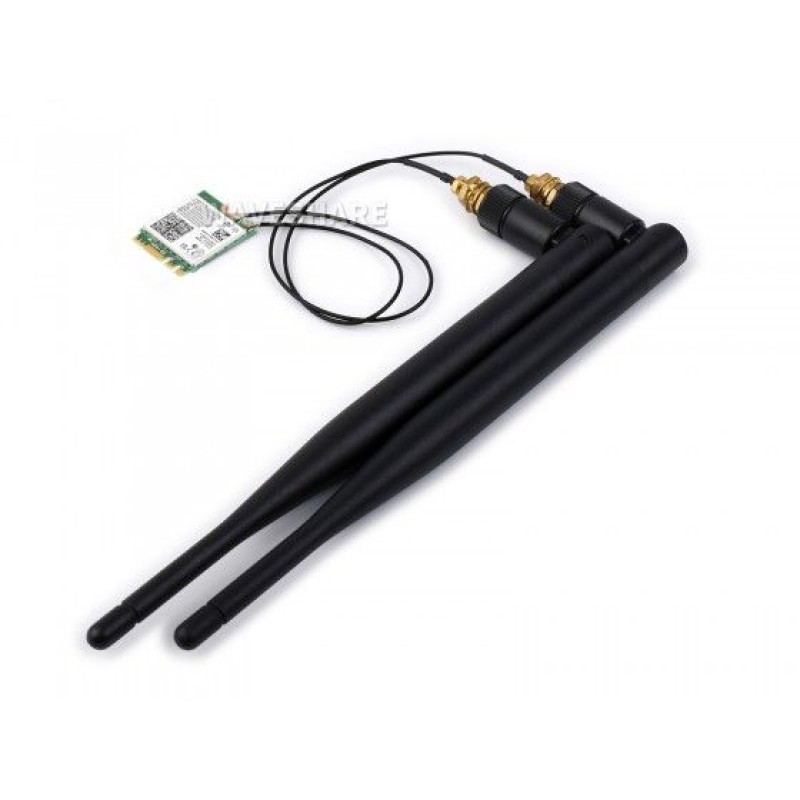

• WiFi module Wireless-AX200 x1
• Antenna x2

Weight: 39g
