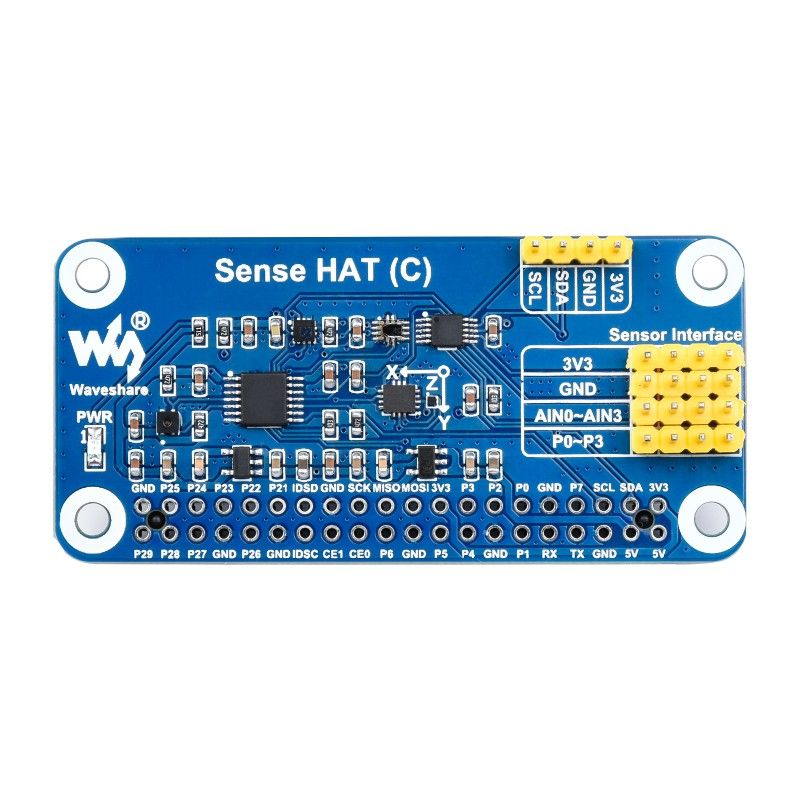

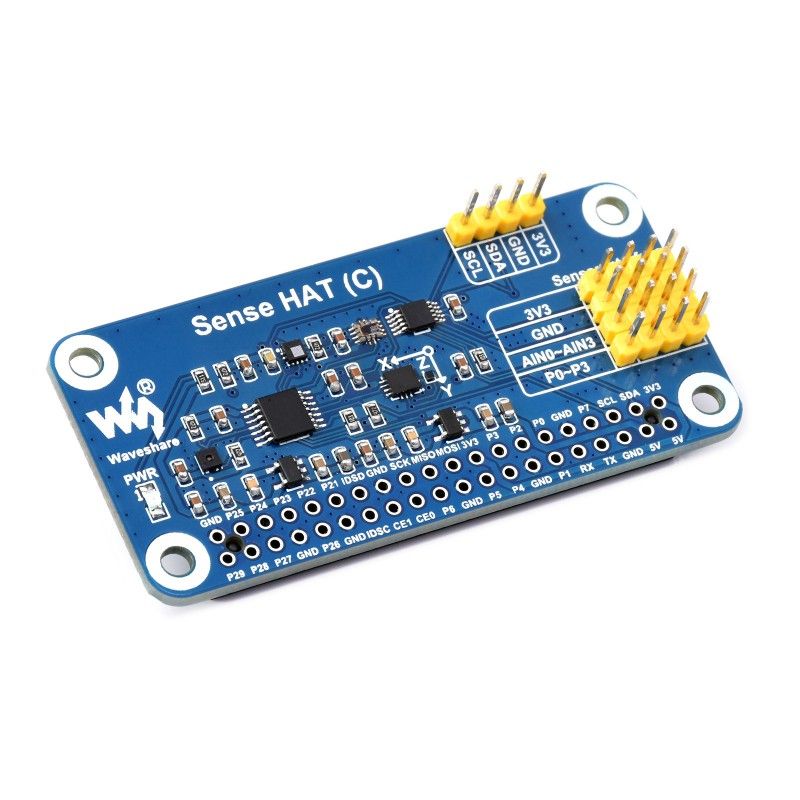

Raspberry Pi Sense HAT (C) expansion board (23229)

TheRaspberry Pi Sense HAT (C) (23229 ) is an add-on device for the Raspberry Pi that contains a variety of sensors that allow you to collect information about your environment. This device is equipped with temperature, humidity, pressure sensors, as well as an accelerometer, magnetometer, and gyroscope.

The Sense HAT (C) also has the ability to connect all of these external sensors via a 40-pin GPIO connector on the Raspberry Pi, making it very flexible and adaptable for use in a variety of projects.

This device can be useful for creating a variety of projects related to environmental data collection, such as weather stations, air quality measurements, or plant monitoring. In addition, the Sense HAT can be used to learn the basics of programming and engineering in various educational institutions.

Key features:

• Has a standard Raspberry Pi 40PIN GPIO expansion connector and supports Raspberry Pi series boards
• Has a built-in QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer) that detects motion, orientation, and magnetic field.
• It has a built-in SHTC3 digital temperature and humidity sensor for environmental monitoring
• Has a built-in barometric pressure sensor LPS22HB, which allows you to control the environment
• Has a built-in TCS34725 color sensor that detects the color of nearby objects
• Has a built-in SGM58031, 4-channel 16-bit precision ADC, AD expansion to support more external sensors
• Brings I2C control pins to connect other host boards such as STM32
• Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications:

QMI8658C MOTION SENSOR (3-AXIS ACCELEROMETER AND 3-AXIS GYROSCOPE)

• I2C address: 0x6B
• Accelerometer resolution: 16 bits
• Accelerometer measurement range (configurable): ±2, ±4, ±8, ±16 (g)
• Gyroscope resolution: 16 bits
• Gyroscope measurement
• Range (customizable): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048 (°/с)

AK09918: 3-AXIS MAGNETOMETER

• I2C address: 0x0C
• Resolution: 16 bits
• Measuring range (adjustable): ±4912 µT

DIGITAL TEMPERATURE AND HUMIDITY SENSOR SHTC3

• I2C address: 0x70
• Temperature range: -30 100°C (accuracy ±0.2°C)
• Humidity range: 0% 100% RH (accuracy ±2% RH)

LPS22HB BAROMETRIC PRESSURE SENSOR

• I2C address: 0x5C
• Measurement range: 260 1260 hPa
• Accuracy (normal temperature): ±0.025 hPa
• Speed: 1 Hz - 75 Hz

SGM58031 ADC

• I2C address: 0x48
• Channels: 4
• Accuracy: 16 bits

TCS34087 COLOR SENSOR

• I2C address: 0x29
• Gain: 0,5 ×, 1 ×, 2 ×, 4 ×, 8 ×, 16 ×, 32 ×, 64 ×, 256 ×, 512 ×, 1024 ×, 2048 ×

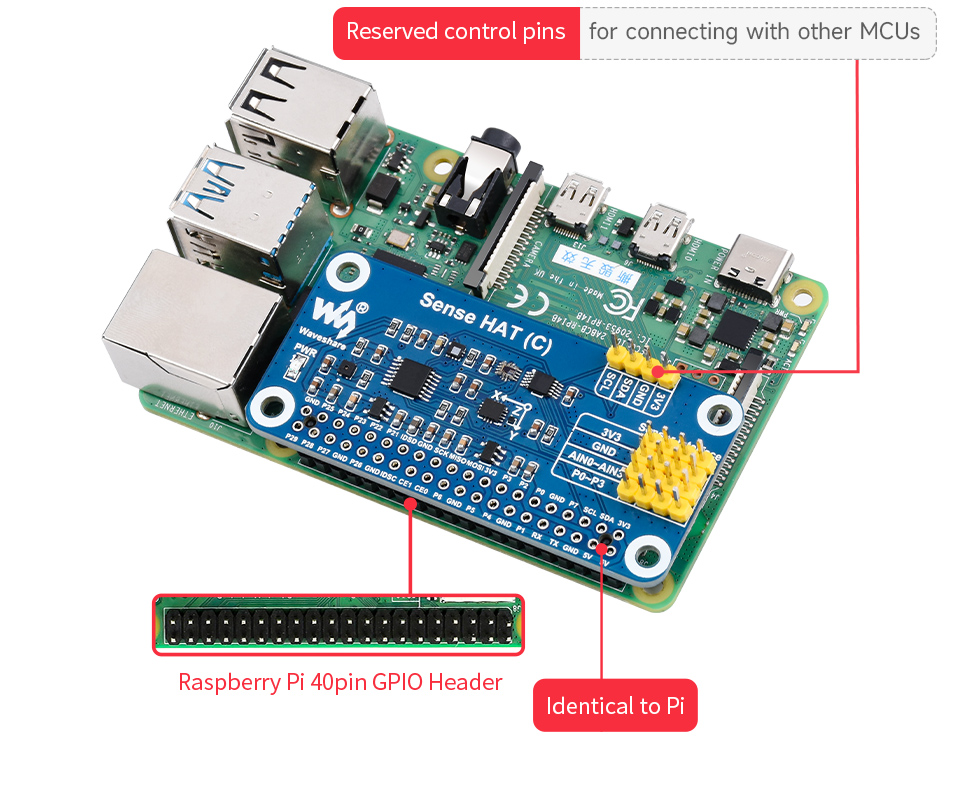

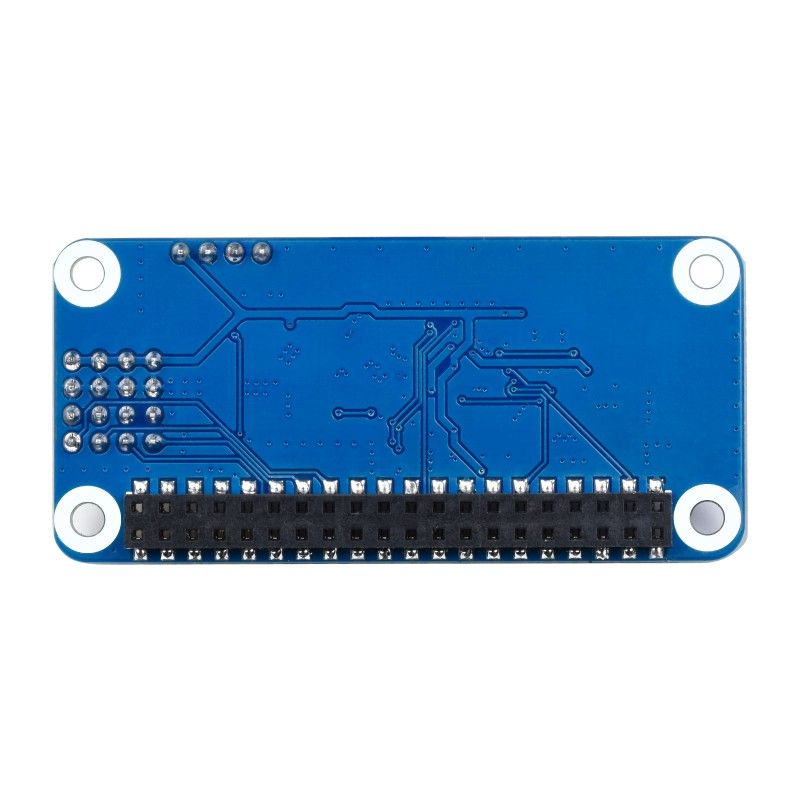

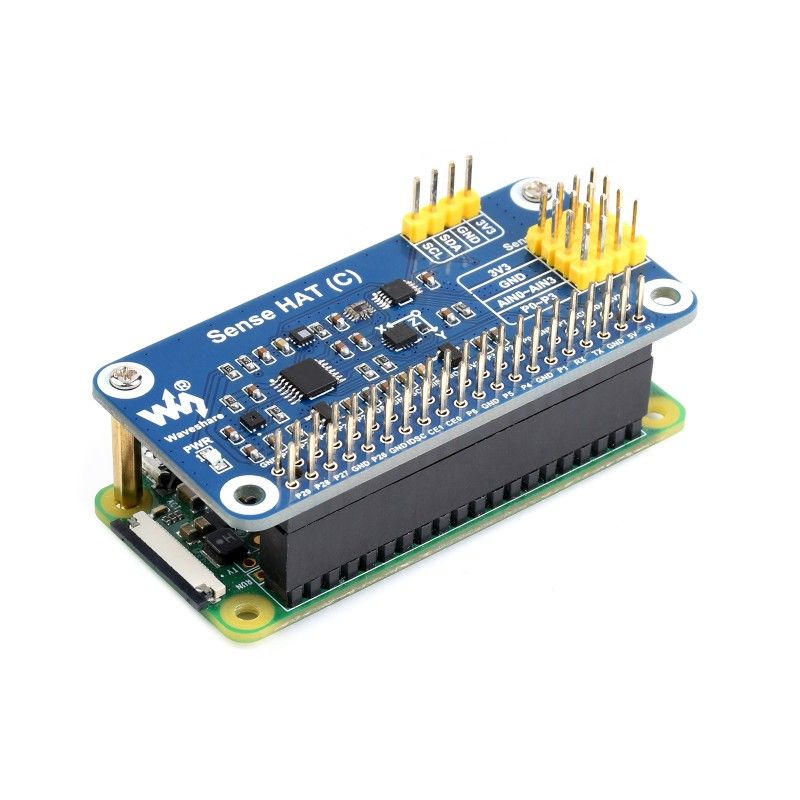

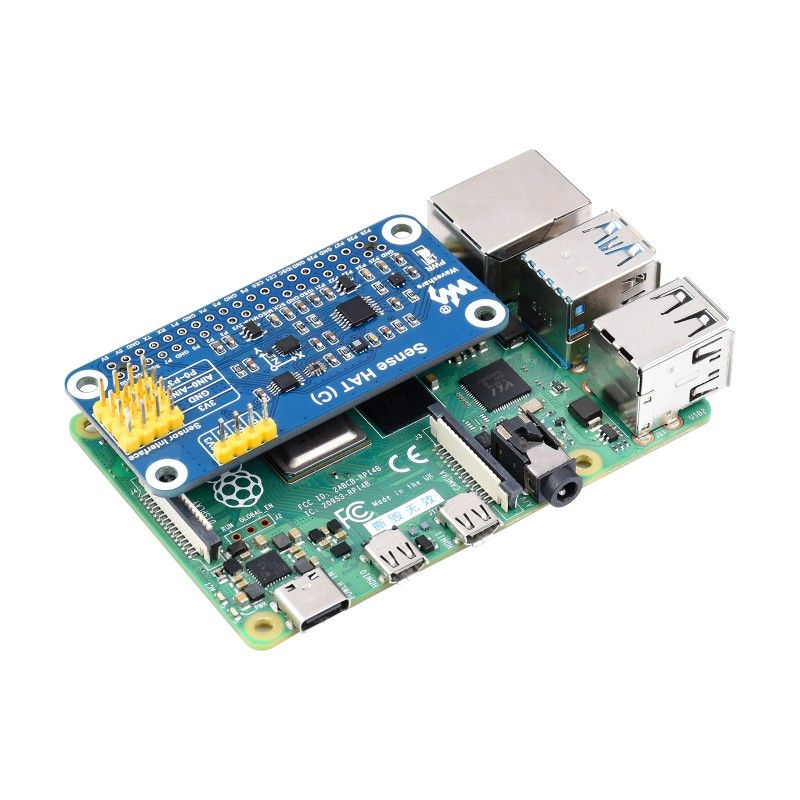

Standard Raspberry Pi 40PIN GPIO connector: customized for Raspberry Pi series board

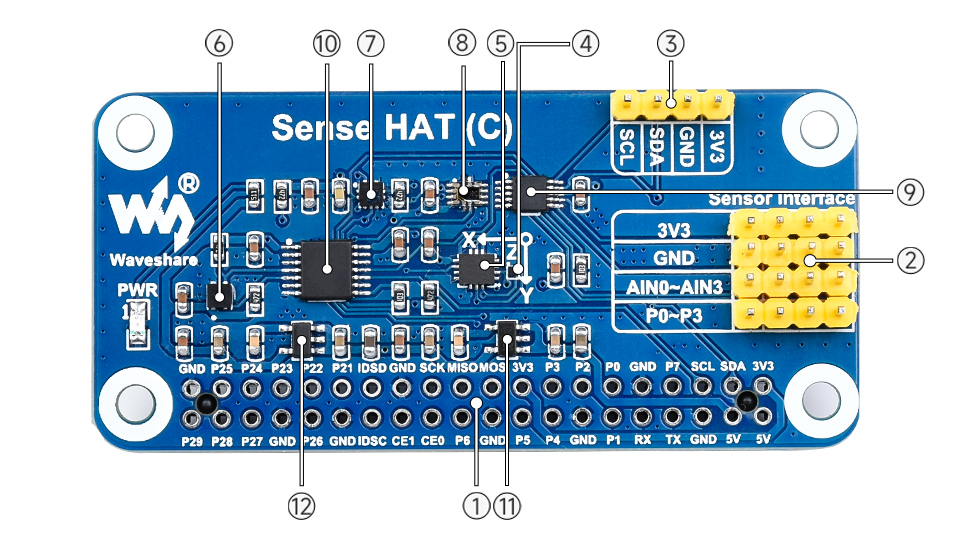

Board components and interfaces:

1. Raspberry Pi GPIO connector for connecting to the Raspberry Pi
2. Sensor interface for external sensors
3. I2C extension for connection to host boards such as STM32
4. AK09918 - 3-axis magnetometer
5. QMI8658C - 6-axis motion sensor
6. SHTC3 - Temperature and humidity sensor
7. LPS22HB - Barometric pressure sensor
8. TCS34725 - Color sensor
9. SGM58031 - 16-bit ADC
10. LSF0204PWR - 4-channel voltage level translator
11. RT9193-33 - 3.3 V linear regulator
12. RT9193-18 - linear regulator 1.8V

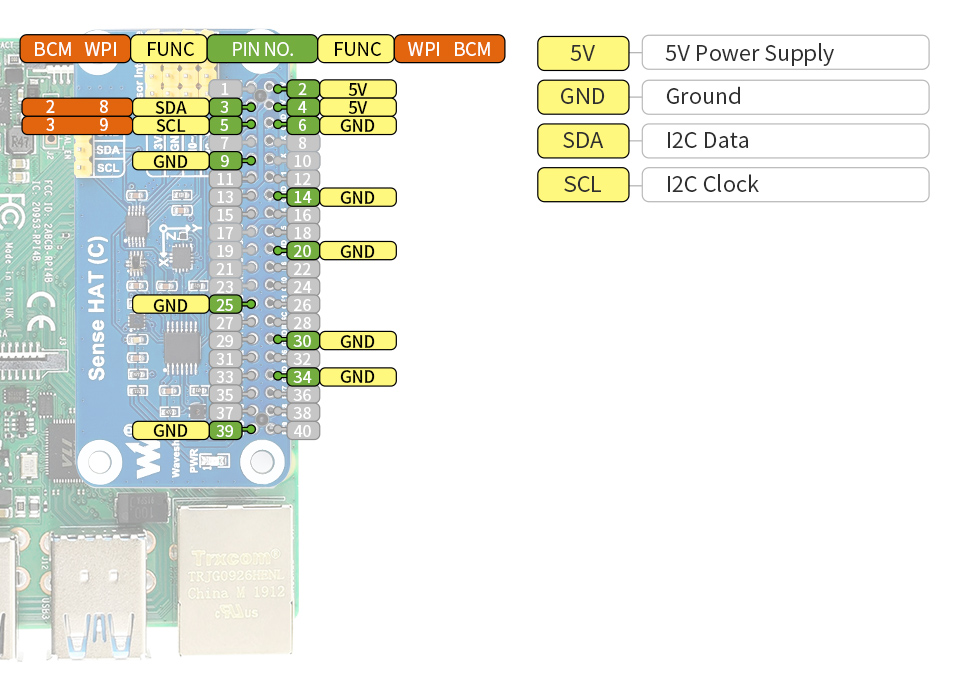

Pinout:

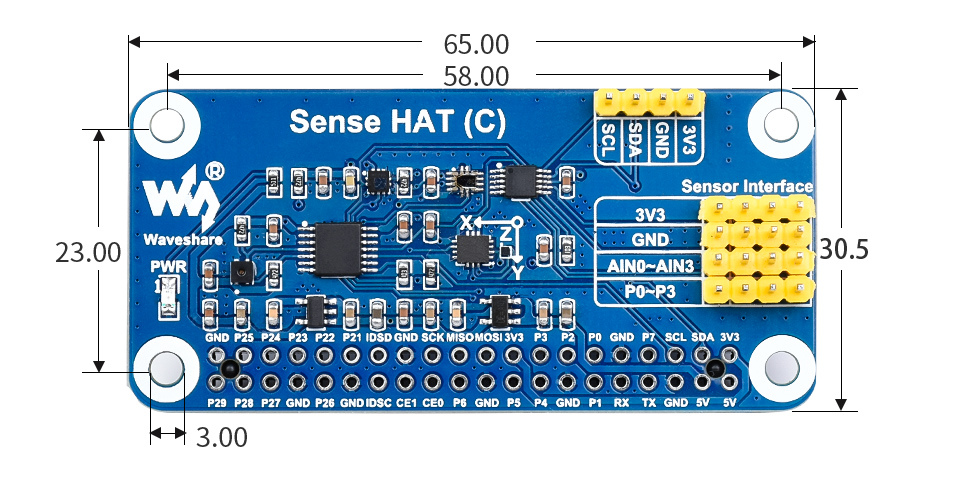

Overall dimensions: 65mm x 30.5mm

WIKI: www.waveshare.com/wiki/Sense_HAT_(C)

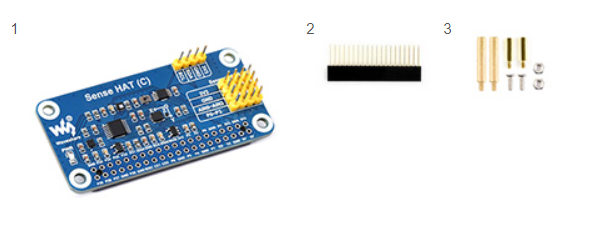

Scope of delivery:

1. Sense HAT (C) x1
2. 2x20PIN socket x1
3. Package of screws x1 pc

Weight: 0.01 kg
