Active cooling system Raspberry Pi Compute Module 4 Fan (19720)

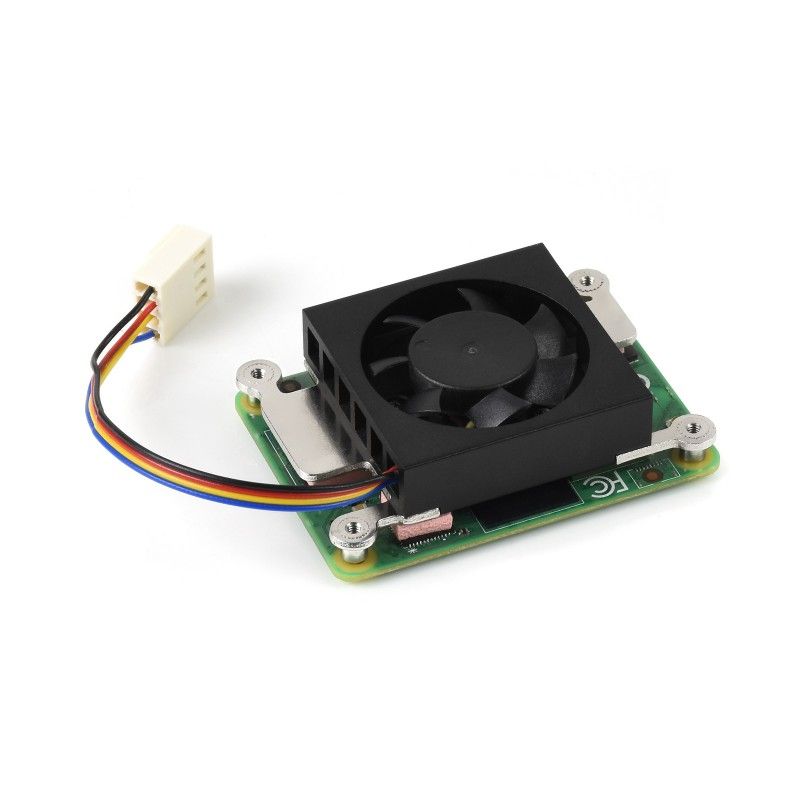

TheRaspberry Pi Compute Module 4 Fan (19720) active cooling system is the most efficient solution for cooling your Raspberry Pi Compute Module 4 CM4. The radiator is made of anodized aluminum alloy and, in addition to cooling properties, will also add a bit of aesthetics to the CM4. Thermal tape allows you to effectively remove heat from the module.

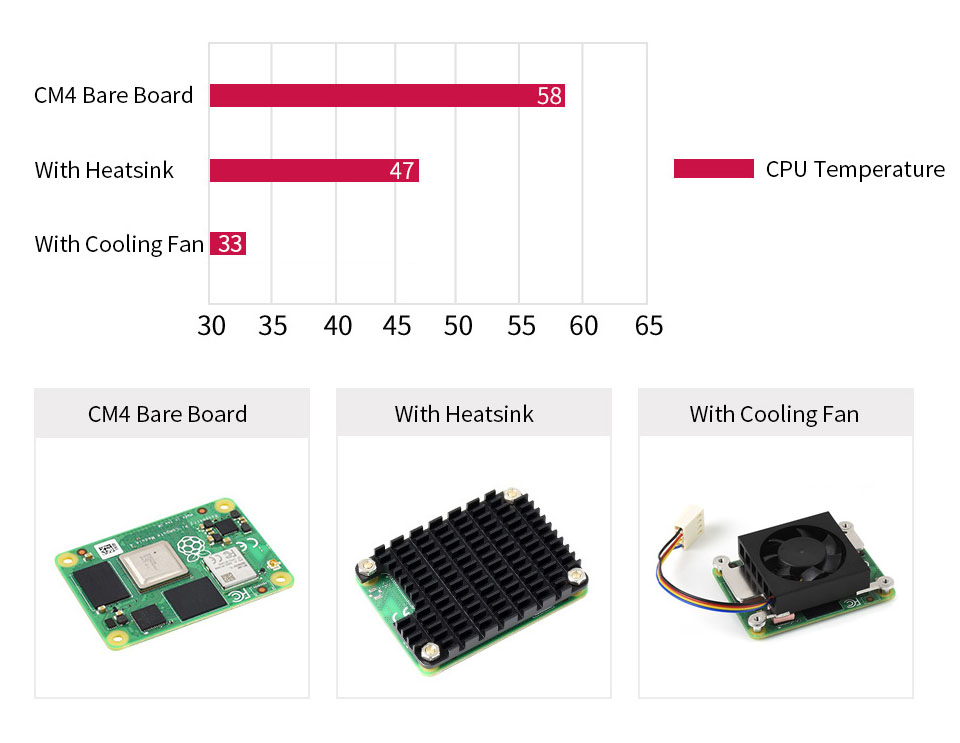

Comparison of cooling efficiency data for a computing module with forced ventilation(With Cooling Fan) compared to passive cooling with and without aheatsink(With Heatsink):

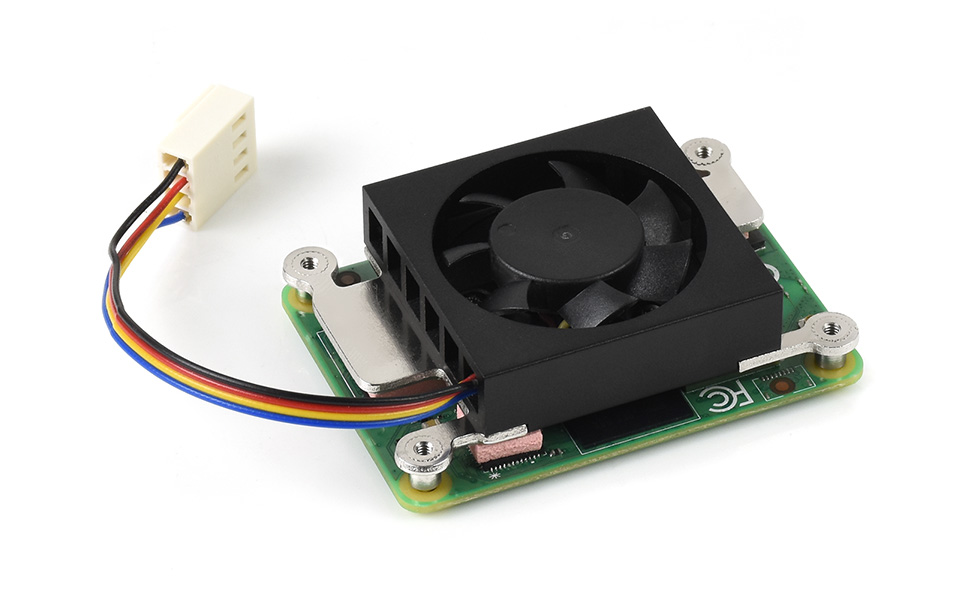

The heatsink is mounted on the standard mounting holes of the compute module using the mounting hardware (included in the package).

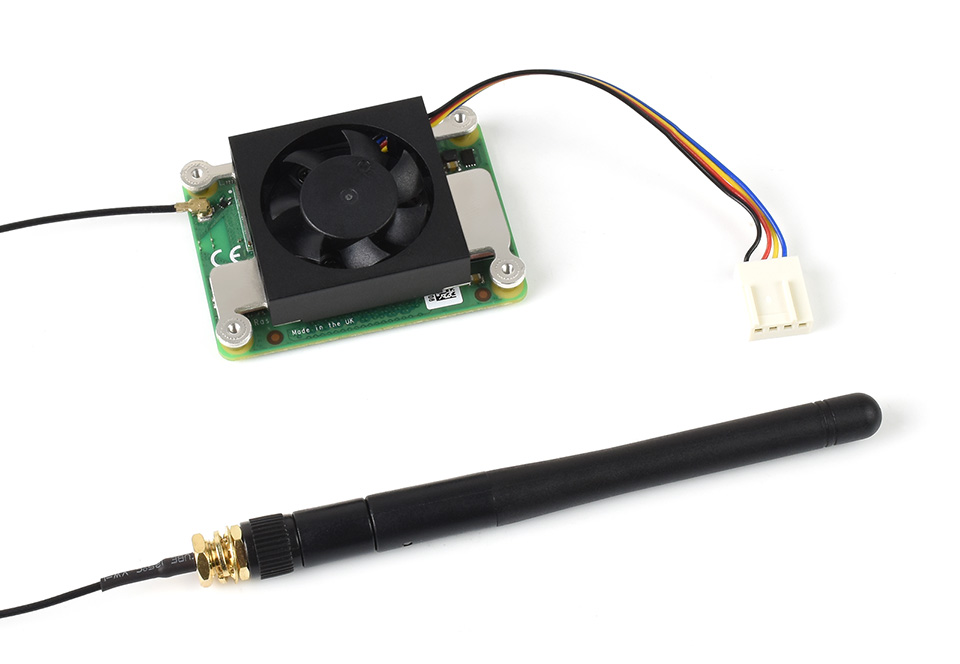

The heatsink has a special cutout on one of its sides, which provides convenient access to the antenna socket:

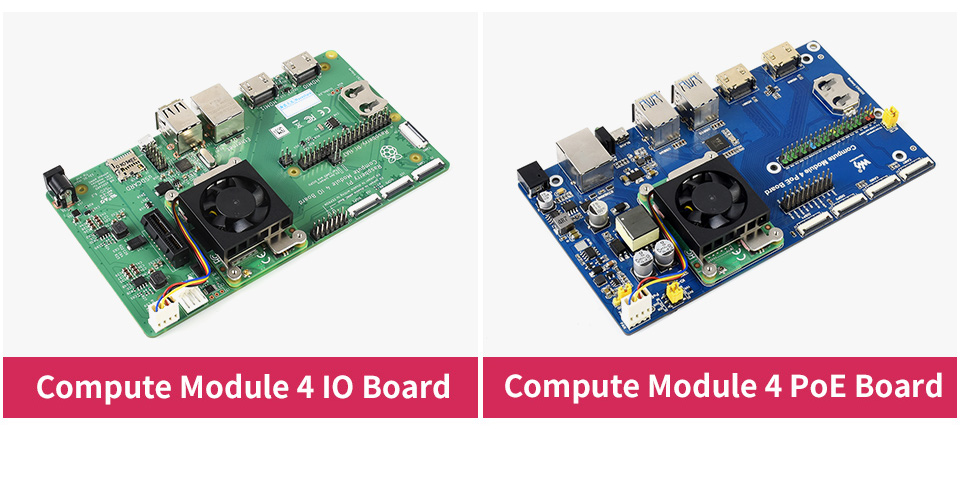

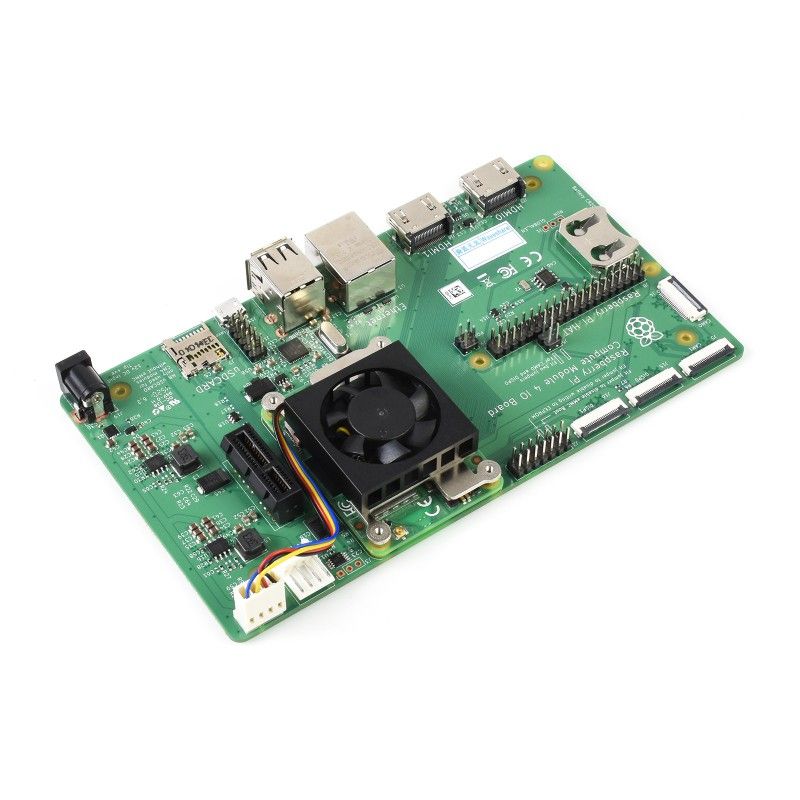

An example of installing a heatsink on a compute module for the Compute Module 4 IO Board and Compute Module 4 PoE Board options:

Note: The Compute Module 4 IO Board and Compute Module 4 PoE Board are not included in the package!

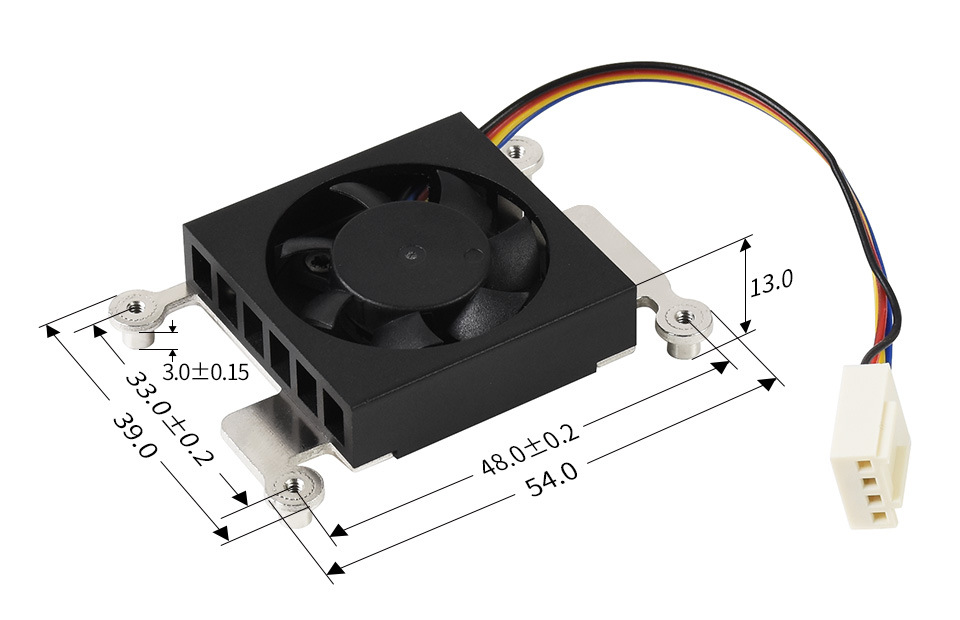

Overall dimensions: 39mm x 54mm x 13mm

Installation procedure:

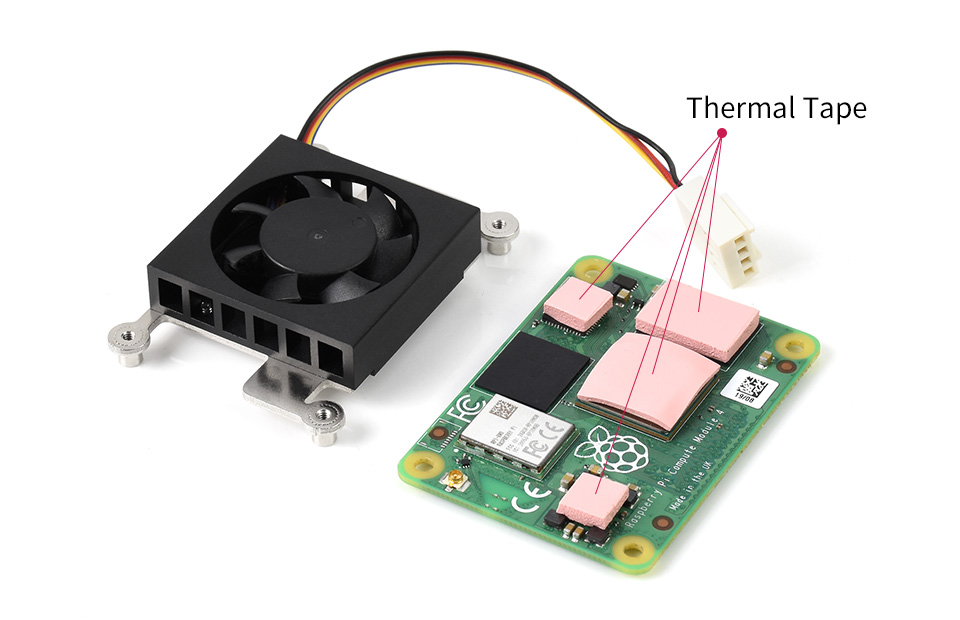

1. Attach the Thermal Tape to the CM4.

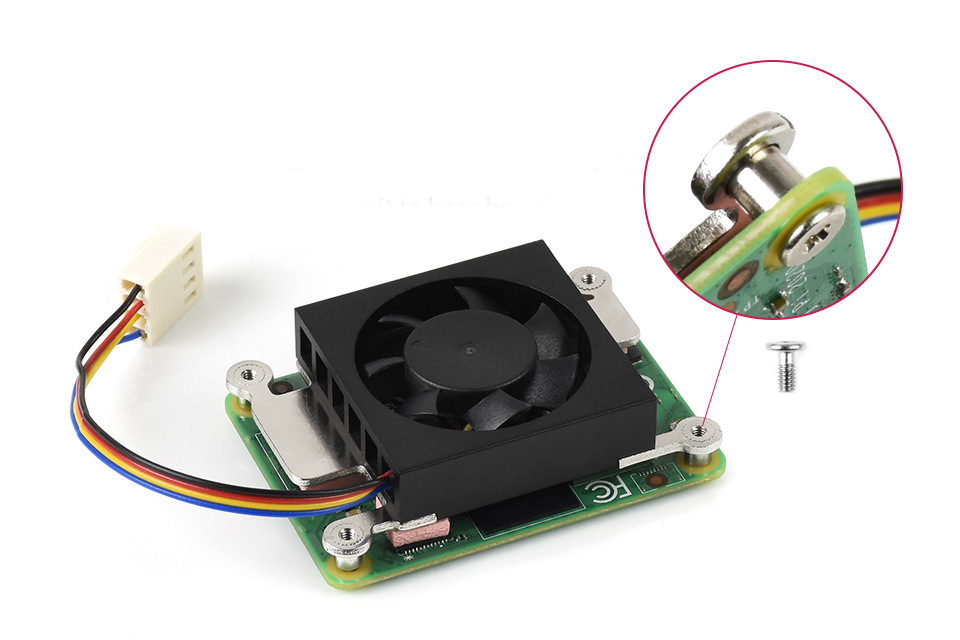

2. If the compute module is used separately, attach the heatsink to the racks with short screws as shown in the figure

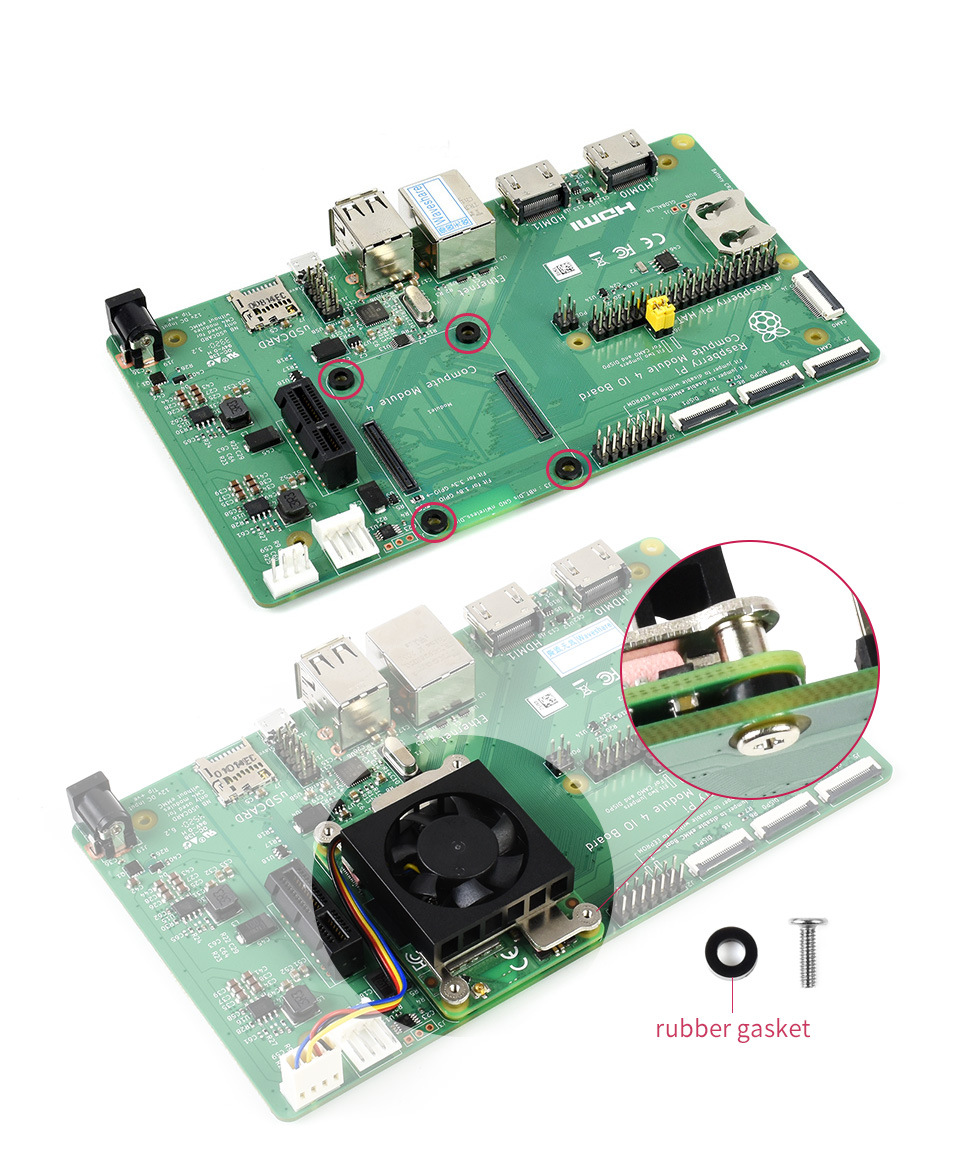

3. If the compute module is used on the Compute Module 4 IO Board or Compute Module 4 PoE Board, attach the racks with nuts and secure to the board with arubber gasket and long screws:

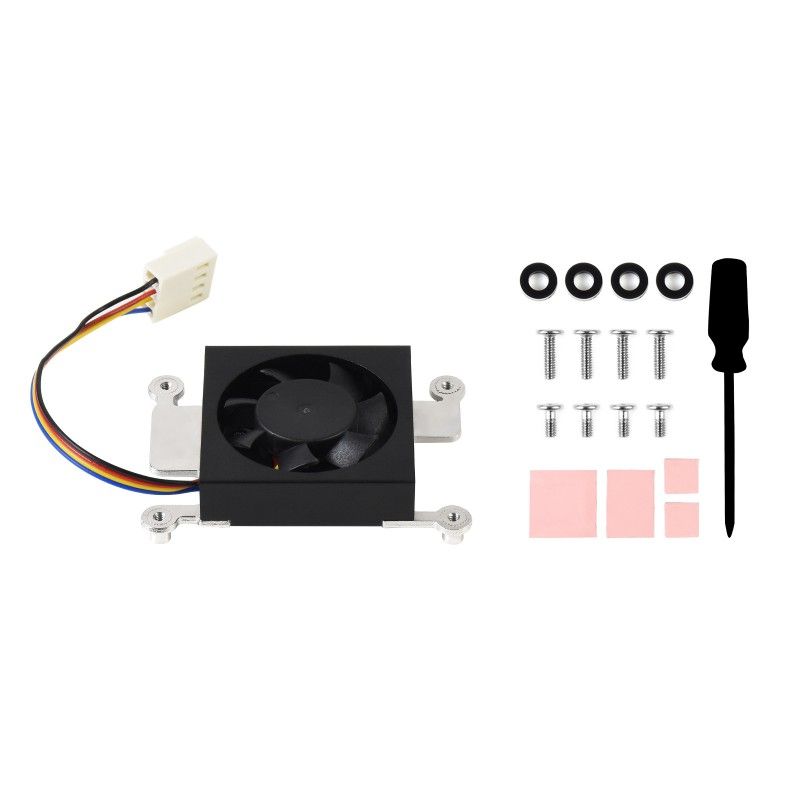

Included in the scope of delivery:

1. CM4-FAN-3007 x1
2. Mounting hardware and thermal tape x1

1. 2.

Weight: 0.042kg
