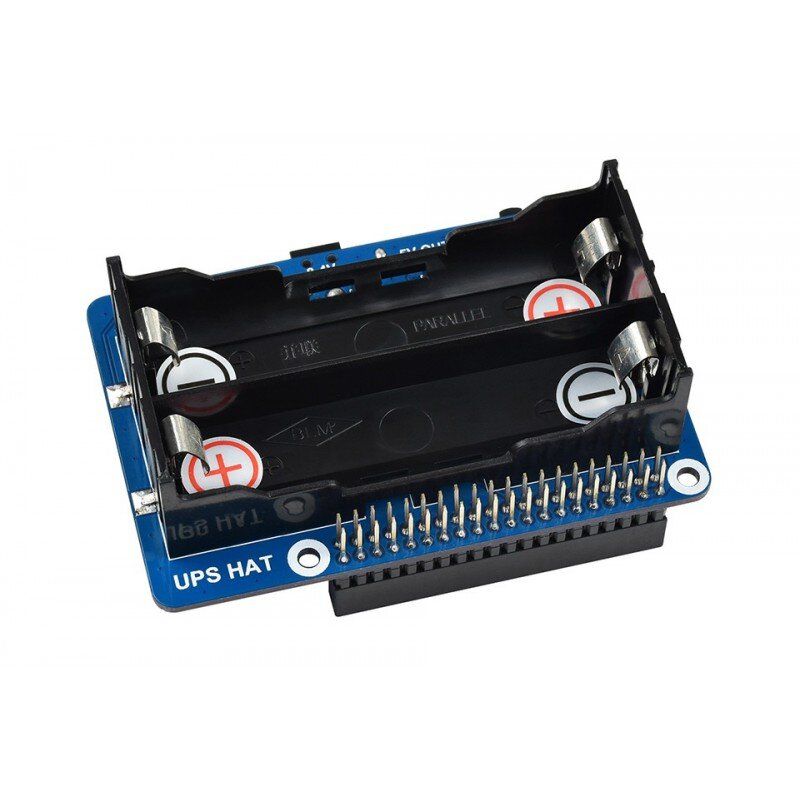

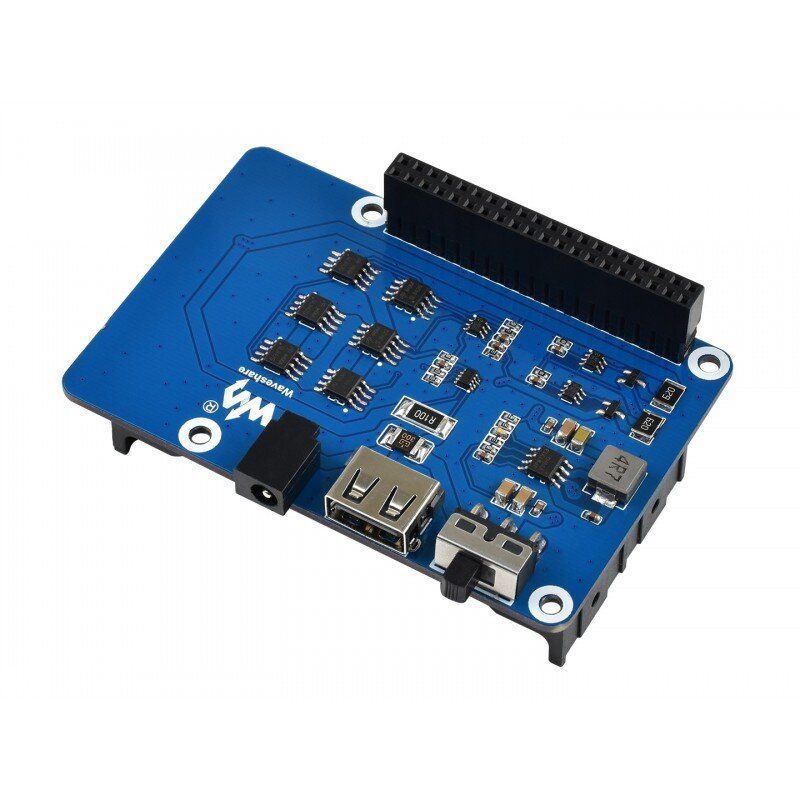

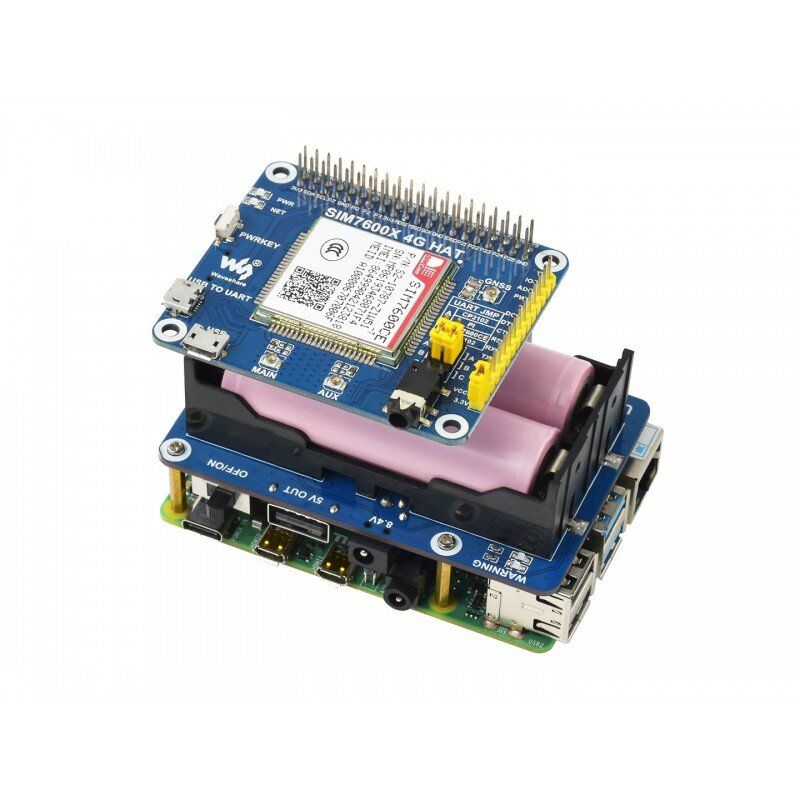

Raspberry Pi UPS HAT expansion board (18306)

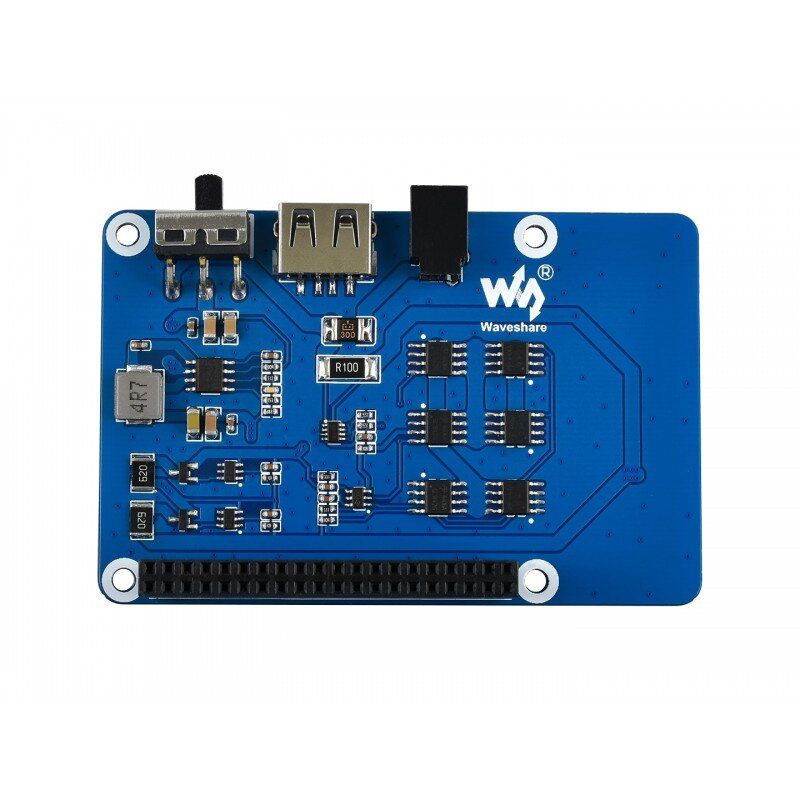

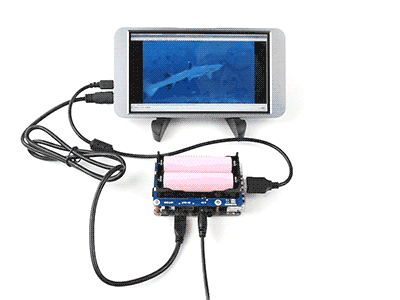

The Raspberry Pi UPS HAT (18306) expansion board is designed to provide uninterrupted power to the Raspberry Pi microcomputer. It provides stable power supply to the device with a voltage of 5 V. When powered from an external source, the batteries are automatically recharged. If the external power supply is lost, it automatically switches to the built-in power supply, which ensures uninterrupted operation of the system.

Main features:

• standard 40PIN GPIO connector for connecting Raspberry Pi expansion boards;
• communication via I2C bus;
• real-time monitoring of voltage, current, power and remaining battery capacity;
• 5V voltage regulator with an output current of up to 2.5A in continuous mode;
• battery protection circuits (overcharge/discharge protection; overcurrent protection; short circuit protection and reverse protection; charge equalization);
• 5V USB interface for powering external devices
• battery polarity indicator - signals when batteries are installed in the wrong polarity.

Specifications:

Output voltage: 5V

Control bus: I2C

Supported battery type: 18650 lithium batteries (NOT INCLUDED IN THE SUPPLY)

Charging: 8.4V, 2A

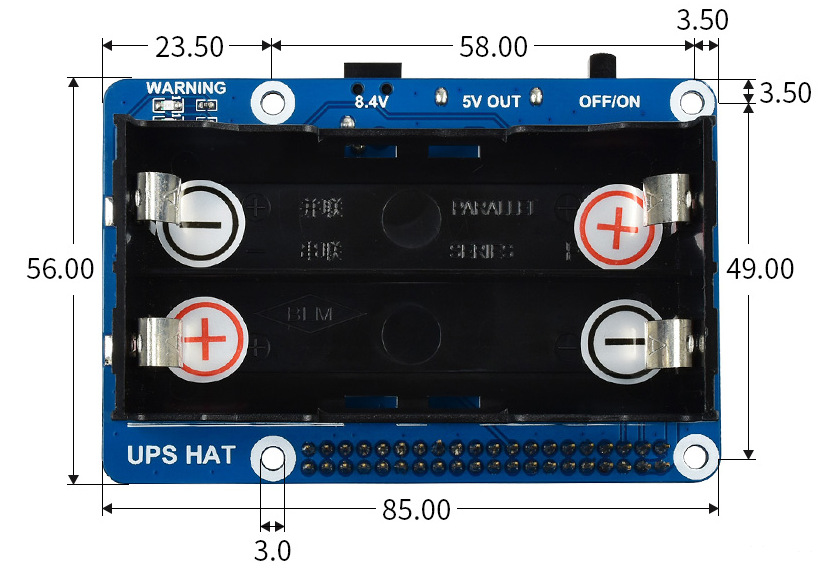

Overall dimensions: 56x85mm

Diameter of mounting holes: 3.0mm

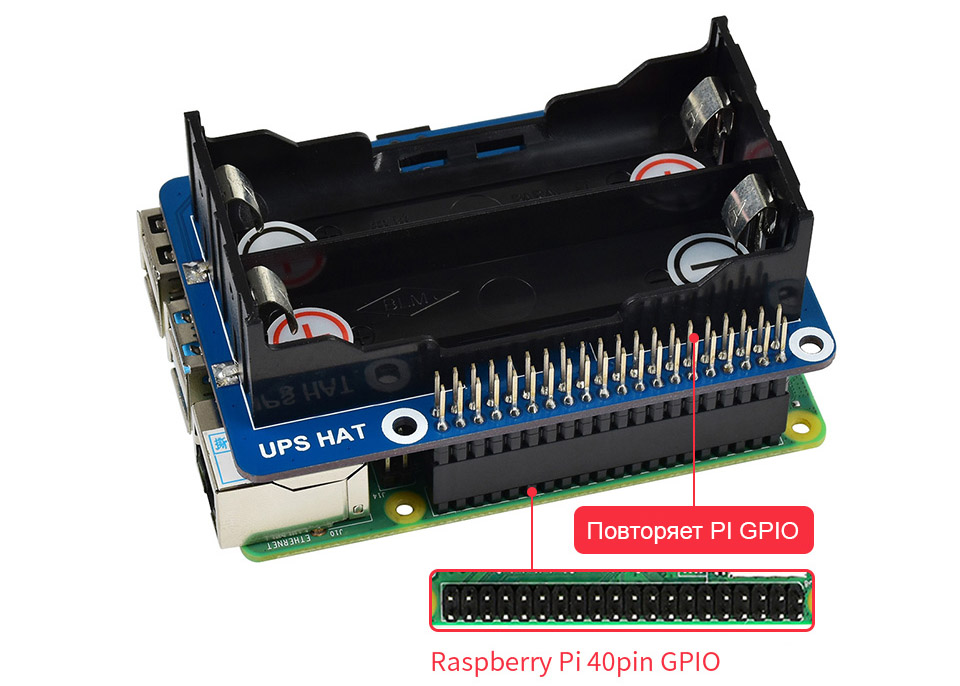

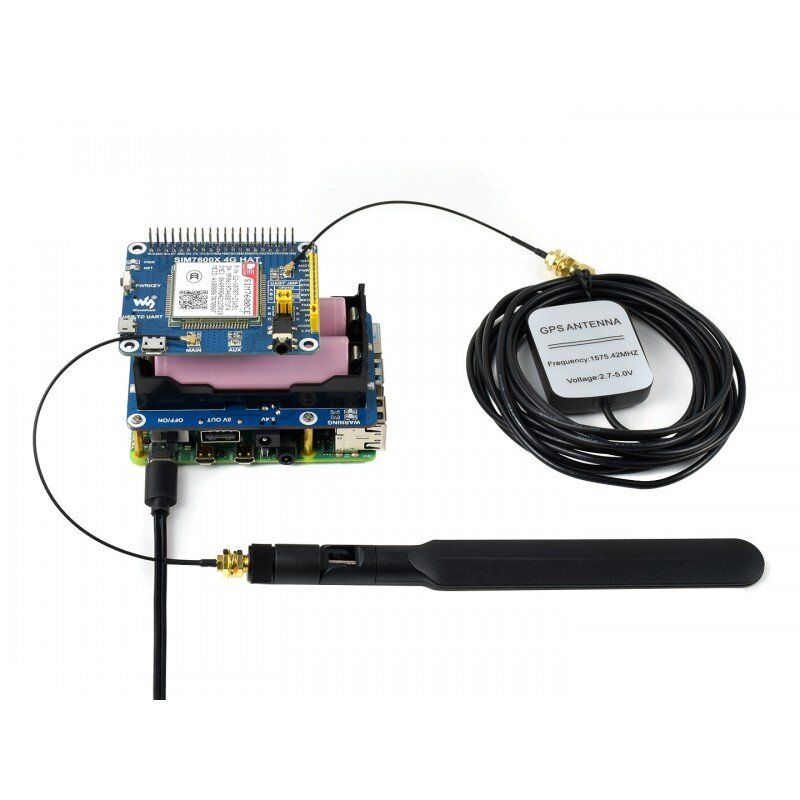

The design of this expansion card is fully compatible with the mounting holes of the Raspberry Pi board, and communication is carried out via a single 40-pin GPIO connector.

Real-time monitoring of the battery status allows the system to operate autonomously, and when the minimum battery level is reached, a soft software shutdown of the system can be performed without data loss.

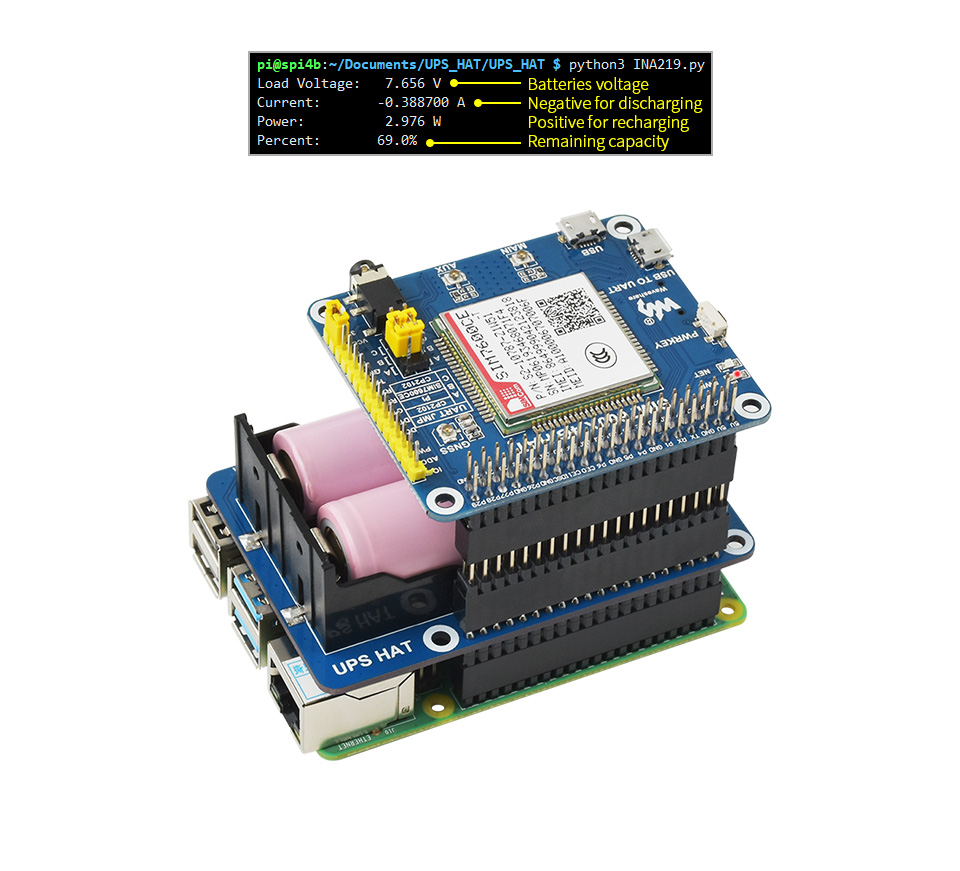

The following data is monitored:

1. Load Voltage - Battery voltage

2. Current - Current value of the current (negative value when discharging and positive value when charging)

3. Power - Current power consumption

4. Percent - The remaining charge of the batteries

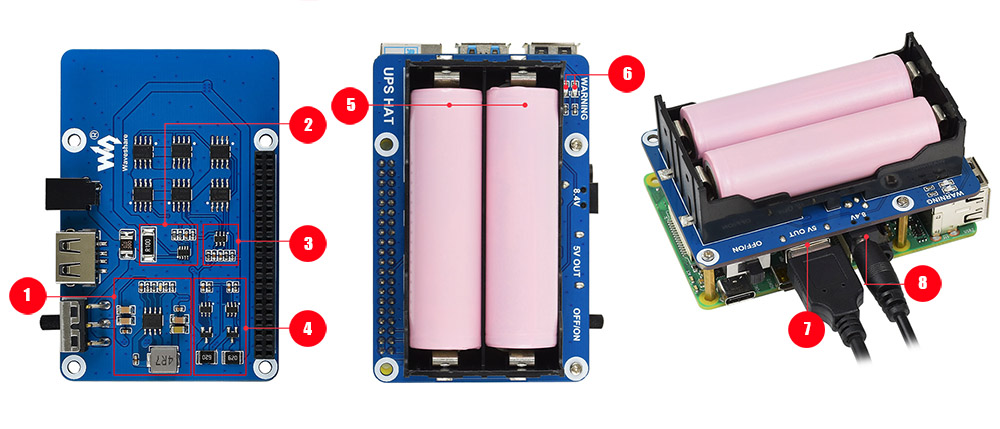

Purpose of the main elements and circuit blocks of the board:

1. 5V regulator, providing an output current of up to 2.5 A in continuous mode

2. Battery charge equalization

3. Battery protection circuit

4. Monitoring of voltage and current

5. Rechargeable 18650 batteries (not included)

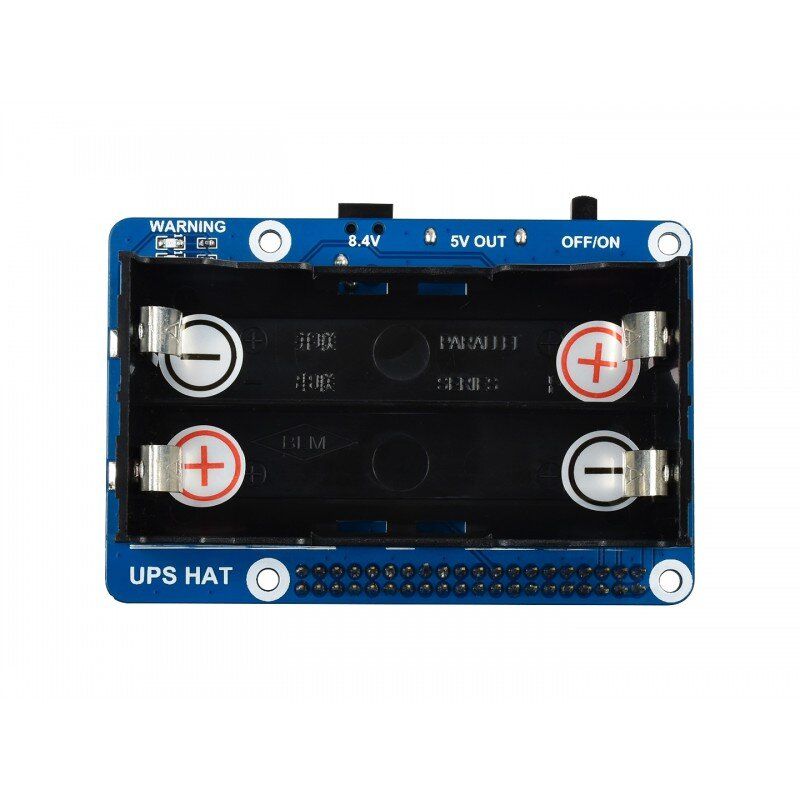

6. Battery polarity indicator. Red LED lights up if the polarity is reversed during installation

7. 5V power output (USB)

8. 8.4V external power supply connector

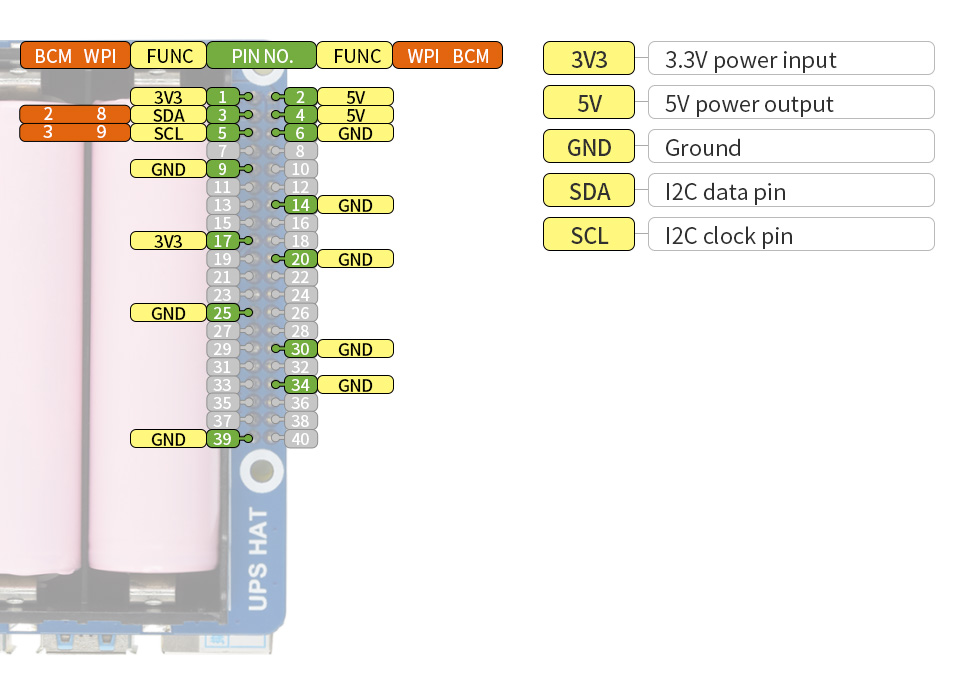

Decoding of the connector pins:

3V3 - 3.3V input

5V - 5V output

GND - Ground

SDA - I2C data pin

SCL - I2C clock pin

Overall dimensions (in mm): 85х56

Sources for developers
Wiki : www.waveshare.com/wiki/UPS_HAT

Included in the package:

1. UPS HAT x1
2. 8.4V charger x1
3. 2x20PIN connector x1
4. RPi mounting kit x1

1. 2. 3. 4.

ATTENTION! Rechargeable batteries are not included in the package. The length of the installed batteries should not exceed 67 mm. Some battery models with a built-in protection board exceed this limit and are not supported by the board.

Please note: Li-Ion 18650 2200mAh

weight: 0.157kg
