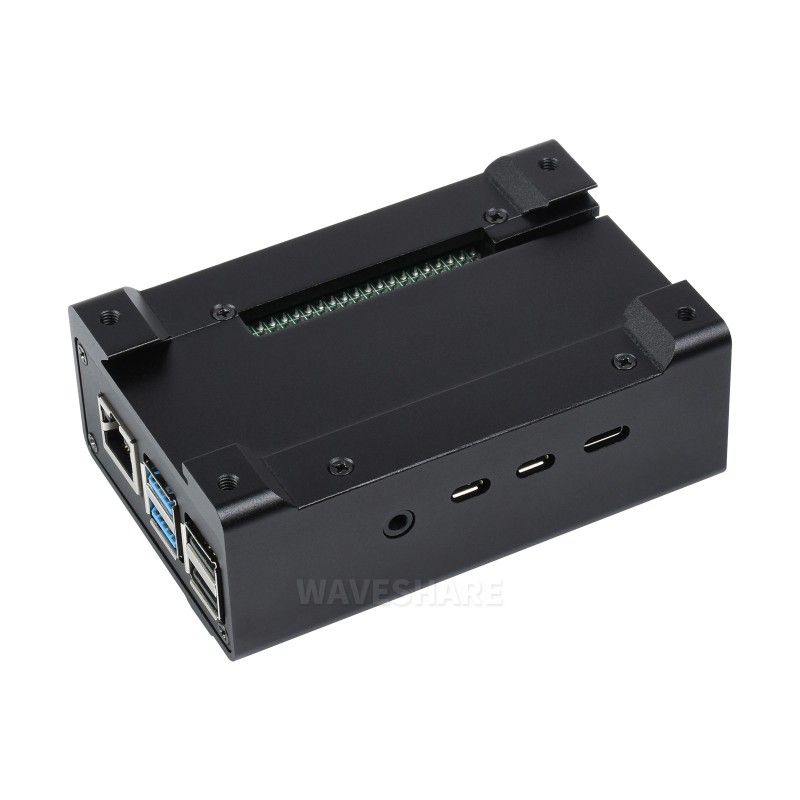

Case for Raspberry Pi 4 Aluminum DIN Rail Enclosures - aluminum case for DIN rail

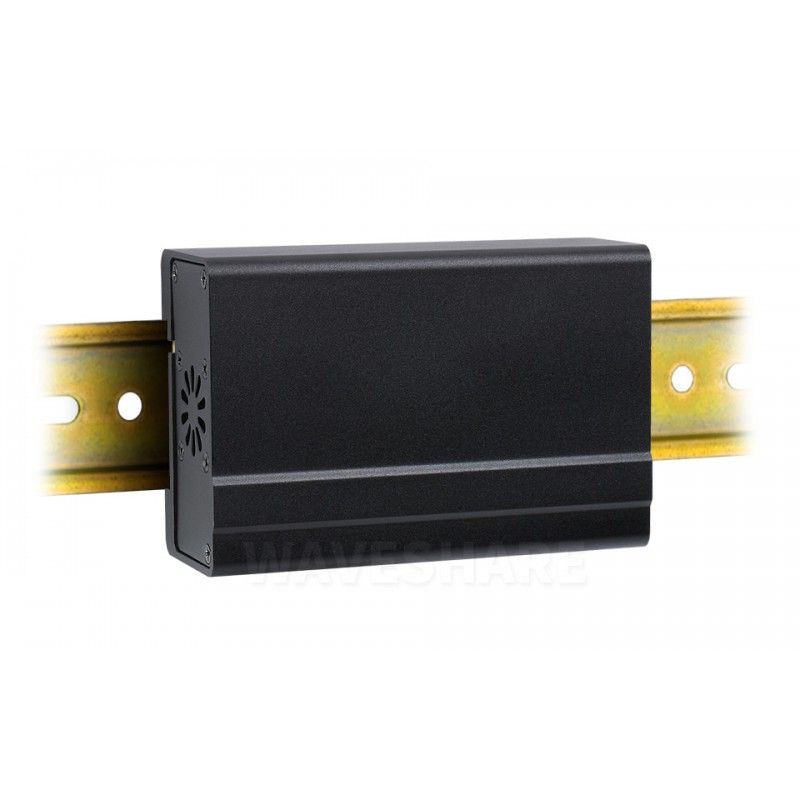

The Raspberry Pi 4 Aluminum DIN Rail Enclosures is an aluminum DIN rail enclosure for industrial projects based on the Raspberry Pi 4 microcomputer with DIN rail mounting. Made of aluminum alloy, it provides unsurpassed protection for the microcomputer, and the included forced cooling fan and aluminum heat sinks will ensure the necessary thermal balance both in low power mode and maximum computing processes.

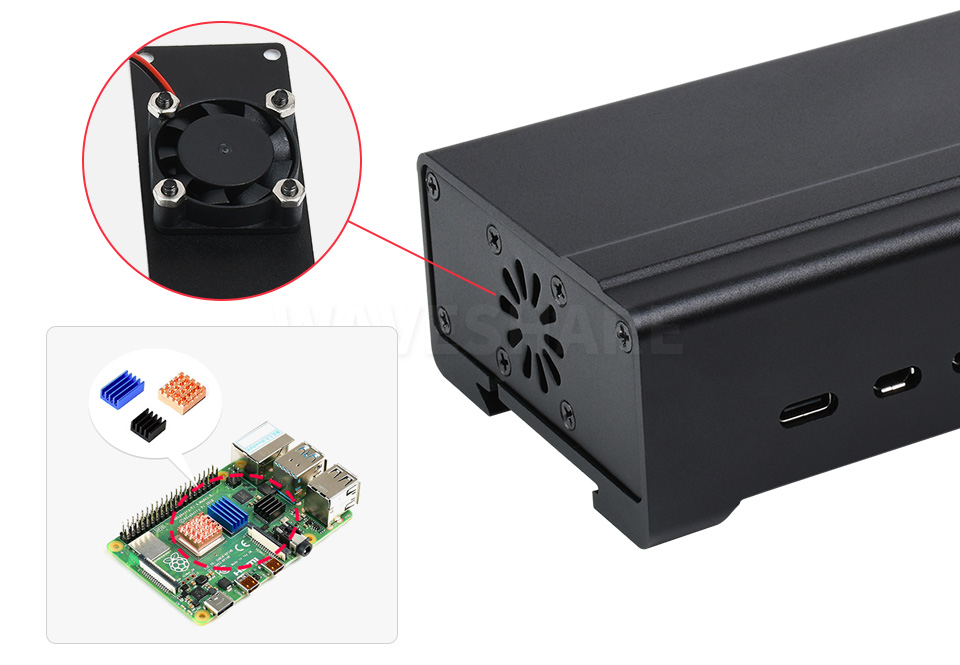

The aluminum alloy perfectly dissipates the heat removed from the board elements, and the forced cooling fan connected to the GPIO pins is conveniently mounted at the end of the case and removes the heated air from the internal cooling radiators.

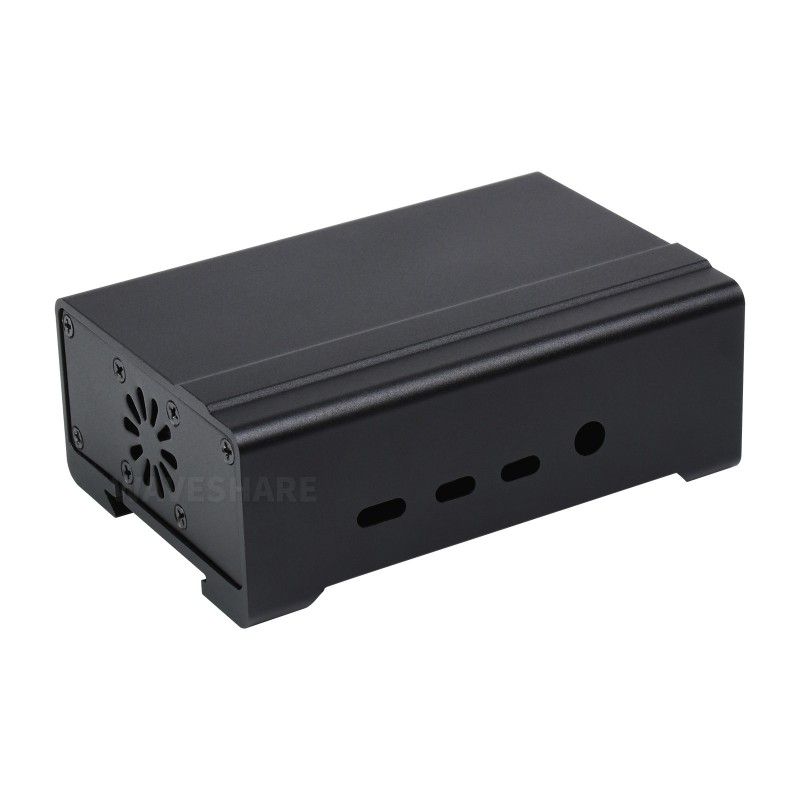

The anodized surface of the case gives it a beautiful and stylish appearance.

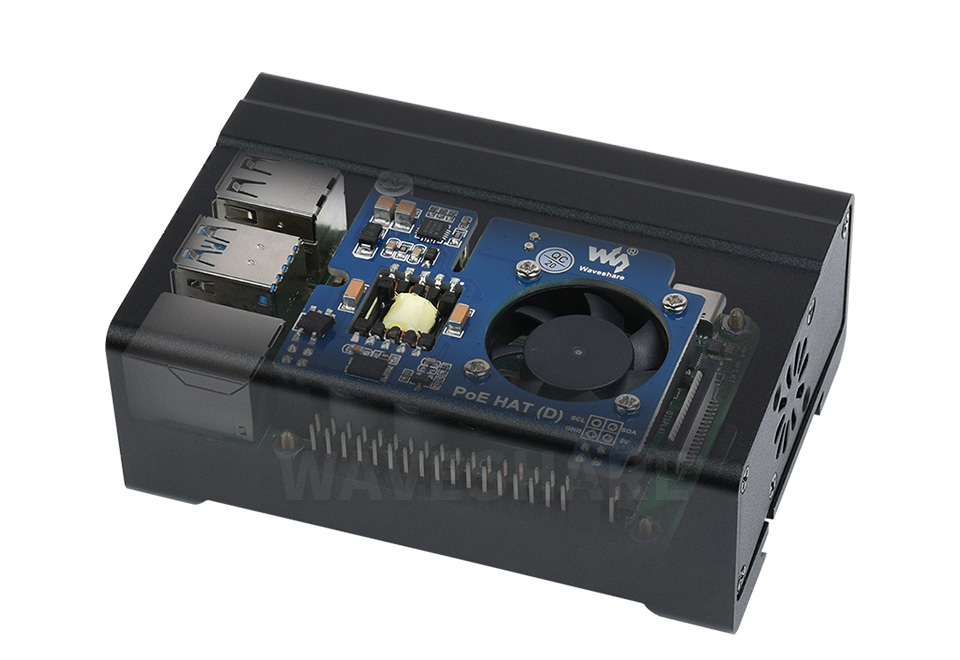

The chassis allows you to place standard expansion cards inside, such as, for example, PoE HAT (D) to provide power via a network connection:

Attention: The Raspberry Pi 4 microcomputer board and the PoE HAT (D) expansion board are not included in the package.

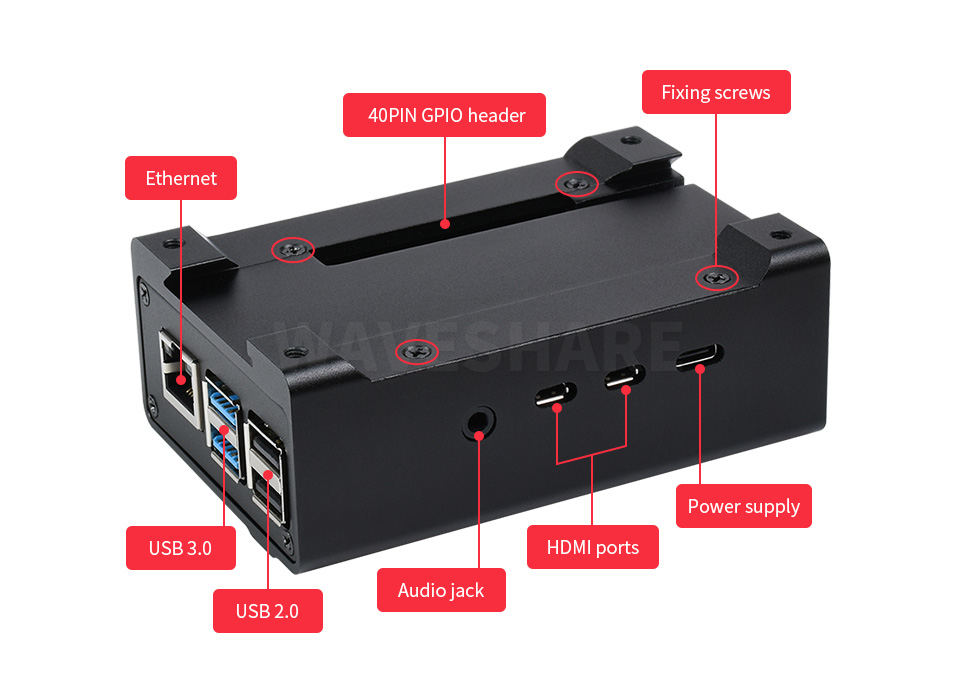

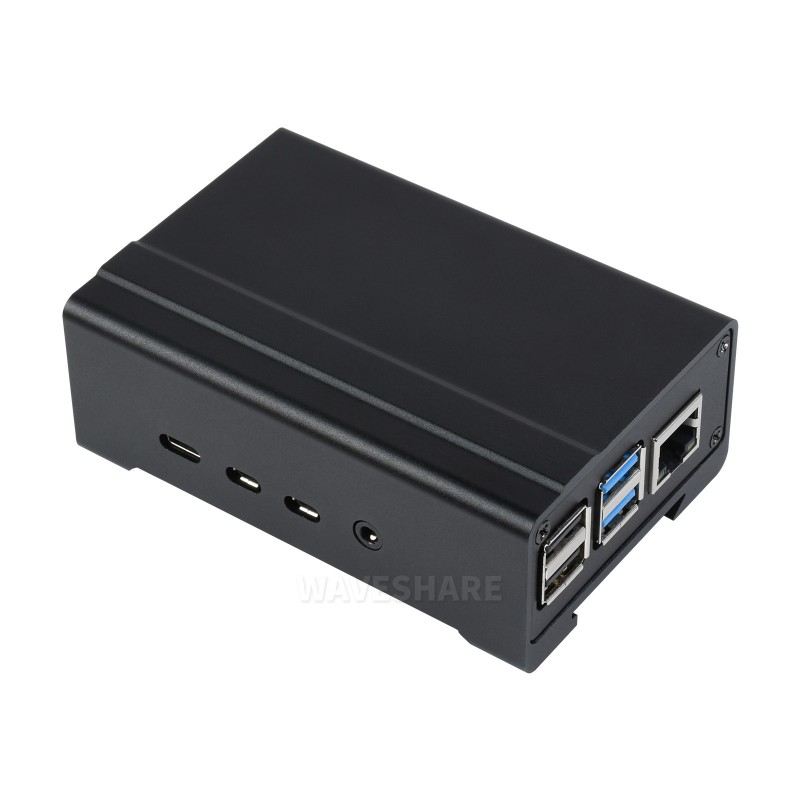

The chassis design provides openings for all physical interfaces of the Raspberry Pi 4:

Assembly procedure:

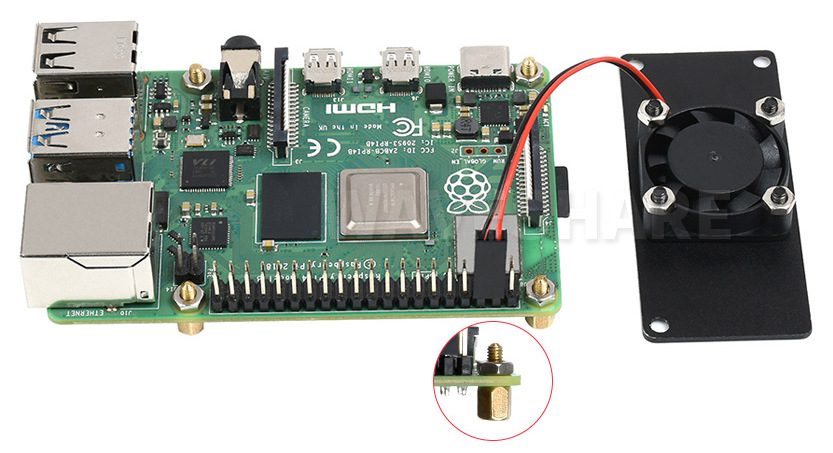

1. Attach the screw racks with nuts to the microcomputer board in the appropriate holes, attach the fan to the end panel, and connect the connector.

2. Assemble all the elements of the case together and fasten with screws

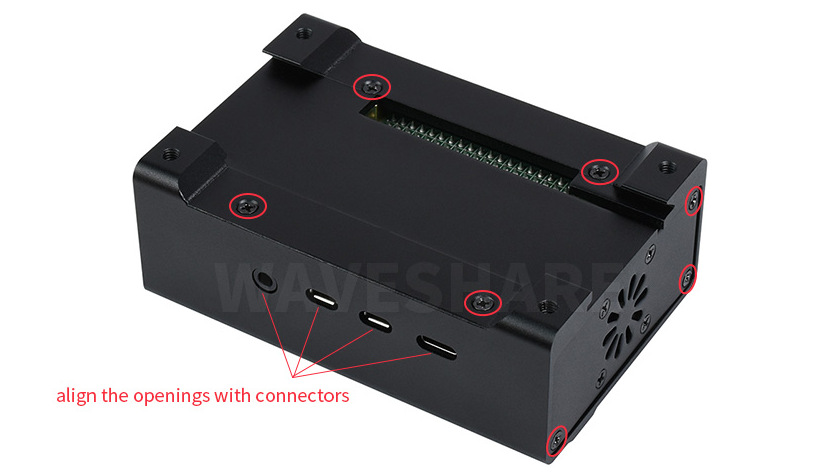

align the openings with connectors - make sure that the holes and connectors are aligned during assembly

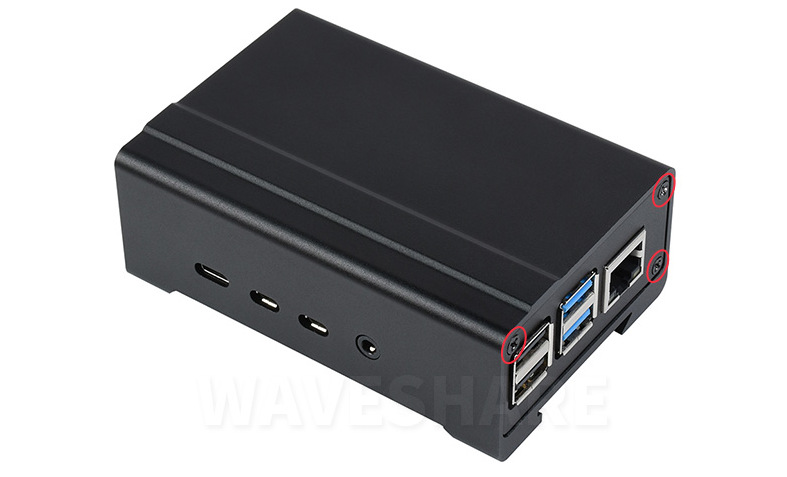

3. Secure the second end panel with the fixing screws

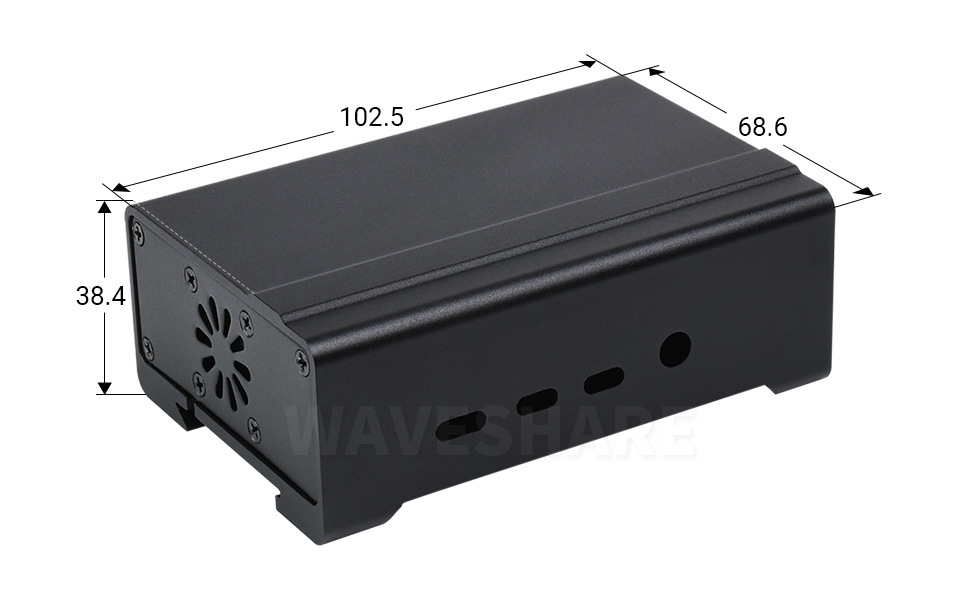

Overall dimensions: 102.5 x 68.6 x 38.4 mm

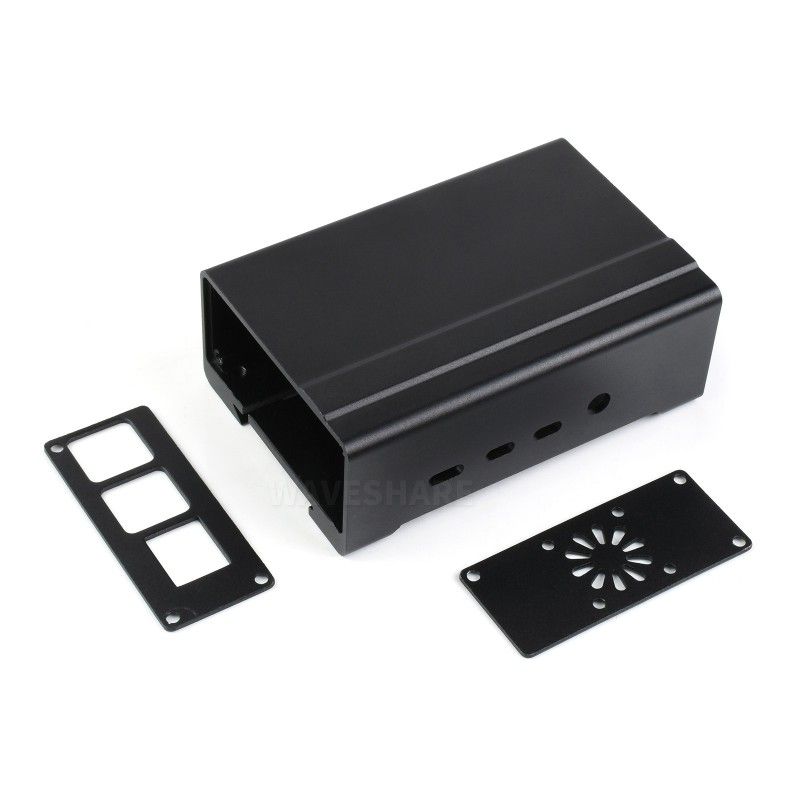

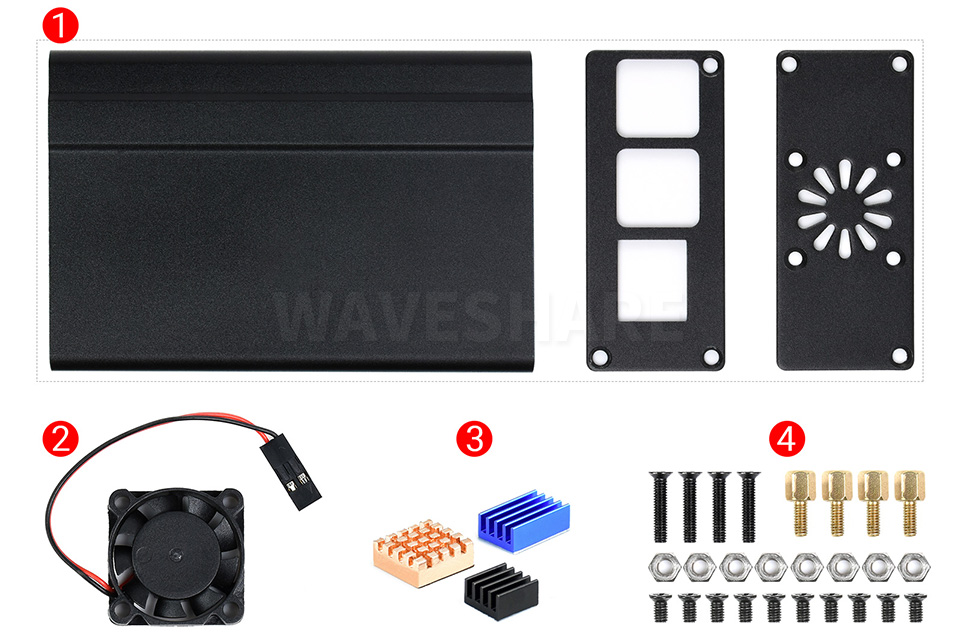

Included in the scope of delivery:

1. Housing x1
2. Cooling fan x1
3. Set of cooling radiators x1
4. Set of screws x1

Weight: 0.194kg
