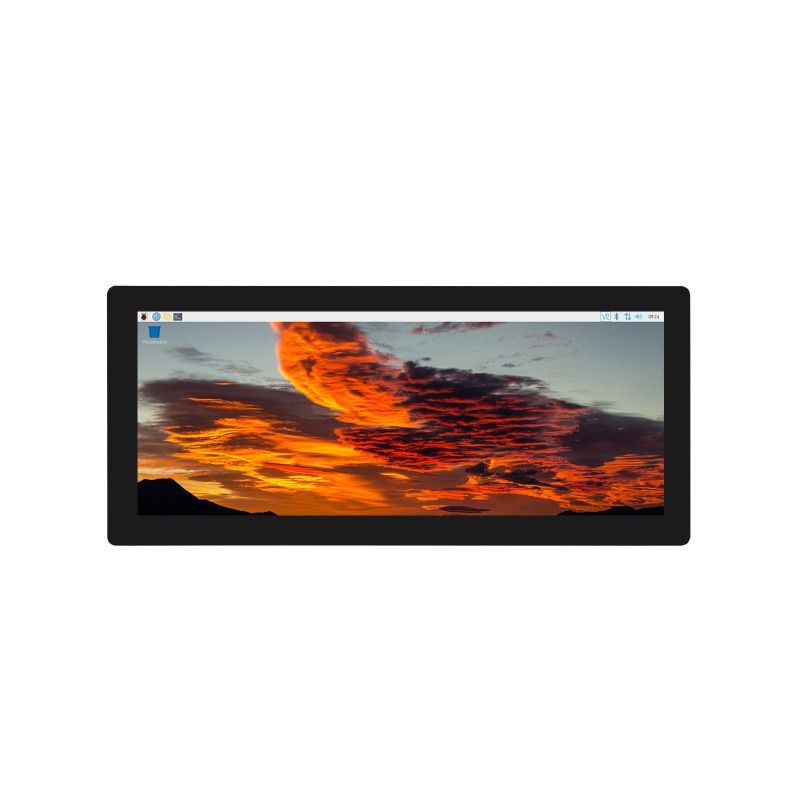

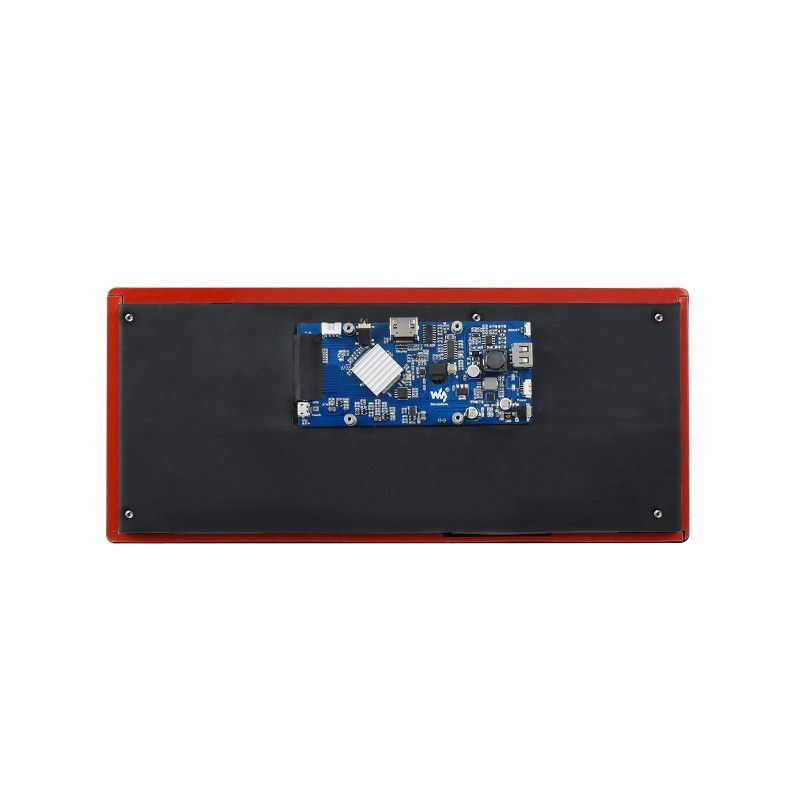

Display 12.3inch HDMI LCD (EU) (22841)

The12.3inch HDMI LCD (EU) Display (22841 ) is a 12.3-inch capacitive touchscreen display developed by Waveshare for use in electronic devices. The capacitive touchscreen allows the user to easily interact with the device using gestures and finger clicks. The 1920x720 pixel resolution ensures that images and text are displayed clearly and with high quality. The IPS matrix provides a wide viewing angle and bright and vibrant colors.

This display supports HDMI connectivity, allowing it to be used with a wide range of electronic devices. In addition, the display has a high-strength glass that provides protection against damage and wear during use.

The 12.3inch HDMI LCD display can be used in a variety of applications such as monitors, tablets, laptops, multimedia set-top boxes, and other electronic devices. This display can be especially useful for developers who are looking for a high-quality and easy-to-use display for their projects that require user interaction.

In addition to the basic characteristics, this display also has other useful features such as the ability to adjust the screen brightness and contrast. The display also has low power consumption, making it economical and practical to use in a variety of projects. The package includes an HDMI cable for connecting to devices, as well as other accessories needed to install the display in an electronic device. Due to its performance and functionality, the 12.3inch HDMI LCD display can be a useful device for developers and users looking for a high quality and functional display for their projects.

Application examples:

Key Features:

• Size: 12.3inch
• Resolution: 1920×720
• Display interface: HDMI
• Display panel: IPS
• Viewing angle: 178°
• Type of touch: capacitive
• Touch points: 10 points
• Touch port: USB
• Touch panel: tempered glass (Toughened Glass Panel)
• On-screen menu: Brightness / Contrast
• Audio output: 13.5 mm jack
• Audio output: 24PIN connector
• Brightness: 600 cd/m²
• Touch panel technology: optical bonding
• Operating temperature range: -2070°C

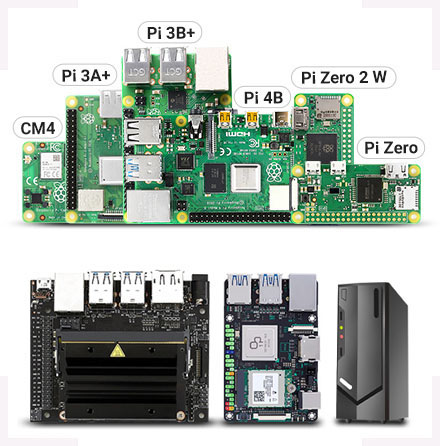

Supported devices and systems

Raspberry Pi
Raspbian support, 10-point control, no driver
Supports Ubuntu/Kali/WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi 4B

Jetson Nano: Supports Ubuntu, one-point touch, no drivers required

Tinker Board 2: Supports Android / Debian

PC: Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch screen, no drivers

An example of connection:

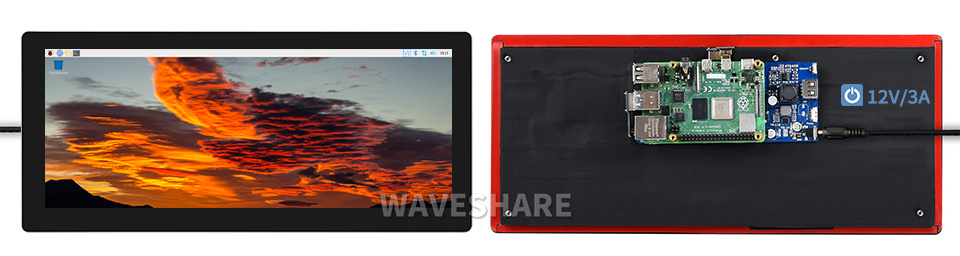

Working with Raspberry Pi 4

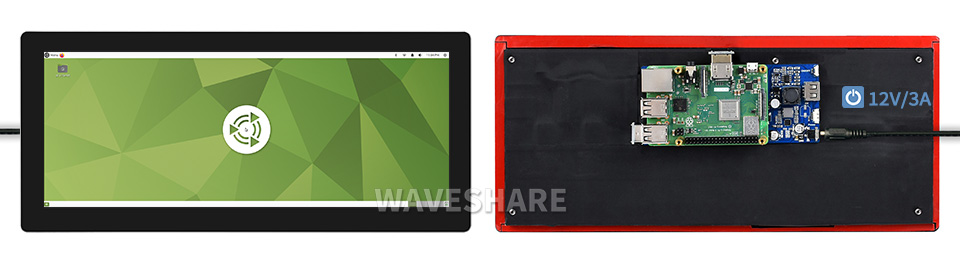

Working with Raspberry Pi 3B+

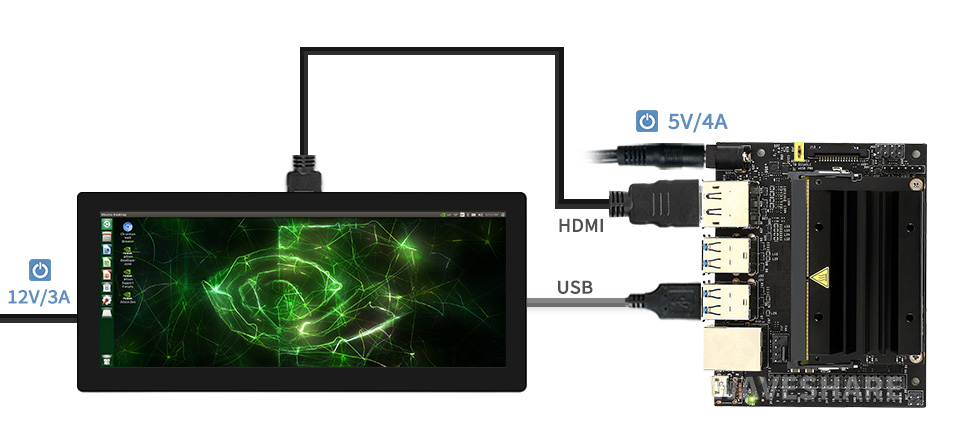

Working with Jetson Nano

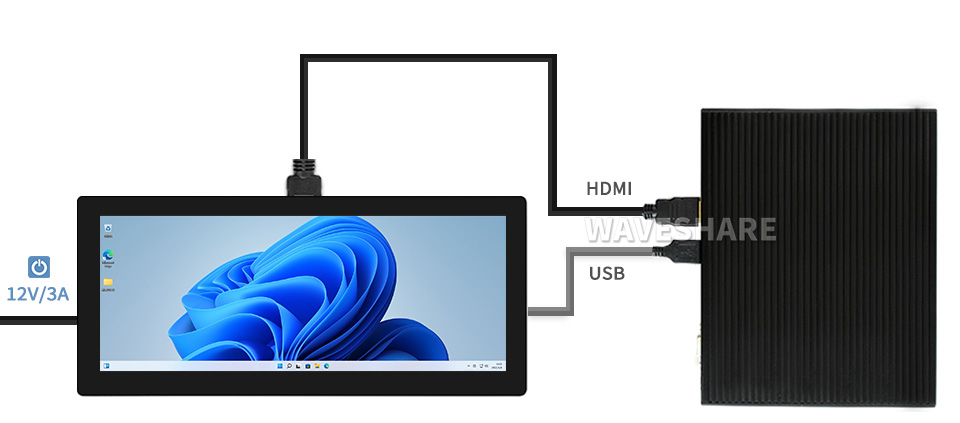

Working with Mini PC

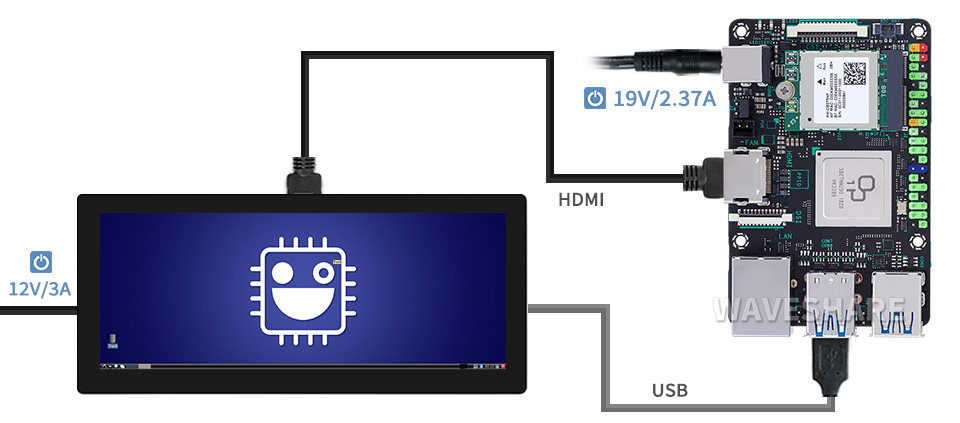

Working with Tinker Board 2

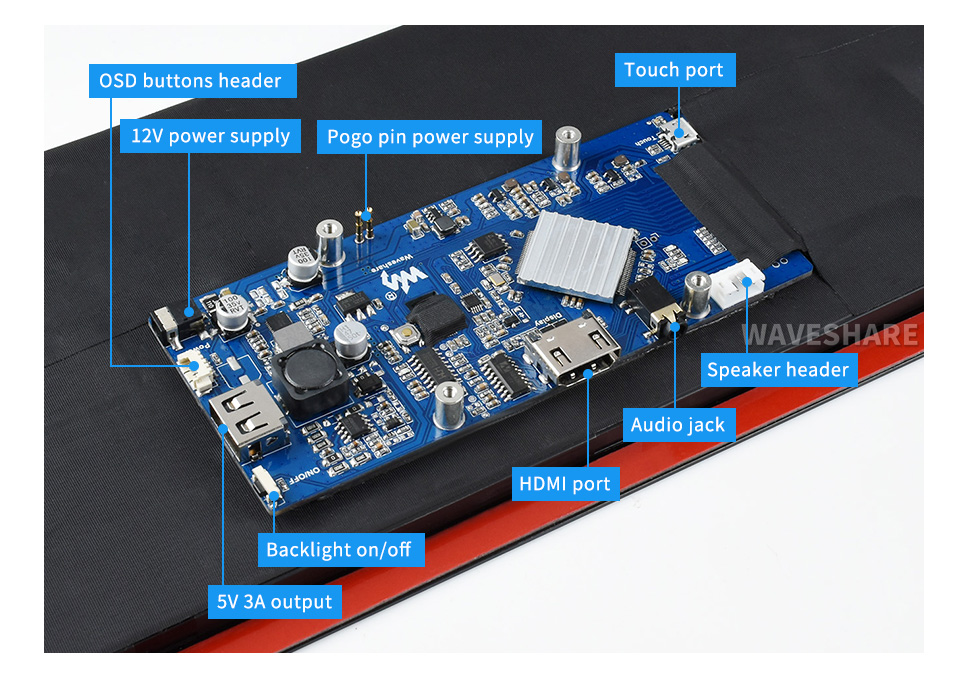

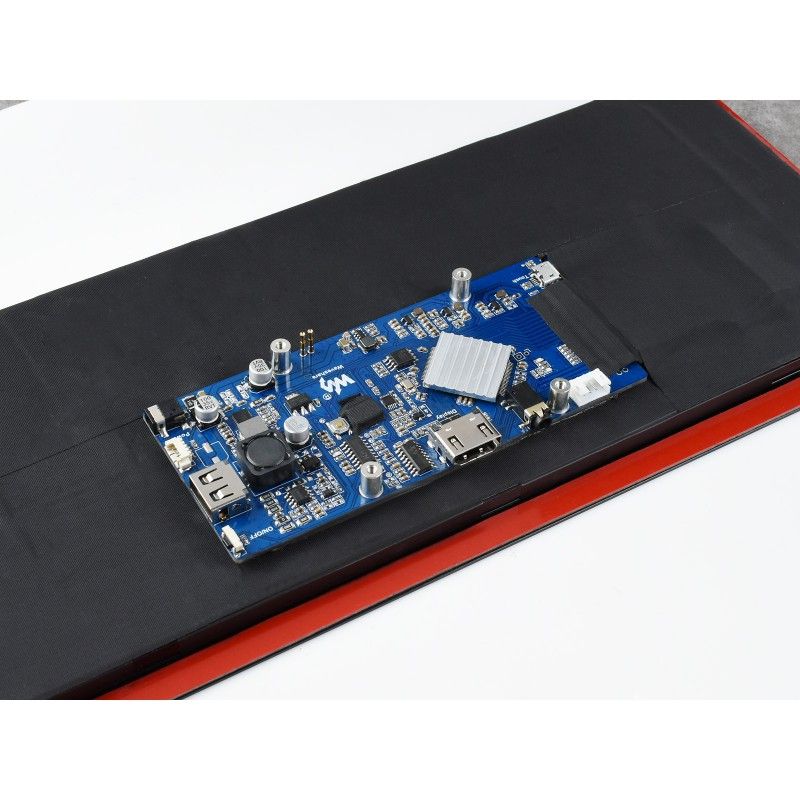

Interfaces:

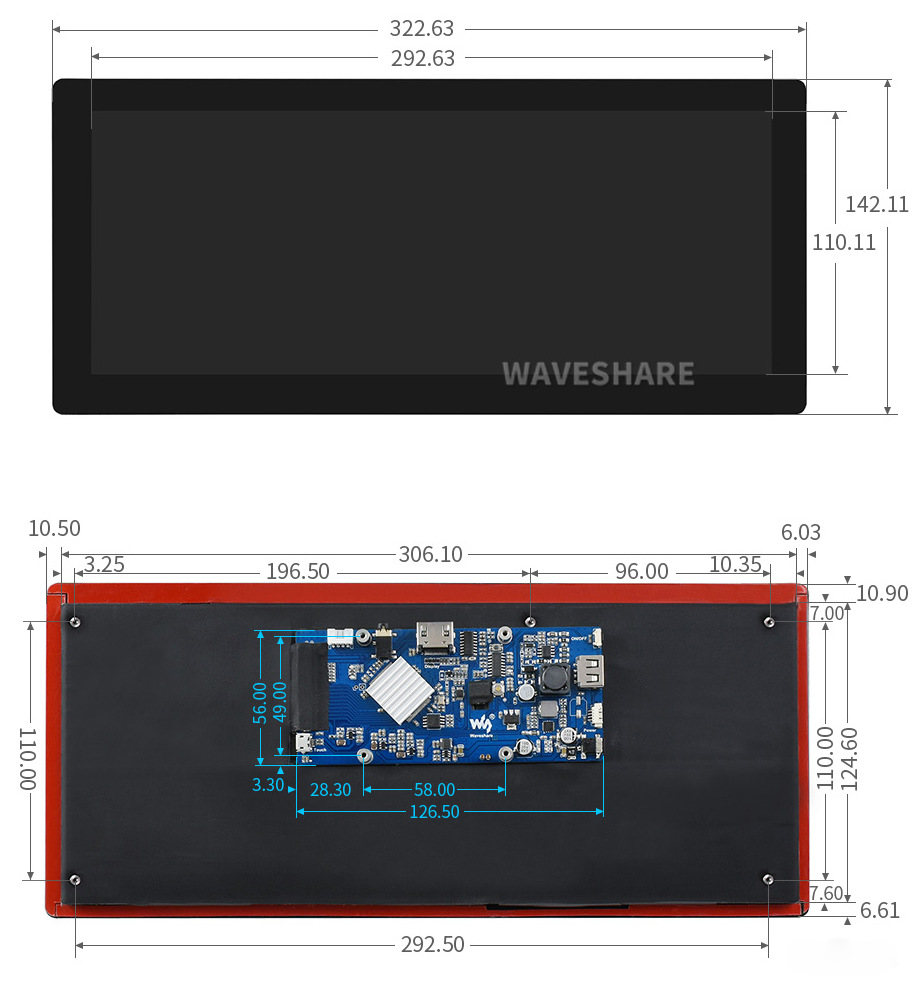

Overall dimensions: 322.63mm x 142.11mm

Wiki: www.waveshare.com/wiki/12.3inch_HDMI_LCD

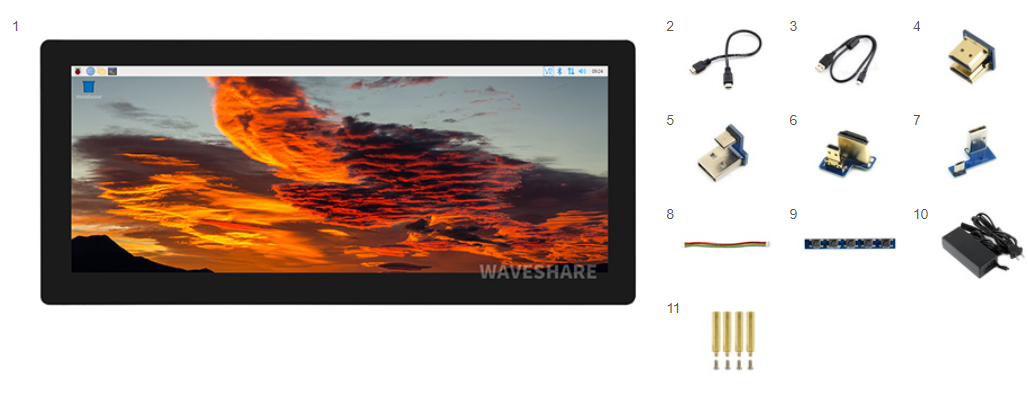

Package contents:

1. 12.3" LCD screen HDMI x1
2. HDMI cable x1
3. USB-A to micro-B cable x1
4. HDMI adapter (B) x1
5. USB adapter (B) x1
6. HDMI adapter (C) x1
7. USB adapter (C) x1
8. 4PIN 9CM wire x1
9. Button panel x1
10. 12 V 3 A power adapter x1
11. Package of screws x1 pc

Weight: 1.235 kg
