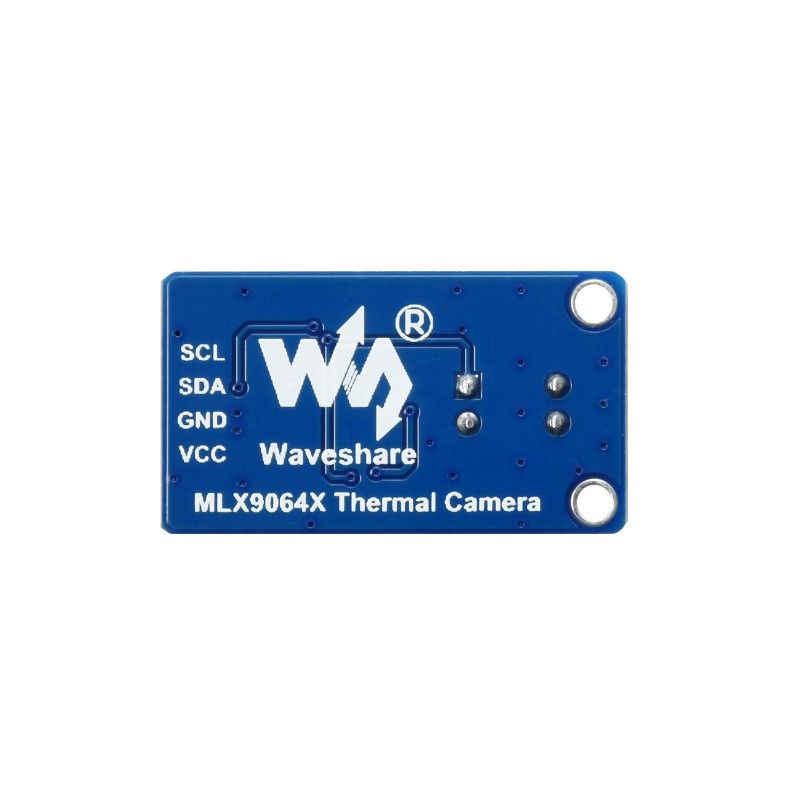

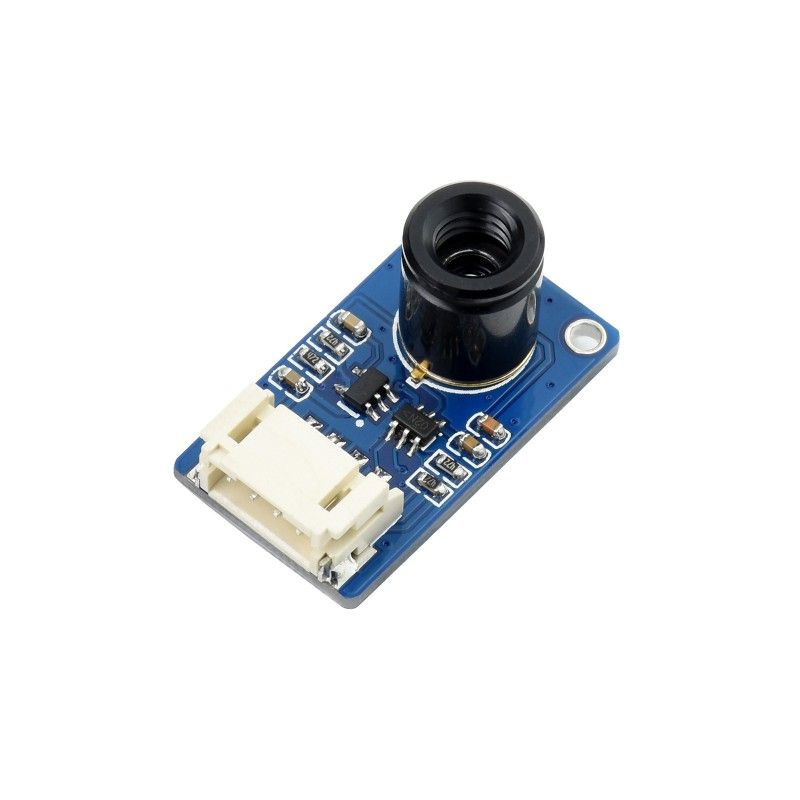

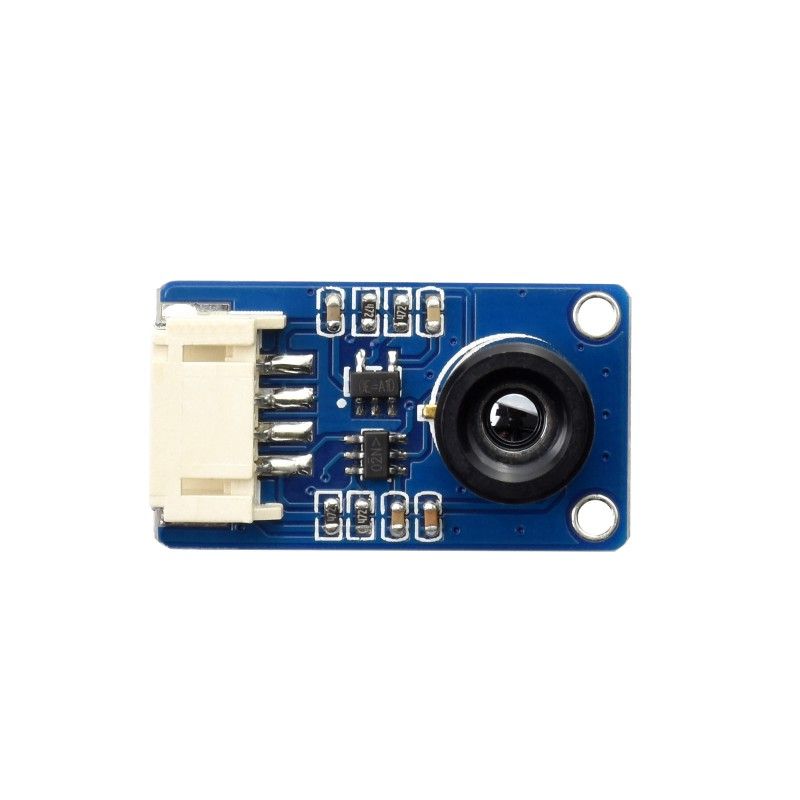

Waveshare MLX90640-D55 Thermal Camera (17220)

The Waveshare MLX90640-D55 Thermal Camera (17220 ) is a small and affordable thermal imaging camera with a 32×24 pixel IR sensor that provides high-detail images. The camera works on the basis of infrared radiation, which allows it to capture images of thermal radiation from objects. The camera has an FOV (field of view) of 55°, which allows it to capture large areas.

The camera can be used in many applications, such as temperature monitoring in buildings, heat leakage detection, heating process control, industrial applications, medical diagnostics, and others.

The camera supports I2C communication, which allows it to be connected to a variety of microcontrollers and microprocessors. In addition, the camera has low power consumption, which allows it to be used in battery- or rechargeable devices.

This camera is a powerful tool for thermal imaging and can be used in many applications for temperature monitoring and control of heating processes.

Key features:

• Contains an MLX90640 far infrared thermal sensor sensor, 32×24 pixels
• Provides communication via an I2C interface that can be configured for fast mode (data rate up to 1 MHz)
• Has a noise equivalent temperature difference (NETD) of 0.1K RMS@1Hz refresh rate
• Has a built-in voltage converter compatible with 3.3V/5V operating voltage
• Has a programmable frame rate of 0.5～64Hz (0.25～32FPS)
• Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Typical applications:

• High-precision non-contact temperature measurements
• IR thermal imagers, IR thermometers
• Smart home, smart building, smart lighting
• Industrial temperature control, safety and security, intrusion/motion detection

Specifications:

• OPERATING VOLTAGE: 3.3V/5V
• CURRENT: < 23 mA
• FIELD OF VIEW (FOV): 55° × 35°
• ABSOLUTE ACCURACY: ±2 ℃ (ambient temperature 0 50 ℃)
• COMMUNICATION BUS: I2C (0x33 by default)
• REFRESH RATE: 0.5 64 Hz (0.25 32 FPS)
• TARGET TEMPERATURE RANGE: -40 300 ℃
• OPERATING TEMPERATURE: -40 85 ℃
• DIMENSIONS: 28 × 16 mm
• SIZE OF THE MOUNTING HOLE: 2.0 mm

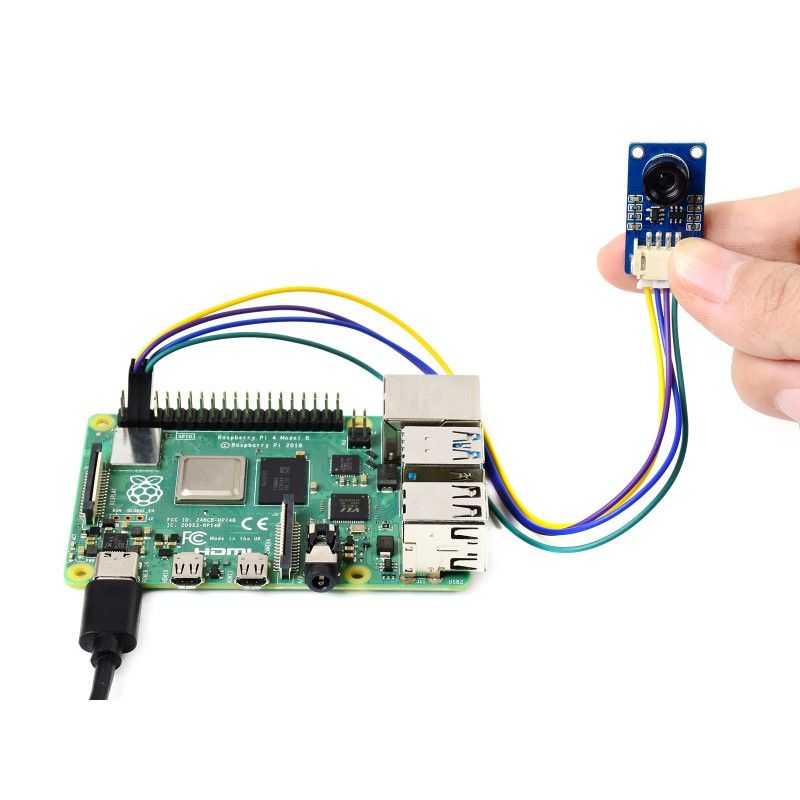

I2C control interface supports host boards including Raspberry Pi/Arduino(ESP32)/STM32

VCC: input voltage 3.3V/5V
GND: GND
SDA: Connects to the MCU I2C data pin
SCL: Connects to the MCU I2C clock pin

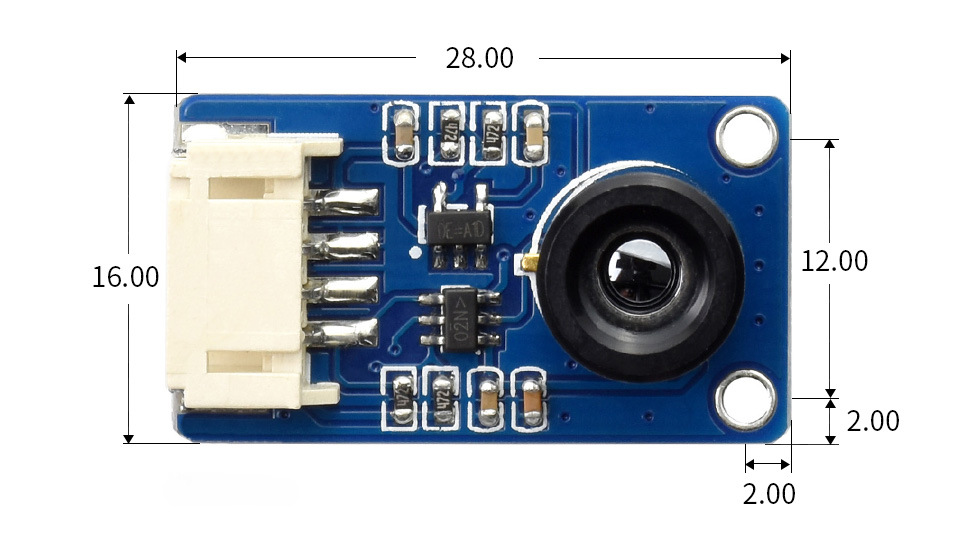

Overall dimensions: 28mm x 16mm

WIKI: MLX90640-D55_Thermal_Camera

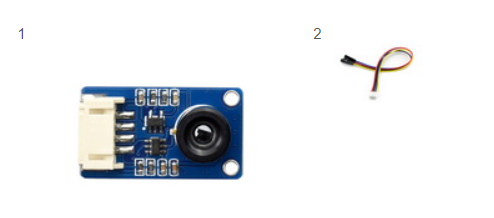

Scope of delivery:

1. MLX90640-D55 Thermal camera x1
2. PH2.0 4PIN wire x1

Weight: 0.007 kg
