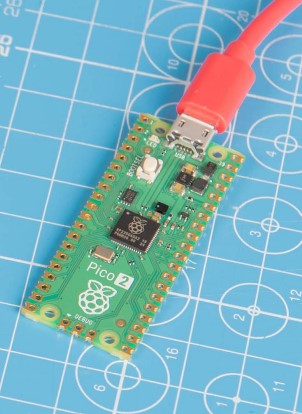

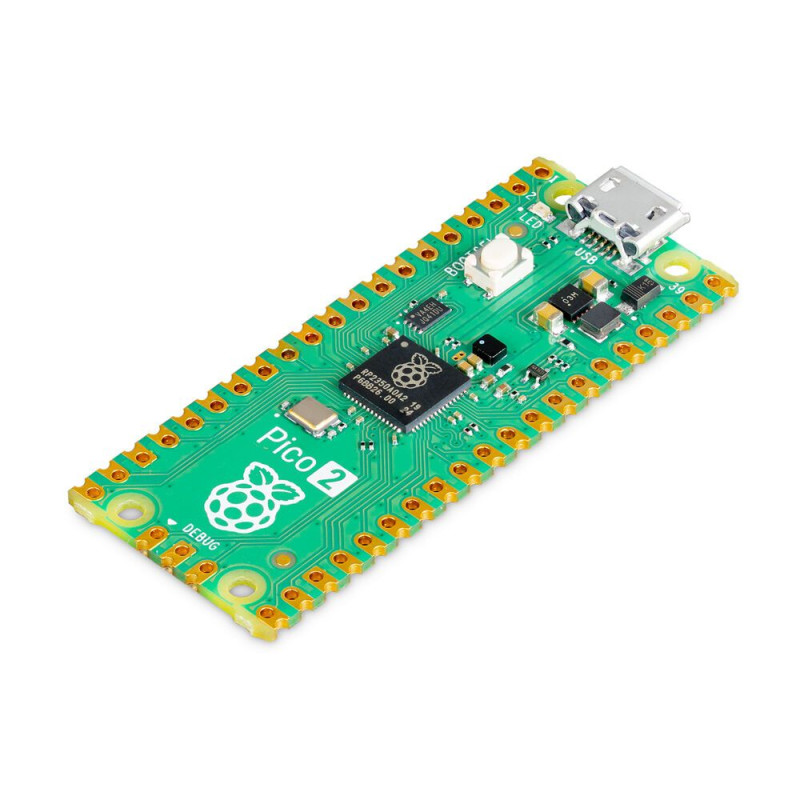

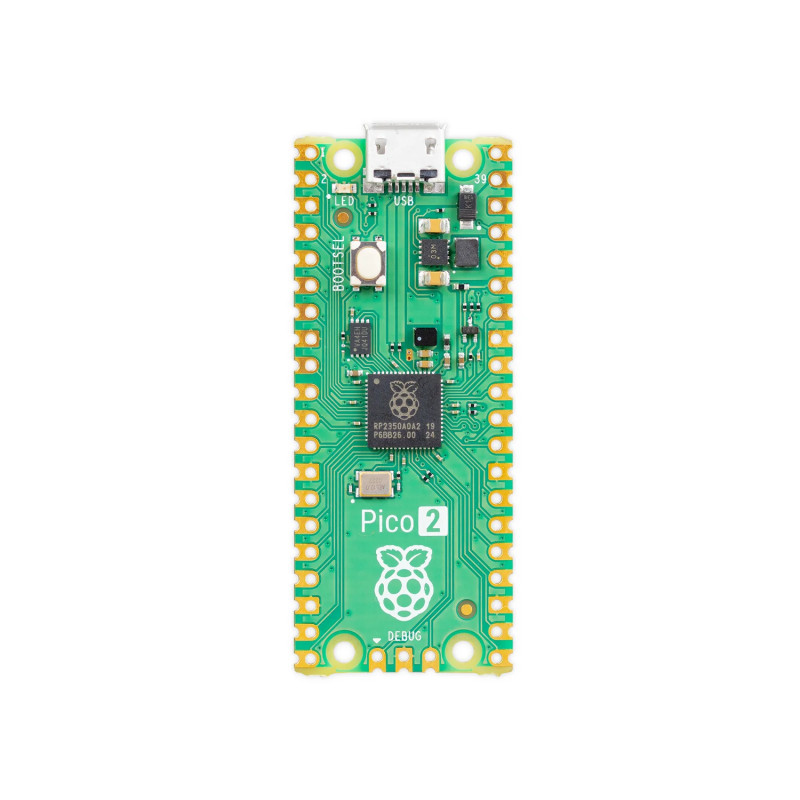

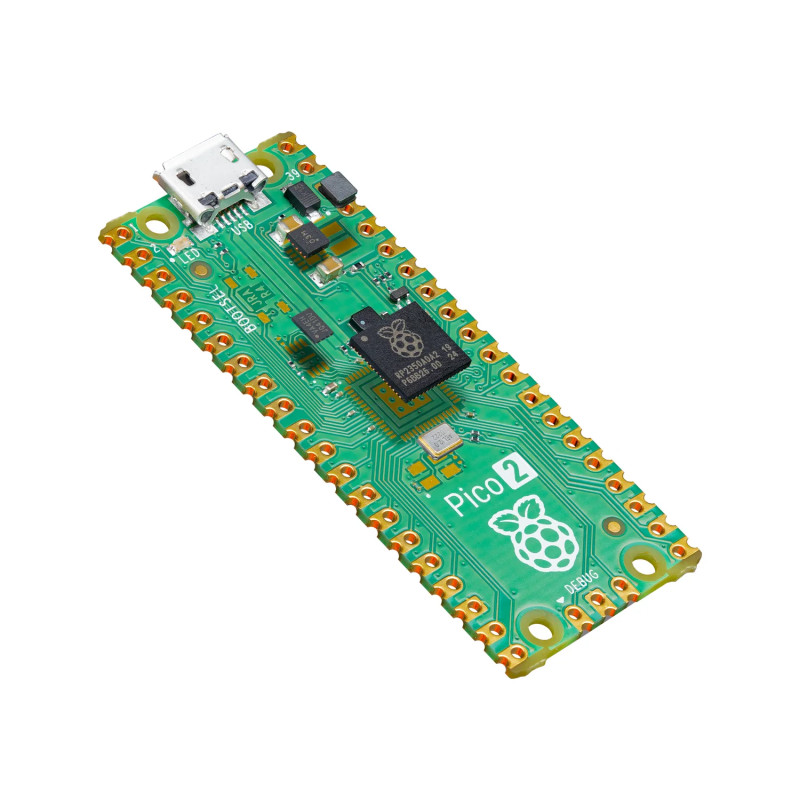

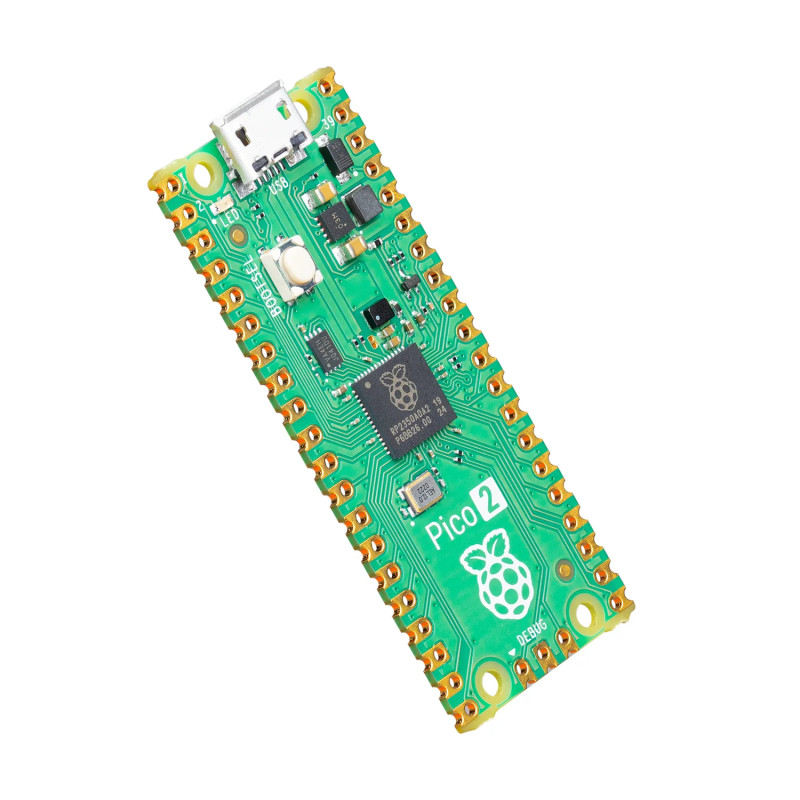

Raspberry Pi Pico 2

TheRaspberry Pi Pico 2 microcontroller is a powerful and compact microcontroller that is the second generation of the popular Raspberry Pi Pico board series. This device is ideal for developing a variety of electronic projects, from simple experiments to complex integrated systems, due to its high performance and flexibility.

Key features:

• High-performance chip: high-performance RP2350 microcontroller with clock speeds up to 150 MHz
• Double memory: double the amount of built-in SRAM memory up to 520 KB
• Double storage: the capacity of the built-in flash memory reaches 4 MB
• Dual-core architecture: choose between more powerful Arm Cortex-M33 cores or open-source RISC-V Hazard3 cores
• Enhanced security: comprehensive security architecture that supports secure boot, hardware encryption, and more
• Programming support: Supports C/C++ and Python programming, which provides flexibility in choosing a programming language
• Backward compatibility: hardware and software are backward compatible with Raspberry Pi Pico 1
• Power consumption: low power consumption, which allows the device to be used in energy-efficient systems
• USB connection: built-in USB 1.1 for connecting to a computer and powering the board

Specifications:

• CPU: Dual Arm Cortex-M33 or two 150 MHz RISC-V Hazard3 processors
• Memory: 520 Kbytes of SRAM on the controller; 4 MB of on-board QSPI flash memory
• Interface: 26 multipurpose GPIO pins, including 4 that can be used for ADC
• Peripheral devices: UART x2

SPI controllers x2

I2C controllers x2

PWM channels x24

USB 1.1 and PHY controller with host and device support x1

PIO finite state machines x12

• Input voltage: 1.8-5.5 V DC
• Operating temperature: -20°C to +85°C
• Supported input voltage: 1.8-5.5 V DC

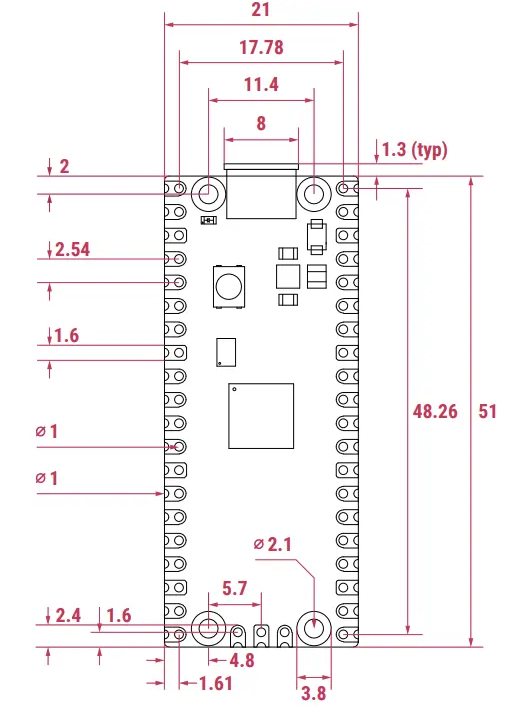

Overall dimensions: 21mm x 51mm

Weight: 3 g
