Arducam 16MP NoIR Camera Module

Name: Arducam 16MP NoIR Camera Module
Brand: ArduCAM
SKU: V127804
Price: 22.70 GBP
Availability: OutOfStock

Brand: ArduCAM Product Code: V127804

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Out Of Stock

£22.70

Camera type:Camera module

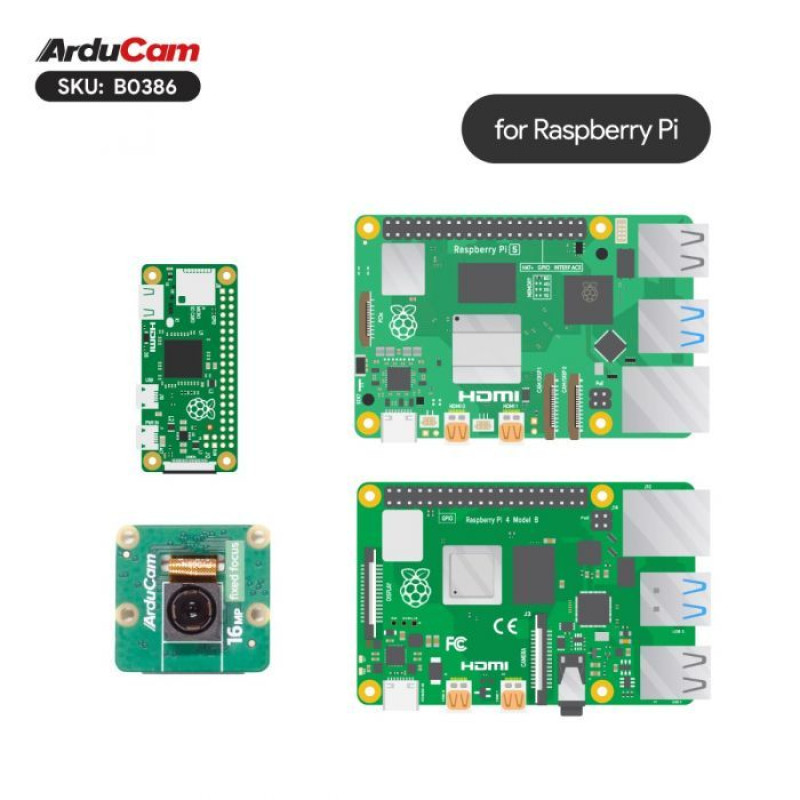

Compatibility:Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi Zero/Zero W, RPi Compute Module 4, Jetson Orin Nano, Jetson Nano

Country of origin:Made in China

Features:NoIR / IR-CUT

Interface (female):CSI/DSI

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Arducam 16MP NoIR Camera Module

£22.70

Description

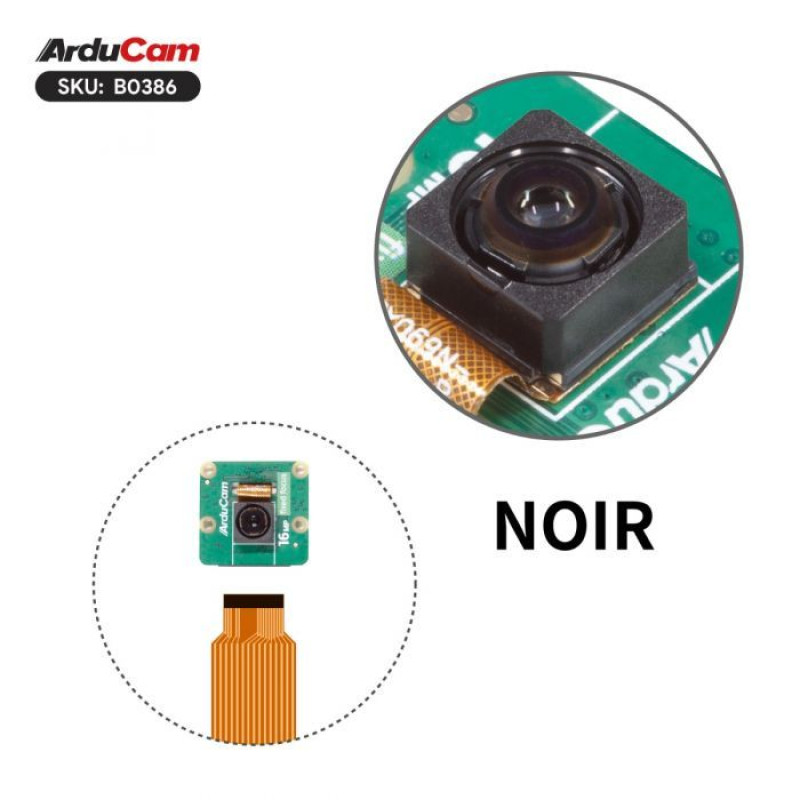

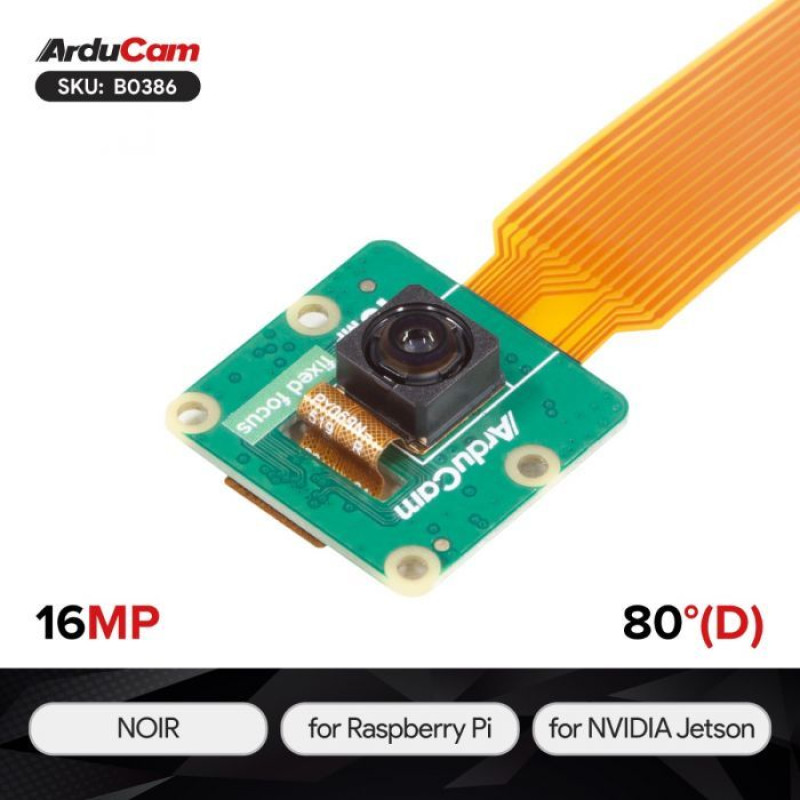

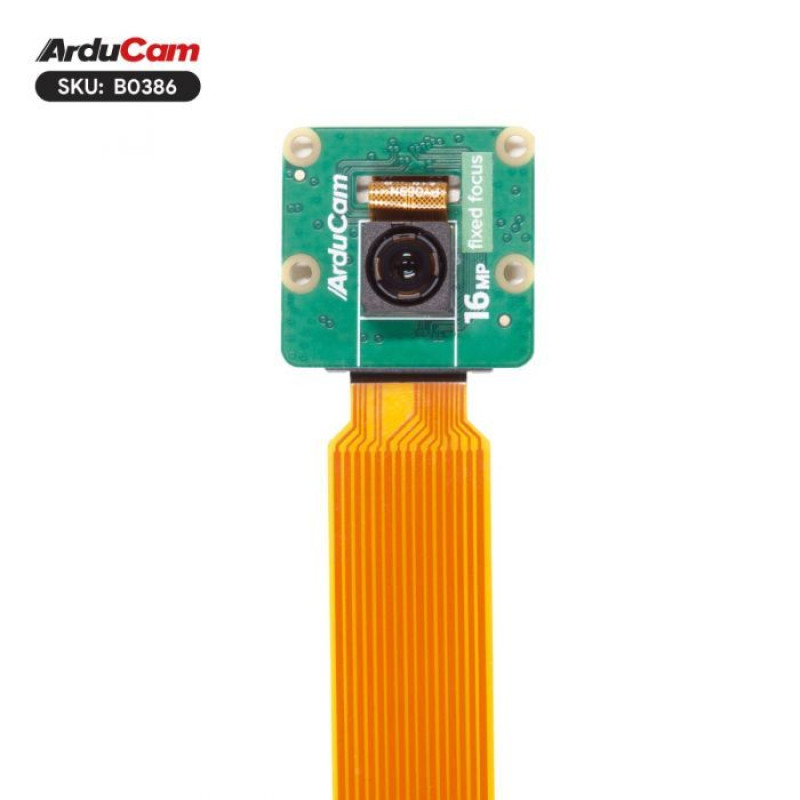

The Arducam 16MP NoIR Camera Module is a high quality 16 megapixel camera that has no infrared (NoIR) filter. This allows it to capture infrared light, making it an ideal choice for nighttime shooting and projects where infrared is important. The camera is compatible with a variety of single-board computers, such as the Raspberry Pi, and delivers superior image clarity both day and night.

Key Features:

The Raspberry Pi camera has a 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496, which is twice as high as the v2 camera and 40% higher than the HQ camera; it is compatible with any Raspberry Pi board with a MIPI/CSI interface and runs directly on the Raspberry Pi OS without any special setup.
Clear images/video The camera can record 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and provides an effective field of view of 80 degrees.

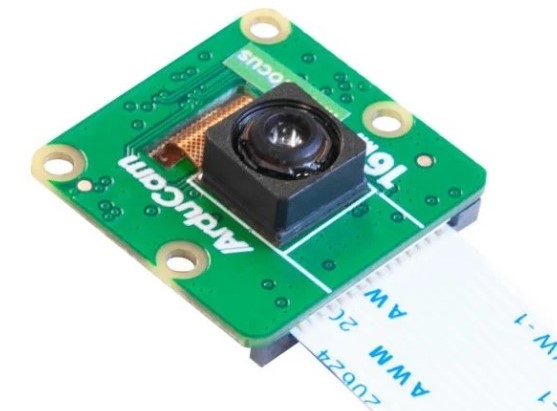

Thecamera module is the same size as the V2 pi-camera, and a plastic housing is included that also fits the V1 and V2 boards.

Specifications:

Sensor: Sony IMX519 back-illuminated 16 megapixel multilayer sensor 1.22 µm × 1.22 µm Pixel size 7.103 mm diagonal (type 1/2.534)
Output: RAW10/8, COMP8
Lens: f/1.75; EFL: 4.28

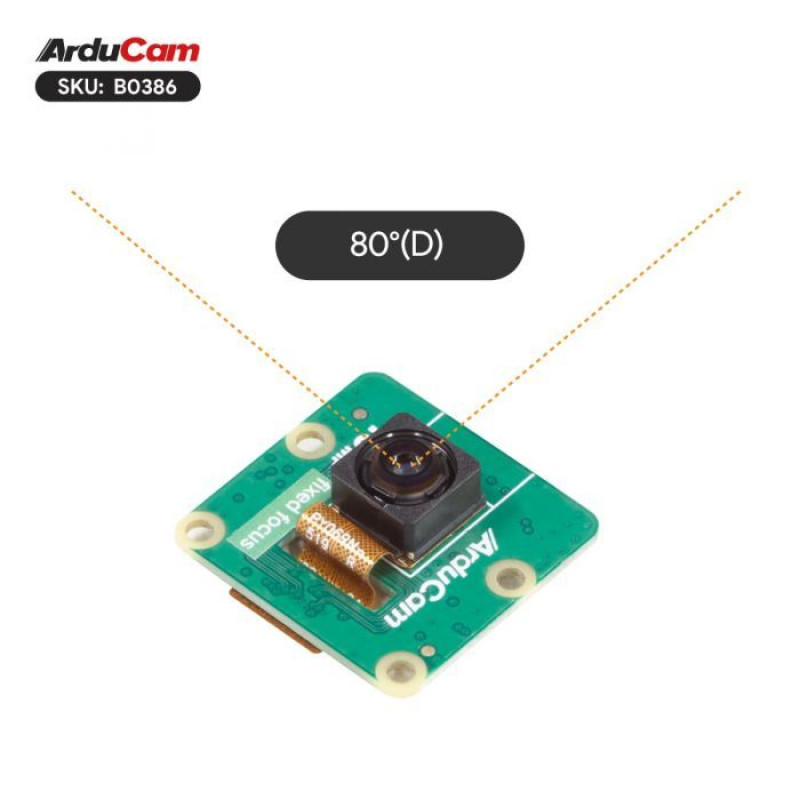

Field of view: (FOV) 66° (H) x 49.5° (V) x 80° (D)
IR filter: without IR filter, sensitive to infrared light
Video modes: 1080p@30fps, 720p@60fps
Linux integration: V4L2 driver available
Length of the ribbon cable: 150 mm

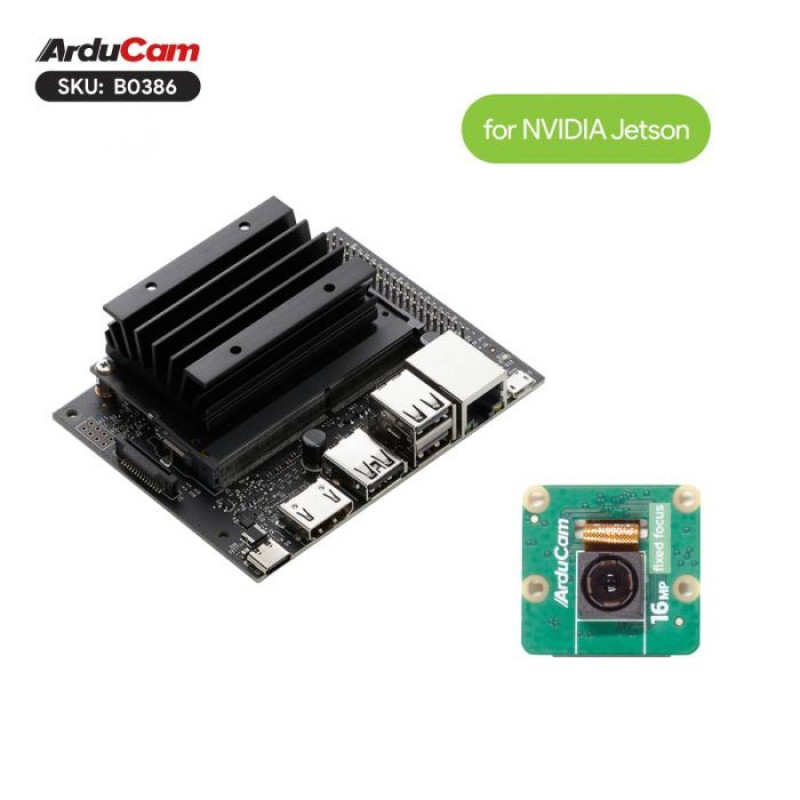

Frame rate (NVIDIA Orin NX): L4t 32.x: 4656×3496@10fps, 3840×2160@21fps, 1920×1080@60fps, 1280×720@120fps
L4t 35.x: 4656×3496@9fps, 3840×2160@17fps, 1920×1080@60fps, 1280×720@120fps
Resolution and frame rate on Jetson: 4656×3496@10fps, 3840×2160@21fps, 1920×1080@60fps, 1280×720@120fps

Wiki: https://docs.arducam.com/Raspberry-Pi-Camera/Native-camera/Quick-Start-Guide/#imx519-cameras

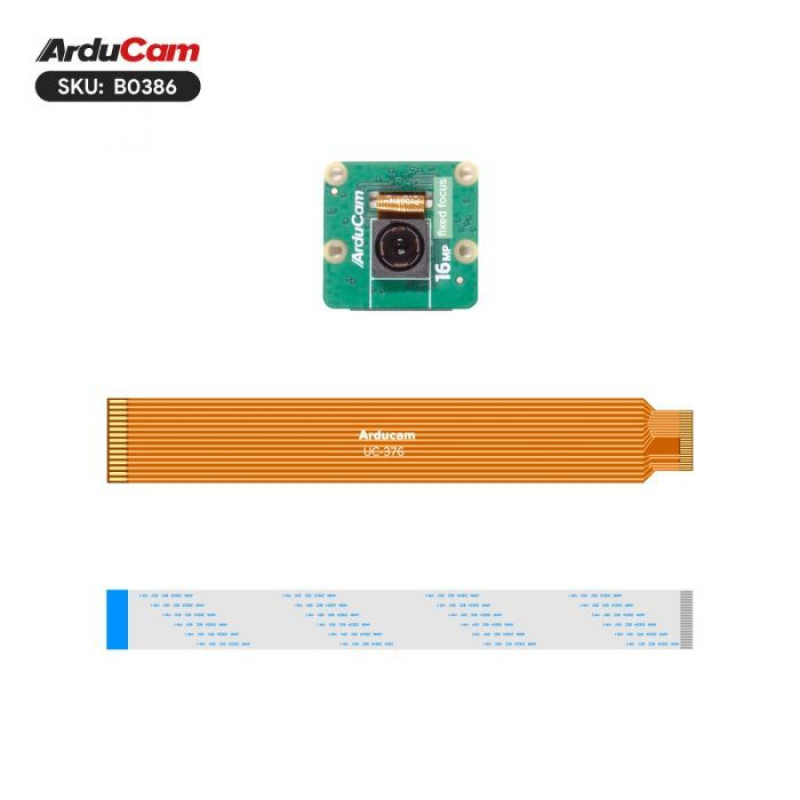

Scope of delivery:

Arducam 16MP NoIR camera module x1
FPC cables (15 cm 15-22 contacts and 22-22 contacts) x2

Specifications

Main characteristics

Camera type

Camera module

Compatibility

Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi Zero/Zero W, RPi Compute Module 4, Jetson Orin Nano, Jetson Nano

Country of origin

Made in China

Features

NoIR / IR-CUT

Interface (female)

CSI/DSI

Reviews

There are no reviews for this product.
