Raspberry Pi 5 Active Cooler

TheRaspberry Pi 5 Active Cooler is a device designed to improve the thermal performance of the Raspberry Pi 5 single board computer. It helps to reduce the temperature of the device, which is important to ensure stable and efficient operation of the Raspberry Pi under high loads.

The main function of the active cooler is to remove heat from the microcontroller and other components of the Raspberry Pi 5. This helps to avoid overheating, which can affect the performance and lifespan of the device.

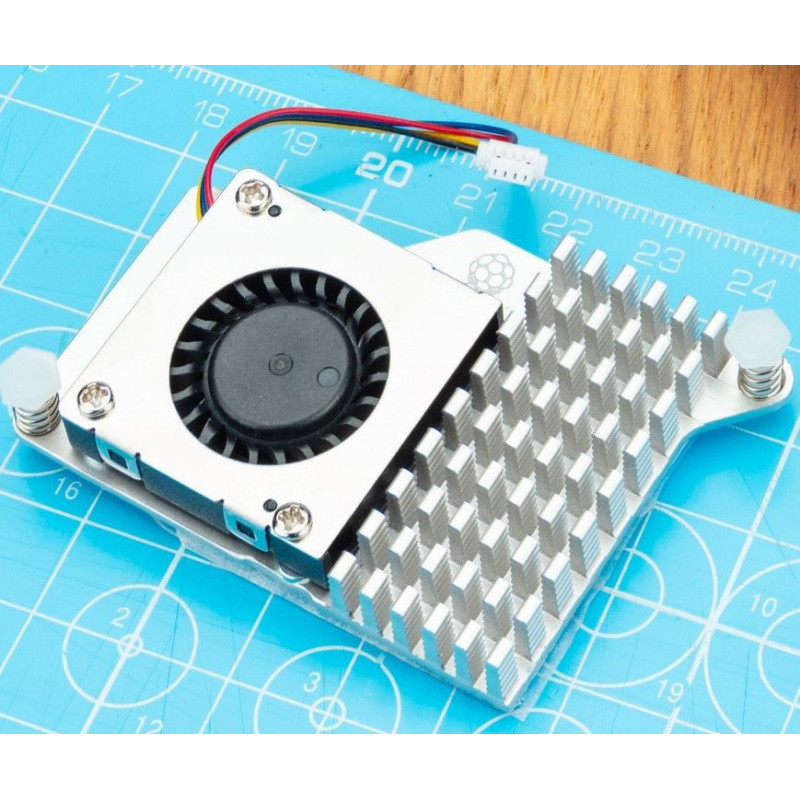

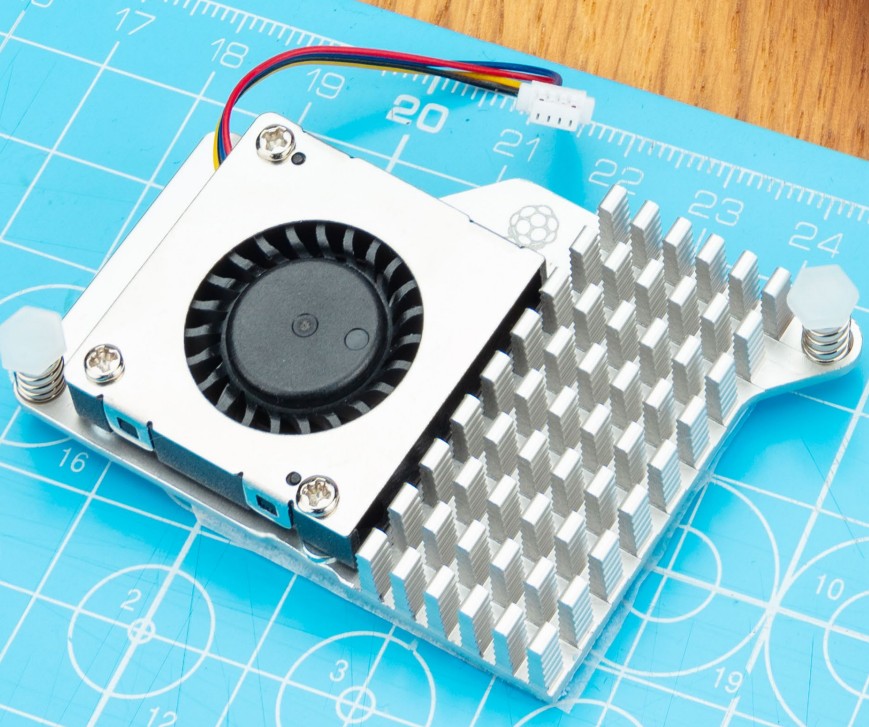

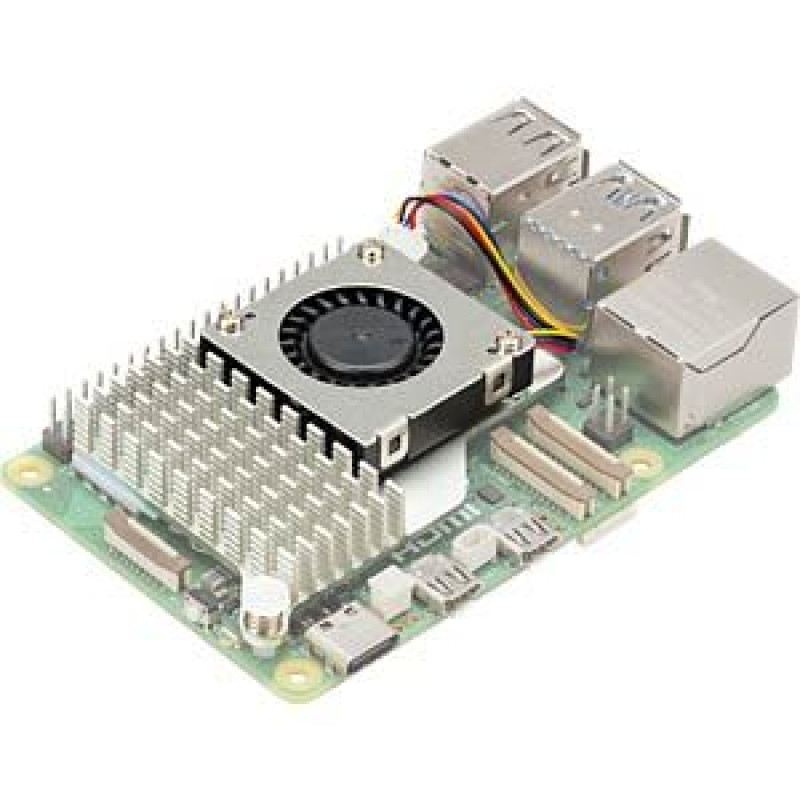

It combines a large metal heatsink with a variable-speed fan that is powered and controlled through the fan connector, and is attached to the Raspberry Pi 5 board with a pair of spring pins.

Note: To use this device with the original Raspberry Pi case, you will need to remove the plastic cover with the built-in cooler on the case itself

Main features:

• Has a one-piece anodized aluminum heat sink
• Has a fan with adjustable speed
• Spring pins for mounting on Raspberry Pi 5
• Pre-applied thermal pads for heat transfer

Technical specifications

• Input voltage: 5 V DC, supplied through the four-pin fan connector on the Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum air flow: 1.09 CFM
• Maximum fan speed: 8000 rpm +/- 15%.
• Product material: anodized aluminum

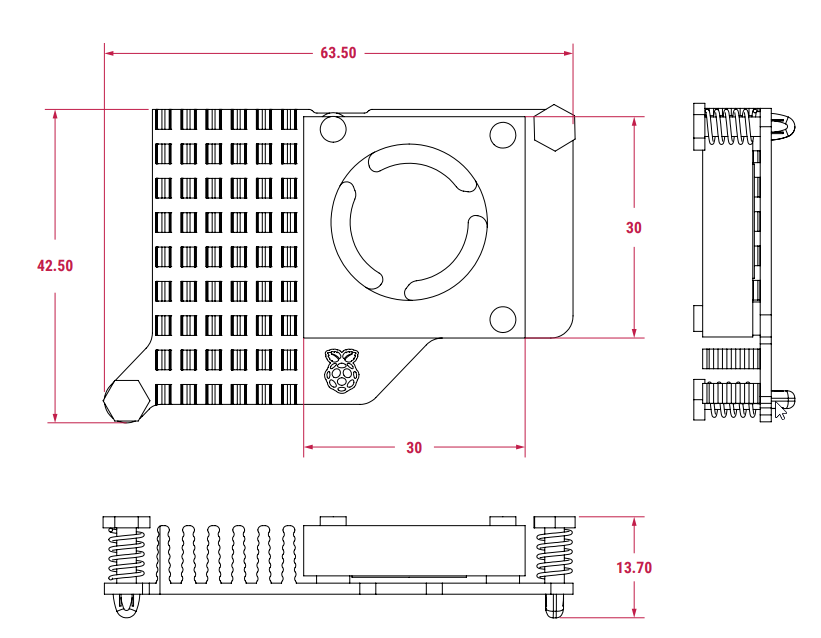

Overall dimensions: 63.5mm x 42.5mm
