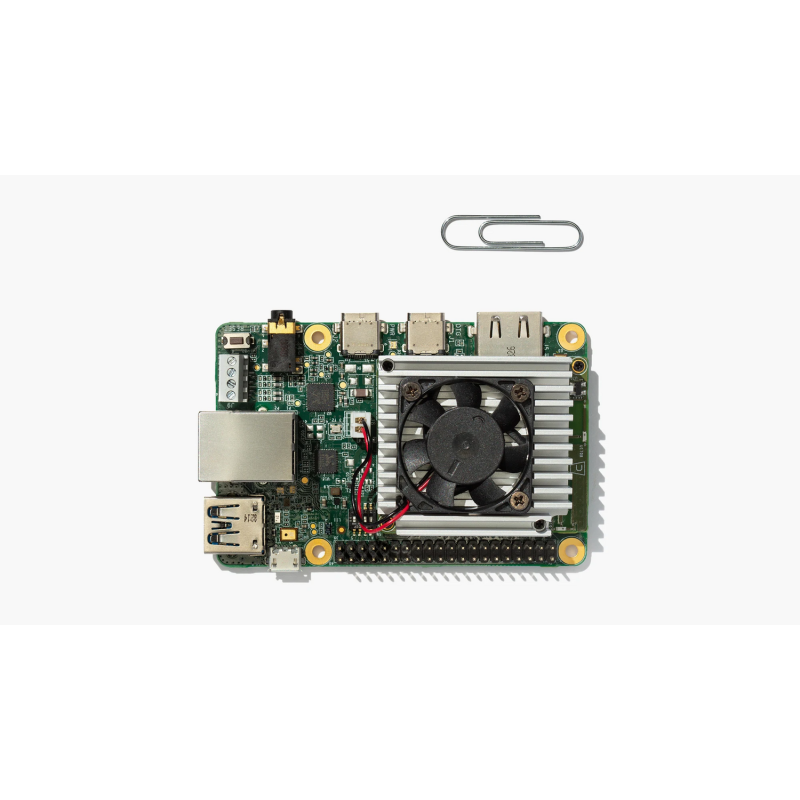

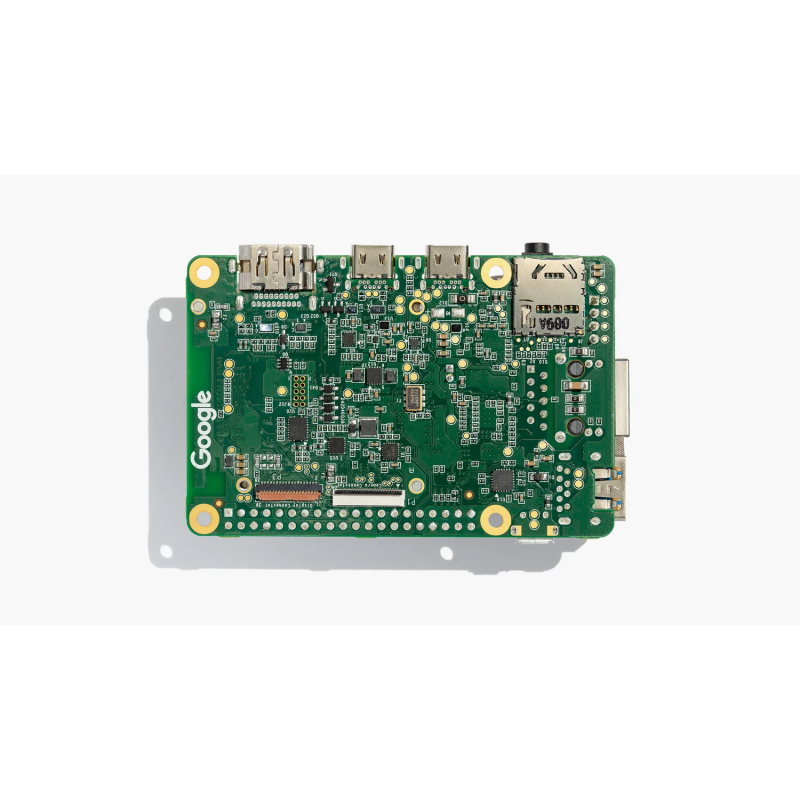

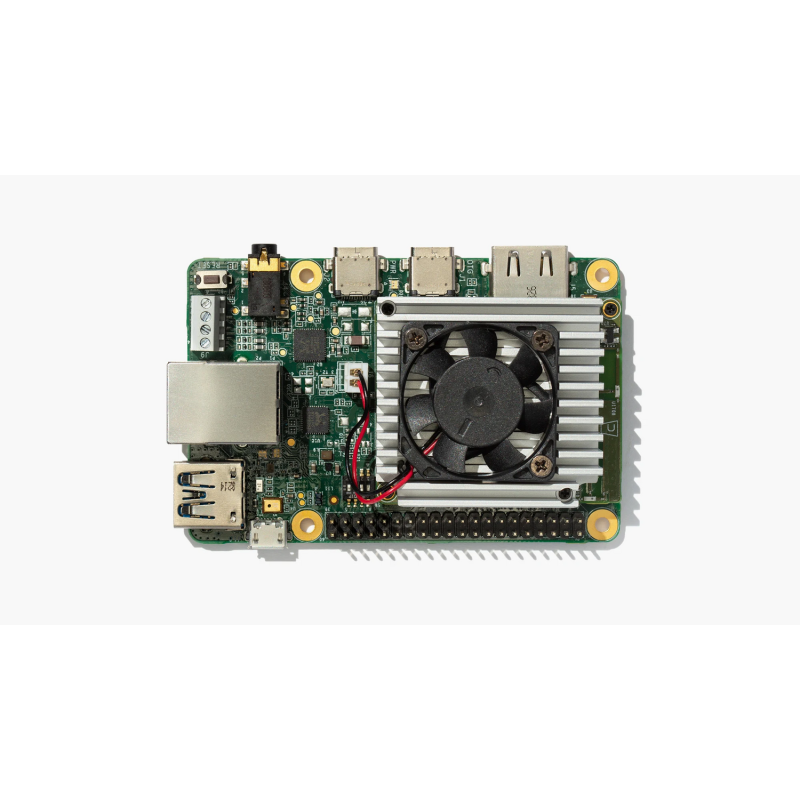

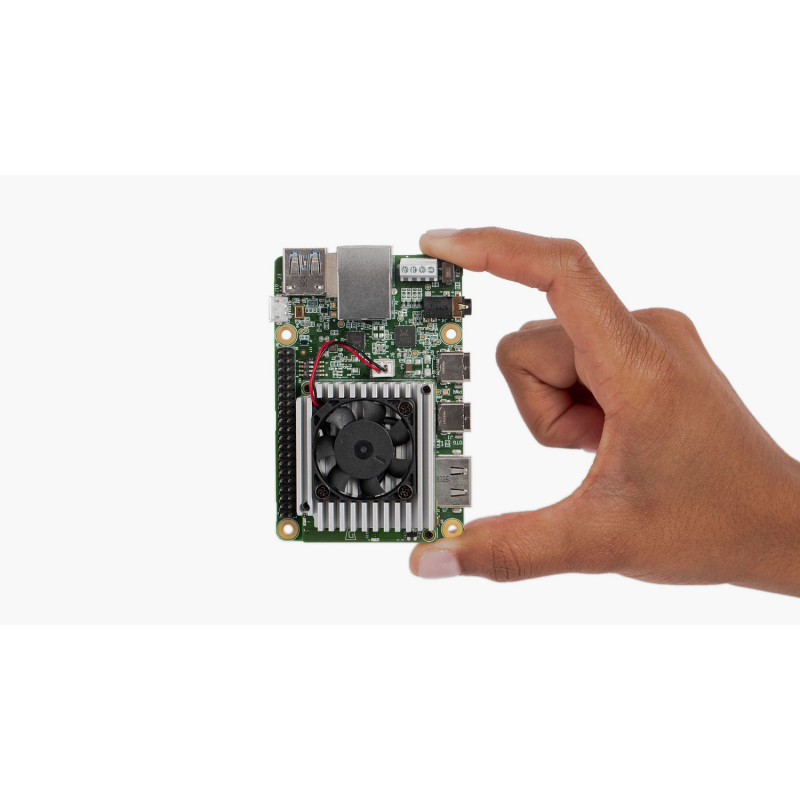

Coral Dev Board 1GB

Coral Dev Board 1GB is a microcomputer from Google for creating and running machine learning and artificial intelligence projects. This single-board computer is ideal for performing machine learning (ML) in a small form factor. You can use the Dev Board to prototype an embedded system and then scale it up to production scale using the built-in Coral System-on-Module (SoM) system combined with dedicated PCB hardware.

The main advantages of the Coral Dev Board are

• Provides high-speed logic output. The built-in Edge TPU coprocessor is capable of performing 4 trillion operations (tera-operations) per second (TOPS) using 0.5 watts per TOPS (2 TOPS per watt). For example, it can run state-of-the-art mobile vision models such as MobileNet v2 at nearly 400 fps in a power-efficient manner.
• Provides a complete system. The single-board computer, which contains SoC + ML + wireless connectivity, runs a derivative version of Debian Linux (called Mendel), so you can run your favorite Linux tools with this board.
• Supports TensorFlow Lite. No need to build models from scratch. TensorFlow Lite models can be compiled to run on the Edge TPU.
• Scale from prototype to production. Takes into account your production needs. The SoM can be removed from the main board, ordered in bulk, and integrated into your hardware.

Key features:

Edge TPU System-on-Module (SoM):

• NXP i.MX 8M SoC (quad-core Arm Cortex-A53 plus Cortex-M4F)
• Google Edge TPU ML accelerator coprocessor
• Cryptographic coprocessor
• Wi-Fi 2x2 MIMO (802.11b/g/n/ac 2.4/5 GHz)
• Bluetooth 4.2
• 8 GB eMMC
• 1 GB LPDDR4

USB connection:

• USB Type-C power port (5V DC)
• USB 3.0 Type-C OTG port
• USB 3.0 Type-A host port
• USB 2.0 Micro-B serial console port

Audio:

• 3.5 mm audio jack (CTIA compliant)
• PDM digital microphone (x2)
• 4-pin 2.54 mm stereo speaker jack

Video:

• HDMI 2.0a (full size)
• 39-pin FFC connector for MIPI DSI display (4-lane)
• 24-pin FFC connector for MIPI CSI-2 camera (4-lane)

MicroSD card slot
Gigabit Ethernet port
40-pin GPIO expansion connector
Supports Mendel Linux (derived from Debian)

Specifications:

Board elements:

Overall dimensions (mm): 88 x 60 x 24
