Case for Raspberry Pi 4 Model B Argon ONE with M.2 expansion slot (18531)

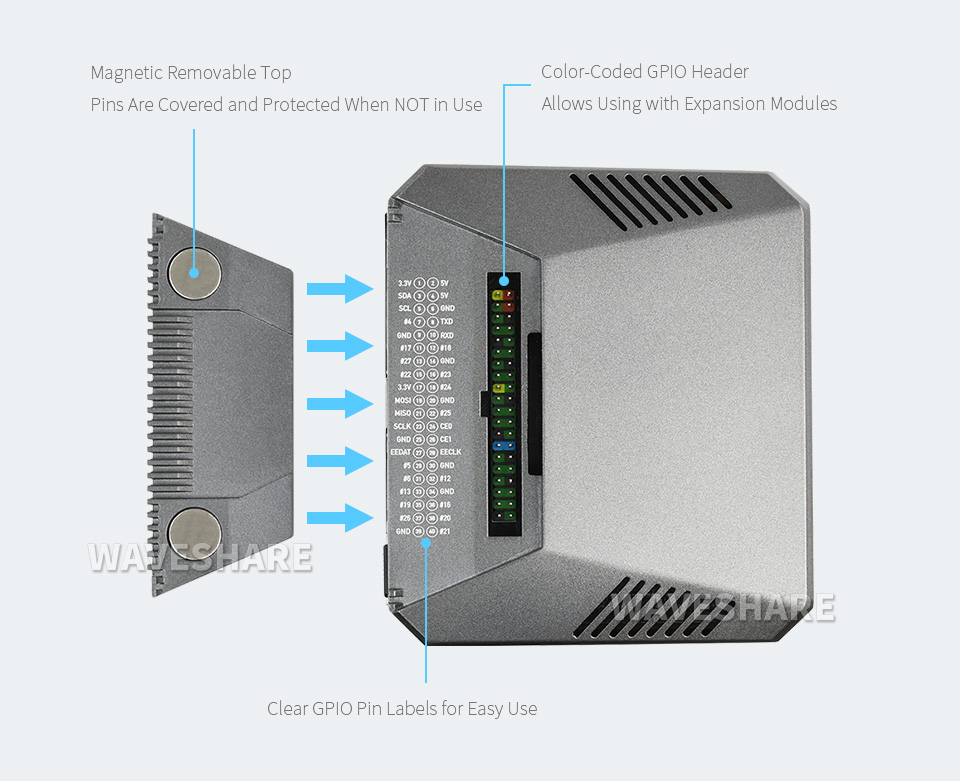

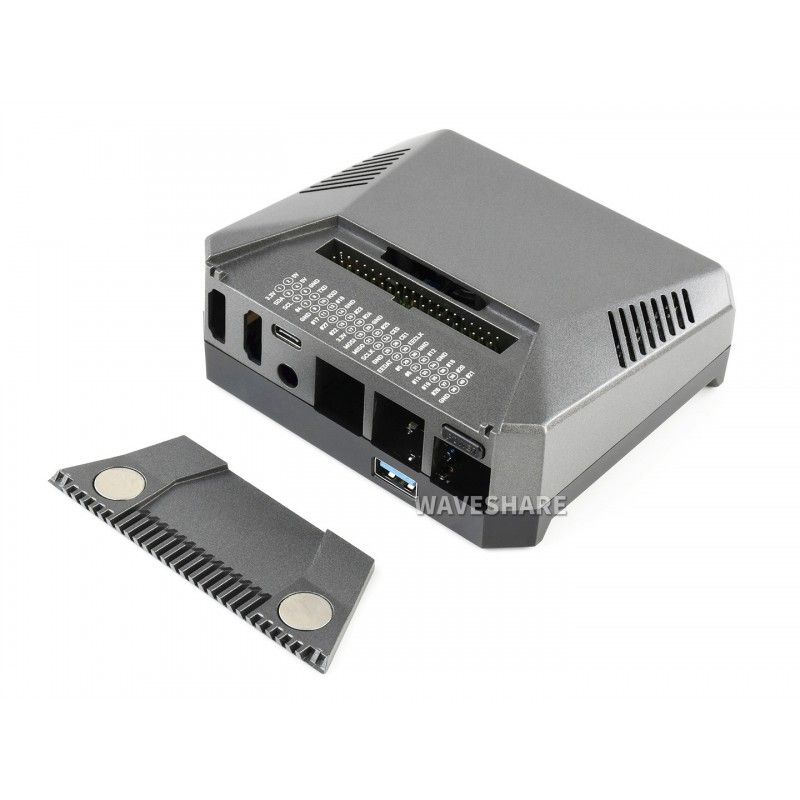

Thecase for Raspberry Pi 4 Model B Argon ONE with M.2 expansion slot (18531 ) is made of high quality aluminum alloy with an anodized finish. The rigidity and reliability of the case allows you to guarantee the protection of the microcomputer from mechanical damage. The specially developed design combines functionality and aesthetics. All microcomputer connectors are easily accessible. For the GPIO connector, a special protective cover is provided, with a magnetic fastener, which covers and protects this connector when not in use. The GPIO connector is marked with symbolic markings to facilitate handling, and the connector itself is color-coded as standard.

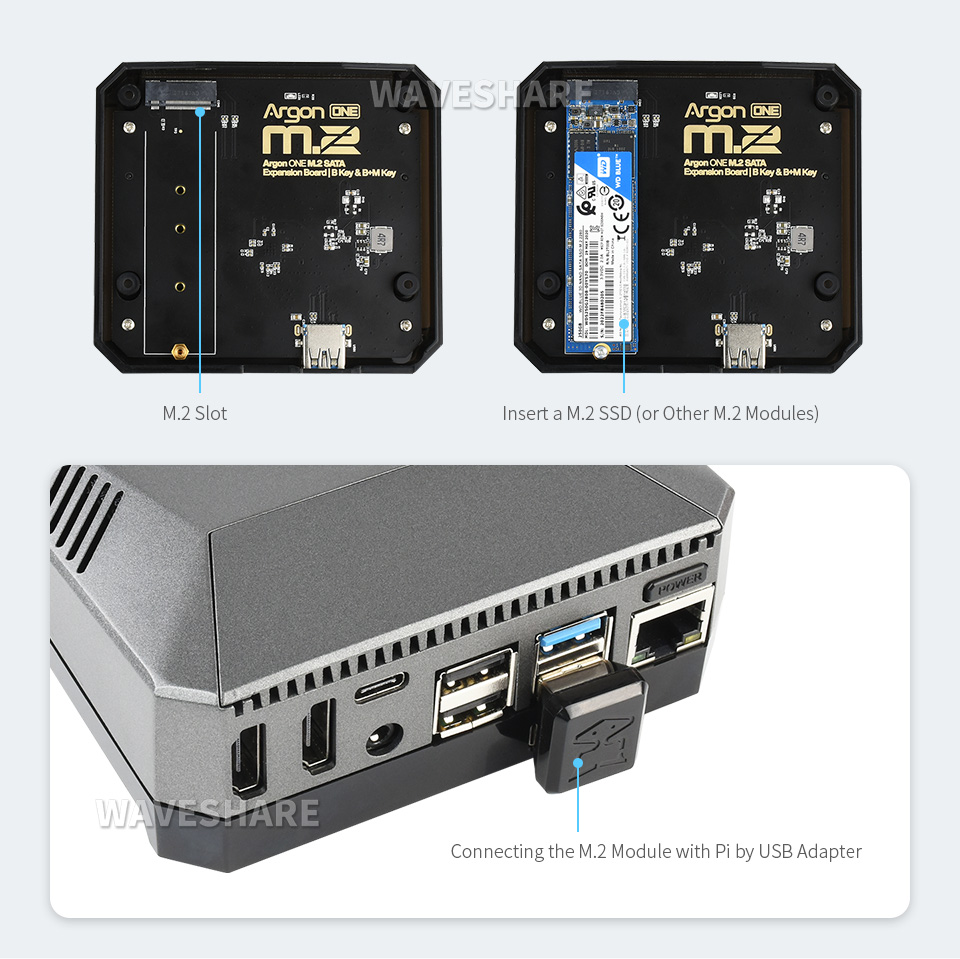

M.2 expansion slot
Supports M.2 modules, such as M.2 SSDs, which are then connected to the Pi via a USB adapter

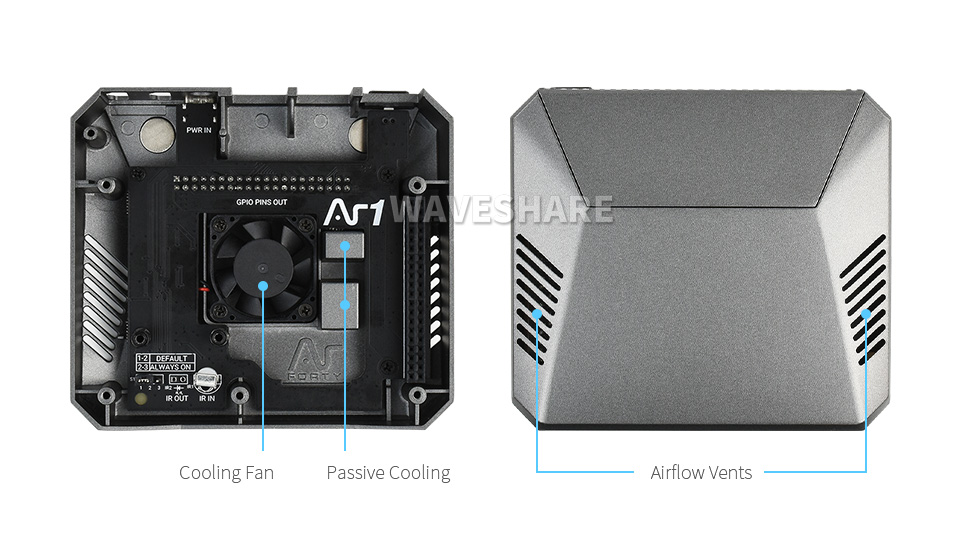

The cooling system operates in 2 modes: passive (jumper position 1-2) and active "ALWAYS ON" (jumper position 2-3).

The design provides for radiators protruding from the case, which are connected to the board elements with thermal tape.

Active Cooling Fan - a fan of the active cooling system

Passive Cooling Heatsink - radiators of the passive cooling system.

Front and Rear Airflow Vents - front and rear ventilation openings.

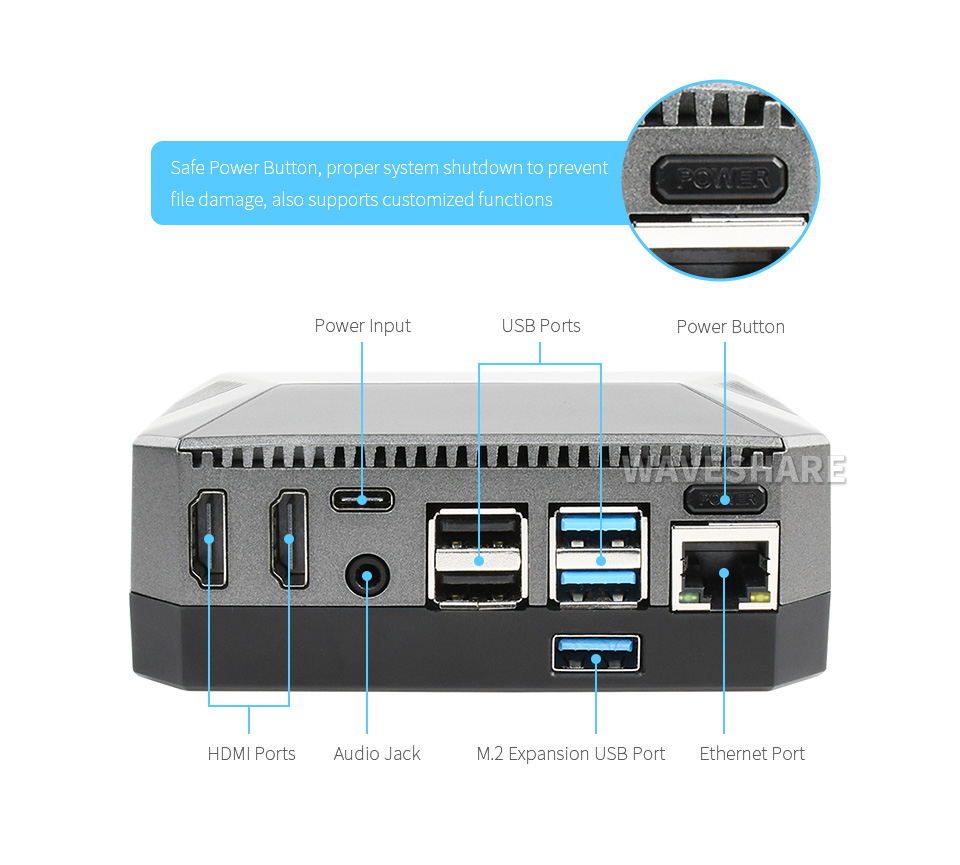

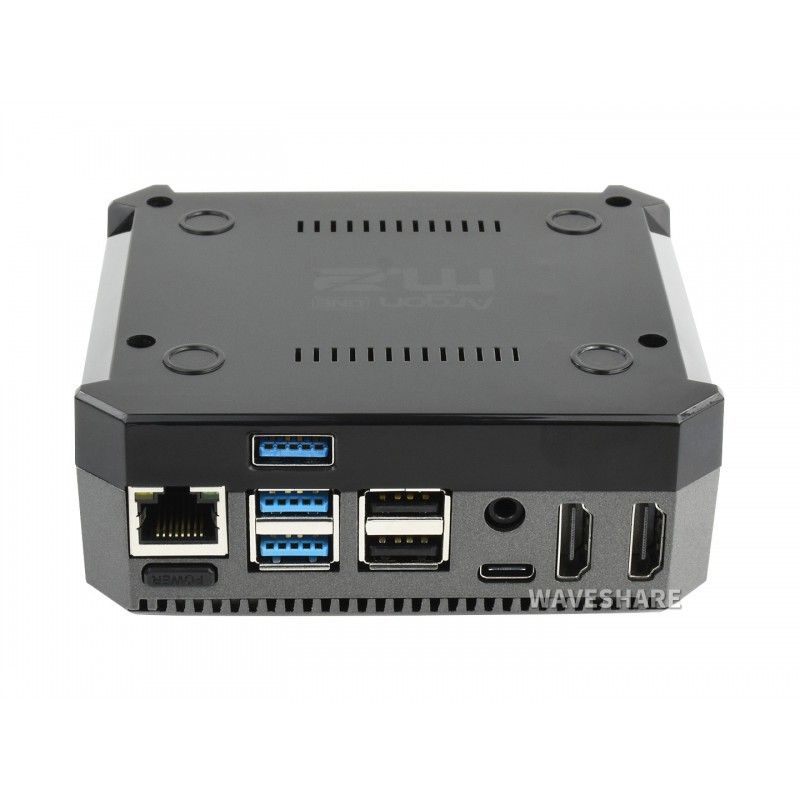

The designers have placed the outputs of all ports on the rear side of the case, which facilitates convenient access and organizes cables.

The power on/off button with a safe shutdown function is located separately on the rear panel, which allows you to turn off the power after making sure that all files are saved.

The design provides a special board for 2 HDMI connectors and an audio jack, which allows you to connect the microcomputer to the ports of the case without unnecessary wires. The second board connects the GPIO connector of the microcomputer to the corresponding one on the case, and also controls the cooling fan.

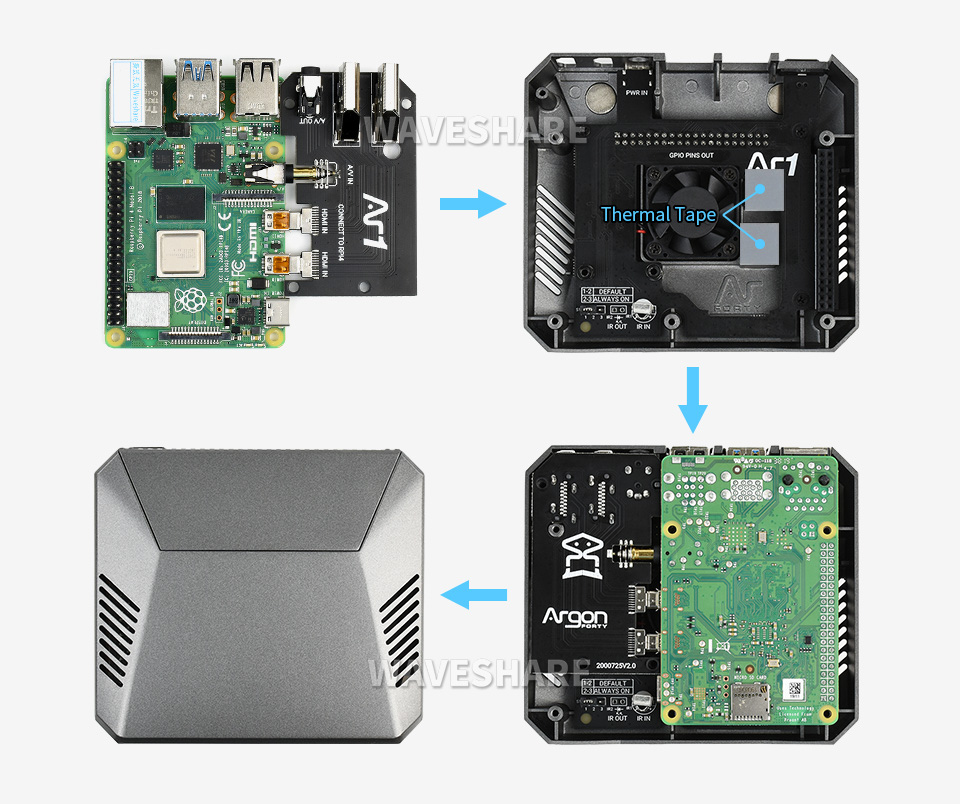

The order of assembly:

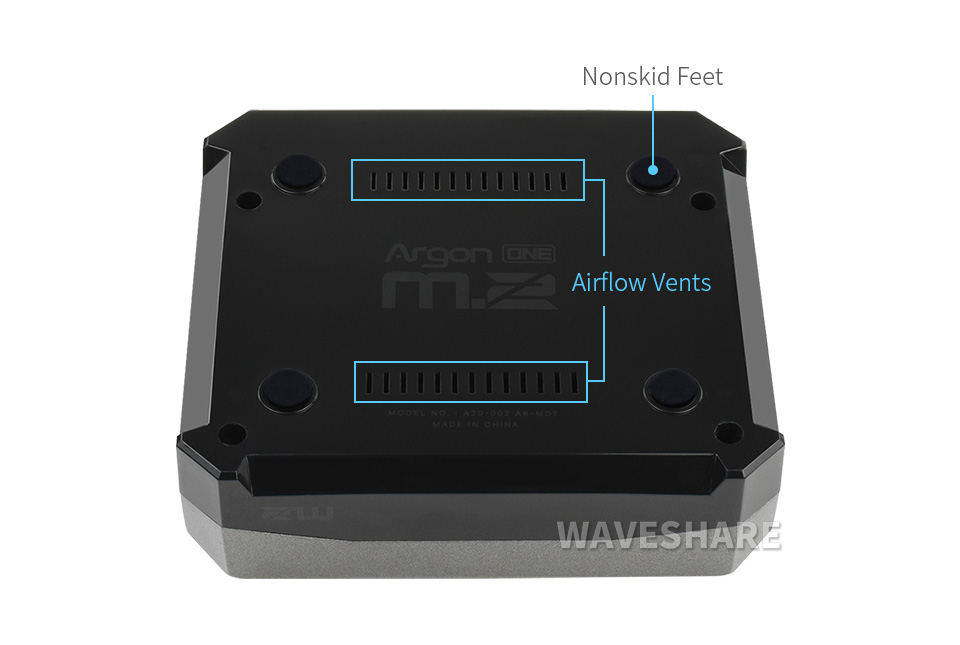

The bottom cover of the chassis contains the ventilation system holes, feet, and a TF Card access hole.

Information for developers (Wiki): PI4-CASE-ARGON-ONE-M.2

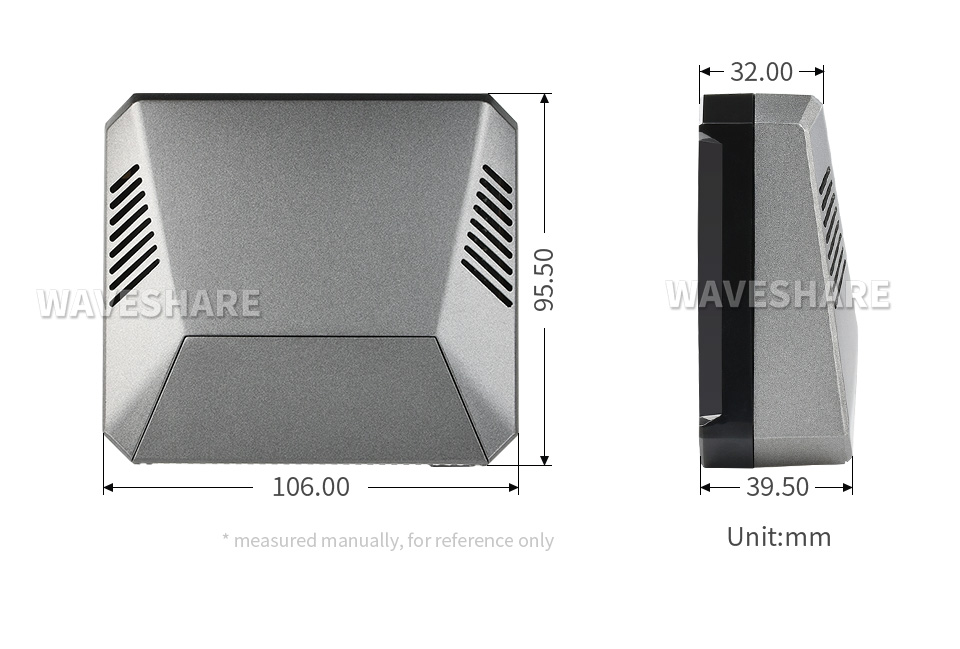

Overall dimensions: 106 mm x 95.5 mm x 39.5 mm

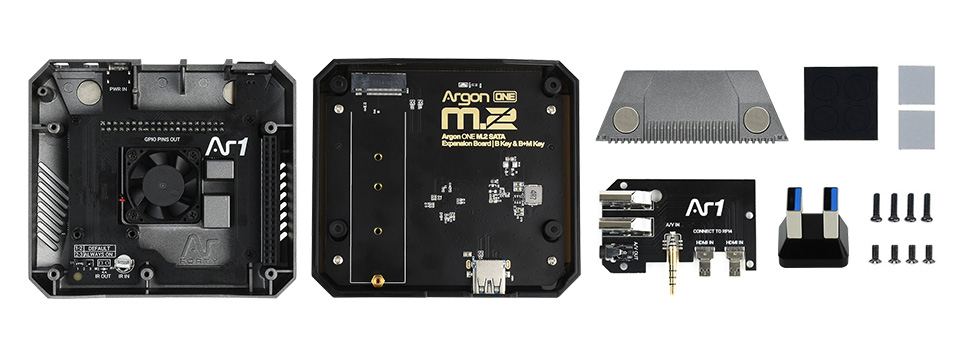

Package contents:

1. PI4-CASE-ARGON-ONE-M.2 x1

Weight: 0.269kg
