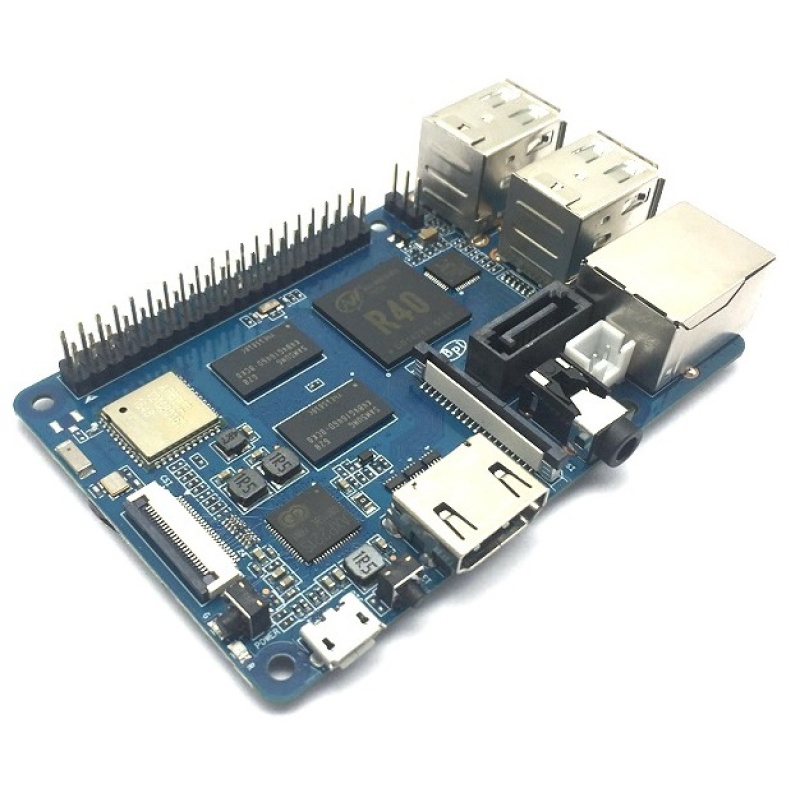

Microcomputer Banana Pi M2 Berry

TheBPI-M2 Berry is a quad-core single-board microcomputer based on the Allwinner V40 SoC. It has 1 GB of RAM, built-in WiFi and Bluetooth. The BPI-M2 Berry has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a micro-USB power port, and a SATA port.

The M2 Berry is an upgrade to the Banana Pi M1/M1+ that supports SATA from the SoC. The SATA performance on the V40 is suitable for media projects such as storage servers.

Main features:

• 4-core ARM Cortex A7 CPU
• 2-core Mali 400 MP2 GPU
• 1G DDR3 SDRAM
• support for SATA interface
• MicroSD with support for 256GB
• No support for 8G eMMC flash
• CSI camera and DSI display interface
• 10/100/1000 Mb Ethernet port
• 4 USB 2.0 ports and 1 USB otg port
• 1080P in HD resolution
• HDMI port and multi-channel audio output
• WIFI & Bluetooth 4.0, 802.11BGN
• 3.5mm Stereo Output mini-jack with microphone support
• Does not contain a built-in charging circuit for 3.7V Lithium Battery
• Hardware security system supports trustzone security system, Digital Rights Management (DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse

Main elements:

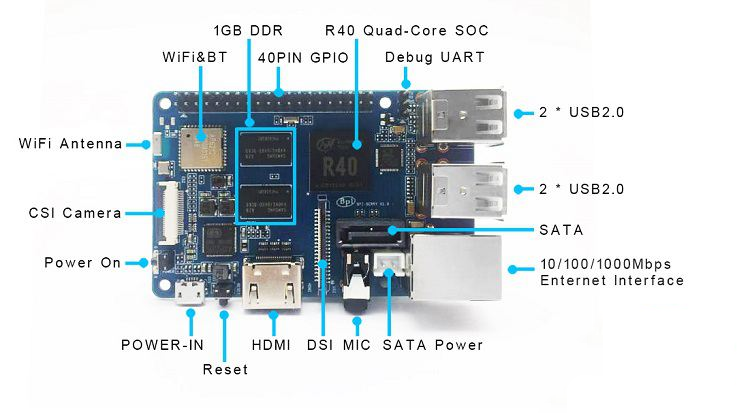

Front view:

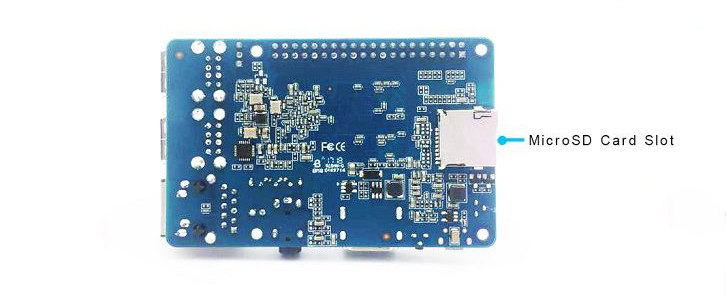

Rear view:

The GPIO connector pins are similar to those of the Raspberry PI:

Overall dimensions: 85mm x 56mm

Like the entire line of Banana Pi microcomputers, this device supports Linux and Android operating systems.
