15.6inch LCD 1920x1080 HDMI/Type-C Capacitive Touch Screen Monitor (16549)

Monitor 15.6inch LCD 1920x1080 HDMI/Type-C Capacitive Touch Screen (16549 ) is a high-quality display in a plastic case with a Full-HD screen resolution (1920x1080 pixels) and an IPS matrix. It is designed to support and work with a variety of devices, including Raspberry Pi, Jetson Nano, PCs, game consoles and smartphones. Thanks to the HDR (High Dynamic Range) functionality, it provides a more realistic and rich image. The touchscreen is convenient for user interaction, and the USB Type-C port provides convenient video and audio data transfer over a single cable. The monitor is also equipped with built-in speakers.

Key Specifications:

• Screen diagonal: 15,6 "
• Resolution: 1920x1080 pixels
• Display port: Type-C / HDMI
• Display panel: IPS
• Viewing angle: 178 deg.
• Sensor type: capacitive
• Number of control points: 10 points
• Sensor port: Type-C / USB
• Front panel: tempered glass
• Built-in brightness and contrast adjustment menu
• Built-in speakers (Hi-Fi Speaker)
• Audio output: 3.5mm Jack audio jack
• Built-in high capacity 10000mAh battery
• Body made of polycarbonate
• Works with game consoles, smartphones

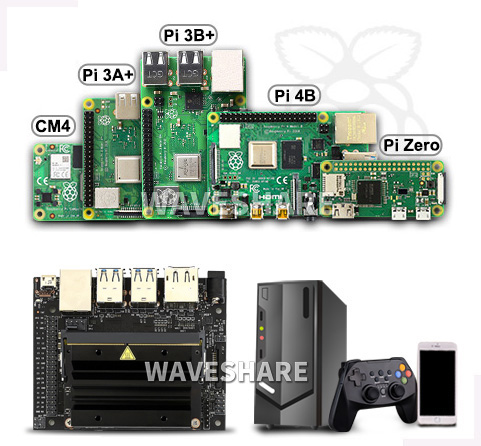

Supported devices and systems

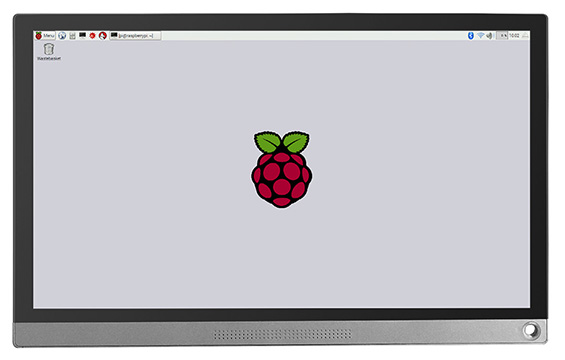

Raspberry Pi

Raspbian support, 10-point control, no driver
Supports Ubuntu / Kali / WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point control, no drivers required

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point control, no drivers

Game console
Xbox360, PS4, SWITCH ...

Smartphones

Huawei, Samsung, OPPO, LG, HTC...

An example of connection:

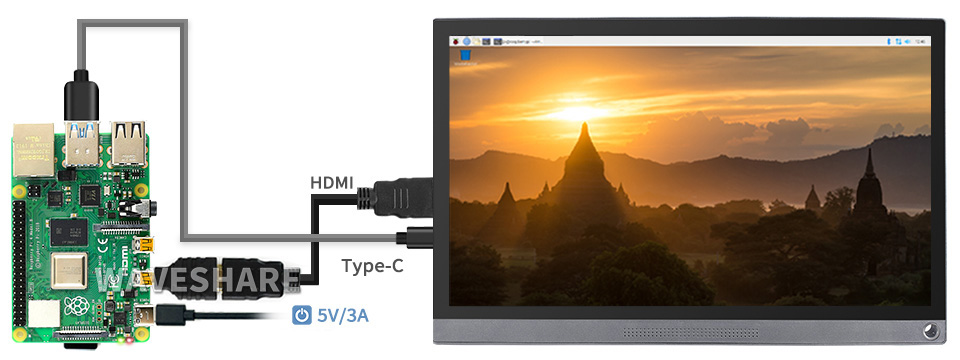

Working with a Raspberry Pi 4

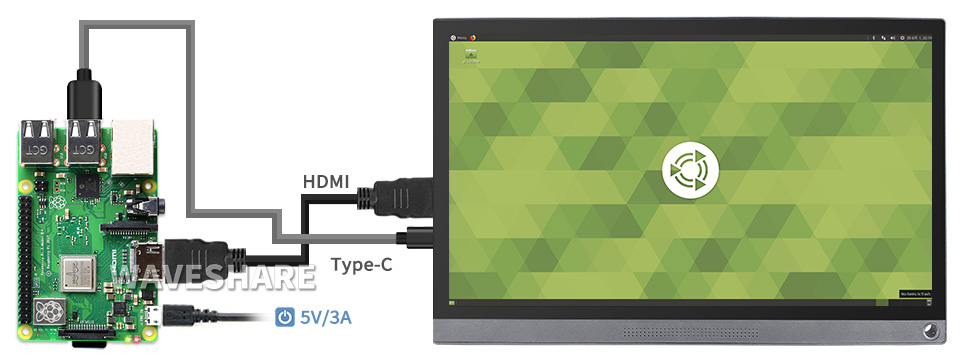

Working with Raspberry Pi 3B+

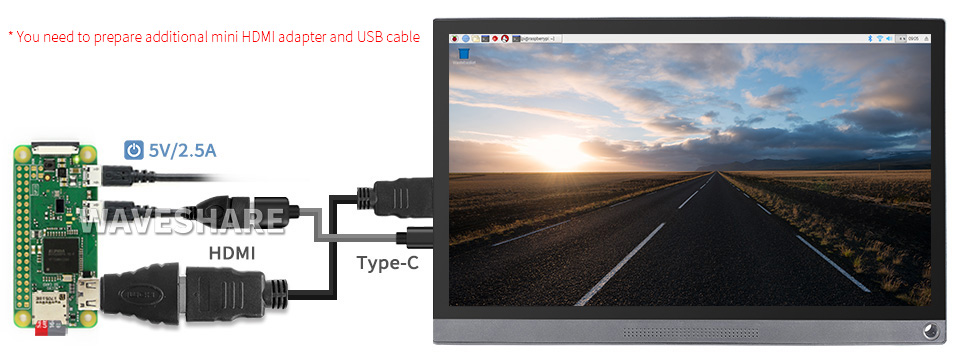

Working with Raspberry Pi Zero W

Attention: Use the HDMI to Micro HD adapter with the HDMI cable.

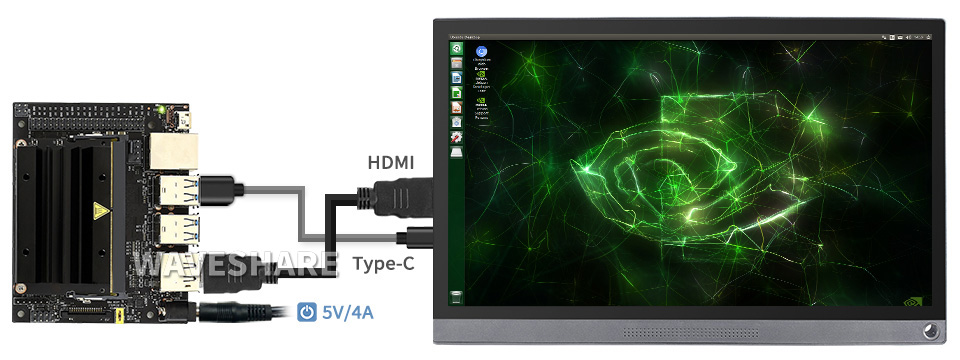

Working with Jetson Nano

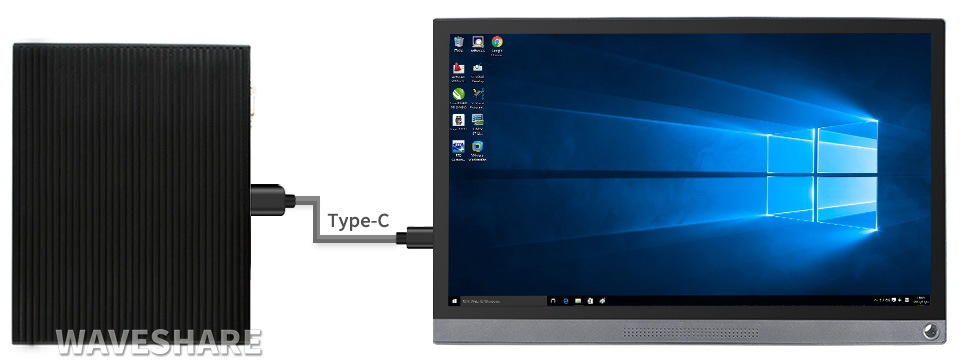

Working with mini PC

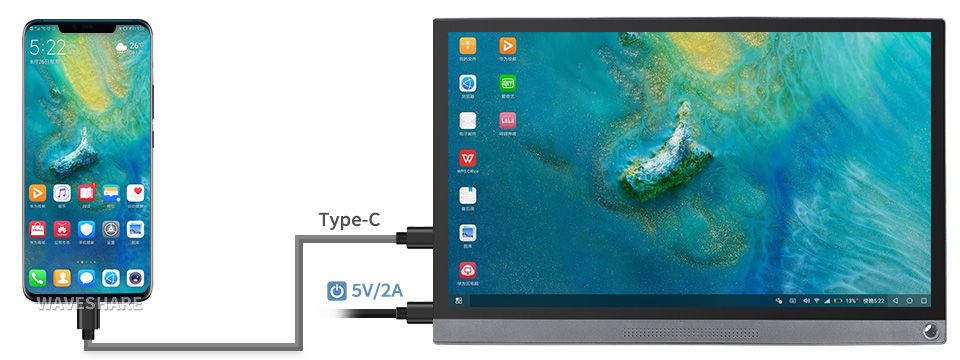

Working with smartphones

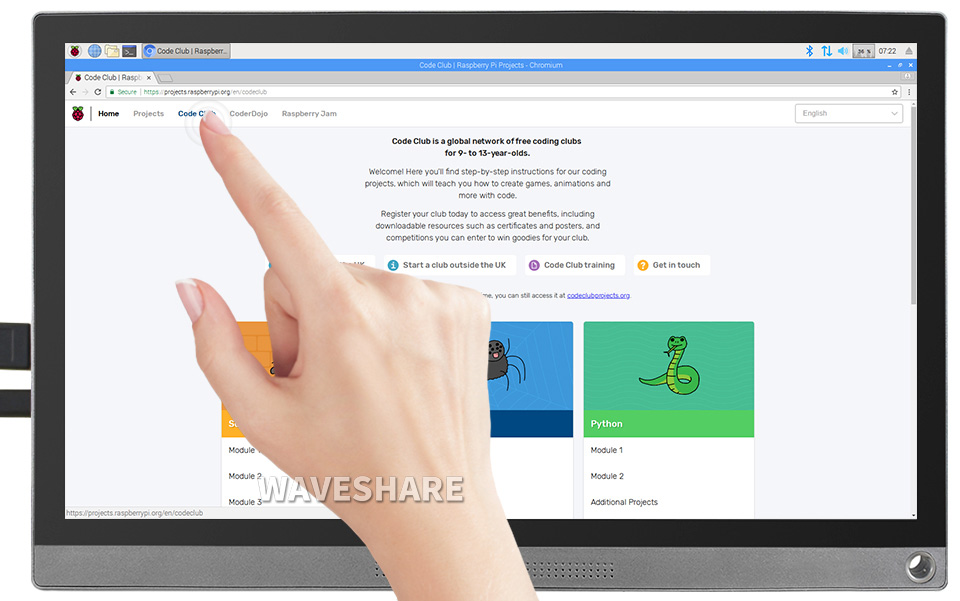

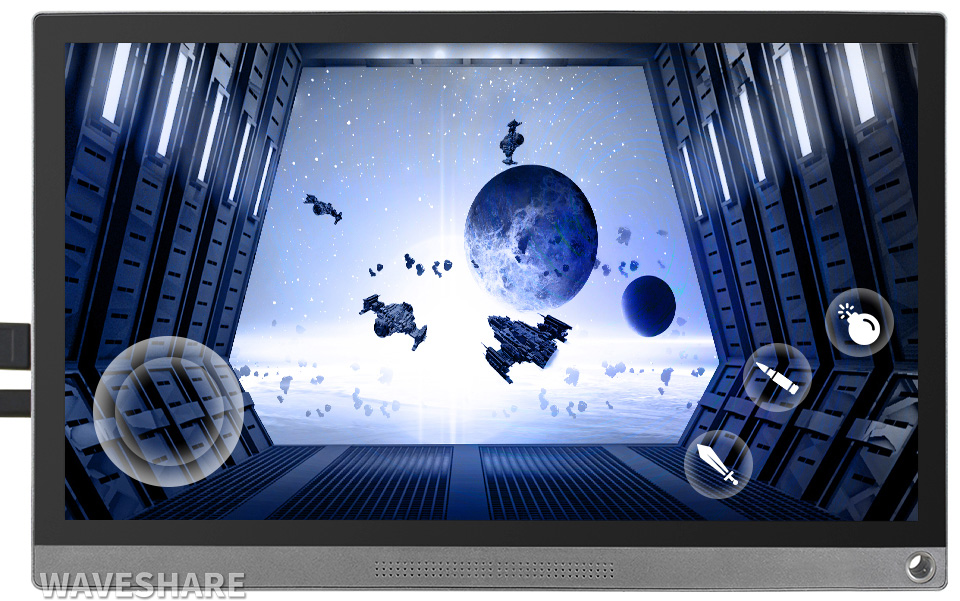

Touch control (capacitive sensor). Up to 10 control points. The front panel is made of tempered glass.

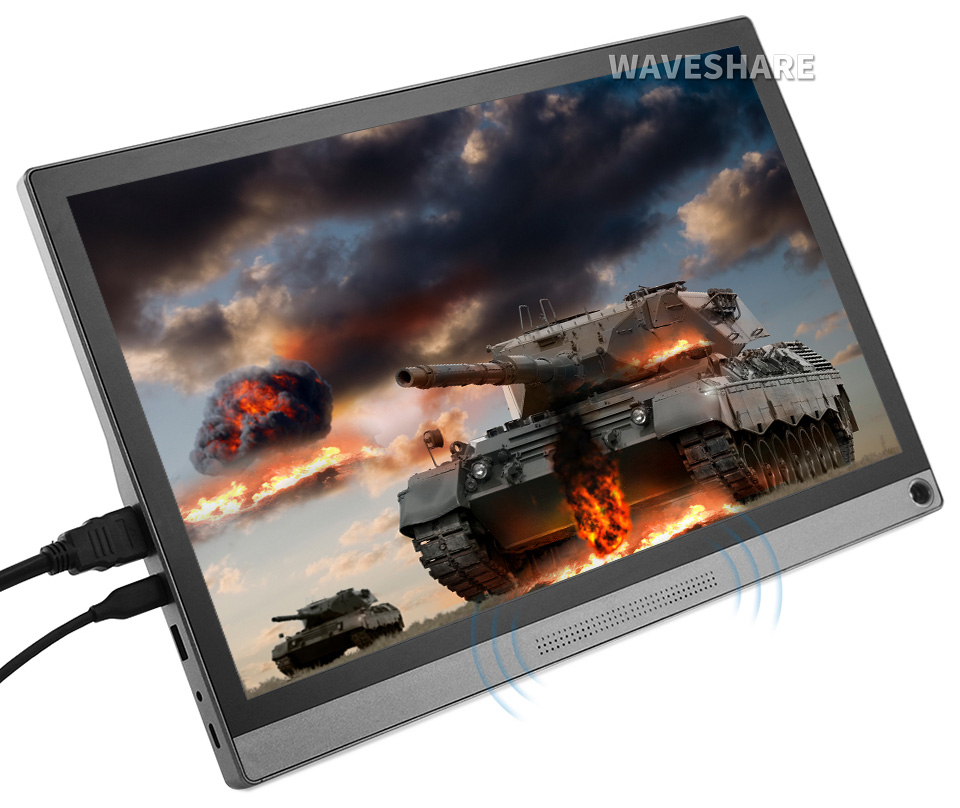

Audio features

The display supports operation with Xbox360 / PS4 / SWITCH game consoles ... (only display and sound through speakers or sound through the headphone output)

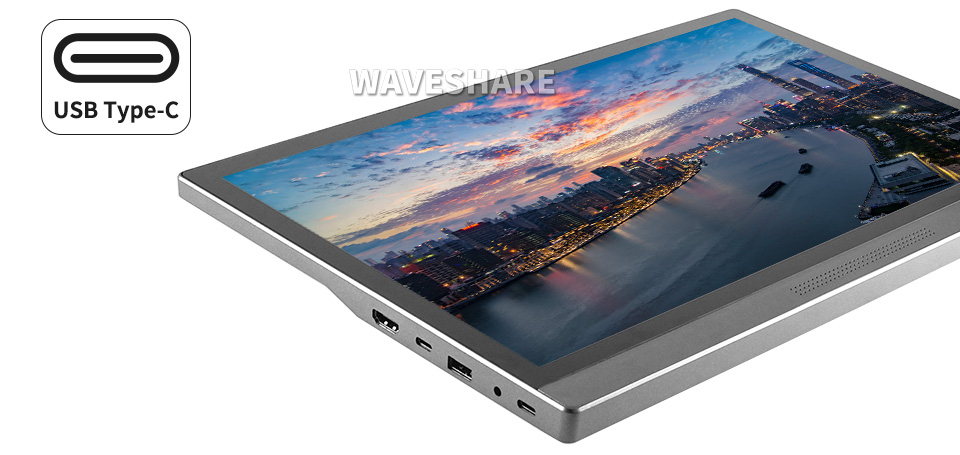

Full-featured Type-C port
Audio and video transmission in a single connection: one cable is enough for a dual-screen computer or smartphone with a mirror finish

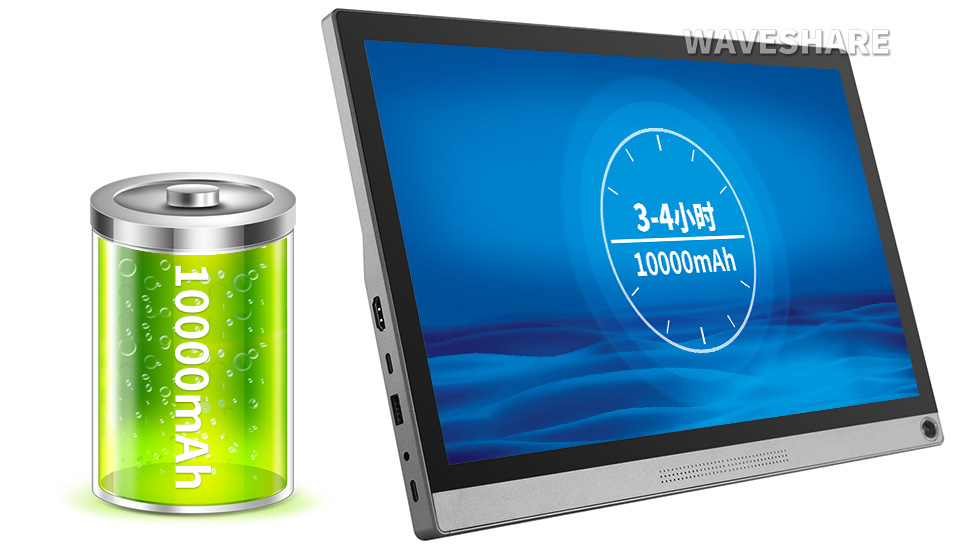

Built-in high-capacity battery
Built-in 10000mAh battery, provides 3-4 hours of battery life, ideal for traveling

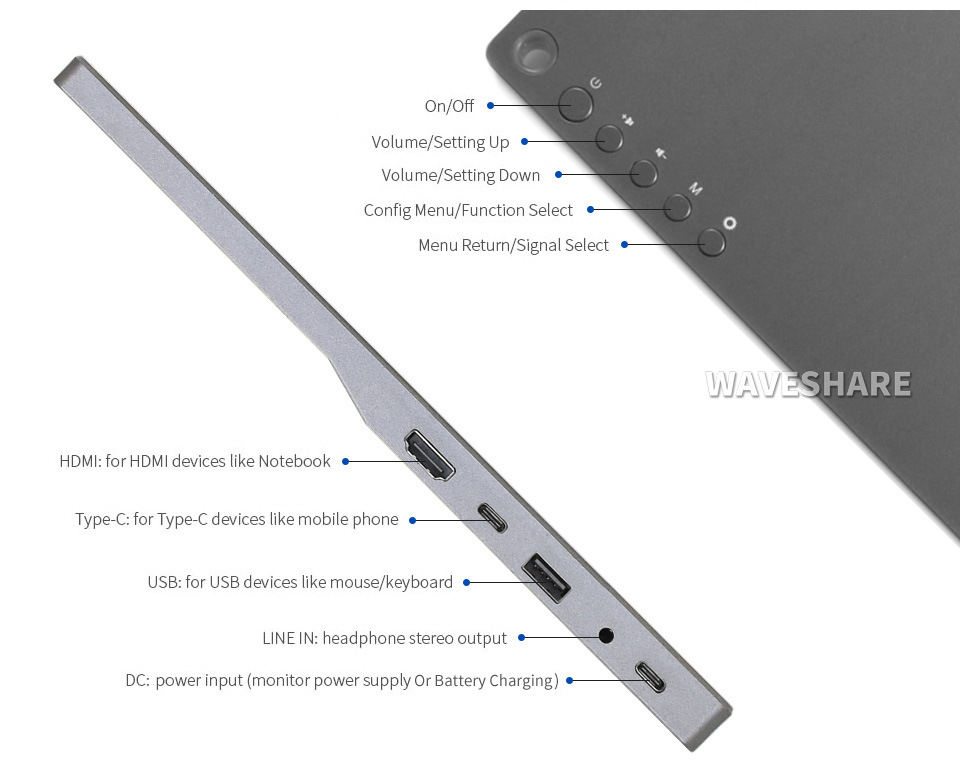

Elements:

On/Off - on/off button

Volume / Setting Up - adjusts the volume level (up)

Volume / Setting Down - adjuststhe volume level (down)

Config Menu / Function Select - menu and function selection

Menu Return / Signal Select - exit from the menu / signal selection

HDMI: port for connecting laptop type devices

Type-C: port for connecting devices such as mobile phones

USB: port for connecting devices such as a keyboard or mouse

LINE IN: headphone output

DC: power input (for display operation or battery charging)

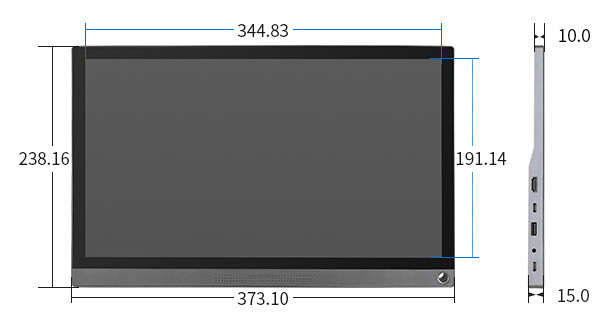

Overall dimensions: 373.10mm x 238.16mm x 15mm

Information for developers (Wiki): www.waveshare.com/wiki/15.6inch_FHD_Monitor

1. 15.6inch FHD monitor - 1 pc.
2. Power adapter - 1 pc.
3. HDMI cable - 1 pc.
4. HDMI to Micro HDMI adapter - 1 pc.
5. USB type A - USB type C cable - 1 pc.
6. USB type C - USB type C cable - 1 pc.
