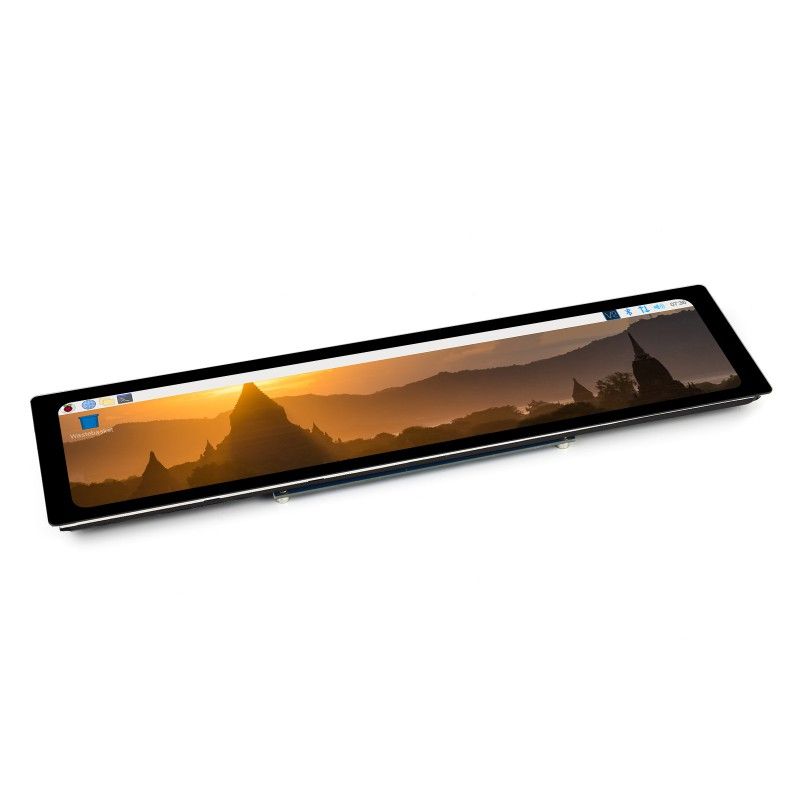

Display 11.9inch LCD 320x1480 HDMI Capacitive Touch Screen (19454)

The 11.9inch LCD 320x1480 HDMI Capacitive Touch Screen (19454 ) has the following specifications:

Screen diagonal: 11.9 "

Resolution: 320x1480 pixels

Port: HDMI

Matrix type: IPS

Viewing angle: 170 deg.

Sensor type: capacitive with 5 touch points (depending on the operating system)

Number of control points: 5 points

Sensor port: USB

Audio output: 3.5mm Jack

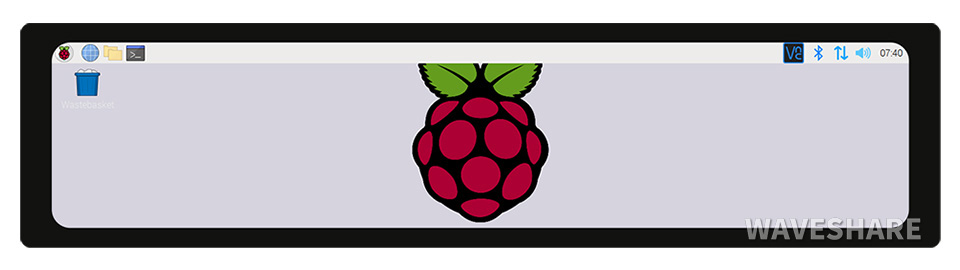

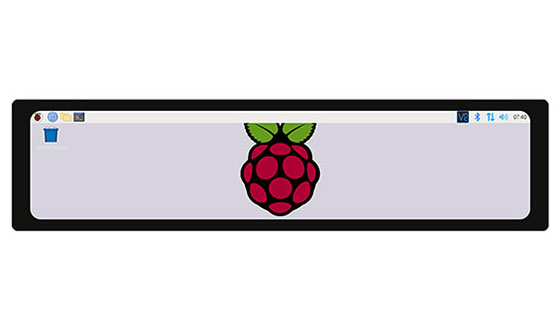

By default, the display orientation is set to horizontal display (height 320 pixels, length 1480 pixels). To change the screen orientation to portrait mode, you need to change the software settings.

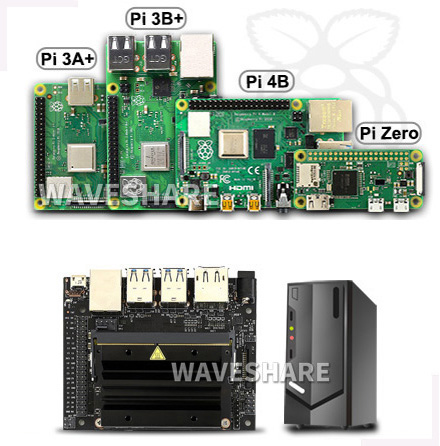

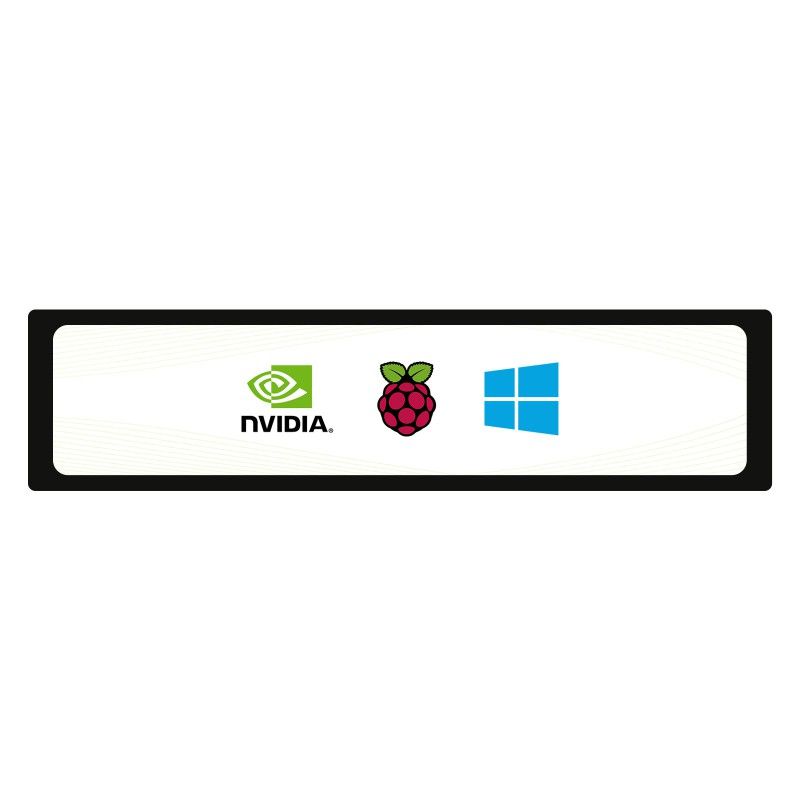

Supported devices and systems

Raspberry Pi
Supports Raspbian, 5 touch points, no driver required
Support Ubuntu/Kali/WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports ALL versions of Raspberry Pi.

Jetson NANO
Supports Ubuntu, one touch, no drivers required

PC
Supports Windows 10 / 8.1 / 8 / 7. 5 touch points, no drivers

An example of connection:

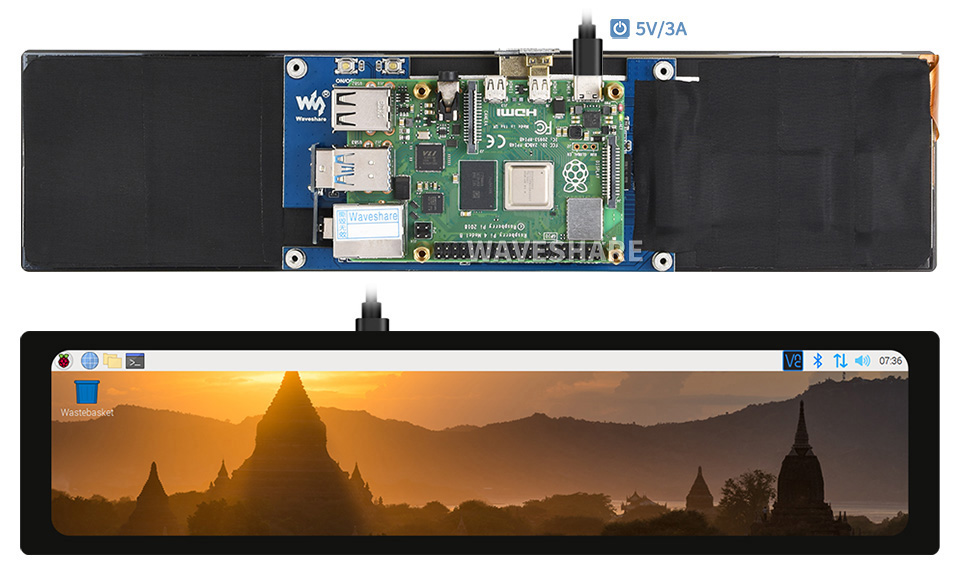

Working with a Raspberry Pi 4

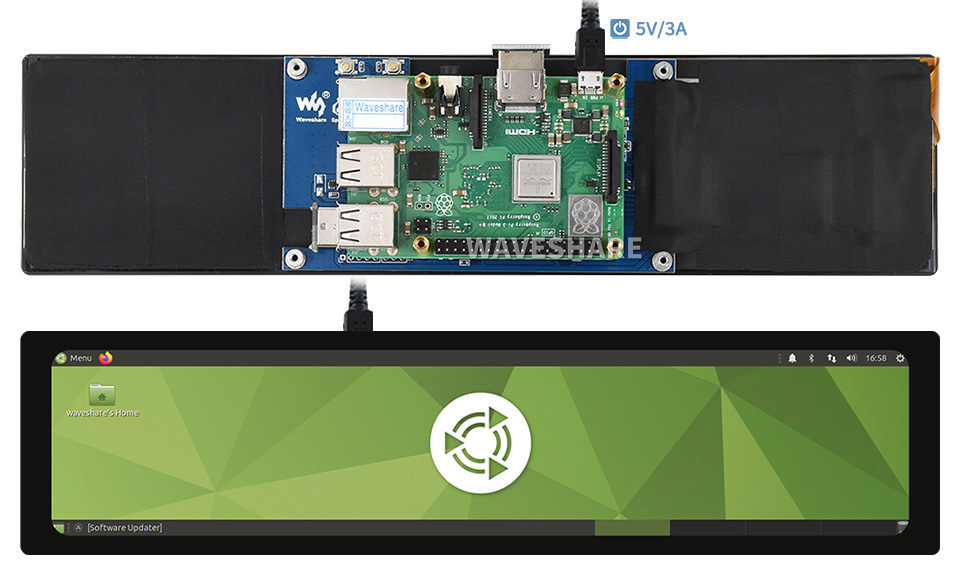

Working with Raspberry Pi 3B+

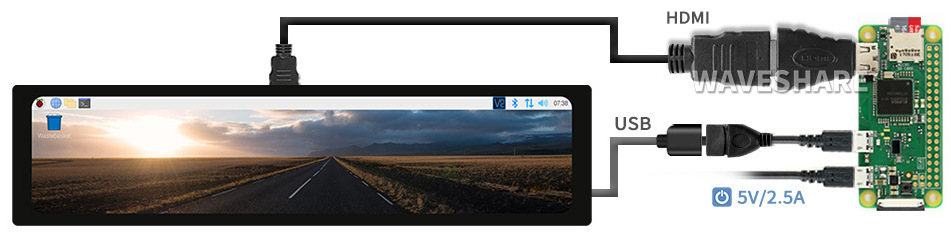

Working with Raspberry Pi Zero

Note: To connect to Raspberry Pi Zero, you need to purchase a USB cable and a mini-HDMI adapter separately.

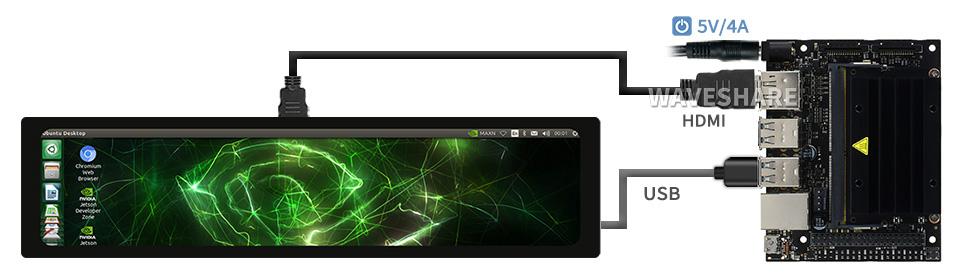

Working with NVIDIA Jetson NANO

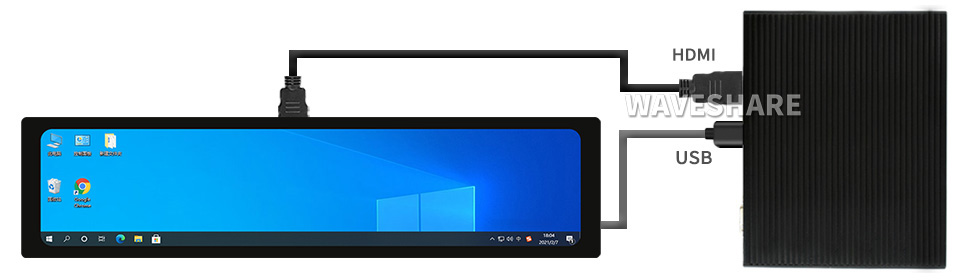

Working with a Mini PC

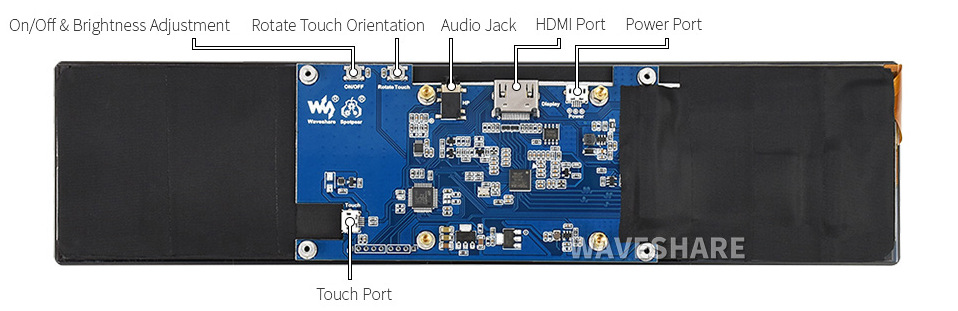

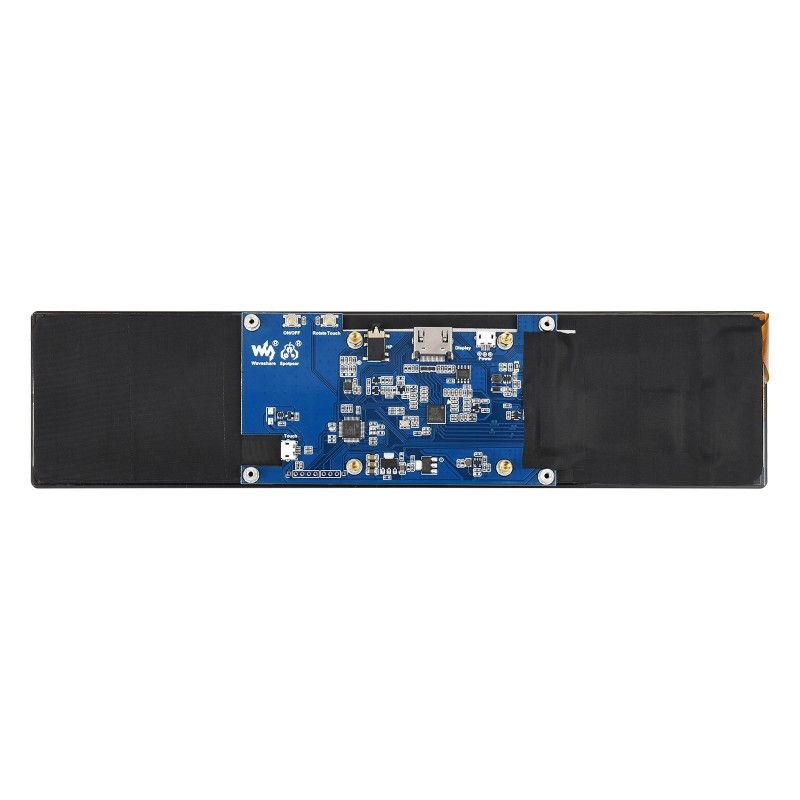

Elements of the device:

Touch Port - sensor port

Power Port - power port

HDMI Port - multimedia port

Audio Jack - audio port

Rotate touch orientation -- switch the screen orientation

On / Off & Brightness Adjustment - Turn on / off and adjust the brightness

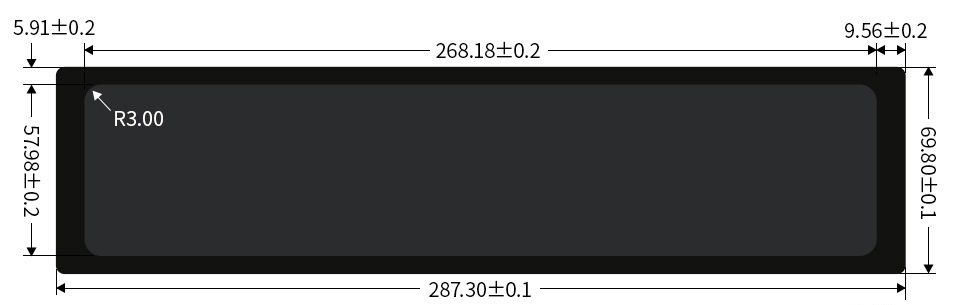

Overall dimensions (mm): 287,30 х 69,80

Information for developers (Wiki): www.waveshare.com/wiki/11.9inch_HDMI_LCD

The package includes:

1. 11.9inch HDMI LCD panel x1
2. HDMI cable x1
3. USB-A to Micro-B cable x1
4. HDMI adapter (B) x1
5. USB adapter (B) x1
6. HDMI adapter (C) x1
7. USB adapter (C) x1
8. Mounting kit x1

1. 2. 3. 4. 5. 6.7.8.

Weight: 0.351 kg
