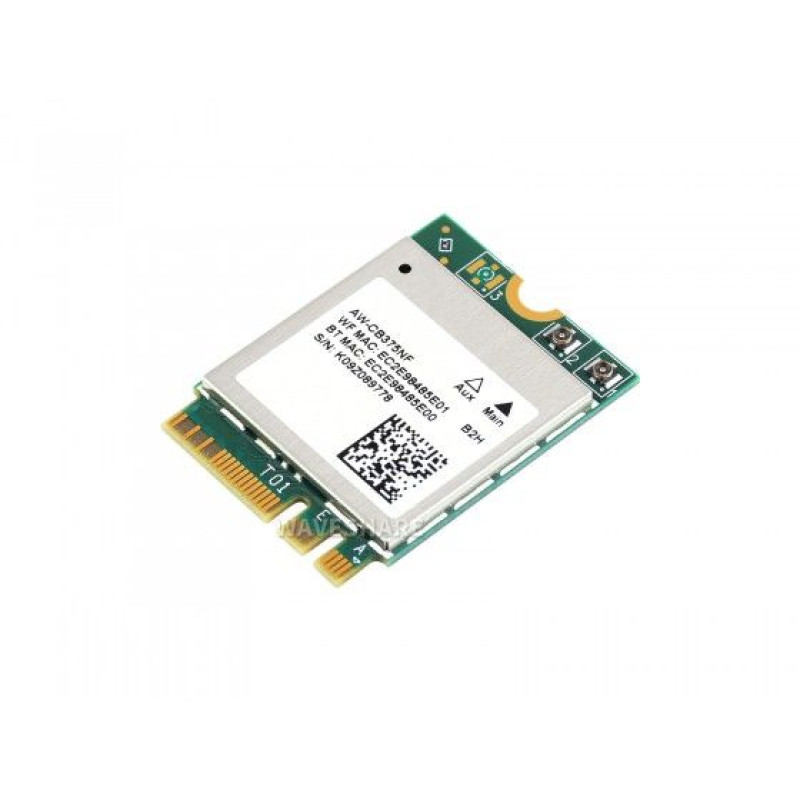

Wireless-AW-CB375NF expansion card

TheWireless-AW-CB375NF expansion card is a dual-band 2.4 GHz/5 GHz 5th generation WiFi module designed to meet all the needs of the modern user, which supports the Bluetooth 5.0 standard and provides stable and fast operation, as well as low power consumption. The module has low latency and is compatible with IEEE 802.11ac/m MIMO OFDM wireless technology with two transmit and two receive paths. The main chipset of the module is RTL8822CE-CG. The characteristics of the module make it an ideal choice for those who value reliability, efficiency and ease of use.

Main features of the module:

• Supports dual-band 2.4 GHz/5 GHz with speeds up to 300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band.
• Bluetooth 5.0 standard is supported, compatible with Bluetooth 2.1+EDR.
• Compatible with IEEE 802.11ac/m MIMO OFDM wireless technology, two transmit and two receive paths.
• Supports Linux (version 5.10 or higher), Windows 10/11 (not compatible with other versions).
• Compatible with Jetson series boards only.
• Can be connected to mobile phones, computers, gamepads via wireless connection and Bluetooth transmission.
• Easy to use: intuitive interface that allows you to quickly master the device.
• Energy efficiency: meets high energy saving standards to reduce energy costs
• High performance: maximizes work efficiency thanks to advanced technology.

General specifications:

• Supports 802.11ac 2x2, Wave-2 MU-MIMO compatibility
• Full 802.11n MIMO resolution for 2.4GHz and 5GHz bands
• Maximum PHY data rate of up to 173.3 Mbps using 20 MHz bandwidth, 400 Mbps using 40 MHz bandwidth and 866.7 Mbps using 866.7 MHz bandwidth
• Bluetoth 2.1 and 3.0 standard + enhanced data rate (EDR) + BT 5.0
• Frequency range: 2.4 GHz：2.412 2.484 GHz
  5 GHz：4.915 5.925GHz
• NGFF (M.2 A/E Key) connection interface is supported

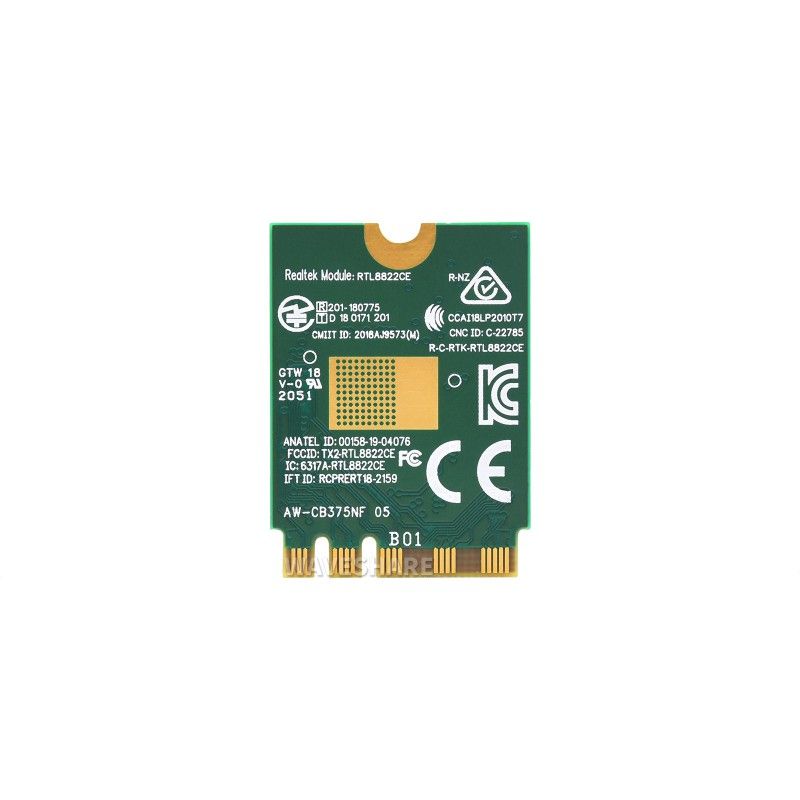

• Main chipset RTL8822CE-CG
• Wi-Fi host interface: PCI-E; Bluetooth: USB
• Modulation: DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM
• Number of channels: 2.4GHz: USA, North America, Canada, Taiwan - 1 11
  China, Australia, most European countries - 1 13
  Japan, 1 14 (CH14 for 802.11b only)
  5GHz: USA, Europe - 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

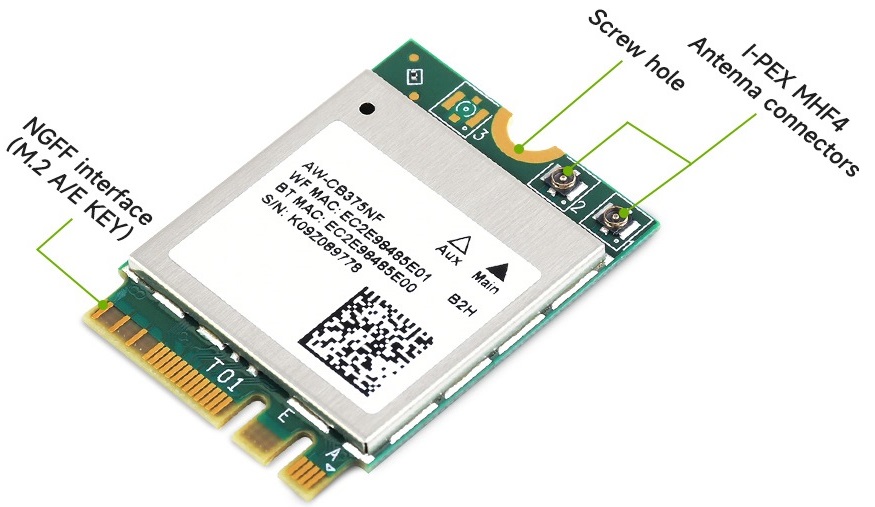

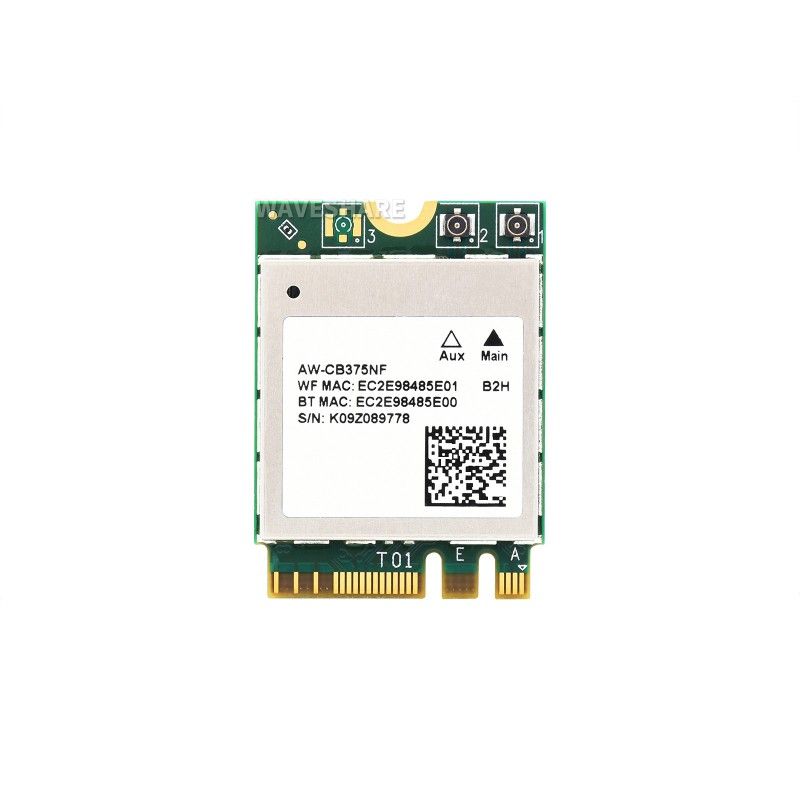

• Antenna: I-PEX MHF4 connector socket (20449)
  ANT1: WiFi/Bluetooth, TX/RX
  ANT2: WiFi, TX/RX
• Power supply voltage for the host 3.3V
• Operating temperature 070 ℃

Connection interfaces: NGFF (M.2 AE Key) and IPEX to SMA

Compatible with the following boards:

• Jetson Xavier NX: https://www.waveshare.com/Jetson-Xavier-NX.htm
• Jetson Orin NX: https://www.waveshare.com/Jetson-Orin-NX.htm
• Jetson Orin Nano: https://www.waveshare.com/Jetson-Orin-Nano.htm
• Jetson Xavier NX Development Board: https://www.waveshare.com/jetson-xavier-nx-dev-kit.htm?sku=22452
• Jetson Orin NX/Nano Development Board: https://www.waveshare.com/jetson-orin-io-base.htm

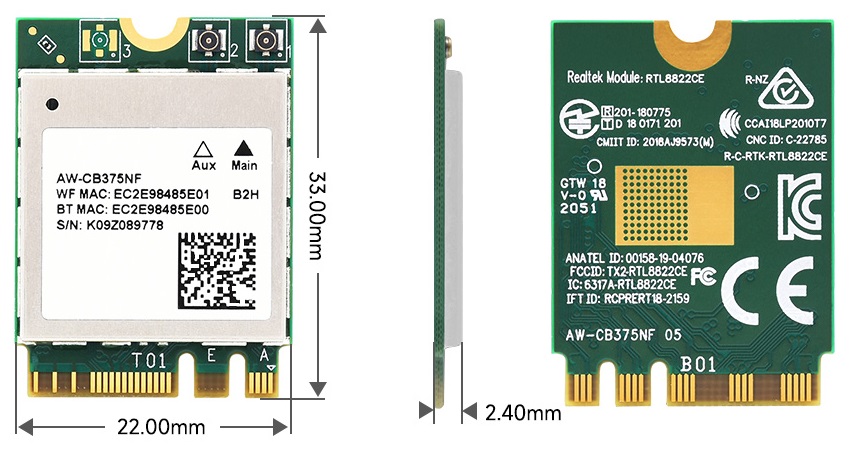

Dimensions: 33.0mm x 22.0 x 2.4mm

Information for developers (Wiki): http://www.waveshare.com/wiki/Wireless-AW-CB375NF

Scope of delivery:

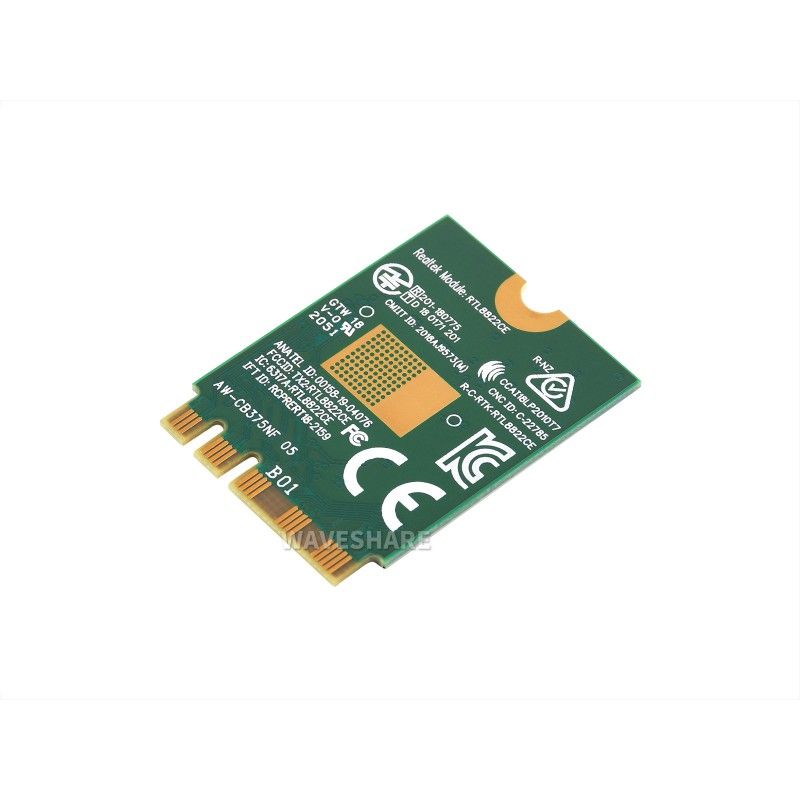

1. Wireless-AW-CB375NF module x1

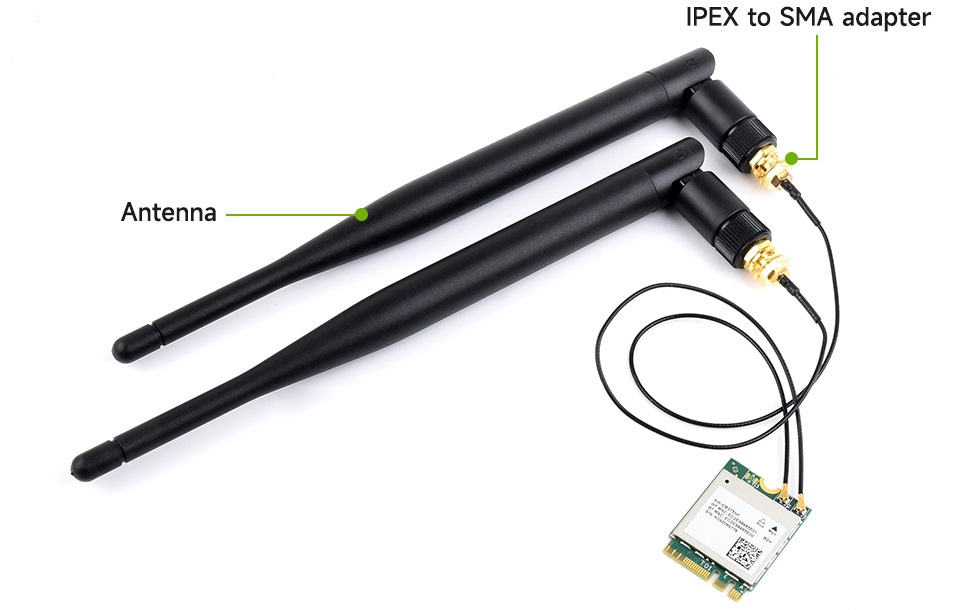

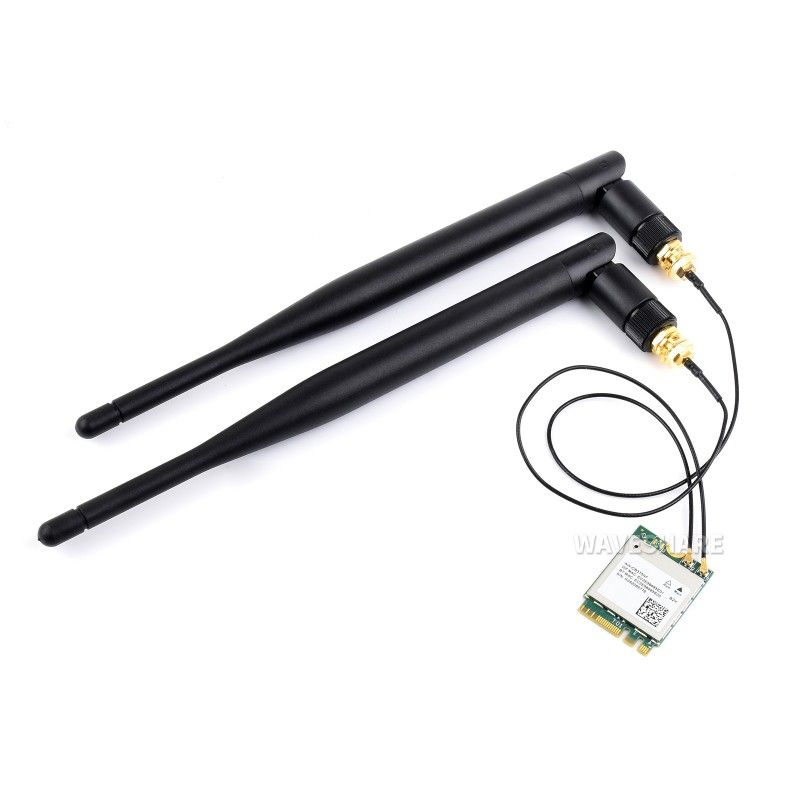

2. Antenna x2

Weight: 2.5 g
