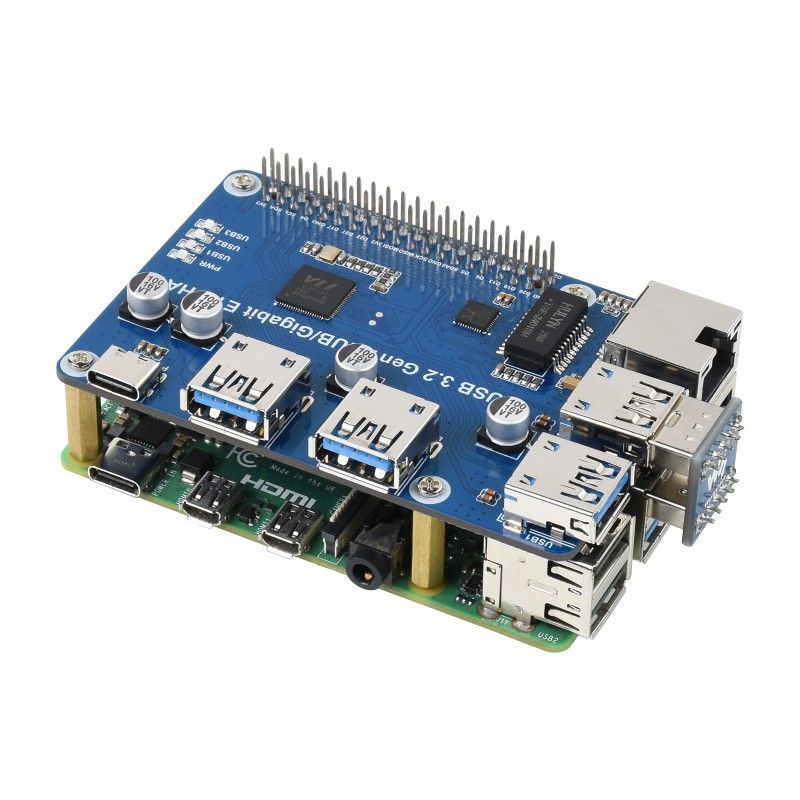

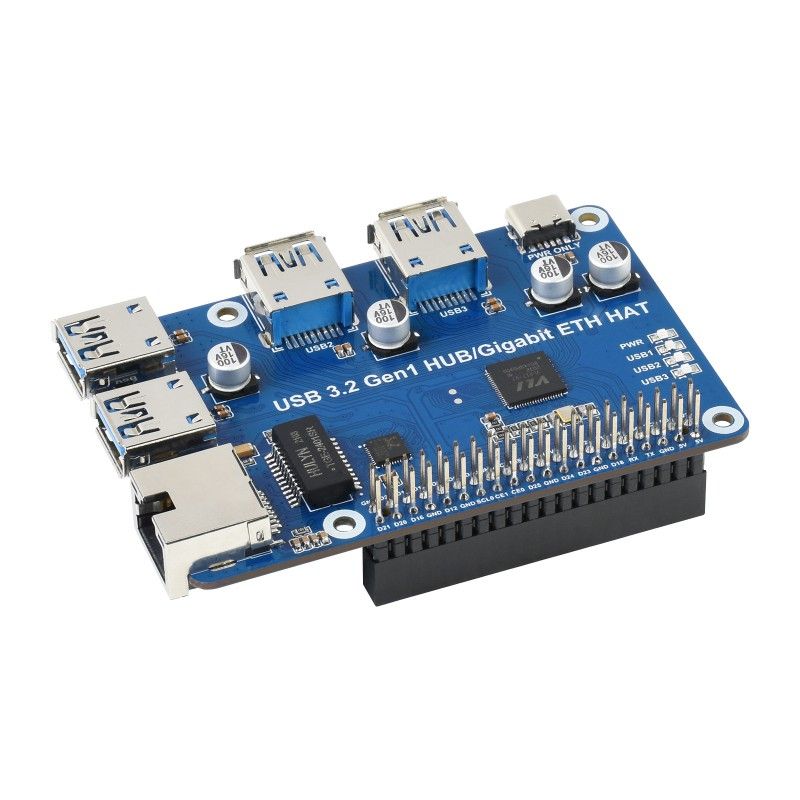

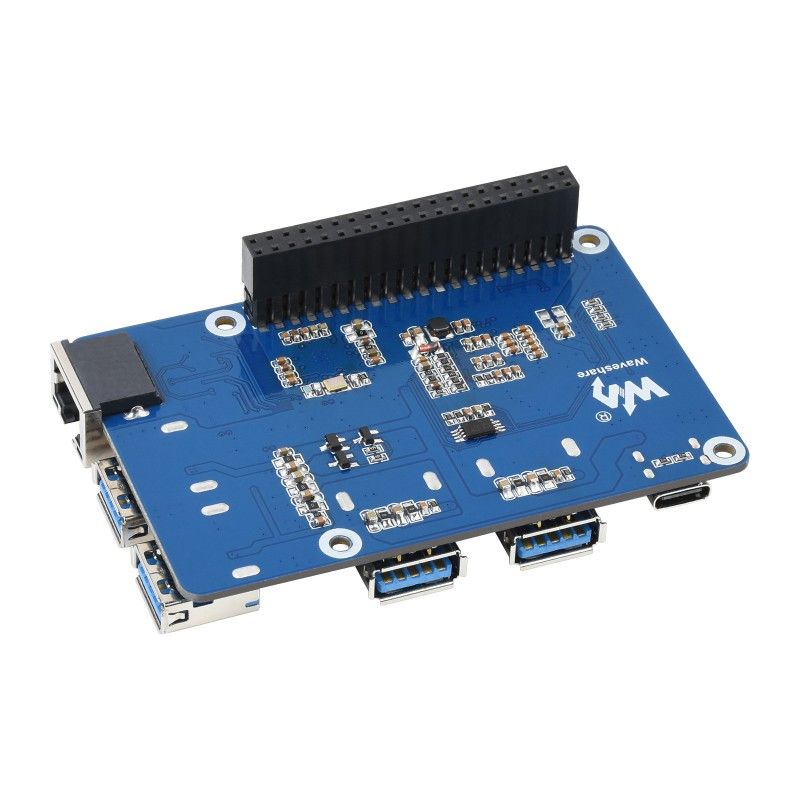

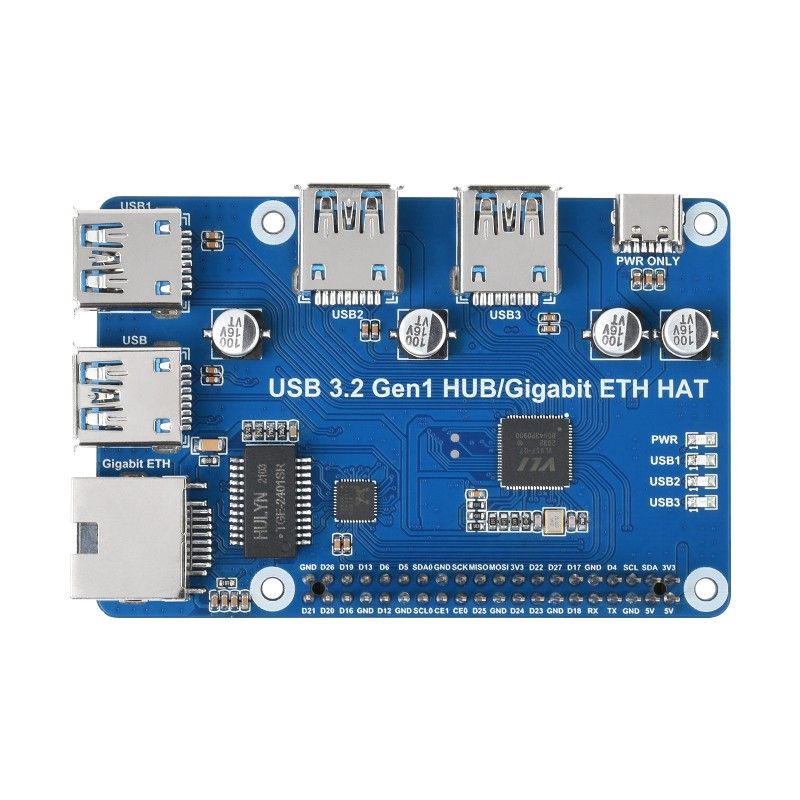

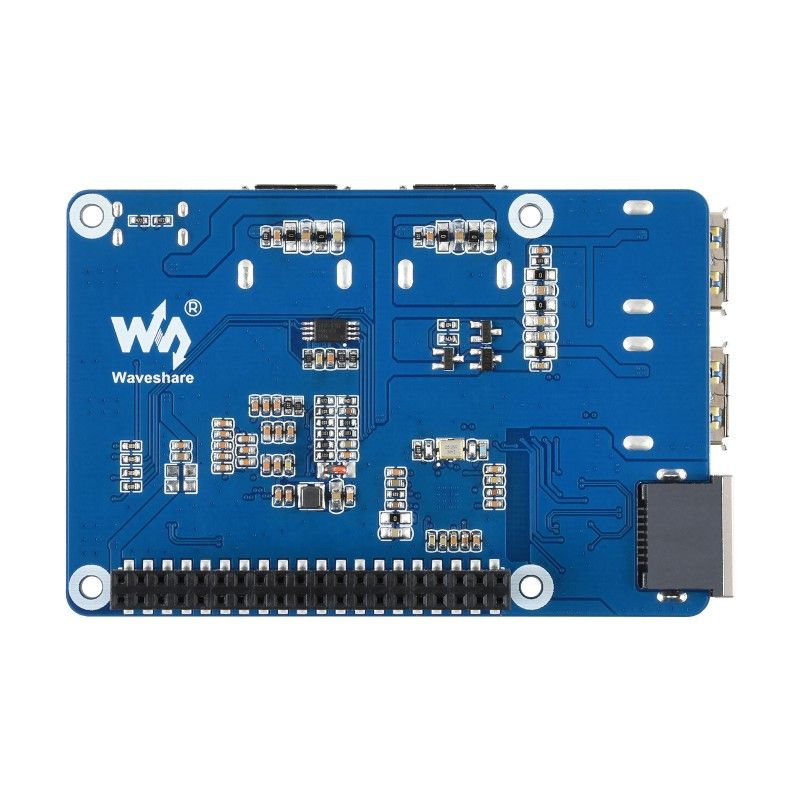

Raspberry Pi USB 3.2 Gen1 HUB Gigabit ETH HAT expansion card (20472)

The Raspberry Pi USB 3.2 Gen1 HUB Gigabit ETH HAT (20472 ) is an expansion card for the Raspberry Pi that contains a 3-port USB 3.2 Gen1 hub as well as a Gigabit Ethernet port that allows you to connect more USB and network devices.

The expansion card has a standard Raspberry Pi 40PIN GPIO expansion connector, when used with the Raspberry Pi, the 4 USB 3.2 Gen1 ports can provide data transfer rates of up to 5Gbps, which is 10 times faster than USB 2.0.

Main features:

• 3 USB 3.2 Gen1 ports, compatible with USB 3.0/2.0/1.1
• 1x Gigabit Ethernet port, compatible with 1000M/100M/10M
• Built-in external USB-C 5V DC power port provides more stable power supply
• 1x power indicator and 3x USB port indicator for easy checking of working status
• Driverless, plug and play, compatible with OS including Windows, Mac OS, Linux and Android
• Comes with development resources and manual

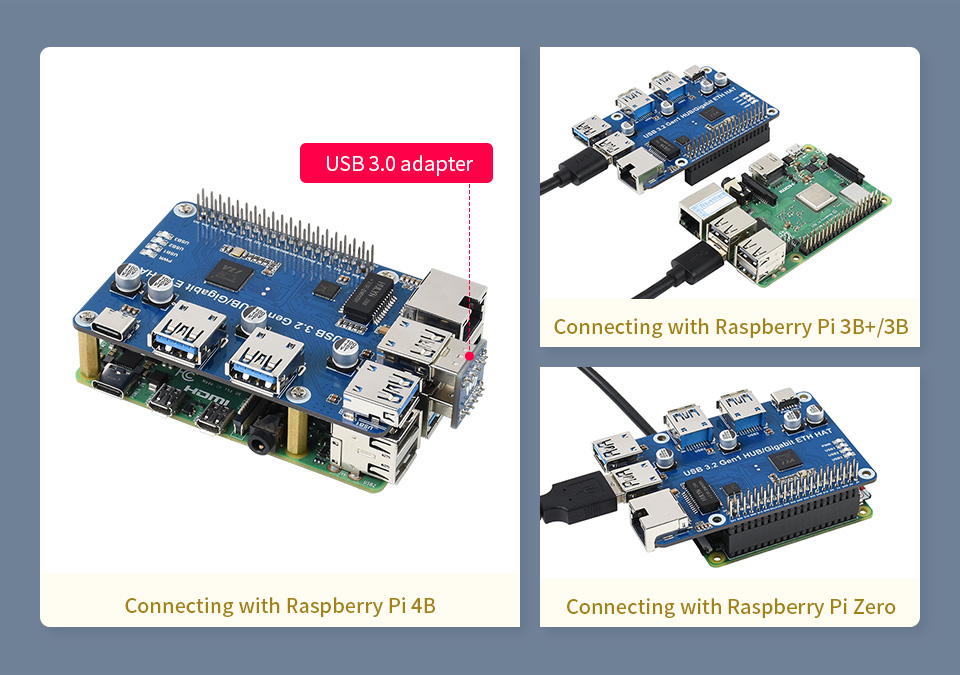

• Specially designed for Raspberry Pi 4, compatible with other versions of Raspberry Pi:

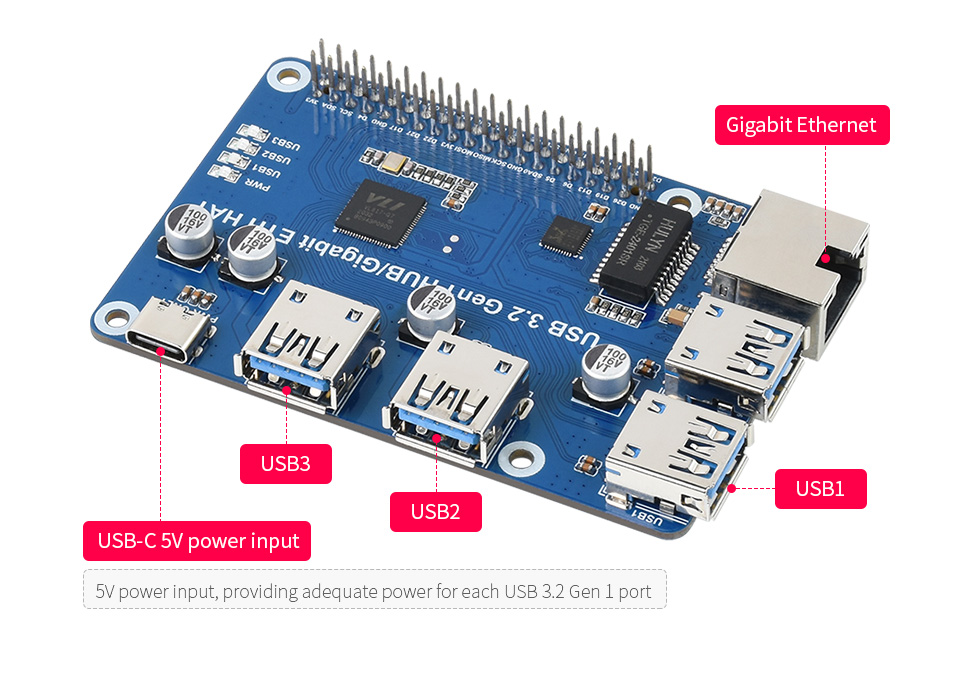

Support for external power supply
Built-in external USB-C port, 5V DC. When combined with the Raspberry Pi USB power supply, it is able to connect more USB loads.

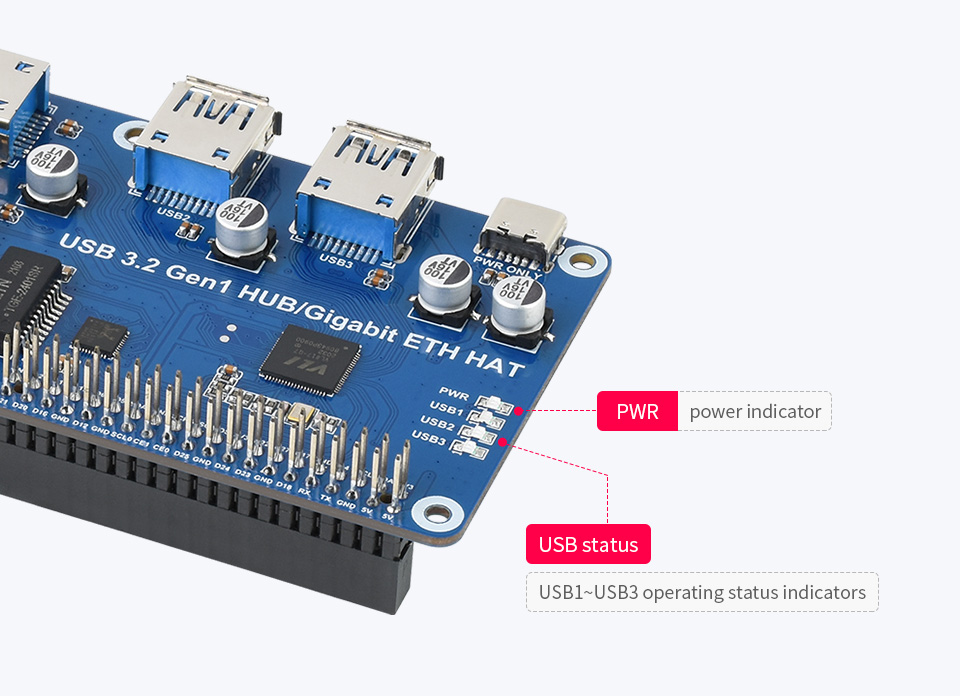

Indicators show the working status of the power and USB ports

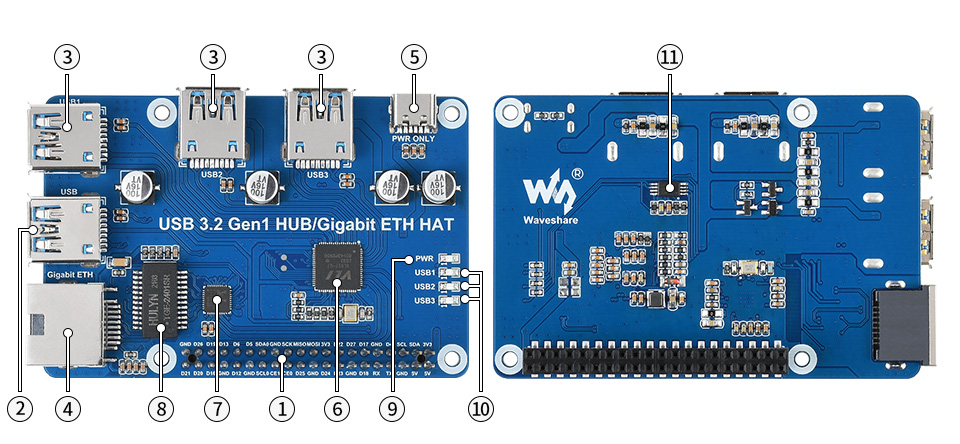

Board elements:

1. Raspberry Pi GPIO connector for connecting the Raspberry Pi
2. USB 3.2 Gen1 HUB input connects to the USB port of the Raspberry Pi
3. Advanced USB 3.2 Gen1 ports. USB1 USB3
4. Gigabit Ethernet port with data transfer rates up to 1000 Mbps
5. PWR ONLY port for external USB-C 5 V DC power supply
6. USB hub chip VL817-Q7
7. RTL8153B USB 3.0 to Gigabit Ethernet converter
8. Gigabit Ethernet converter TGE-2401SR
9. PWR CONVERTER. Power indicator
10. USB1 USB3. Indicator for each USB port
11. MX25L512EOI-10G. Flash chip.

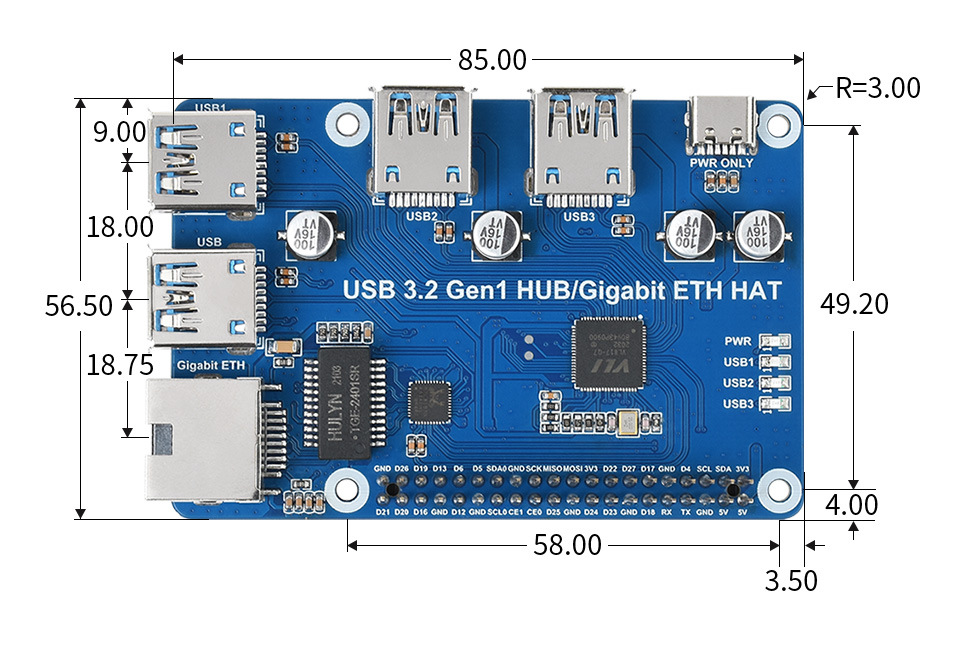

Overall dimensions: 85mm x 56.5mm

Information for developers (Wiki): USB_3.2_Gen1_HUB_Gigabit_ETH_HAT

Package contents:

1. USB 3.2 Gen1 HUB Gigabit ETH HAT x1 board
2. USB 3.0 Adapter x1
3. USB 3.0 dual plug cable 60cm x1
4. Mounting kit x1

Weight: 0.084 kg
