Raspberry Pi 5 FPC Cables - Display, 200mm

TheRaspberry Pi 5 FPC Cables - Display, 200mm is an original Raspberry flexible flat cable 200mm long, specially designed to connect a display to the Raspberry Pi 5. The cable provides enough flexibility and the ability to conveniently position the display in your projects.

The Raspberry Pi 5 has two MIPI connectors for use with camera modules or displays, but the Raspberry Pi 5 has smaller connectors than previous generations of Raspberry Pi, so you will need this adapter cable to use a display. These display adapter cables have a 22-pin, 0.5mm pitch connector on one end (for the Raspberry Pi 5) and a 15-pin, 1mm pitch connector on the other (to the display).

These cables are clearly printed with DISPLAY on them so that you don't confuse them with the very similar looking camera cables.

Note: These display cables do NOT work with camera modules. You must purchase a different cable for your cameras - they are not interchangeable!

These FPC cables are designed for optimal signal transmission between the Raspberry Pi 5 and the display, providing high quality image transmission. They are easy to use and have a reliable connection, making them ideal for embedding the display in a variety of projects such as user interfaces, data visualization, or other data display projects.

Key features:

• Length 200mm.
• Designed to connect the display to the Raspberry Pi 5
• Suitable for use with DSI display only (not compatible with camera modules)
• Has a 22-pin 0.5 mm connector on the board side and a 15-pin 1 mm pitch connector on the display side
• Cable type - FPC (flexible printed circuit)

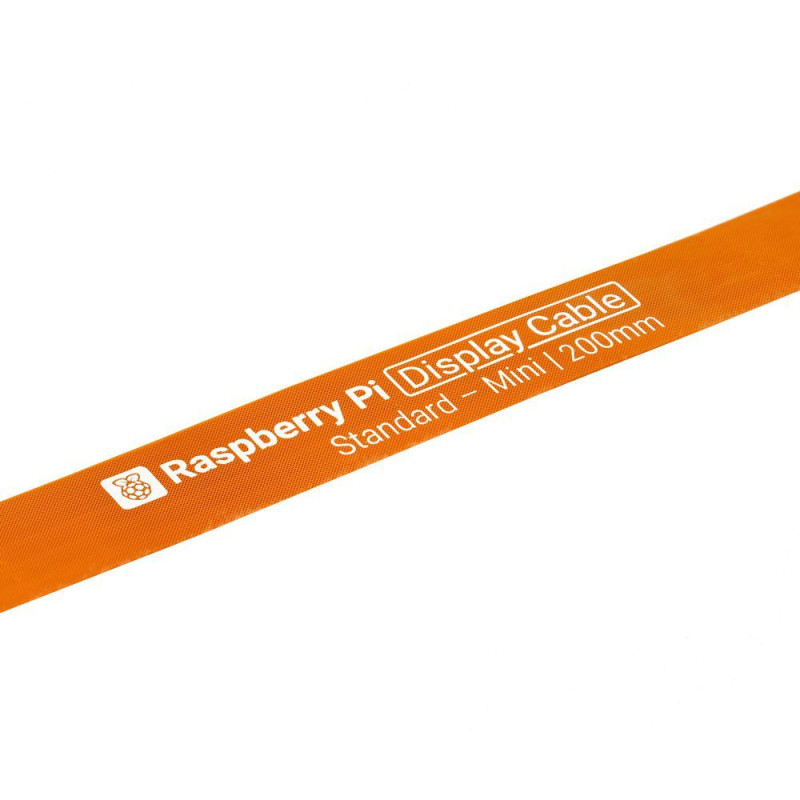

• The DISPLAY mark is printed on the cable housing for easy identification

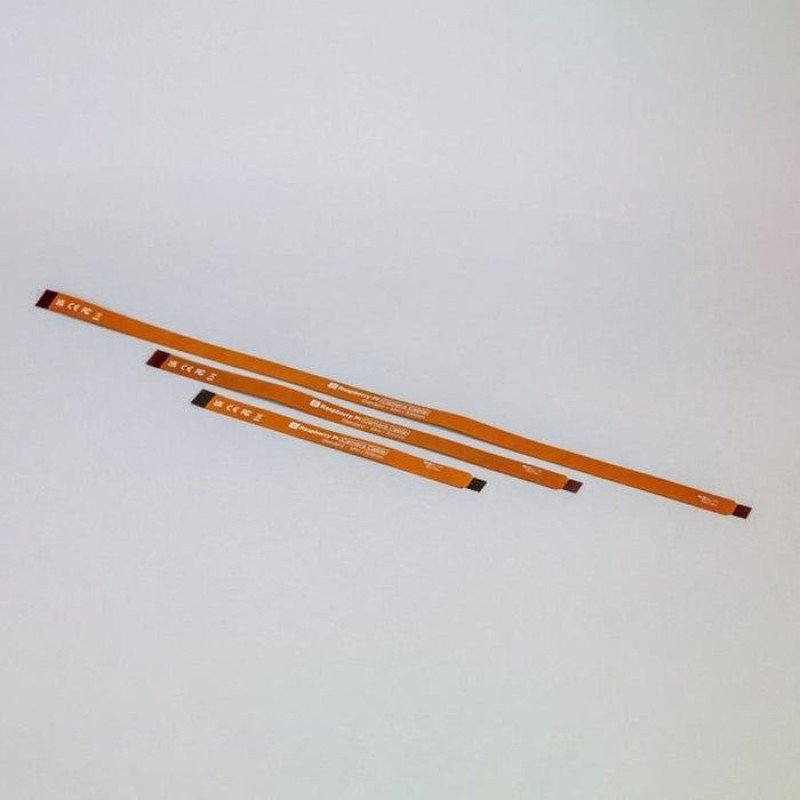

• The range of these cables consists of standard lengths: 200 mm, 300 mm and 500 mm

Scope of delivery:

1. Display cable for Raspberry Pi 5, 200 mm long - 1 pc.

(Raspberry Pi and display module are not included in the scope of delivery)
