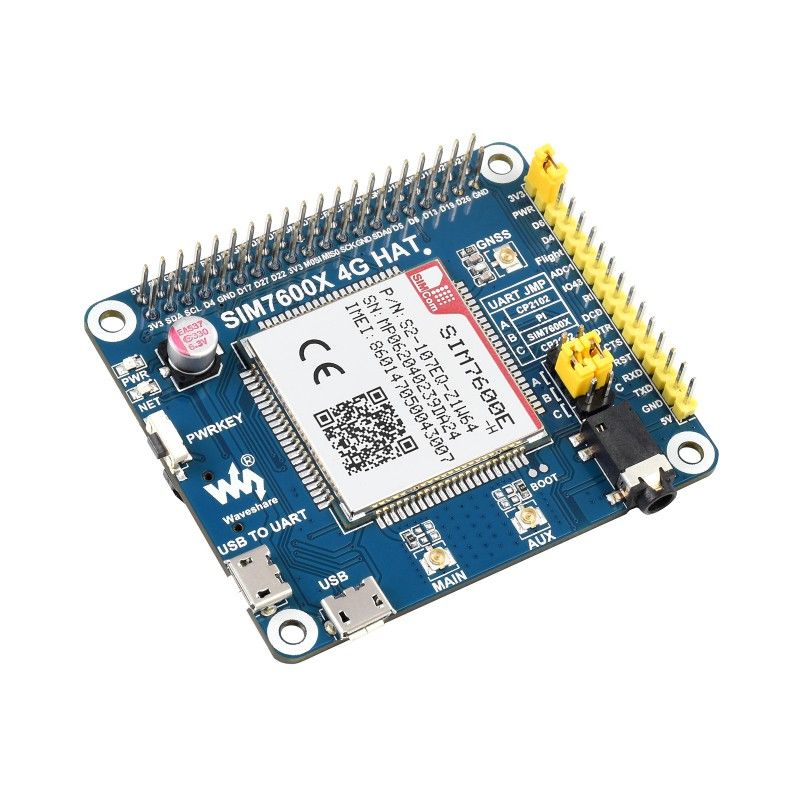

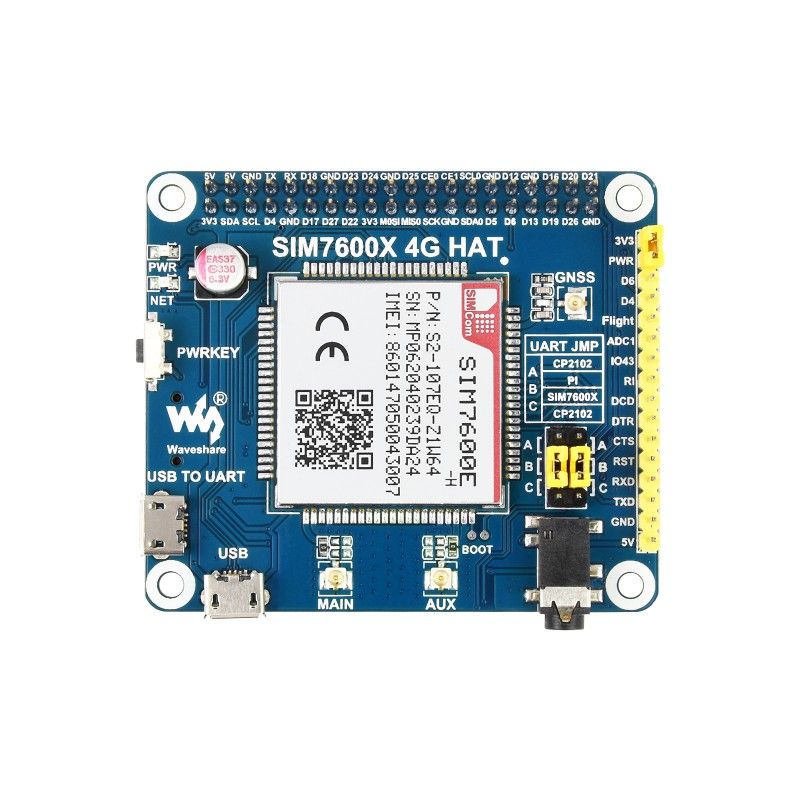

Raspberry Pi SIM7600E-H 4G HAT expansion board (14952)

The Raspberry Pi SIM7600E-H 4G HAT Expansion Board (14952 ) is an expansion board for Raspberry Pi that contains the SIM7600E-H communication module and provides Raspberry Pi with LTE Cat-4 4G / 3G / 2G communication (for Europe, Southeast Asia, West Asia, Africa) with global support, as well as GNSS-based positioning (GPS, BeiDou, Glonass, GALILEO, QZSS, LBS). Supports dial-up access, phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

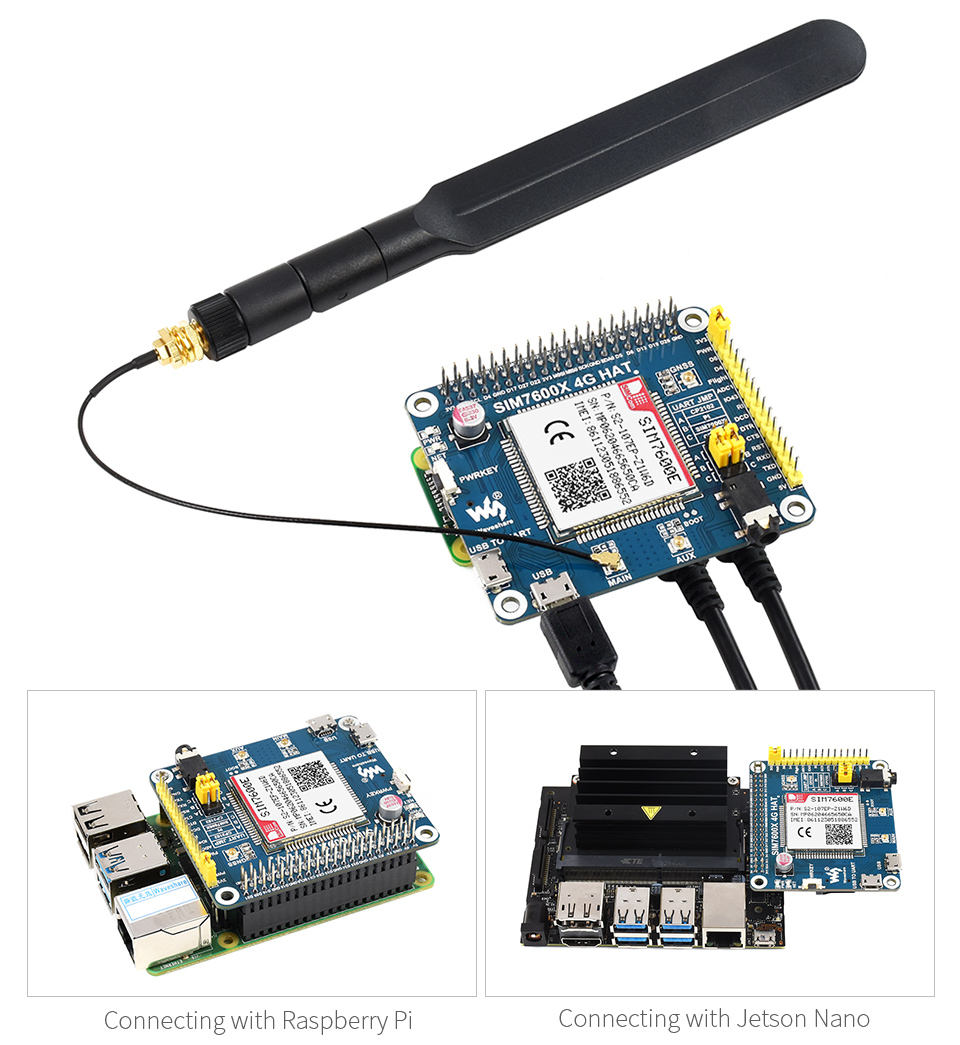

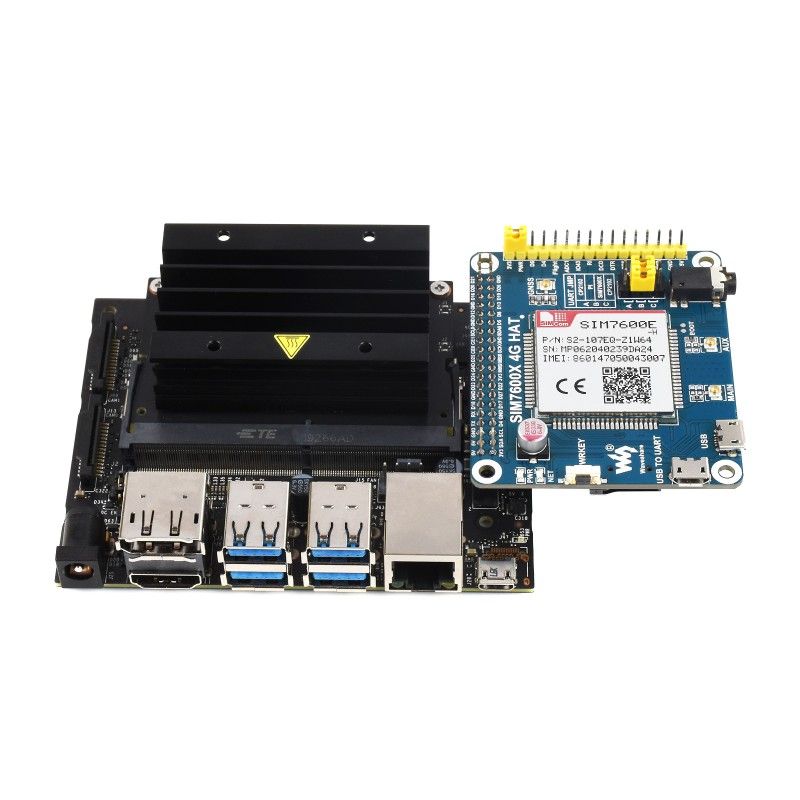

The board has a standard Raspberry Pi 40PIN GPIO connector, which ensures compatibility with Raspberry Pi series boards, as well as Jetson Nano.

Main features:

• Standard Raspberry Pi 40PIN GPIO expansion connector, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up access, phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

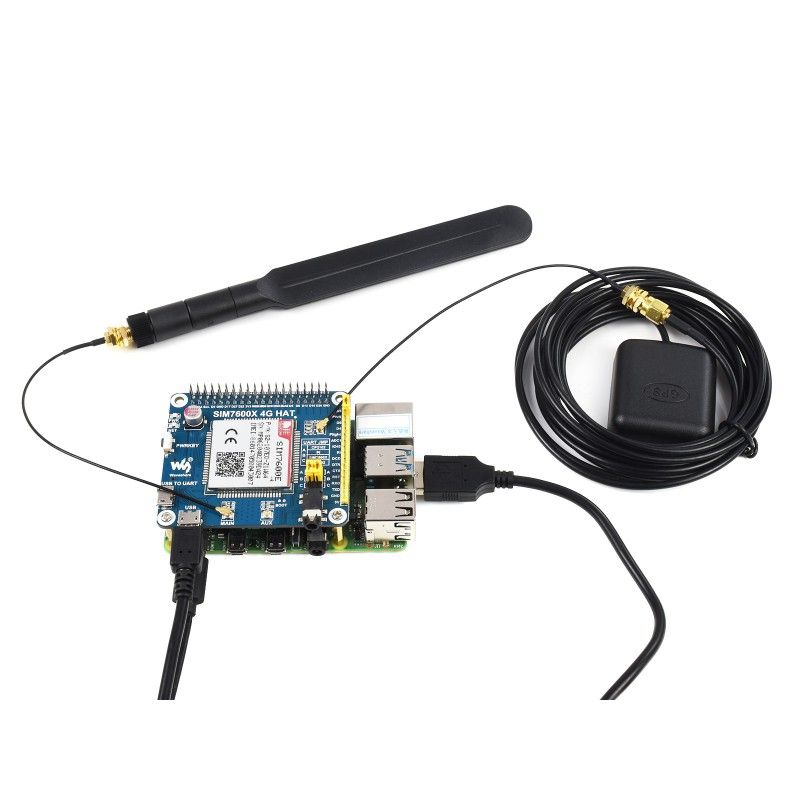

• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS positioning
• Built-in USB interface for checking AT commands, receiving GPS location data, etc.
• Built-in USB to UART converter CP2102 for serial debugging
• UART control pins for connection to host boards such as Arduino/STM32

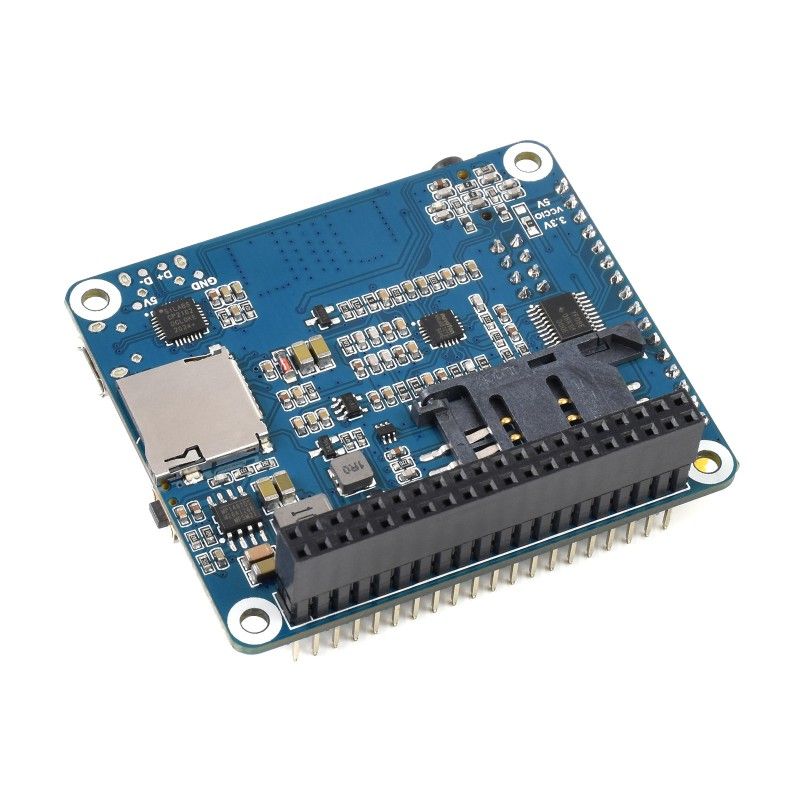

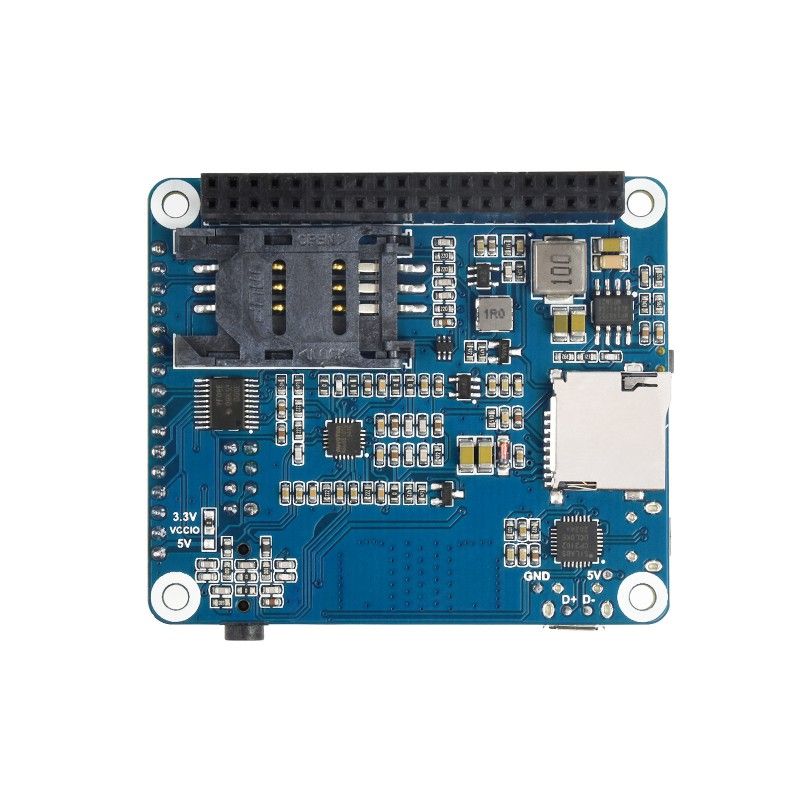

• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data such as files, messages, etc.
• Built-in audio jack and audio decoders for phone calls
• 2x LED indicator lights to monitor the working status
• Built-in voltage converter, the working voltage can be customized to 3.3V or 5V with a jumper.
• Transmission speed: 300 4 Mbps (default: 115200 bps)
• Automatic baud rate: 9600 bps 115200 bps
• Management via AT-commands (set of commands 3GPP TS 27.007, 27.005 and V.25TER)
• Supports a set of applications for SIM cards: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and guidance (examples for Raspberry Pi / Jetson Nano / Arduino / STM32)

Specifications:
