Raspberry Pi ETH/USB HUB HAT expansion board (16595)
£11.60
Description

The Raspberry Pi ETH/USB HUB HAT expansion board (16595 ) is a specially designed board for the Raspberry Pi microcomputer that provides additional USB capabilities as well as an RJ45 Ethernet port that provides a stable wired Ethernet connection.

The board is designed so that it can work with different versions of the Pi, including being suitable for Zero/Zero W/Zero WH.

Main features:

  • 3 USB ports, compatible with USB2.0/1.1
  • 1x RJ45 10/100 Mbps port, based on the RTL8152B Ethernet chip
  • Built-in multifunctional indicators for monitoring the status of power, Ethernet and each USB port
  • Operating voltage 5V

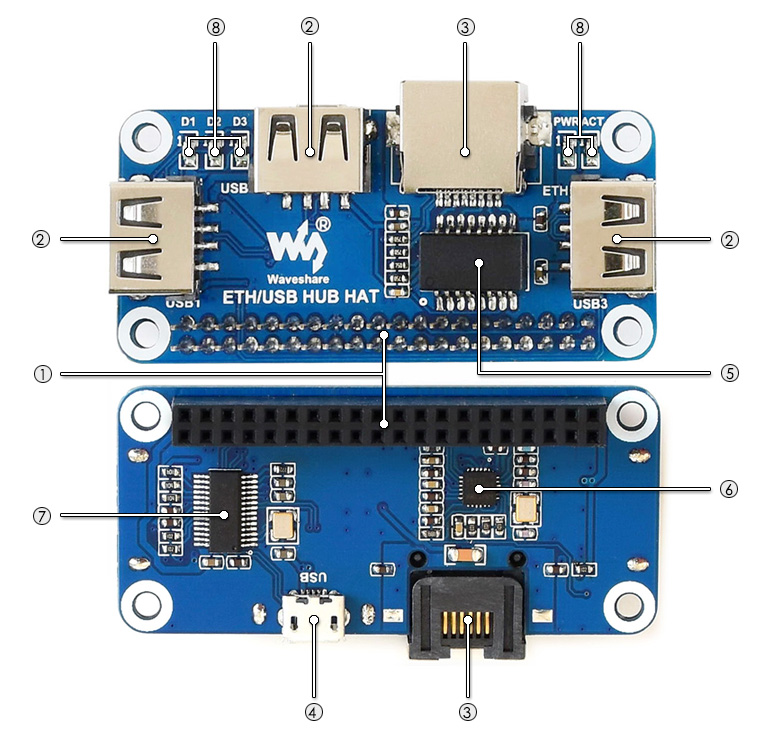

Board elements:

  1. Raspberry Pi GPIO interface: for connecting the Raspberry Pi
  2. USB ports: USB1 USB3
  3. RJ45 port: Ethernet interface 10/100 Mbps
  4. USB HUB interface (bottom): For connecting the HUB to the USB port of the Raspberry Pi.

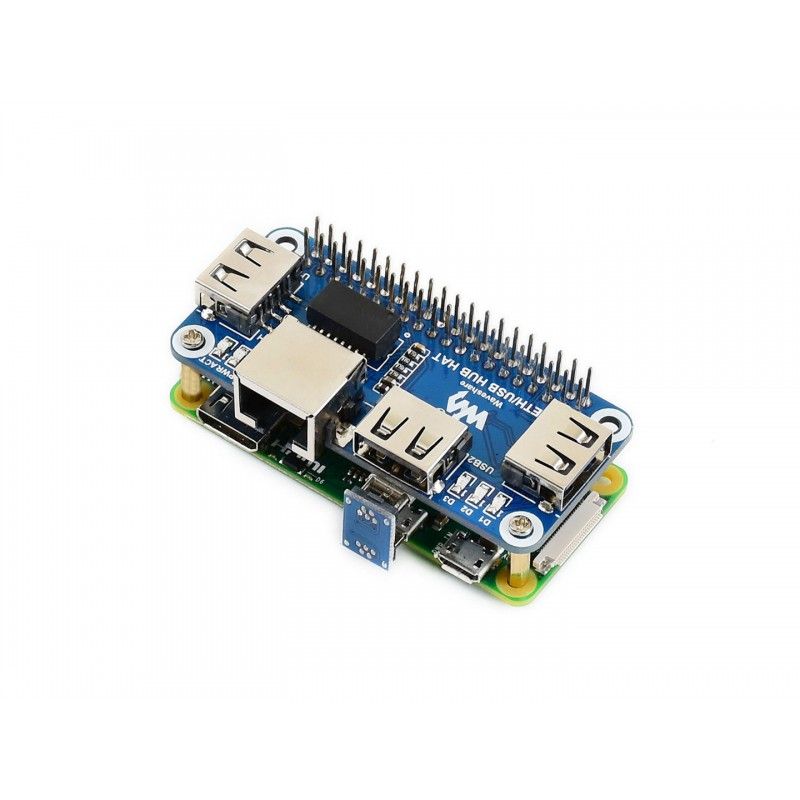

    Raspberry Pi Zero / Zero W / Zero WH: connects via Micro USB connector
    Raspberry Pi B+/2B/3B/3B+/4B: connected via Micro USB cable
  5. TS8121A: Ethernet wave filter
  6. RTL8152B: 10/100 Mbps Ethernet chip
  7. FE1.1S: USB hub
  8. LED indicators:
    PWR: power supply indicator
    ACT: Ethernet indicator
    D1 D3: special indicator for USB1 USB3 respectively

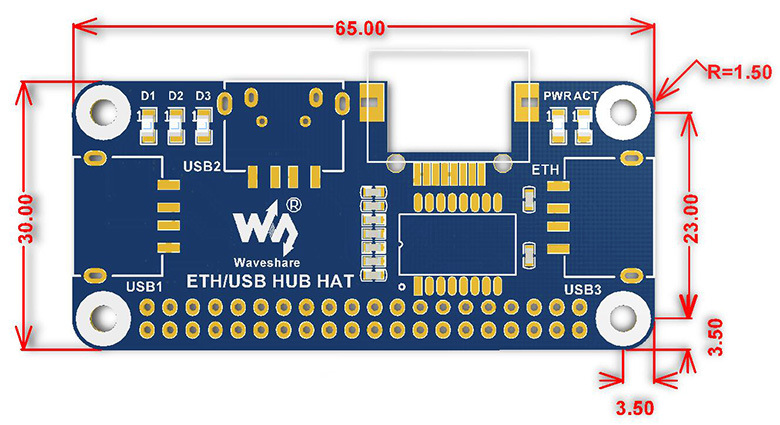

Overall dimensions: 65mm x 30mm

Information for developers (Wiki): www.waveshare.com/wiki/ETH/USB_HUB_HAT

Package contents:

  1. ETH/USB HUB HAT board x1
  2. Micro USB connector x1
  3. Micro USB cable x1
  4. Mounting kit x1

1. 2. 3. 4.

Weight: 0.068 kg

Specifications
Main characteristics
Country of origin
Made in China
Ethernet
10/100 Ethernet
Form factor
Expansion board
USB
3 x USB 2.0
