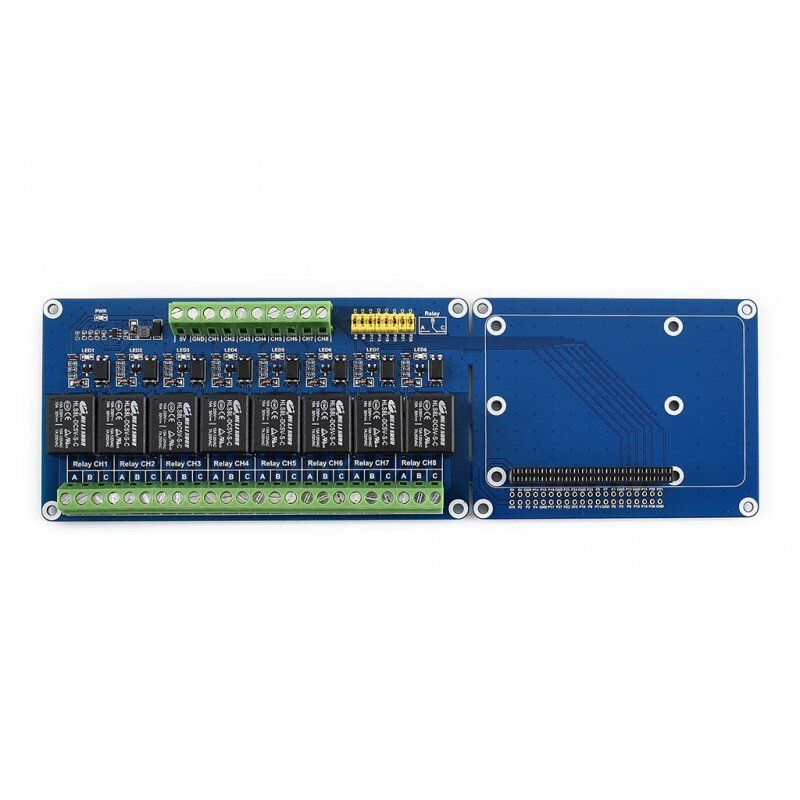

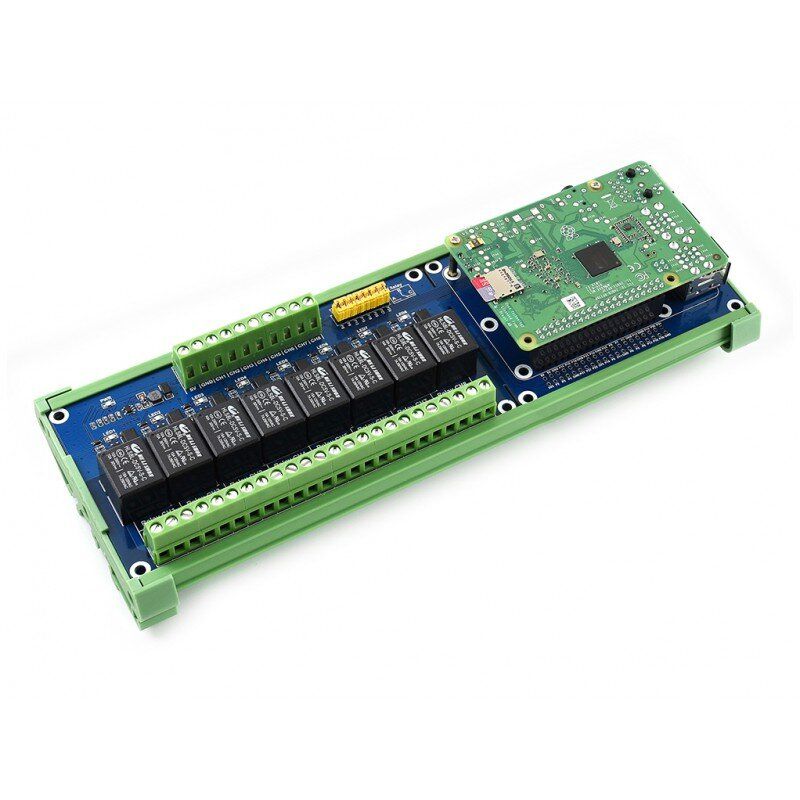

TheRaspberry Pi Relay Board 8-cn (15423) is a relay expansion board equipped with 8 channels of relays for the Raspberry Pi. It gives your Pi the ability to control high voltage products such as household appliances.

Features.

Standard 40-pin Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi and NVIDIA Jetson Nano series boards
High quality relays with payloads up to 5A 250VAC or 5A 30VDC each
Optocoupler prevents interference from high-voltage circuitry

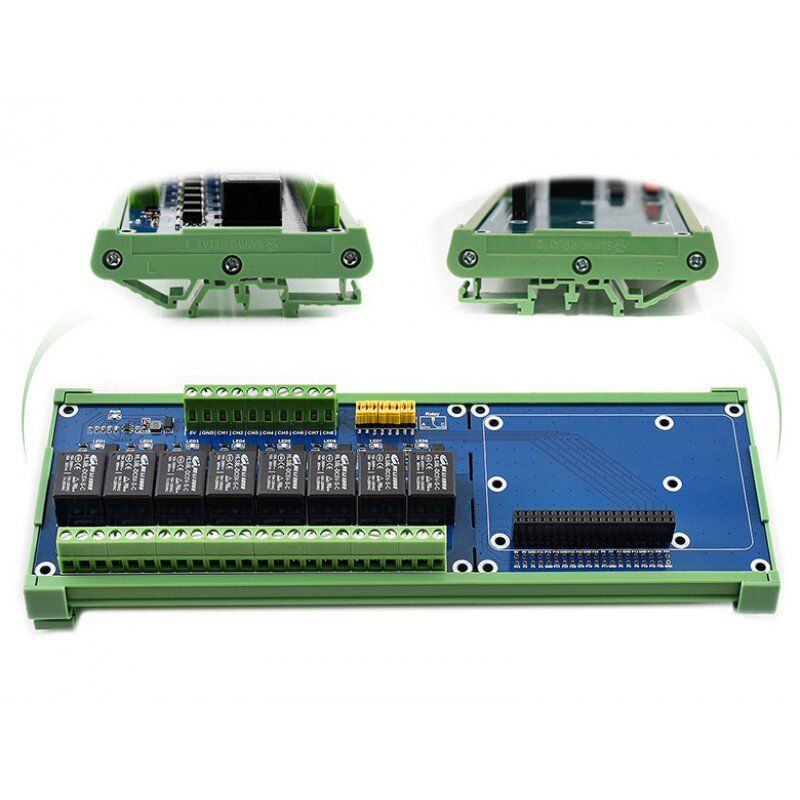

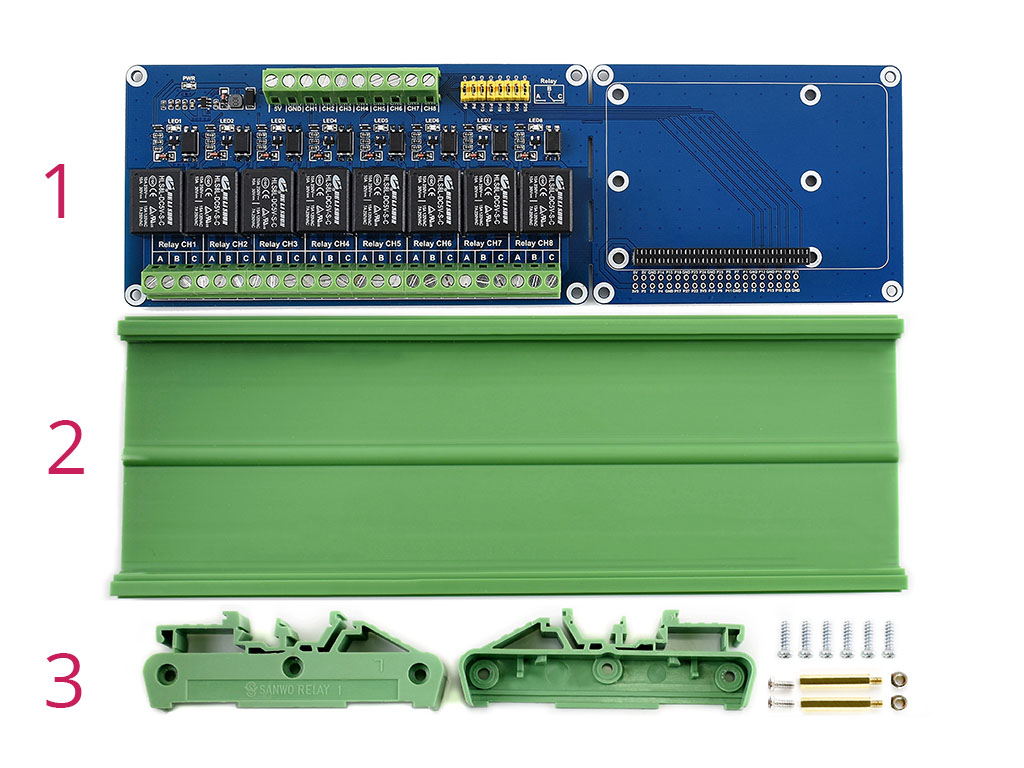

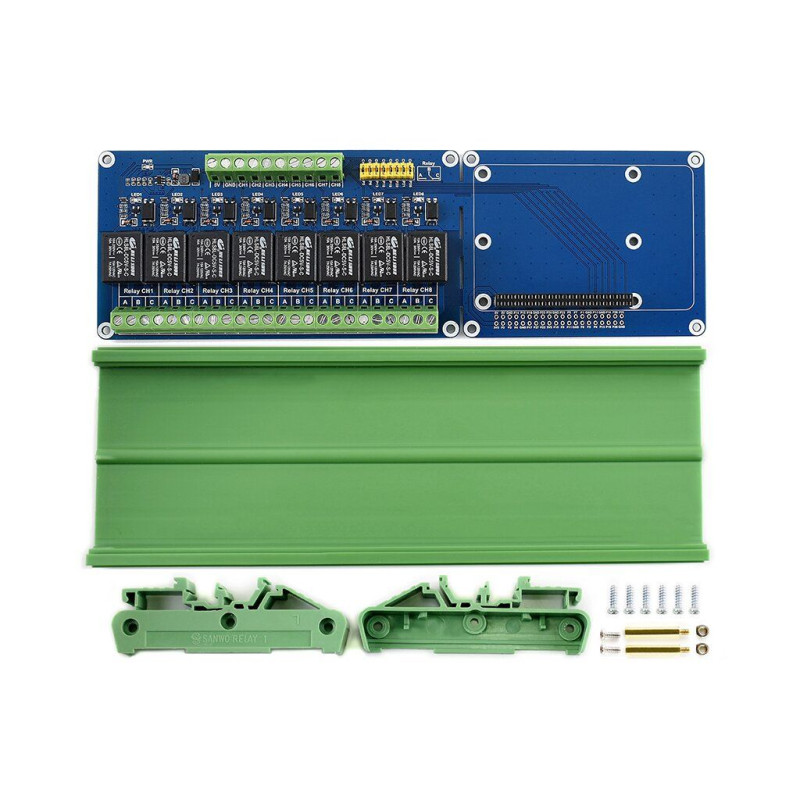

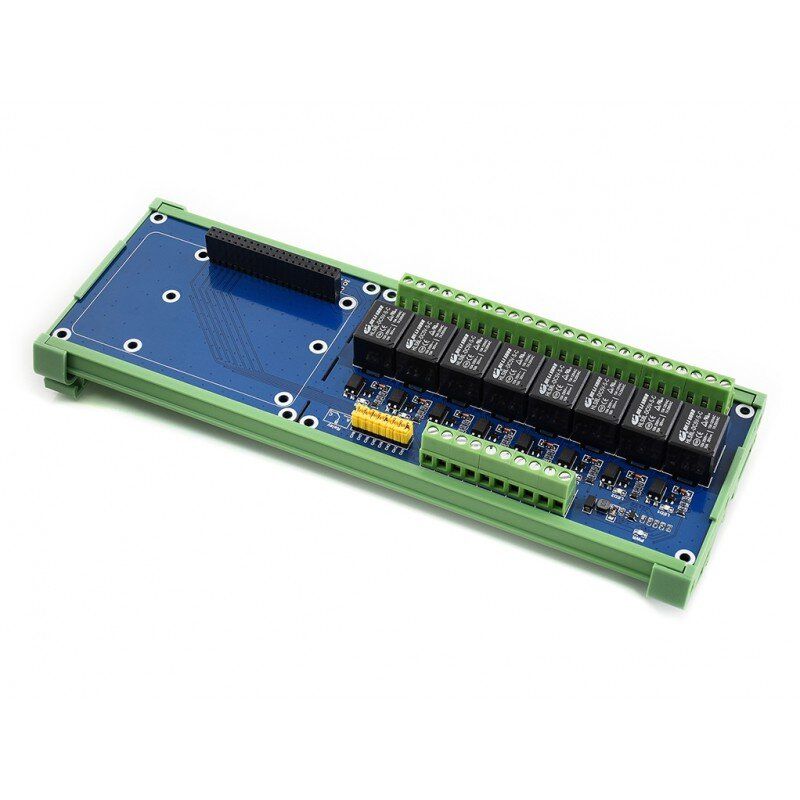

Standard lower housing for rail mounting
Built-in LEDs for relay status indication
Relay control contact selection jumper, allows the relay to be controlled using user-defined contacts other than the default contacts
Reserved control interface, allows operation with controllers such as PLC (programmable logic controller)
Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (web console) and crontab (cron job)

Specifications:

Supply voltage: 5 В
Critical signal: 3.3 V / 5 V
Relay channels: 8
Relay contact diagrams: SPDT-NO, NC
Closing current: 6 mA (per channel)
Connector: screw terminal block
Dimensions: 232 × 72 (mm)
Diameter of the mounting hole: 3.0 mm

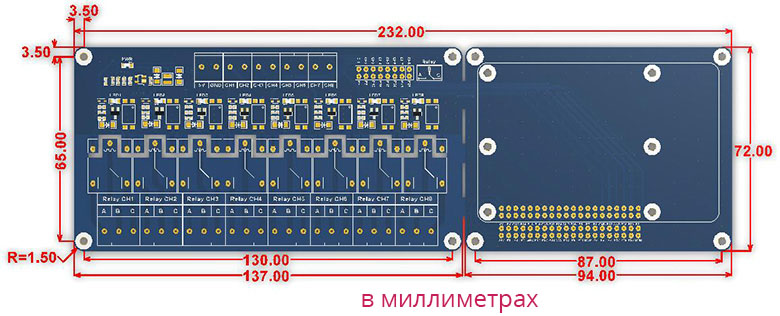

overall dimensions
