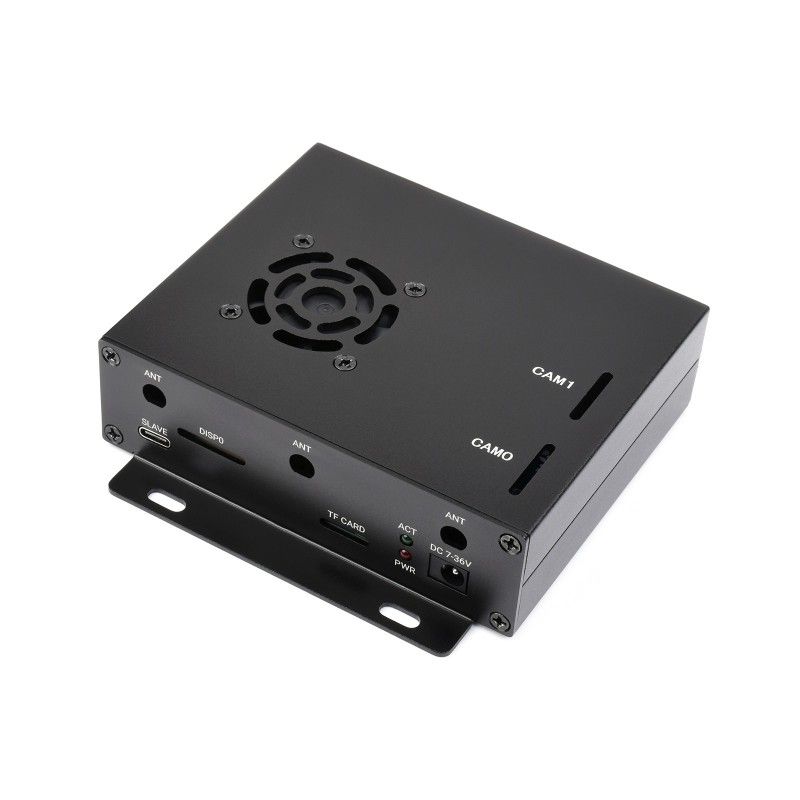

Raspberry Pi Compute Module 4 WiFi6 Dual ETH Mini-Computer (23808)

The Raspberry Pi Compute Module 4 WiFi6 Dual ETH Mini-Computer (23808) is a mini-PC kit that includes an expansion board and a protective case. The Raspberry Pi Compute Module 4 WIFI6 Dual ETH Base Board (23589) is an expansion board specially designed for use with the Raspberry Pi Compute Module 4 (CM4). It's important to note that the CM4 itself is not included in the package and must be purchased separately.

This board has two Ethernet connectors that allow you to connect your devices to a network using an Ethernet cable. In addition, it supports WiFi 6 (802.11ax) technology, which provides high speed and stable wireless network connections. This makes the board ideal for projects that require fast and reliable network connectivity.

In addition, the board has an M.2 E KEY slot that allows you to connect M.2 expansion modules, such as those supporting SSDs or other functionalities. This opens up great opportunities for expanding memory, increasing storage speed, or connecting specialized devices to the system.

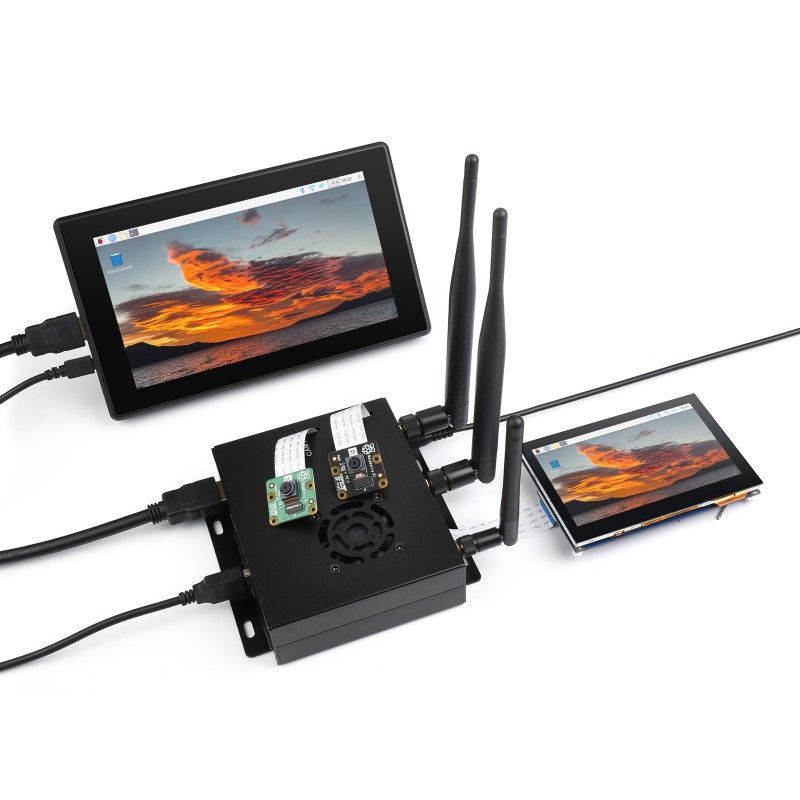

The WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4 is a powerful expansion board that adds Ethernet, WiFi 6, and M.2 expansion capabilities to the CM4. It is suitable for a variety of projects including networking devices, servers, IoT solutions, and more.

* For reference only, CM4 and WIFI module are NOT included.

Specifications

• CM4 SOCKET: Fits all Compute Module 4 variants
• NETWORK: Gigabit Ethernet RJ45 × 1 connector; 100M Ethernet RJ45 × 1 connector
• USB: USB 2.0 × 3 port
• PCIE: M.2 E KEY
• PIN: 40-pin GPIO connector × 1
• DSI DISPLAY: MIPI DSI display port × 1, 15-pin 1.0 mm FPC connector
• CSI CAMERA: MIPI CSI-2 × 2 camera port, 15-pin FPC 1.0 mm connector
• HDMI: HDMI × 2, support 4K 30fps output
• RTC: real-time clock with battery socket and Compute Module 4 output
• TF CARD SLOT: TF card slot for Compute Module 4 Lite variants (without eMMC)
• POWER INPUT: 7V-36V
• DIMENSIONS: 109.0 × 91.5 mm

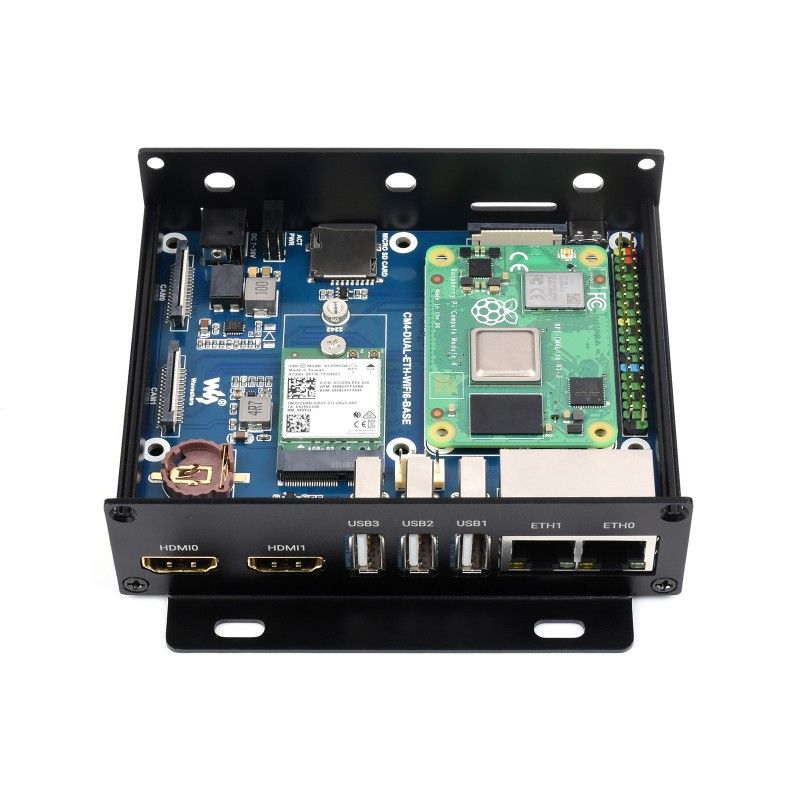

Connecting to Compute Module 4
Standard CM4 connector and Raspberry Pi 40PIN GPIO color connector
Suitable for Compute Module 4 Lite/EMMC series modules

* For reference only, CM4 and WIFI module are not included

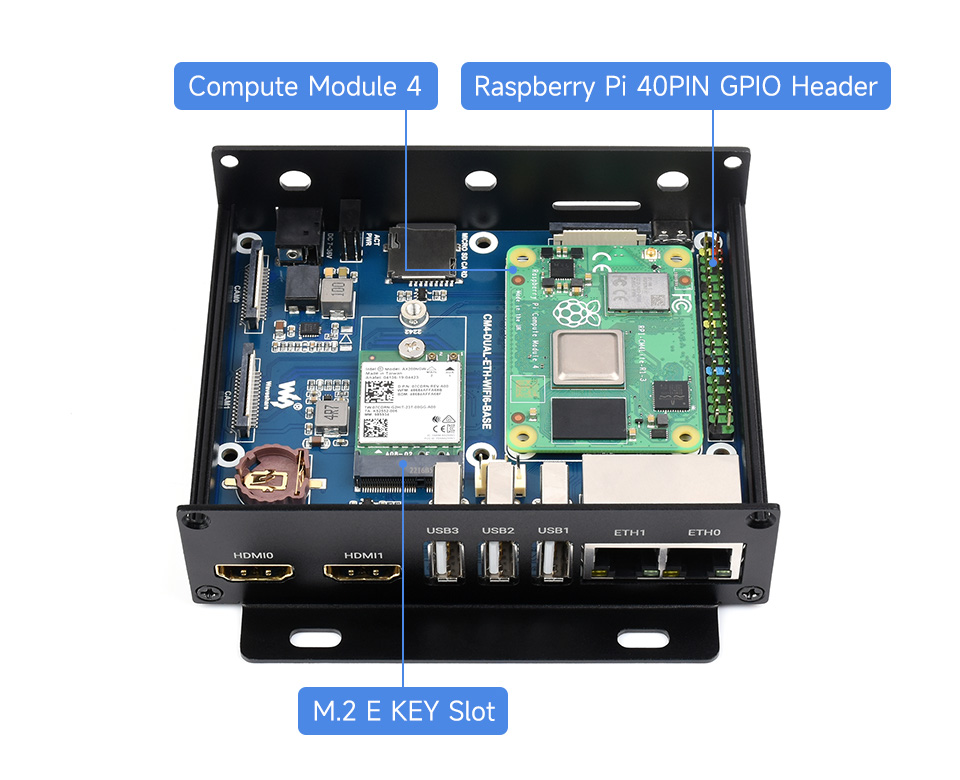

Built-in M.2 E KEY slot
Supports access to WIFI modules such as AX200, AX210 Wireless NIC, etc.

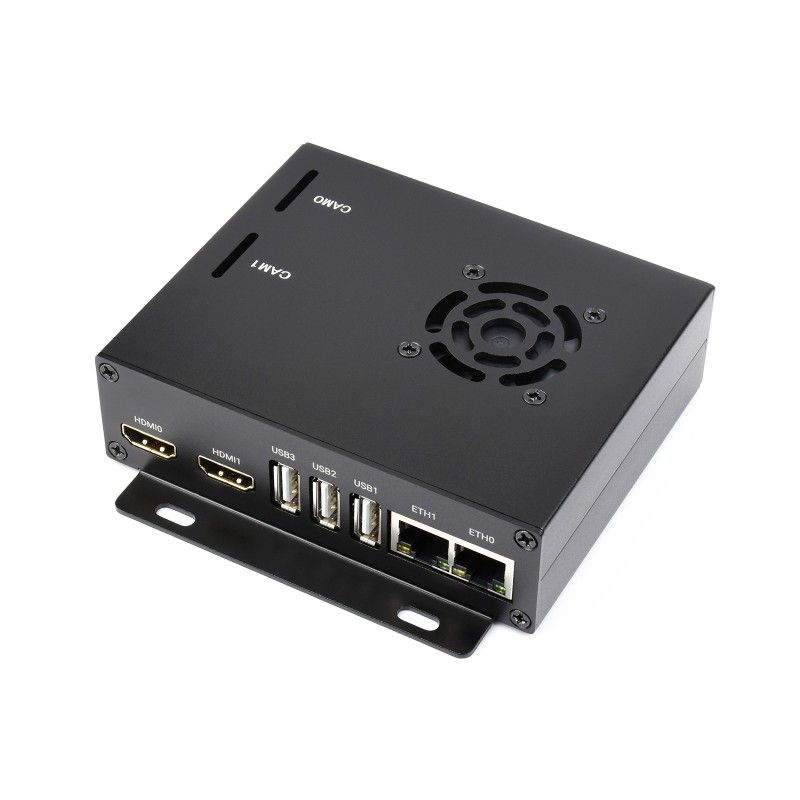

Dual RJ45 Ethernet connector
1-channel Gigabit Ethernet connector and 1-channel 100M Ethernet connector

Board Elements:

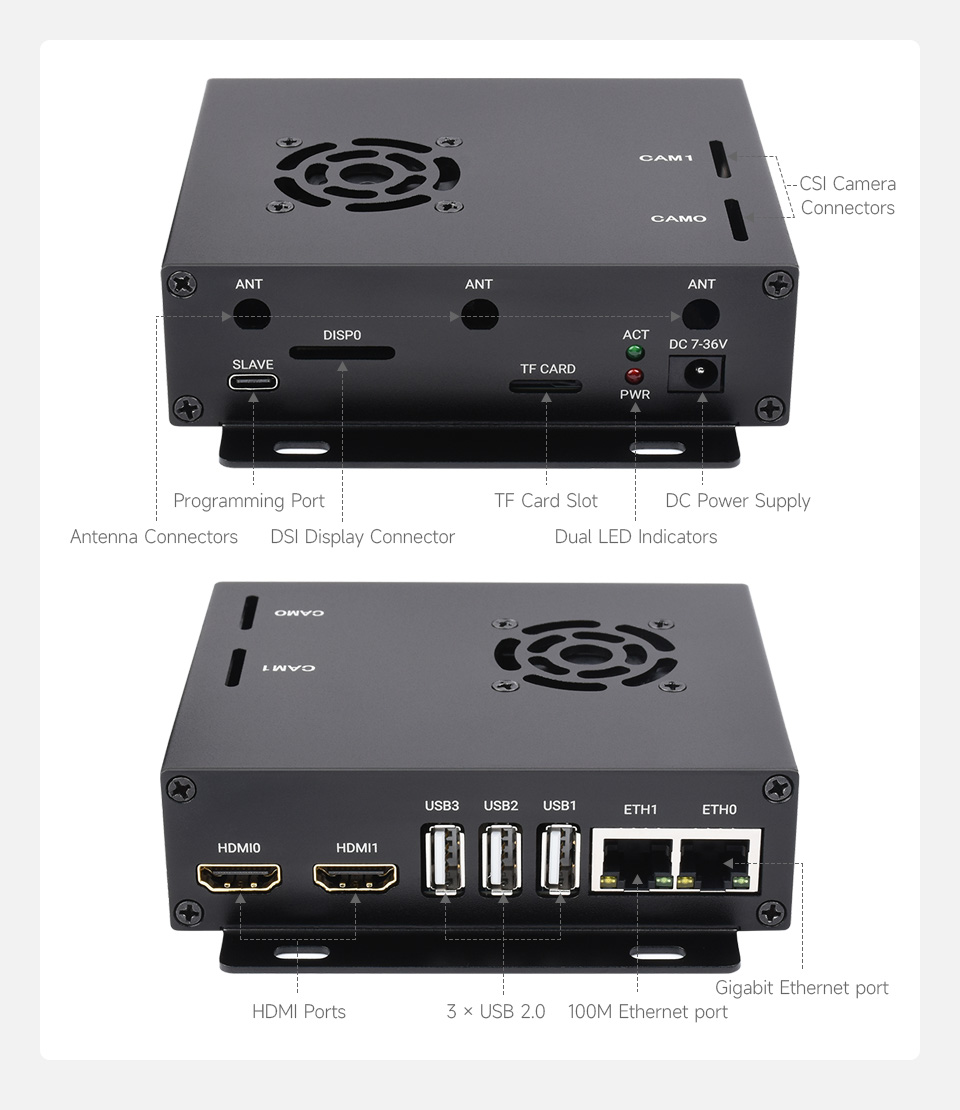

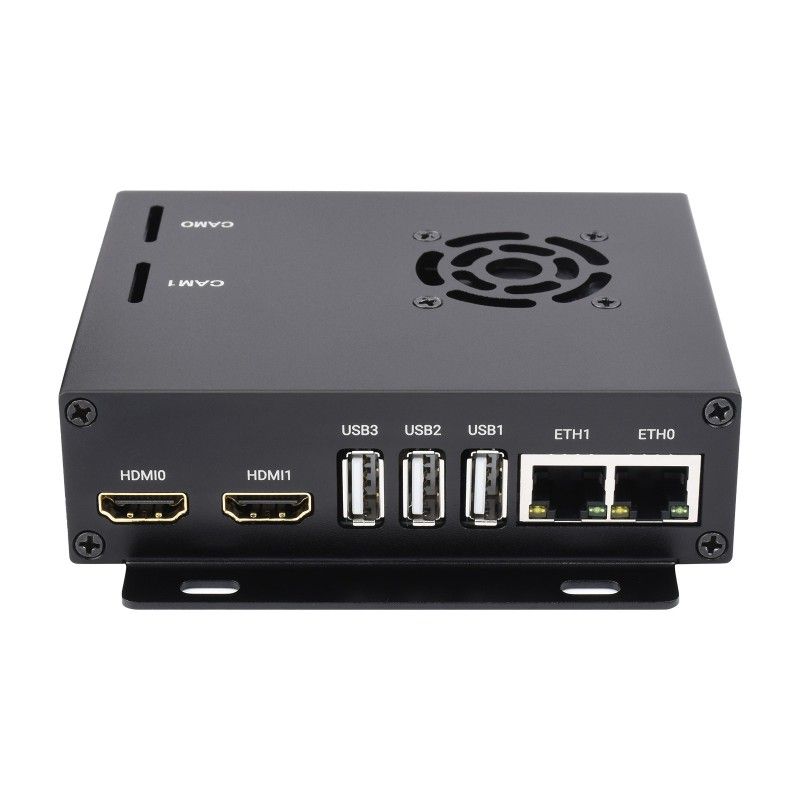

Precise cutout with clear label
Each cutout matches the connector exactly

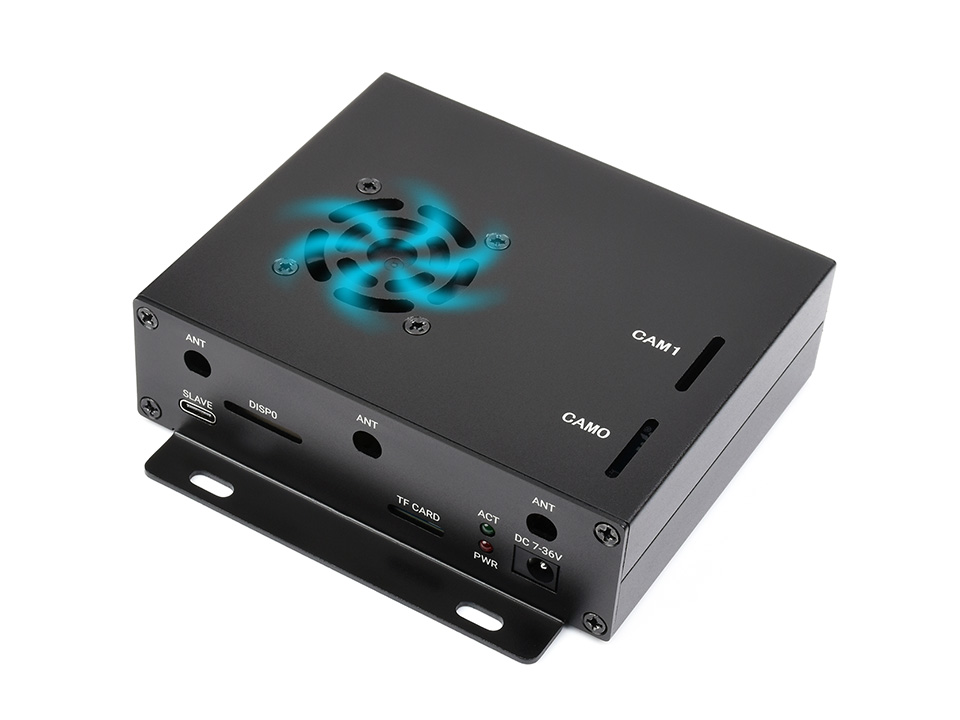

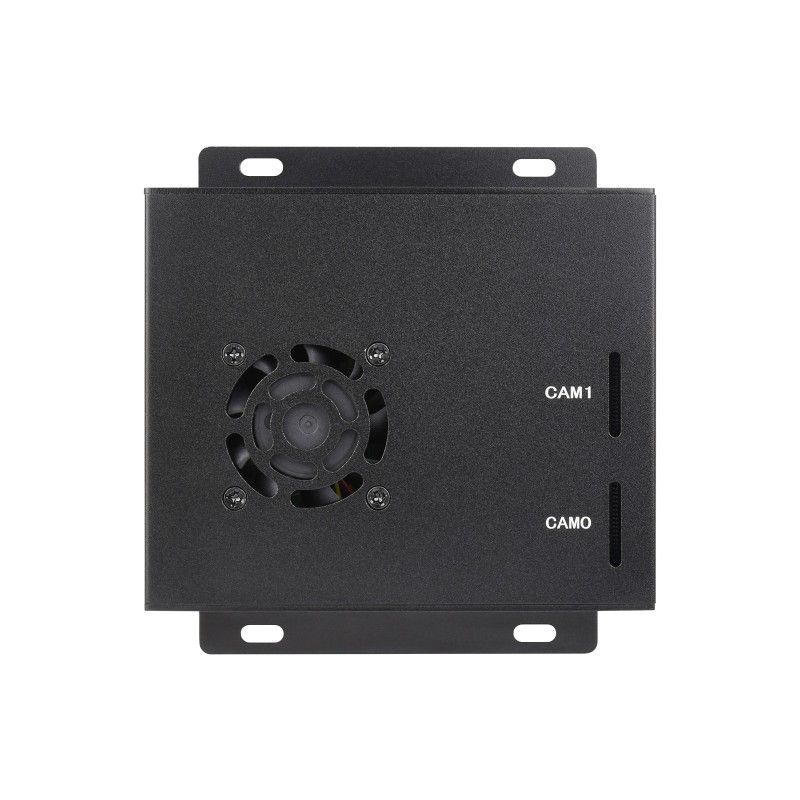

Cooling fan included
Comes with a cooling fan combined with a vent for better heat dissipation

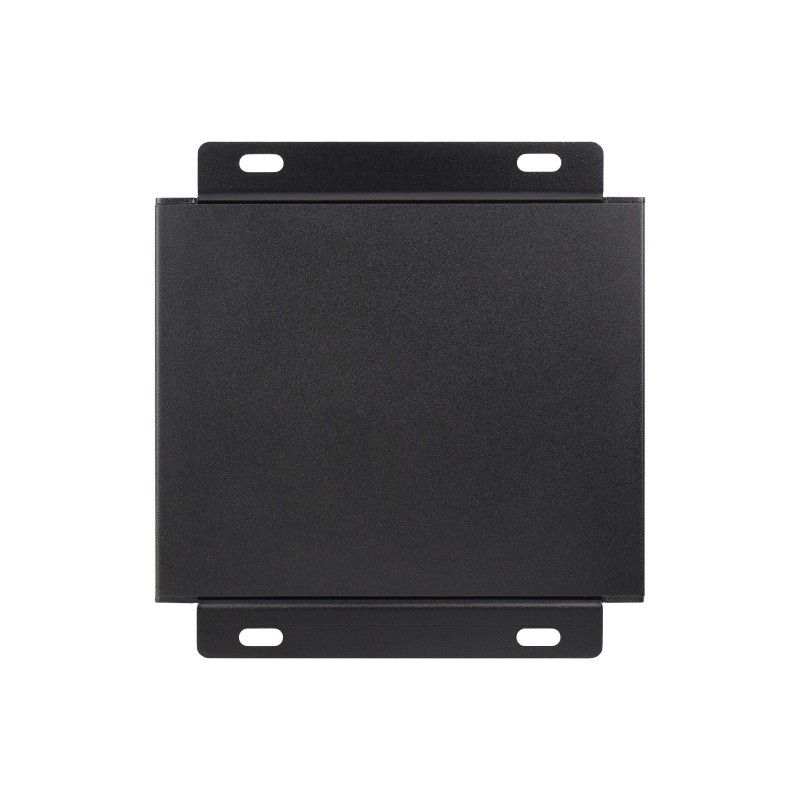

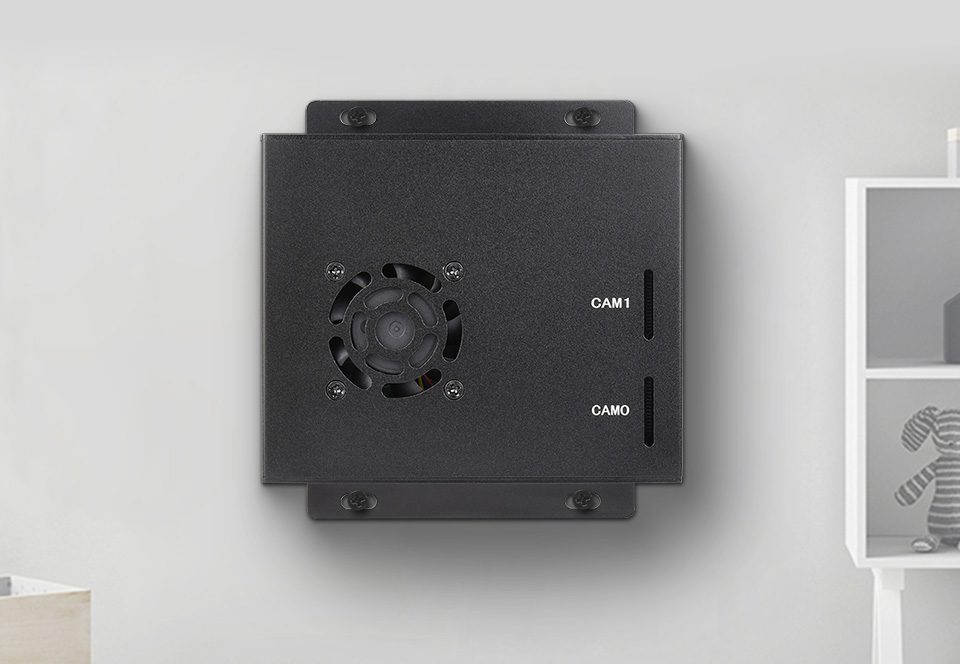

Support for wall mounting
Wall mounting holes on both sides, convenient for mounting

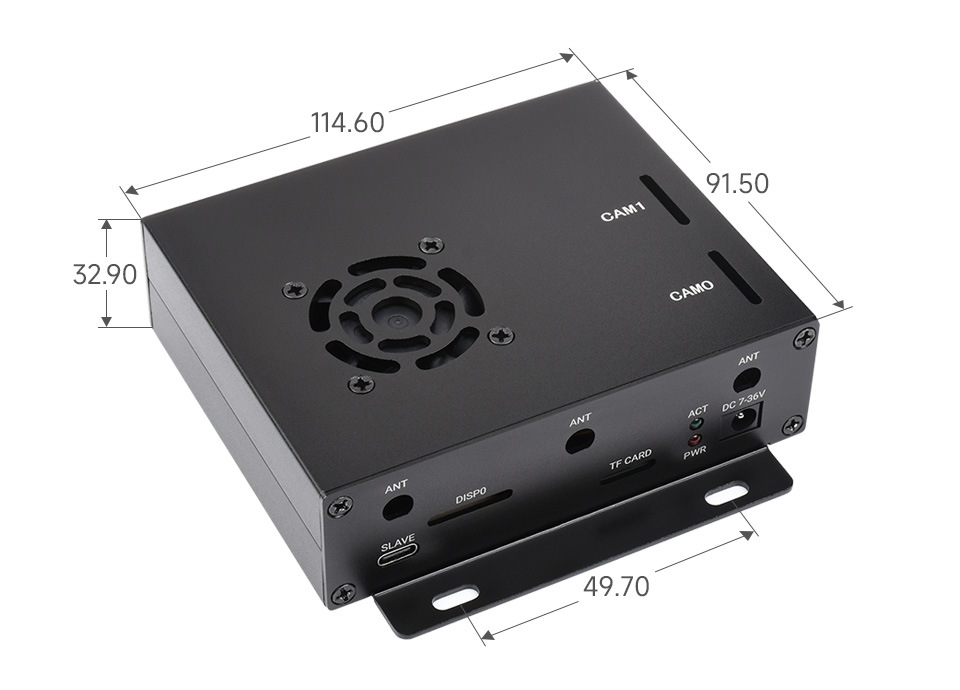

Overall dimensions: 114.6mm x 91.5mm x 32.9mm

WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-WIFI6-BASE

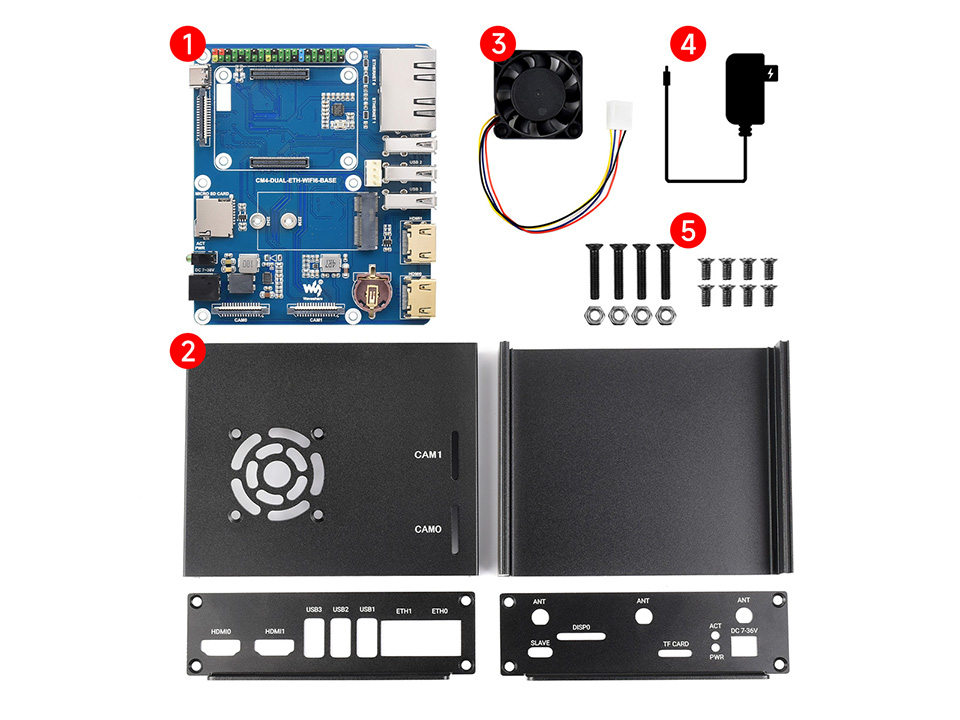

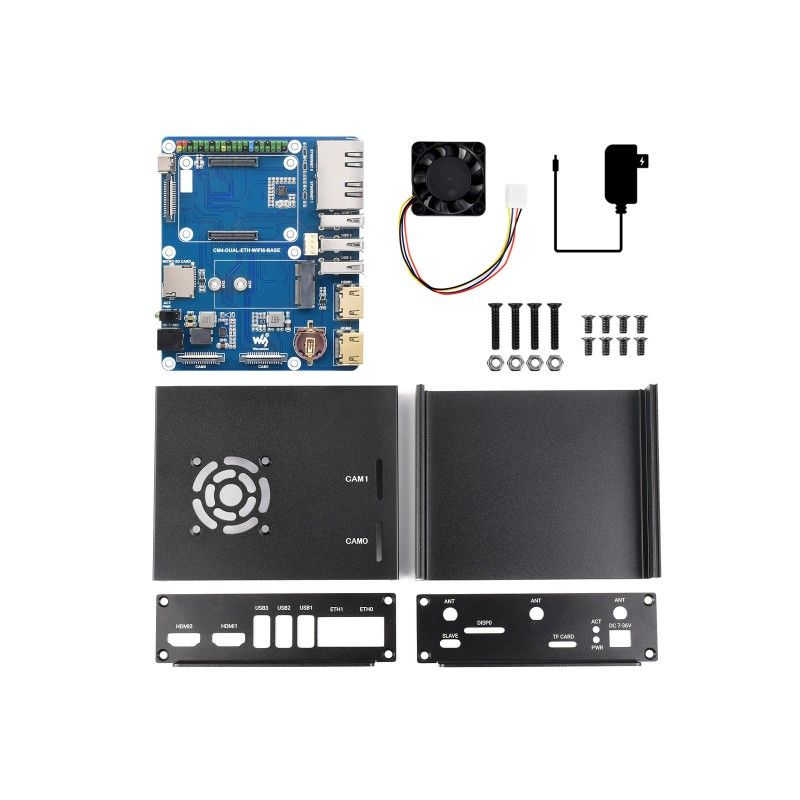

Scope of delivery:

1. CM4-DUAL-ETH-WIFI6-BASE x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-5V x1
4. Power supply 12 V 2 A x1
5. Package of screws x1

Weight: 0.441 kg
