Arducam 64MP PDAF & CDAF Autofocus Camera

Name: Arducam 64MP PDAF & CDAF Autofocus Camera
Brand: ArduCAM
SKU: V130575
Price: 51.50 GBP
Availability: OutOfStock

Brand: ArduCAM Product Code: V130575

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Arducam 64MP PDAF & CDAF Autofocus Camera

Out Of Stock

£51.50

Camera type:Camera module

Compatibility:Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi Zero/Zero W, RPi Compute Module 4

Country of origin:Made in China

Features:Auto-Focus

Interface (female):CSI/DSI

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Arducam 64MP PDAF & CDAF Autofocus Camera

£51.50

Description

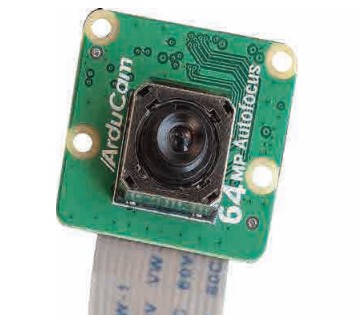

The Arducam 64MP PDAF & CDAF Autofocus Camera is a powerful 64 megapixel high-resolution camera module that features advanced PDAF (Phase Detection Autofocus, available from September 2023) autofocus technology. This camera delivers incredible image clarity and detail, making it an ideal choice for projects that require high quality footage, including video surveillance, research and scientific projects, robotics, and IoT devices.

Key features:

Resolution: 64 MP (9152x6944)
Autofocus: Supports PDAF technology for fast and accurate autofocusing
Image quality: High clarity and detail even in low light conditions
Interface: MIPI CSI-2 for reliable connectivity
Compatibility: Raspberry Pi and other single board computers

Specifications:

Optical size: 1/1.7 inches, 9.25 mm (7.4×5.55 mm) diagonal
Focusing type: manual/auto
Sensor resolution: 9152×6944
Color filter: Quad Bayer Coding (QBC)
Focus: 8 cmINF
Focal length: 5.1 mm

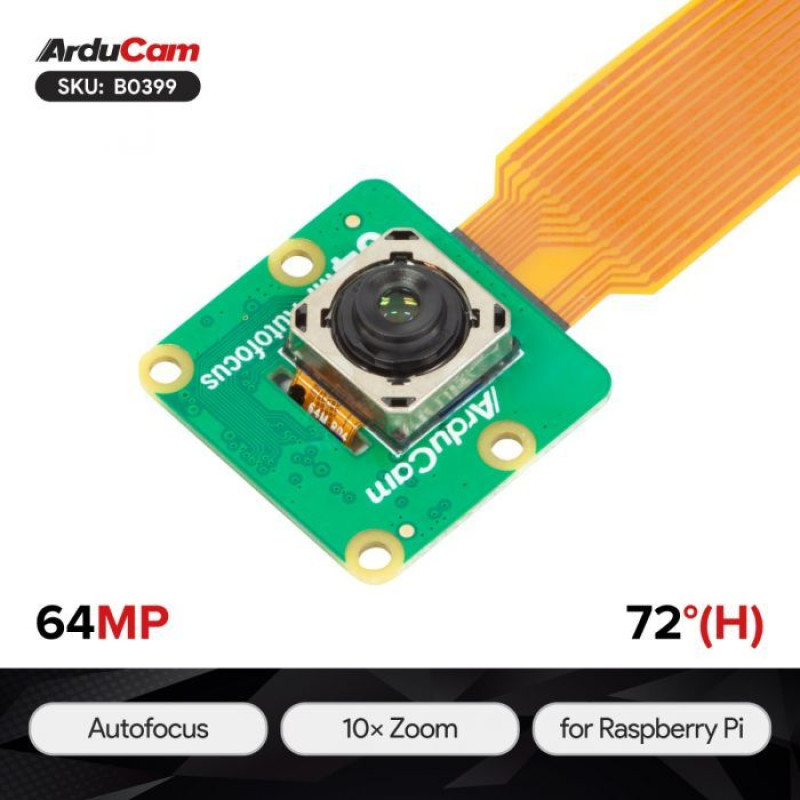

Viewing angle: 84 degrees (diagonally)
Sash type: roller shutter
Sensor output formats: RAW10
Video modes: (camera module)* 9152 ×[email protected], 8000 × 6000@3fps, 4624 × 3472@10fps, 3840 × 2160@20fps, 2312 × 1736@30fps, 1920 × 1080@60fps, 1280 × 720@120fps
Platform output format: JPEG/YUV/RGB/RAW10
Video modes (on Raspberry Pi): 1080p30, 720p60 and 640×480p60/90

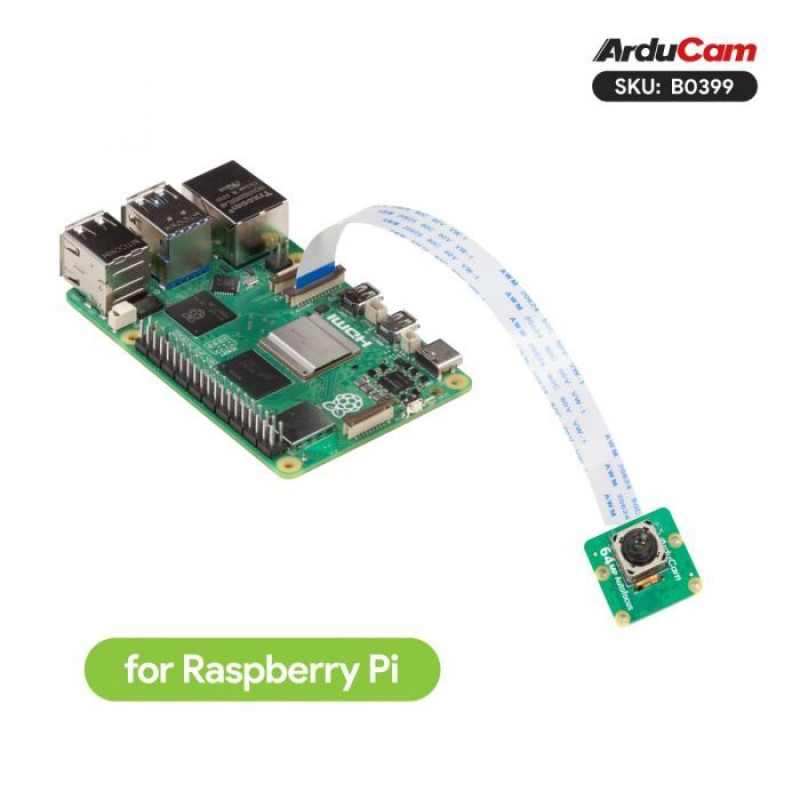

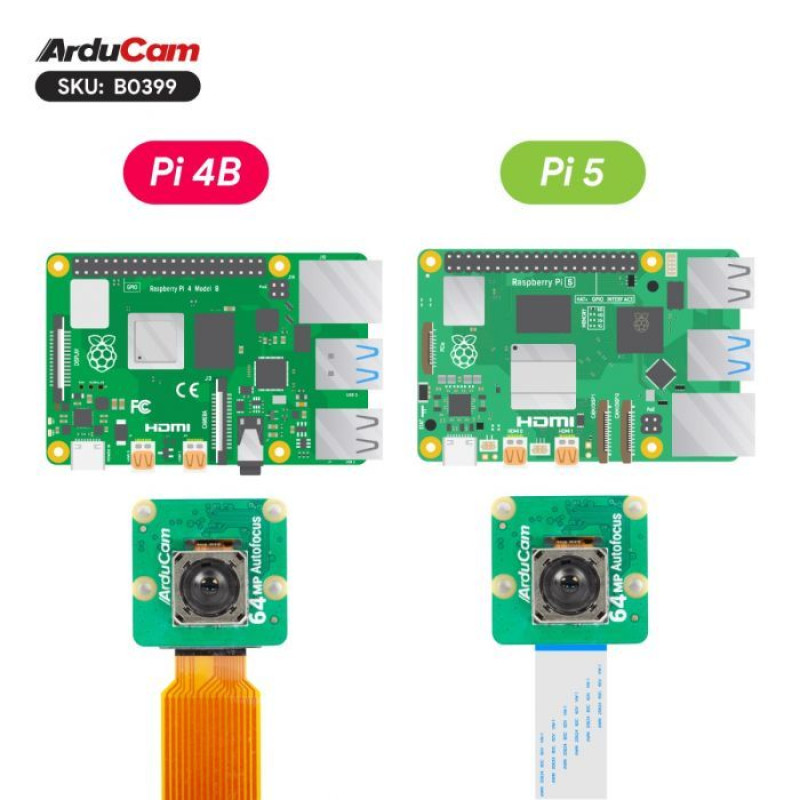

Supported Raspberry platforms: Pi 5/4B/Pi 2/3/CM3/CM4/Zero W/Zero 2 W
Raspberry Pi OS: bookworm/bullseye (32-bit/64-bit) 01/28/22 or later releases

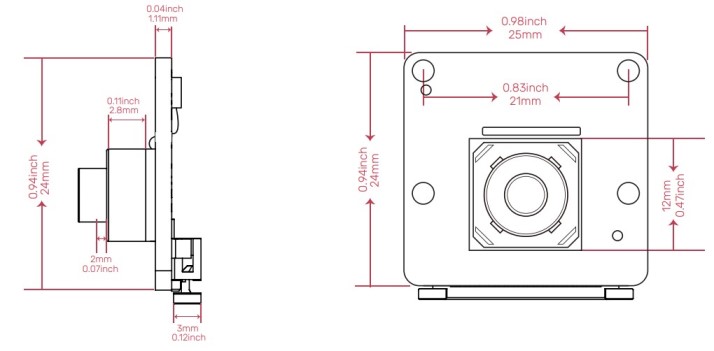

Overall dimensions: 24mm x 25mm

Wiki:

Using Raspberry Pi Camera with Your Smartphone

How to use Arducam 64MP autofocus camera on Octopi

How to use arducam 64MP camera on Raspberry Pi

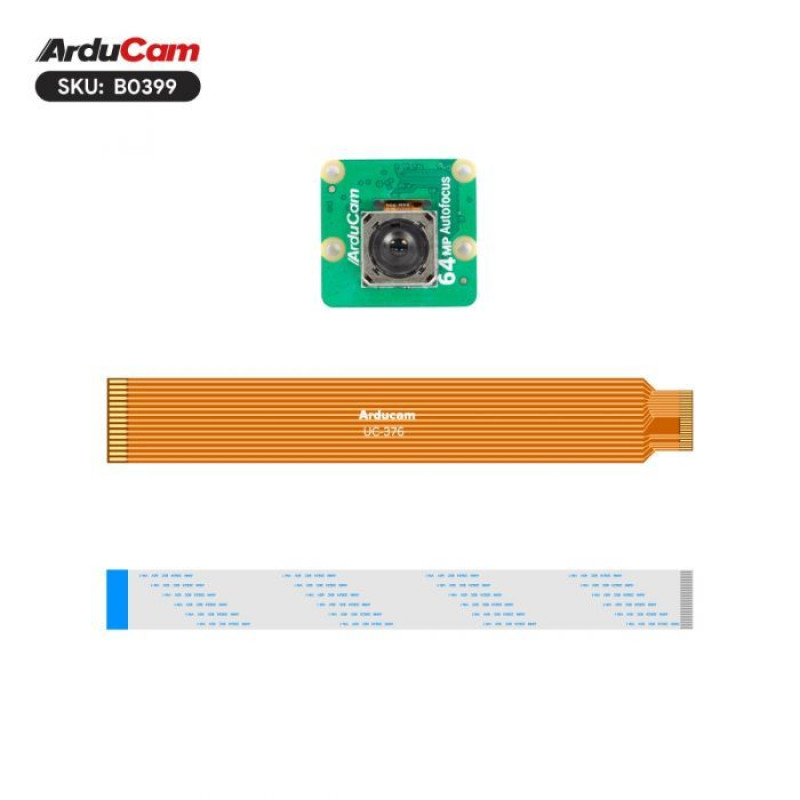

Package contents:

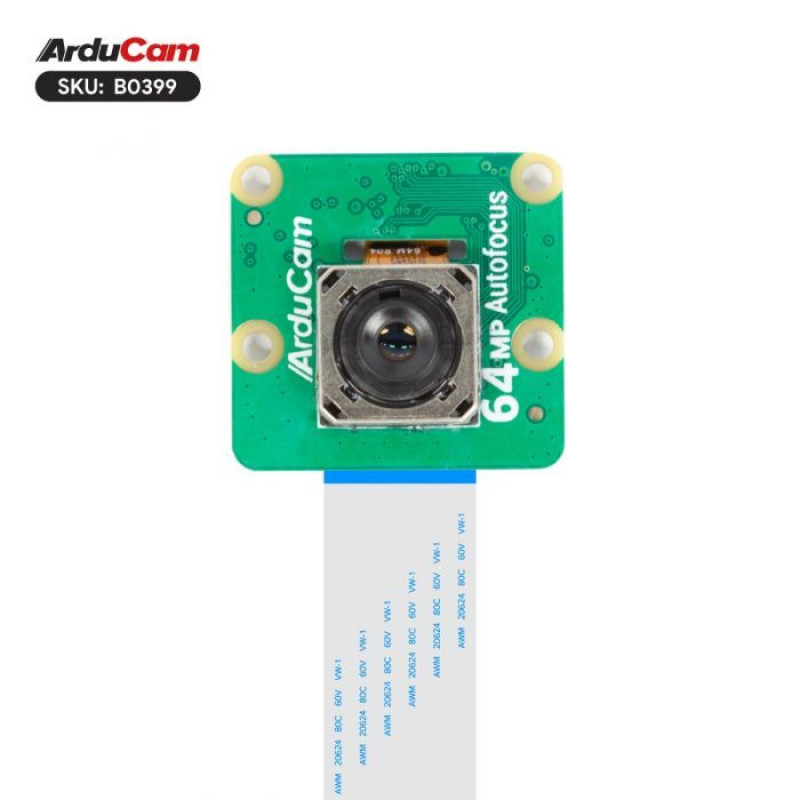

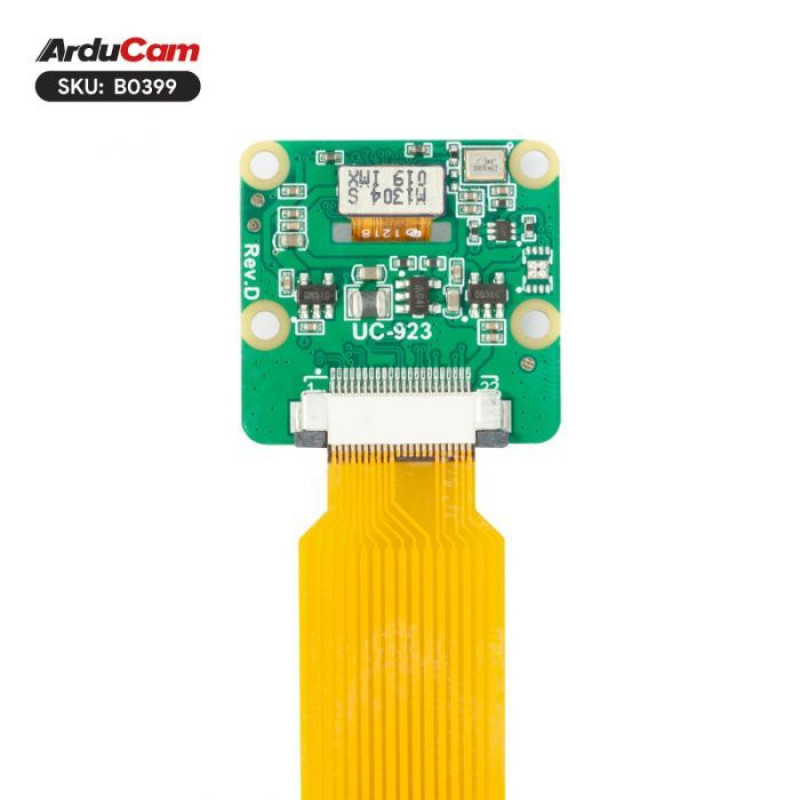

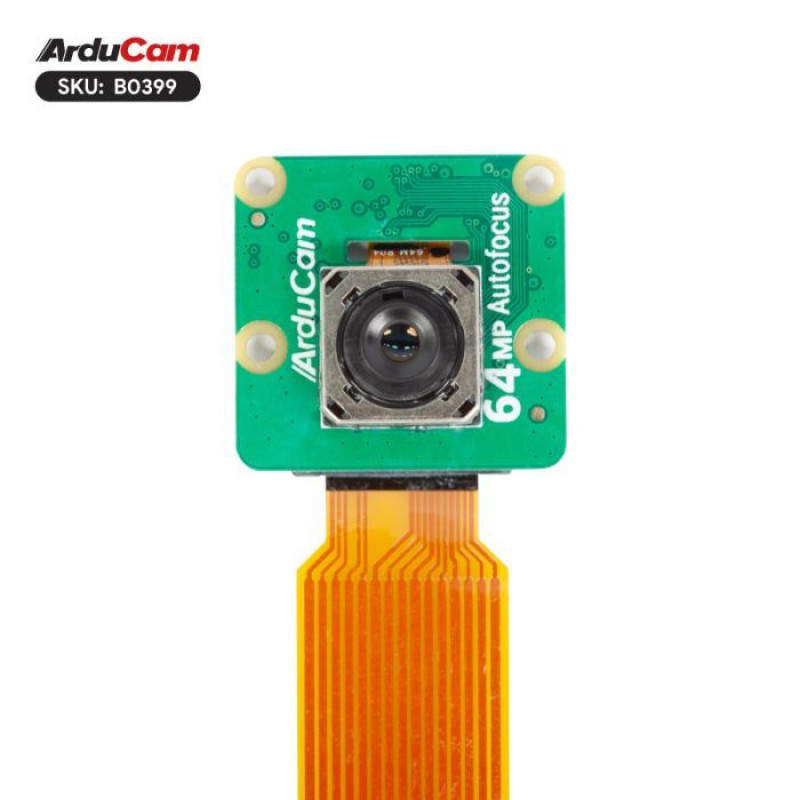

64MP-AF camera board x1
22-pin FPC cable (15 cm) for Pi 5, Pi Zero x1
FPC cable from 15 pins to 22 pins (15 cm) for Pi 4B, 3B+ x1

Specifications

Main characteristics

Camera type

Camera module

Compatibility

Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi Zero/Zero W, RPi Compute Module 4

Country of origin

Made in China

Features

Auto-Focus

Interface (female)

CSI/DSI

Reviews

There are no reviews for this product.
