PCIe TO USB 3.2 Gen1 HAT+ Adapter (26847)

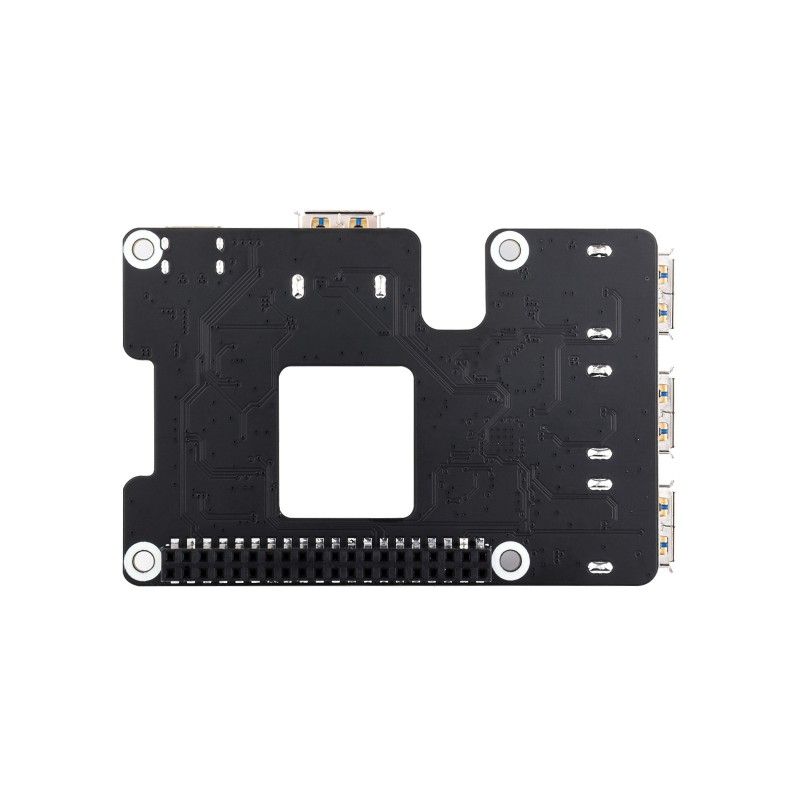

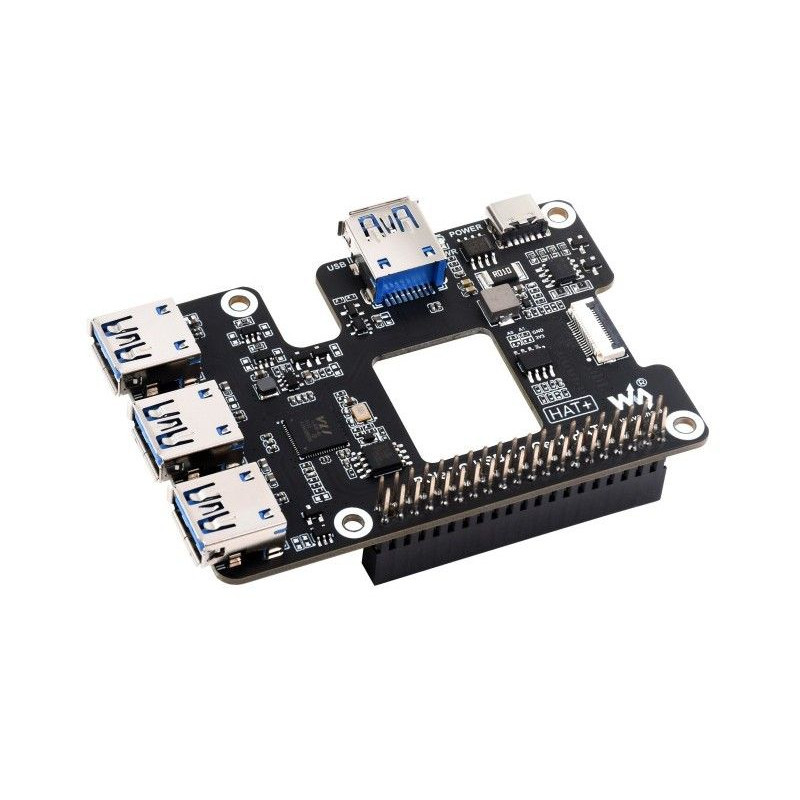

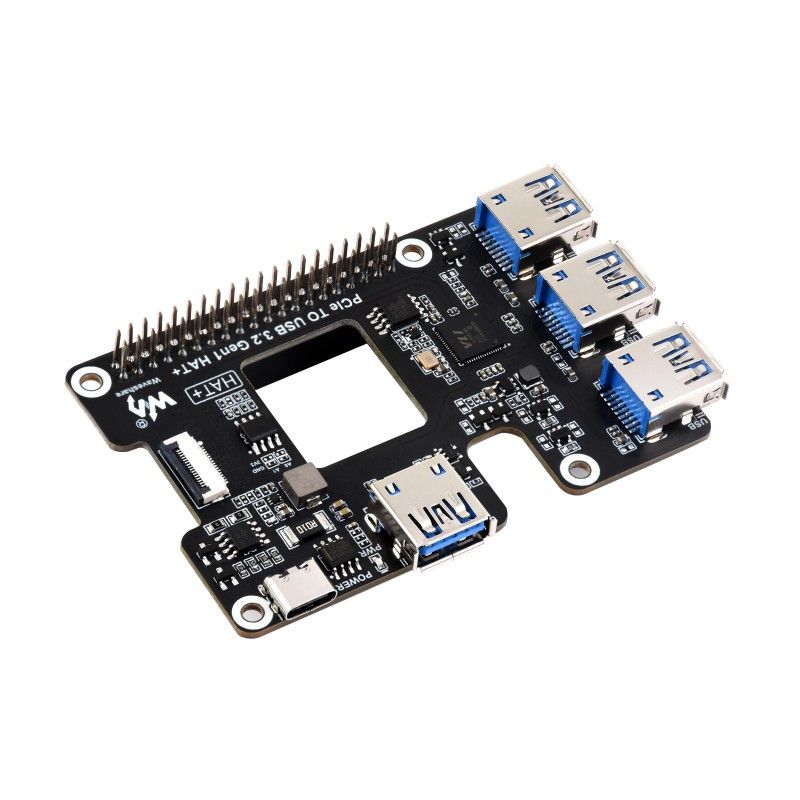

The PCIe TO USB 3.2 Gen1 HAT+ Adapter (26847 ) is a device that allows you to connect an extended set of USB ports to your Raspberry Pi 5 via the PCIe slot. It provides expanded USB device connectivity and high data transfer rates without the need to install additional drivers, making it an ideal choice for projects requiring more USB ports

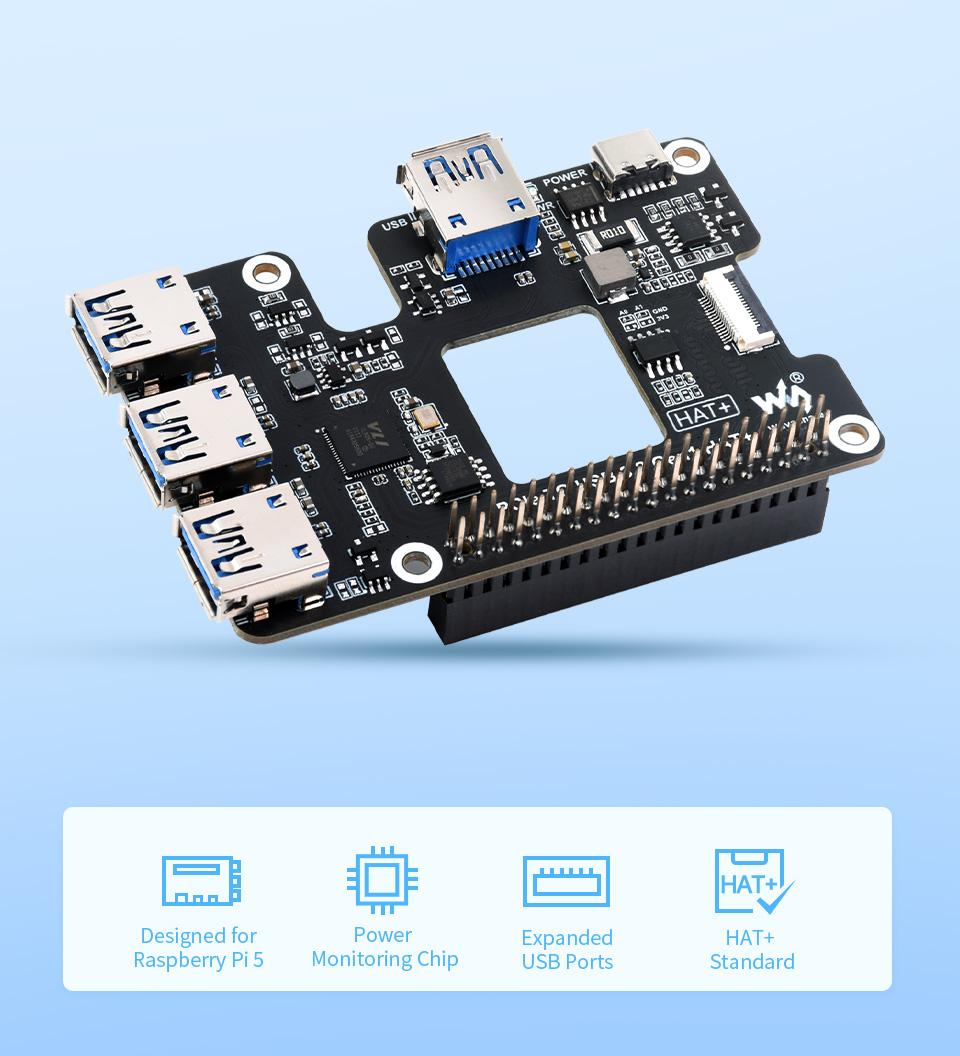

Key Features:

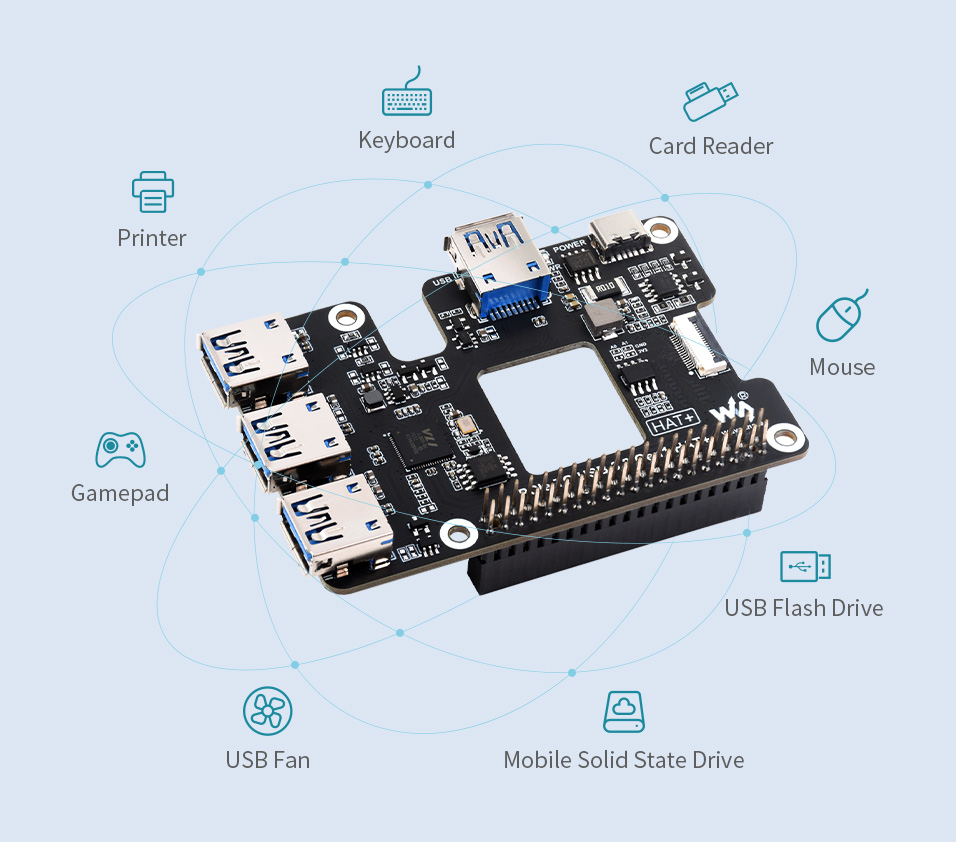

• USB port expansion: This adapter allows you to expand the ability to connect USB devices to your Raspberry Pi 5 by adding four high-speed USB 3.2 Gen1 ports. This provides more flexibility and options for working with external devices and peripherals.

• Plug and Play support: The adapter works without the need to install additional drivers. This means that you can plug your devices into the USB ports and they will be ready to use instantly, without any additional configuration or setup.

• Raspberry Pi 5 Compatibility: This adapter is specifically designed to be compatible with the Raspberry Pi 5, allowing you to easily integrate it into your system without compatibility issues or conflicts.

• HAT+ Standard Size: This adapter comes in a HAT format, which means it can simply be mounted on top of the Raspberry Pi 5, allowing you to easily integrate it into your project. It also comes in a standard size to ensure compatibility with other Raspberry Pi accessories and modules.

• High data transfer rate: The adapter supports USB 3.2 Gen1 speed, which allows you to transfer data at high speeds, which is especially useful for tasks that require fast data access, such as video capture, data storage, and more.

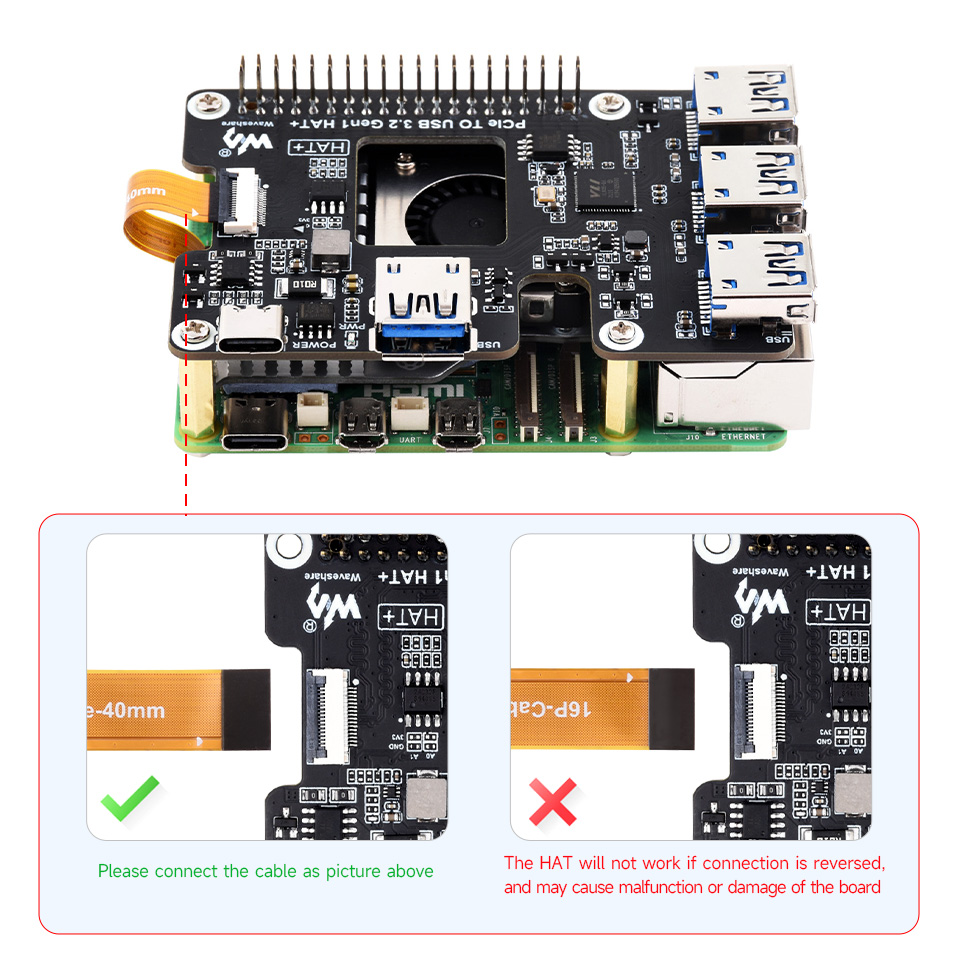

Connects to PI5 with a 16-pin cable based on the 16-pin PCIe Raspberry Pi 5 interface

Expands the PCIe interface to 4 high-speed USB 3.2 Gen1 ports for connecting more peripherals

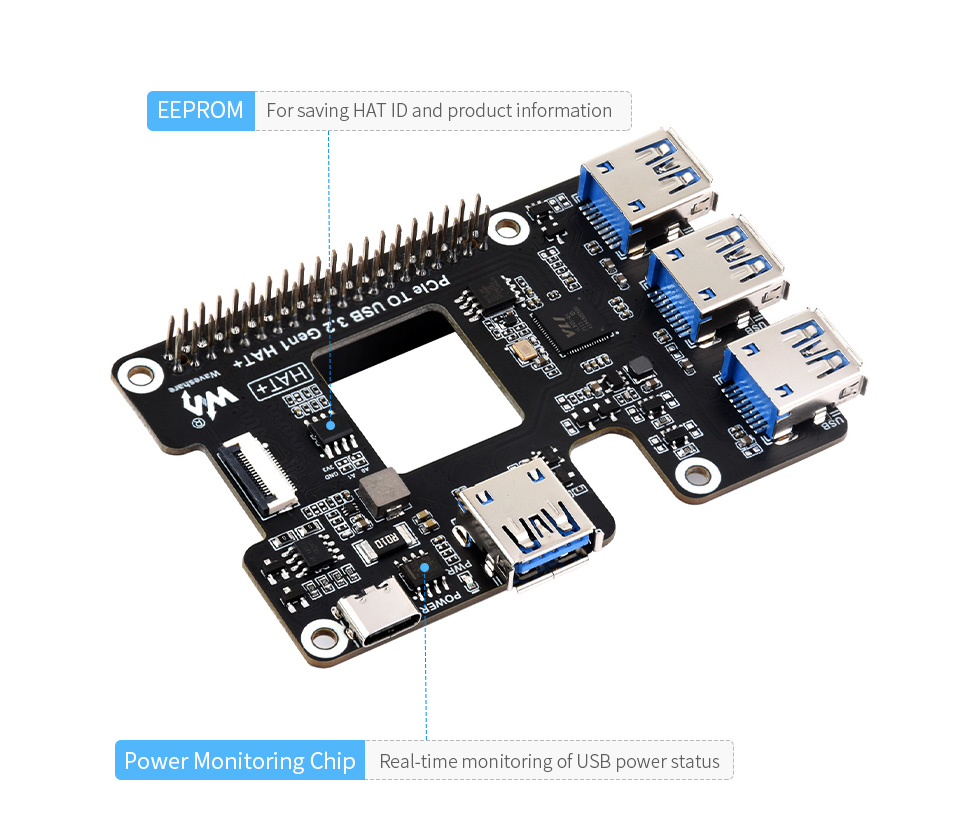

Has a built-in power monitoring chip and EEPROM. Real-time power status monitoring, supports software-based USB port power management.

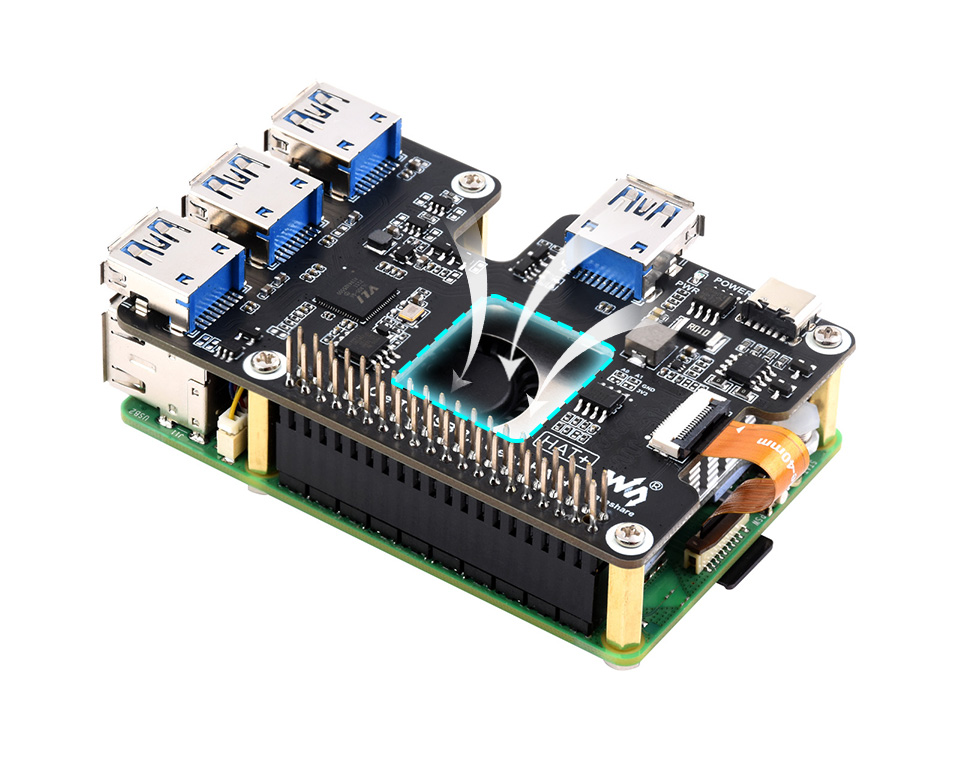

Reserved ventilation hole for cooling fan

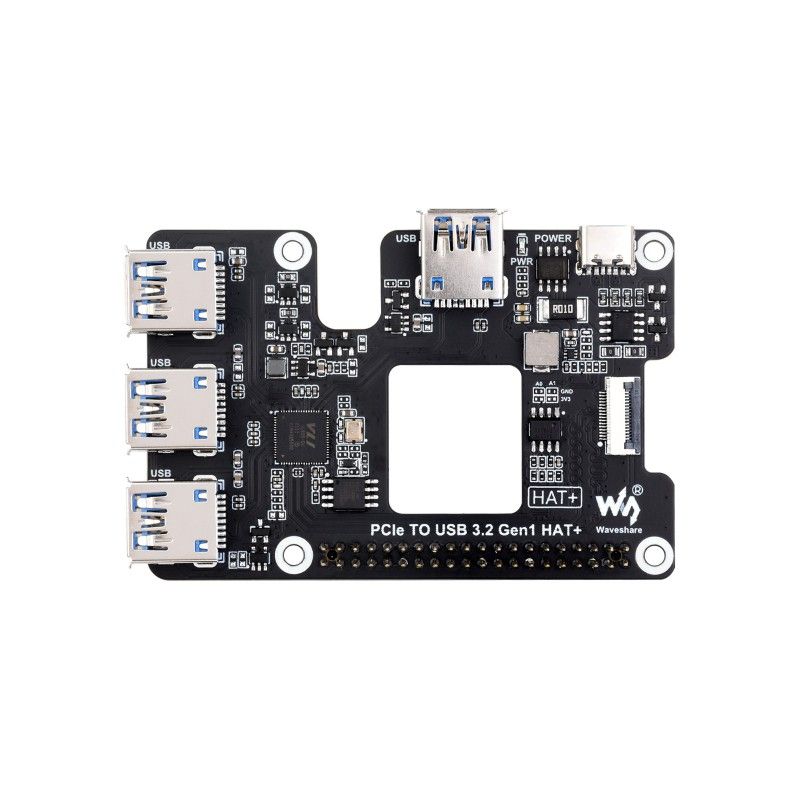

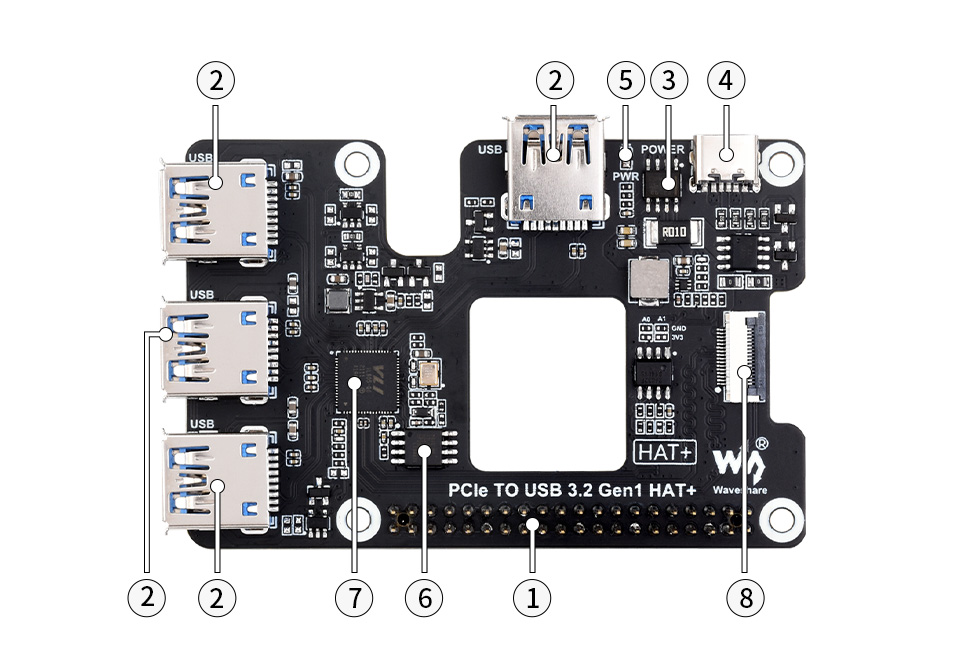

Board elements:

1. Raspberry Pi GPIO connector for connecting Raspberry Pi 5
2. Advanced USB 3.2 Gen1 ports - USB1USB4
3. INA219 - Power monitoring chip
4. Power port for external power supply type C 5 V DC
5. PWR LED - Power supply indicator
6. MX25L3206 - FLASH chip
7. VL805 - PCIe to USB 3.2 Gen1 HUB
8. PCIe interface for connection to the PCIe interface of the Raspberry Pi 5

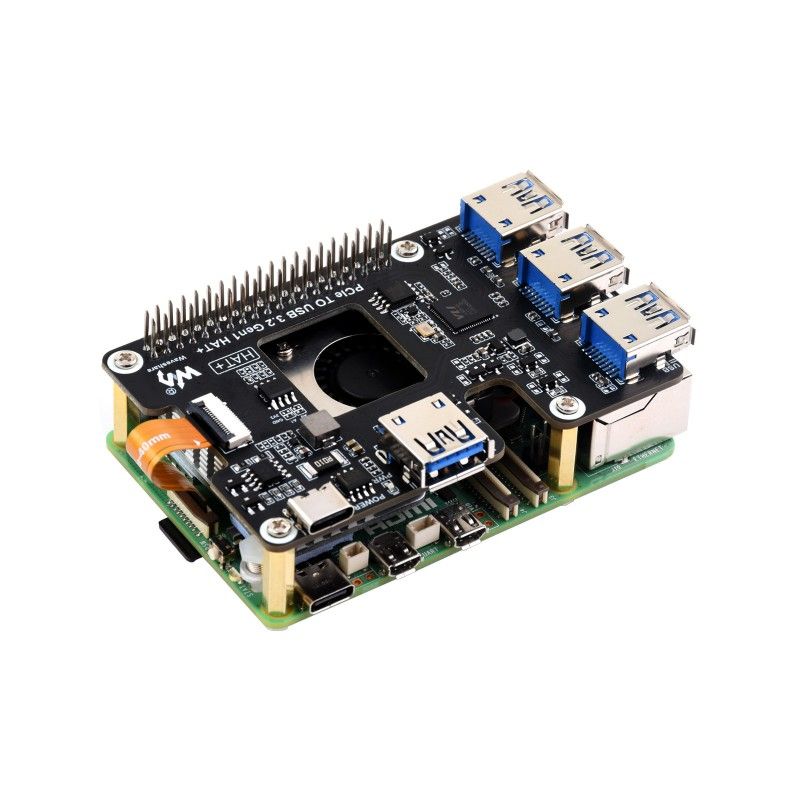

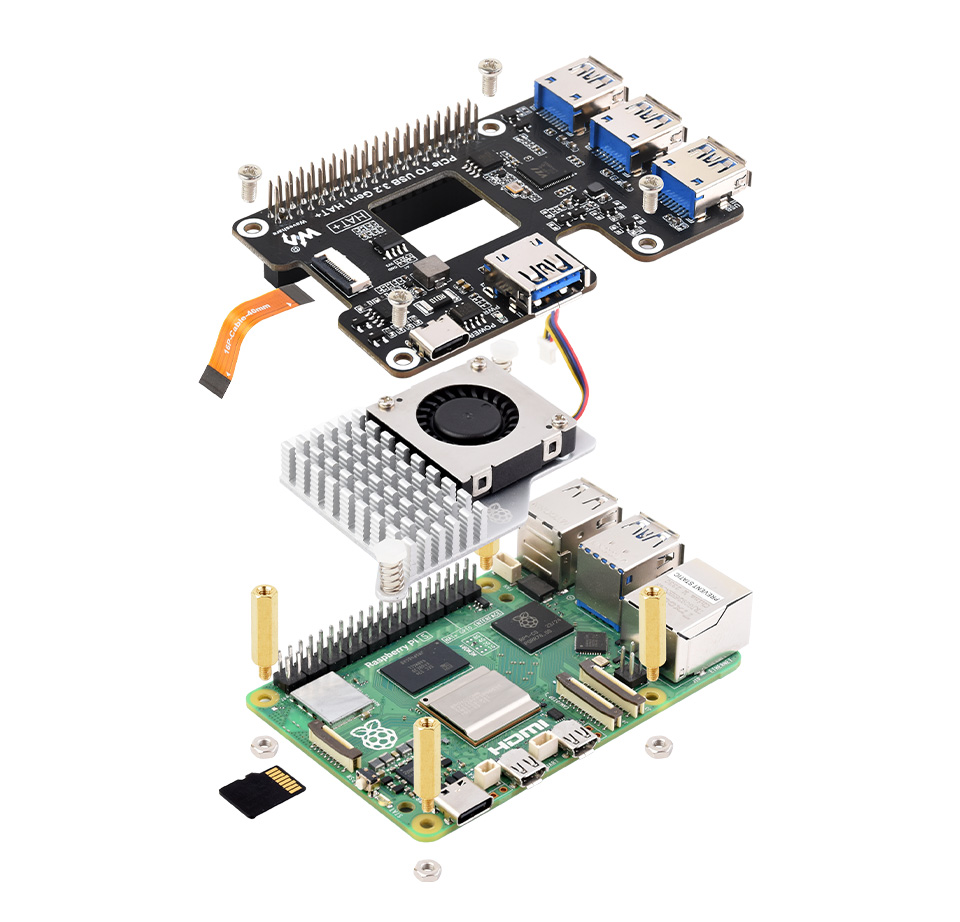

Installation procedure:

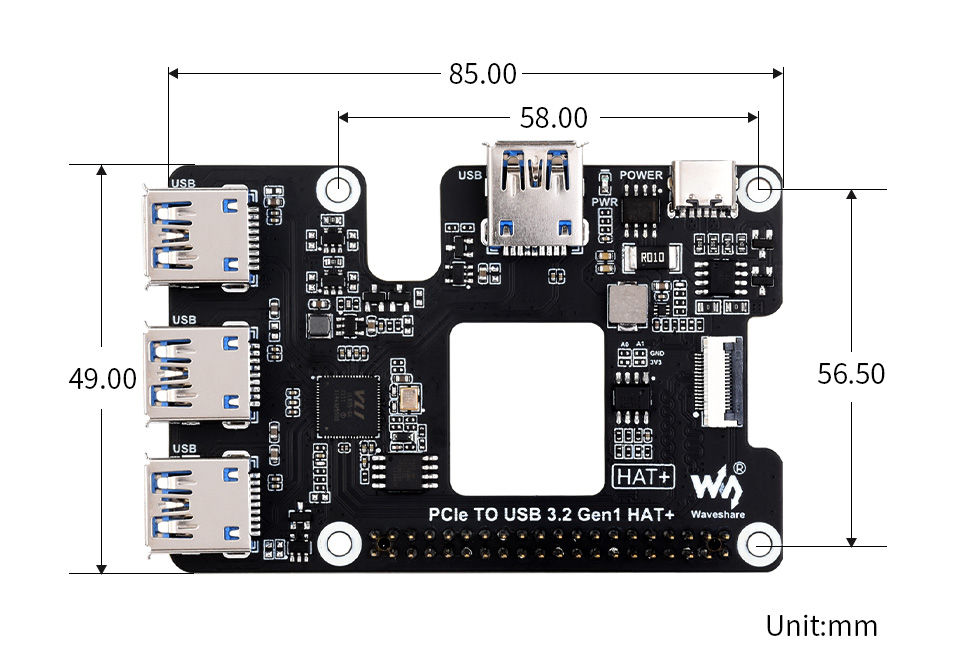

Overall dimensions: 85 mm x 49 mm

Wiki: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_HAT+

Weight: 0.017 kg

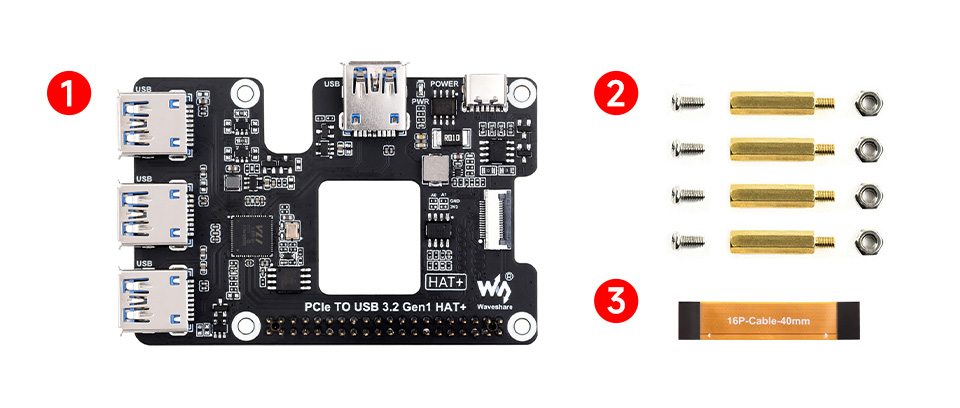

Scope of delivery:

1. PCIe TO USB 3.2 Gen1 HAT+ x1
2. Package of racks x1
3. 16P-Cable-40mm x1
