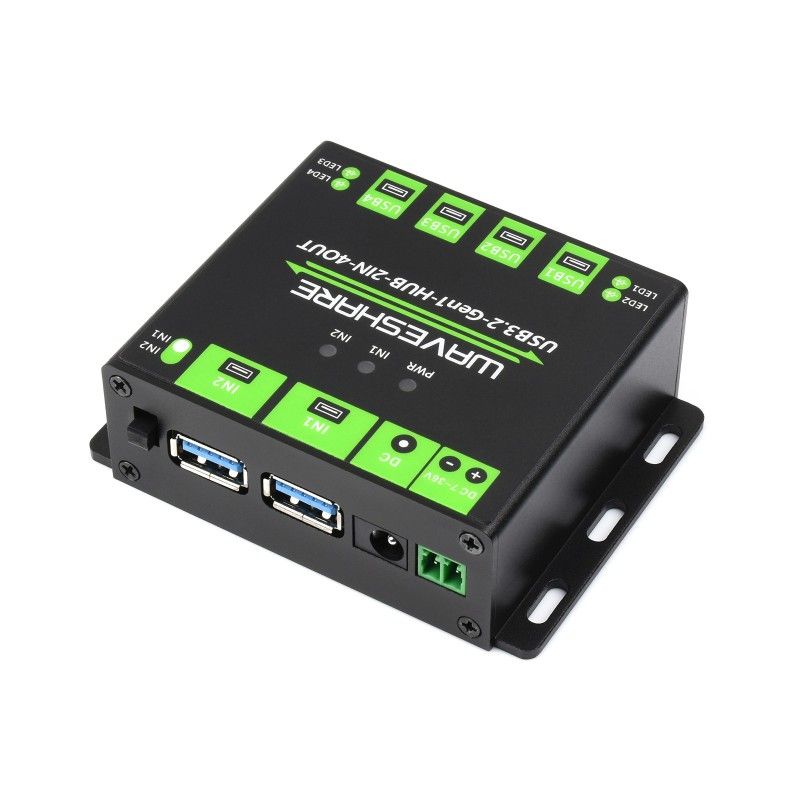

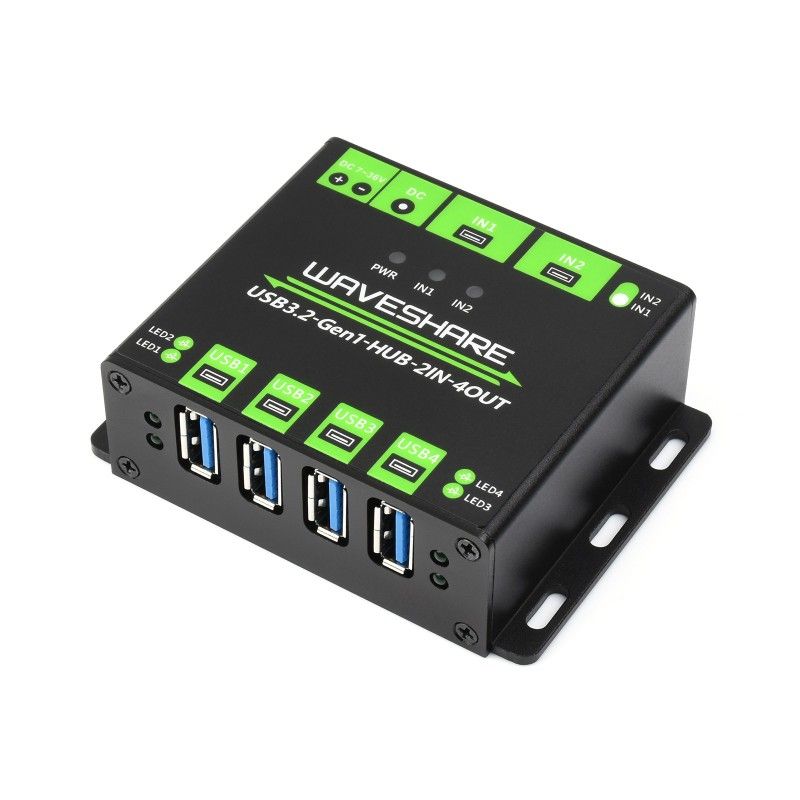

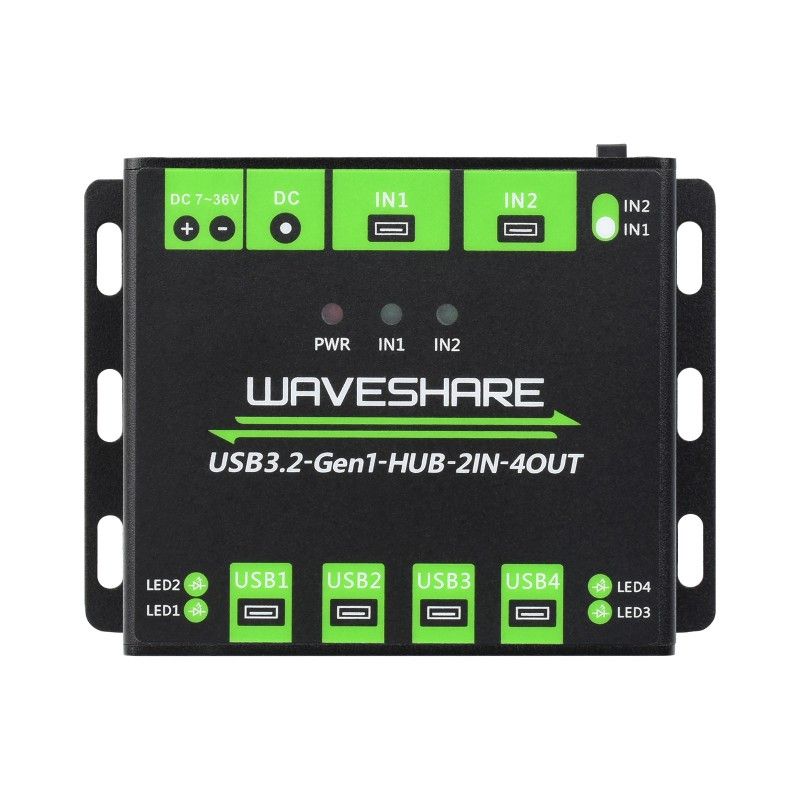

Industrial grade USB hub USB3.2-Gen1-HUB-2IN-4OUT (23929)

TheUSB3.2-Gen1-HUB-2IN-4OUT (23929) is an industrial-grade USB hub that supports USB 3.2 Gen1 and has two inputs and four outputs. It allows you to expand the number of USB ports on your device and connect up to four external USB devices simultaneously.

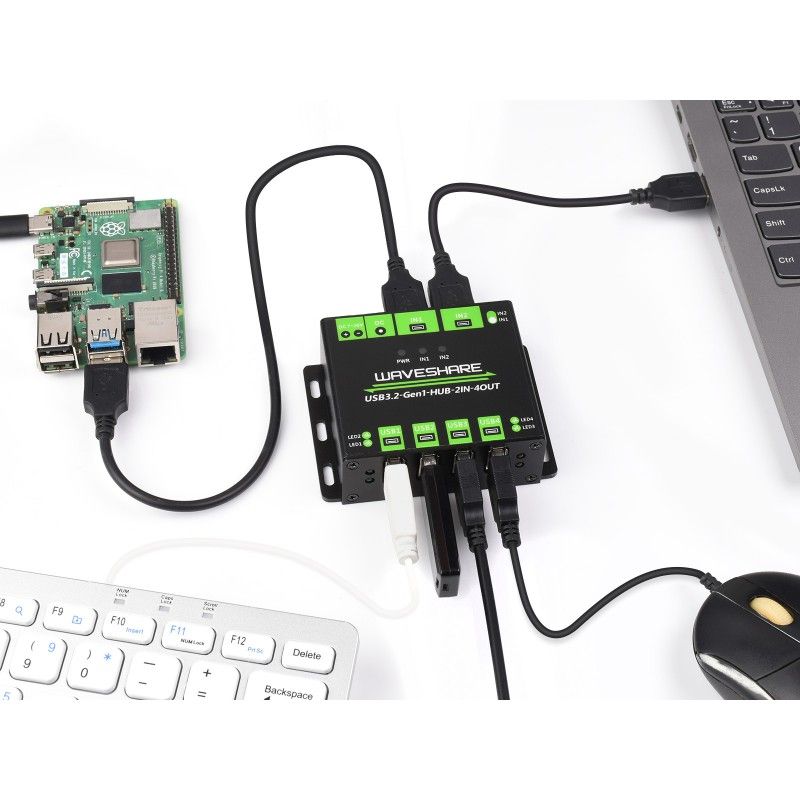

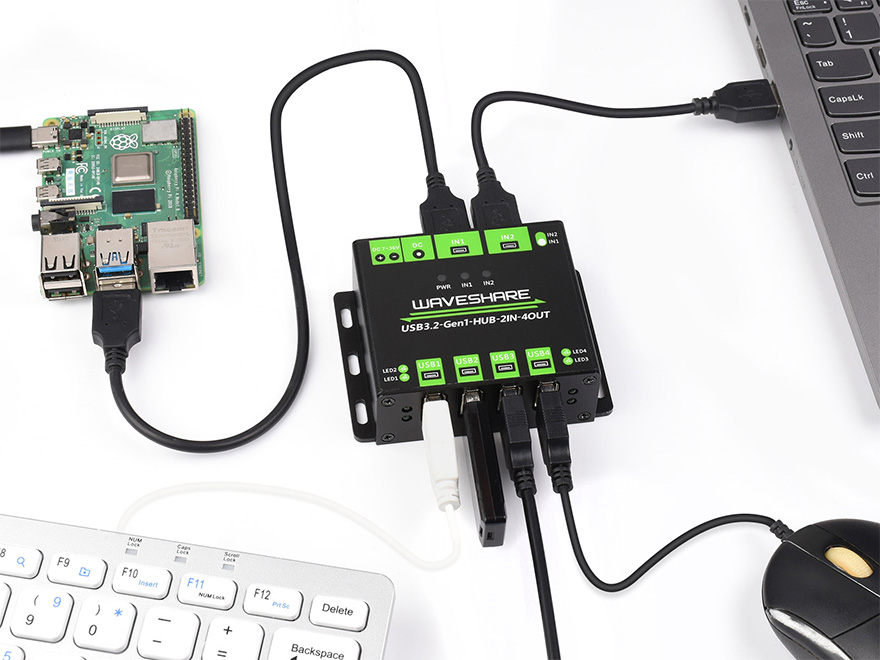

Allows you to switch the active host with a convenient switch, easily control two hosts (say, a computer and a Raspberry pi) with a single keyboard and mouse, eliminates the need to have two sets of keyboards and mice on your desk, keeping your workspace neat and compact.

Key Features:

• Features 4 expanded USB ports, two switchable inputs, and USB device sharing for two hosts
• Industrial-grade HUB chip utilizing MTT technology provides stable and smooth 4x simultaneous USB connection
• Built-in ESD protection for each USB port prevents damage from power surges and data loss
• Features surge protection that effectively prevents other high voltage power supplies from damaging connected devices
• Equipped with several protection schemes: overvoltage, overcurrent, short circuit, overheating, reverse current, under voltage lockout, 8kV ESD protection, filtering protection, etc.

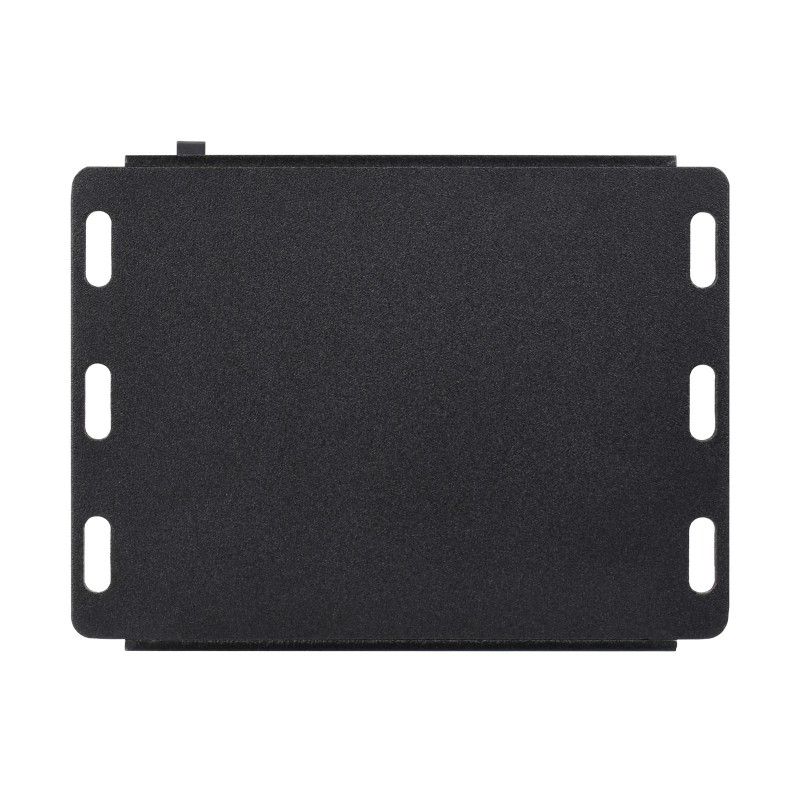

• Features an industrial metal housing, rugged and durable, with mounting holes for easy installation

Specifications:

• STANDARD: High-speed USB 3.2 Gen 1.
• DATA SPEED: up to 5 Gbps
• USB OUTPUT: 5 V@Imax: 1.2 A, USB-A connector
• USB HUB INPUT: 5 V, switchable dual USB-A connectors (autonomous power supply, no cross-powering)
• EXTERNAL POWER SUPPLY: 736V DC power supply terminal (This hub requires an additional power supply when connected to high-power devices)
• OPERATING TEMPERATURE: -40 ℃ 85 ℃
• OS SUPPORT: Mac OS (8.6 or higher), Linux (2.4.20 or higher), Windows 11 / 10 / 8.1 / 8 / 7 / XP

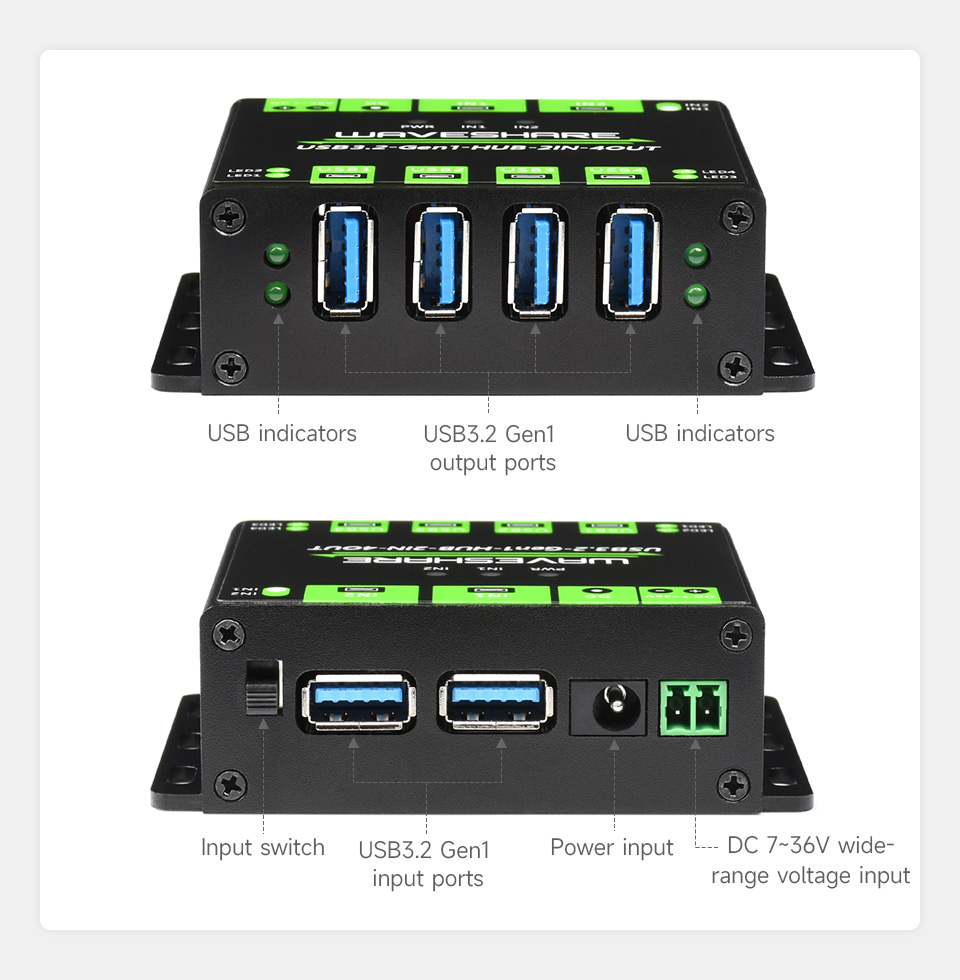

Interfaces:

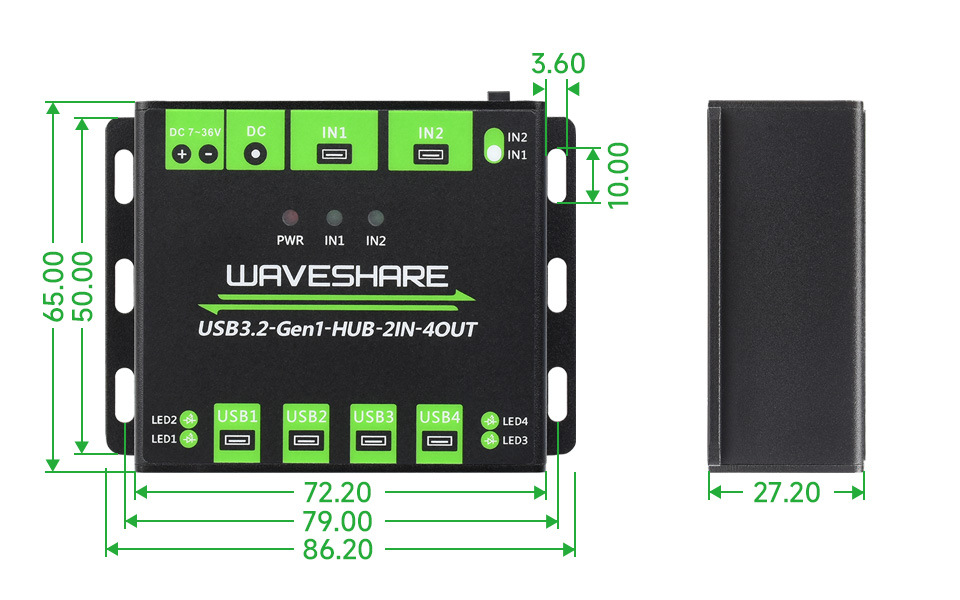

Overall Dimensions: 86.2mm x 65mm x 27.2mm

Wiki: www.waveshare.com/wiki/USB3.2-Gen1-HUB-2IN-4OUT

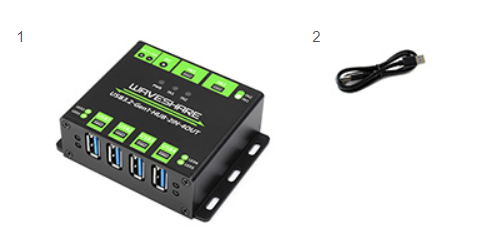

Package contents:

1. USB3.2-Gen1-HUB-2IN-4OUT x1
2. Dual USB3.0 cable x2

Weight: 0.08 kg
