NVIDIA Jetson Nano Environment Sensors HAT expansion card (19486)

Name: NVIDIA Jetson Nano Environment Sensors HAT expansion card (19486)
Brand: Waveshare
SKU: V102266
Price: 37.60 GBP
Availability: OutOfStock

Brand: Waveshare Product Code: 19486

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

NVIDIA Jetson Nano Environment Sensors HAT expansion card (19486)

Out Of Stock

£37.60

Country of origin:Made in China

Form factor:Expansion board

Series of modules:Jetson Nano

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

NVIDIA Jetson Nano Environment Sensors HAT expansion card (19486)

£37.60

Description

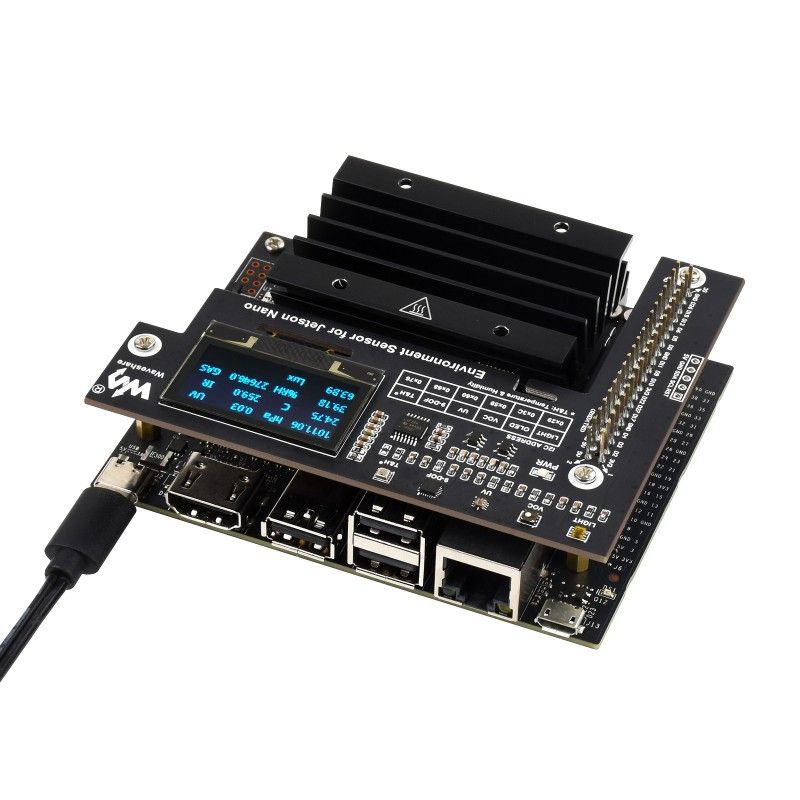

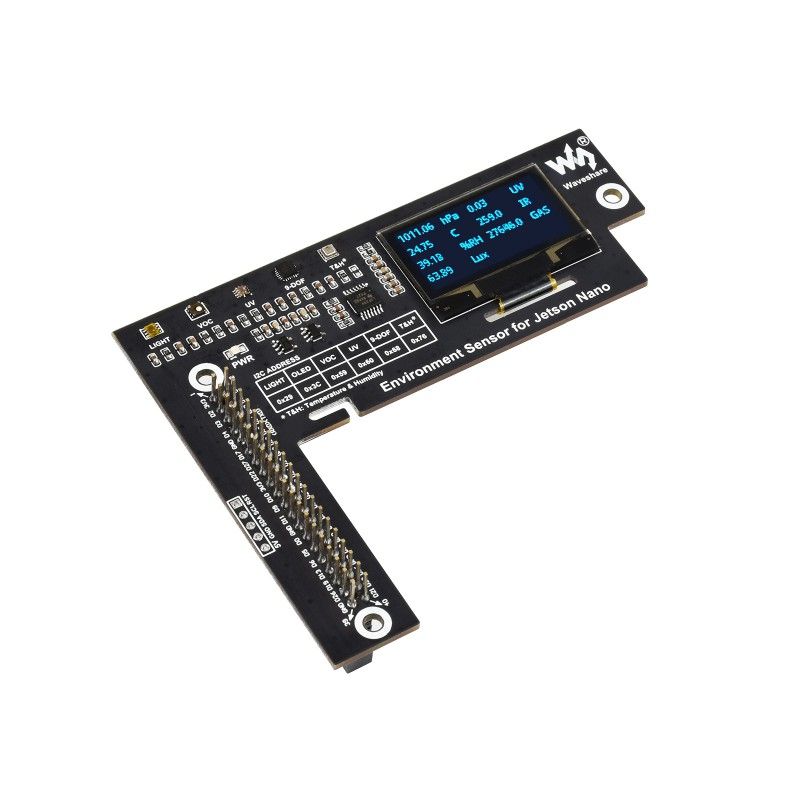

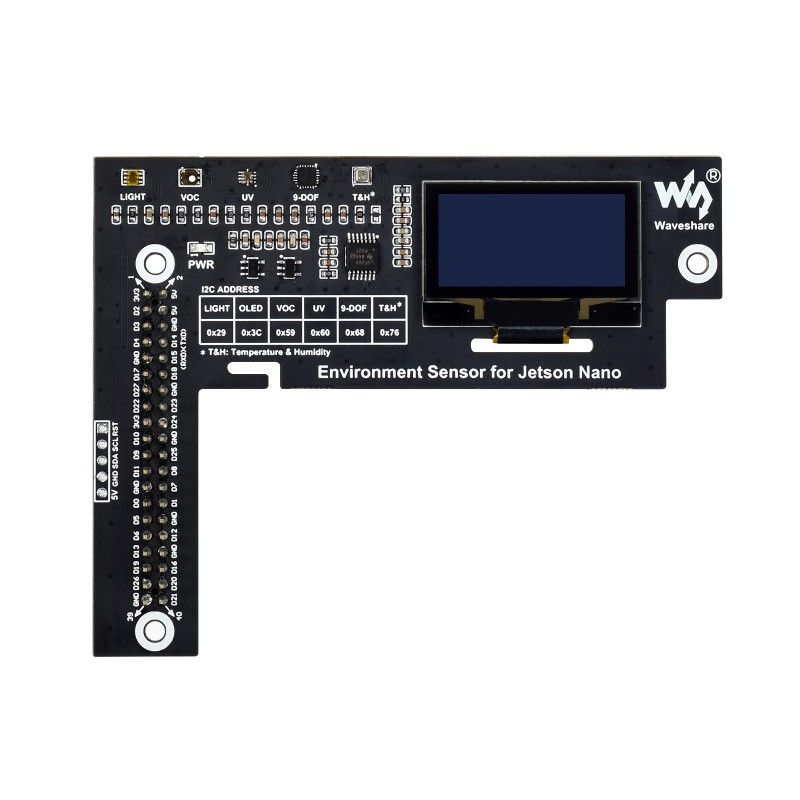

TheNVIDIA Jetson Nano Environment Sensors Module HAT (19486 ) extends the capabilities of the NVIDIA Jetson Nano microcomputer by adding environmental data collection functionality such as temperature and humidity, air pressure, ambient light intensity, VOCs, IR, UV, position changes, and more. This module can also be used to create a robot that can detect motion. A 1.3" OLED display is built into the board to display the data.

Main features:

Built-in TSL25911FN digital ambient light sensor for measuring IR and visible light
Built-in BME280 sensor for measuring temperature, humidity and air pressure
Integrated motion sensor, accelerometer, gyroscope and magnetometer ICM20948
Integrated Si1145 sensor for measuring IR / UV rays
Built-in SGP40 sensor for detecting volatile organic compounds in the environment
Built-in 1.3-inch OLED display for real-time environmental data display
I2C bus, allows data to be read and displayed with just two wires
Comes with development resources and user guide (Python examples)

Technical specifications:

TSL25911FN outdoor light sensor
I2C address	0x29
Effective range	088000Lux
BME280 sensor for measuring temperature, humidity and air pressure
I2C address	0x76
Temperature detection	-40 85 ℃ (resolution 0.01 ℃, accuracy ± 1 ℃)
Humidity detection	0 100% relative humidity (resolution 0.008%, accuracy ± 3%, response time 1 s, relative humidity delay ≤2%)
Air pressure detection	300 1100 hPa (resolution 0.18 Pa, accuracy ± 1 hPa)
ICM20948 motion sensor, accelerometer (3-axis), gyroscope (3-axis) and magnetometer (3-axis)
I2C address	0x68
Accelerometer resolution	16-bit
Accelerometer range (customizable)	±2, ±4, ±8, ±16g
Gyroscope resolution	16-bit
Gyroscope range (customizable)	±250, ±500, ±1000, ±2000°/sec
Magnetometer resolution	16-bit
Magnetometer range	±4900µT
SI1145 IR / UV sensor for measuring IR / UV rays
I2C address	0x60
Response wavelength	280nm - 950nm
SGP40 VOC SENSOR - sensor for the detection of volatile organic compounds in the environment
I2C address	0x59
Measuring range	0 1,000 ppm ethanol equivalent
