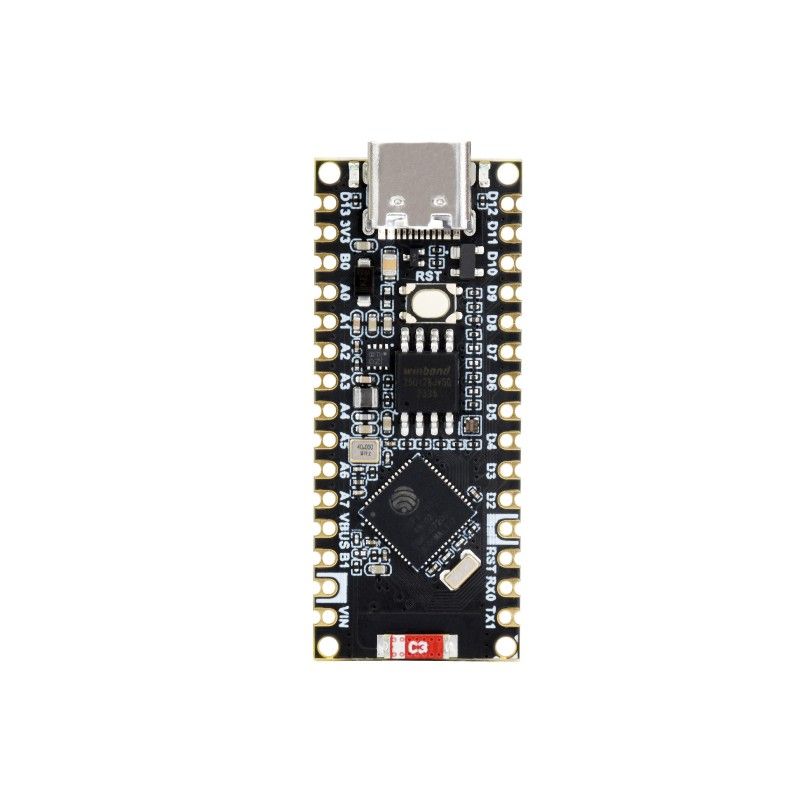

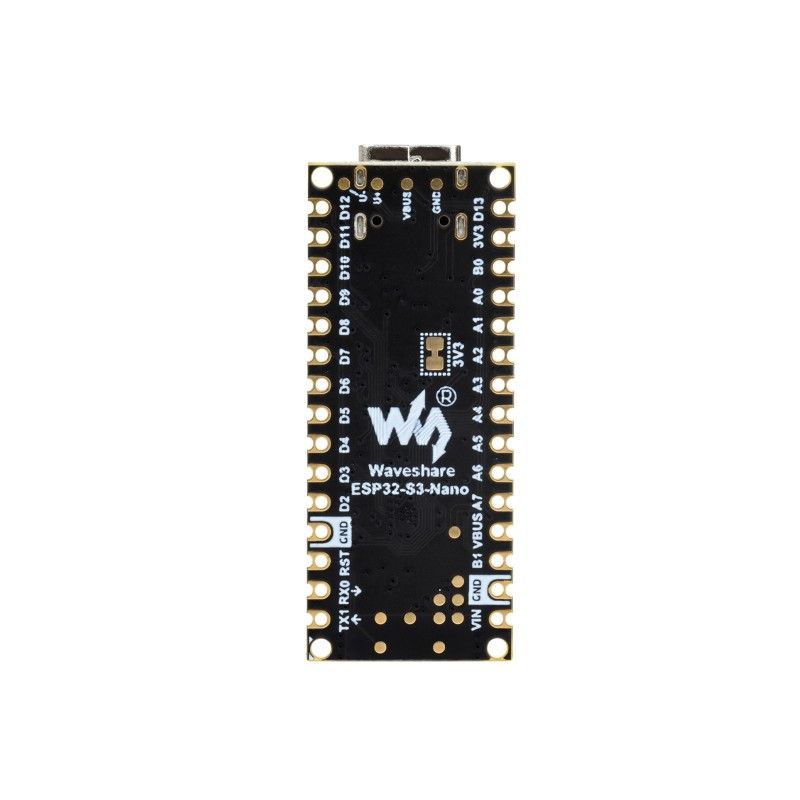

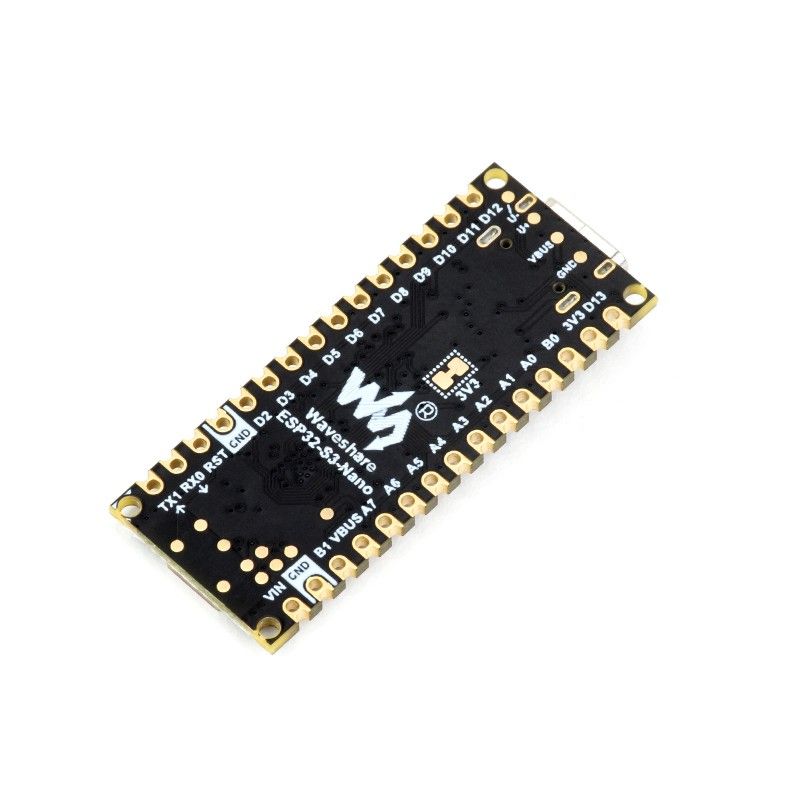

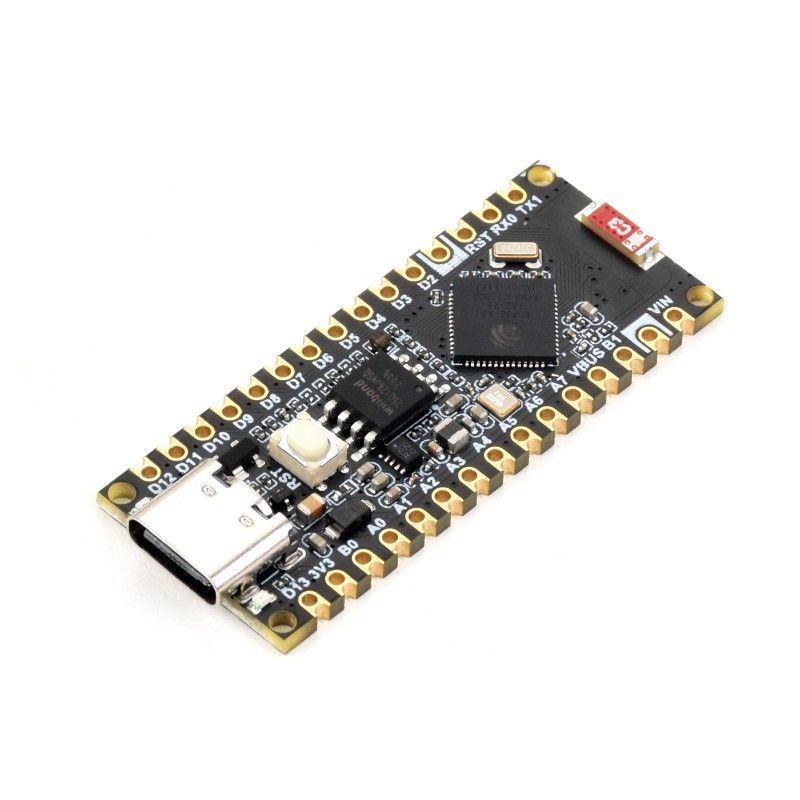

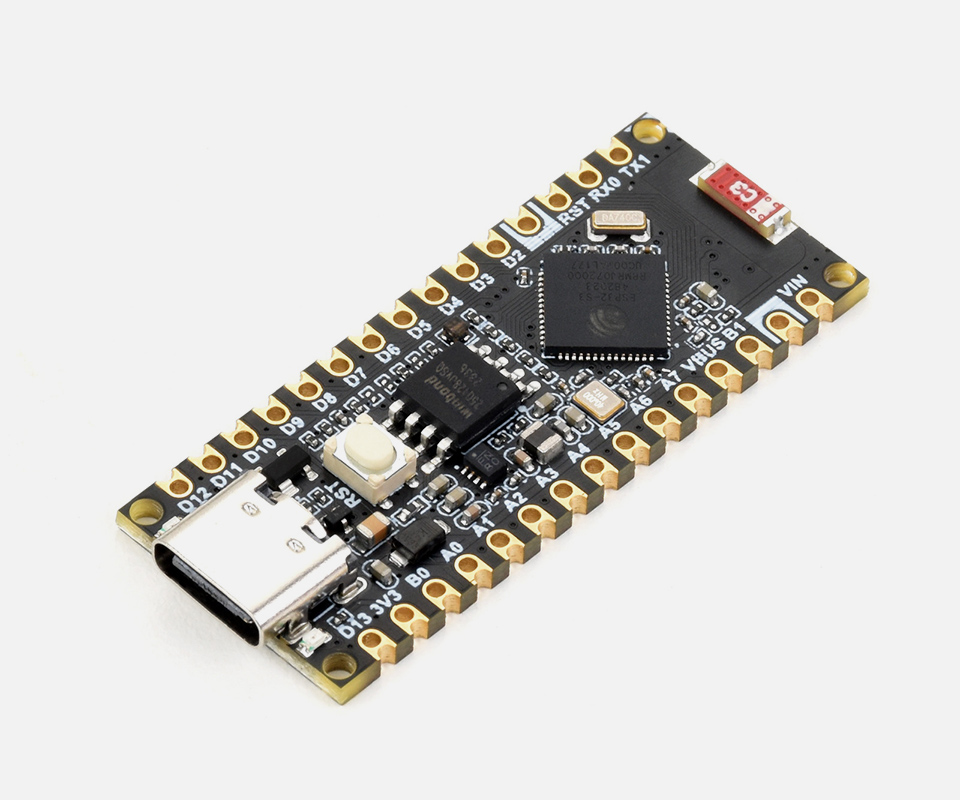

ESP32-S3 Nano Development Board (26745)

The ESP32-S3 Nano Development Board (26745) is a development board based on the ESP32-S3R8 microcontroller that offers a wide range of options for creating a variety of projects in the field of Internet of Things (IoT), robotics, and other embedded systems. This board is compatible with the Arduino Nano ESP32, allowing you to easily use Arduino tools and resources for software development.

The ESP32-S3-Nano Development Board includes the high-performance ESP32-S3R8 microcontroller, which provides power and speed for projects, as well as a variety of connectivity options, including Wi-Fi and Bluetooth wireless interfaces.

This development board is ideal for prototyping, developing, and testing software before implementing it in a real-world system. With its compact size and advanced features, the ESP32-S3-Nano Development Board is an excellent choice for a variety of IoT and embedded systems projects.

Key features:

• Contains the ESP32-S3R8 chip with a 32-bit dual-core Xtensa® LX7 processor capable of running at 240 MHz
• Has built-in 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB flash memory
• Integrated dual-mode Wi-Fi 2.4 GHz and Bluetooth LE wireless with superior RF performance
• Supports seamless switching between Arduino and MicroPython programming, more flexible use
• Compatible with Arduino IoT Cloud, allows you to monitor and control your project from anywhere with the Arduino IoT Cloud app
• Supports HID, emulating human interface devices such as keyboards or mice via USB port to facilitate interaction with a PC

Specifications:

• MICROCONTROLLER: dual-core 32-bit Xtensa LX7
• CLOCK FREQUENCY: 240MHz
• MEMORY: 384 KB ROM, 512 KB RAM, 8 MB Flash
• WIRELESS COMMUNICATION: 2.4 GHz WiFi + Bluetooth LE
• OPERATING VOLTAGE: 3,3 В
• POWER INPUT: 621В
• RESET BUTTON: Vertical
• OUTPUT CURRENT of the IO connector: 40mA
• DIGITAL PINS: 14
• ANALOG PINS: 8
• DAC: None
• PWM: 5
• UART: 2
• I2C: 1
• SPI: 1
• CAN: No
• DC JACK: No
• POWER OUTPUT SOCKET: No
• 5 V OUTPUT POWER: 1000 mA Max
• BREADBOARD: Supports

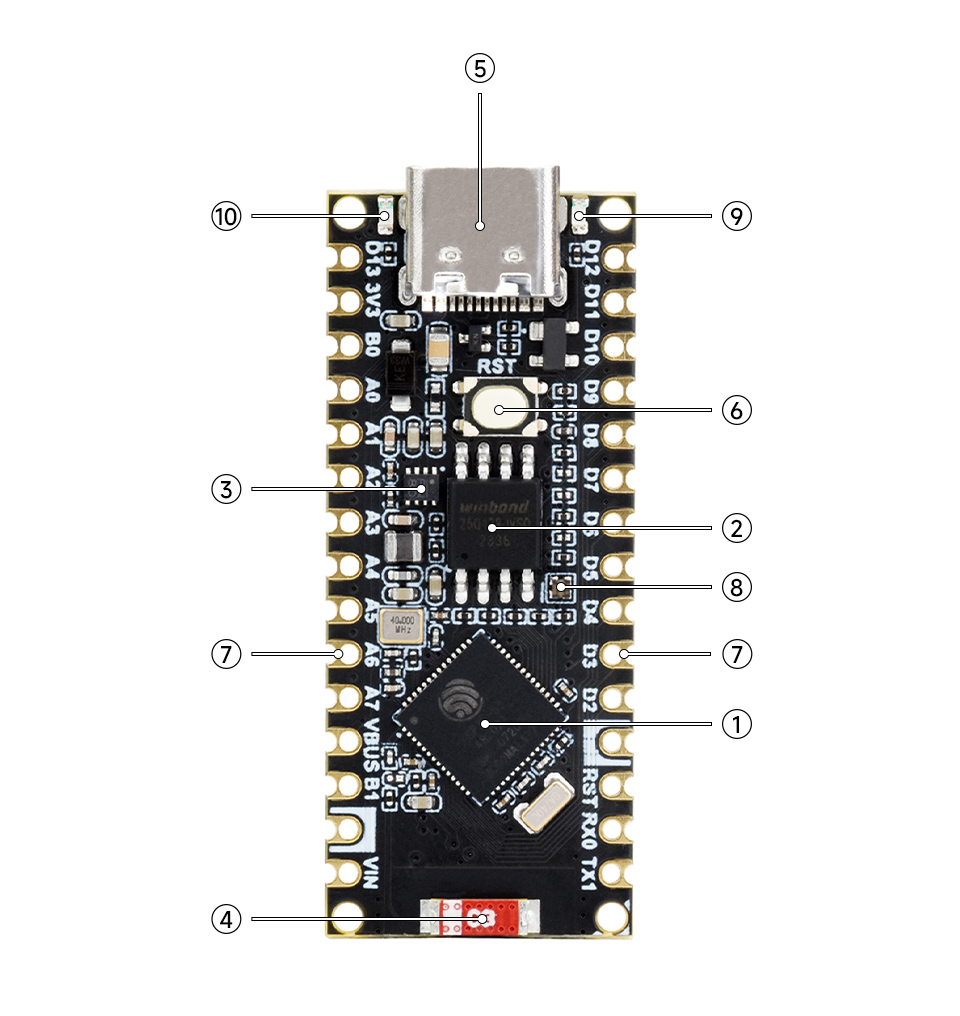

Board elements:

1. ESP32-S3R8 dual-core processor with an operating frequency of up to 240 MHz
2. W25Q128JVSIQ - 16 MB Flash for storing programs and data
3. MP2322GQH - 3.3V voltage regulator
4. 2.4G ceramic antenna
5. USB Type-C connector for downloading the program and debugging the serial port
6. RST button for resetting ESP32-S3R8
7. Arduino Nano interface - compatible with Arduino interface, soldering adaptation in 2.54 pitch, can be directly connected to the experimental board
8. RGB indicator light - flashes and then turns off when power on or reset, supports programmable control after normal board boot
9. Power indicator light
10. User LED

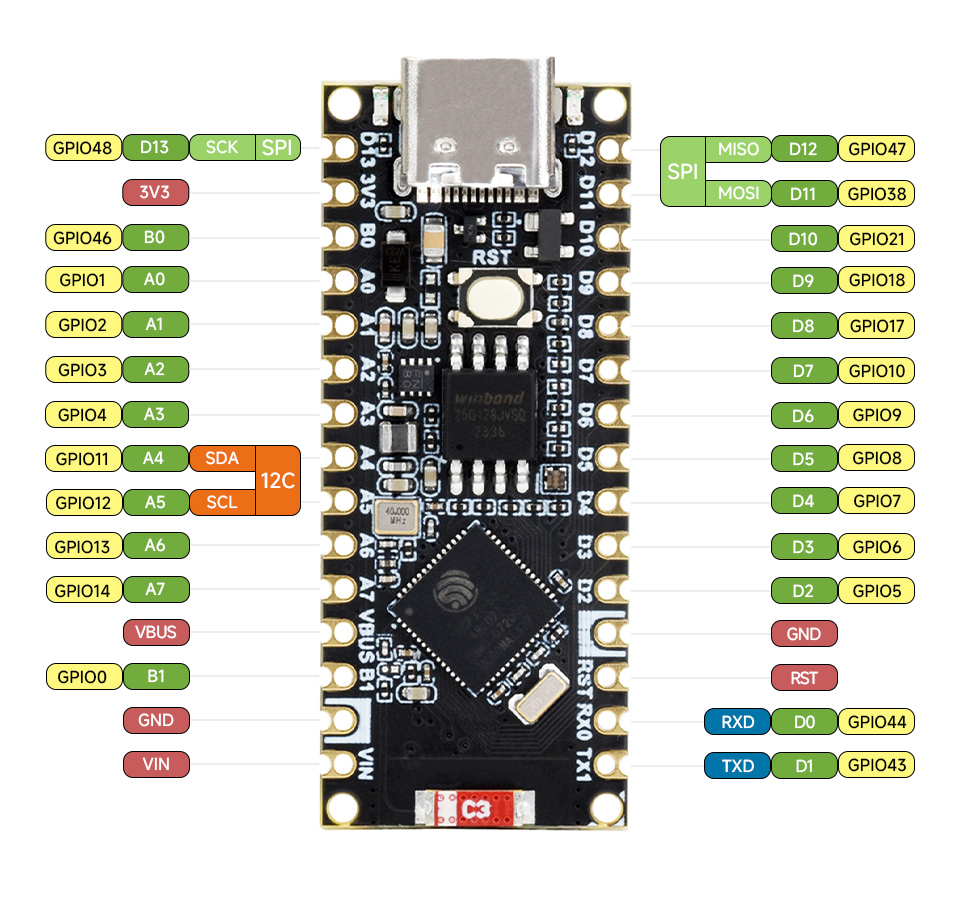

Pinout:

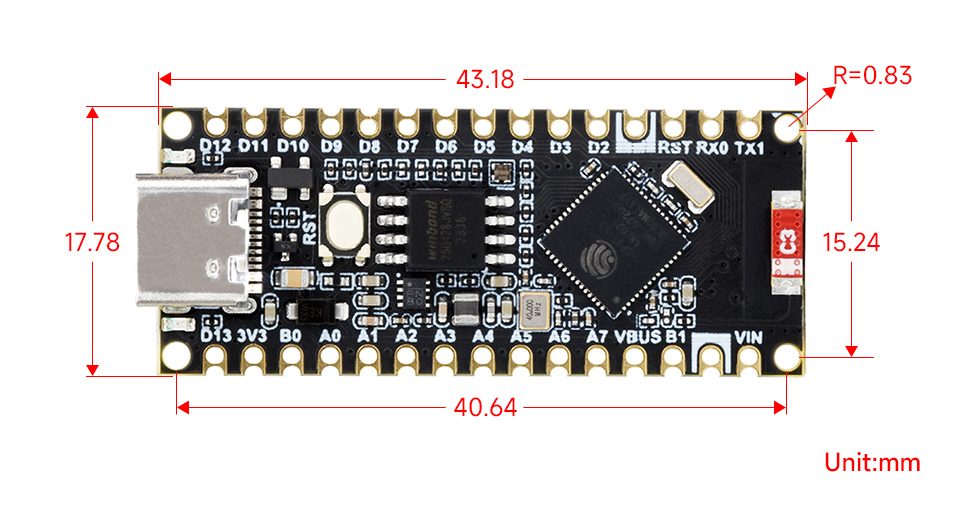

Overall dimensions: 43.18mm x 17.78mm

Wiki: www.waveshare.com/wiki/ESP32-S3-Nano

Weight: 0.007 kg

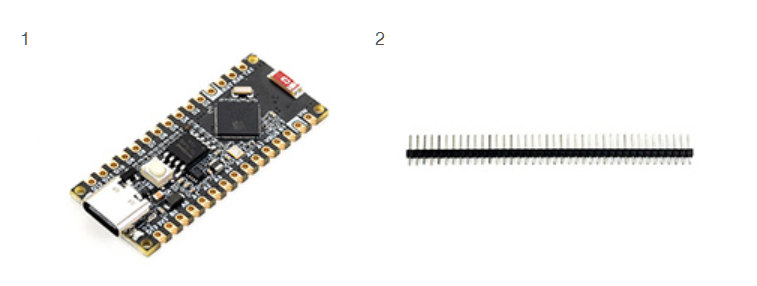

Scope of delivery:

1. ESP32-S3-Nano x1
2. 40PIN pin (black) x2
