Case for Raspberry Pi5 Module BOX-B

The Raspberry Pi5 Module BOX-B is a versatile enclosure for developing and implementing user projects that provides new opportunities and opens up space for creativity and innovation. It includes a multifunctional aluminum case for the Raspberry Pi 5, an all-in-one Raspberry Pi PCIe expansion board with support for dual HDMI and dual 4K HD output, allowing you to quickly and easily create your own Raspberry Pi 5 minicomputer.

Main features:

• Significant internal space, easy to assemble and quick to use, built-in rich interfaces with powerful expansion capabilities.
• The case has enough space to access various expansion modules, such as PoE modules, fans, etc., and there is also space for wiring.
• The chassis includes a Micro HDMI to HDMI adapter card with a Type-C connector, HDMI, and a screw terminal.
• SD card slot, buttons and LED ports on the rear panel.
• Pi5 BOX-B module: supports PCIe expansion to 4-channel USB3.2 Gen1 ports

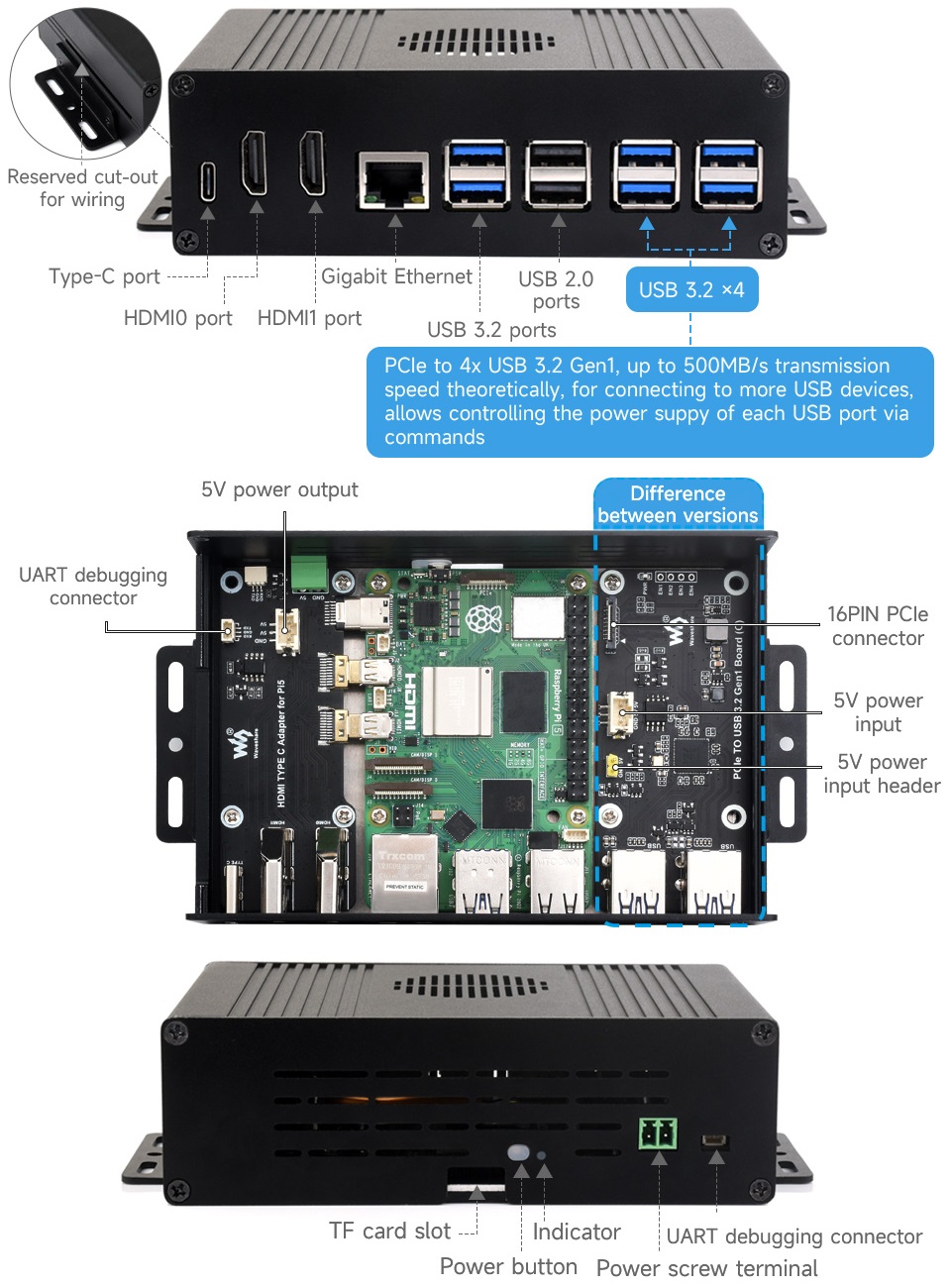

Overview of the case and available connectors:

Note: The Raspberry Pi 5 board and fan are NOT included in the package and must be purchased separately if needed.

Raspberry Pi5 Module BOX-B comes with Pi5 HDMI and Type-C adapter (Type-C adapter, dual HDMI Female ports and screw terminals for easier connection to peripherals, supports two ways to connect power supply from the front or back)

Overall dimensions: 163mm x 91mm x 43mm

Wiki: http://www.waveshare.com/wiki/Pi5-Module-BOX

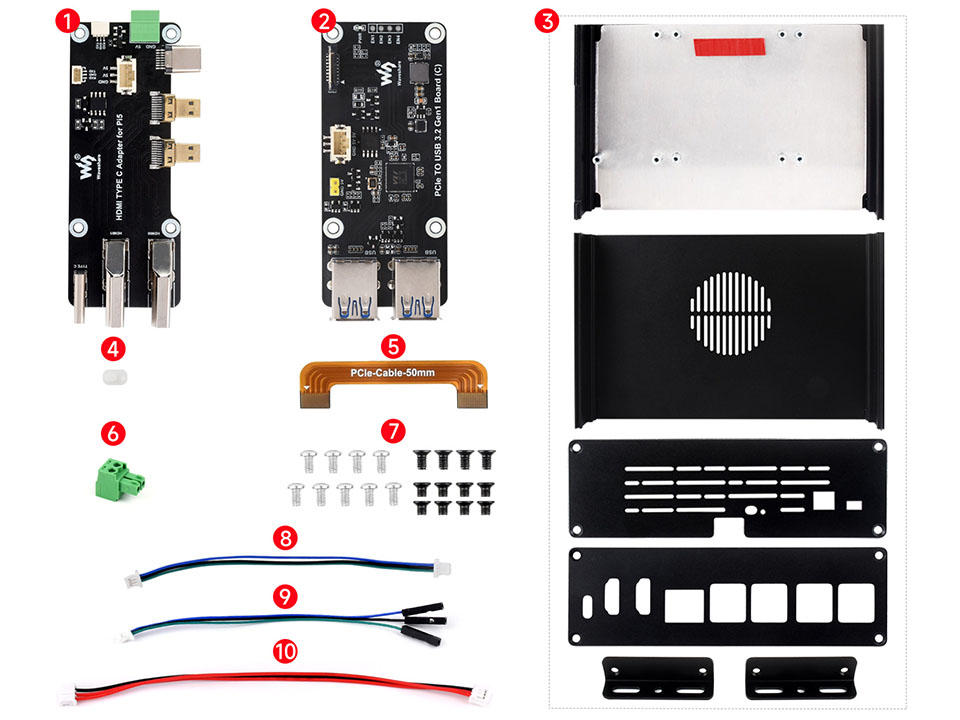

Package contents:

1. Pi5 HDMI and Type-C adapter x1
2. PCIe to 4-channel USB 3.2 Gen1 adapter x1
3. Matte body and base plate made of white aluminum alloy x1
4. Silicone button x1
5. PCIe cable x1
6. Screw terminal x1
7. Package of screws x1 pc
8. SH1.0 3PIN cable x1
9. SH1.0 3-pin squid cable x1
10. PH2.0 3PIN cable x1

    Weight: 0.32kg
