Waveshare MLX90641-D55 Thermal Camera (20465)

£43.20

Description

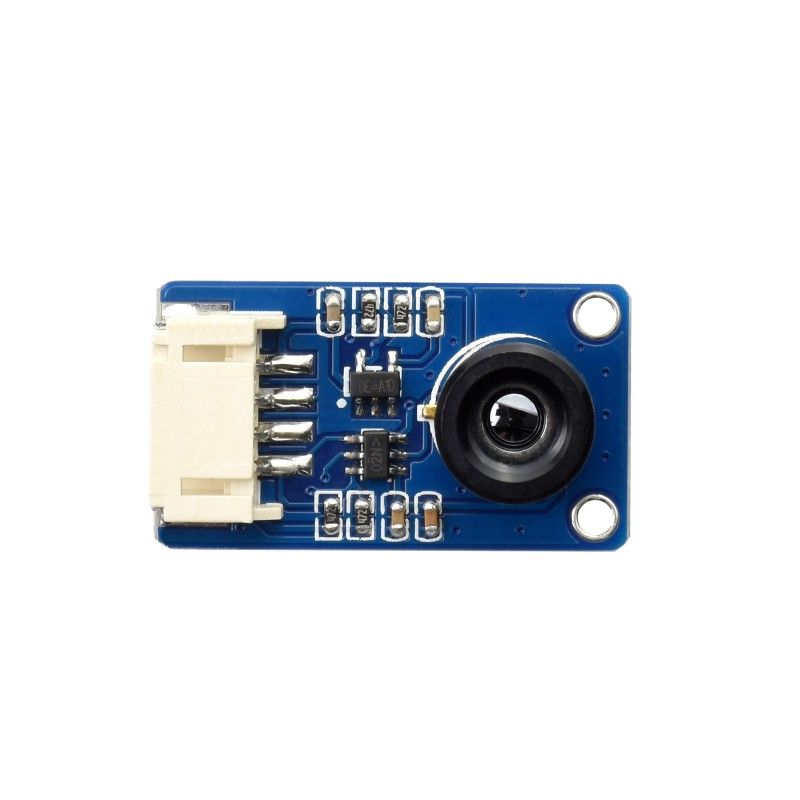

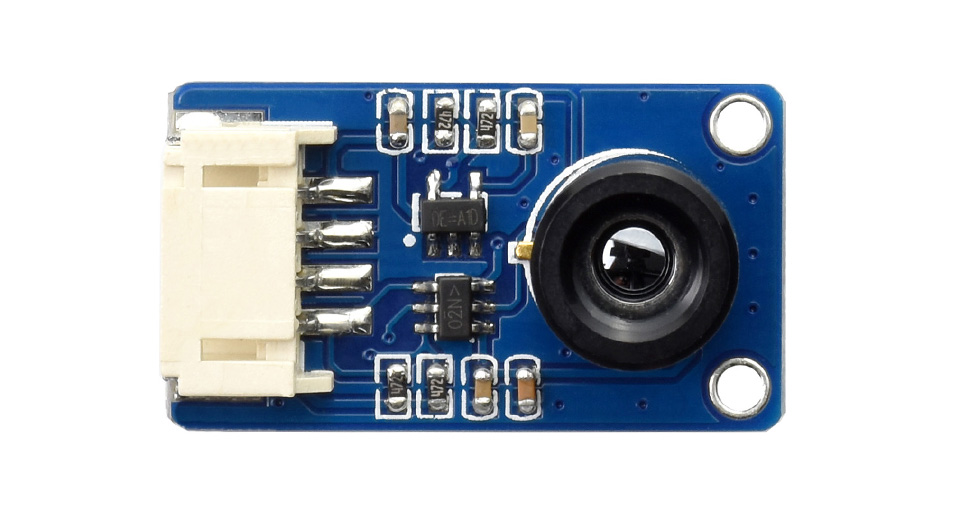

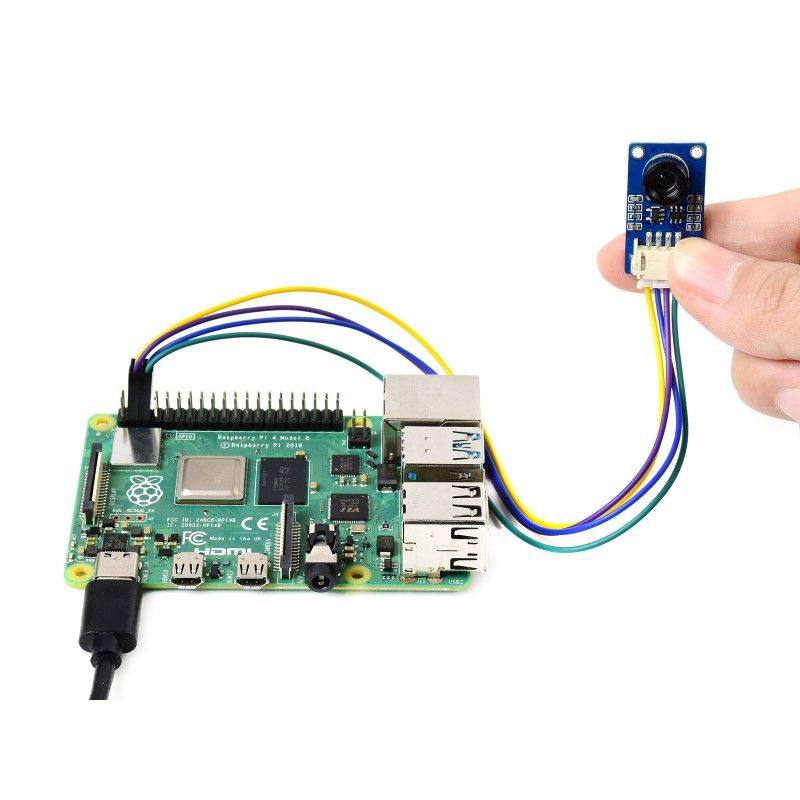

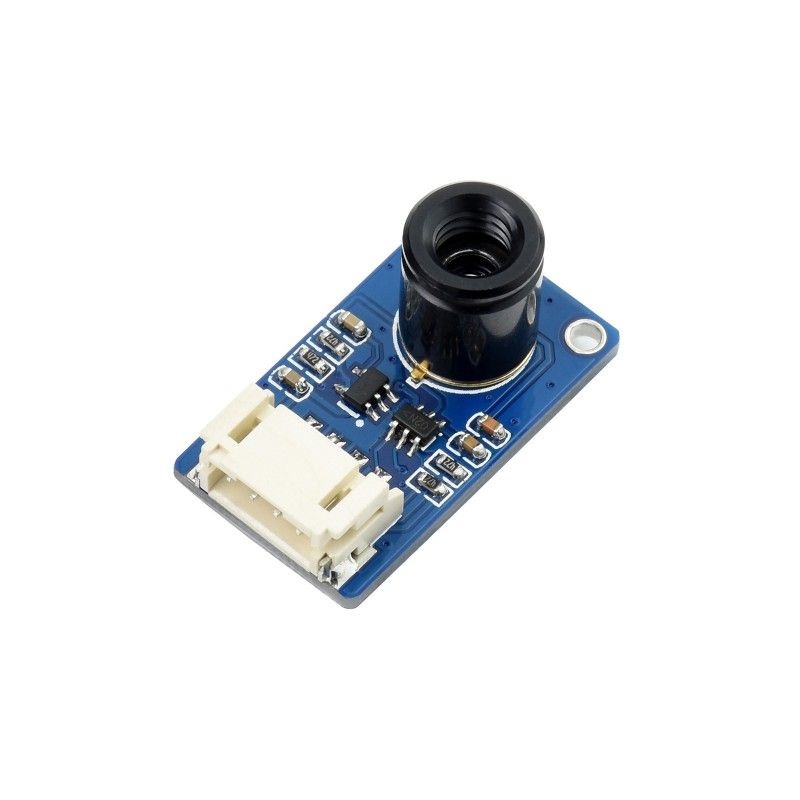

TheMLX90641-D55 Matrix Thermal Camera (20465 ) is a compact, non-contact, and low-cost thermal camera with an IR sensor and 16×12 pixel resolution. It will detect the IR radiation distribution of objects in the field of view, convert the data to the surface temperature of the objects by calculation, and then generate thermal images for easy integration into various industrial or smart control applications. The I2C control interface supports host boards including Raspberry Pi/Arduino(ESP32)/STM32...

Designed for use in:

High-precision non-contact temperature measurements
IR thermal imagers, IR thermometers
Smart home, smart home, smart lighting projects
Industrial temperature control, security, security alarms, intrusion/motion detection

Main features:

Has an MLX90641 infrared thermal sensor array, 16×12 pixels
Communicates via I2C interface, configurable for fast mode (data rate up to 1 MHz)
Uses a noise equivalent temperature difference (NETD) of 0.1 K RMS at a refresh rate of 4 Hz
Contains an integrated voltage converter compatible with 3.3V/5V operating voltage
Has a programmable frame rate of 0.5～64Hz (0.25～32FPS)
Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Specifications:

Operating voltage.	3.3V/5V	Current consumption	≈12mA
Field of view (FOV)	55° × 35°	Accuracy	±2℃ ( 0 50℃)
Communication bus	I2C (0x33 by default)	Refresh rate	0.564Hz (0.25～32FPS)
Temperature range	-40 300℃	Working temperature	-40 125℃
Dimensions	28 × 16mm	Mounting holes	2.0mm

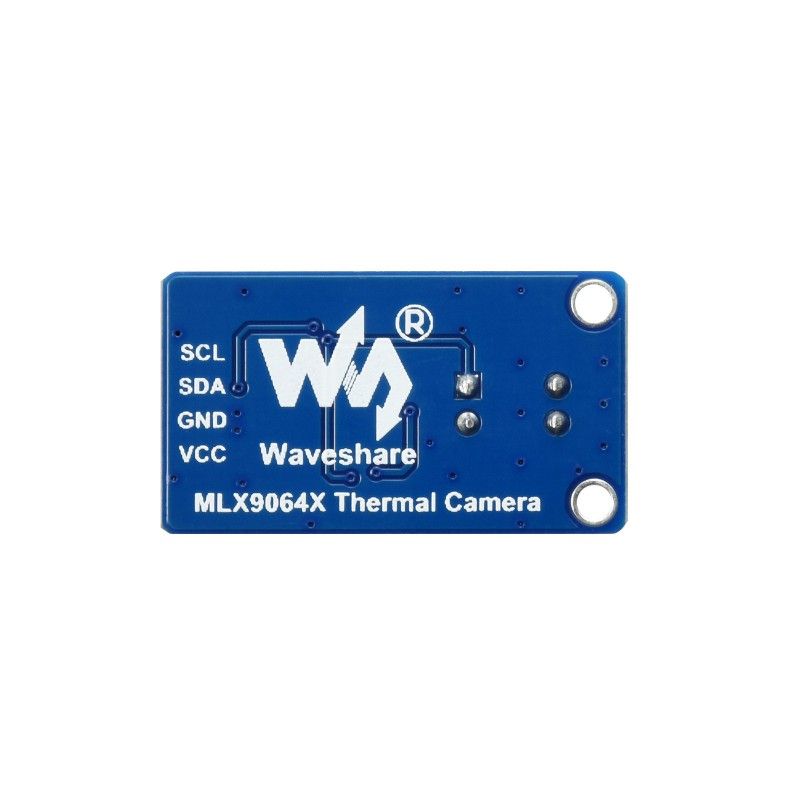

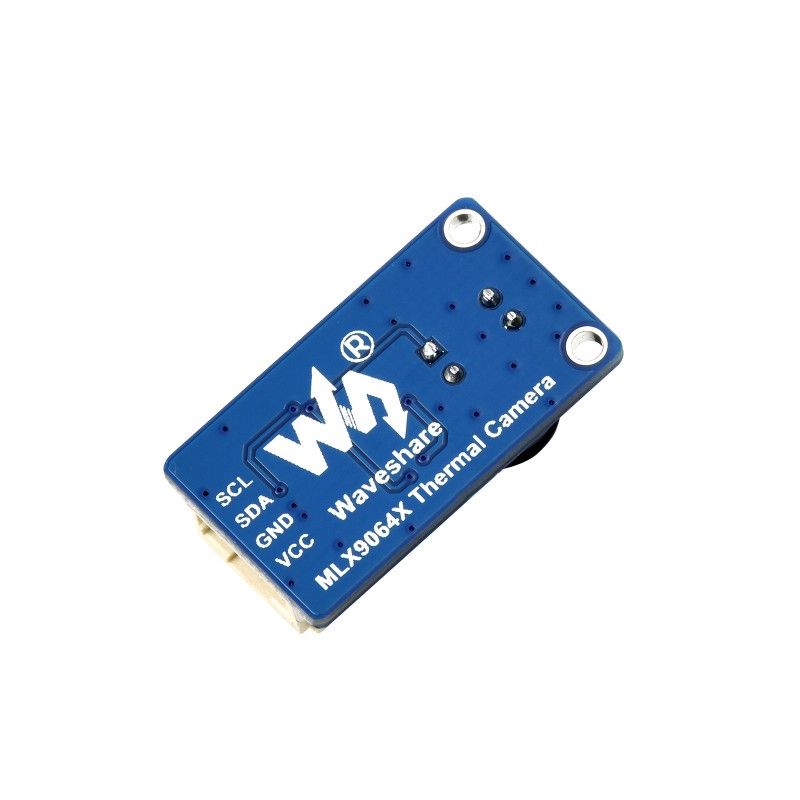

Pinout:

VCC	3.3V/5V power input
GND	GND ground
SDA	connection to MCU I2C data pin
SCL	connection to MCU I2C clock pin

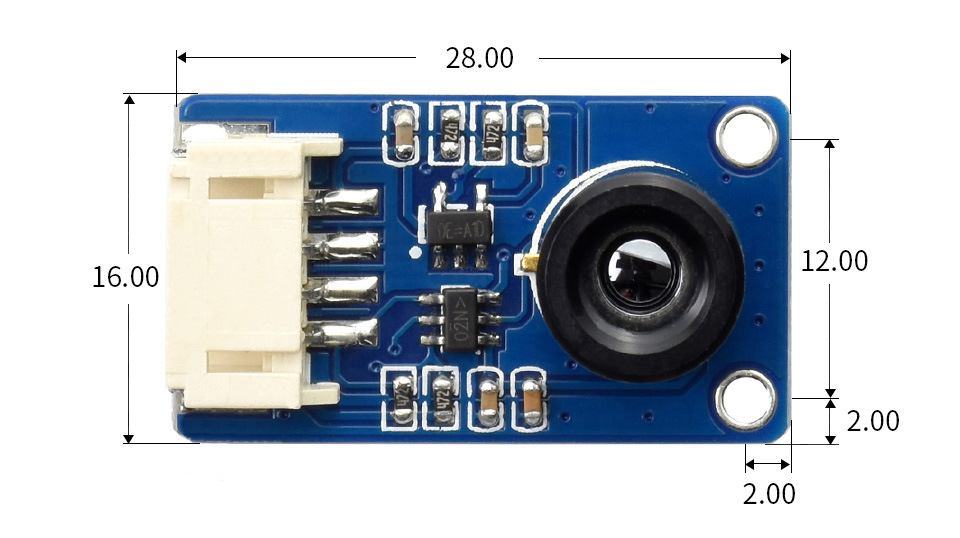

Overall dimensions: 28 mm × 16 mm

Information for developers (Wiki): MLX90641-D55_Thermal_Camera

The package includes:

MLX90641-D55 Thermal Camera x1
PH2.0 4PIN cable x1

1.2.

Weight: 0.007 kg
