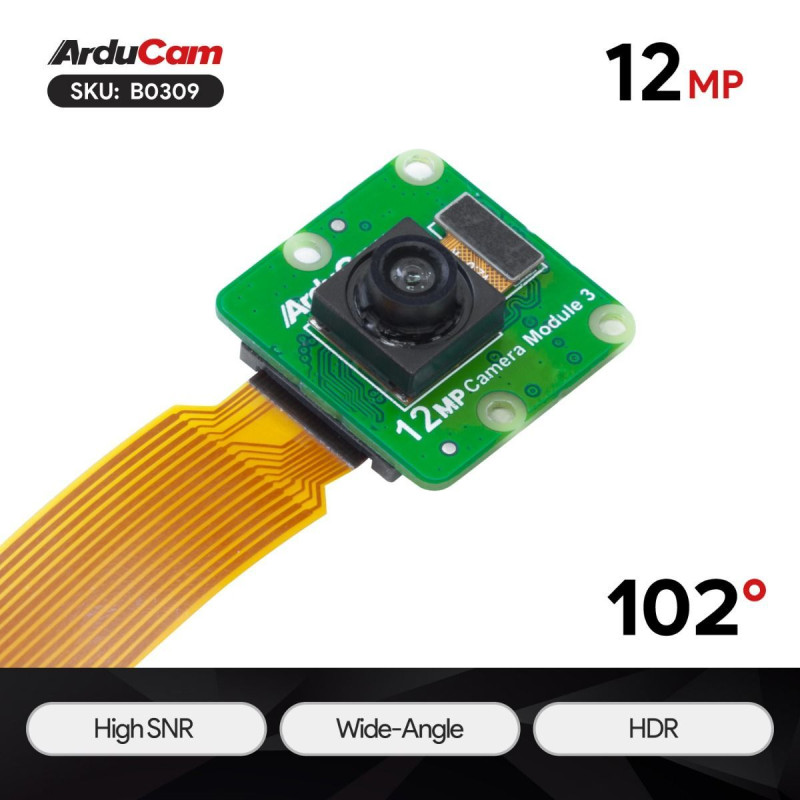

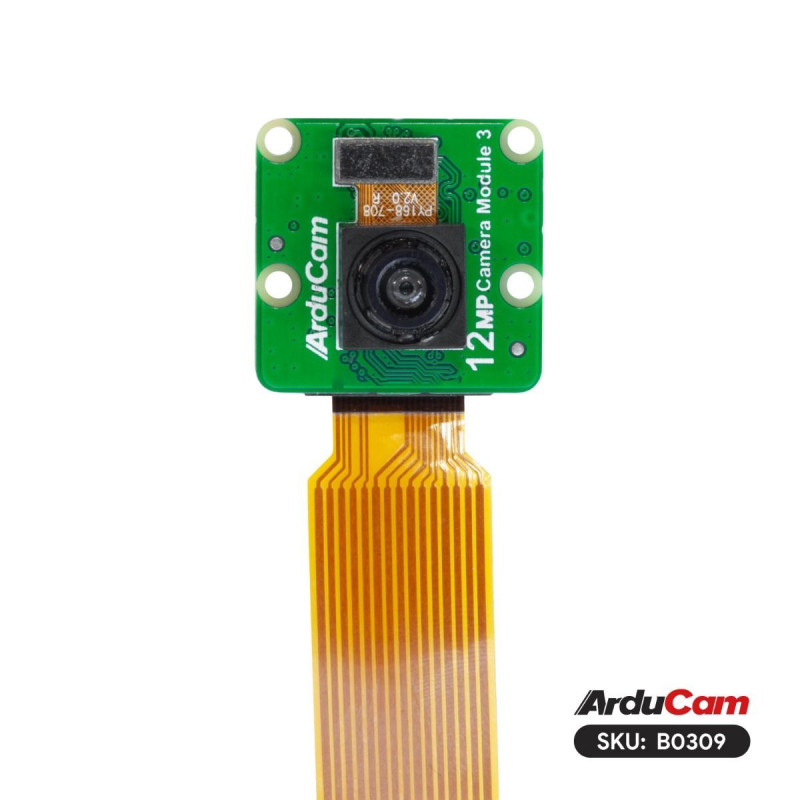

Arducam 12MP IMX708 102 Degree Wide-Angle Fixed Focus HDR High SNR Camera

The Arducam 12MP IMX708 102 Degree Wide-Angle Fixed Focus HDR High SNR Camera is a high-definition camera with a wide-angle lens (102 degrees) that features a Sony IMX708 sensor. With 12 megapixels of resolution, HDR (High Dynamic Range), and High SNR (High Signal to Noise Ratio), this camera is ideal for shooting in difficult lighting conditions. The camera uses a Sony 11.9MP IMX708 image sensor that can be used to capture Full HD video as well as still images and has HDR mode up to 3 megapixels. The wide viewing angle makes it a great solution for video surveillance, robotics, AR/VR applications and Internet of Things (IoT) projects where it is important to cover the maximum area of the scene.

Key features:

• The Raspberry Pi IMX708 fixed-focusadd-on to theRPI V3 camera module 3 and autofocus is designed for many use cases where autofocus lenses are inappropriate or unsafe.
• Thecamera image is based on a 12-megapixel, back-illuminated, high-resolution CMOS image sensor (Sony IMX708) with HDR mode for up to 3 megapixels of output. The same basic features as the official Raspberry Pi 3 camera module.
• High-quality images are provided by a wide-angle lens with a fixed focus of 102°. The wide-angle lens provides a wider field of view for landscape photography. The maximum resolution is up to 4608 × 2592. Together with the built-in 2D DPC and QBC, Re-mosaic provides high signal-to-noise ratio (SNR). High resolution and sensor performance allow the camera to capture ultra-high quality images.
• Built-in support for Raspberry Pi. No additional driver is required to use the camera on a Raspberry Pi. You just need to make some changes to the configuration file.

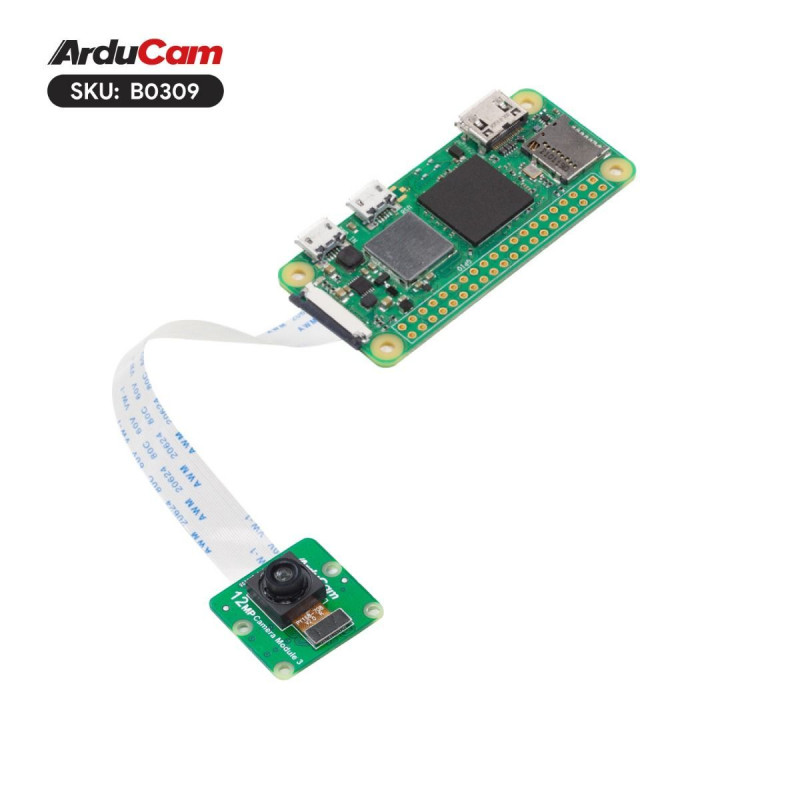

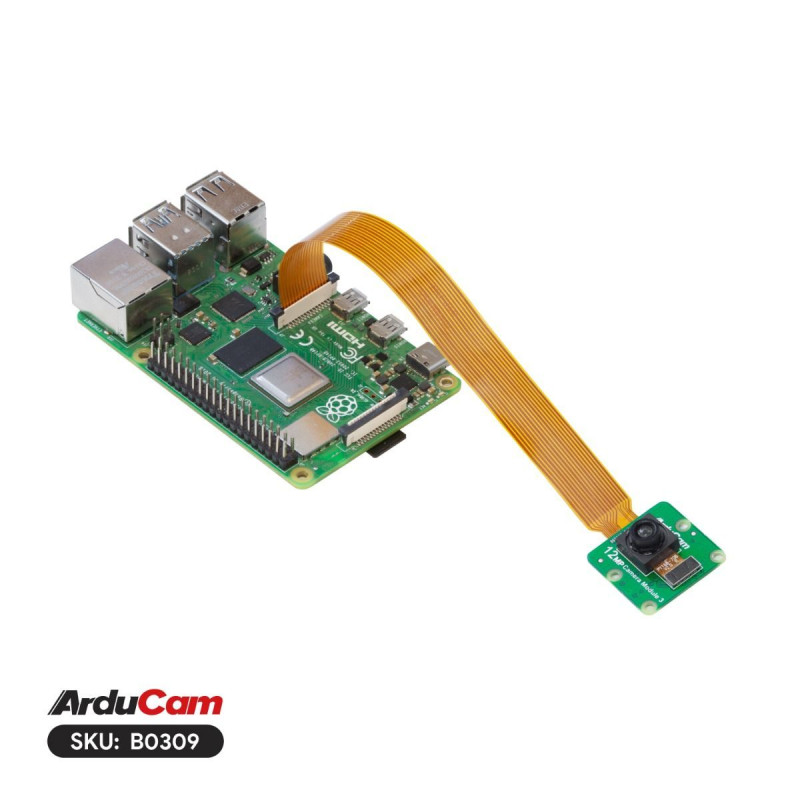

• Platform compatibility: supports Raspberry Pi 3, 4 A/B, equipped with flexible FPC 15-22 and 22-22pin cables. Supports applications on Raspberry Pi Zero.

Specifications:

• Image sensor: IMX708
• Resolution: 11.9 megapixels
• Video modes: 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120
• Sensor resolution: 4608 x 2592 pixels
• Sensor image area: 6.45 x 3.63 mm (7.4 mm diagonal)
• Pixel size: 1.4 µm × 1.4 µm
• Optical size: 1/2,43"
• IR sensitivity: Integrated IR filter, visible light only
• Supported platform: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W
• Lens focus type: Fixed focus
• Focal length of the lens: 2.75 mm F.NO F2.2
• Lens field of view: (FOV) 120°(D)x102°(H)x67°(V)

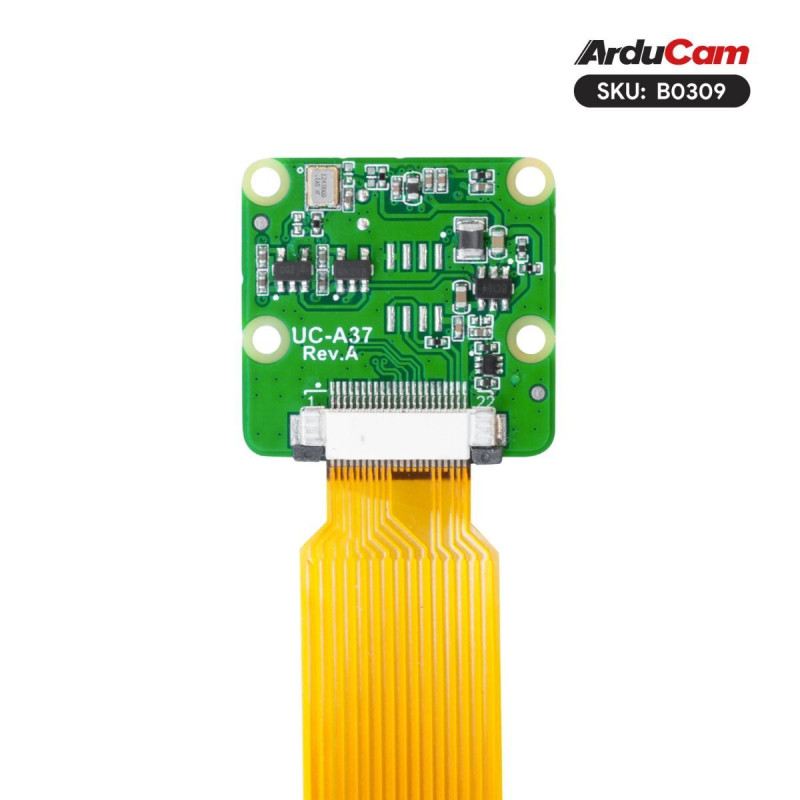

Overall dimensions of the camera board: 25mm × 24mm

Wiki: https://docs.arducam.com/Raspberry-Pi-Camera/Native-camera/12MP-IMX708/

Scope of delivery:

1. Arducam 12MP IMX708 wide-angle fixed focus camera module x1

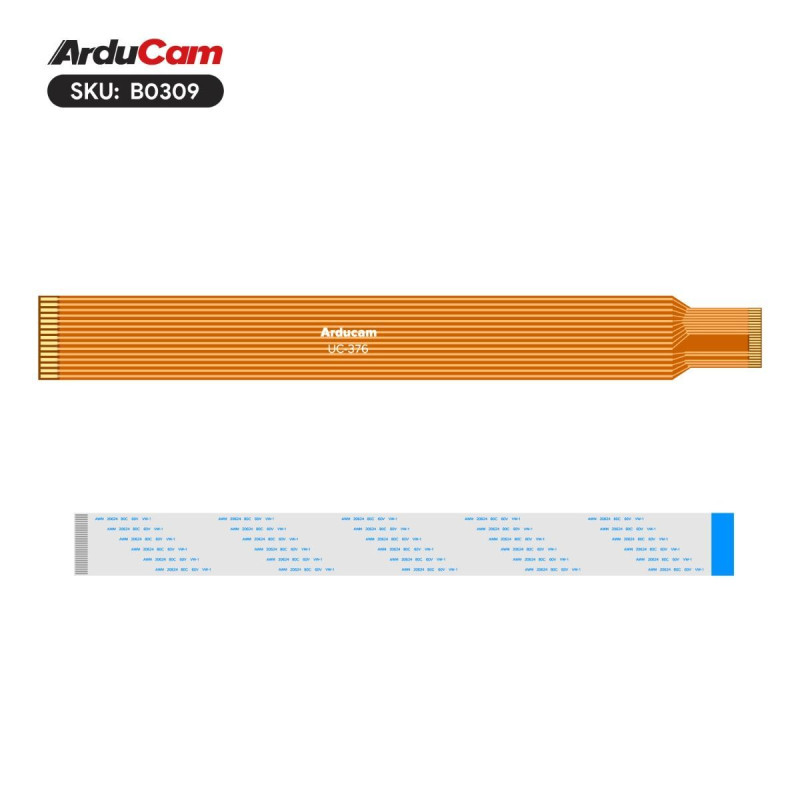

2. FPC cable 150 mm 15-22 contacts x1
3. FPC 22pin-22pin 150 mm cable x1
