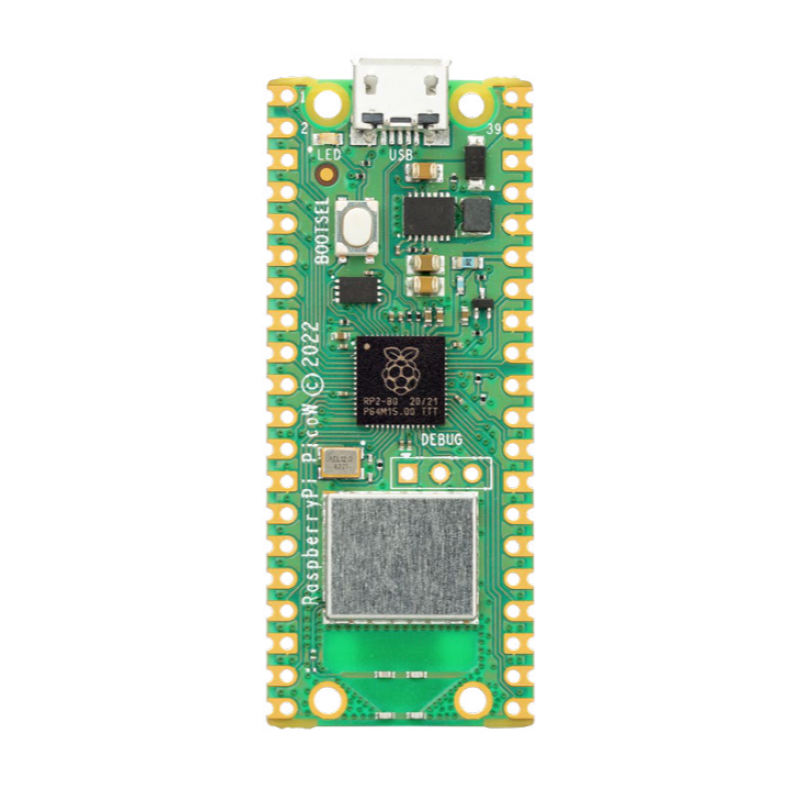

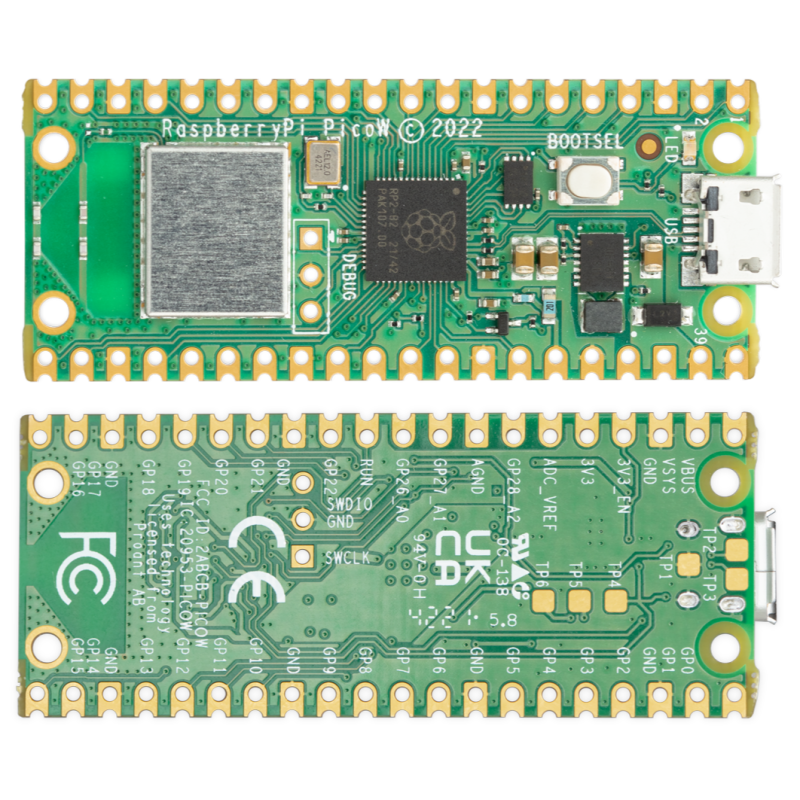

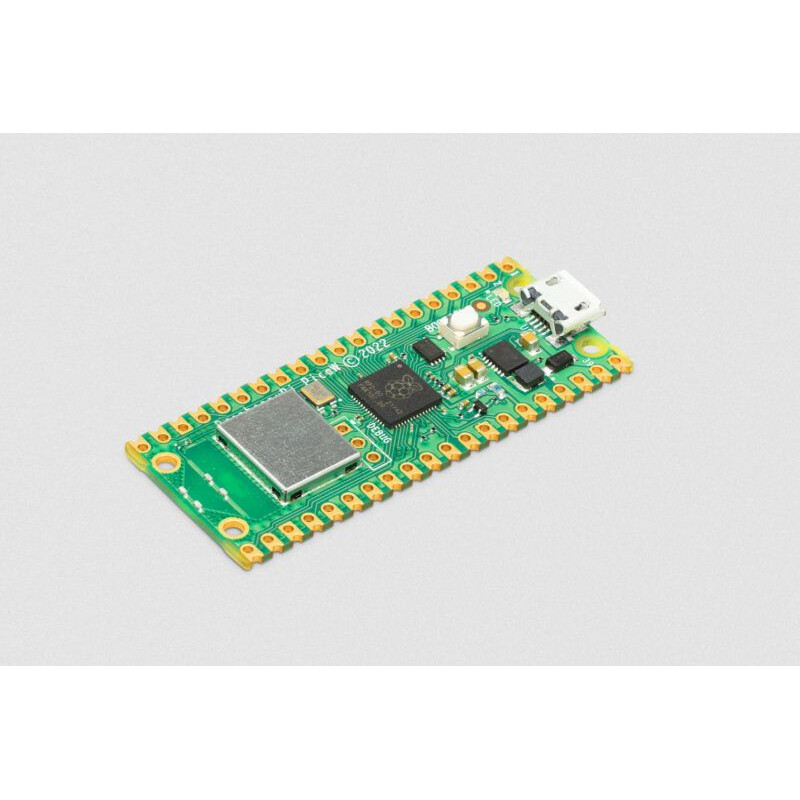

Raspberry Pi Pico W

The RaspberryPi Pico W microcontroller is a high-performance, low-cost microcontroller board from Raspberry Pi based on the RP2040 chip.

It features massive on-chip memory, a symmetrical dual-core processor, a deterministic bus structure, and a rich set of peripherals complemented by a unique programmable input/output (PIO) subsystem, The RP2040 provides professional users with unparalleled power and flexibility, and with its detailed documentation, polished MicroPython port and UF2 bootloader in ROM, it has the lowest possible barrier to entry for novice and hobbyists.

The RP2040 is manufactured on a state-of-the-art 40-nanometer process node to provide high performance, low dynamic power consumption and low leakage, as well as a variety of low power modes to support long battery life.

The Raspberry Pi Pico W offers support for 2.4GHz 802.11 b/g/n wireless LAN with built-in antenna and modular compliance certification. It can operate in both station and access point mode. Full access to network functions is available to C and MicroPython developers.

The Raspberry Pi Pico combines the RP2040 with 2 MB of flash memory and a power supply chip that supports input voltages from 1.8-5.5 V. It has 26 GPIO pins, three of which can function as analog inputs.

The Raspberry Pi Pico is available as a single unit or in drums of 480 units for automated assembly.

Key Features:

• Form factor: 21 mm × 51 mm
• CPU: 133 MHz dual-core Arm Cortex-M0+
• Memory: 264 KB built-in SRAM; 2 MB built-in QSPI flash memory
• Interface: 26 GPIO pins, including 3 analog inputs
• Peripherals:

- 2 × UARTS

- 2 × SPI controllers

- 2 × I2C controllers

- 16 × PWM channels

- 1 × USB 1.1 controller and PHY with host and device support

- 8 × PIO finite state machines

• Connection: 2.4 GHz IEEE 802.11b/g/n wireless LAN, built-in antenna
• Input voltage: 1.8-5.5 V DC
• Operating temperature: -20°C to +70°C
• Service life: Raspberry Pi Pico will remain in production until at least January 2028

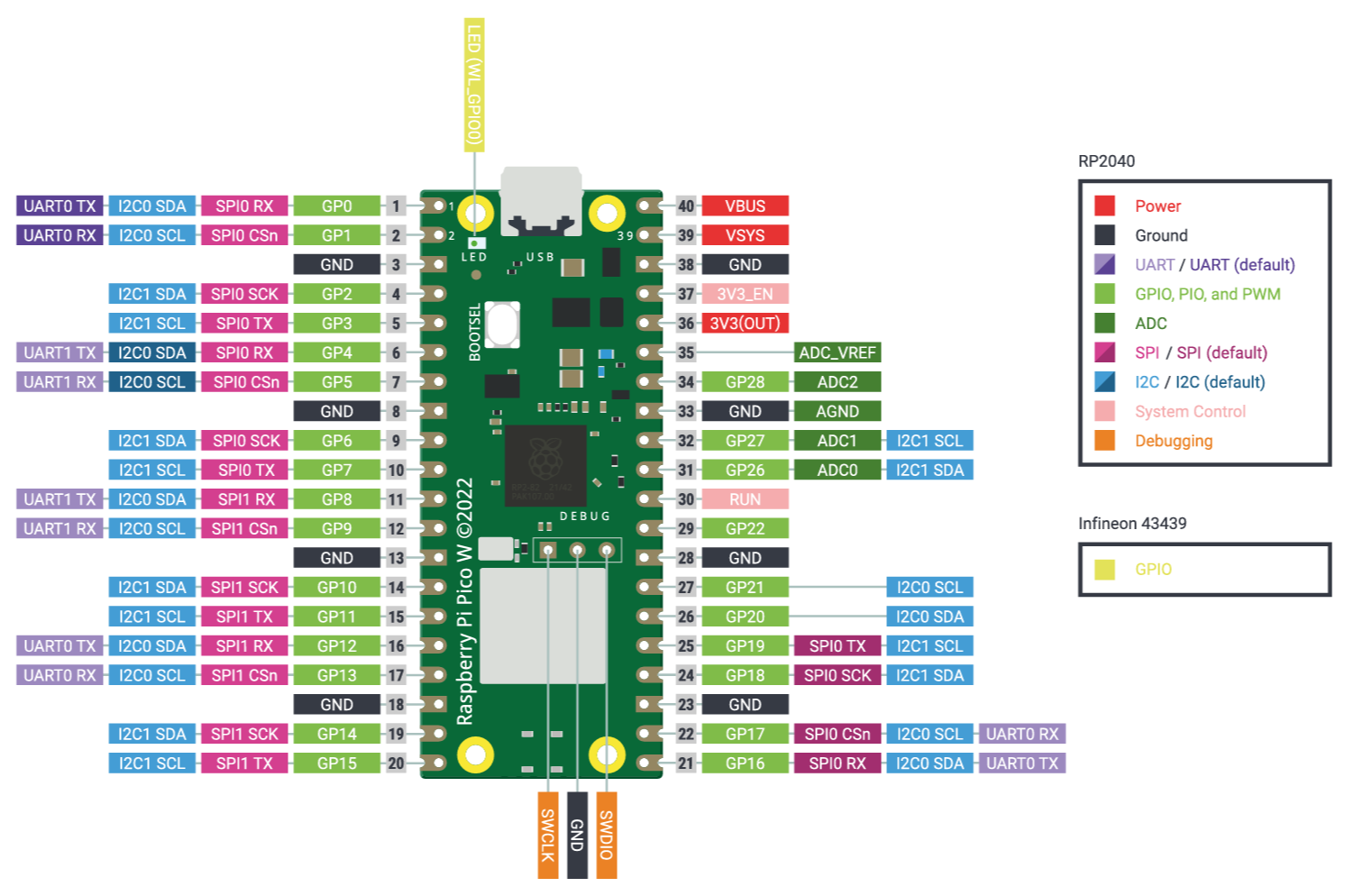

There are 26 multifunctional pins on the board as part of 40 GPIO pins:

Overall dimensions (mm): 51 х 21

Information for developers Wiki: Raspberry_Pi_Pico

The package includes:

1. Raspberry Pi Pico W board - 1 pc.

Weight: 0.006 kg
