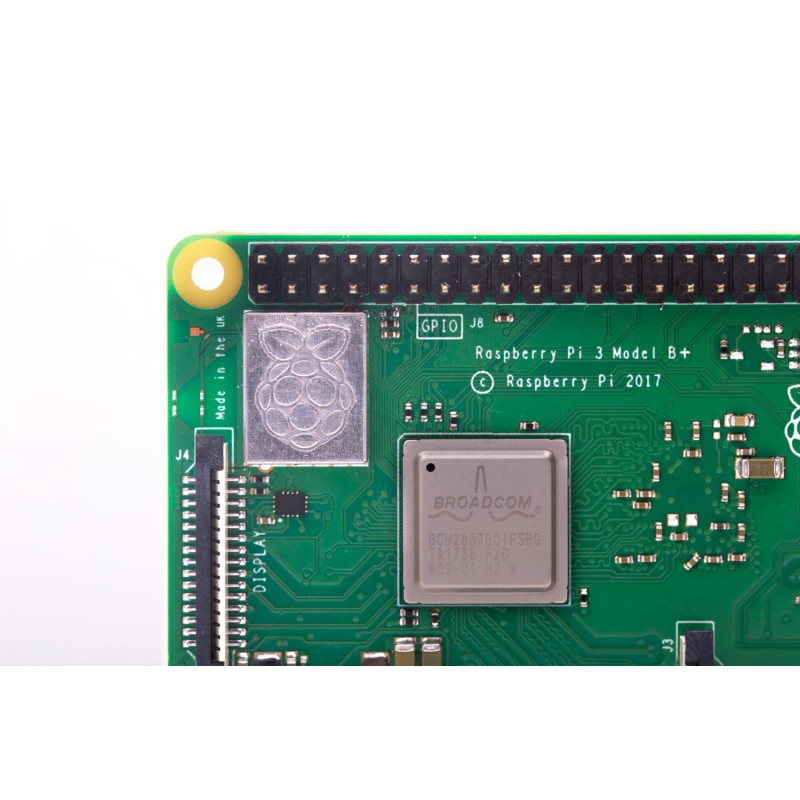

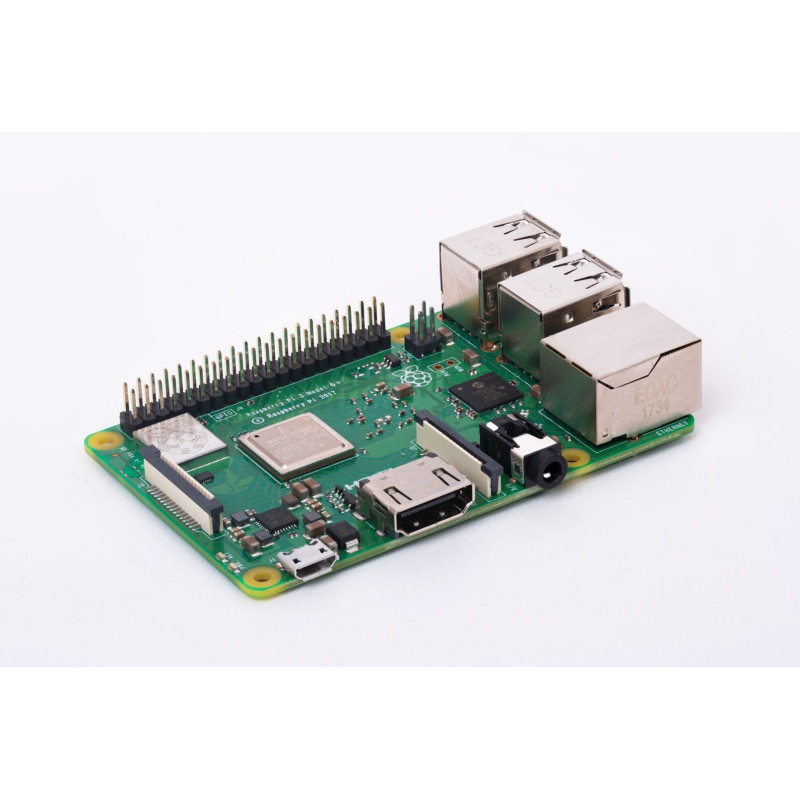

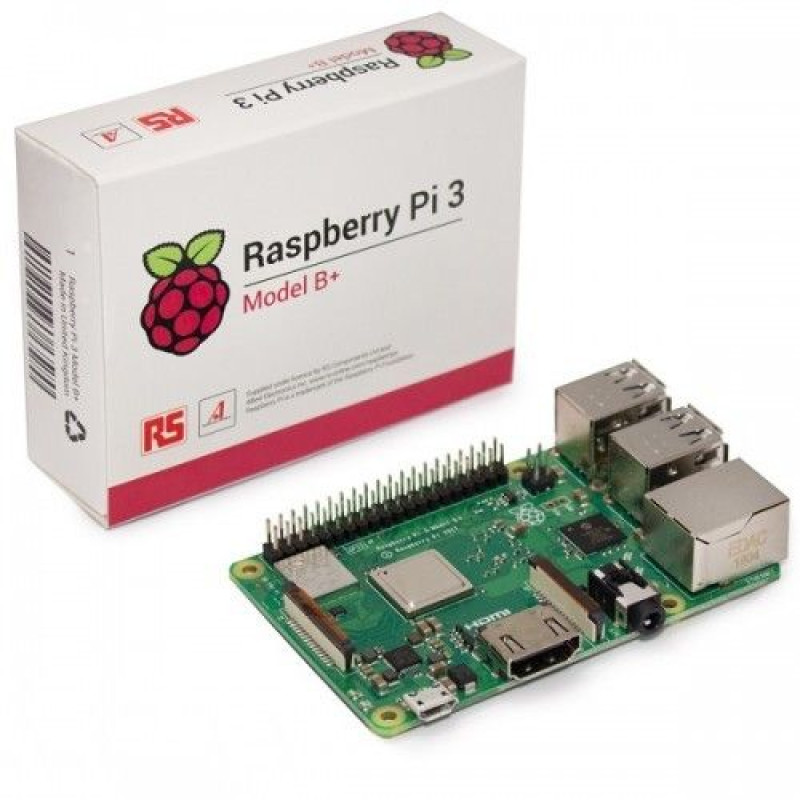

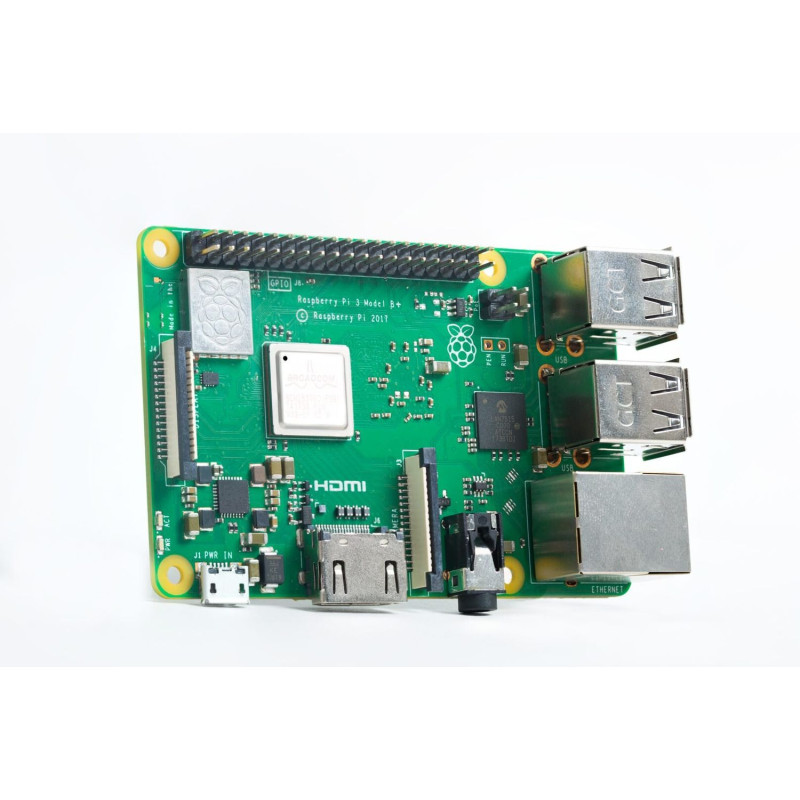

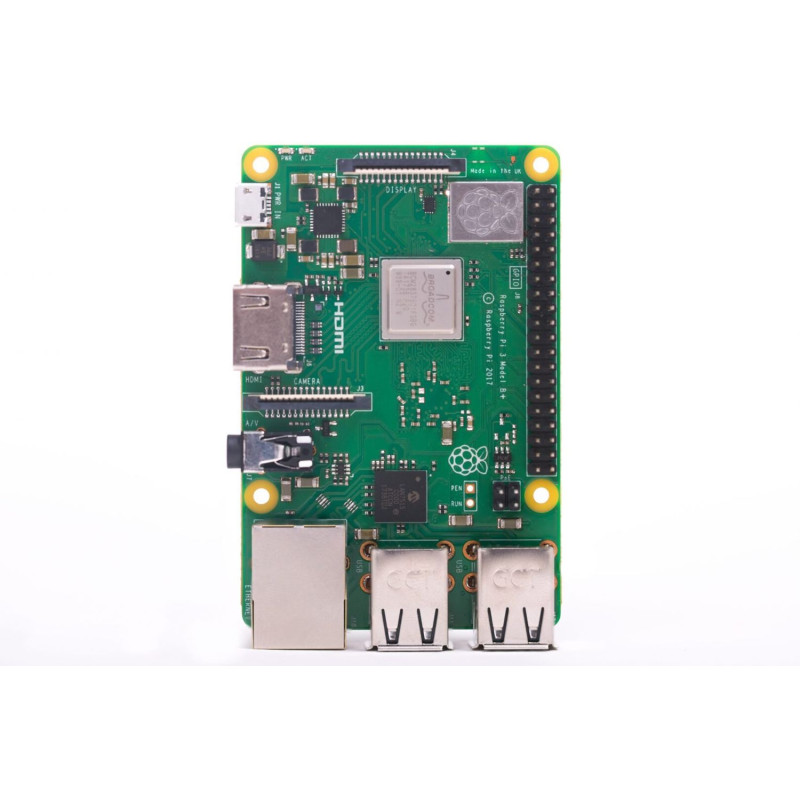

The Raspberry Pi 3 Model B+ (RPI3-MODBP ) is a full-fledged single-board computer the size of a bank card. The Raspberry Pi 3 Model B+ is an improved version of the Raspberry Pi 3 Model B. The model is based on the BCM2837B0 SoC (system-on-chip), which includes a 4-core ARMv8 64-bit processor with a 1.4 GHz operating frequency and a powerful VideoCore IV video processor.

The Raspberry Pi 3 Model B was the first Raspberry Pi to feature wireless and Bluetooth connectivity. Raspberry Pi Model B+ has the same features, but unlike its predecessor, it has Bluetooth version 4.2.

Raspberry Pi was developed as an affordable platform for experimentation and education in computer programming. The Raspberry Pi can be used for many things similar to what a regular desktop PC does, including word processing, spreadsheets, high-definition video, games, and programs. USB devices such as keyboards and mice can be connected via the board's four USB ports.

A distinctive feature of Raspberry Pi microcomputers is the presence of a 40-pin GPIO connector for controlling various devices and its small size, thanks to which the Raspberry Pi can also work as a programmable controller in a wide variety of robotics and electronics applications. Alternatively, it can be combined with the Pololu A-Star 32U4 Robot Controller LV with Raspberry Pi Bridge to create a controller for this small robot.

Thanks to the standard 40-pin GPIO connector, the microcomputer can be connected to various expansion cards to add the necessary functionality.

The Raspberry Pi can work with a wide range of ARM GNU/Linux distributions, including Ubuntu Snappy Core, Debian, Fedora and Arch Linux, as well as Microsoft Windows 10 IoT Core.

Specifications:

• Chip: Broadcom BCM2837B0 (CPU, GPU, DSP, and RAM)
• Processor (CPU): 64-bit 4-core ARMv8 Cortex-A53 with a clock speed of 1.4 GHz
• Video processor (GPU): VideoCore IV 3D
• Memory (RAM): 1 GB LPDDR2 (900 MHz)
• Connectors:
  • audio / video digital: HDMI
  • audio / video analog: 3.5 mm jack (4 pin)
  • USB port: USB 2.0 - 4 pcs
• Storage device: microSD
• Network: 10/100 Ethernet
• Display port: Display Serial Interface (DSI)
• Camera port: MIPI Camera Serial Interface (CSI-2)
• Input-output connector: GPIO 40 pin
• Wireless interfaces:
  • WiFi: 2.4 GHz dual-band and 5 GHz IEEE 802.11.b/g/n/ac 2.4 GHz
  • Bluetooth 4.2 Classic and Low Energy (BLE)

Please note! The Raspberry Pi is powered by 5V, but its logic operates at 3.3V, so accidentally or intentionally connecting a higher voltage of 5V directly to the GPIO I/O connector pins may damage the board.

We also recommend that you purchase additional equipment from our store that is not included in the basic package:

• A 5V power supply with a micro USB connector and 1.8A current.
• A Micro-SD card with an operating system, which also serves as the main storage for the device.
• Raspberry Pi case for convenience and protection of the board.
• Input and output devices such as a keyboard, mouse and monitor.

Overall dimensions: 85mm x 56mm x 17mm

Weight: 0.050kg
