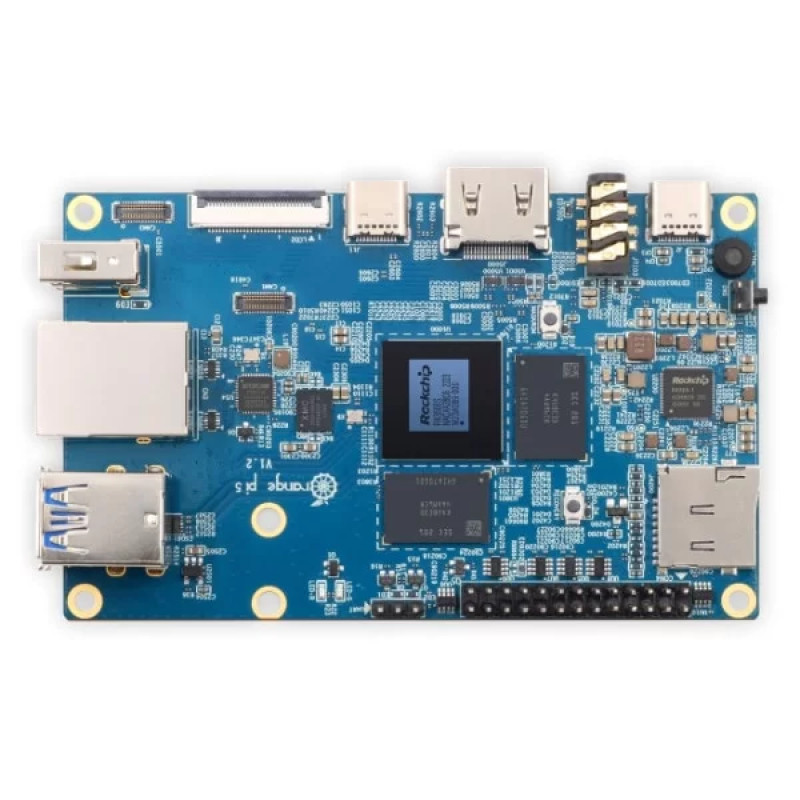

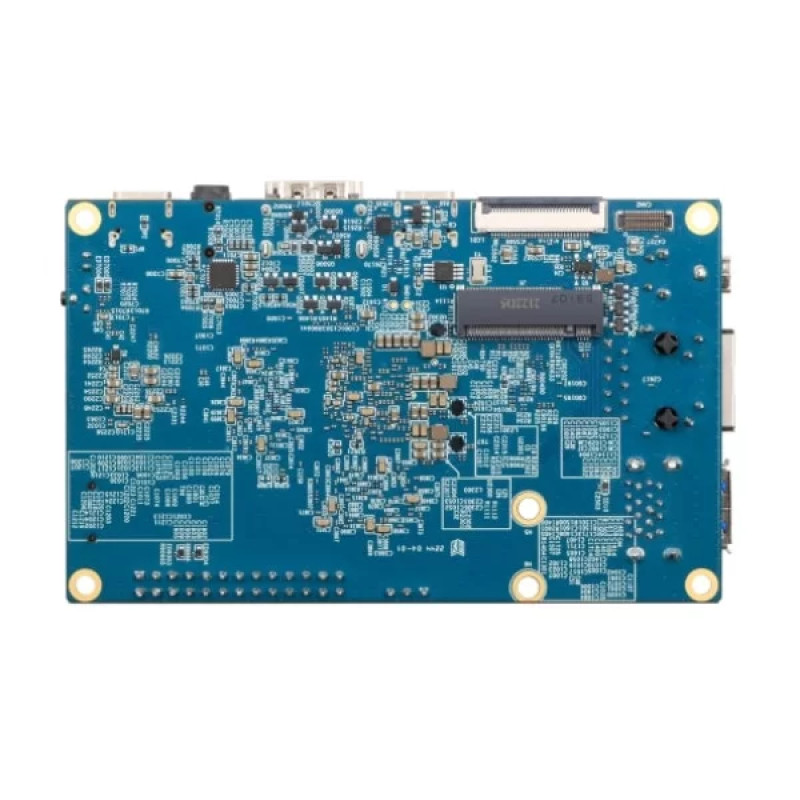

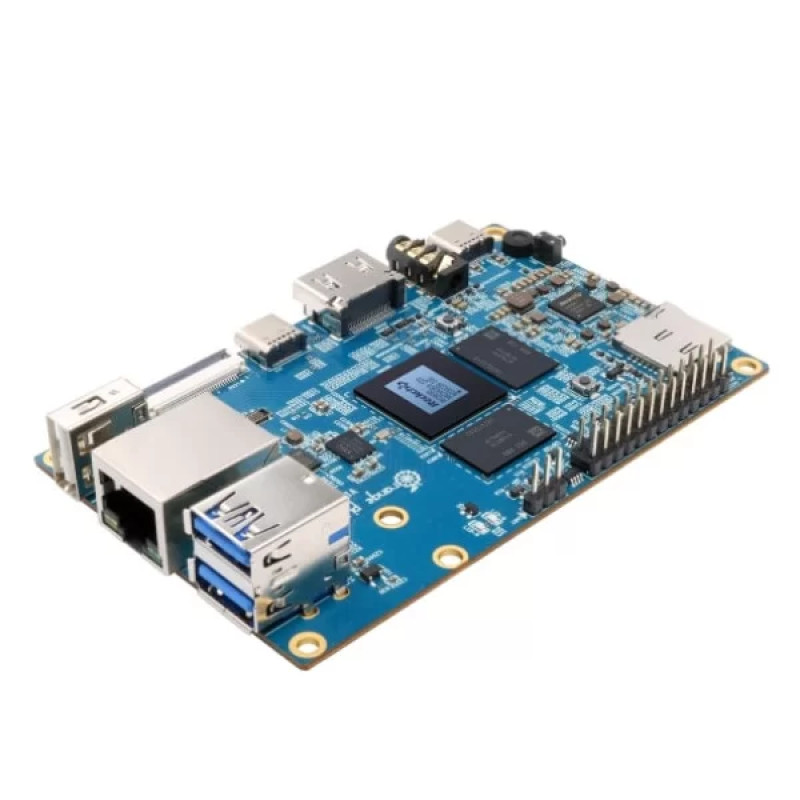

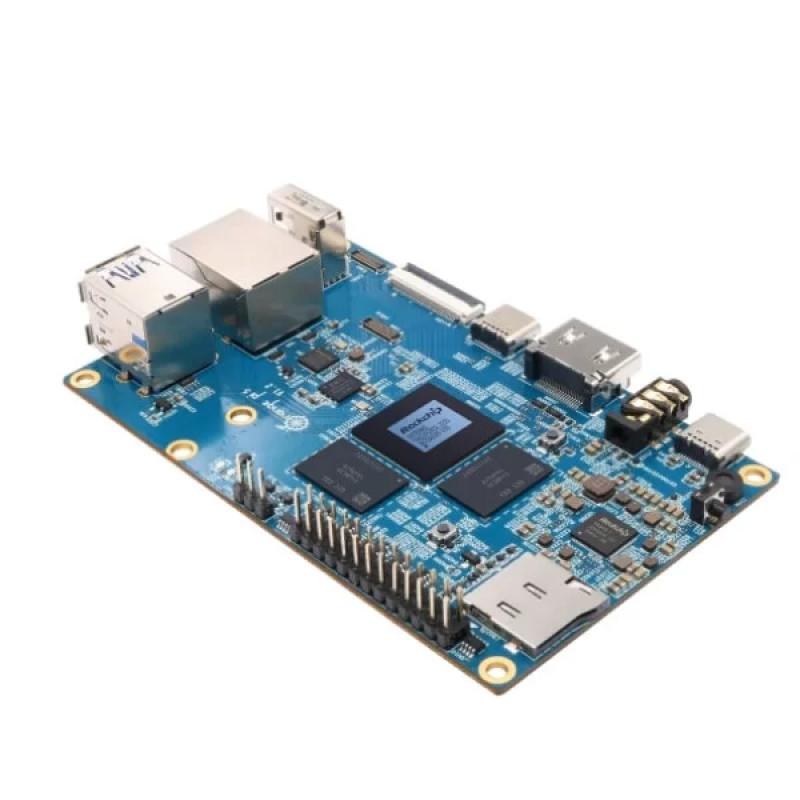

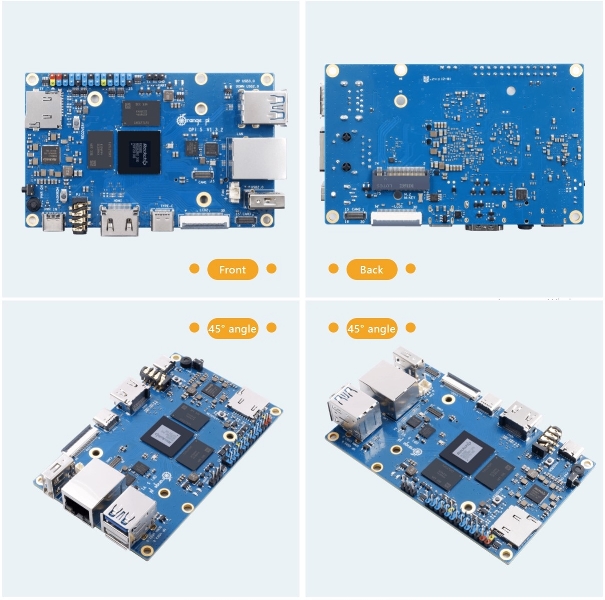

Microcomputer Orange Pi 5 4GB

The Orange Pi 5 4GB microcomputer is a powerful single-board computer equipped with 4GB of RAM that offers a wide range of possibilities for developing and implementing various projects. Featuring a high-performance Rockchip RK3588 processor and support for high-quality graphics, this microcomputer is ideal for applications in artificial intelligence, multimedia projects, automation, and software development.

Key features:

• High performance thanks to an 8-core processor
• 4 GB of RAM for efficient multitasking
• Supports 4K/8K video for multimedia applications
• Support for USB 3.0, HDMI 2.1, Ethernet, PCIe ports and interfaces
• Advanced connectivity via USB 3.0, HDMI and Ethernet
• Compatible with a variety of operating systems for flexible development (Android, Ubuntu, Debian and other Linux distributions)
• According to the test results, the processing power of the Orange Pi 5 is twice that of the Raspberry Pi 4.
• The Orange Pi can output 8k resolution images, which is 4 times the resolution of the 4k resolution Raspberry Pi 4.

Specifications:

• System on Chip (SoC): Rockchip RK3588S (8 nm LP process)
• Processor: 8-core 64-bit processor
• Architecture: Big.Little 4xCortex-A76 and 4xCortex-A55, large core: supports 2.4 GHz and small core - 1.8 GHz.
• Video card: Arm Mali-G610 MP4 "Odin" GPU
• Compatibility: OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2
• Neural network processor (NPU): built-in Al NPU accelerator with support for INT4/INT8/INT16 mixed operation up to 6 TOPS
• Complex amplitude meter (PMU): RK806-1
• Random Access Memory (RAM): 4 GB/8 GB/16 GB/32 GB (LPDDR4/4x)
• Memory: QSPI Nor FLASH 16 MB
  slot for MicroSD (TF) card
  M.2 M-KEY connector
• USB: USB3.0 × 1
  USB2.0 × 2
  Type-C (USB3.0) × 1
• Video output: HDMI2.1, up to 8K @ 60 Hz
  DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed and the port is shared with Type-C
  2* MIPI D-PHY TX 4Lane, configurable up to 4K @ 60Hz
• Camera: MIPI CSI 4Lane
  2* MIPI D-PHY RX 4Lane
• Audio: ES8388 codec
  audio input/output for 3.5 mm headphones
  built-in microphone
  HDMI 2.1 eARC
• Network interface: 10/100/1000 Mbps Ethernet
• Expansion connector: for expanding UART, PWM, I2C, SPI, CAN and GPIO interfaces.
• M.2 M-KEY connector expansion: support for PCIe NVMe SS
  support for a special PCIe Wi-Fi6+BT5.0 module
• Buttons: MaskROM button × 1
  recovery button × 1
  On/Off button × 1
• Power supply: Type-C, 5 V, 4 A
• Indication: red power indicator
  green status indicator
• Cooling: 5V fan
• Debugging: 3-pin debug port (UART)
• Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12

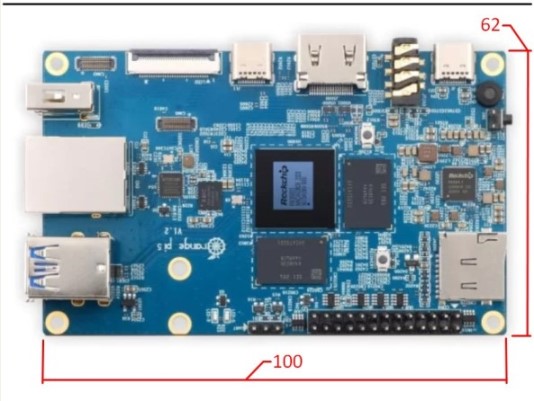

Overall dimensions: 100mm × 62mm

Weight: 46g
